278 error destructive misfire obd error

Discussion in 'Faults, Problems & Solutions' started by Suspect, Jan 12, 2017.

  1. Suspect

    Suspect

    Joined:
    May 8, 2016
    Messages:
    15
    Location:
    London
    Car:
    Clio182
    Hello fellow Renault gang i am new to the forum I hope all are well I need some help just recently got me a 182 and it's misfiring I uhave checked on a snap on machine and i get 278 destructive misfire obd error read all the threads and followed them but still have a issue please if your in the London area and can help me post back look forward to your replies :wink:

  2. STEVE.M

    STEVE.M ClioSport Club Member

    Joined:
    May 18, 2014
    Messages:
    2,150
    Location:
    Luton,Beds
    Car:
    clio 172,pug 106D
    Number 1 cylinder is the gearbox end on a Renault.
    I`m not sure if Snap On reader recognises this?
    @bloke

  3. Suspect

    Suspect

    Joined:
    May 8, 2016
    Messages:
    15
    Location:
    London
    Car:
    Clio182
    Hello mate today I drove to work and it seems to have got better I thought snap on machine are top of the range ??? I need a Clio sport enthusiast to walk me through this I was told change the Ht leads tbh my lead looked fine just a waste of money I'm not a technical expert however I have brought a brand new tool kit and am willing to deal with the matter deal with it proper by myslef as I have taken it to many mechanics n they try to do me over. Anyone that's in the London area that can help I will really appreciate it.

  4. Louis'

    Louis' ClioSport Club Member

    Joined:
    Apr 4, 2015
    Messages:
    2,022
    Location:
    York/Huddersfield
    Car:
    BG 182
    The snapon ones can send you in lots of different directions. Clips the best.

  5. STEVE.M

    STEVE.M ClioSport Club Member

    Joined:
    May 18, 2014
    Messages:
    2,150
    Location:
    Luton,Beds
    Car:
    clio 172,pug 106D
    Sorry, I have things to do today.
    Destructive misfire usually ( that`s USUALLY) indicates an injector problem.
    If you can get it plugged into CLIP, Renault`s own diagnostics system before spending money on any parts would be my advice.
    You could try moving the injectors around to confirm the fault code follows the injector.
    Is your 172 PhASE 1 (cable throttle) or PhASE 2 with fly by wire throttle?

    Most of these threads seem to go down this road.
    http://www.cliosport.net/threads/slight-misfire-no-eml.802964/#post-11289964

    jamesycc likes this.
  6. bloke

    bloke ClioSport Club Member

    Joined:
    Nov 24, 2013
    Messages:
    5,709
    Location:
    wirral
    Car:
    dan's cast offs.
    not used snap on for a while, from what i remember it knows the right location for no.1.

  7. Suspect

    Suspect

    Joined:
    May 8, 2016
    Messages:
    15
    Location:
    London
    Car:
    Clio182
    Hello thanks for the responses I have a 54 plate 182 sport I have no idea how to move around injectors is it a mission to do this ???

  8. STEVE.M

    STEVE.M ClioSport Club Member

    Joined:
    May 18, 2014
    Messages:
    2,150
    Location:
    Luton,Beds
    Car:
    clio 172,pug 106D

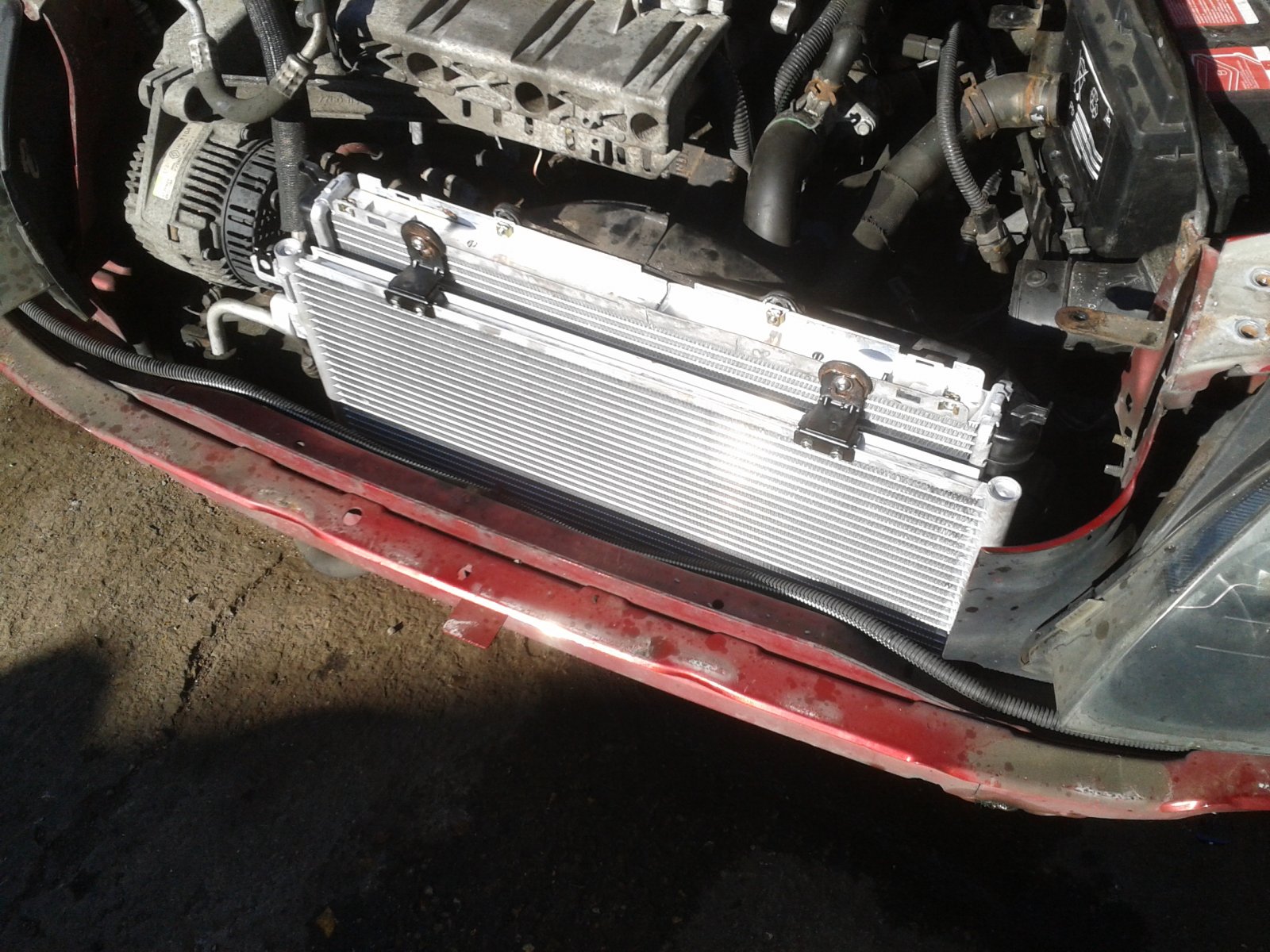

    Injectors are under the metal cover with the 3 holes in it on the front of the engine.10mm deep socket required.CLIO RADS 2015-09-30 14.53.03.jpg

  9. Suspect

    Suspect

    Joined:
    May 8, 2016
    Messages:
    15
    Location:
    London
    Car:
    Clio182
    Steve m thanks for the reply and the image aswell I need a CLIP machine if I took it Renault they will charge me up the ar*e. And how sure are you it's the injectors thats playing up and not my coil pack tbh I need someone in London area that loves these 182s or knows why they keep playing up. Today no EML flashing but it's intermittent I just don't get this injector or coil pack malarky

  10. Typhoon

    Typhoon Gangsta ClioSport Moderator

    Joined:
    Apr 7, 2012
    Messages:
    4,205
    Location:
    Berkshire
    Car:
    197
    People aren't just going to come and do it for you I'm afraid mate, that's what garages are for and excuse me if I'm misunderstanding but it almost seems like you've signed up to get someone to come and fix the issue for you FOC.

    flebay and STEVE.M like this.
  11. STEVE.M

    STEVE.M ClioSport Club Member

    Joined:
    May 18, 2014
    Messages:
    2,150
    Location:
    Luton,Beds
    Car:
    clio 172,pug 106D
    Harsh words? He`s been here since May.

    Typhoon likes this.
  12. Suspect

    Suspect

    Joined:
    May 8, 2016
    Messages:
    15
    Location:
    London
    Car:
    Clio182
    Typhoon Mate free of charge you having a laugh have you once seen me ask anyone to come and fix this . I been going to garages and they have no idea I been reading the forum for a while and noticed people have similar issues. I've read the prior post and no 1 has actually cured the issue.

  13. STEVE.M

    STEVE.M ClioSport Club Member

    Joined:
    May 18, 2014
    Messages:
    2,150
    Location:
    Luton,Beds
    Car:
    clio 172,pug 106D
    I `d spend a few hours on You Tube looking at the how to vids. Swapping injectors around will cost you nothing.
    No good guessing at coil pack, could just as easily be plugs, leads etc.
    Think @M90SR had that fault code & it was injectors.

  14. Typhoon

    Typhoon Gangsta ClioSport Moderator

    Joined:
    Apr 7, 2012
    Messages:
    4,205
    Location:
    Berkshire
    Car:
    197
    You keep saying in London etc. The club is worldwide, plenty of knowledgeable folk on here. Have you swapped injectors about as advised? Take it to a RenaultSport specialist near you. They'll a) have CLIP & b) be able to fix it.

  15. Suspect

    Suspect

    Joined:
    May 8, 2016
    Messages:
    15
    Location:
    London
    Car:
    Clio182
    Okay mate thanks for your reply the reason I keep mentioning London is coz I don't know no Renault sport specialists that's why I'm asking if there are anyone around here that know about this issue here I went to Renault and they was talking about doing a water ingress test as they think it was a ecu problem tbh mate I feel hostility from you typhoon. What's that all about.

  16. Louis'

    Louis' ClioSport Club Member

    Joined:
    Apr 4, 2015
    Messages:
    2,022
    Location:
    York/Huddersfield
    Car:
    BG 182
    It did come across that way a little mate! Everyones here to help on the forum, but there's only so much diagnostics you can do over the internet. I'd get the injector swapped over first and see if the problem follows, if not then look at changing the coil pack/leads. Fair enough you can send them back if they aren't the problem but you'll spend more time doing that than taking it to a specialist.

  17. Louis'

    Louis' ClioSport Club Member

    Joined:
    Apr 4, 2015
    Messages:
    2,022
    Location:
    York/Huddersfield
    Car:
    BG 182
    There's no hostility mate, it's just there was another thread a few weeks back with someone demanding help with capitals etc before introducing themselves in the first place. Replace the things you feel comfortable with first, then keep going. Injectors/coils etc aren't too challenging.

  18. Suspect

    Suspect

    Joined:
    May 8, 2016
    Messages:
    15
    Location:
    London
    Car:
    Clio182
    Steve m I have changed the leads , plugs not done the coil pack came on this site and realised it's either a coil pack or injector. I can change the coil pack myself but as for the Injector I didn't know whether to do it myslef or not and just wanted some clarity into if it's a mission to do or not. Most the mechanics I have had bad experiences with London Renault said I have to wait a month for a appointment so that's why I'm tryin to figure this out my self. I looked @M90SR and can't seem to find nothing about a 182 issue with a misfire .

  19. Suspect

    Suspect

    Joined:
    May 8, 2016
    Messages:
    15
    Location:
    London
    Car:
    Clio182
    Thanks Louis sorry to come across like I wanted FOC help. I've just brought the 182 a few weeks ago and it's playing up ppl mention when it's cold or wet it happens to their car. Reading the posts of others I just thought of asking if anyone's in London as they could point me in the right direction. I know diagnosing over the internet is a mission hence I'm asking if anyone is from London. I will look at tryin to swap over the injectors and see if this changes as for the coil pack do you know of any way to check if it's working without the specialist tools that would be required.

  20. Louis'

    Louis' ClioSport Club Member

    Joined:
    Apr 4, 2015
    Messages:
    2,022
    Location:
    York/Huddersfield
    Car:
    BG 182
    I'm not sure if there is a way to actually 'test it' so to speak, but i'm not the best person to be asking. If you swapped it out, and it still misfired then your problem isn't that. Do you know what sort of fuel has been in the car too? As supermarket fuel can lead to problems albeit probably not to this magnitude.

  21. Suspect

    Suspect

    Joined:
    May 8, 2016
    Messages:
    15
    Location:
    London
    Car:
    Clio182
    So what fuel do you put in your car v power ??? I need to change the pack and check the injectors .

  22. Louis'

    Louis' ClioSport Club Member

    Joined:
    Apr 4, 2015
    Messages:
    2,022
    Location:
    York/Huddersfield
    Car:
    BG 182
    Yeah, High octane is recommended, it's even on the flap!

  23. jamesycc

    jamesycc

    Joined:
    Apr 26, 2014
    Messages:
    984
    Location:
    Brizzle
    Car:
    RS Megane 225 Lux
    As mentioned by @STEVE.M check out the other thread. There's a few handy pointers for injector removal/coilpack testing that'll cist you nothing but an hour of your time.

  24. STEVE.M

    STEVE.M ClioSport Club Member

    Joined:
    May 18, 2014
    Messages:
    2,150
    Location:
    Luton,Beds
    Car:
    clio 172,pug 106D
    I think I am correct in saying there is no London RS specialist, so I can understand his dilemma.
    Rentech in Hants would seem to be closest to London.
    OP is probably correct in that Renault main dealers will take him to the cleaners though.

    Keeping a 14 year old high performance hatch on song will mean ongoing expenditure, but not as much as the instant depreciation as you drive your brand new ST220 off the forecourt.

  25. Typhoon

    Typhoon Gangsta ClioSport Moderator

    Joined:
    Apr 7, 2012
    Messages:
    4,205
    Location:
    Berkshire
    Car:
    197
    I'm London and I'm more than happy to drive all the way to Nottingham for Mick as I know it's a fair price for the knowledge and care he uses. I do understand the main dealers pulling your pants down however.

    STEVE.M likes this.
  26. STEVE.M

    STEVE.M ClioSport Club Member

    Joined:
    May 18, 2014
    Messages:
    2,150
    Location:
    Luton,Beds
    Car:
    clio 172,pug 106D
    Mick`s my 1st port of call for anything I don`t want to attempt myself.

  27. Suspect

    Suspect

    Joined:
    May 8, 2016
    Messages:
    15
    Location:
    London
    Car:
    Clio182
    Thanks mate I will do

  28. Suspect

    Suspect

    Joined:
    May 8, 2016
    Messages:
    15
    Location:
    London
    Car:
    Clio182
    I did extensive research and there is no Renault specialists in London going Notts is a mission and a half

  29. STEVE.M

    STEVE.M ClioSport Club Member

    Joined:
    May 18, 2014
    Messages:
    2,150
    Location:
    Luton,Beds
    Car:
    clio 172,pug 106D
    He sorted it himself with a full set of good injectors from cs-dave,having pinpointed the problem by moving a couple of injectors around.

  30. Suspect

    Suspect

    Joined:
    May 8, 2016
    Messages:
    15
    Location:
    London
    Car:
    Clio182
    Thanks Steve and James I will defo look into the other thread hopefully it will not be as hard as I thought it would be.

  31. STEVE.M

    STEVE.M ClioSport Club Member

    Joined:
    May 18, 2014
    Messages:
    2,150
    Location:
    Luton,Beds
    Car:
    clio 172,pug 106D
    Long story short, a set of used injectors & rail off here for £25 sorted this.
