Brembo 4 pot cad drawings

[robbie514566]

Does anyone have or know where I can find drawings of the Clio 197/ Megane 225 brembo 4 pot callipers ?

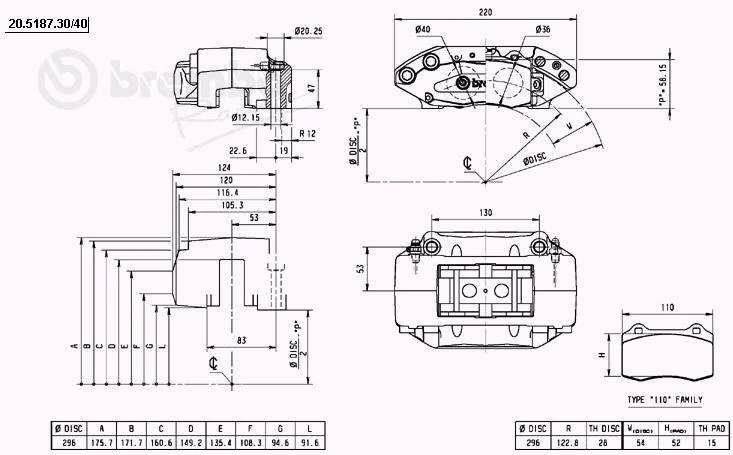

Similar to this sort of thing ...



[botfch]

I doubt your going to find accurate drawings on the web. Best bet would be to go direct to Brembo.

What do you need them for?



[robbie514566]

I doubt your going to find accurate drawings on the web. Best bet would be to go direct to Brembo.

What do you need them for?

Ah ok cheers was just trying my luck ..
Going to be making my own brackets and wanted to start to plan them before I get the callipers.



[botfch]

Ah, I assume you have access to cnc so I'd just stick the calipers in the CMM when you get them.



[Knuckles]

Ah ok cheers was just trying my luck ..
Going to be making my own brackets and wanted to start to plan them before I get the callipers.

What is it you need? Bolt centres and a clearance for the bracket on the inboard edge of the calliper?



[robbie514566]

Ah, I assume you have access to cnc so I'd just stick the calipers in the CMM when you get them.

Yeh I do and, will be Ordering them this week so will when I get them.

What is it you need? Bolt centres and a clearance for the bracket on the inboard edge of the calliper?

Yeh just everything I needed to make the brackets and the dimensions to make the calliper sit correctly on the disc.



[Crombievxr]

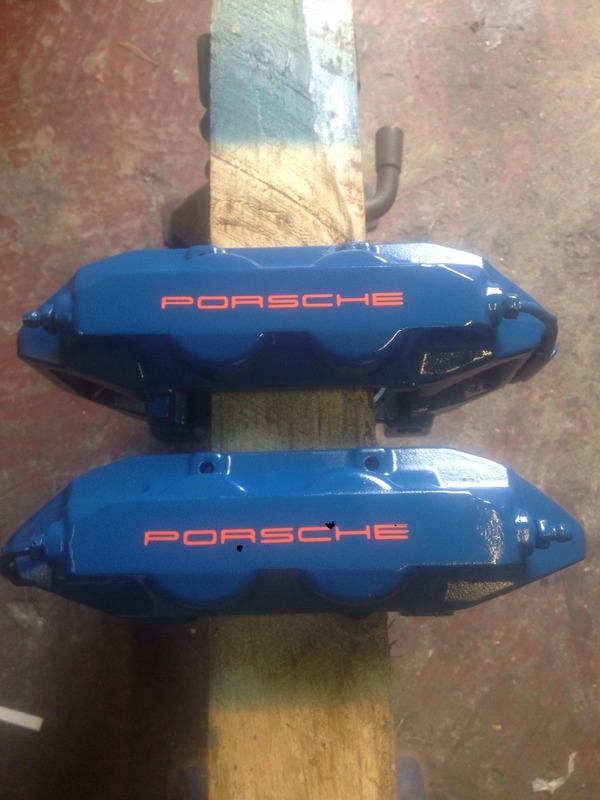

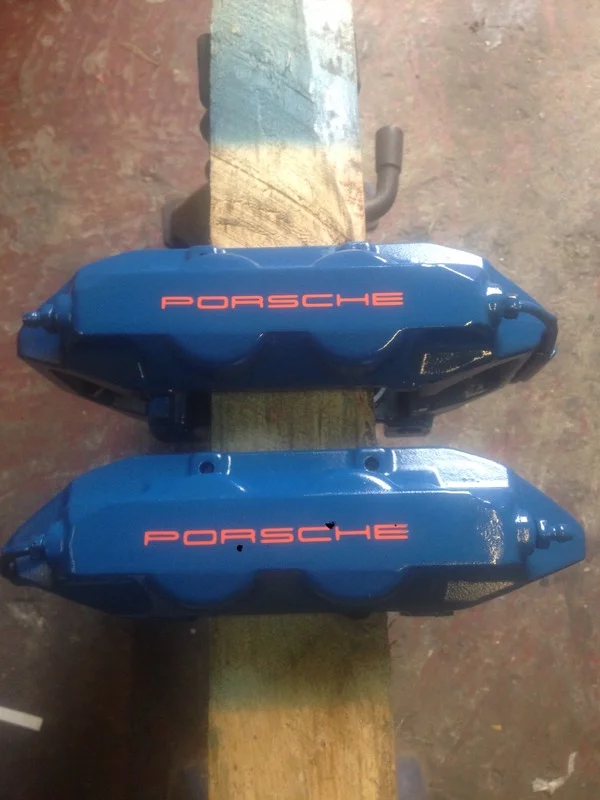

Iv got a set of callipers in my garage from a Porsche. Same as Megane/197 and corsa Nurburgring calipers. I got them for my vxr and have another set coming for my new 172 cup so I can give you any measurements you need



[Crombievxr]



[Knuckles]

Result.



[robbie514566]

Iv got a set of callipers in my garage from a Porsche. Same as Megane/197 and corsa Nurburgring calipers. I got them for my vxr and have another set coming for my new 172 cup so I can give you any measurements you need

That would be handy if you could mate ? The main ones I need would be hole diameters, distances between the mounting hole centres and the measure to from the hole centres to the centre of where the disc will locate.
Thanks again



[Crombievxr]

No problem. I no the hole centres are 130mm as that's what I needed for my vxr. I was just going to buy the brackets for the clio. What size discs are used on the clio ?



[NorthloopCup]

Hole centres for the brembos are 130mm, 142mm for the bracket to hub mounting face.



[NorthloopCup]

Oh and 24mm thick for the bracket with the threaded hole smack bang in the middle, so 12mm. The caliper holes are 14mm as well :up:



[Crombievxr]

What size discs are you using ? I'm running 321mm on my Astra vxr



[robbie514566]

Hole centres for the brembos are 130mm, 142mm for the bracket to hub mounting face.

Oh and 24mm thick for the bracket with the threaded hole smack bang in the middle, so 12mm. The caliper holes are 14mm as well :up:

Cheers that's what I needed. [emoji106]

What size discs are you using ? I'm running 321mm on my Astra vxr

Thanks,
Looking at using standard discs at the moment as I want them under 15"s.
