Safety Devices Rear Cage Fitting



R29TJR

ClioSport Club Member
  2005 RB 182 Cup
Good Afternoon All,

I've recently purchased a rear Safety Devices cage for my Clio 182 however I'm after a little help regarding fitting.

Below is a picture of the cage and fitting plates however I'm after a little help/guidance on fitting:

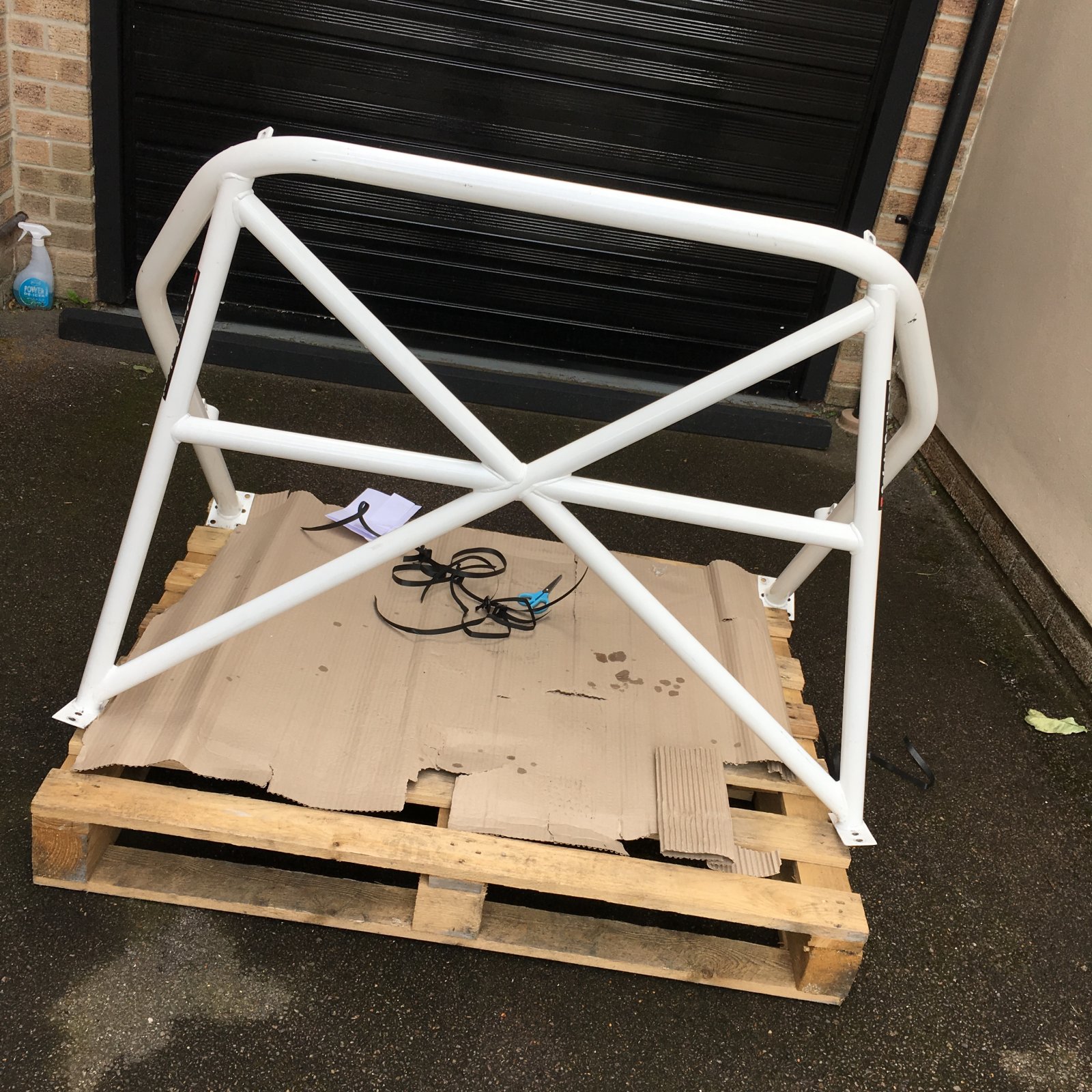

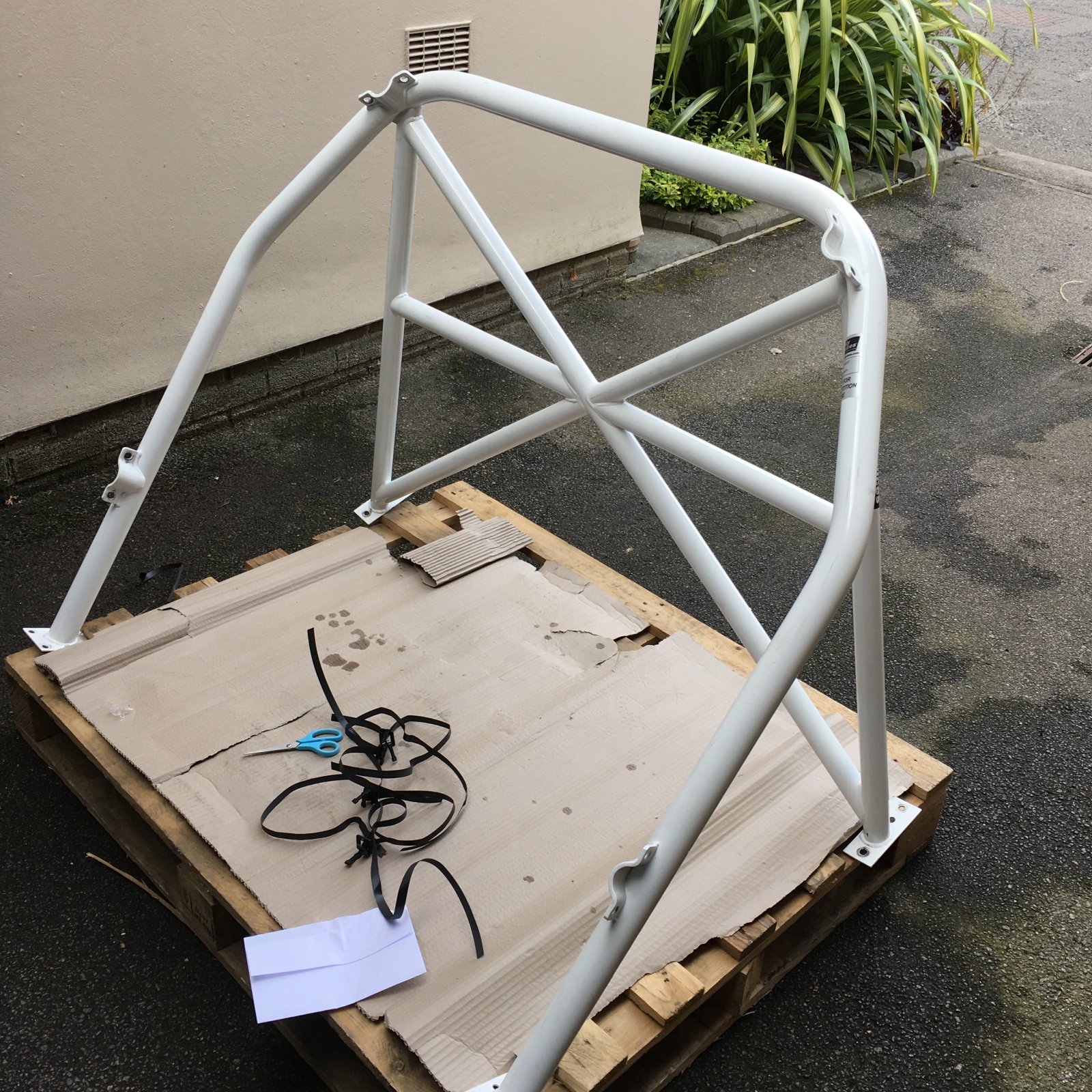

Cage:

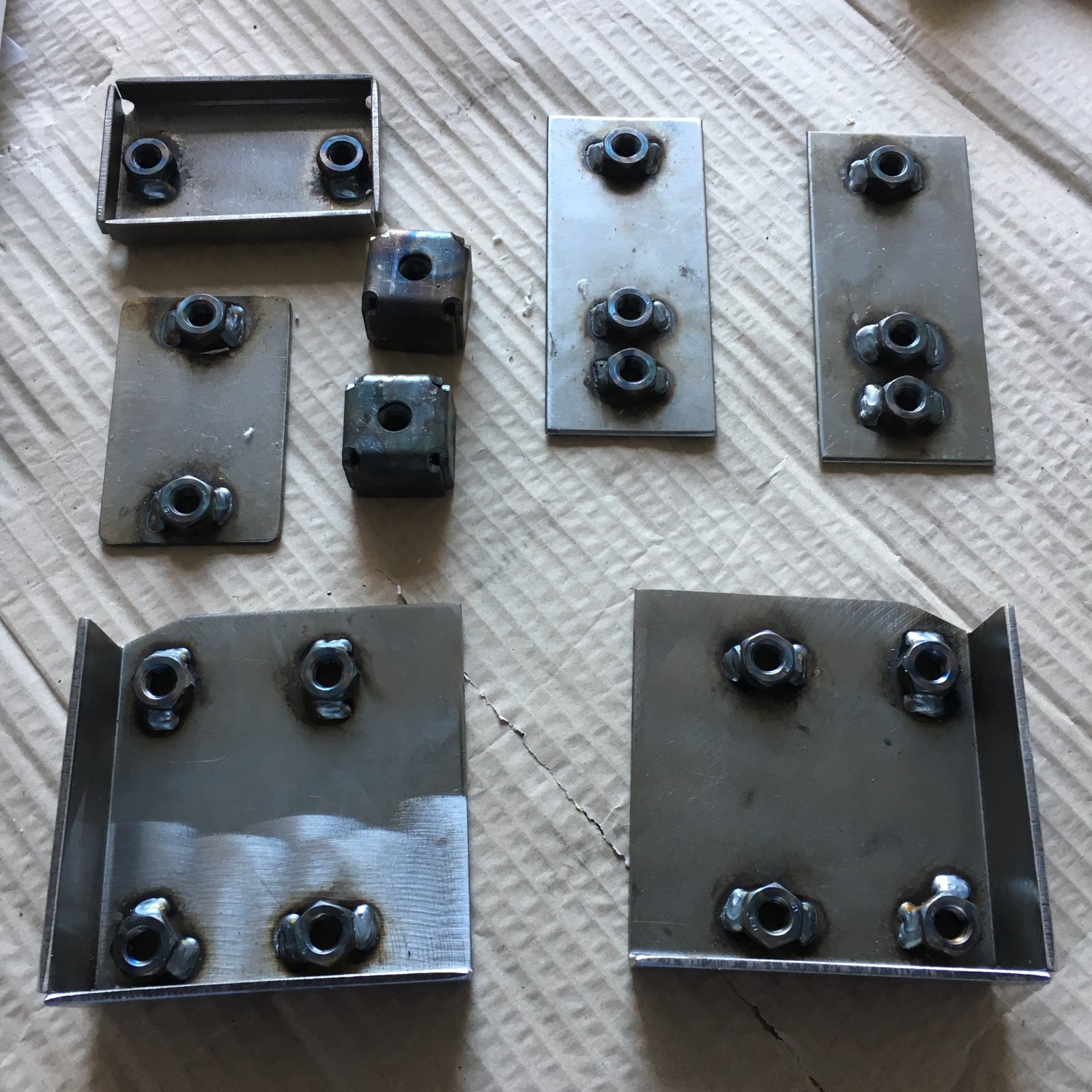

Fitting plates:


Firstly I wanted to ensure I was holding all the bracket/plates required? As this was second hand from Safety Devices & secondly I'm at a slight loss so to weather or not I'm require to weld the plates to the floor?

Assuming I do not need to weld plates, the two plates in the top right of the final pic cover the wheel arch mounts but what would I use on the front mounts of the rear cage? I can't imagine you fit the bottom two mounts with the lip on? Although I may be wrong?

Any help would be great.

Tom


Scrooge

ClioSport Moderator
  E55 AMG
Plates are welded to the floor iirc mate

Those bottom two plates with the lip weld in the other way up on the rear foot wells up against the bench seat


R29TJR

ClioSport Club Member
  2005 RB 182 Cup
Plates are welded to the floor iirc mate

Those bottom two plates with the lip weld in the other way up on the rear foot wells up against the bench seat

I did think that was the case however there are very limited instructions provided so hard to work out for a idiot like me! I didn't know if welding could be avoided? Assuming welding is required does Steve (I think that was his name!) weld on cars?!

If so I may be over again one day!

  Clio 172 Merc ML55
Unfortunately welding will be required I'm afraid, the rear arch stays are bolt through but as mentioned above the feet are welded to the footwells. The other brackets in the top left of the pic aren't required (these are for extra supports that you're cage doesn't have)


R29TJR

ClioSport Club Member
  2005 RB 182 Cup
Unfortunately welding will be required I'm afraid, the rear arch stays are bolt through but as mentioned above the feet are welded to the footwells. The other brackets in the top left of the pic aren't required (these are for extra supports that you're cage doesn't have)

Perfect.

Thanks for the confirmation. Just to find a welder now!


R29TJR

ClioSport Club Member
  2005 RB 182 Cup
Steve can do it mate

Perfect. I just need to work out a way to get both the car and roll cage across to your guys!

I'm on holiday from Thursday but I'll drop you a text when I get home if that's @Scrooge to hopefully arrange a date.


Scrooge

ClioSport Moderator
  E55 AMG
Perfect. I just need to work out a way to get both the car and roll cage across to your guys!

I'm on holiday from Thursday but I'll drop you a text when I get home if that's @Scrooge to hopefully arrange a date.

No worries mate, have a good holiday

  Golf 7.5R & Clio 200
Perfect. I just need to work out a way to get both the car and roll cage across to your guys!

I'm on holiday from Thursday but I'll drop you a text when I get home if that's @Scrooge to hopefully arrange a date.

Hey, where abouts in Essex are you? Welcome to have a poke around my 182. I have the same cage fitted and plates welded.

I'll take some pics in a little bit and upload here to give you an idea. I'm in Benfleet if you wanted to take a look.

  BMW M135i; Clio 172
Good price that cage was, I was so close to buying it! Gutted now (😞) cos it looks mint :cool:.

Congrats on your purchase :up:.

  Rs4
I bought the full cage all be it a dash dodger but im not intending or racing any time soon.
Hopefully get the brackets in this weekend.

  Clio 172 Merc ML55
lol indeed it is :)
It will be well looked after :up:

And its gone 20 mile up the road lol, apologies for the scratch marks, it was an arse tonget out on my own.

If you decide to run an aftermarket rear view mirror let me know and you can have the brackets from my longacre one that was on there mate

  Rs4
That's hilarious, small world!
I presume you race yours if you went for the upgrade?
The bracket would be great bud let me know how much your after :up:

  Clio 172 Merc ML55
That's hilarious, small world!
I presume you race yours if you went for the upgrade?
The bracket would be great bud let me know how much your after :up:

I do mate, well will be once the new one is in lol. I'll drop you a message :smile:


R29TJR

ClioSport Club Member
  2005 RB 182 Cup
Hey, where abouts in Essex are you? Welcome to have a poke around my 182. I have the same cage fitted and plates welded.

I'll take some pics in a little bit and upload here to give you an idea. I'm in Benfleet if you wanted to take a look.

Cheers @RyG I may take you up on that. I have a welder lined up but it'll be good to look at yours before we battle with mine! I go on holiday on Thursday but will drop you a PM when I get back if thats ok.

I bought the full cage all be it a dash dodger but im not intending or racing any time soon.
Hopefully get the brackets in this weekend.

That cage looks great. I wonder who go the black one?!


R29TJR

ClioSport Club Member
  2005 RB 182 Cup
Another question can you retain the headlining, carpet & interior trim with the safety devices roll cage?

I appreciate I the carpet will need to be removed/pulled back for fitting however I wish to retain as much of the interior as possible.

Thanks.

Tom


Scrooge

ClioSport Moderator
  E55 AMG
Another question can you retain the headlining, carpet & interior trim with the safety devices roll cage?

I appreciate I the carpet will need to be removed/pulled back for fitting however I wish to retain as much of the interior as possible.

Thanks.

Tom

Yep you'll just have to trim the carpet to suit


markfishy

ClioSport Trader
  So many but not mine
Another question can you retain the headlining, carpet & interior trim with the safety devices roll cage?

I appreciate I the carpet will need to be removed/pulled back for fitting however I wish to retain as much of the interior as possible.

Thanks.

Tom
We are Safety Devices authorised distributor for Renault cages.
Why not give us a call as we can let you have a copy of our full detailed fitting instructions specifically for the R017 cage.
We can also fit the cage for you if you wish.
Our phone number is 01279 431628.
Best regards
Graham


markfishy

ClioSport Trader
  So many but not mine
@markfishy - what is the supply and supply and fit prices for the new MSA Safety device full cages?
Hello Simon
The price for the R022 full cage with a single diagonal, harness bar and cross door bars in standard powder coated satin black is £763.00 plus VAT.
The price for the R022 full cage with cross diagonal, harness bar, tunnel brace and lower back stays and cross door bars is £829.00 plus VAT.
The price to fit the cross diagonal cage with the tunnel brace etc is £720.00 plus VAT.
I hope this helps, but if you need any further information then please do call us.
Best regards
Graham
