Engine Exploded Drawing

[Christopher.]

May be one for the more techy guys but has anyone ever seen or have an exploded drawing of a clio engine?

Cheers

Chris



[Knuckles]

@Carbonraider @p@blo



[Carbonraider]

Can't say I've ever seen a full engine but they are broken down into smaller sections for example head, block, inlet etc. Is there anything you need specifically? @Christopher.



[Gavin.]

Not useful but just reminded me of something I saw earlier, proper cool.



[NorthloopCup]

I have actual pictures of one being stripped down if that's of any use?
I can explain everything that your seeing as well if required.



[Christopher.]

Na it was just a general query if anyone had or seen one. Dont need it for anything in particular. Cheers anyways



[marinemackay2003]

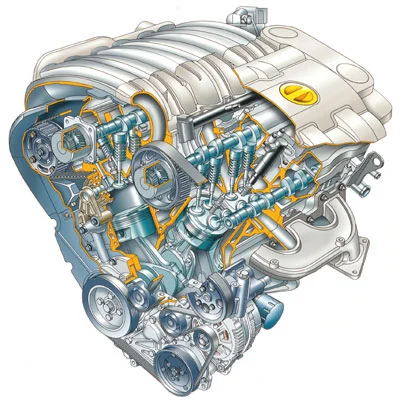

clio v6

f4r182

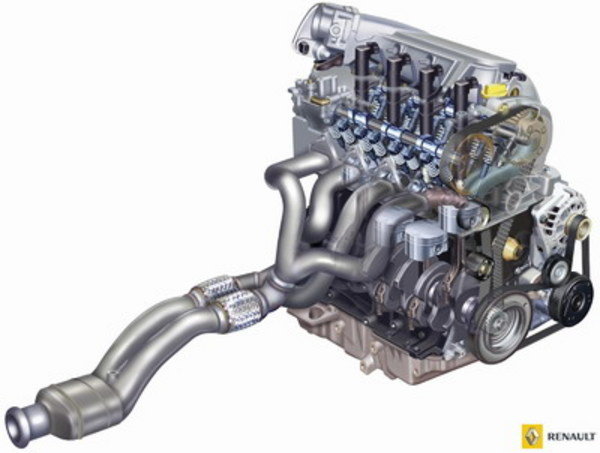

197

they of any use?



[Knuckles]

Those f**king flexis!

Why was the 182 set up suddenly not worth using?!



[Bluebeard]

Those f**king flexis!

Why was the 182 set up suddenly not worth using?!

It was too good on fuel. They needed to worsen it.



[dangerous dave]

Those f**king flexis!

Why was the 182 set up suddenly not worth using?!

I always believe company's time-bomb their own products to push cars off the road.. That's Renaults, fords is rust, alfa's is electrical and vw's is the rat look...
