172 relays

[Matt 16v]

can anyone tell me which of these are for the cooling fan circuits on my phs 2 ff 172

the fan is still not engaging on my 172 (as per this thread) and i would like to fix it asap, becuase its very annoying :S

cheers
Matt.



[BrianR]

A/C or non A/C ?



[Simf40]

i'd guess it's got a/c as it's a ff 172..i can't remember which relay the fan is thought it was one of the small black ones? and doesn't the fan come on when the a/c is switched on? as could try swapping the realys round?
and see if it comes on with the a/c on?



[BrianR]

Ah !just read the other thread, id forgotten about this, i thought you'd got it all working !!!!

Back on my head, sorry Matt.

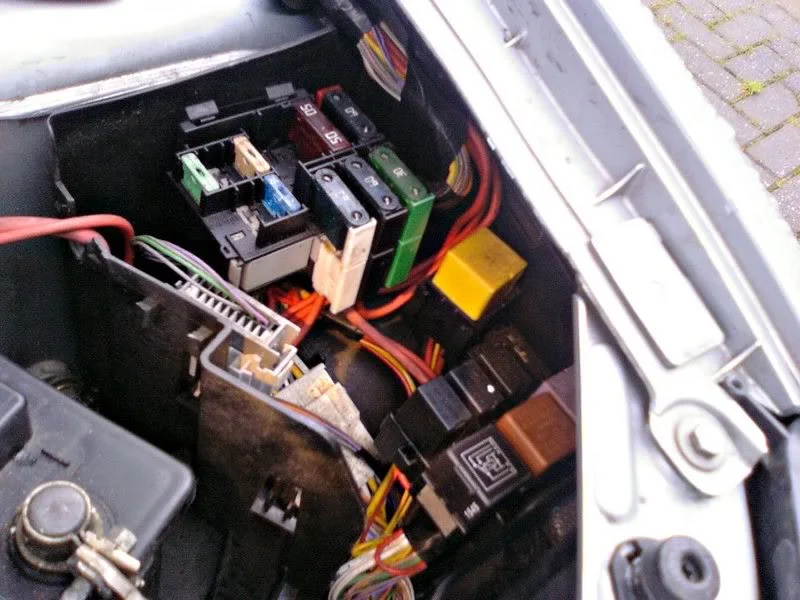

I am a bit confused because the photo and the w/s manual don't tie up. if you look at the diagram on post #39 of the other thread, you will see what I mean.
Looking at the picture you are missing fuse 2 which is the 30a one for the engine coolant blower as per the list.



[Matt 16v]

thanks for gettin involved again brian, yeah, the manual and my fuse box dont seem to be the same, is there a space for the 30a fuse or is it blanked off?

when i run a positive feed from the battery terminal to the fan lead, the fan works, but it doesnt engage when the car is running hot

it couldnt be as simple as a 30a fuse could it?

(edit: its got AC btw)



[BrianR]

thanks for gettin involved again brian, yeah, the manual and my fuse box dont seem to be the same, is there a space for the 30a fuse or is it blanked off?

when i run a positive feed from the battery terminal to the fan lead, the fan works, but it doesnt engage when the car is running hot

it couldnt be as simple as a 30a fuse could it?

(edit: its got AC btw)

Its been known !!!!!



[Matt 16v]

lol, well i'll go take a look and get some closer pics of the fuses



[Matt 16v]

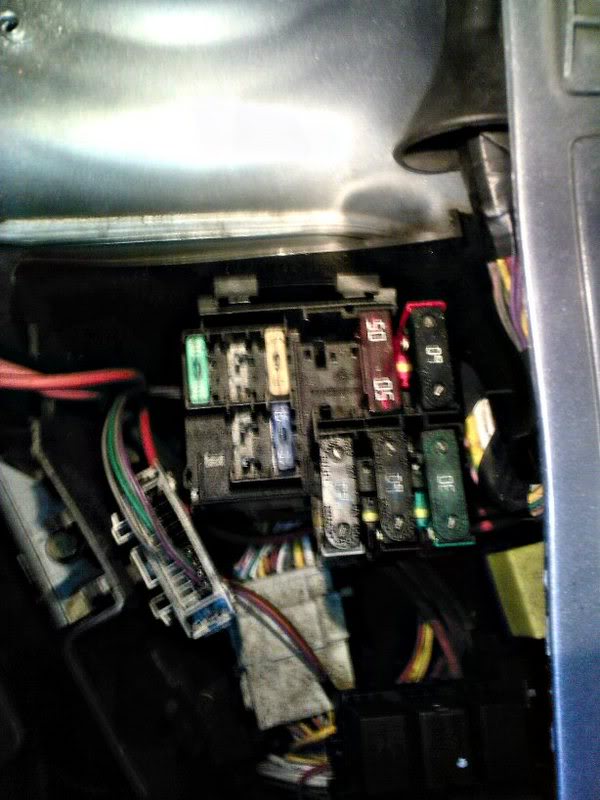

heres a pic of the fuses, excuse the quality its on my phone and its very cold outside:

would a 30a fuse slot in next to the 50a or is that blanked off?



[BrianR]

Matt, clear you PM,s



[Matt 16v]

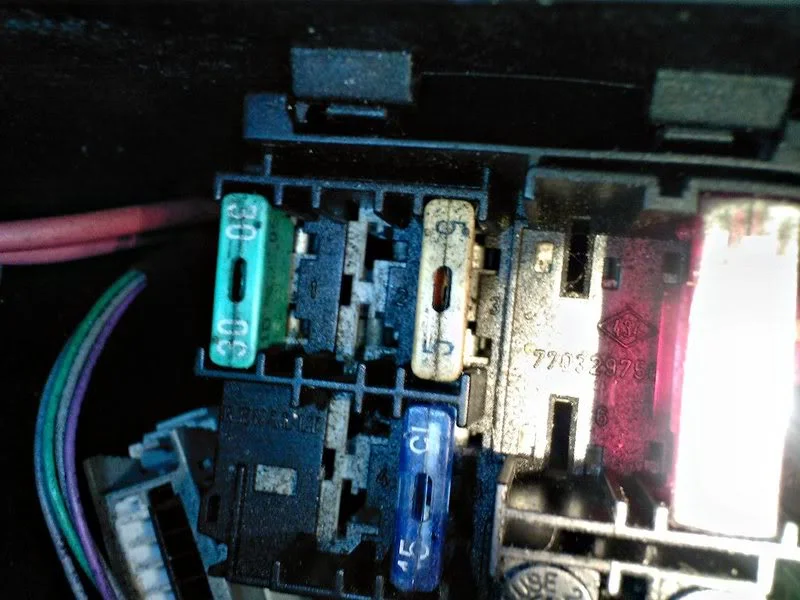

Done! heres a clearer pic too.
