2012 renault Clio false boot open warning

[Williamclio]

Hi guys, I’ve a 2012 renault Clio 1.5 dci and I’m at my wits end with it. I’m getting boot open warning on the dashboard even though it’s closed. Boot works fine it opens and closes as it should. The boot light stays on also. I’ve replaced the boot solernoid with a brand new one which didn’t fix the issue so tried one from another car that I know 100% works and that didn’t fix it either. Is there a common issue on these anyone knows about? Any help would be appreciated greatly.



[hopgop1]

Sounds like the boot switch to me, this bit:

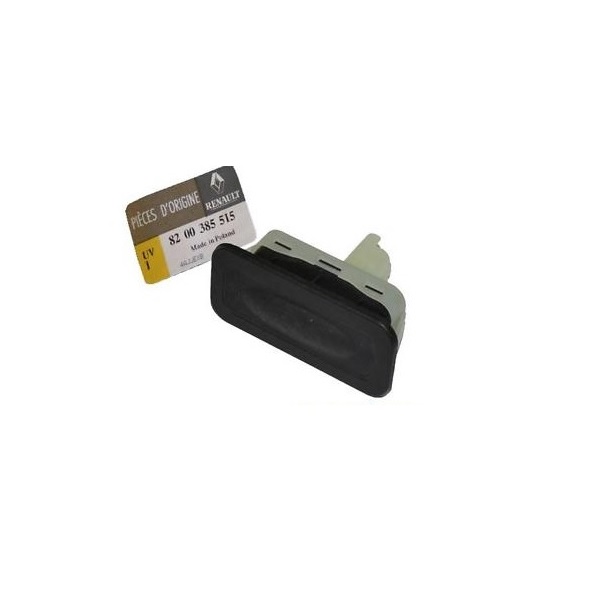

Renault Tailgate Boot Switch Button 8200385515

Renault Tailgate Boot Switch Button 8200385515 - Renault Parts Direct - Renault Parts Direct is a web based service from our authorised Renault dealer.

renaultpartsdirect.co.uk

Cheaper, non-genuine alternatives also appear to be available, but can't vouch for them personally.

Some info in here also worth reading:

Boot Opening Randomly

Yesterday, shortly after driving off I was given a "boot open" warning on the dash. I definitely didn't open the boot. I just closed it and didn't think much of it. Today, after driving about five miles I heard the boot pop and the dash warning came on. I have no idea what's wrong and I'm...

cliosport.net



[Williamclio]

Sounds like the boot switch to me, this bit:

Renault Tailgate Boot Switch Button 8200385515

Renault Tailgate Boot Switch Button 8200385515 - Renault Parts Direct - Renault Parts Direct is a web based service from our authorised Renault dealer.

renaultpartsdirect.co.uk

Cheaper, non-genuine alternatives also appear to be available, but can't vouch for them personally.

Some info in here also worth reading:

Boot Opening Randomly

Yesterday, shortly after driving off I was given a "boot open" warning on the dash. I definitely didn't open the boot. I just closed it and didn't think much of it. Today, after driving about five miles I heard the boot pop and the dash warning came on. I have no idea what's wrong and I'm...

cliosport.net

Thank you for the reply buddy. However does this not just open the boot? I’m not sure how this would cause the boot open message? Is the sensor not in the boot lock solernoid itself?



[Bluebeard]

As said above, you need a new boot switch. Common fault on them.



[Williamclio]

Alright guys, I've tried a new boot switch there and its still the exact same, Anymore ideas?

Thanks



[JamesBryan]

Is the boot closing tight on the latch?

I know on the 172/182's you can adjust the latch.

If you push on the boot when it's closed, does it move at all?



[Williamclio]

Is the boot closing tight on the latch?

I know on the 172/182's you can adjust the latch.

If you push on the boot when it's closed, does it move at all?

Yes, I've tried this its closing tight. Even when i push the lock in manually all the way it doesnt make a difference it still stays illuminated. Ive noticed that when i press the button for the boot to open the light goes off the dash when the solernoid is opening the boot then comes back on when it stops. This is the case when i manually do it aswell.



[JamesBryan]

Yes, I've tried this its closing tight. Even when i push the lock in manually all the way it doesnt make a difference it still stays illuminated. Ive noticed that when i press the button for the boot to open the light goes off the dash when the solernoid is opening the boot then comes back on when it stops. This is the case when i manually do it aswell.

Sounds like a dodgy sensor even though it's new.



[Williamclio]

Sounds like a dodgy sensor even though it's new.

I've tried a brand new one, aswell as one from a car i know works and its still doing the same thing. Is there a way of bypassing it so the boot always thinks its closed?

Thanks



[JamesBryan]

I've tried a brand new one, aswell as one from a car i know works and its still doing the same thing. Is there a way of bypassing it so the boot always thinks its closed?

Thanks

Pass i'm not sure



[hopgop1]

I've tried a brand new one, aswell as one from a car i know works and its still doing the same thing. Is there a way of bypassing it so the boot always thinks its closed?

Thanks

Could try putting a paperclip between the pins on the socket that connects the switch, see if the light goes off. Doubt it'd blow a fuse, but that's the worst case by shorting it I think.



[Williamclio]

Could try putting a paperclip between the pins on the socket that connects the switch, see if the light goes off. Doubt it'd blow a fuse, but that's the worst case by shorting it I think.

Any idea what pins i need to short? When i push the switch to unlock the boot the light goes off for a moment then comes back on.



[hopgop1]

Any idea what pins i need to short? When i push the switch to unlock the boot the light goes off for a moment then comes back on.

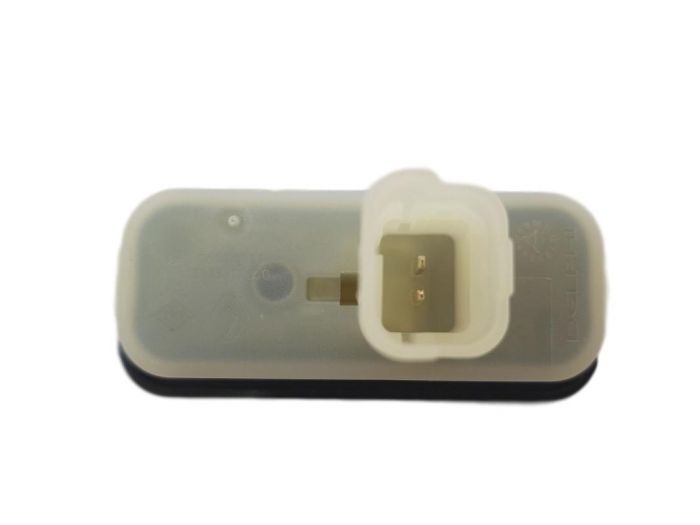

I was just thinking short the pins on the connector that goes into the boot switch, only 2 pins by the look of it.



[Rob Megane]

Has this issue been sorted … I have the exact same issue , and pretty much done the exact same fault finding process.
Out of shear frustration I’ve I’ve gone to the internet and found this post ….
Please tell me you’ve found the solution!!
Thank a million guys
