Bolt sequence diagram for oil sump.

[Jonff]

Just after the bolt sequence diagram for the oil sump. I came across it last night but forgot to save it and now I can't find it. lol

If someone could post it up for me it'd be much appreciated.



[James105]

I have it here saved in the full document. Will try and upload it now



[James105]

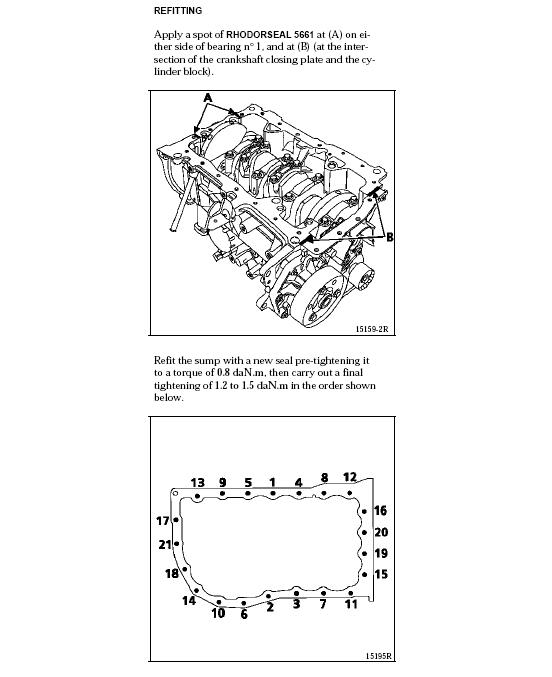

Here you go:



[Jonff]

Thanks alot mate



[James105]

If I remember 0.8daN.m is 8Nm and 1.2daN.m is 12Nm, but don't quote me on that!



[Jonff]

Yeahh I think you're right. I've seen 12-15nm quoted a lot in various threads on here in regards to the sump bolts



[James105]

That would match up with the 1.2 and 1.5daN.m then!



[DannyR]

daNm is just removing the decimal yes!
