Bolts for bolting rear axle to body

[Matti5000]

Today I was removing rear axle on my 172 to put new bushes in them and in the end I had to un bolt it from tesco body on one side. As I was undoing the bolts 2 shaped. Do I need to get the special bolts or could I just use a normal bolt to replace it



[James363]

Make sure you get the correct length and thread. If you buy 12.9 (or 10.9 realistically) high tensile bolts, they will be at least as strong as the ones Renault put in there from factory. Kay's fasteners on eBay are good for 12.9 high tensile bolts. It's worth applying some copper grease to threads you don't plan to undo for a while (I'm sure you've heard it before, just a little tip if not).



[Gus]

@Matti5000
Heres what you do.
Use molegrips/vicegrips to hold the bolt heads - they are under the rear bench. now undo the nuts underneath. Its easier if someone holds the vicegrips in the car while you undo the nuts. plenty of wd40 or plusgas etc.
You can now use a screw driver to pry between the captive clip and the bolt head. snap the captive mechanism and then pull the bolt out. then use plyers to wiggle the captive clip free.

Once the nuts are off you can do it the pikey method and get long M12 bolts.

The right way is to order:
77 03 015 200 rear axle retaining bolt £7.97 (x6)
77 03 034 247 rear axle nut £1.84 (x6)
The bolts are very easy to put back in the captive clips just clip in to place.

Its worth using a marker to mark the position of the clip before pulling the old ones out.

I will say that rear beam nuts and bolts are a massive f**king pain if they are more than 10 years old.



[Matti5000]

Thanks guys . I thought the bolts was a m10. I have put some normal high tensile bolts through should do the trick. Thanks again



[Dai1]

@Philip Griffiths



[Dai1]

Alright Lads,

By any chance do you know the length of the bolts you bought if you cashed them from the original captive style.

Had a pig of a day today and they’ve had a lot to do with it 🤣🤣🤣.

Any help would be greatly appreciated.



[Dai1]

Changed*



[clio_ross]

These are the details of the OEM axle carrier to body bolts I removed from my 172:-

127mm total length
120mm shank
54mm threaded
27.7mm head diameter
M10 x 1.25
8.8 grade

The OEM bolts are metric fine pitch threads, which makes them a PITA to remove, as you’ve no doubt found out.

if I remember rightly, I went for M10 x 1.5, 130mm long, as I really struggled to get metric fine bolts/screws, and used washers under the heads to bring them as close to the OEM head diameter as possible.



[JamesBryan]

Yeah 130mm M10 bolts.

10.9 grade is oem I think.



[clio_ross]

I wonder if Renault changed the grade of the bolts during production life, as mines were definitely the originals (2002 172) and had 8.8 stamped into the heads of them, but have seen numerous info in the past saying that OEM was 10.9 grade.



[JamesBryan]

I wonder if Renault changed the grade of the bolts during production life, as mines were definitely the originals (2002 172) and had 8.8 stamped into the heads of them, but have seen numerous info in the past saying that OEM was 10.9 grade.

Not sure but definitely go with 8.8 as a minimum.

A lot of other suspension components are 10.9.



[RustyMojo]

I’m not quite halfway through this shitty job! Need to order some replacement bolts/nuts. But bollox to the Renault prices.



[clio_ross]

yeah, does seem strange why Renault would use 10.9 stuff elsewhere in the suspension and then go 8.8 for the rear axle, but then again, it’s French and nothing really surprises me anymore.

@DavidDave yeah Renault prices for the bolts were mental. I found a local fastener place and got all the nuts and bolts for the rear axle carrier to body and axle bush to axle carrier for under £4!



[DomP182]

Yeah don't waste your money on Renault bolts unless you are extremely anal



[RustyMojo]

So have you got a list of exactly what you ordered for the axle to chassis and through bush bolts?



[clio_ross]

@DavidDave here’s what I used, along with some explanatory notes in brackets:-

Rear Axle Carrier - Body
- M10 x 1.5 x 120mm, Hex Head set screws, grade 8.8 x qty 6 (couldn‘t readily get metric fine threads and bolts didn’t have enough threaded length portion, so went for fully threaded screws)

- M10 Type P Nyloc nuts, grade 8.8 x qty 6

- M10 x 25 x 1.5mm repair washers x qty 6 (one under each bolt head to get close to OEM bolt head size area)

- M10 Washers x qty 6

Rear Axle - Axle carrier
- M10 x 1.5 x 110mm, Hex Head set bolt, grade 8.8 x qty 2 (110mm bolt almost runs out of thread length, so I used a washer under the bolt head and nut, to ensure I could torque up the bolt without bottoming out on the bolt thread)

- M10 Type P Nyloc nuts, grade 8.8 x qty 2

- M10 Washers x qty 4



[RustyMojo]

@DavidDave here’s what I used, along with some explanatory notes in brackets:-

Rear Axle Carrier - Body
- M10 x 1.5 x 120mm, Hex Head set screws, grade 8.8 x qty 6 (couldn‘t readily get metric fine threads and bolts didn’t have enough threaded length portion, so went for fully threaded screws)

- M10 Type P Nyloc nuts, grade 8.8 x qty 6

- M10 x 25 x 1.5mm repair washers x qty 6 (one under each bolt head to get close to OEM bolt head size area)

- M10 Washers x qty 6

Rear Axle - Axle carrier
- M10 x 1.5 x 110mm, Hex Head set bolt, grade 8.8 x qty 2 (110mm bolt almost runs out of thread length, so I used a washer under the bolt head and nut, to ensure I could torque up the bolt without bottoming out on the bolt thread)

- M10 Type P Nyloc nuts, grade 8.8 x qty 2

- M10 Washers x qty 4

Thanks mate



[Dai1]

These are the details of the OEM axle carrier to body bolts I removed from my 172:-

127mm total length
120mm shank
54mm threaded
27.7mm head diameter
M10 x 1.25
8.8 grade

The OEM bolts are metric fine pitch threads, which makes them a PITA to remove, as you’ve no doubt found out.

if I remember rightly, I went for M10 x 1.5, 130mm long, as I really struggled to get metric fine bolts/screws, and used washers under the heads to bring them as close to the OEM head diameter as possible.

Thanks mate for that. I’ll get down my
Local fasteners to get some stuff. They turned an already shitty job ( axle bushes) into a really shitty job yesterday.



[clio_ross]

No problem at all chaps, hope it’s of some use.

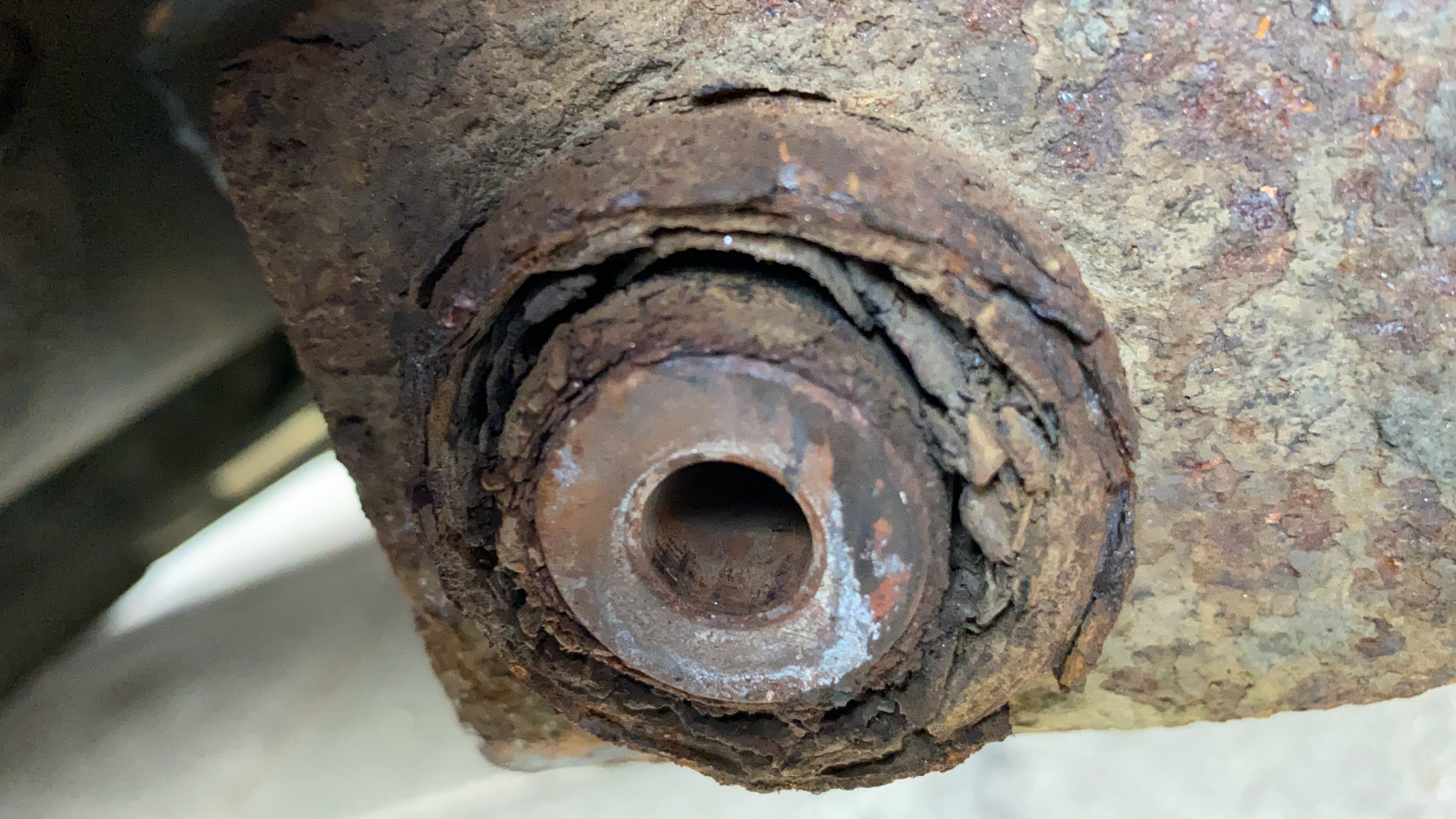

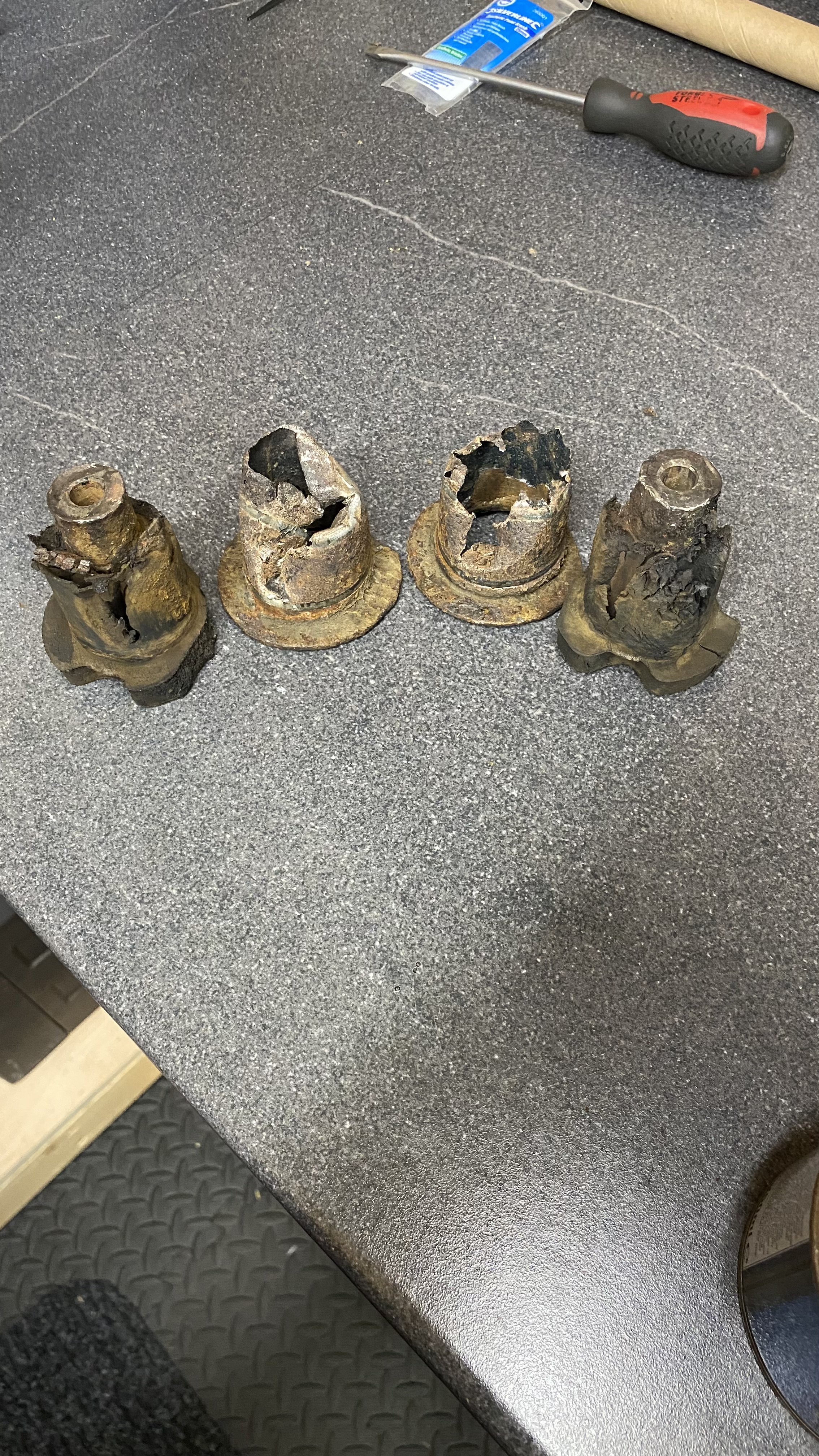

Yeah it’s a property sh***y job, but it’s worth doing, especially given the ages of these cars now. These were the state of mine; before and after removal, well overdue a change:-



[Dai1]

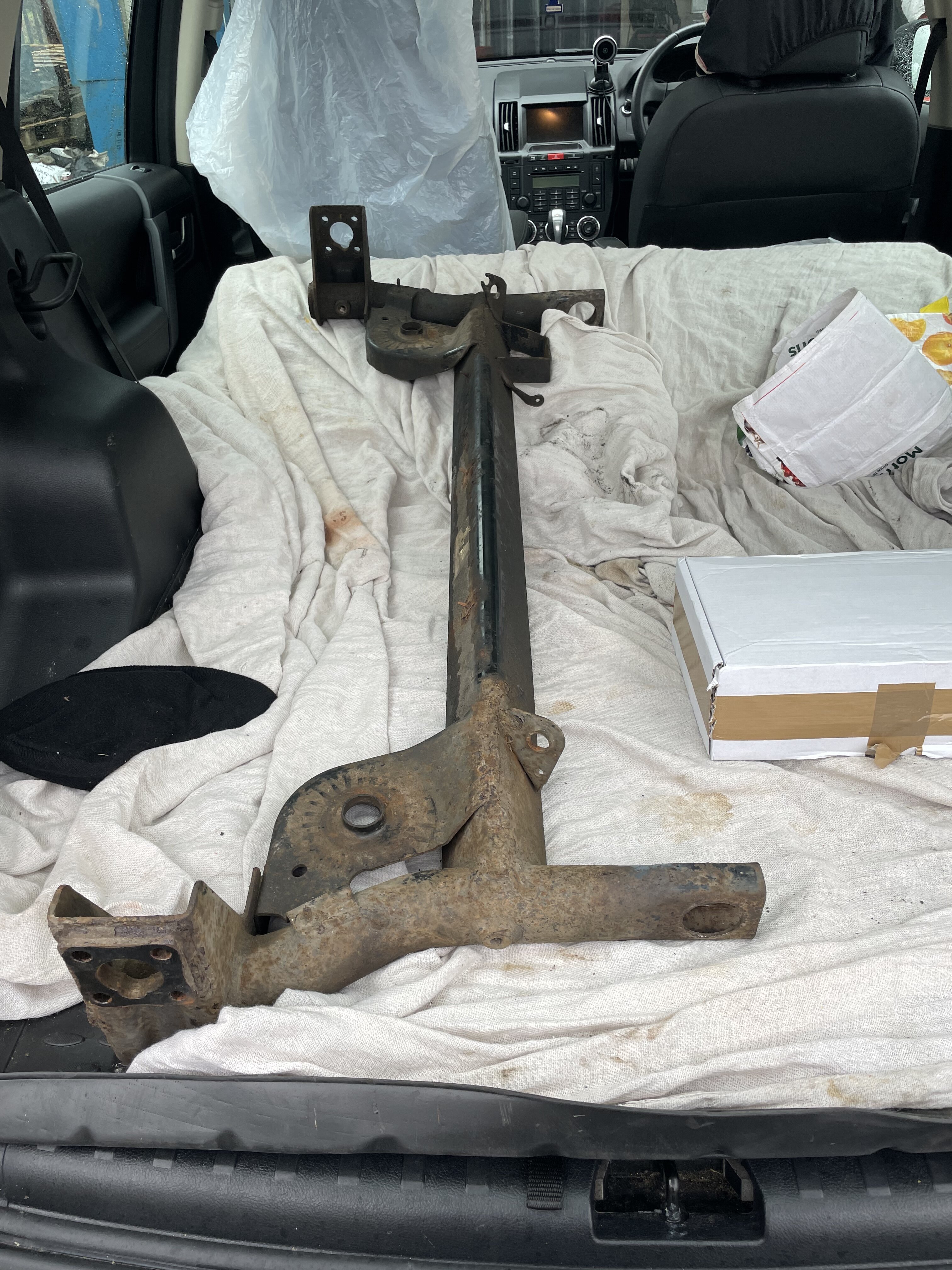

It’s off to get shot blasted, strengthening kit welded and powder coated 👍🏻🤟



[VenomUK]

The clips that need grips on them inside while someone undoes on the underside. Has no one welded in nuts for future removal or not worth it?



[DomP182]

I just got one of the kids to hold a spanner on the inside while I spun the nyloc nuts on correct torque.



[Dai1]

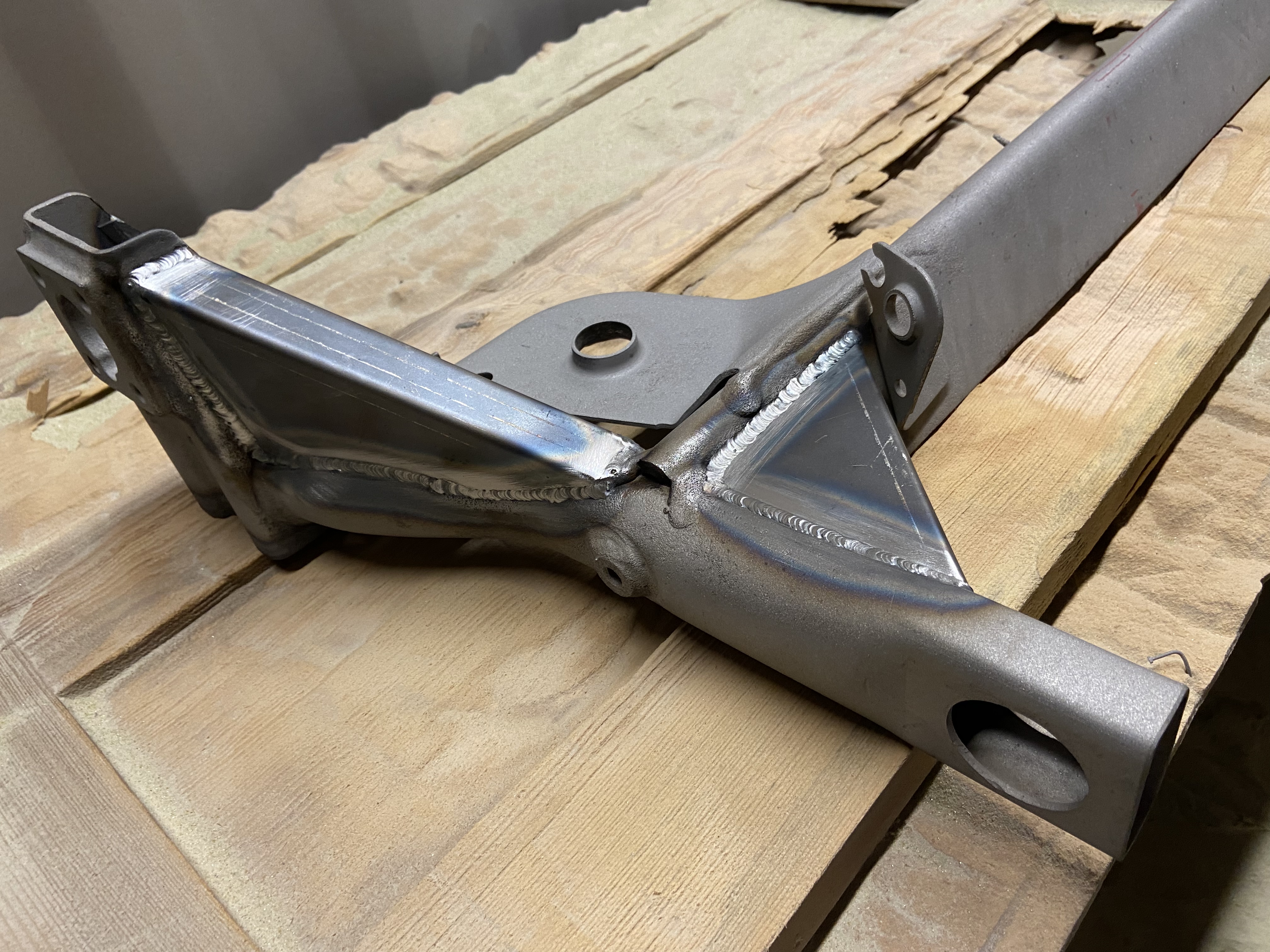

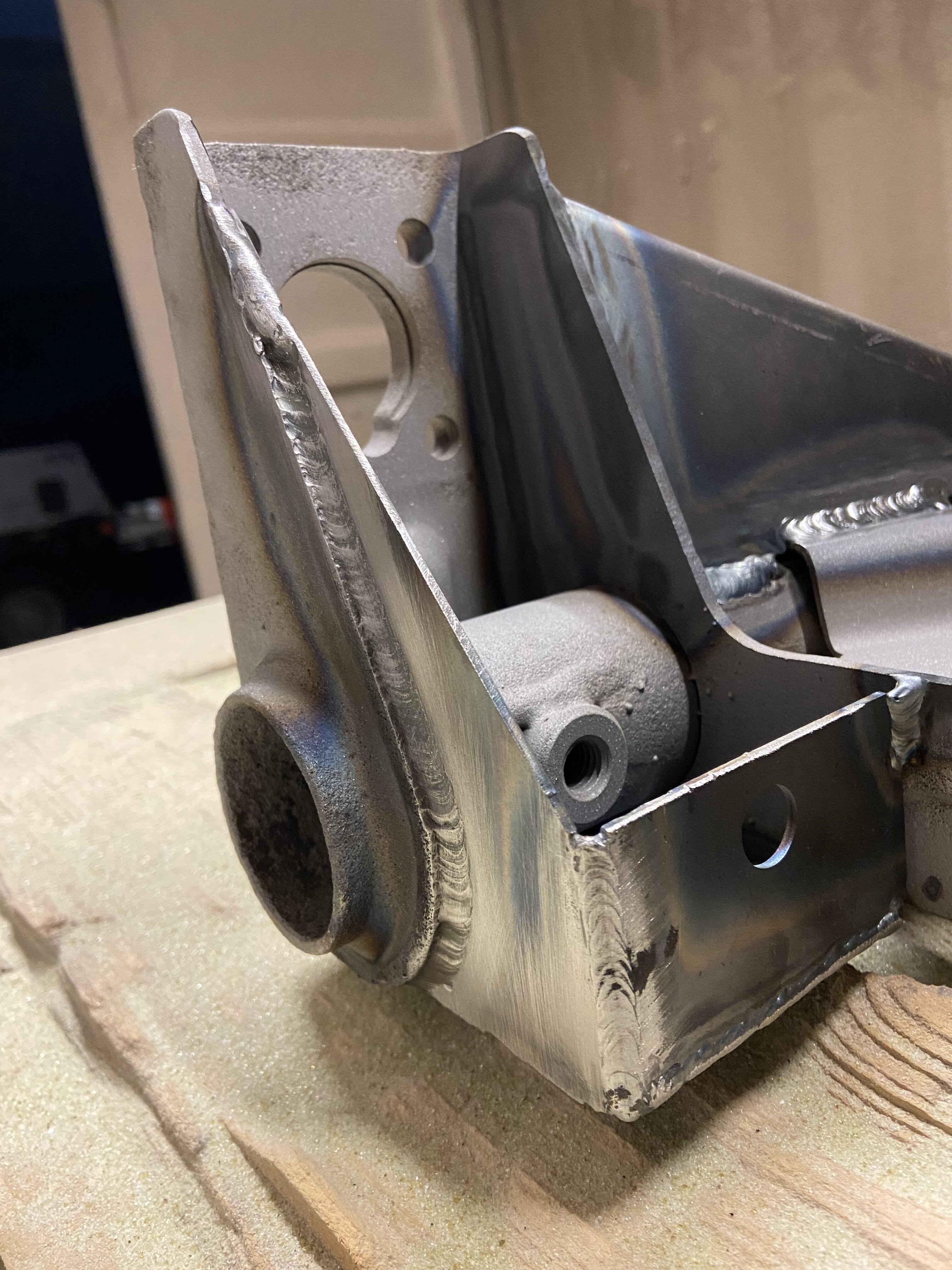

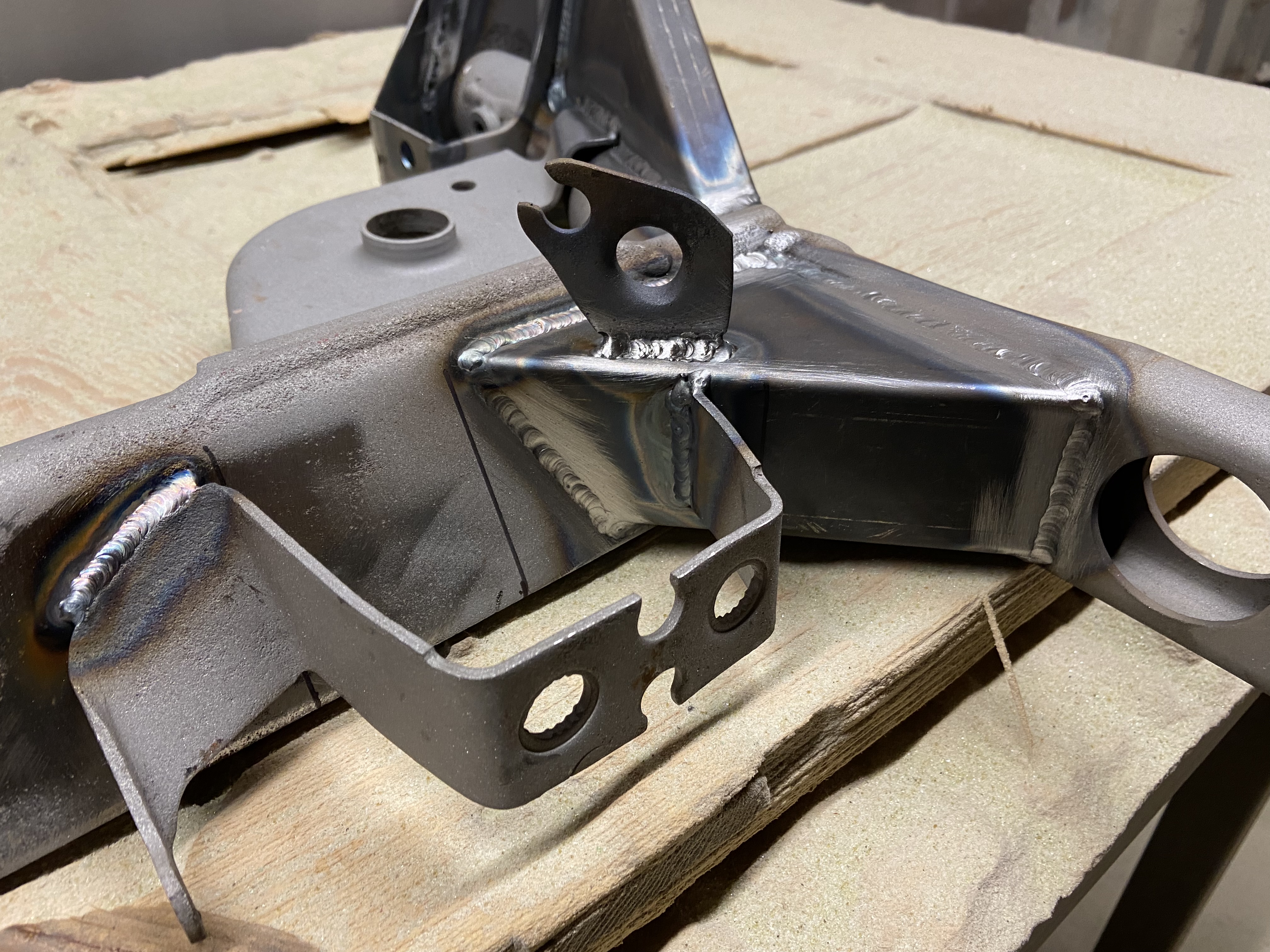

Welded and powder coated.
Just have to find some time to install it on the car.



[SharpyClio]

This is really useful. Planning on taking mine off to clean up, might do the strengthening at the same time… also tempted to get a rear axle to give me more time to do it all rather than trying to rush it.

Looks great though!


Sent from my iPhone using Tapatalk



[RustyMojo]

Welded and powder coated.
Just have to find some time to install it on the car. View attachment 1578407View attachment 1578408View attachment 1578409
View attachment 1578410
View attachment 1578410

That’s a beautiful job buddy!



[RustyMojo]

This is really useful. Planning on taking mine off to clean up, might do the strengthening at the same time… also tempted to get a rear axle to give me more time to do it all rather than trying to rush it.

Looks great though!


Sent from my iPhone using Tapatalk

I’ll have a 182 rear beam available shortly as I did just that. My refurbished one will be fitted in a couple of weeks, but my old one will be dropped from the car this week.



[SharpyClio]

I’ll have a 182 rear beam available shortly as I did just that. My refurbished one will be fitted in a couple of weeks, but my old one will be dropped from the car this week.

Let me know! Thanks.



[RustyMojo]

Let me know! Thanks.

Sure thing. It’s literally half off now. So will be on the deck this week unless something awful happens. All ready for a refurb.



[Breamy]

I also have a 172 beam for sale and the strengthening kit as I bought one already done



[SharpyClio]

I also have a 172 beam for sale and the strengthening kit as I bought one already done

Out of interest are they the same on the 172/182? Being new to the cars I don’t really know.



[Breamy]

The same just different stub axles because no abs on mine



[SharpyClio]

The same just different stub axles because no abs on mine

So you can just change stub axles over?



[JamesBryan]

So you can just change stub axles over?

Everything is interchangeable across the 172/182 rear beams.



[RustyMojo]

Isn’t there different strengthening under the spring platforms on a 182 beam. Not that I’m sure it makes much difference. @Yorkshire Pudding will confirm



[Krarl]

Yeah

Later 182 cup suspension cars came with strengthening gussets under the spring perches. Makes no odds I don't think



[JamesBryan]

Yeah

Later 182 cup suspension cars came with strengthening gussets under the spring perches. Makes no odds I don't think

Show us your gusset.



[RustyMojo]

I’ll take a picture of mine later 😳 I have a refurbed beam on the work bench. With the 182 gussets
