Clio 1999 mk2 - only one dipped headlight - help please



  Clio mk2
Hi again
So the missus car was due for mot and we noticed only one dipped headlight works.
I have searched Google but not got the answer yet.
Obviously cannot be stalk as one works.
Both fuses for dipped lights (9 and 10 in fuse box) are fine.
I cannot find a relay for the lights so guessing there isn't one for this model.
I have replaced defective bulb but no joy either.

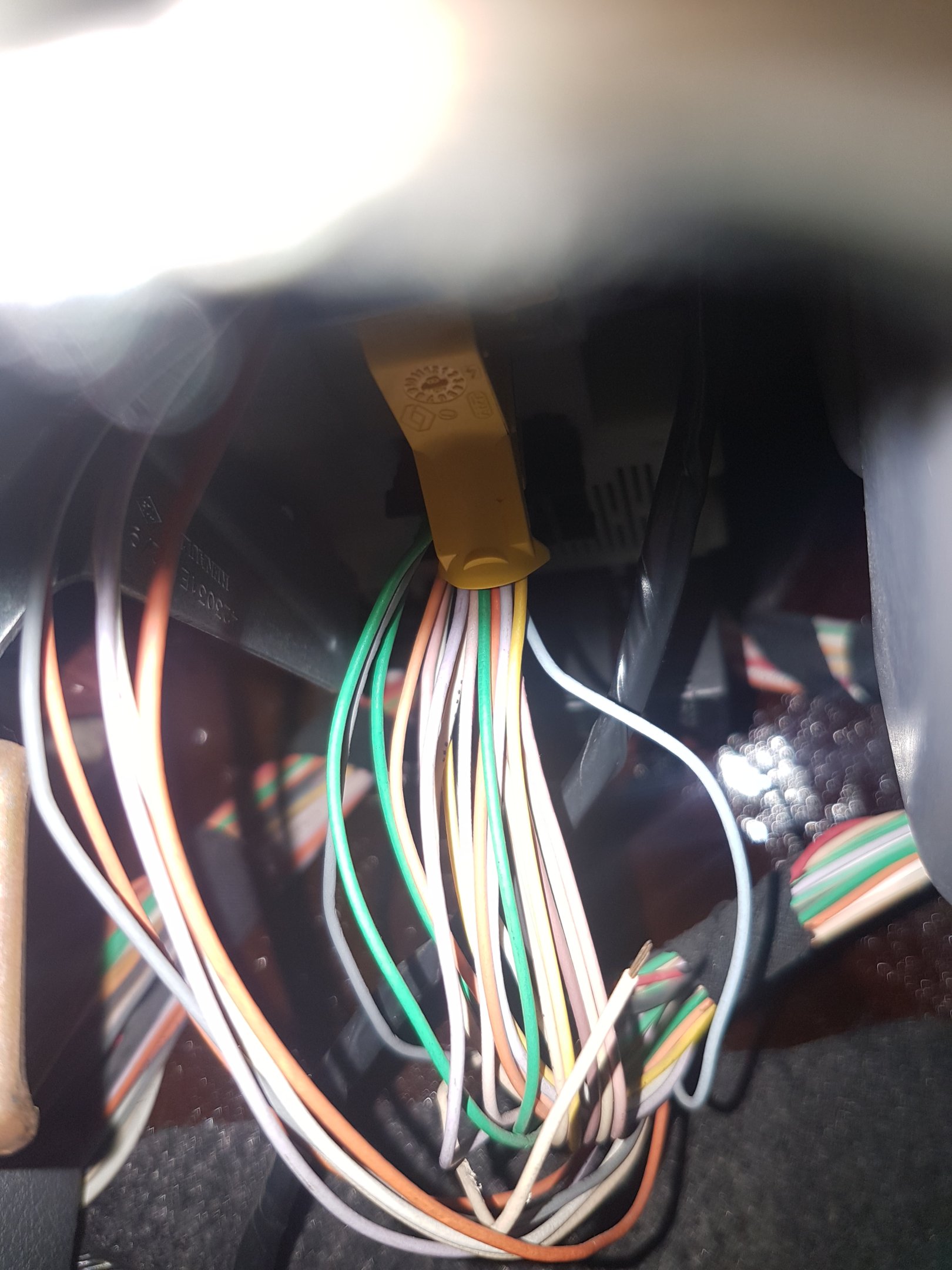

The only thing I have found is the loose wire in the picture. It appears it should go into a yellow plug type thing in the passenger football relay box , but I cannot get that plug off.
Please help us if possible.
Thank you very much.

Have you checked all the connectors / wiring at the lamp unit? The working one should (hopefully...) show how it should be.

That picture is just a snakes nest of wires, I doubt anyone could determine what it is and where it goes without a wiring diagram! Are there any free holes in the connector block the rest of the wires look like they're going to? Risky to just connect it if there is a gap, though...

You say you replaced the defective bulb but have you swapped the working one with the defective/new one, to check that the new one is not defective as well? lol



On a side note, it's slightly concerning it took until a pre-MOT check to notice it wasn't working... Was it not a bit dark when driving at night? Didn't you notice only one bright light being reflected in the paintwork of cars in front when queuing / parking (inwards/incorrectly)?!

I followed some chap on the motorway the other day. At the rear he had one number plate light working, one brake light and the centre brake light, and that was it - no sidelights at all, completely impossible to see him.

We should all walk round the car once a week and check tyres/lights/wipers/etc.!

Last edited:
  Clio mk2
I will try swapping the bulbs later.
Is there any reason I could not just find out which wire goes into the working dipped beam and create a further loop to the broken one...which would bypass whatever part is broken?
So far as not noticing, she never drives at night....it's barely worth her even owning it from the amount of miles she does!!!
Thanks for the reply

In theory you could extend the wiring, but don't forget that you'd then be doubling the power going through the wire in question and you don't know how high it is rated / if it would burn out...

Wiring and electrics falls into boxes labelled 'Magic' and 'a PITA' in my head lol, so I hope you can fix it!

You might just have to trace back the wires from the lamp unit to see if there are any visible breaks in them, and break out the multimeter to get testing if not...

(Or call an auto electrician for a million pounds!)

  Clio mk2
Ok so for anyone else that tries to do this from previous experience without checking first, the mk2 has a separate small bulb below the high beam bulb. They are not just one bulb for high and low beam. The bulb had just blown lol.
I would have though somewhere online would have mentioned this during my searching but no.
Thanks

Your terminology is confusing ;)

The small W5W bulb within the inner lamp unit is a Sidelight bulb.
The bulb (H7?) in the outer lamp unit is the Dipped Beam bulb.
The bulb (also H7?) in the inner lamp unit (shared with the sidelight) is the Main/High Beam bulb.
