ITB Wiring - Connections

[cliocollins]

Hi,

Please forgive me if I've missed something plainly obvious. However I'm struggling to work out how and where the old connections from the Upper Manifold are meant to go if required?

I've fitted the ATPower Direct to head bodies, which as far as I can see have no plugs or connections. I assume the fuel line will need to be changed for AN-6 connections. Has anyone got any links or information as to where the remaining old connections go?

I've tried to picture these as best as I can below.

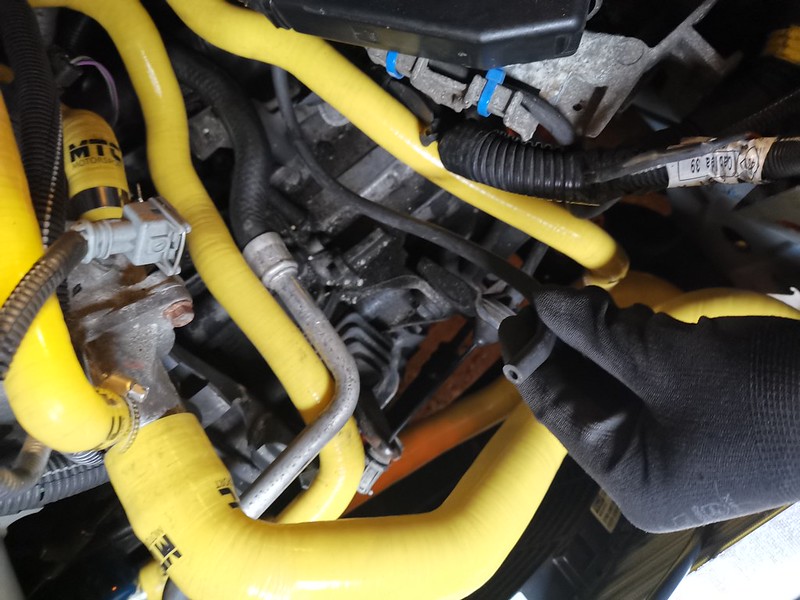

182 ITB Progress by ANDREW COLLINS, on Flickr

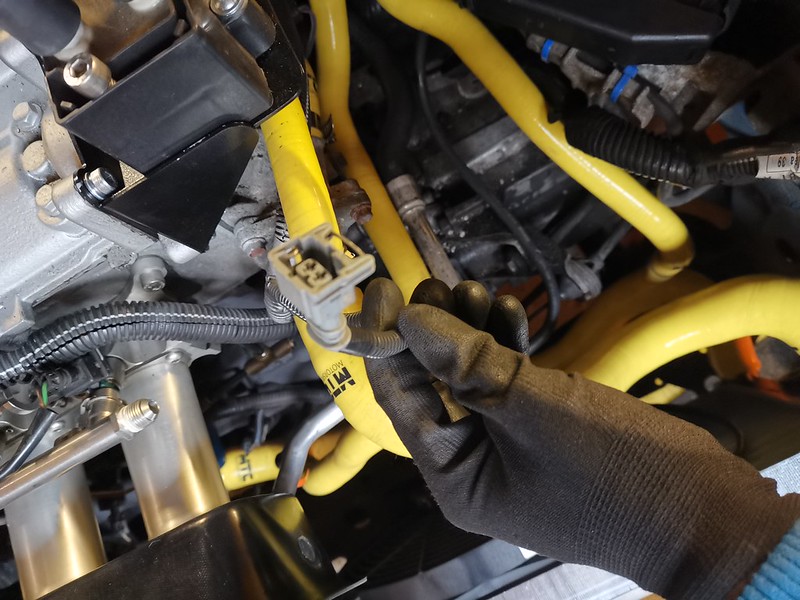

182 ITB Progress by ANDREW COLLINS, on Flickr

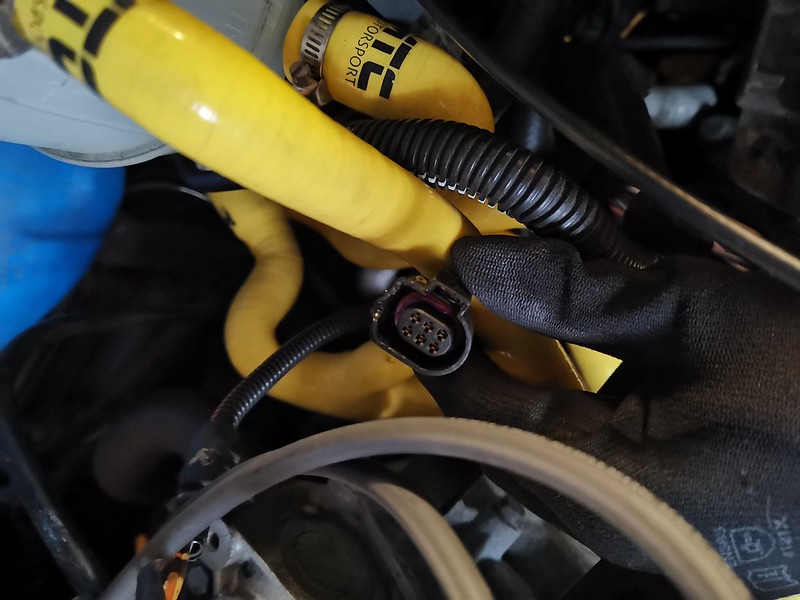

182 ITB Progress by ANDREW COLLINS, on Flickr

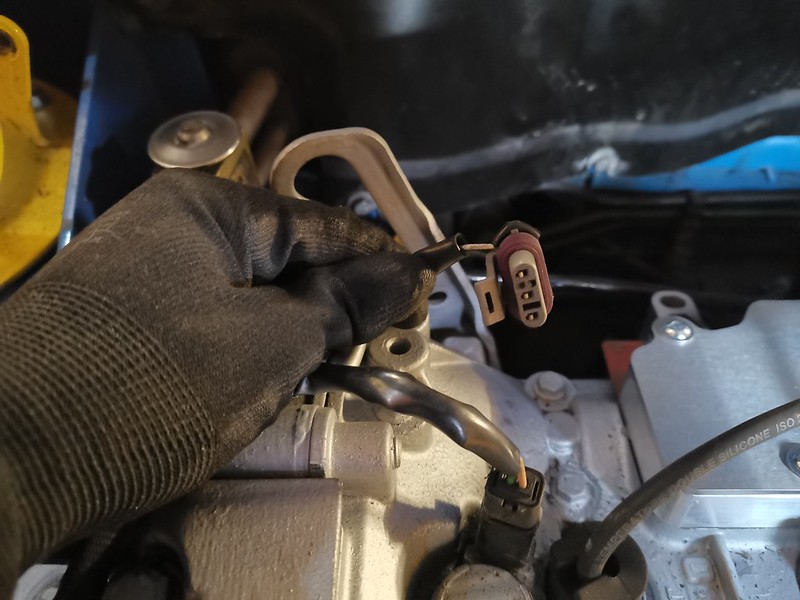

182 ITB Progress by ANDREW COLLINS, on Flickr

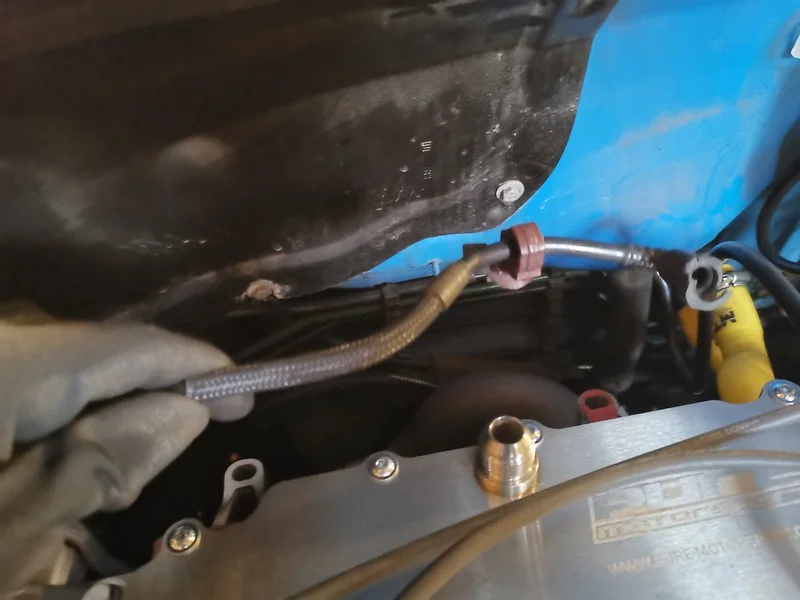

182 ITB Progress by ANDREW COLLINS, on Flickr

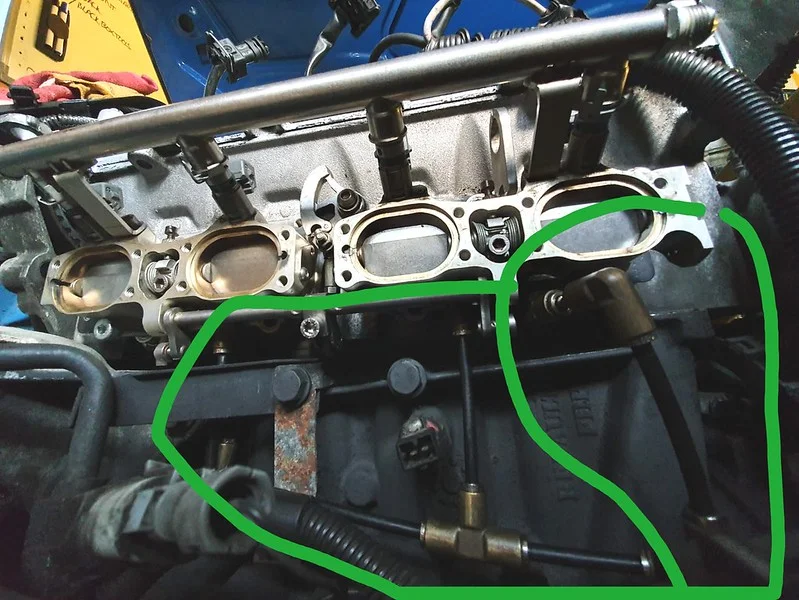

Edit by ANDREW COLLINS, on Flickr

The above image, circled green, this is some sort of Vacuum I guess? Where this be connected?

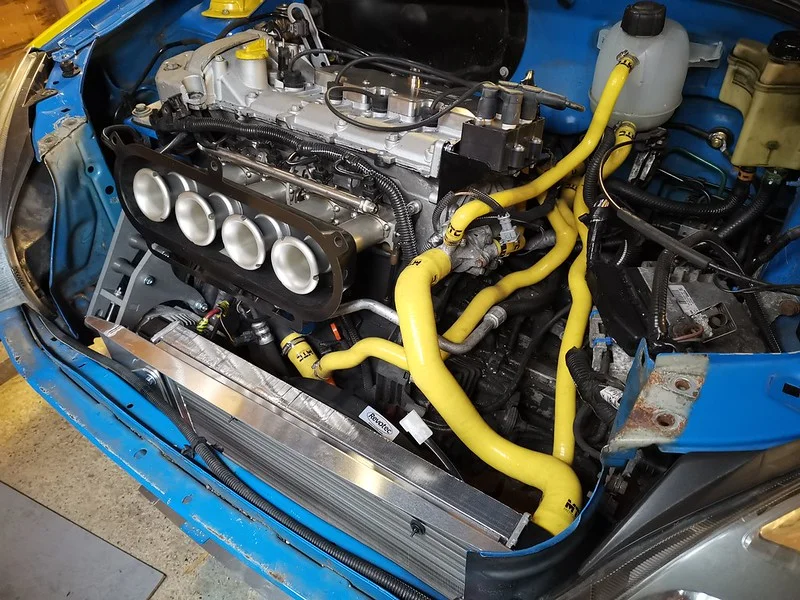

182 ITB Progress by ANDREW COLLINS, on Flickr

Bay shot if it helps identify any areas I should be looking?

Any help or advice is welcomed as I'm out of ideas!



[Amos91]

Ideally be running aftermarket management so you don’t need to connect bits like the map sensor. Although that might be what those vacuum pipes in green are for (to balance it). I’m not massively familiar with the setup though.

In order from what I can see -

1)Manifold temp sensor
2) throttle body plug
3)carbon canister vacuum - blank it
4) brake booster vacuum
5) map sensor
