mk2 phase 1 relay locations !! PIC !!

[djlee_dj]

where can this relay board be found ? 1999 mk2 phase1 1.2 8v

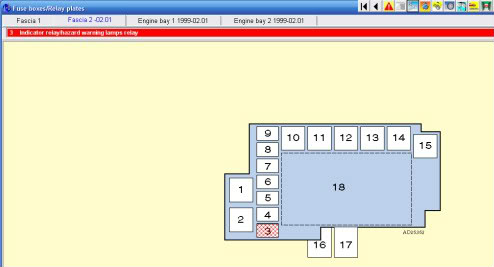

the highlighted is the flasher relay ... it actually says, engine bay - but i cant find any relays in there. just the fuse box with couple of big main fuses in there

can someone tell me where the relays (especally flasher/indicator relay)



[Sean6545]

Under the glove box



[djlee_dj]

should the board look that size ? i only have like 4 or 5ish ? 4ish brown, one grey.

have you got a diagram or know which is which ?

im trying to find the flasher/indicator relay .... but would like to know all the relays as there are a few minor problems occuring and for future reference also

if the board is that size, do i need to remove the shelf part of the glove box or something ?

thank you very much



[djlee_dj]

i renewed the relay, and now they flash fine when the ignition is first turned on, but when the lights that illuminate during the startup 'test' go off. they start blinking very fast - like a bulb is out.

ive tried cleaning the contacts on rear lights, renewed all indicator bulbs ... still cant get them working normally.

im going to get some electrical contact spray, spray a little on the terminals inside the relay board and rear lights, bulb holders etc and see.

really not holding my breath tho.

there is a piggy backed wire (as standard) that piggy backed to the wiper relay. and the wipers are also intermittantly working and not turning off. il try and renew that next !

any advice ?



[MicKPM]

Yep.... seak help!



[Paul172sport]

Bump!

Anyone know what relay 15 does?



[ben lee]

15 is ignition auxiliary circuits relay.



[Paul172sport]

Sorry what does that control?

Is it main dealer only or do halfords sell them?
