Parts diagrams and part numbers. Where to find these ?



finch wxm

ClioSport Club Member
  clio 172
What do people use for this ?

I have a track car i am building which is missing various parts ans i have some bolts but i doubt i have them all !

I have the spreadsheet for some new bolts for suspension and arms.

Gearbox im not sure if i have all the bolts for this yet , then there is the drivesshaft cover which bolts to the box and support bracket etc .

Is there a website which shows the diagrams ans part numbers required ?


MarcB

ClioSport Club Member
  Too Many

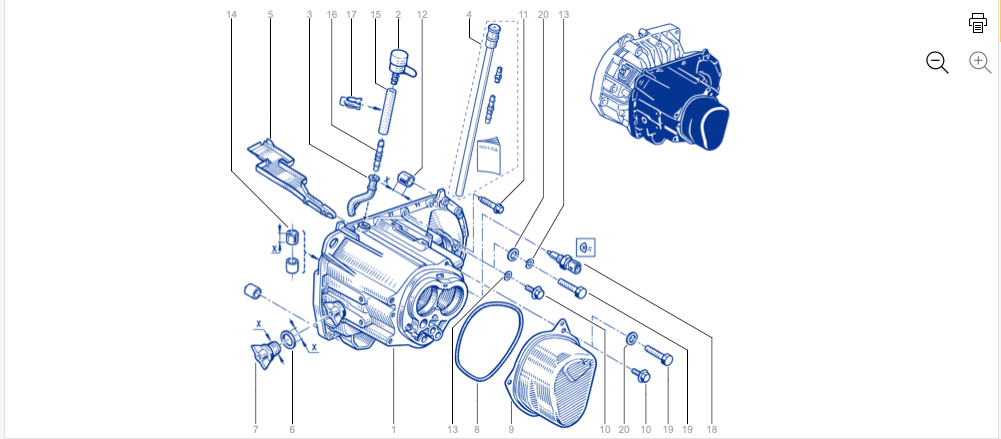

Screenshot 2020-10-29 at 20.21.24.png

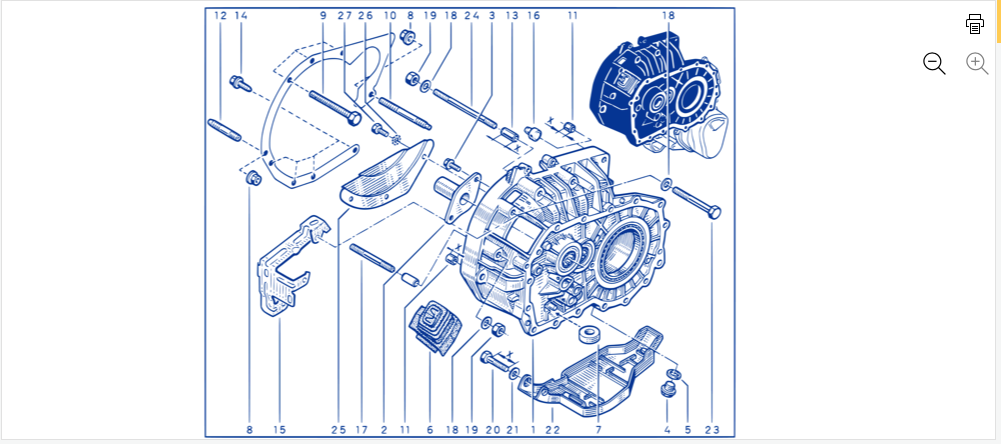

Screenshot 2020-10-29 at 20.21.36.png

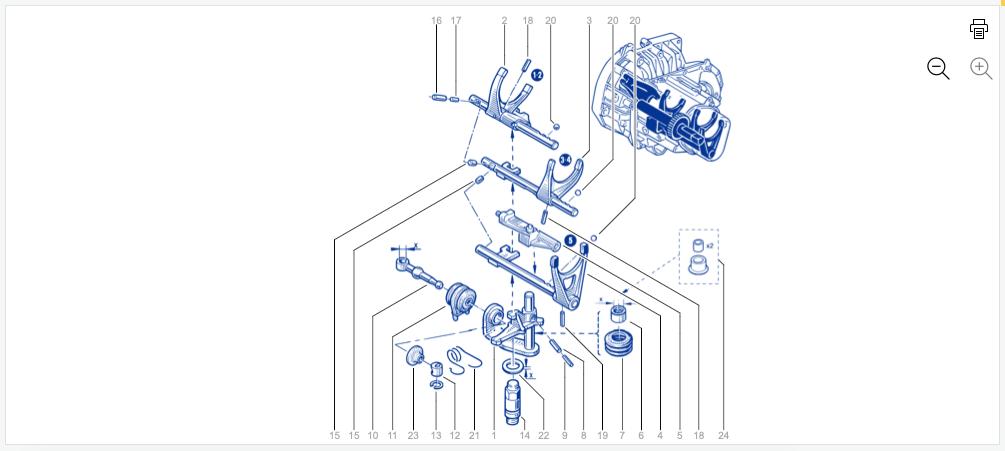

Screenshot 2020-10-29 at 20.21.52.png

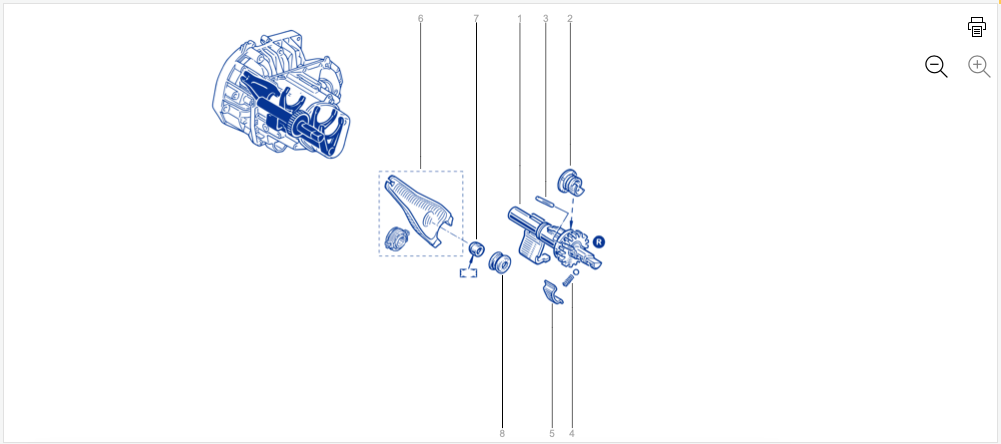

Screenshot 2020-10-29 at 20.22.02.png

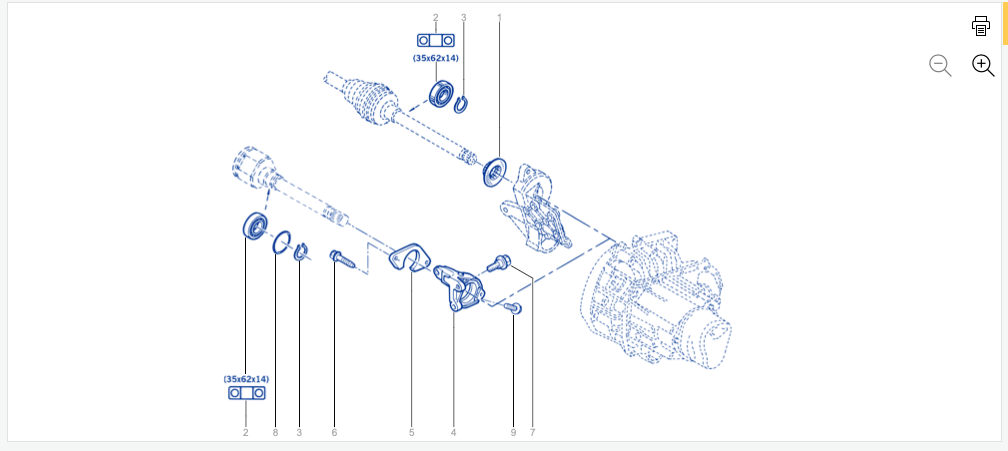

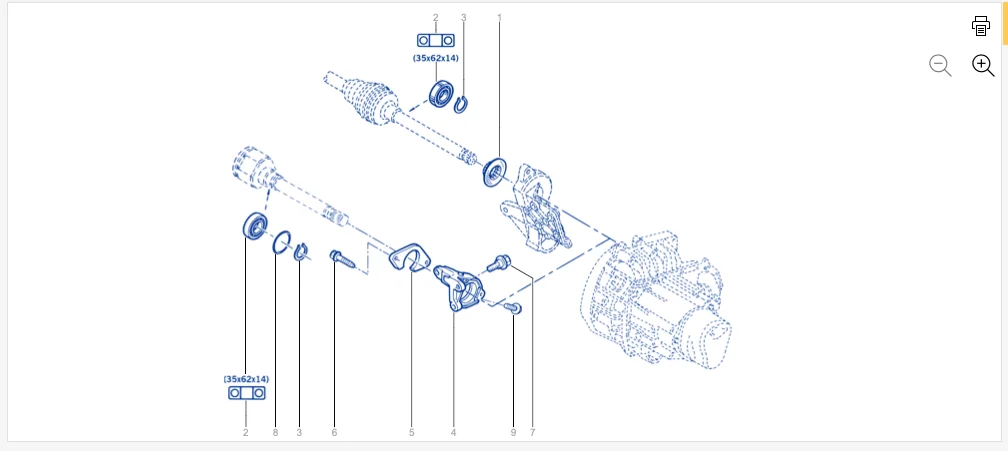

Screenshot 2020-10-29 at 20.24.42.png

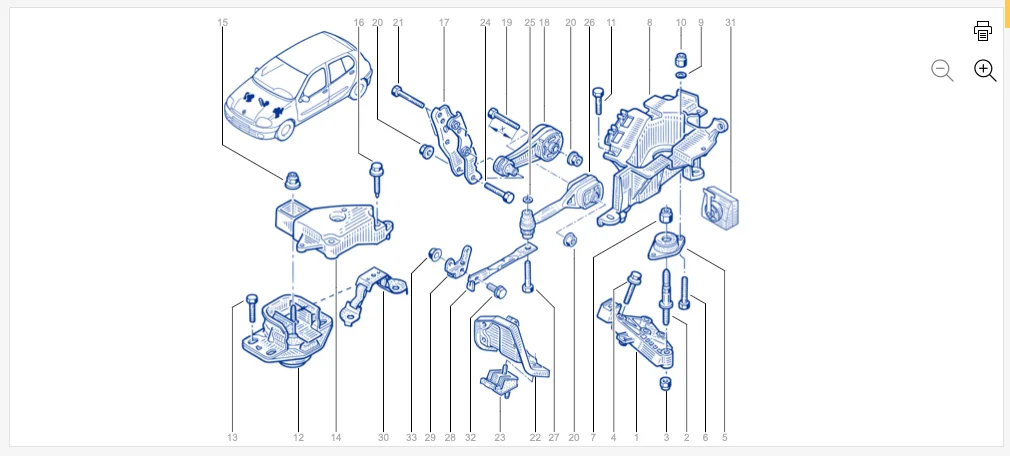

Screenshot 2020-10-29 at 20.26.18.png
