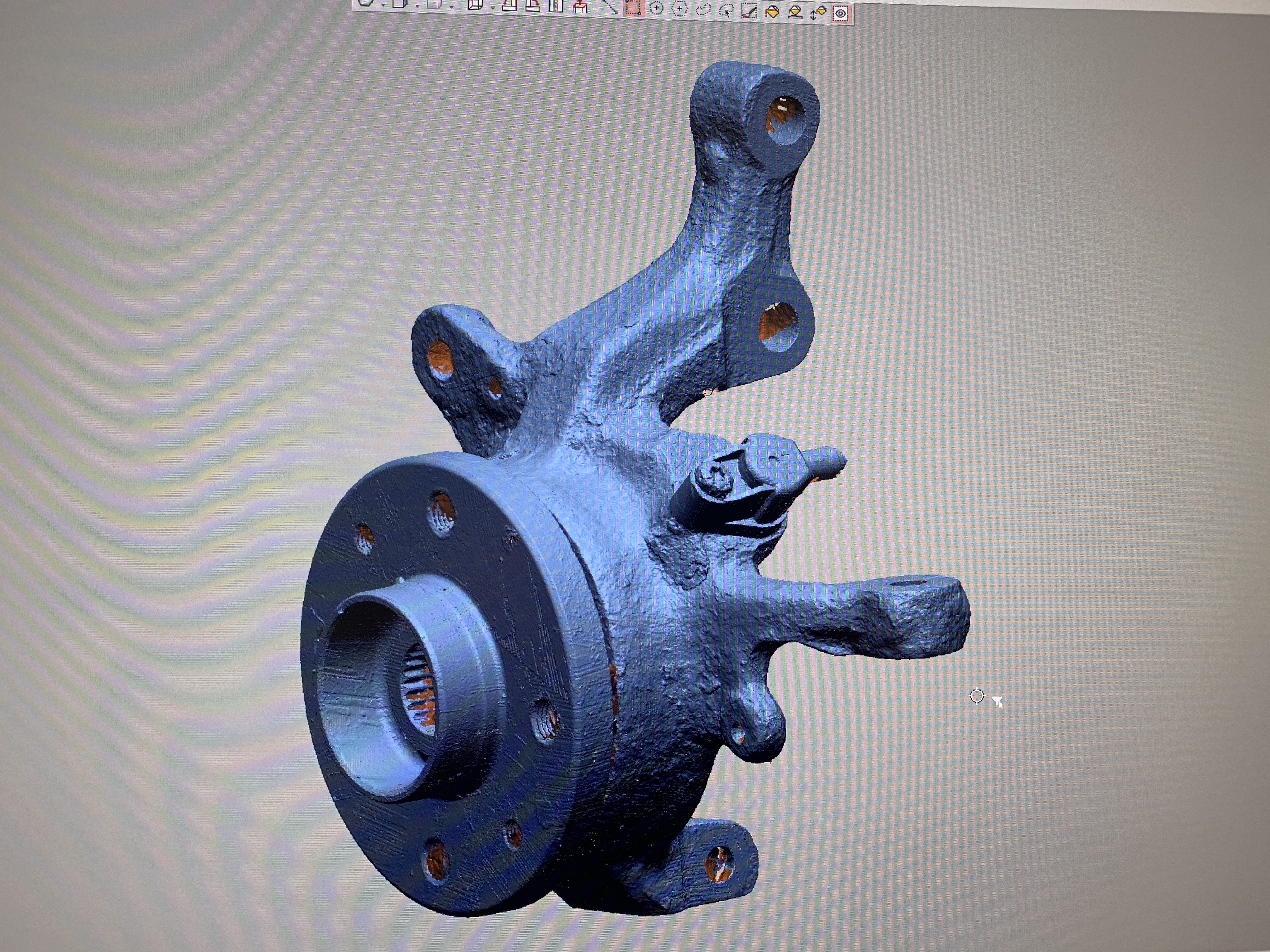

So my new company told me to find something to do this afternoon so I decided to scan up a cup packed hub.
Since my cars currently in pieces I’m aiming to get a full model of the engine done as “learning exercise”.



[PP200t]

Very cool! Nowhere near clever enough to understand the possibilities of this but amazing all the same!



[botfch]

Very cool! Nowhere near clever enough to understand the possibilities of this but amazing all the same!

That’s just a relatively simple 3D surface model good for checking tolerances vs the manufacturers specs.
Once I’ve got the H&S out the way I’ll be sticking it on the X-ray to see the quality of Renaults casting, if there’s voids etc.



[dann2707]

This sounds ace. Can you convert to an stl and I'll 3d print little renault hubs for everyone 😂💃🏻



[Tez.]

You could scale it all down and make a full on working model !



[Louis]

Decent!
What hardware are you using to scan the parts?



[Jack!]

21st century dildo moulds.



[botfch]

There are a few resin printers so I will be printing some stuff at some point, obviously the data belongs to the company at this point so I can’t take it out the building without paying for it.

Decent!
What hardware are you using to scan the parts?

We’ve got pretty much everything but I used a hexagon arm to do this so accuracy is in the microns.



[Louis]

There are a few resin printers so I will be printing some stuff at some point, obviously the data belongs to the company at this point so I can’t take it out the building without paying for it.




We’ve got pretty much everything but I used a hexagon arm to do this so accuracy is in the microns.

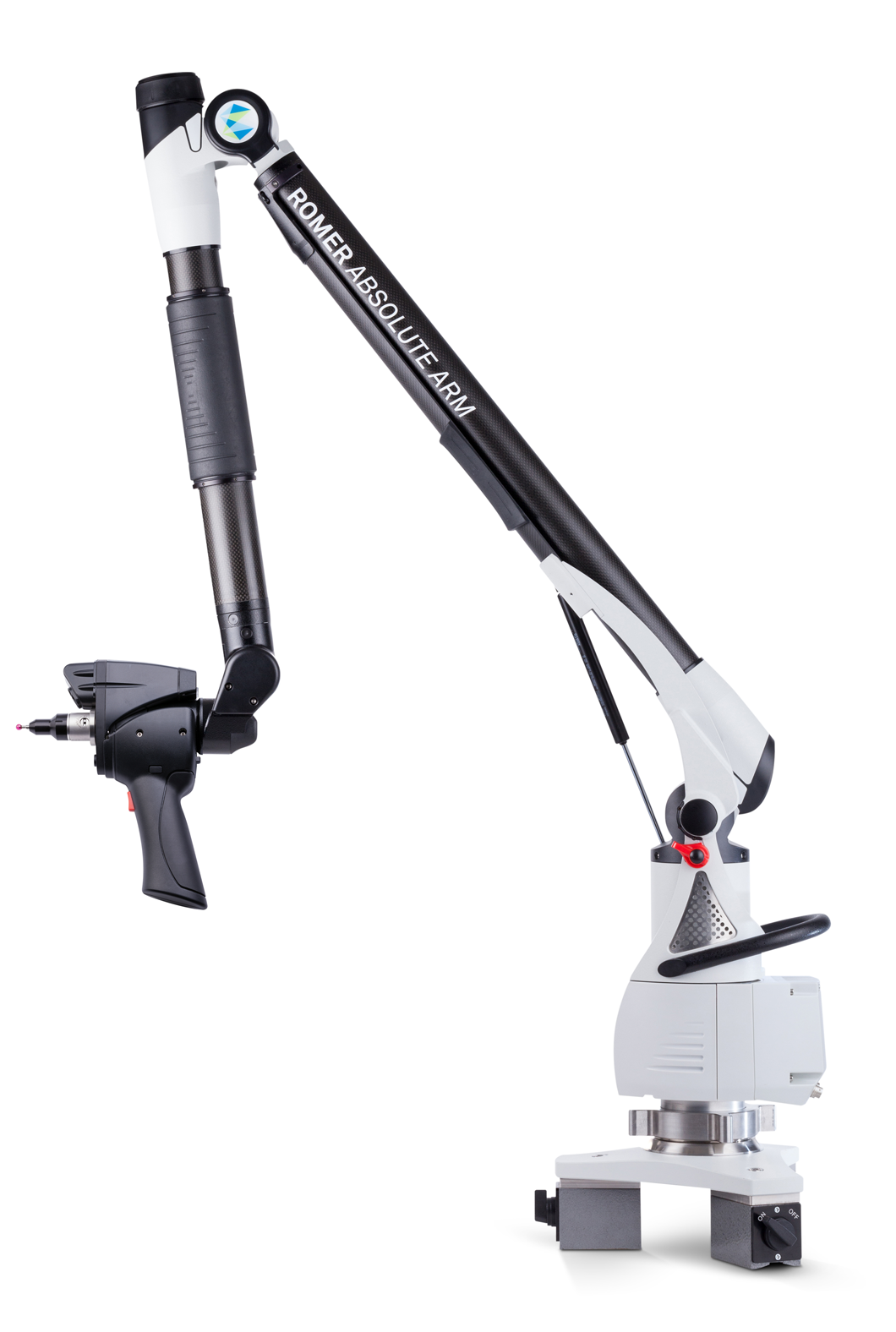

View attachment 1515397

That's proper cool! Is the part on a rotating bed or does this just completely rotate around it?
So much potential for different parts.



[botfch]

That's proper cool! Is the part on a rotating bed or does this just completely rotate around it?
So much potential for different parts.

If you imagine painting something with spray paint that’s exactly how the arm works, the part stays still and you move around it.
Then you can move the part if you need to get something from the bottom for example and the software will be able to join those scans together to make the whole part.



[McGherkin]

Those arms are very fun to play with. Nice work!
