172 Sump Bolts Tightning sequence and bolt torques

[D1CKY]

I cannot find my 172 service manual

Does anyone know the tightening sequence for a 172 Sump Gasket ?
Am i correct in thinking the torque is 12-15 Nm ?

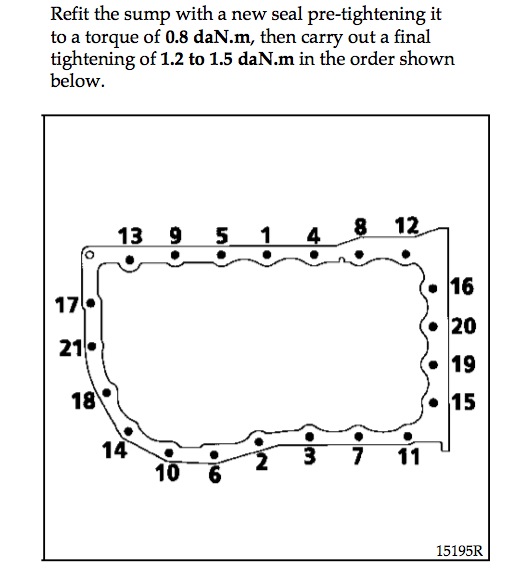

[BIGASH]



[Laine_16v]

Ahh maybe i should use that method next time, i normally just go clockwise round the sump until all bolts are suitably tight, usually takes 2-3 goes round before it get theres.



[D1CKY]

Cheers

What does 1.2 to 1.5 DaN.m work out at ?



[Carbonraider]

Cheers

What does 1.2 to 1.5 DaN.m work out at ?

12 & 15 nm



[D1CKY]

12 & 15 nm

Thought so


Cheers



[MG cup]

You will need a 1/4 drive torx socket for the gearbox side, I can't remember which size tbh, someone will confirm.



[D1CKY]

You will need a 1/4 drive torx socket for the gearbox side, I can't remember which size tbh, someone will confirm.

Luckily i had one, only the froggies would fit bolts in that tight a space



[Dan@SJM]

Nah, the 20vt is the same.



[Chris Enright]

You will need a 1/4 drive torx socket for the gearbox side, I can't remember which size tbh, someone will confirm.

!/4" drive E8 socket for male torx head screws.



[hopgop1]

!/4" drive E8 socket for male torx head screws.

About 8 years too late mate



[Nathan105e]

About 8 years too late mate

Better late than never! 🤷‍♂️
