Anyone with a F4rt lend me a hand

[Clio.lee]

Hi. My pencil coil pack plugs are damaged and I need to know which way round the cables go can someone have a look and let me know

Thanks



[JamesBryan]

Wire them up as they are now

Or have you taken the plugs off already?



[Crayola]

Yaris coil plugs are the same as 225 ones, they're like £4 too instead of the £1044027492 Renault like to charge



[JamesBryan]

Yaris coil plugs are the same as 225 ones, they're like £4 too instead of the £1044027492 Renault like to charge

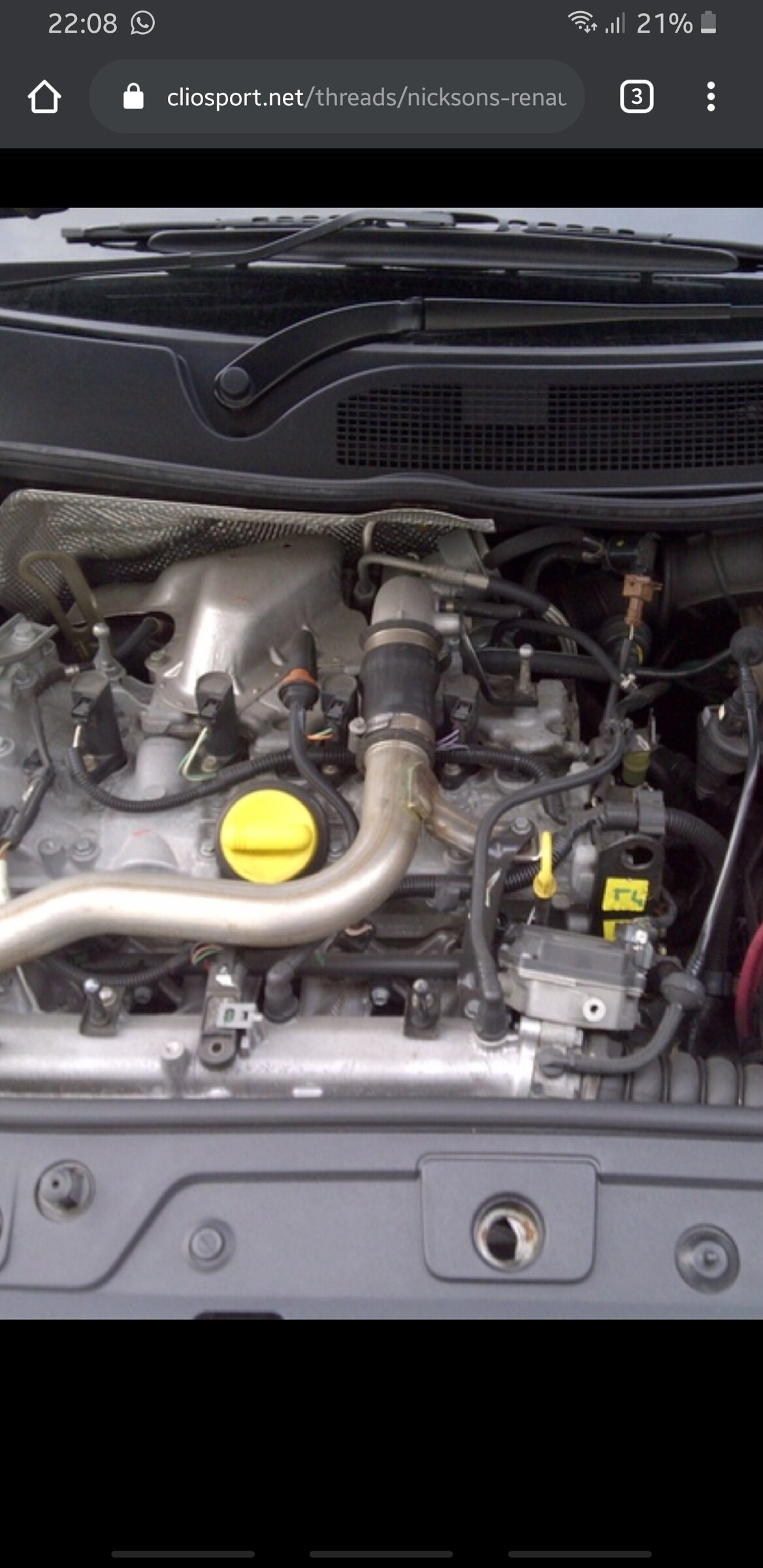

View attachment 1478305

Why can't they keep it simple and keep the wires the same pair of colours for each.



[Crayola]

Why can't they keep it simple and keep the wires the same pair of colours for each.



[White16valver]

Did you forget to number up the connections before you took them off?



[Crayola]

I suspect it's the same as my old 225 where the coil pack connectors just snap to bits



[barnesautos]

Ignition live power go to Pin 1 on the coil.
Pin 2 all go back to the ecu



[Clio.lee]

Thanks Lads. They basically fell to bits
