ECU pin out

[npt]

As above, does anyone have a diagram for ECU pinout for the 172,

Cheers



[JamesBryan]



[npt]

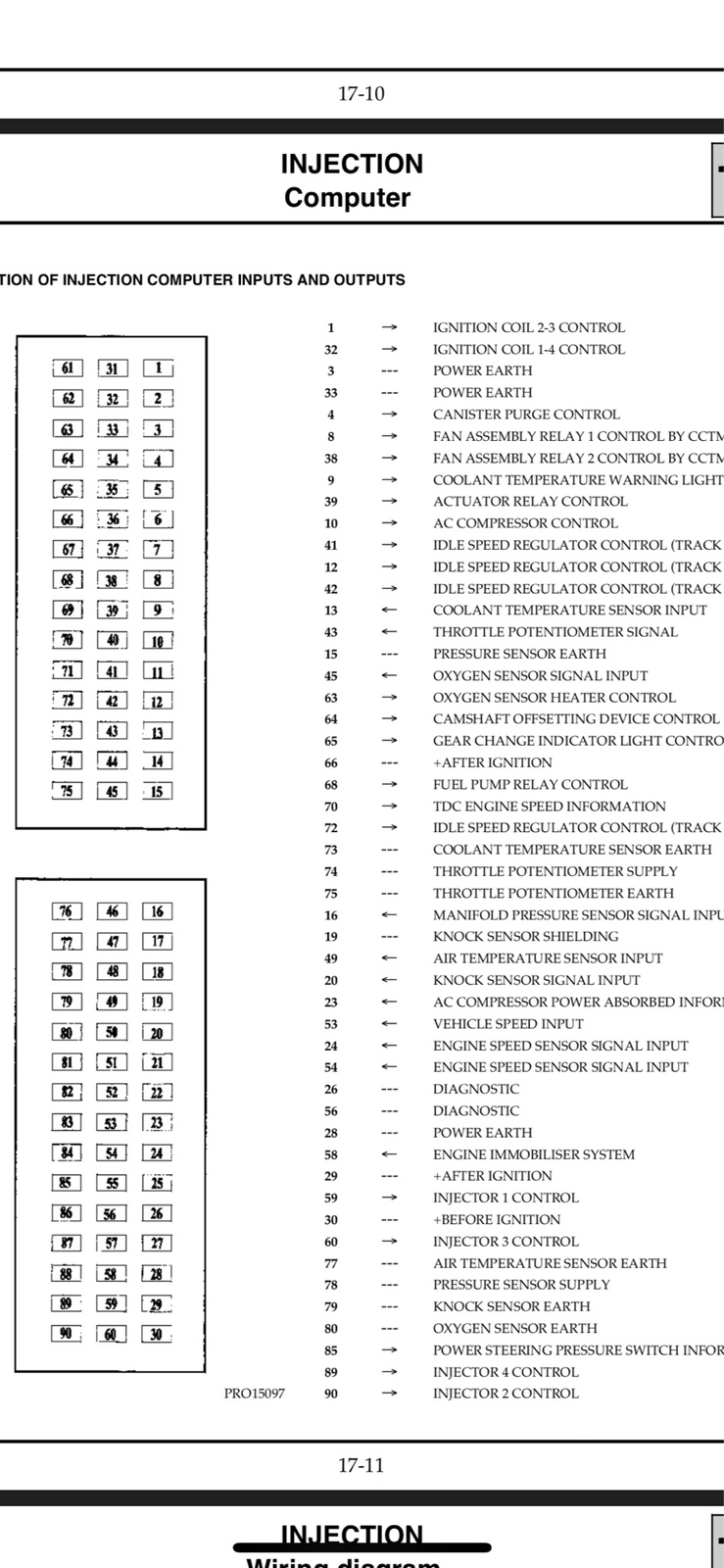

View attachment 1579564

Legend, thanks very much



[JamesBryan]

Legend, thanks very much

Google is your friend 😂

Better than the forum search function 😅

Just search 'Clio 172 [insert problem]'



[Brigsy]

I have visu and can get the later 182 pinout if you need it.



[scullyg40]

View attachment 1579564

Isn't this the ph1 pin out? Or is ph2 the same?



[JamesBryan]

Isn't this the ph1 pin out? Or is ph2 the same?

Think you're right actually 🤦🏻‍♂️

Try this list instead.



[npt]

Issue I have is the speedo not working, sometimes it works after 8miles then work until the car is shut off, then stops again! Sometimes it might not work once on a 30mile journey, next time it'll work after 2miles then work for hours....I changed the sensor for a genuine new one only used for 10miles or so ftom here, it worked fine for 2months and now it's back to this carry on, I have a new sensor but trying to check wiring before fitting it.

The pulse wire is orange at the sensor and violet at the clocks, I've temporarily removed the pin from the stereo to eliminate that, there is constant power at the feed to the sensor, so I plan to trace it back through the ecu to the clocks and test it all the way to fix it once and for all



[Morefire]

I believe the 4df 712 engine has a Meganeti Marrelli 5NR ecu
No ECU wiring given in Haynes Manual. for CLio 2 1.2 16v 2003.
I need to trace signals and check ecu.
I am not sure these are the right Pin outs.
But big up those who help.
Any body Help ?
If I find one Ill post it to you
Cheers.



[npt]

I got it all sorted with a new sensor, I bought a supposedly new genuine sensor on here, but it wasn't as its faulty like my old one, new one fitted has been fine



[KivsGarage]

View attachment 1579564

Does the 182 share the same pin out? @JamesBryan



[JamesBryan]

Think you're right actually 🤦🏻‍♂️

Try this list instead.

Does the 182 share the same pin out? @JamesBryan

Refer to my post after that.
