Gearbox Wiring Loom Photo Request



Big_Steve_T

ClioSport Club Member
Hello all,

As part of my Clio 182 Restoration


I’m struggling to see where the Engine Bay wiring loom located above the gearbox?? I’ve got the little 3 strand holder, but can’t see where to fix it, and/or am missing the fixings..??

Anyone have any photos of that area they can show me how it’s fixed on??


Dr HMS Derv Destroyer

ClioSport Club Member
  MK1DTi/DS3/vivaro
Abs pump wiring runs across chassis leg behind gearbox mount cradle. Reverse light switch runs over end of box under the mount ( should be self explanatory ) and engine loom bolts to the gearbox mount cradle at given points with 8mm/10mm bolts


Big_Steve_T

ClioSport Club Member
Abs pump wiring runs across chassis leg behind gearbox mount cradle. Reverse light switch runs over end of box under the mount ( should be self explanatory ) and engine loom bolts to the gearbox mount cradle at given points with 8mm/10mm bolts

Thanks chap!!

I’ve got the basics of the loom locations, but just can’t figure out how those three sections of loom and the associated bracket comes from the back of the engine bay, to the front, over the gearbox..?

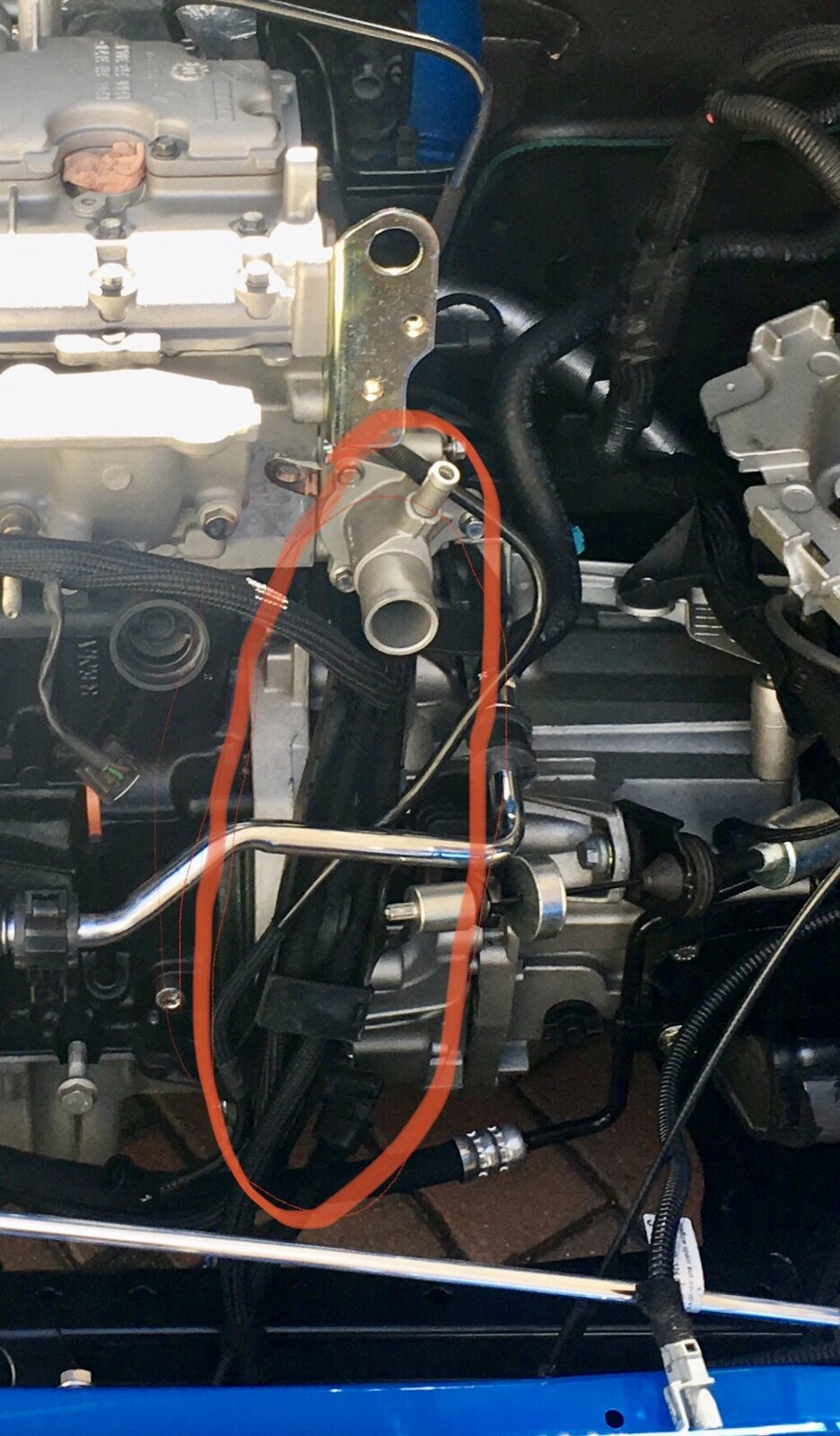

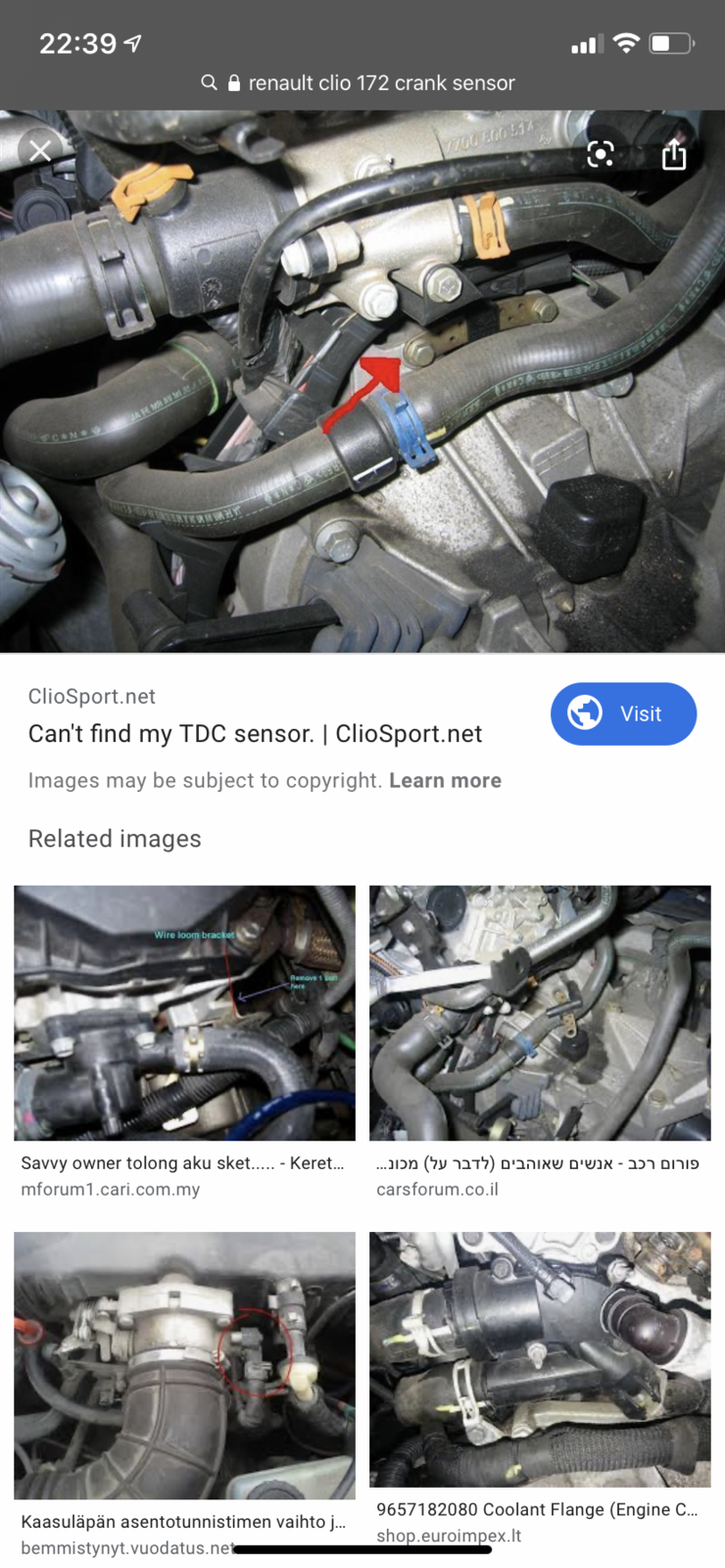

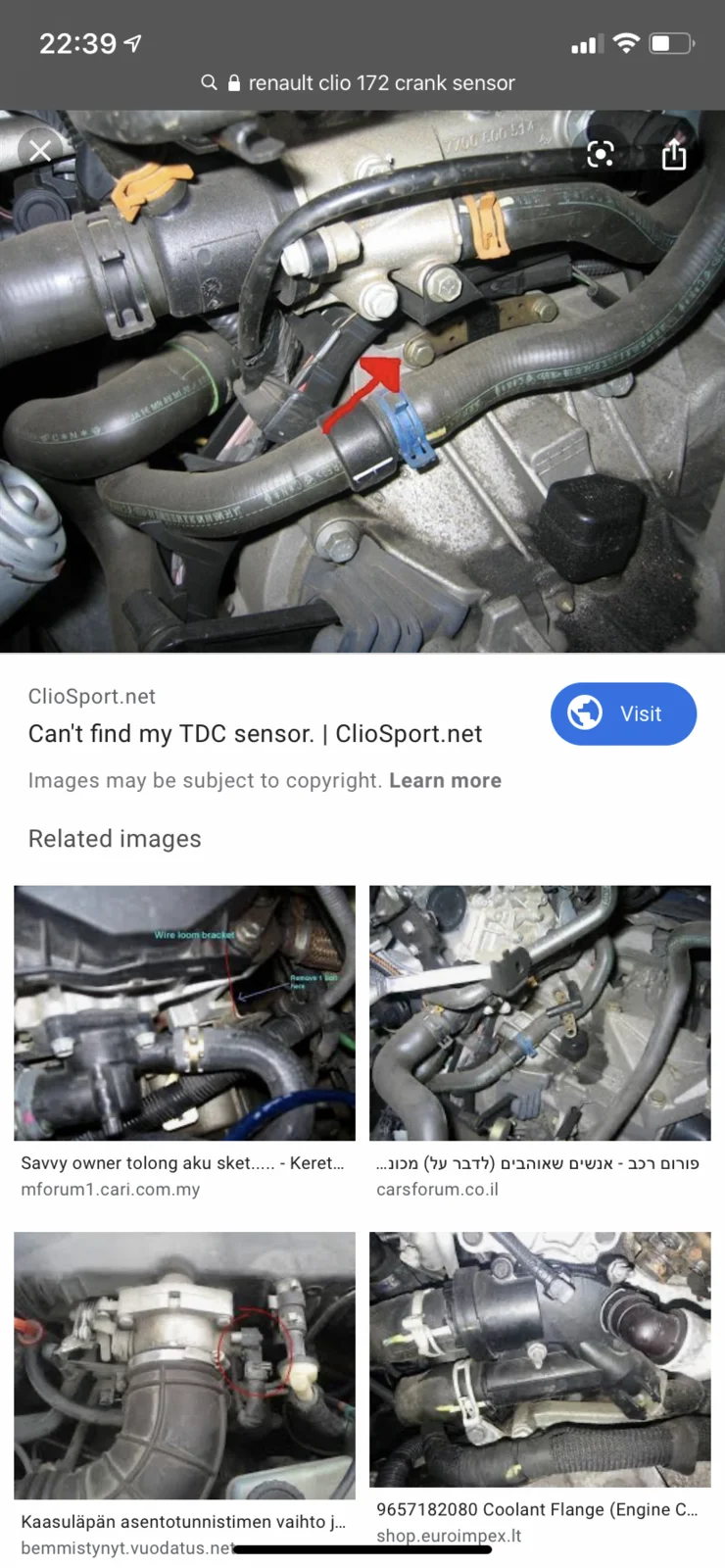

It’s this bracket I’m struggling with:


Dr HMS Derv Destroyer

ClioSport Club Member
  MK1DTi/DS3/vivaro
Been a while since I’ve had a look , should be a 10mm nut on a bracket that bolts to the left bottom near sump, then bolts further up on thermostats housing/ around that area Can’t find a pic but if
