Help needed in location of vibration/engine mount after clutch replacement

[lassell]

Dear Clio fanatics,
I am the owner of a Clio 1,6 16V. Engine: k4m.
I have just finished replacing my clutch and several other wear parts. As always, i struggle to find a way to keep track of screws and nuts, but this time, i have really messed up :smile:
I end up with this square "mount" for vibration or what it is, and i really need help in locating where it should go.

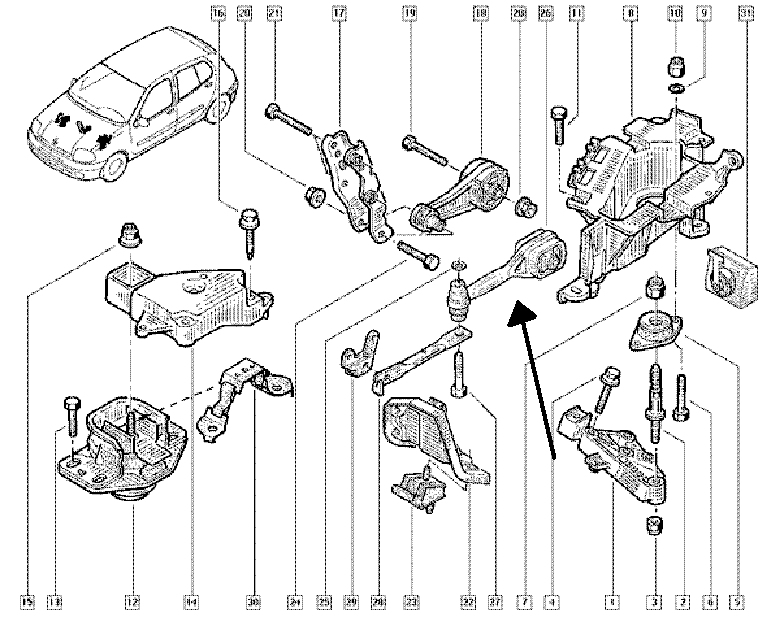

The part is listed in the attached diagram, with the number 31 - the square to the right.

Can annyone help me with this?

Kindest Regards, Lasse.



[Vaughan]

The the dog bone.



[lassell]

Sorry, seems i have left this thread in wrong section, should´ve technical.
Vaughan - The dog bone? Im reffering to the number 31. Dog bone is, 19, right?



[lassell]

Anyone have a diagram where i can see the placement of this terrible part! ?



[Mar172]

No. 18



[lassell]

Oh yes 18... but my problem is, that i dont know where the 31 goes.



[STEVE.M]

Dear Clio fanatics,
I am the owner of a Clio 1,6 16V. Engine: k4m.
I have just finished replacing my clutch and several other wear parts. As always, i struggle to find a way to keep track of screws and nuts, but this time, i have really messed up :smile:
I end up with this square "mount" for vibration or what it is, and i really need help in locating where it should go.

The part is listed in the attached diagram, with the number 31 - the square to the right.

Can annyone help me with this?

Kindest Regards, Lasse.

No 30 in my diagram,
https://partsouq.com/en/catalog/gen...B0AQBVLUUF0Bw$&vid=1247&cid=75573&uid=3218&q=
Described as silent block, I suspect it has migrated from its location under No 12 in your diagram ( top RH engine mount ).
Dedicated weight savers bin them.
