Mk2 dual optics adjustment

[Zeitgeist0190]

hi folks, i had bit ofa search but couldn't find what i was looking for. I apologise if i seem a bit dim and the answer is staring me in the face.
I fitted Dual optics into my Mk2, and did the wiring change to let them work (albeit still havent managed to do the relay bit) my question is:

Do these only have the Vertical adjustment wheel? i have 6000k HIDs in them as the standard bulbs were rubbish, however i have a suspicion they're shining just a little high in the air above dead ahead, i've had to put the adjsuter wheel onto 3 or 4 so they're shining enough on the road - i also don't want them shining through someone rear windows and blinding them (they are in projectors though!). When driving down the road - you can very clearly see the blue illumination from them on road signs wayyyy down the road.
I had a look under the bonnet and saw the white adjuster cog on them, i was going to park up against a wall and adjust them down more - is there only vertical or do these also have horizontal adjustment? Just in case they're too far off to one side.
Should headlights be shining slightly down to the road, i.e. /not/ dead ahead? also: do you have to re-align headlights every time you remove/replace bulbs?

thanks guys!



[Rob]

There's just verticle adjustment, you use these to level them up normally, then you use the in car adjuster to change the height.



[Zeitgeist0190]

There's just verticle adjustment, you use these to level them up normally, then you use the in car adjuster to change the height.

Ok, i now only feel like half a spiv for getting so frustrated trying to find the horizontal adjustment.
Any ideas on roughly how high it should be ?



[Rob]

I can't remember for the life of me.

If I had to guess, park approx 1m away from a wall, set the lights to the middle point on the internal adjuster, go for about 75cm off the floor. See how you get on.



[Zeitgeist0190]

Thanks a bundle Rob! That was the general idea i had formulated!



[McGherkin]

Are the servo arms seated in the linkages correctly? If they're not they can make the beam shine too high.

The vertical adjustment on a pair of dual optics is on the servo itself, and there's a left-right adjustment on the headlamp block (it's a little white wheel)



[Rob]

Ginger nuts is right, if it's not in right, it'll aim them high.



[Zeitgeist0190]

Are the servo arms seated in the linkages correctly? If they're not they can make the beam shine too high. The vertical adjustment on a pair of dual optics is on the servo itself, and there's a left-right adjustment on the headlamp block (it's a little white wheel)

Can you explain this a little more McGherkin? I'm a little puzzled - what i had seen was a white toothed wheel with an allen key hole (i think) for adjustment so that's horizontal?
I did read in a few threads about making sure the adjustment servo is 'clicked'/locked in the in-car adjuster does move them up and down so i'm assuming this is working - how do i change the height independently of this?



[Rob]

That little wheel is manual adjustment mate, he's just saying make sure the adjust is in the slot properly. Have a check, you'll be able to see if they're not.



[McGherkin]

I've got a spare Dual Optic kicking around at the moment dapprove, gimme about half an hour to take pics and draw arrows and things and I'll post up a bit of a guide here.



[McGherkin]

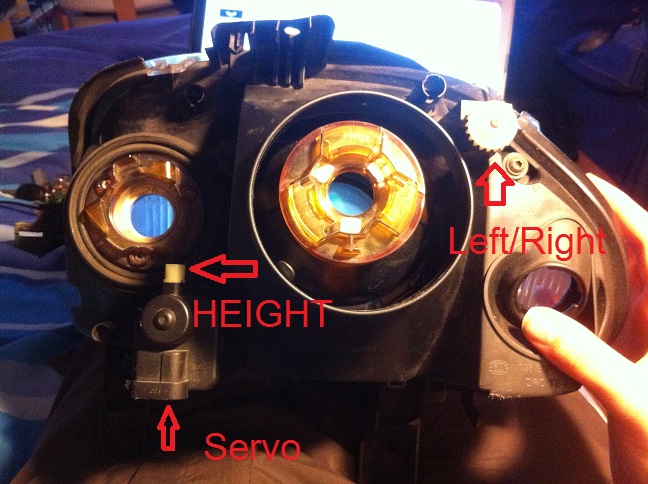

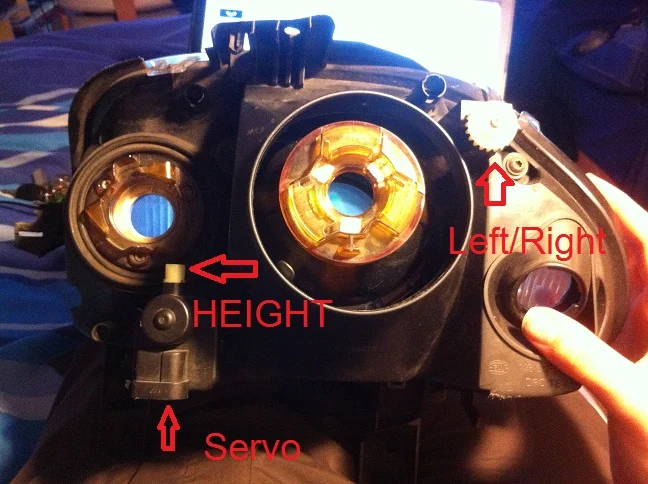

Right, here goes. Here's your Dual Optic as viewed from the back.

I've labelled the bits which normally adjust the left/right aim and height of the headlamp. Realistically you shouldn't need to touch the left/right aim. The height is altered using a 6mm allen key.

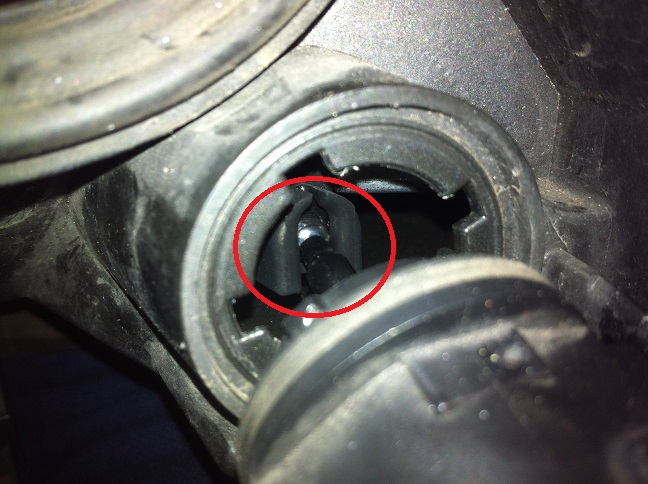

The servo unscrews to show this:

If the ball at the end of the servo arm isn't in the socket (It slides upwards into it), it will cause your headlight to aim massively high.

Hope that helps



[Zeitgeist0190]

Thank you so much for this!! I was looking at the left/right aim, i wouldn't have even seen that on top of the servo!

Just so i'm clear on it - the servo ball needs to click up into that socket on fitting, but it's possible to miss it and you can still adjust the height in-car but by default they'll aim high?

I feel so bad now for the people i've been driving behind at night

Thanks a lot for your help once again!



[McGherkin]

Just so i'm clear on it - the servo ball needs to click up into that socket on fitting, but it's possible to miss it and you can still adjust the height in-car but by default they'll aim high?

Correct, IIRC I had to switch it all the way down to position 4 in the car in order to get them to the correct height before I found out what was wrong when I did it!
