Ph1 172 wiring diagram

[KungFuSpaghetti]

Has anyone got one or know where I can get one from? Having some issues and want to connect the fan up to a manual control, so as there is no A/C was hoping to wire it up to that.

Thanks in advance



[KungFuSpaghetti]

anyone? Fred? lol



[Rob]

I'd be interested to know this too tbh.



[f0xy]

What do you want to be able to do, just turn the fan/blower on via a switch from inside?



[KungFuSpaghetti]

yeah, but want the AC button to control it instead of having a switch hanging there. Want to tidy the wiring up as well and check which relay controls the fan, as not sure if that's at fault or a relay.



[Russ Rallye]

Haynes manual should give you that iirc only the engine wiring it doesn't have, pretty simply once you get a look at it.
Russ



[KungFuSpaghetti]

Will get a Haynes manual as a matter of cause anyway, did have a look but didn't look like they did one for a Ph1?

Should also point out that I have an Omex600 in the car too and the fan is controlled from that as for when it kicks in. It's all a bit of a wiring nightmare at the moment trying to go backwards at the moment to go forwards but my mate working on it has only previously worked on Mk1's.



[Rob]

They do a ph1 one I believe, well i've seen one with a non sprot ph1 on the front... I need it for the central locking loom info...



[KungFuSpaghetti]

cool, will take a look, as the car's been off the road for nearly a month now since fcukwits that usually work on it left it in a non MOT legal state



[f0xy]

Il have a look later and see which is which, ive got a Ph1 interior loom stripped down where I store all my cr*p.



[KungFuSpaghetti]

cheers Foxy, that would be greatly appreciated



[sophiesdad]

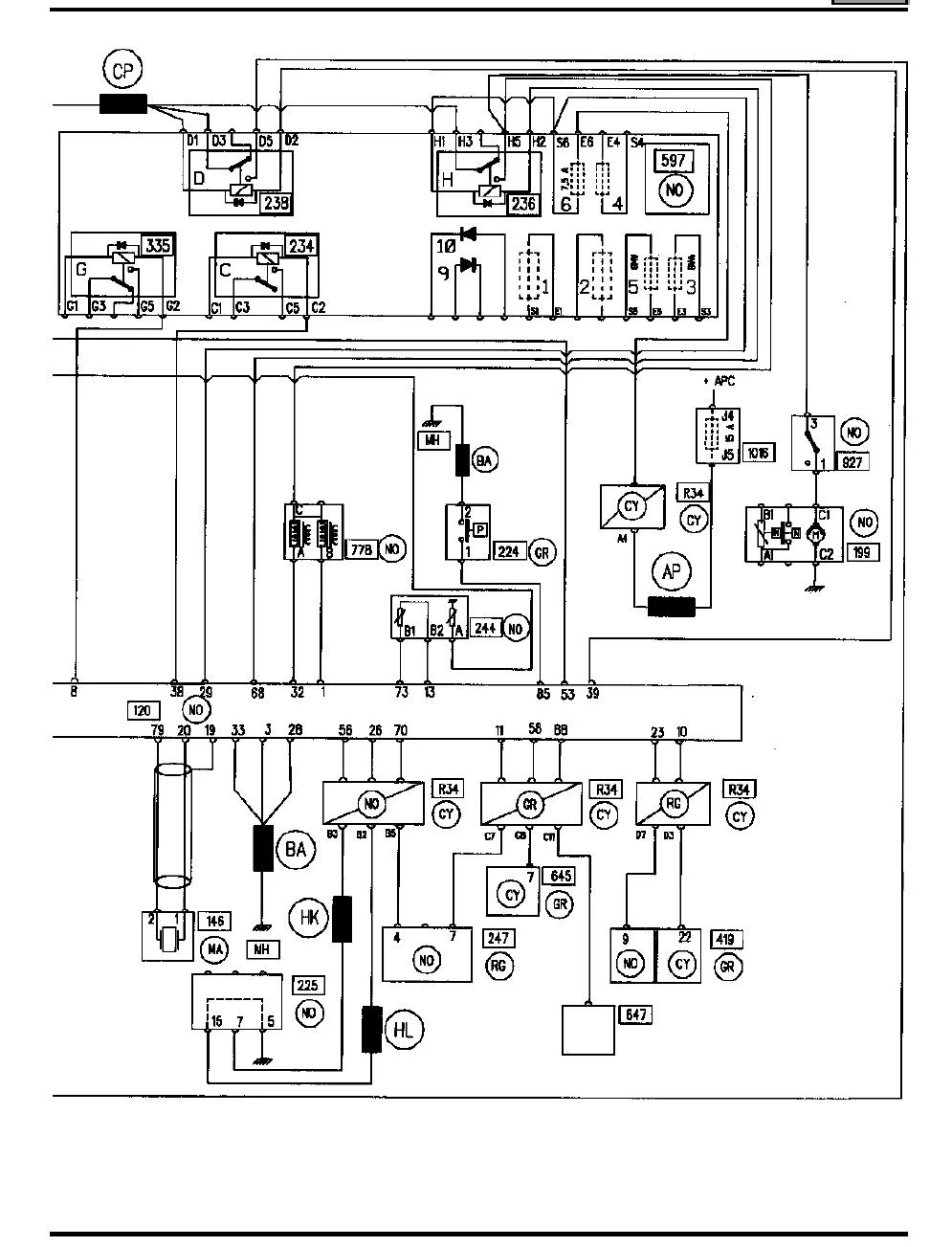

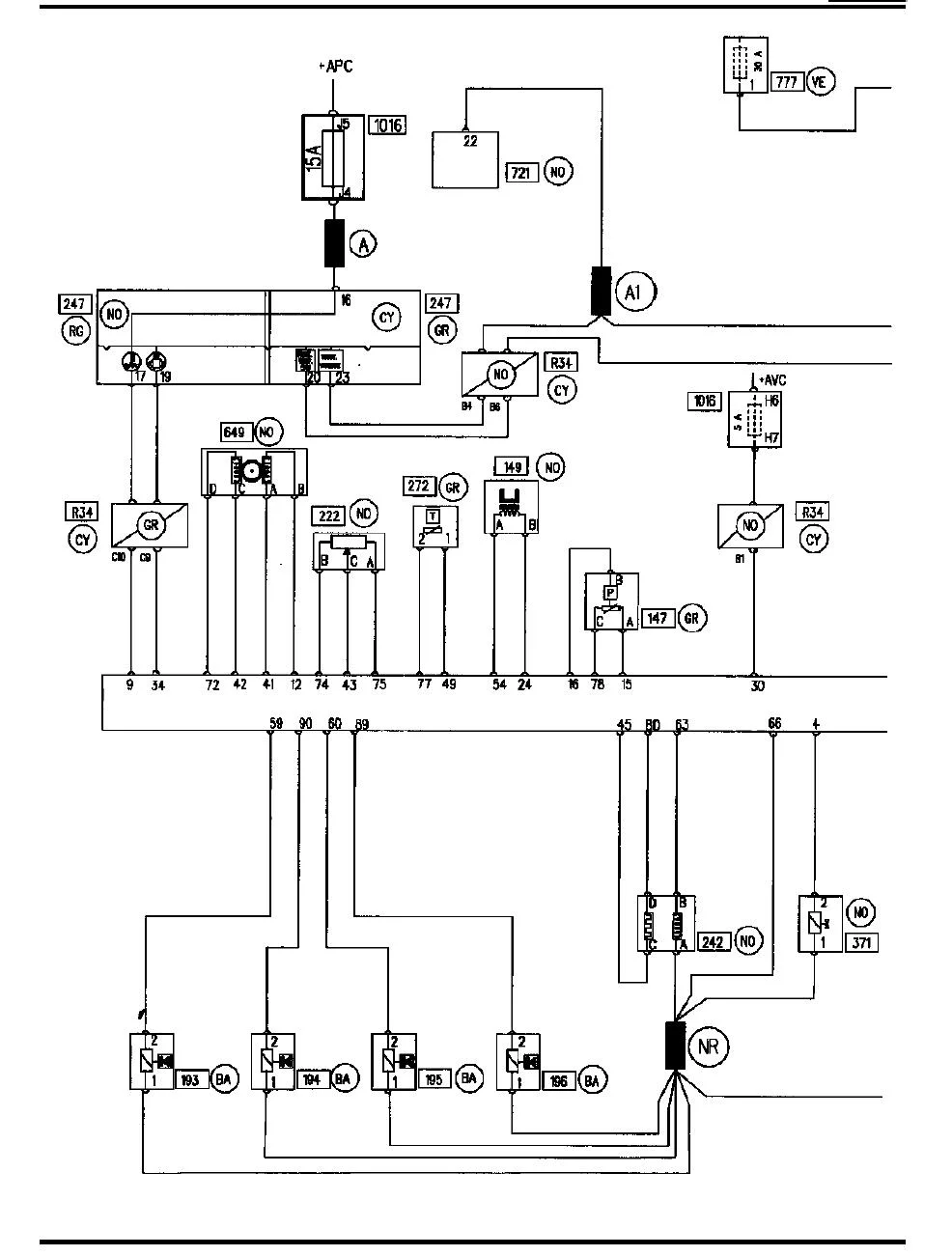

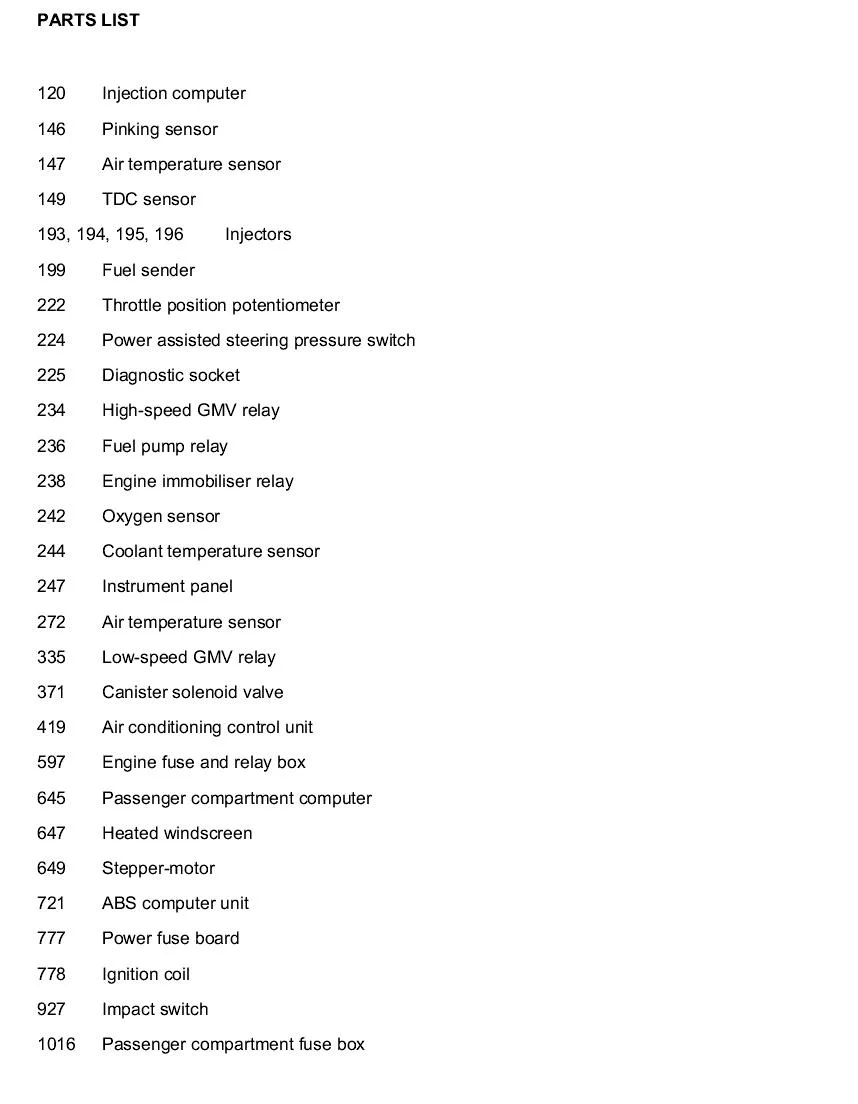

is this what your after ?



[KungFuSpaghetti]

cant see pics at work, but I'll have a look when I get home, thank you
