Spent some time sorting out the wheel alignment now the top mounts, Lower ball joints and wheel bearings have all been replaced.
I used what is known as the `string` method, its surprisingly accurate..
First, I started with a roll of SEA FISHING SHOCK LEADER, its strong fishing line, I bought 50m in Fluorescent Red off Ebay for £2.75 delivered.
Start by making sure the steering wheel is pointing straight ahead, if this is moved or off centre, you will end up with the wheel not dead ahead when the car is driving straight. !!
Your method may vary slightly, but the basic theory is the same. I have some pieces of stone laying around which were ideal, you need something moveable but heavy enough to stay in place.

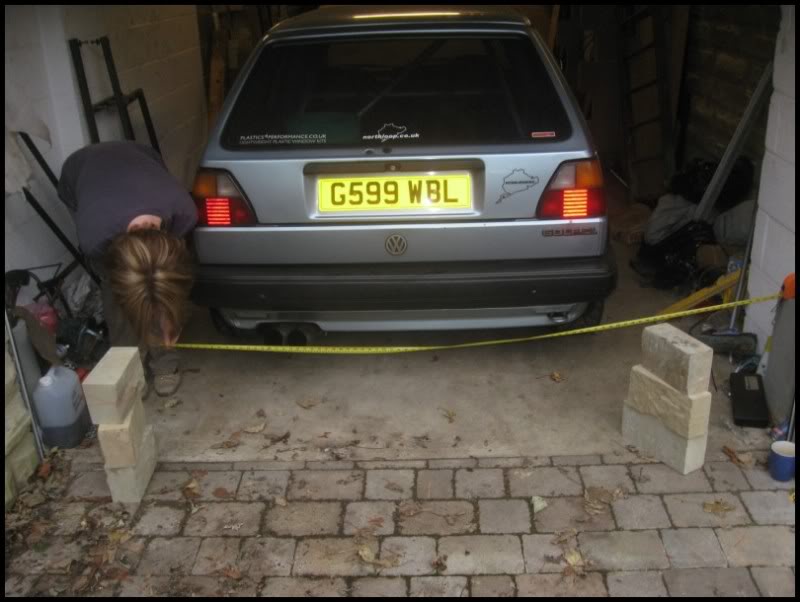

Start by having a pile of blocks at each corner of the car, now run a length of line down each side of the car, approximately parallel and then ties round each pile of blocks, slide the blocks apart to tighten the line and move up and down so the line runs level with the car hub

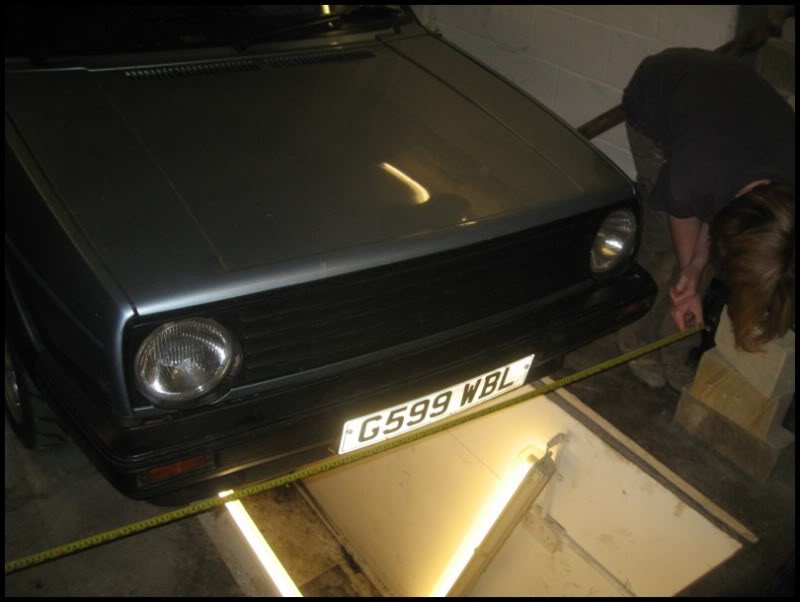

Now, the IMPORTANT PART, much easier with a helper. You want to ensure the lines are parallel down each side of the car, so measure the distance between the lines

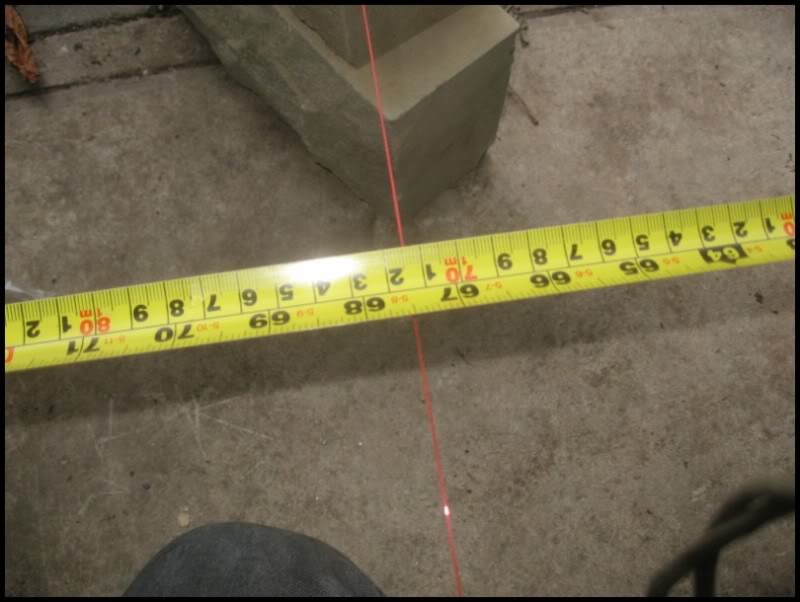

In my case, it was 1.714m (this really doesnt matter)
Now do the same at the front of the car

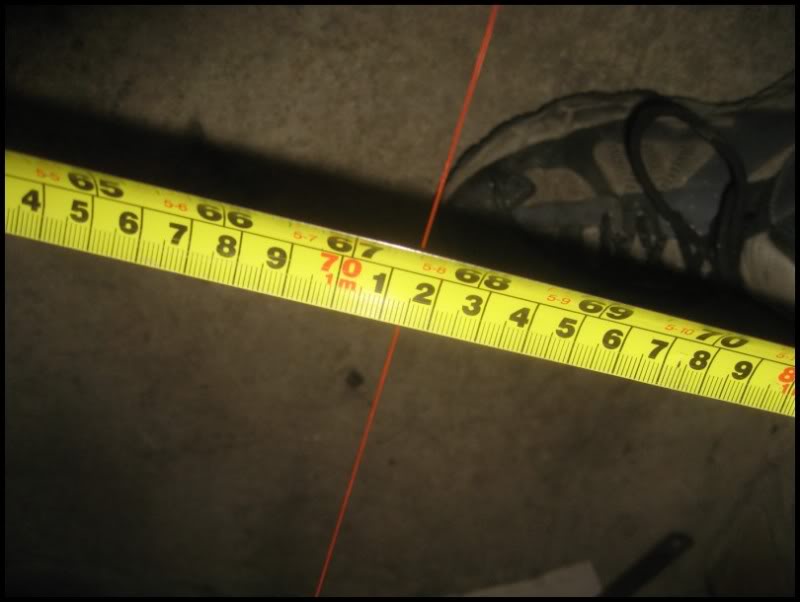

Again, 1.714m

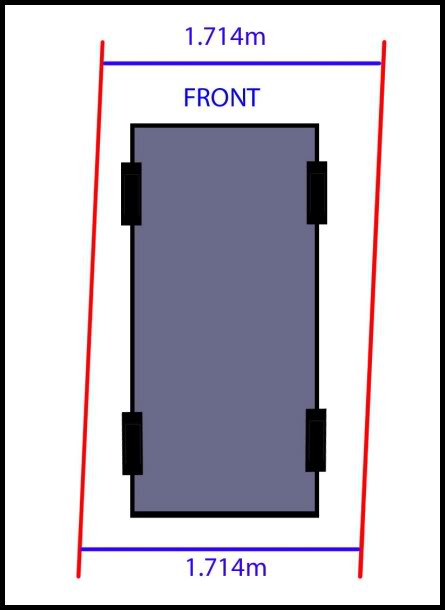

You now know the lines are parallel to each other, but they also need to be parallel to the sides of the car. Shown as NOT being parallel to the car below:
To check, you measure the Hub > Line distance.

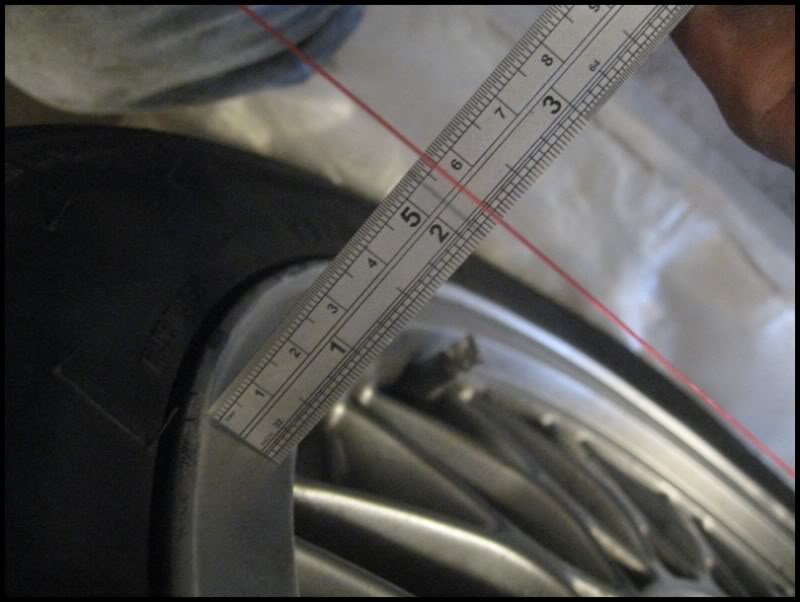

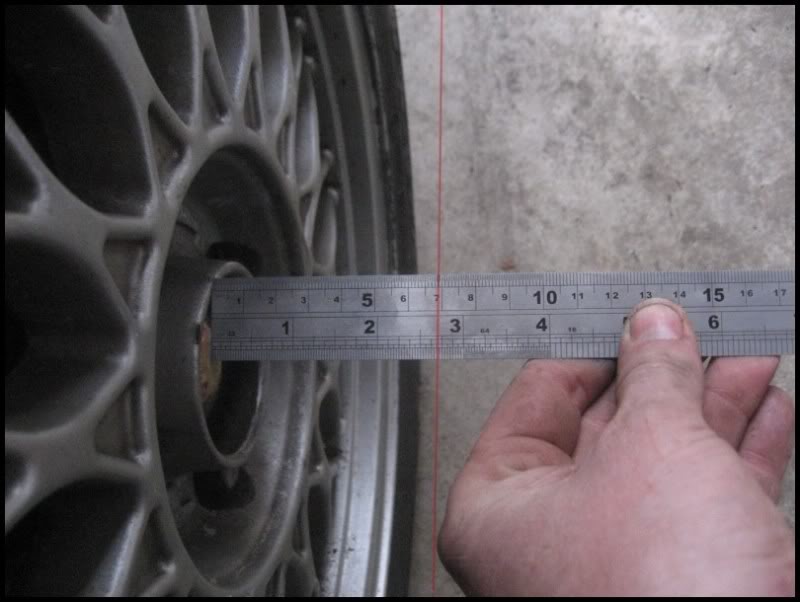

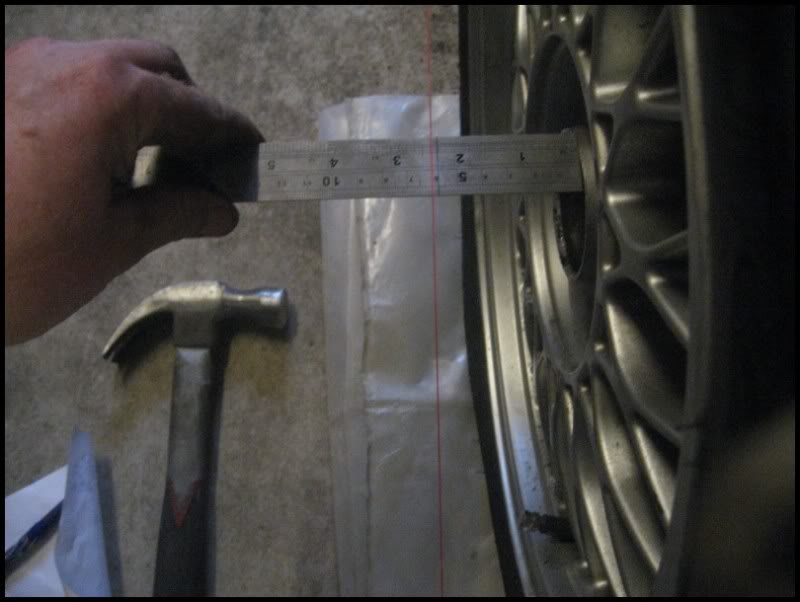

Front drivers side. I measured from that raised part on the wheel centre to the line. Just over 63mm
Now the same on the nearside front, I adjusted the blocks at each side, to move the line so the front measurement was the same.

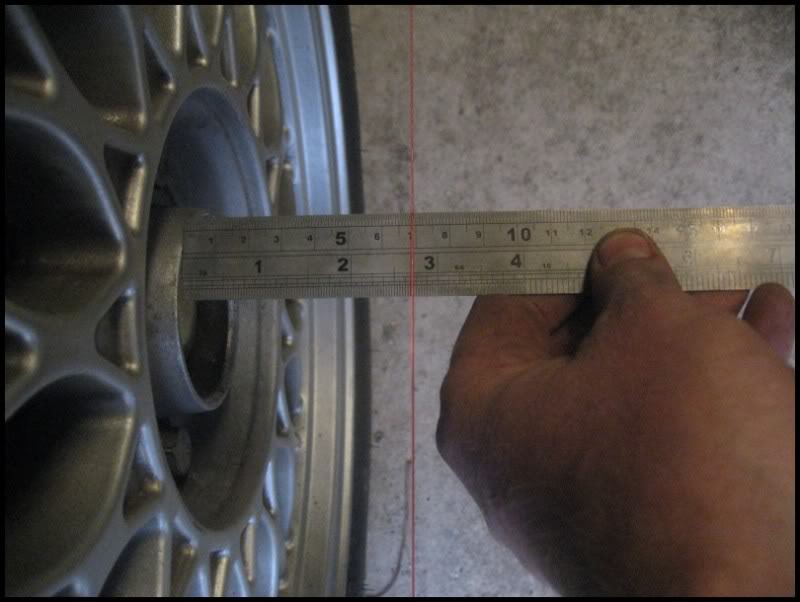

Rear Drivers side, 69mm from wheel to line
Rear passenger side, 69mm wheel to hub.

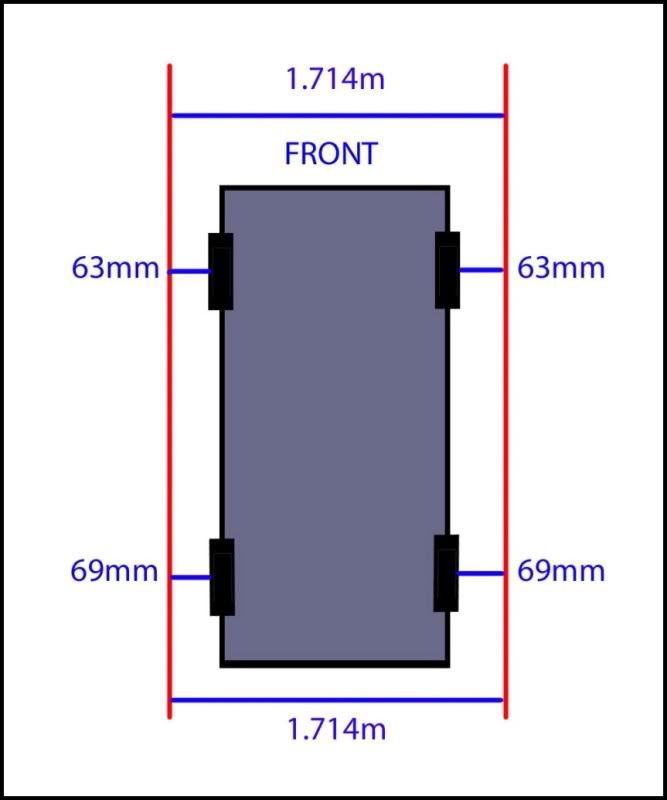

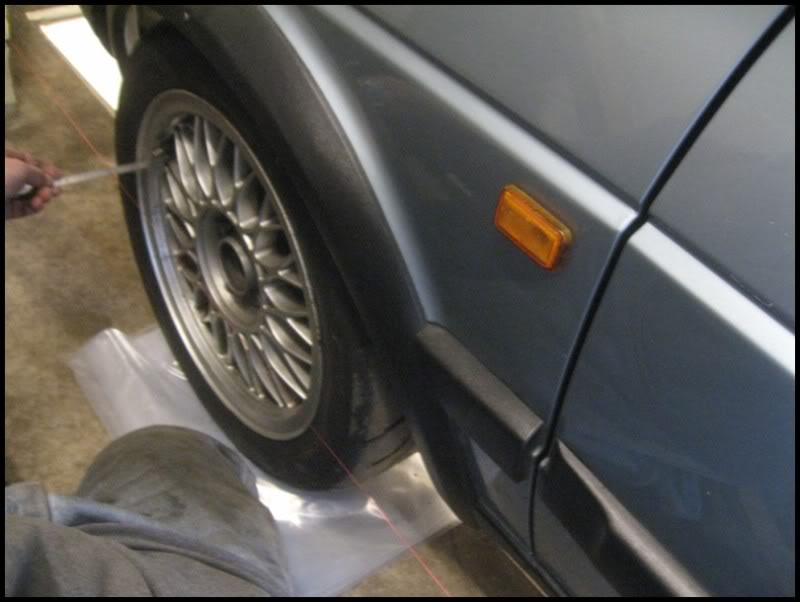

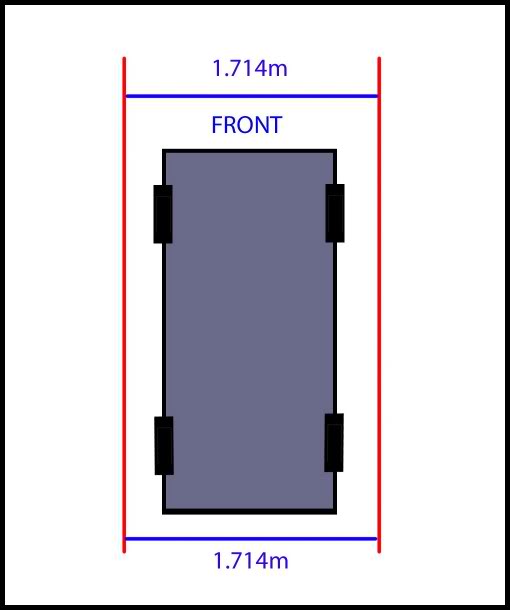

Lines parallel to the car with Hub measurements shown.
TAKE TIME DOING THE ABOVE STEPS. If you rush it, there is not point continuing. You Need to keep measuring the distance from the wheels centres to the line and the distance between the lines to ensure the Lines are parallel to EACH OTHER AND the lines are parallel to the car.
You now have to lines running down the side of the car, if you move these, you need to start again !
I started with the rear wheels. I wanted to check the wheels were both pointing forwards. The reason I checked this is that I fitted the rear beam and there is play in the mounting bolts to allow beam alignment adjustment.
It does NOT matter which point on the wheels you pick, but you MUST keep using the same point for every wheel. It ensures consistency and stops silly errors creeping in.

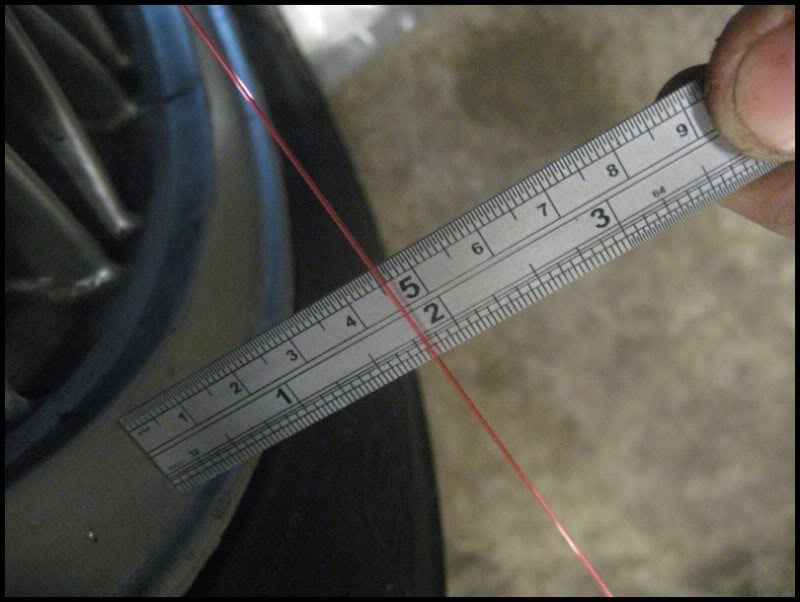

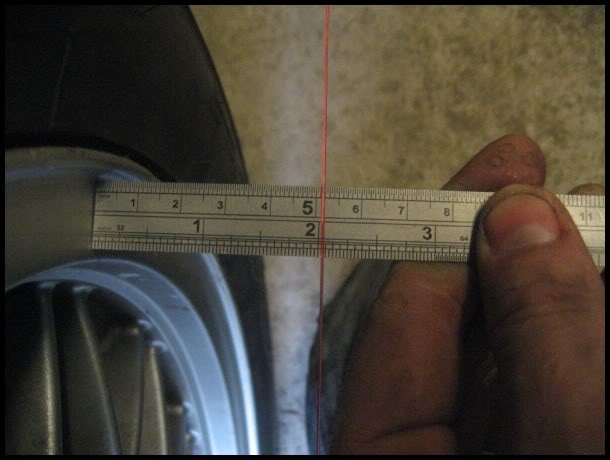

Rear Passenger side, front edge to line : 51mm
Rear Passenger side, rear edge to line : 53mm
Rear Drivers side, front edge to line : 51.5mm
Rear Drivers side, rear edge to line : 52mm
What this means is that in my case, the rear wheels were slightly toeing out and the passenger side more than the drivers.. Wheel angle greatly exaggerated below to show what I mean.

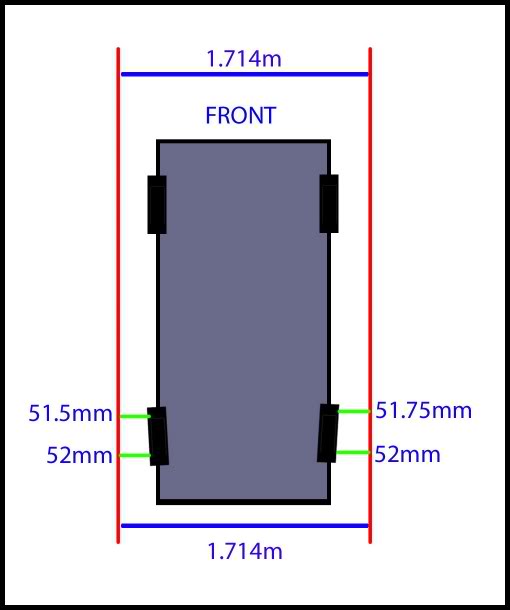

I loosened the rear beam mounts and adjusted the beam until the measurements were equal at each side.
I ended up with the distance from the front edge of the wheels being as close to the rear edge as my adjustment allowed. I still have slight toe out at the rear, probably due to a slightly bent rear beam, but as I`ve had this for 18 months and found the handling to be fine, I`m leaving it.
Next step was to move onto the front wheels. I turned the car around and re set the parallel lines, so the measurements may not tie in with the ones above.

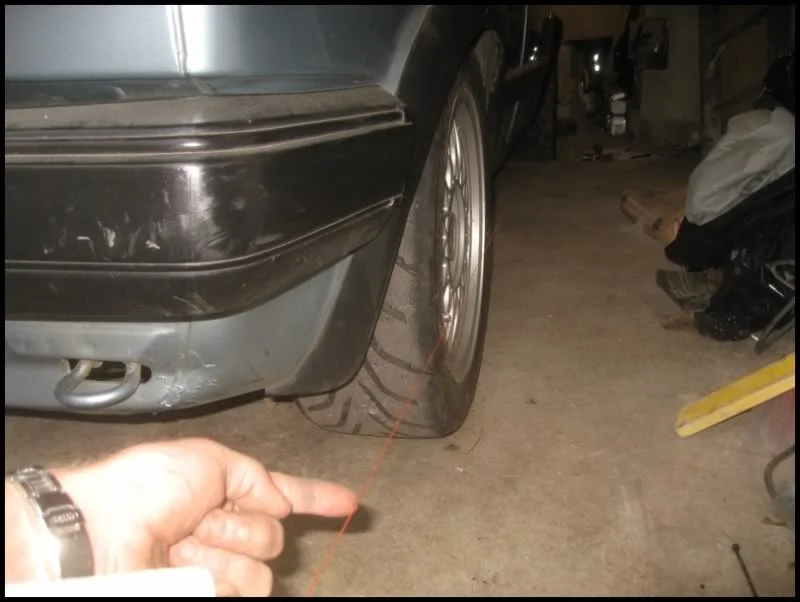

Front wheel measurement in progress

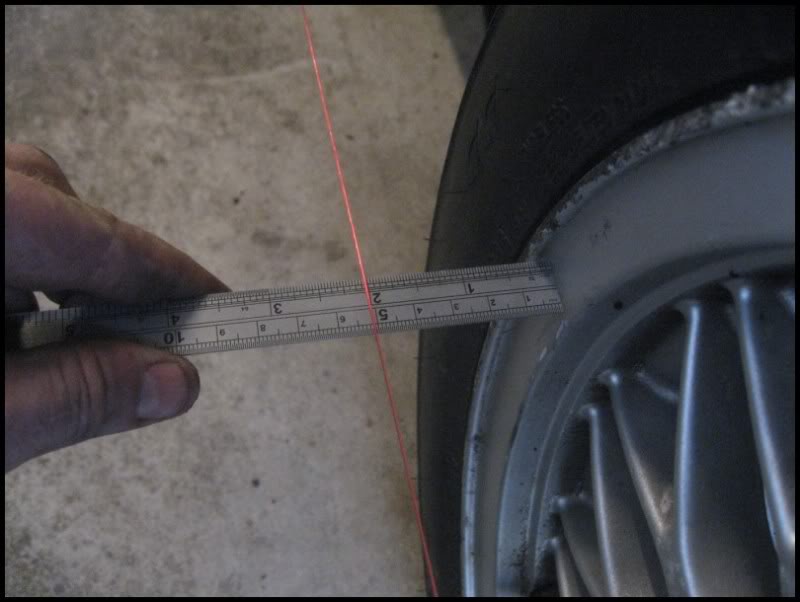

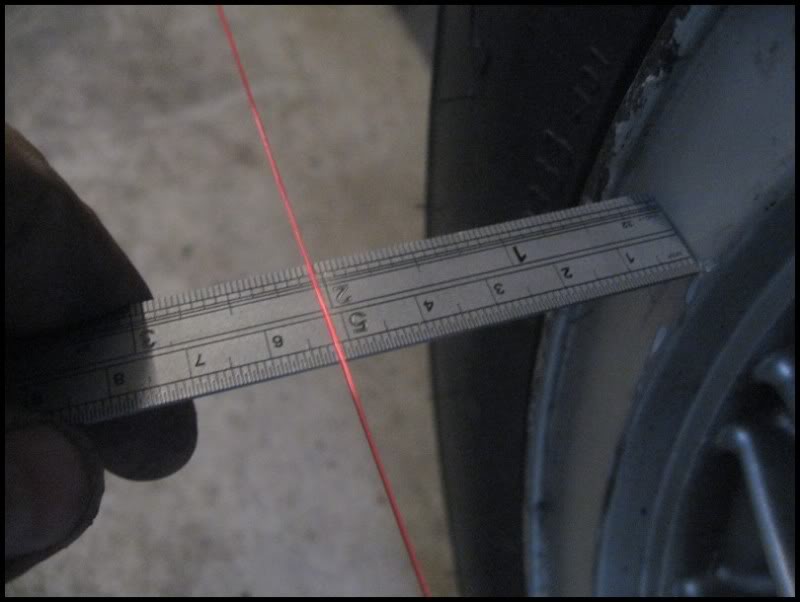

Front Drivers side, rear edge : 46mm

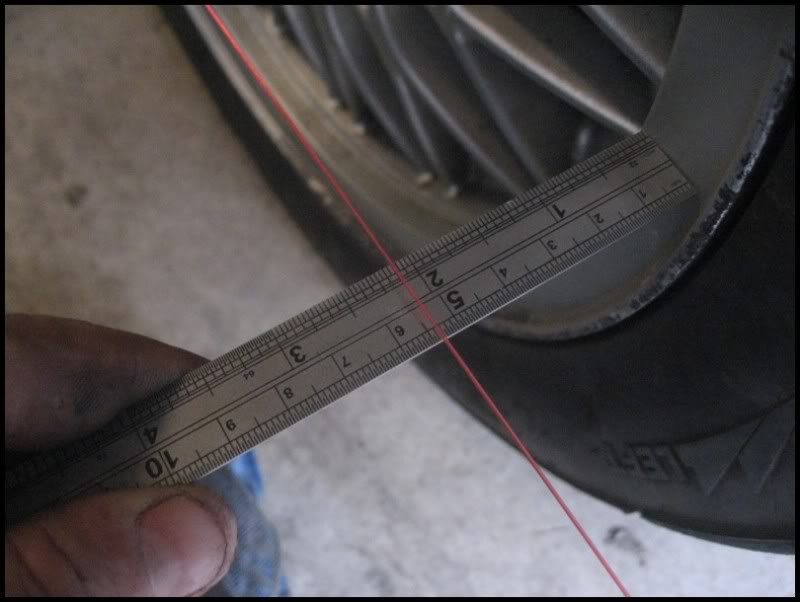

Front Drivers side, Front edge : 57mm

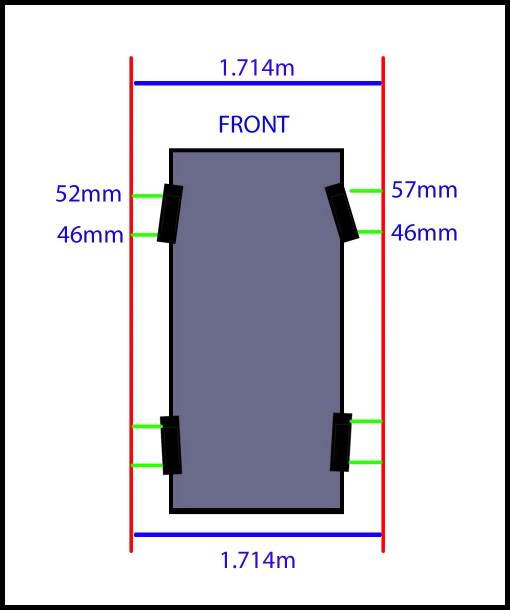

I took measurements for the Front Passenger side too, they were 52mm and 46mm.
This meant I had huge Toe IN. This was not suprising, I`d had all the suspension apart when replacing most of the components, I would not expect someone checking a car that hadn`t had major works to be this far out.

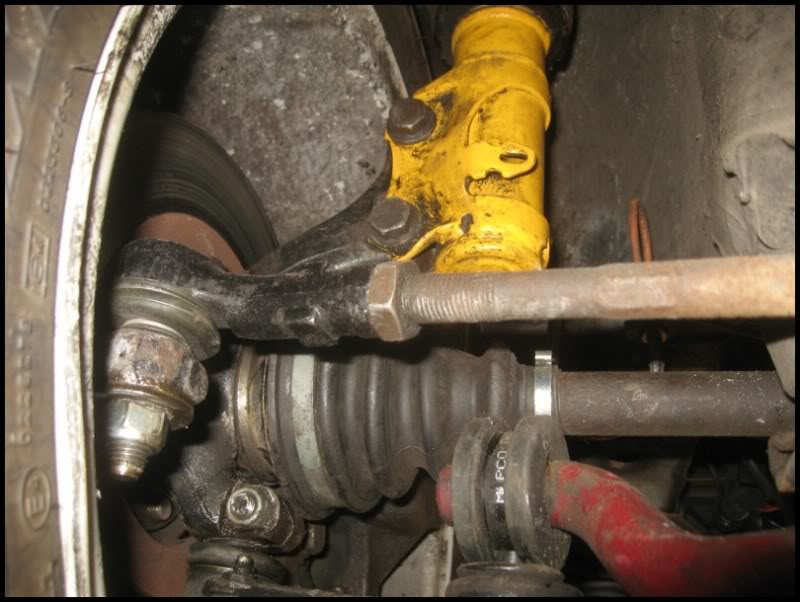

To adjust the tracking, loosen the Tie rod locking nut

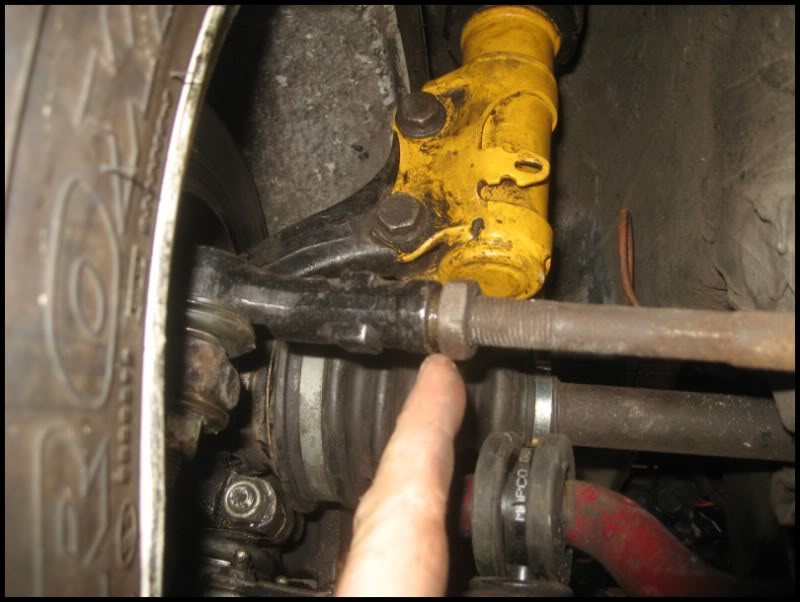

Move the nut sufficiently down the tie rod so it does not impede adjustment

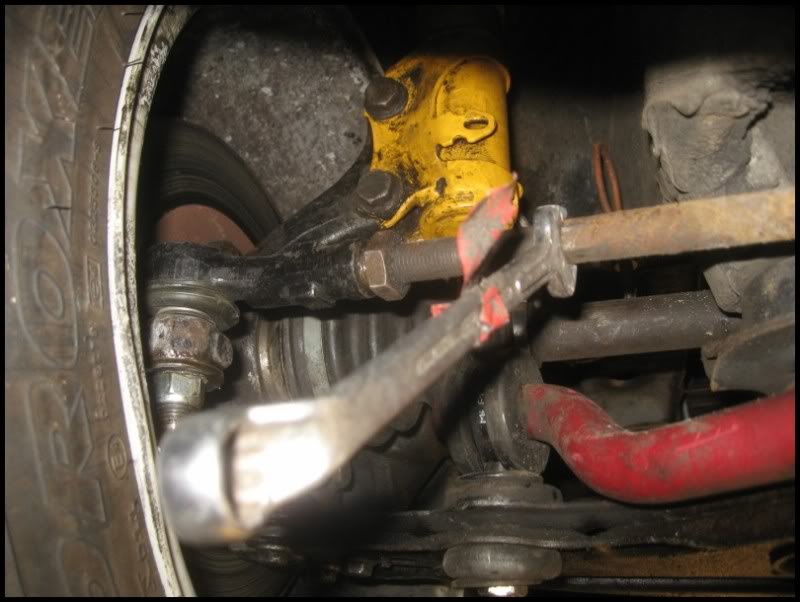

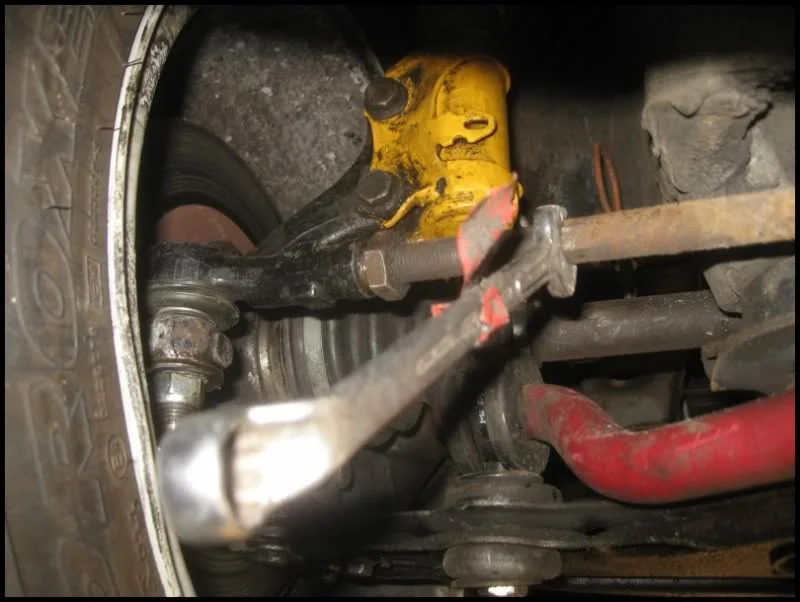

Fit suitable spanner and adjust the tracking. In my case, you would push the rear of the wheel outwards, therefore bringing the front in.
I was after zero toe, I had run this before and liked the handling on track.

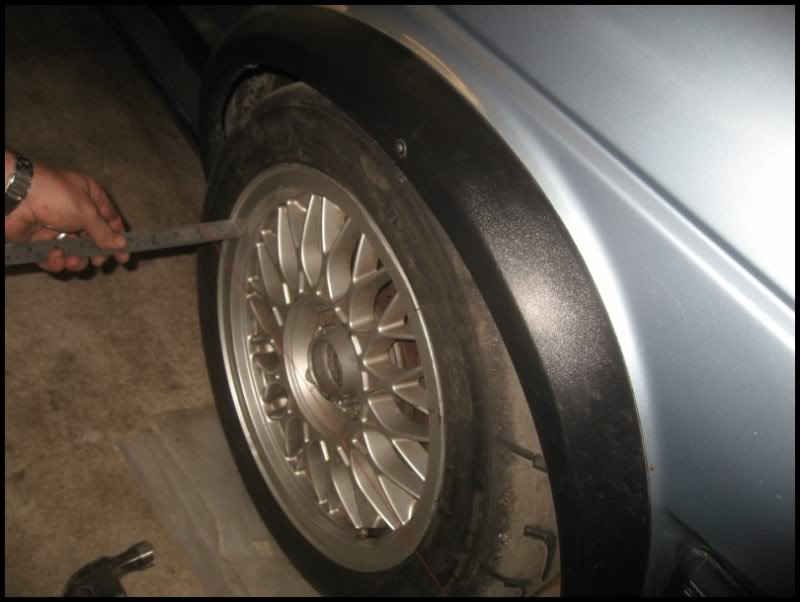

Measuring the front wheels

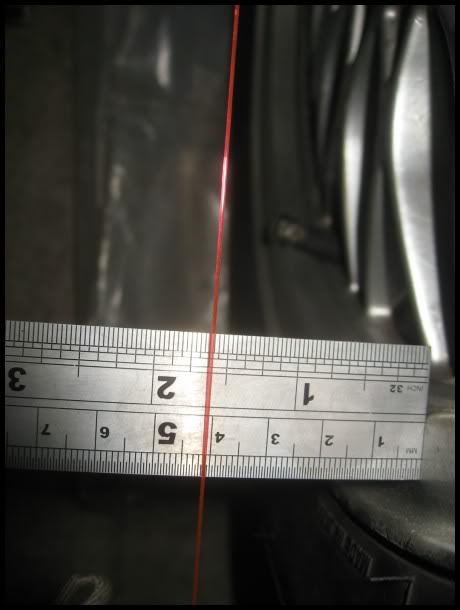

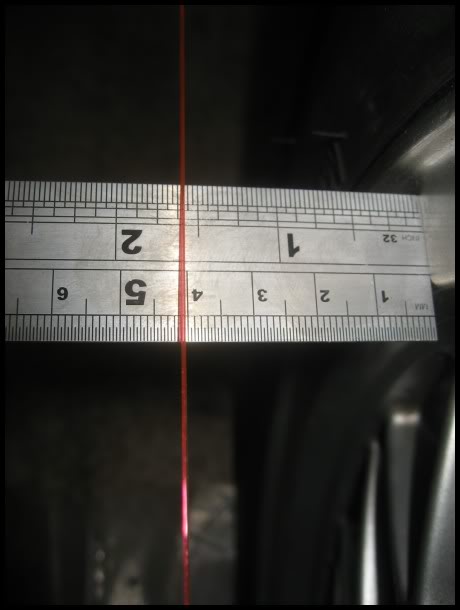

Front edge of the Drivers front wheel : 41mm
Rear edge of the Drivers front wheel : 41mm

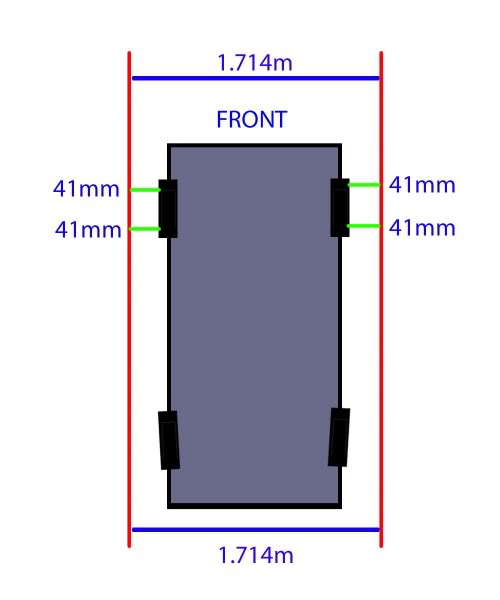

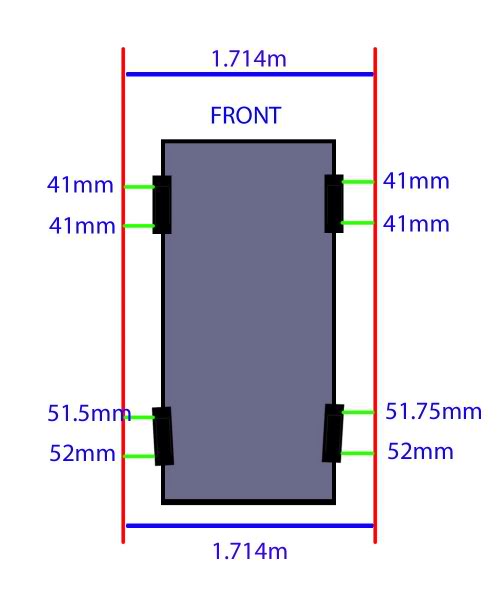

Front wheels after adjusting both sides. Zero toe (parallel)
Final check of all 4 wheels to ensure nothing had moved.
I took the car for a test drive and there was NO crabbing or off centre positioning of the steering wheel required.
This method may SOUND simplistic and not very accurate, but you will be surprised how you can spot even the tiniest adjustments with a steel rule and fishing line...
