Weight of 6 point roll cage

[Chris205]

Not sure if anyone will know but I'm trying to put as little weight bak in the car as possible.

I've decided to do things properly and go for a 6 point weld in cage.

Does anyone know the weight of an omp cage or oreca race cage?

Cheers



[rosco454]

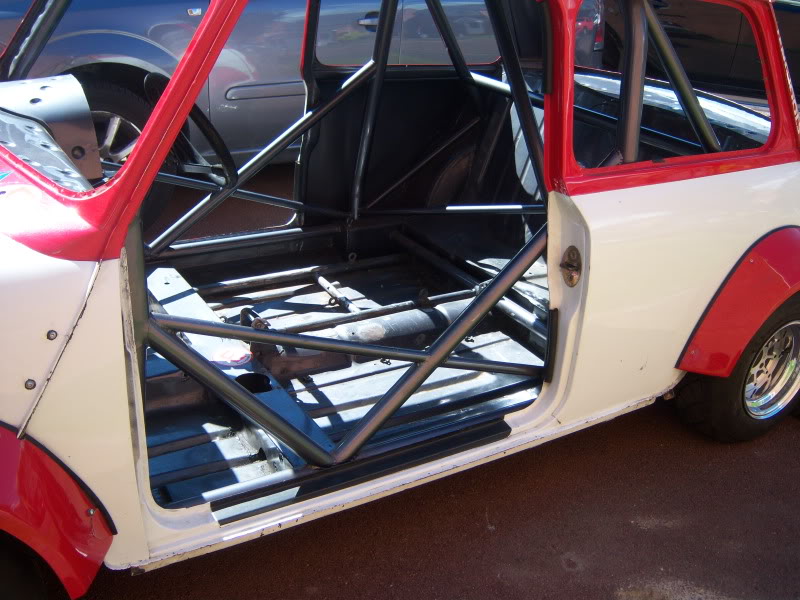

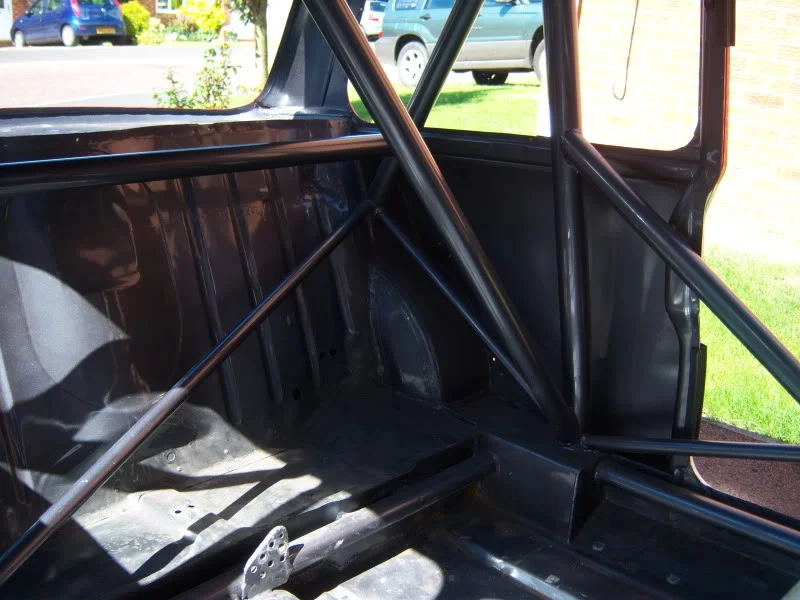

I would guess around 50kg or so,my last cage weighed around 50kg plus welds but it was pretty comprehensive so probably a similar amount of material.



[rosco454]

Actually what material are the cage you are after made from,cds/t45 etc? Quite a diference in weight between them.Im too idle to look it up but I seem to remember certain omp cage are some sort of chromoly which there is a bit of debate about how its best to weld so might be worth looking into.

Cheers Ross.



[mark123]

The OMP one is about 35kg



[SkidMarx]

Custom Cages one is about 40kg, But thats CDS. T45 is about 20% lighter.



[Chris205]

I'm quite new to the whole cage terminology, is CDS and T45 different types of steel?



[BIGASH]

I'm quite new to the whole cage terminology, is CDS and T45 different types of steel?

Yes T45 is more expensive yet lighter as it's stronger so can have thinner walls



[Matt@codered]

CDS means cold drawn seamless.
T45 is seamless too, all FIA/MSA approved rollcages should be one or the other.
