Braided brake lines



DomP182

ClioSport Club Member
  ph1 172, Arctic182
I'm just looking for some clarification, I'm in the process of refurbing my rear beam and need to replace a few bits.

One of these is the rear brake lines and the short flexis, can these be done away with altogether and just run new braided lines from the caliper right up to the rigid lines at the headlight adjuster?


RustyMojo

ClioSport Club Member
  Clio 182FF titanium
I'm just looking for some clarification, I'm in the process of refurbing my rear beam and need to replace a few bits.

One of these is the rear brake lines and the short flexis, can these be done away with altogether and just run new braided lines from the caliper right up to the rigid lines at the headlight adjuster?
That’s what I’m doing, both lines measure and details sent to be made. I just need to confirm colour and pay.


DomP182

ClioSport Club Member
  ph1 172, Arctic182
@RustyMojo I worked the long line out at 1750mm and the short at 910mm if doing away with the flexis, is that what you worked out?


RustyMojo

ClioSport Club Member
  Clio 182FF titanium
I had 1450mm for the OS line and 620mm for NS I’m using BRT motorsport think he said £75. I need to confirm it all but haven’t gotten round to it yet..now I’m worried about my measurements. I measured each section of the hose bend by bend if that makes sense.


DomP182

ClioSport Club Member
  ph1 172, Arctic182
I had 1450mm for the OS line and 620mm for NS I’m using BRT motorsport think he said £75. I need to confirm it all but haven’t gotten round to it yet..now I’m worried about my measurements. I measured each section of the hose bend by bend if that makes sense.
I used a piece of spring, right from caliper tontge end of the flexible hose


RustyMojo

ClioSport Club Member
  Clio 182FF titanium

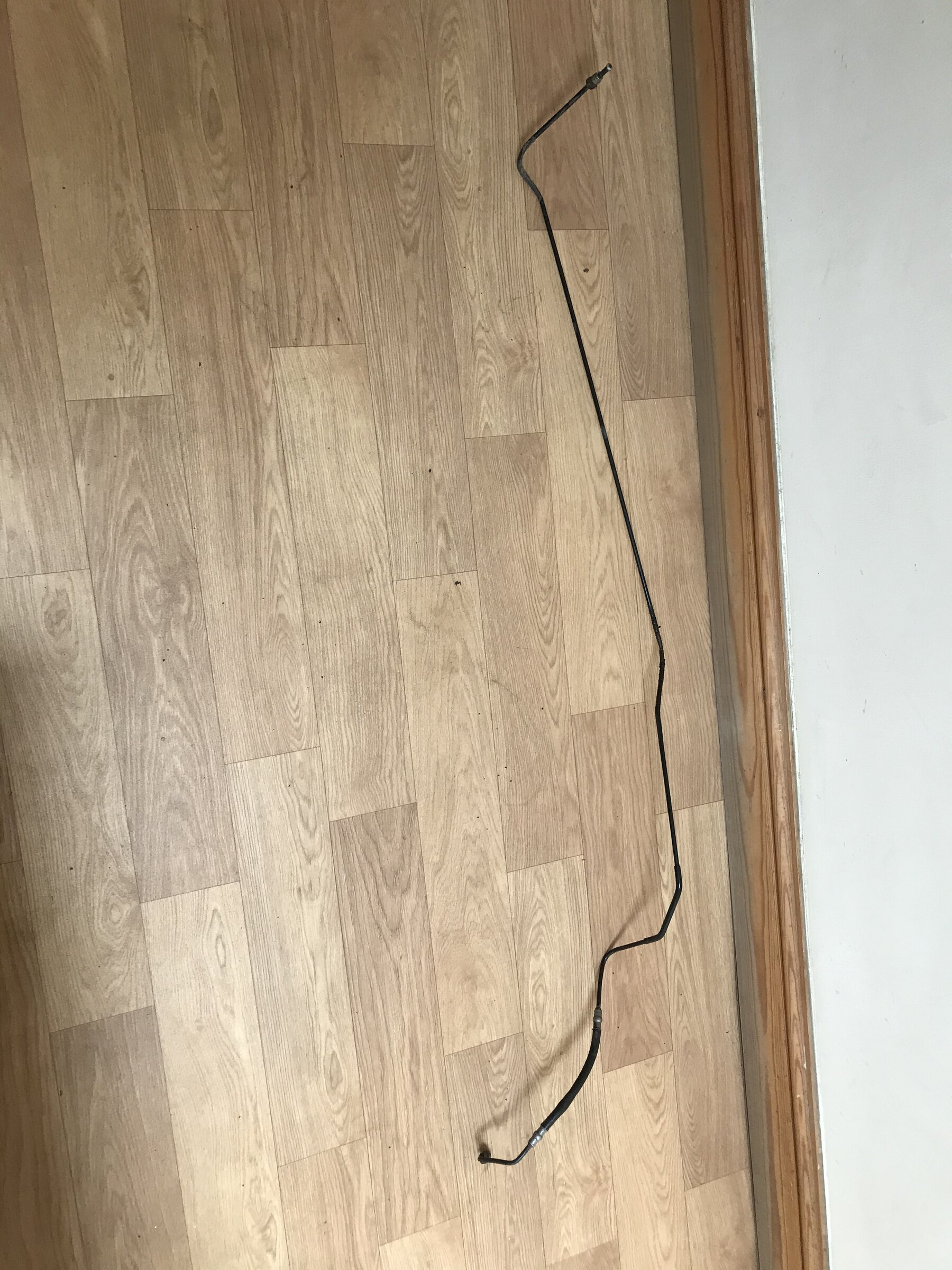

Still 300 difference, which worries me. My lines are removed from the car I measured them as per the below picture

  182 attempt #2
Just to throw a third set of numbers into the mix I've got 1660 and 700mm on order haha.

I think we're all on the same page. Looks like @RustyMojo has just measured the hardline and hasn't accounted for the 200mm or so for the flexi between the beam and body perhaps?

I used a bit of string and of course some people measure to end of the fitting or the end of the hose, assume different bend radii etc, use slightly different routing around or over the standard spring mount etc.


RustyMojo

ClioSport Club Member
  Clio 182FF titanium
That’s right i hadn’t, but only because I believe they couldn’t be 1 piece so was ordering them separately. From same supplier. So in essence what I’m ordering is the hard lines that run from callipers to the original flexi Hoses, then the two original flexi hoses also. If that makes sense? Principle being everything remains the same, just the factory hardlines are being replaced with braided lines.

Are you planning one just running one continual piece from Caliper to chassis?


DomP182

ClioSport Club Member
  ph1 172, Arctic182
Just to throw a third set of numbers into the mix I've got 1660 and 700mm on order haha.

I think we're all on the same page. Looks like @RustyMojo has just measured the hardline and hasn't accounted for the 200mm or so for the flexi between the beam and body perhaps?

I used a bit of string and of course some people measure to end of the fitting or the end of the hose, assume different bend radii etc, use slightly different routing around or over the standard spring mount etc.
That’s right i hadn’t, but only because I believe they couldn’t be 1 piece so was ordering them separately. From same supplier. So in essence what I’m ordering is the hard lines that run from callipers to the original flexi Hoses, then the two original flexi hoses also. If that makes sense? Principle being everything remains the same, just the factory hardlines are being replaced with braided lines.

Are you planning one just running one continual piece from Caliper to chassis?
I dont see why there is any need to retain the original flexible hoses, just one more join to seize/leak in the future.

I'm confused why we all have such varying lengths though.

@Steven103 where were you getting them from and what price if you dont mind me asking?


JamesBryan

ClioSport Club Member
  Titanium 182
I have these but yet to fit.


The longest one is about 1350mm I'd say. That will be to the flexi join at the beam connection.


DomP182

ClioSport Club Member
  ph1 172, Arctic182
I have these but yet to fit.


The longest one is about 1350mm I'd say. That will be to the flexi join at the beam connection.
I was dubious about using Proline after reading the Mitch thing however at that price worth a go.


JamesBryan

ClioSport Club Member
  Titanium 182
I was dubious about using Proline after reading the Mitch thing however at that price worth a go.
My ones were from when Mitch was running it. They came really quick 😂

This is someone else running it now apparently.

Don't forget you'll still retain the flexi join with these...

  182 attempt #2
I also avoided Proline because of the poor feedback previously. Call me cynical but for all I know the company could've been "sold" to a family member and I wasn't going to waste time playing PI.

@DomP182 I used HEL as I needed a few bespoke items. The online configurator has absolutely loads of options, gives you an instant price and avoids any risk of miscommunication. Queries and special requests not on the website were answered same day unlike some other places I tried. At the time they also had a very attractive discount code.


I've gone for one piece from the body hardline to the caliper. Hardline already has a swivel end, but went for a swivel end on the caliper too to make fitting/removal easy and a curved 90 degree fitting to keep line routing neat. Will see what it's like when it arrives.


BRT Motorsport

ClioSport Trader
  Clio Rally car
we could do single lines doing away with small Flexi for £60 delivered


  182 attempt #2
Always wanted my lengths to be safe rather than sorry, but if I was doing it again I'd go for perhaps 1500mm and 650mm.


DomP182

ClioSport Club Member
  ph1 172, Arctic182
Always wanted my lengths to be safe rather than sorry, but if I was doing it again I'd go for perhaps 1500mm and 650mm.
Surely that isnt the length if doing away with the standard short flexible lines

  182 attempt #2
Surely that isnt the length if doing away with the standard short flexible lines
Yep. Goes the “long” way round the standard spring location too. I think I read somewhere that HEL exclude the fitting from their lengths, but still that’s only 20mm each end.


JamesBryan

ClioSport Club Member
  Titanium 182
Yep. Goes the “long” way round the standard spring location too. I think I read somewhere that HEL exclude the fitting from their lengths, but still that’s only 20mm each end.
Measured including the fittings, either to the ends or to the centres if it's a banjo style fitting 👍🏻

  182 attempt #2
Definitely 1660mm. Definitely would fit be a neater fit if it were shorter. Just cable tied roughly in place for now.

Very generous with clearance around the RR spring pan.





Let it sag down over the rear of the beam to use up some slack.


Let some of the slack push it a bit close to the left rear spring pan.


Even so it still overshoots and overlaps the left rear line.



Didn't measure the left rear but it too takes on a bit more of an "s" shape than I'd have liked. Goes straight onto the body, got rid of those little flexis.


DomP182

ClioSport Club Member
  ph1 172, Arctic182
Definitely 1660mm. Definitely would fit be a neater fit if it were shorter. Just cable tied roughly in place for now.

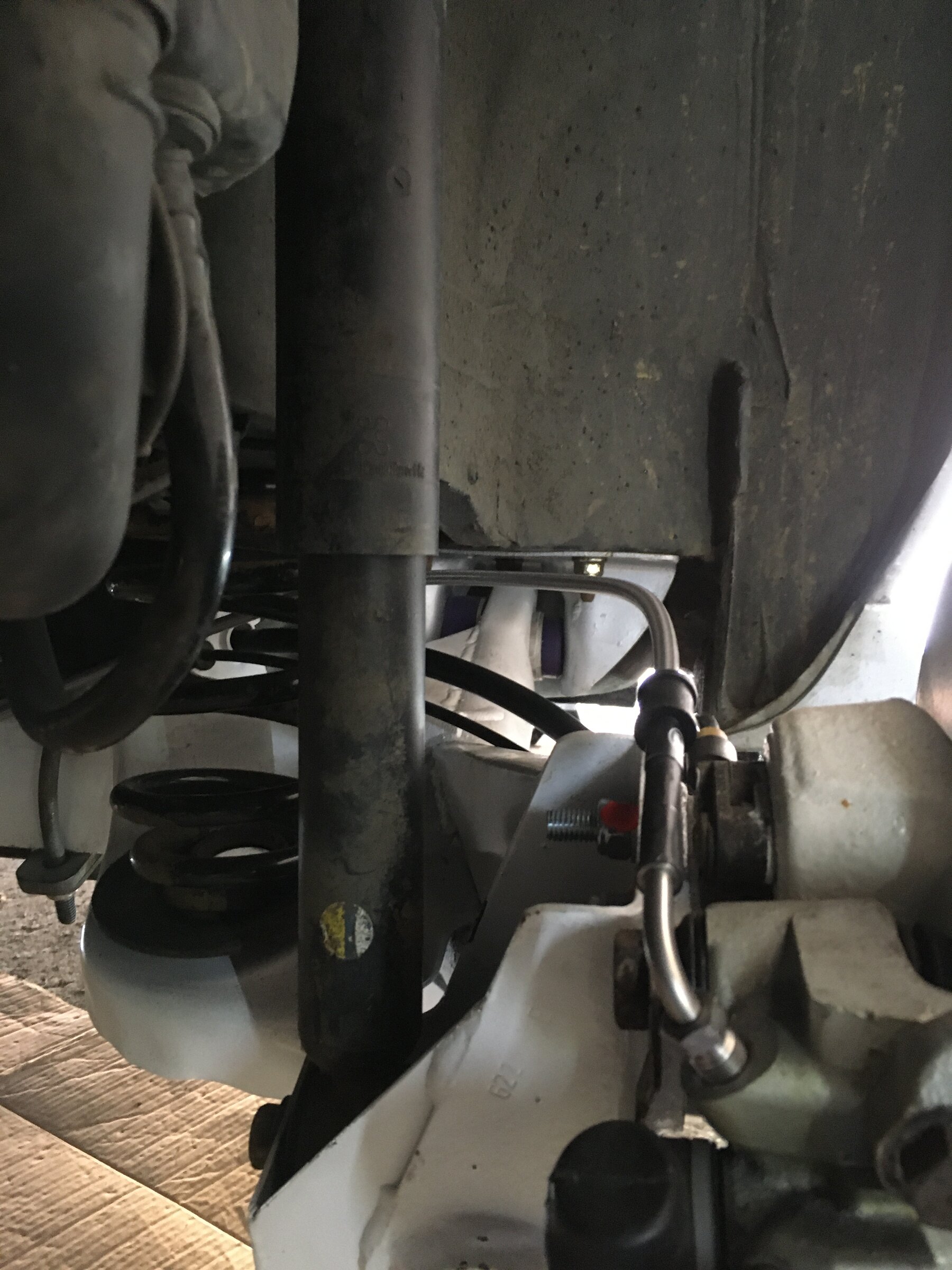

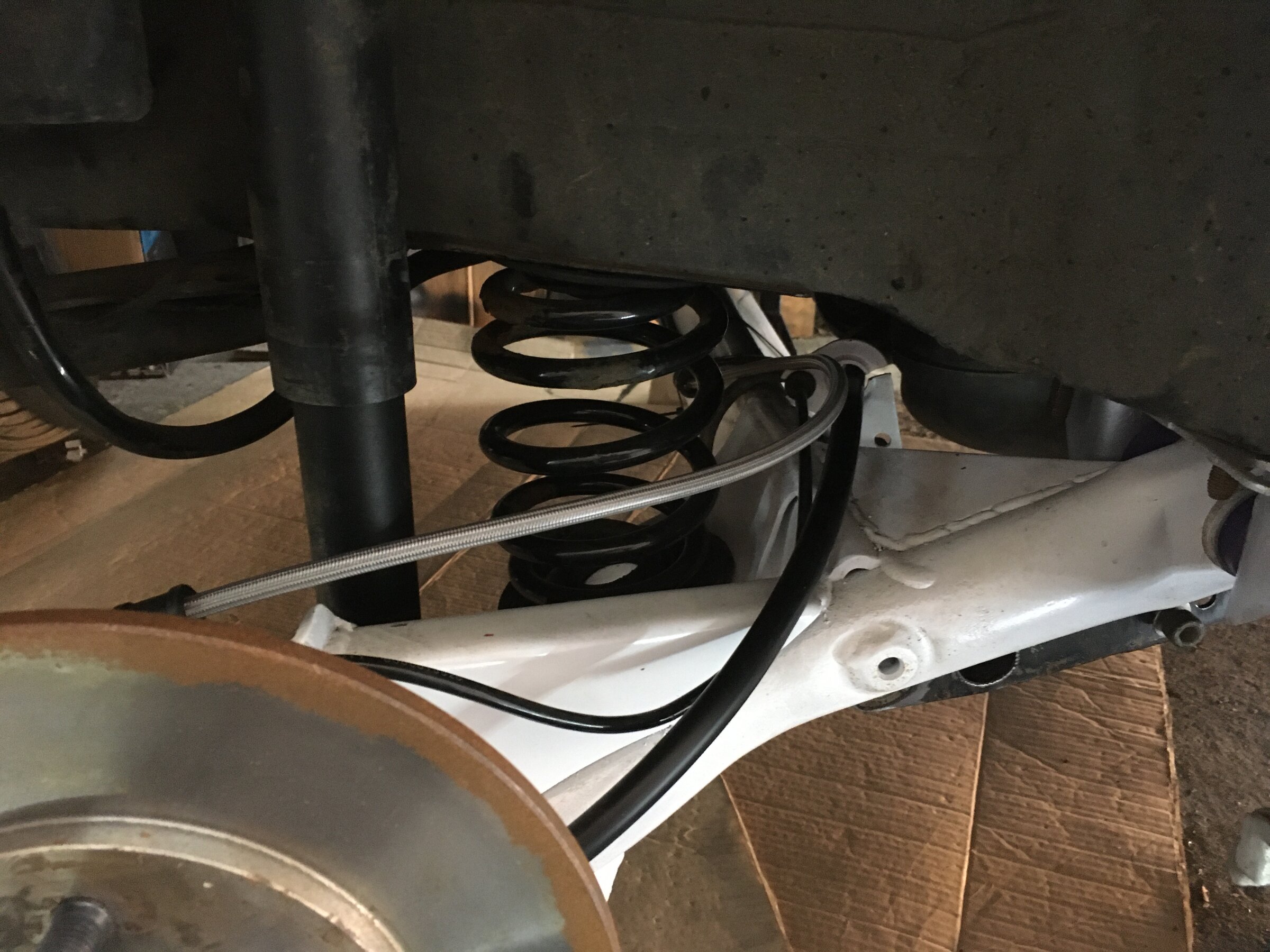

Very generous with clearance around the RR spring pan.
View attachment 1473697

View attachment 1473698

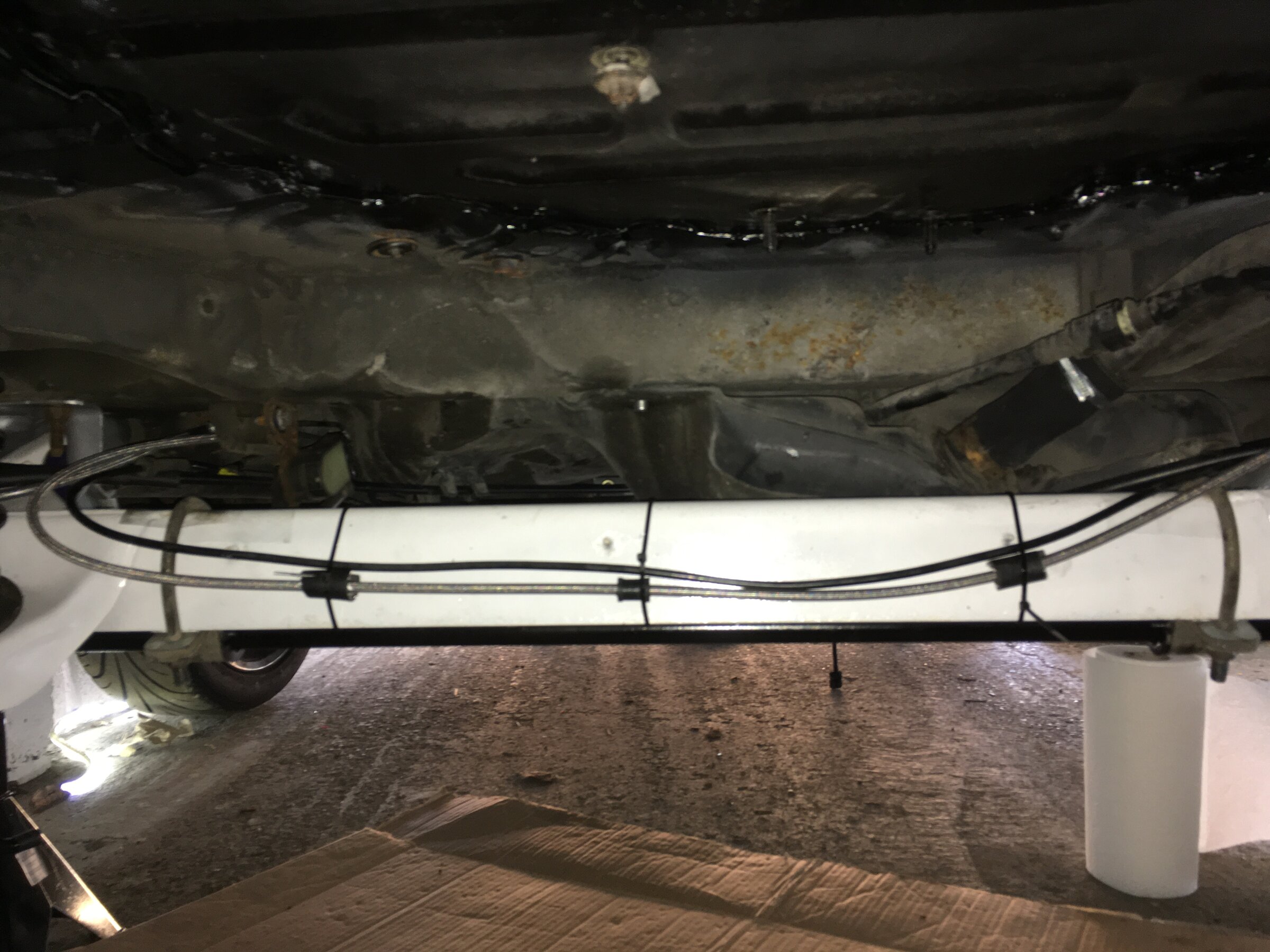

Let it sag down over the rear of the beam to use up some slack.
View attachment 1473700

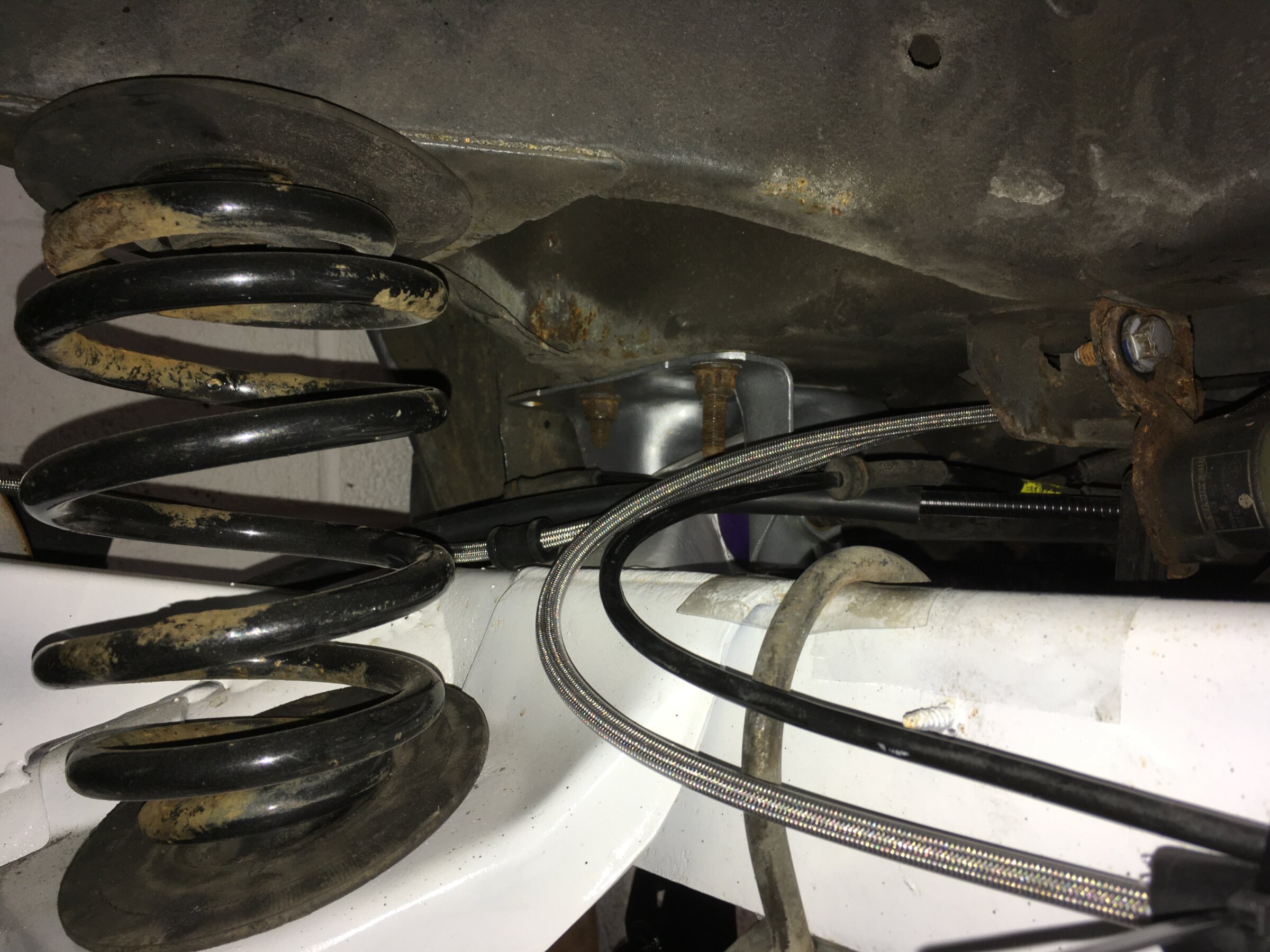

Let some of the slack push it a bit close to the left rear spring pan.
View attachment 1473701

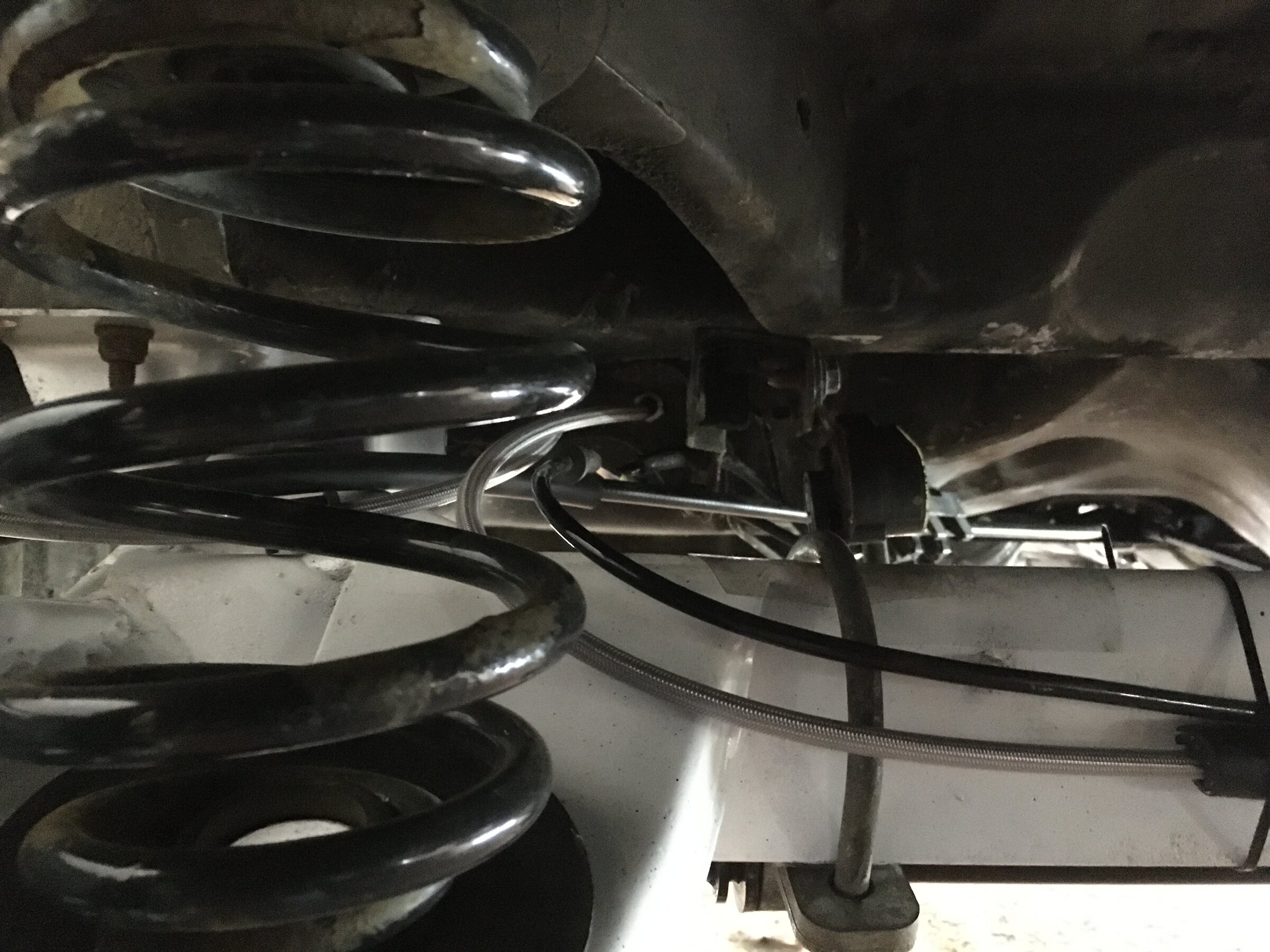

Even so it still overshoots and overlaps the left rear line.
View attachment 1473705

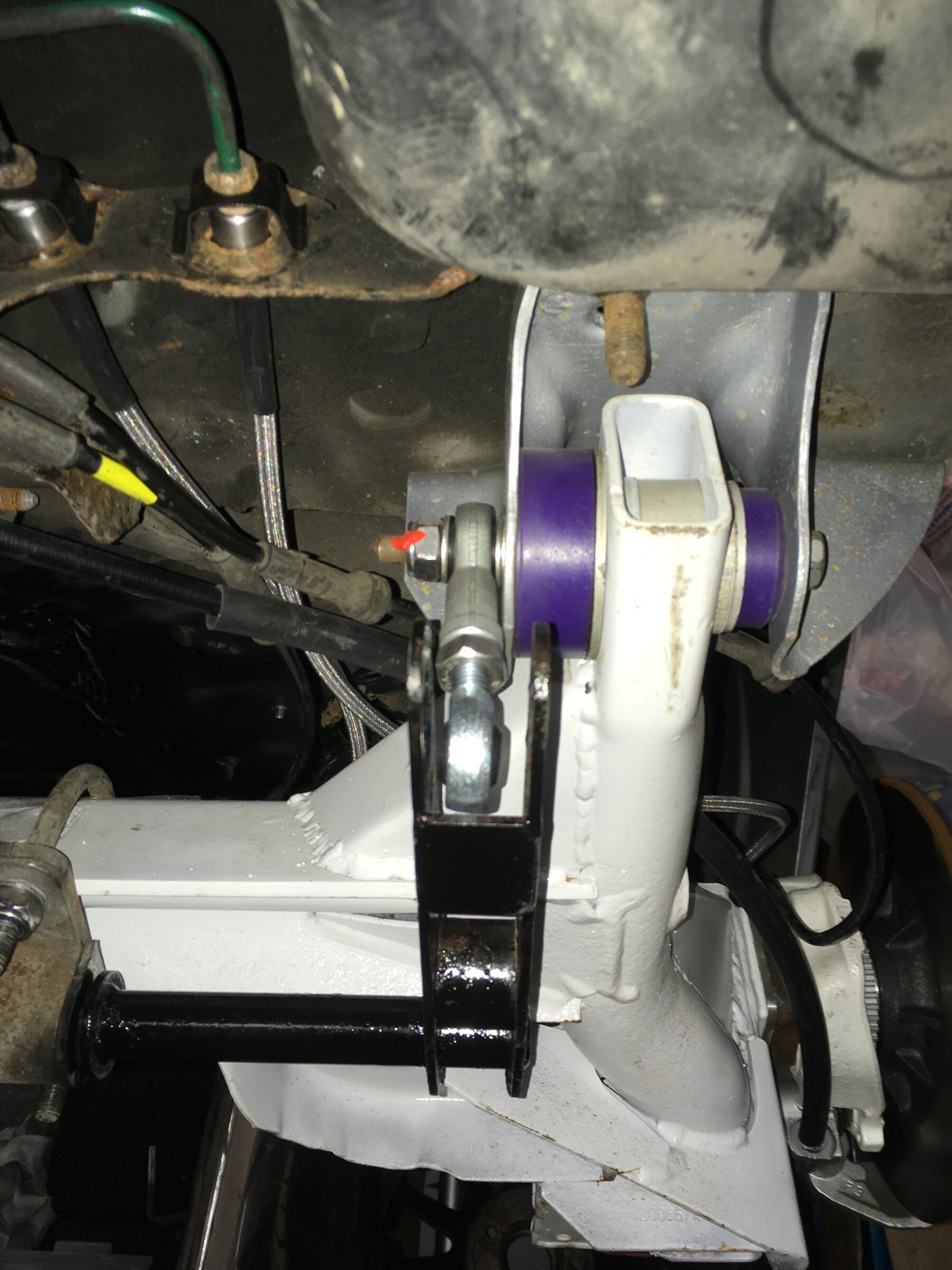

Didn't measure the left rear but it too takes on a bit more of an "s" shape than I'd have liked. Goes straight onto the body, got rid of those little flexis.
View attachment 1473706
Beams looking good! I've been playing on the HEL brake line configurator, what fittings did you use at either end? Male 90° swivel but which female? Finally what lengths would you go with now you've got these?

  182 attempt #2
Fixed female M10x1, think it's at the bottom of the list. The male union on the hardline already rotates so no need for extra complexity.

Your judgement is as good as mine! Maybe 1500 & 600mm would fit like a glove nice & tight to the beam? But too short would be a disaster, 1550 & 650 would still be tidier than mine. Bear in mind I've removed the bracket on the beam that holds the standard short flexi so might be using slightly different routing that what you plan on.

Big fan of white/silver as it's the easiest colour to spot damage/cracks in. Particularly interested to see how it drives as I went to the effort of buying different spacers left/right to make camber/toe as symmetrical as possible.

  182 attempt #2
Putting a swivel on a swivel?! Why not do it up with an adjustable spanner too :LOL:

In all seriousness, I can see a female swivel making life easier if your 15/20 year old union happens to be absolutely completely stuck and you’ve already done the calliper end up.
