Correction Detail - BMW E46 M3 in Velvet Blue with PURPLE interior - Zaino Z2/Z8!



  Megane R26
Thanks for taking the time to read up on our latest work - please feel free to Follow Us On Facebook to keep up with the latest goings on at MCC HQ! :)


This car has been booked in for a few months - it has recently had a full polished wheel refurb at leading local wheel refurb specialists A1 Wheels in Bilston then also a full front end respray from local specialist Spray Station - both examples of work were very impressive indeed and the car was beginning to look like new again - all that was left was a correction detail to get the car looking its absolute best.


The original booking was for a full correction, engine bay tidy up and Optimum Opti Coat 2.0 for protection but this was swapped out for ZFX'd Zaino Z2 and Z8 as the owner is an avid Zaino fan and he can use his existing products to maintain moving forward.


This detail took place over a few days, starting on a Friday Evening...


A few befores:

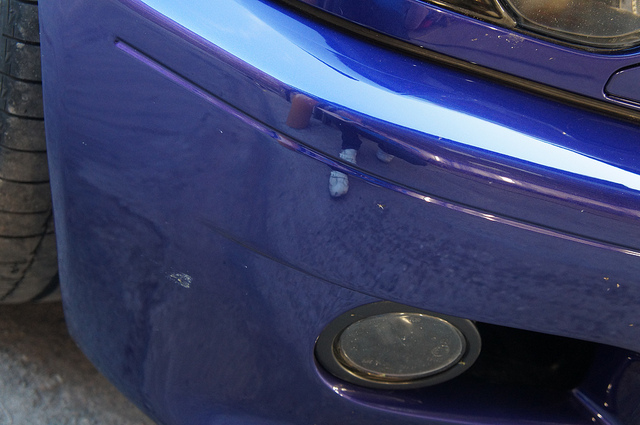

Insects on the freshly painted bumper:



DSC09974 by RussZS, on Flickr

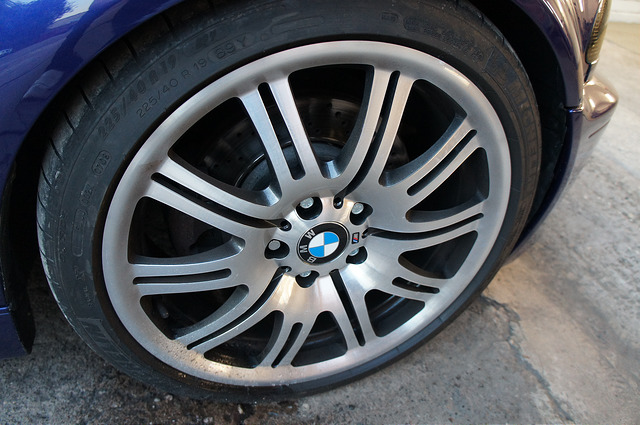

Mild levels of brake dust on the fresh wheels:



DSC09976 by RussZS, on Flickr

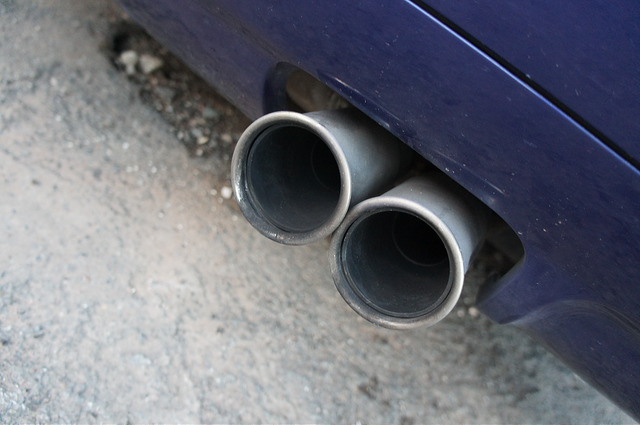

Exhausts carbon build up:



DSC09979 by RussZS, on Flickr

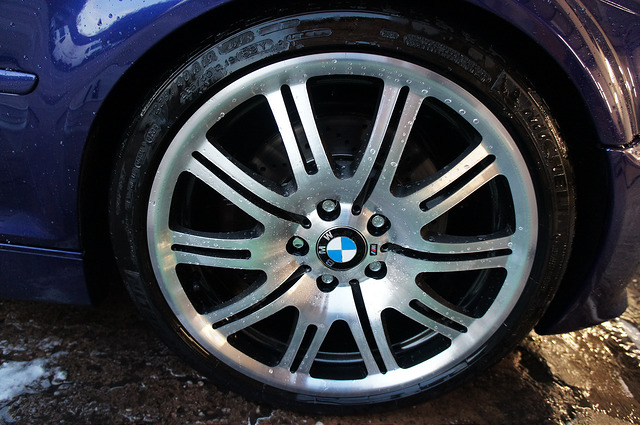

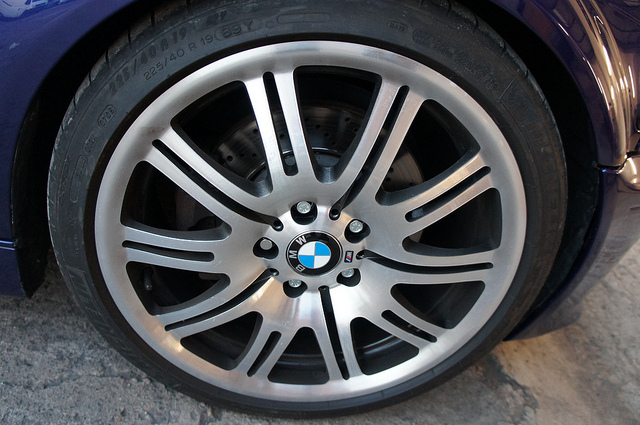

As always, the wheel area was dealt with first. Before:



DSC09980 by RussZS, on Flickr

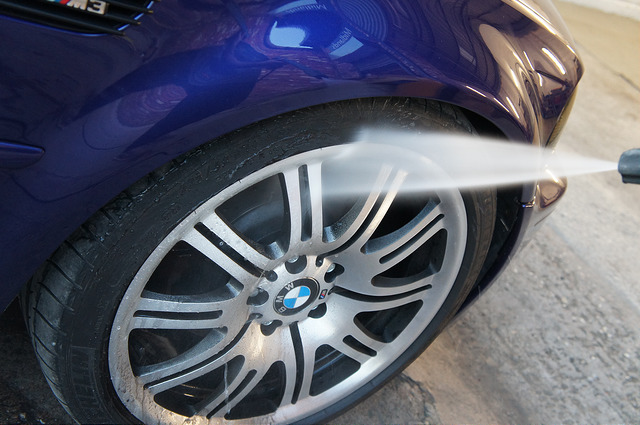

Initial high pressure rinse with my Nilfisk P150 Pressure Washer to remove any loose dirt and brake dust:



DSC09981 by RussZS, on Flickr

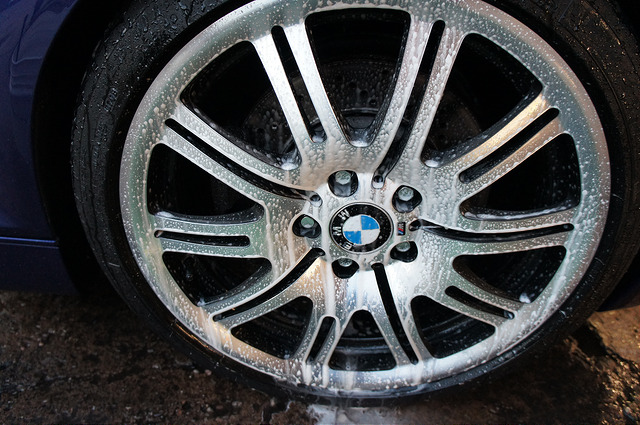

Next Smart Wheels cut 25:1 was applied to the wheels - I watered it down as the wheels weren't too bad dirt wise and the polished surface required caution:



DSC09983 by RussZS, on Flickr

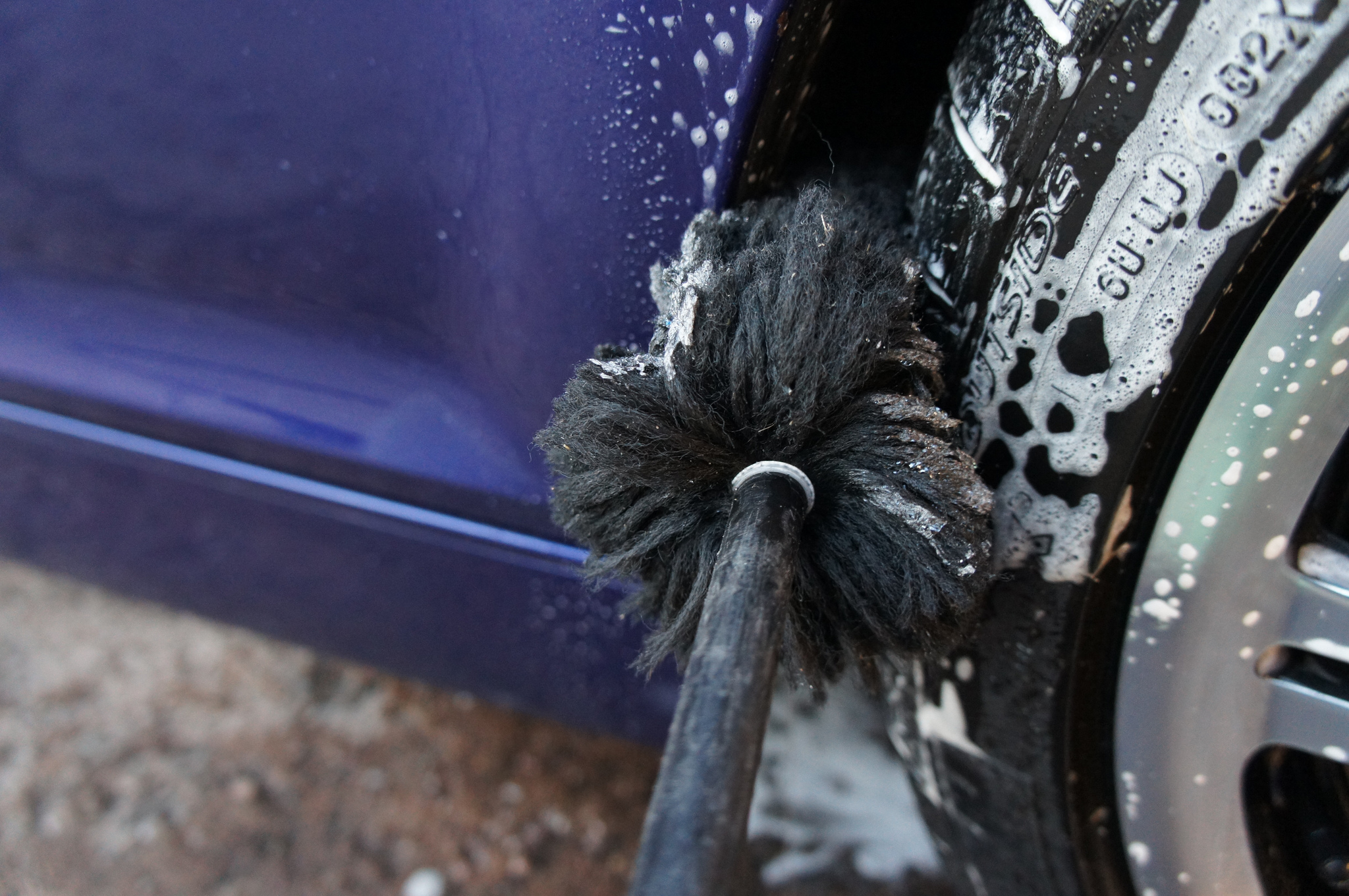

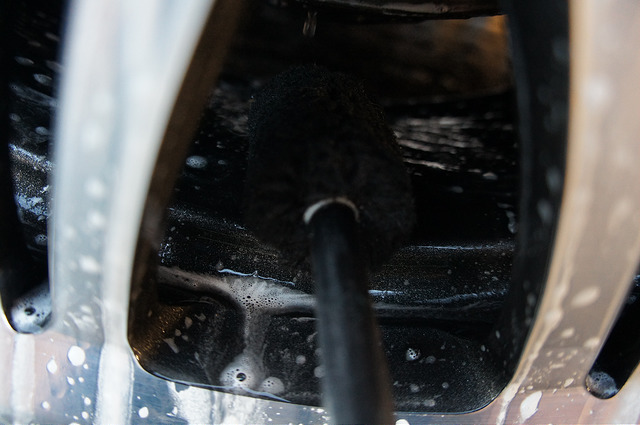

The rears of the wheels were worked with a wheel wooly:



DSC09984 by RussZS, on Flickr

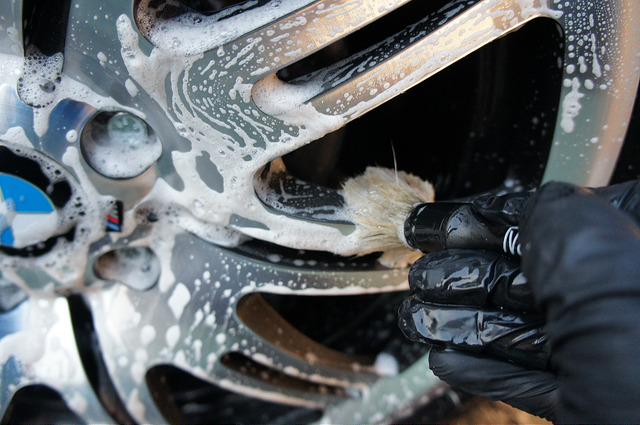

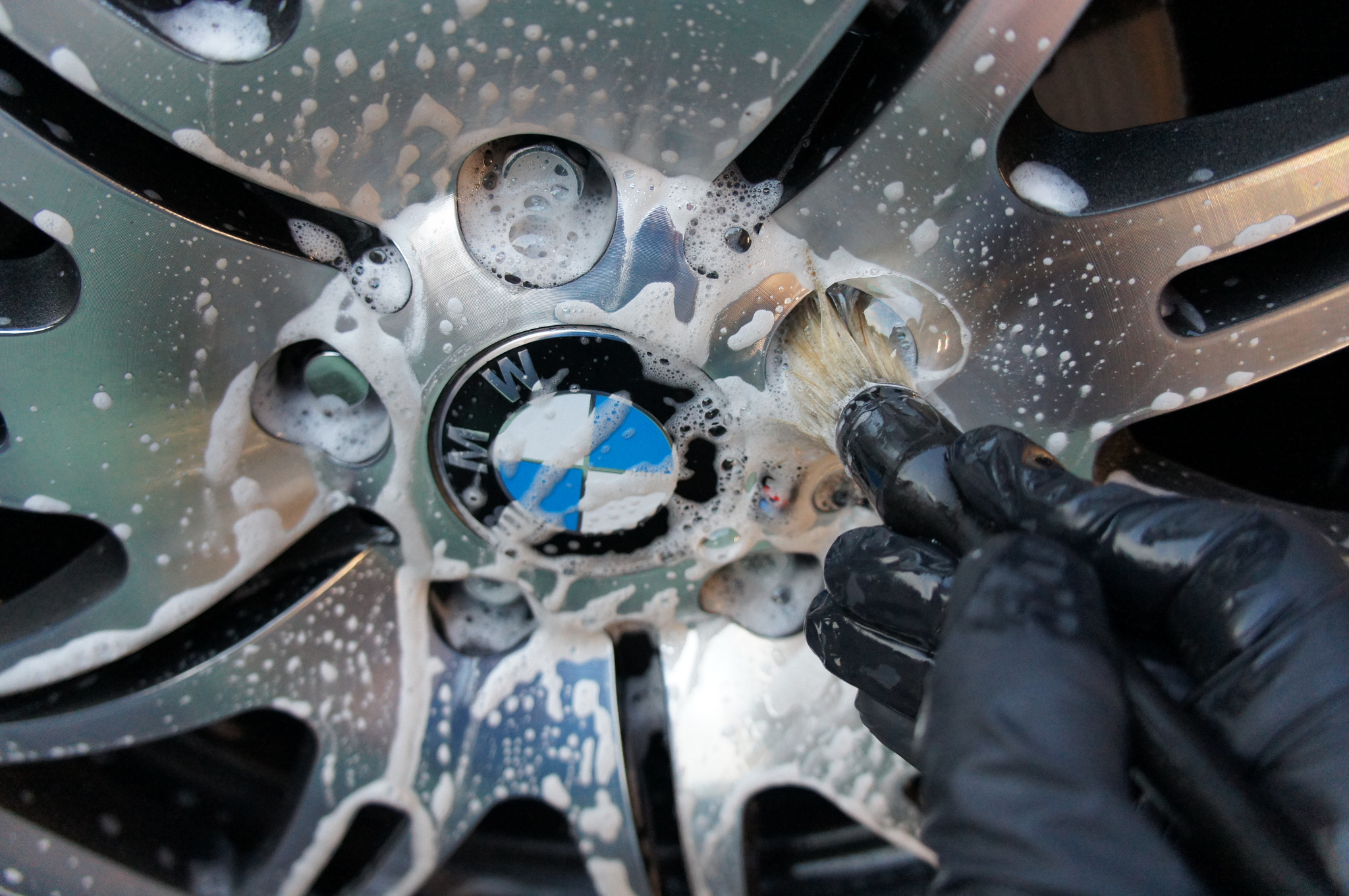

Faces with a brand new, clean Valet Pro Wheel brush:



DSC09986 by RussZS, on Flickr



DSC09987 by RussZS, on Flickr

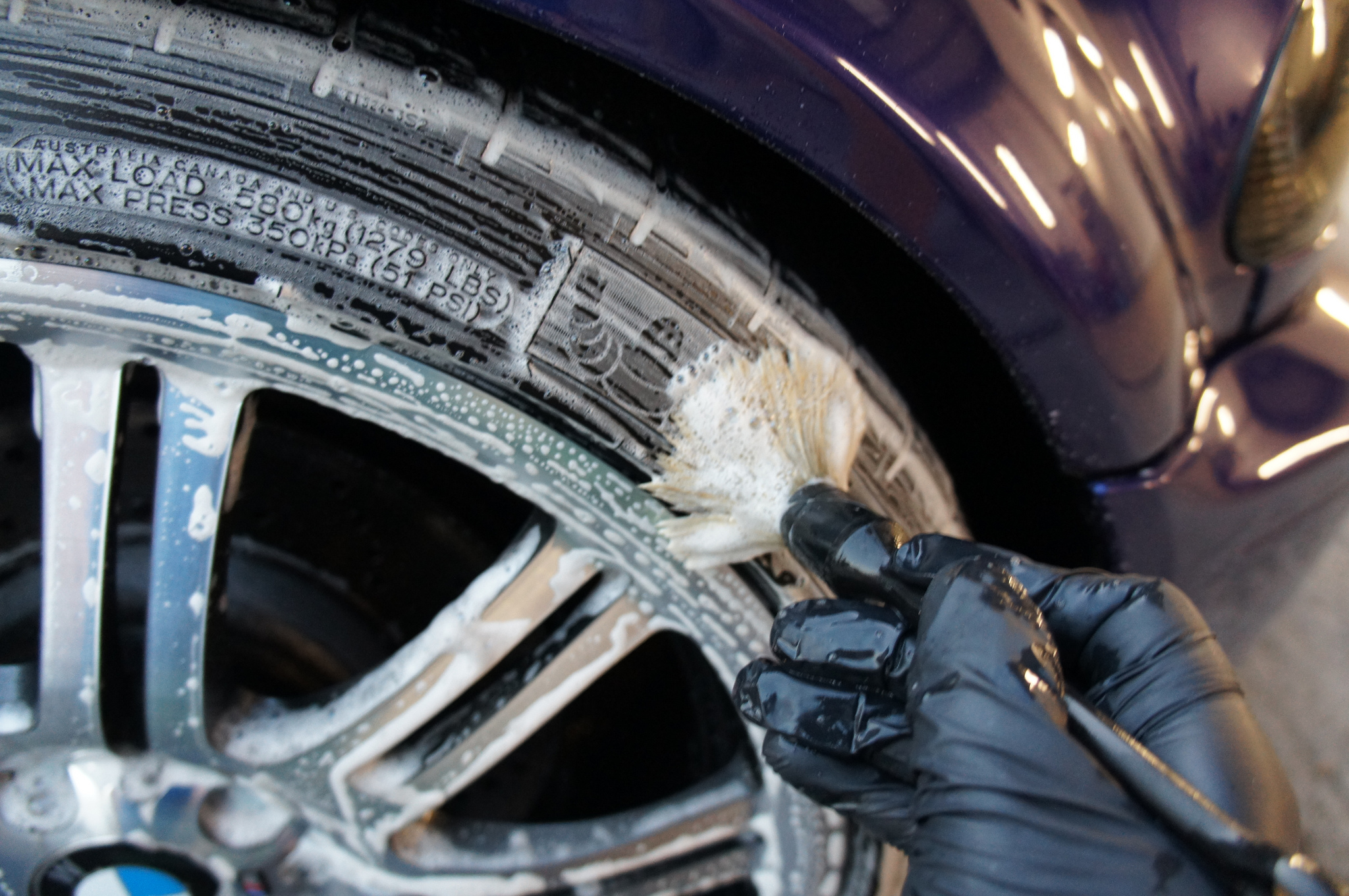

Tyres were treated to 10:1 G101 being careful to keep it away from the wheels:



DSC09989 by RussZS, on Flickr


Same on the arches with the largest wheel wooly:



DSC09990 by RussZS, on Flickr

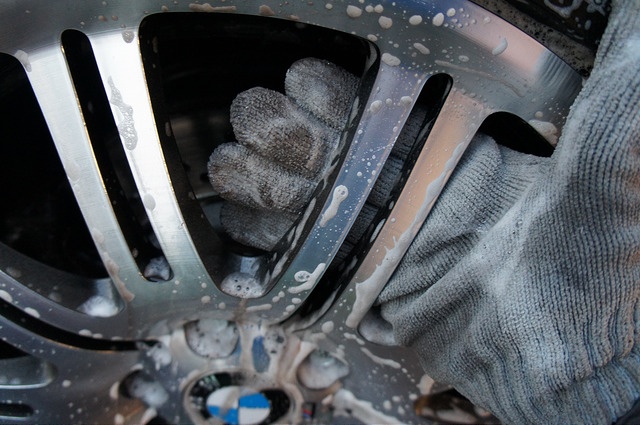

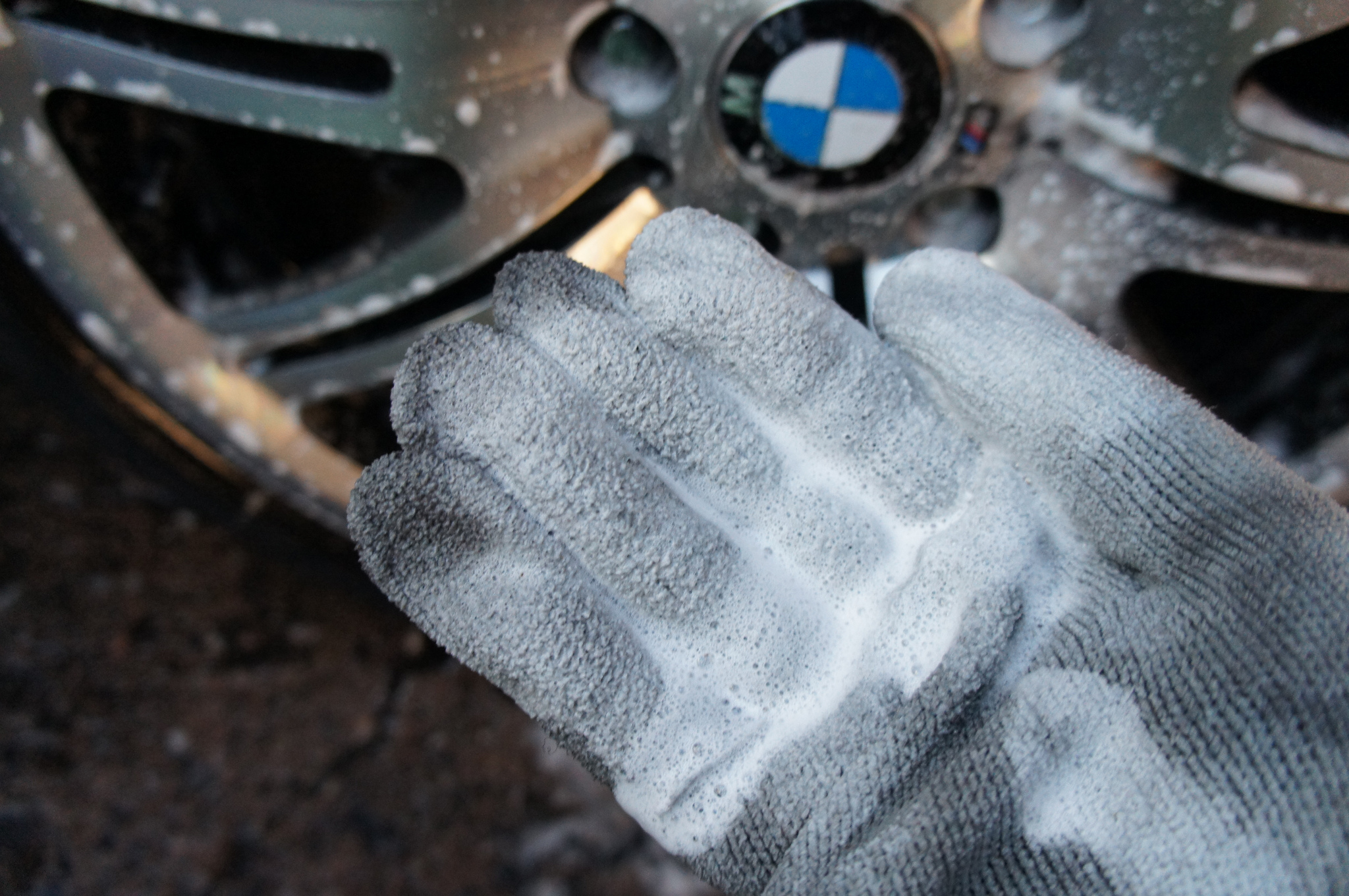

Next the rear of the spokes and more intricate parts of the wheel were worked by hand with a Microfibre glove and 25:1 Smart Wheels:



DSC09991 by RussZS, on Flickr



DSC09993 by RussZS, on Flickr


Finally the wheel was rinsed:



DSC09994 by RussZS, on Flickr

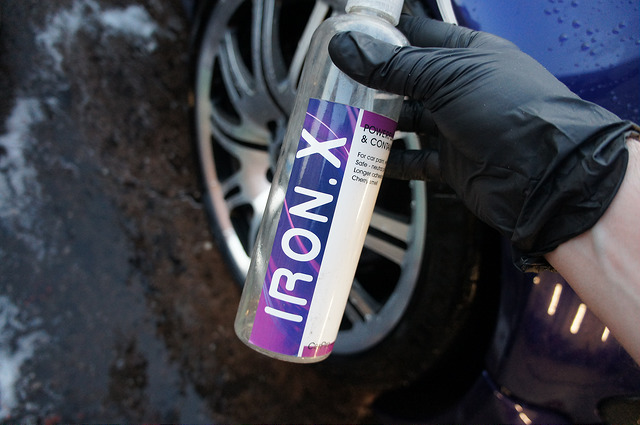

Then treated to IronX to see if any brake dust had adhered to the wheels since their refurb:



DSC09995 by RussZS, on Flickr

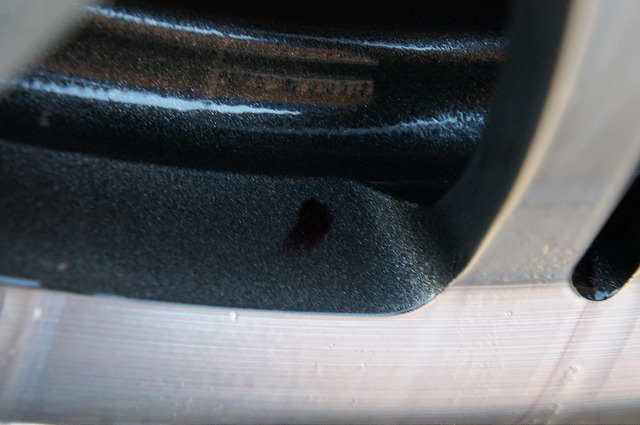

Only this was found and removed safely:



DSC09996 by RussZS, on Flickr

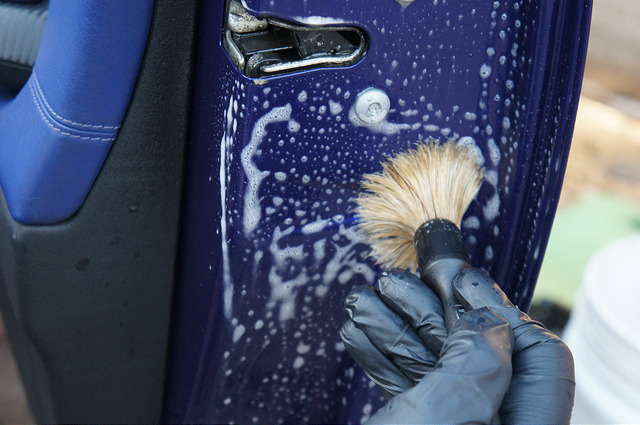

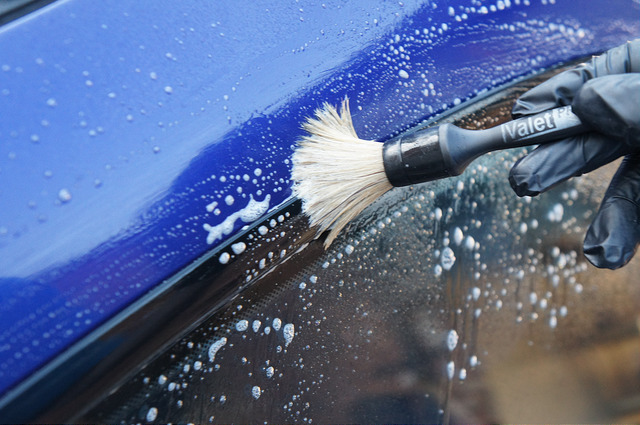

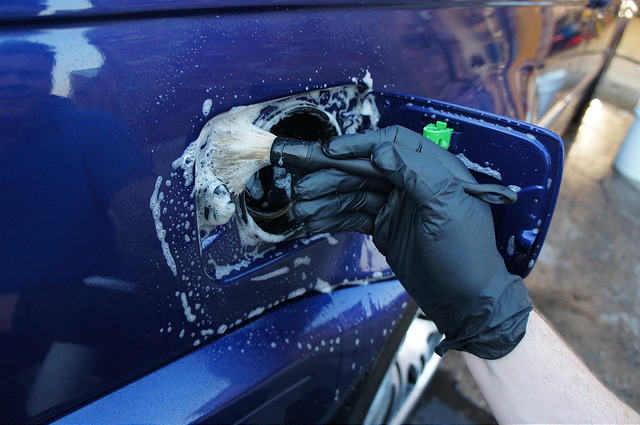

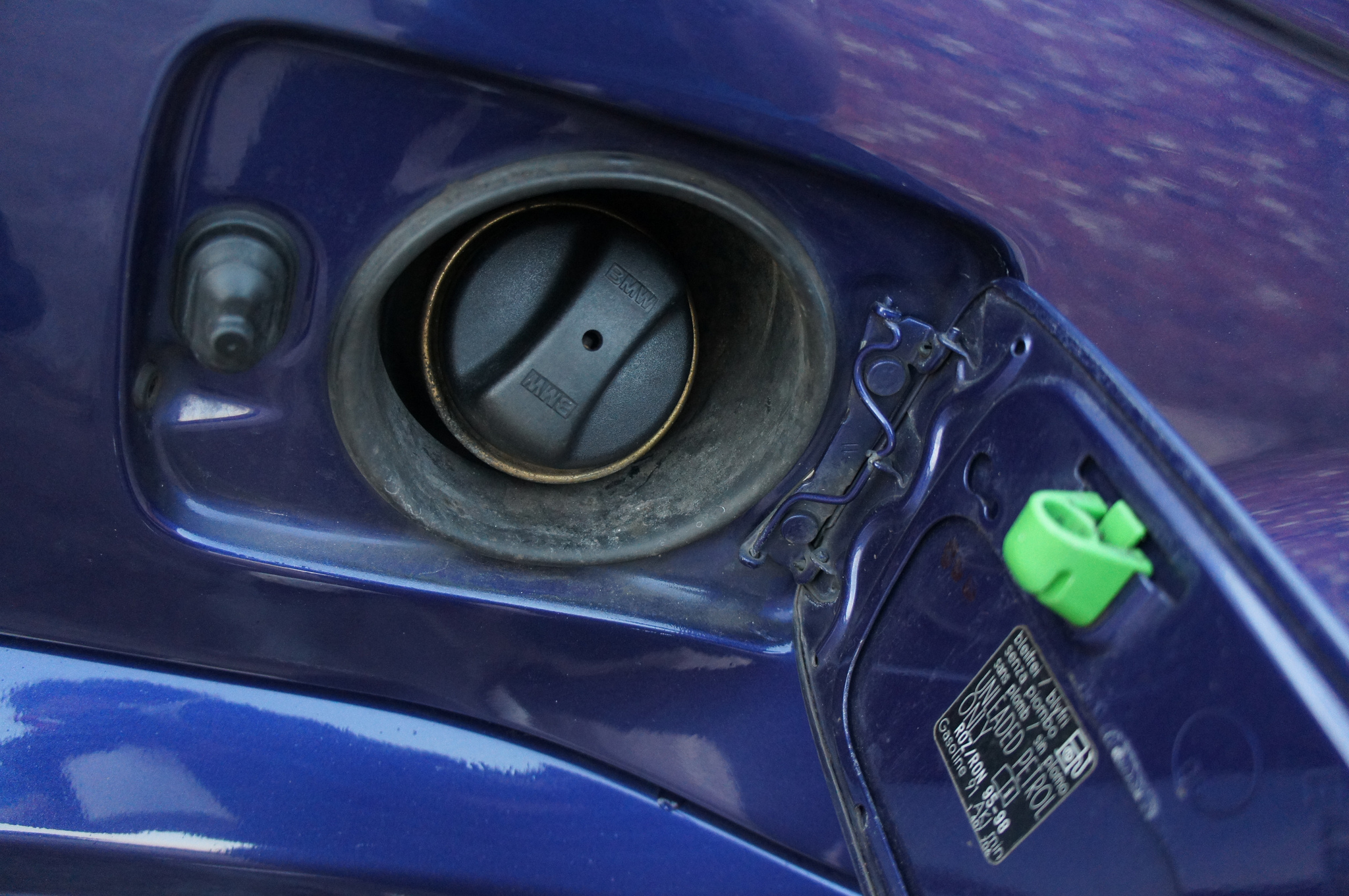

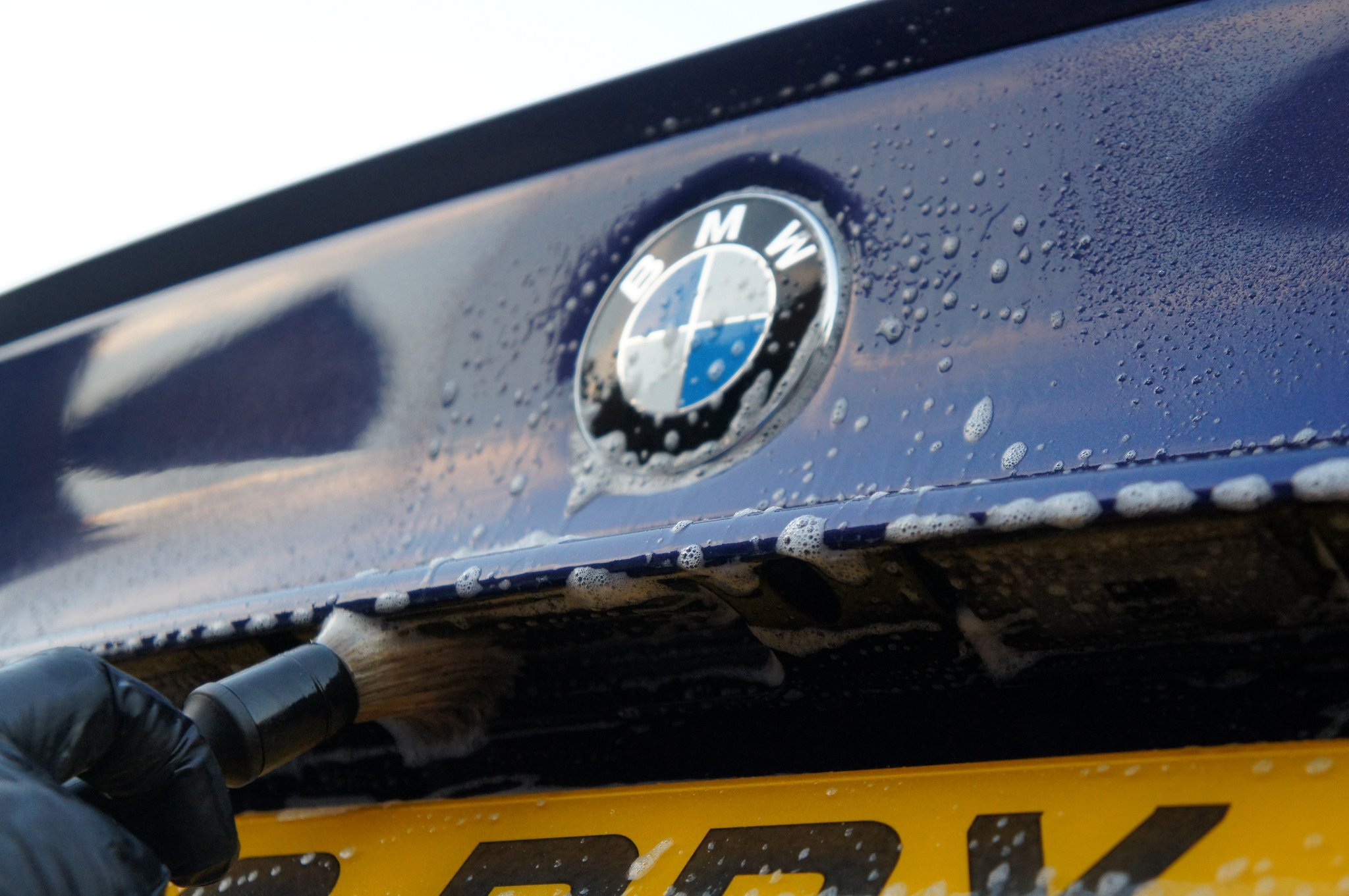

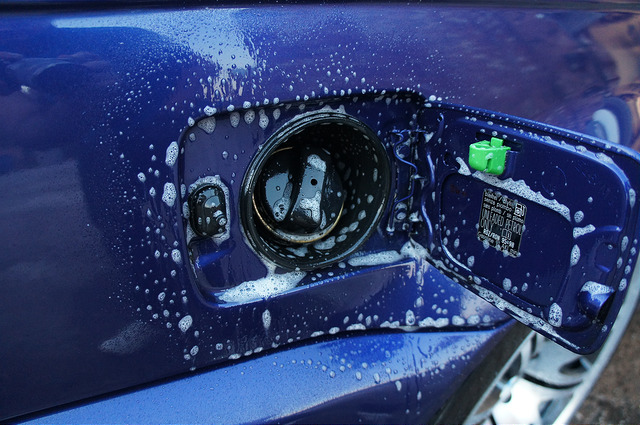

Next attention was turned to more intricate areas around the car, which were treated with Auto Finesse Citrus Power and a different Valet Pro brush:



DSC09997 by RussZS, on Flickr



DSC09998 by RussZS, on Flickr



DSC09999 by RussZS, on Flickr


Old trim dressing:



DSC00001 by RussZS, on Flickr



DSC00002 by RussZS, on Flickr


Other areas:



DSC00003 by RussZS, on Flickr



DSC00005 by RussZS, on Flickr

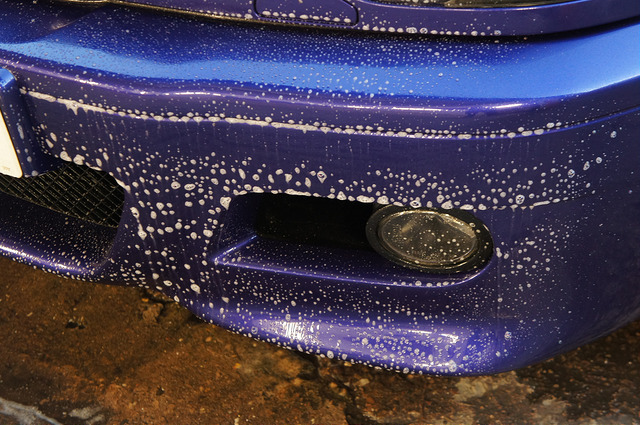

The front bumper was also pre soaked to safely remove the dead insects present:



DSC00008 by RussZS, on Flickr

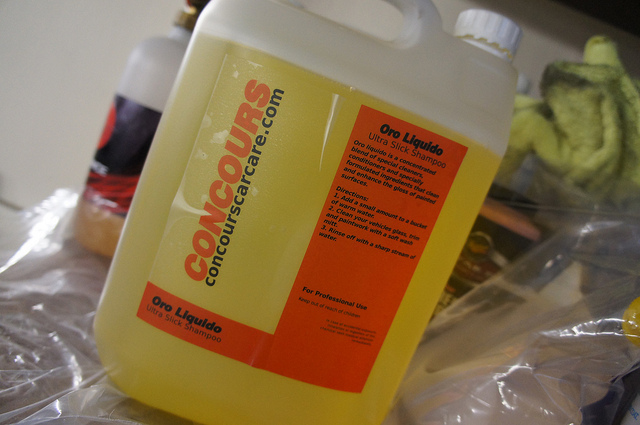

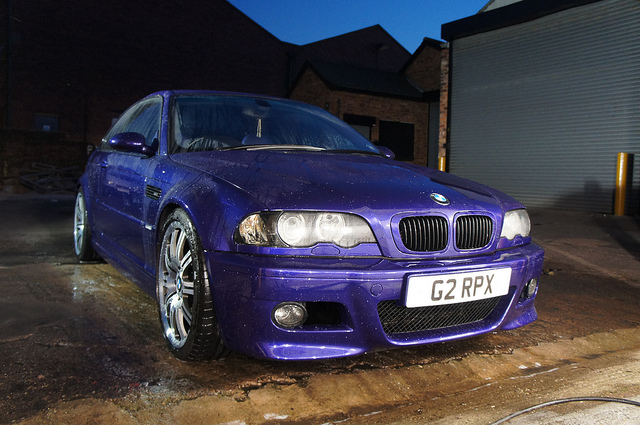

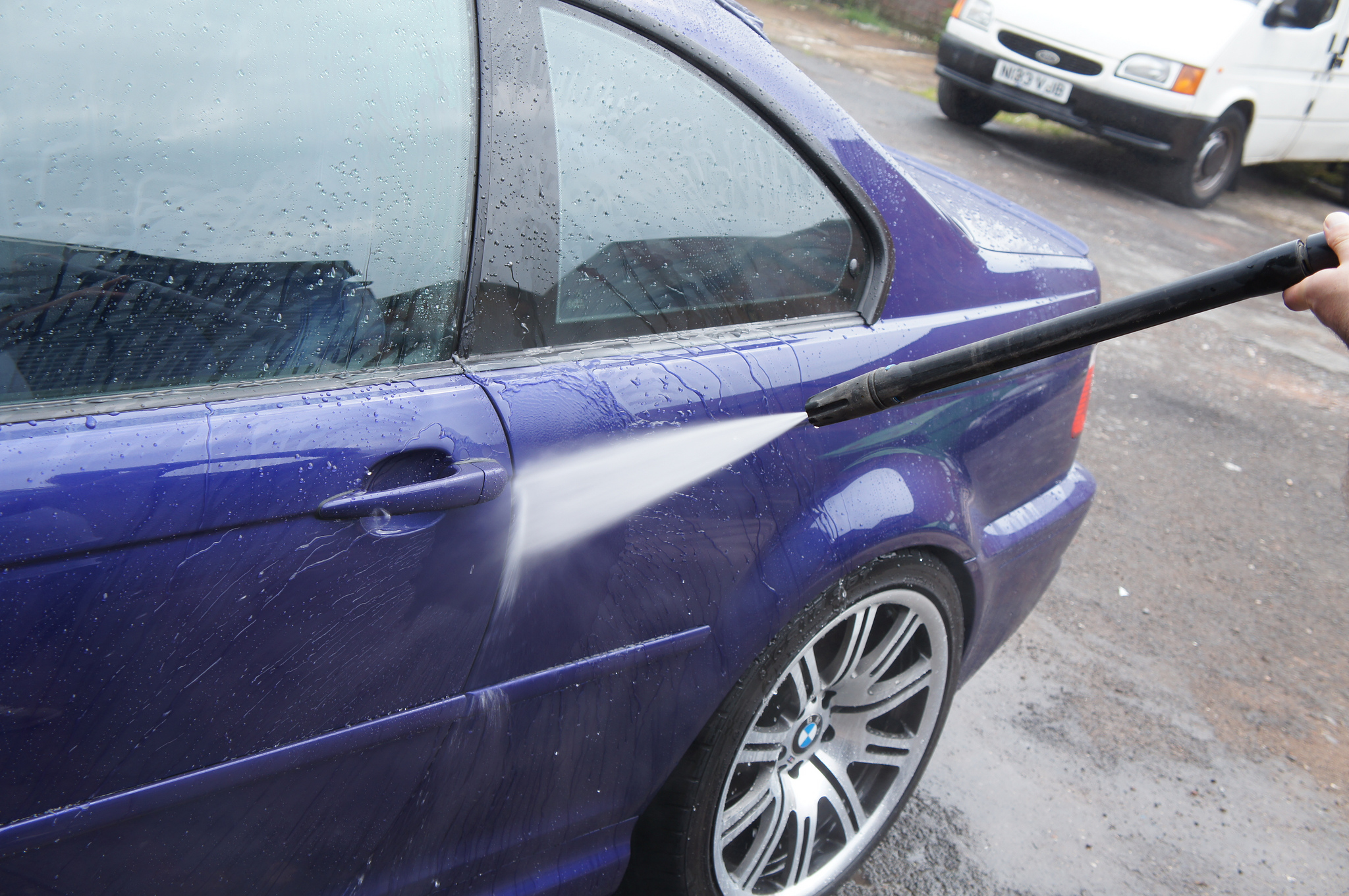

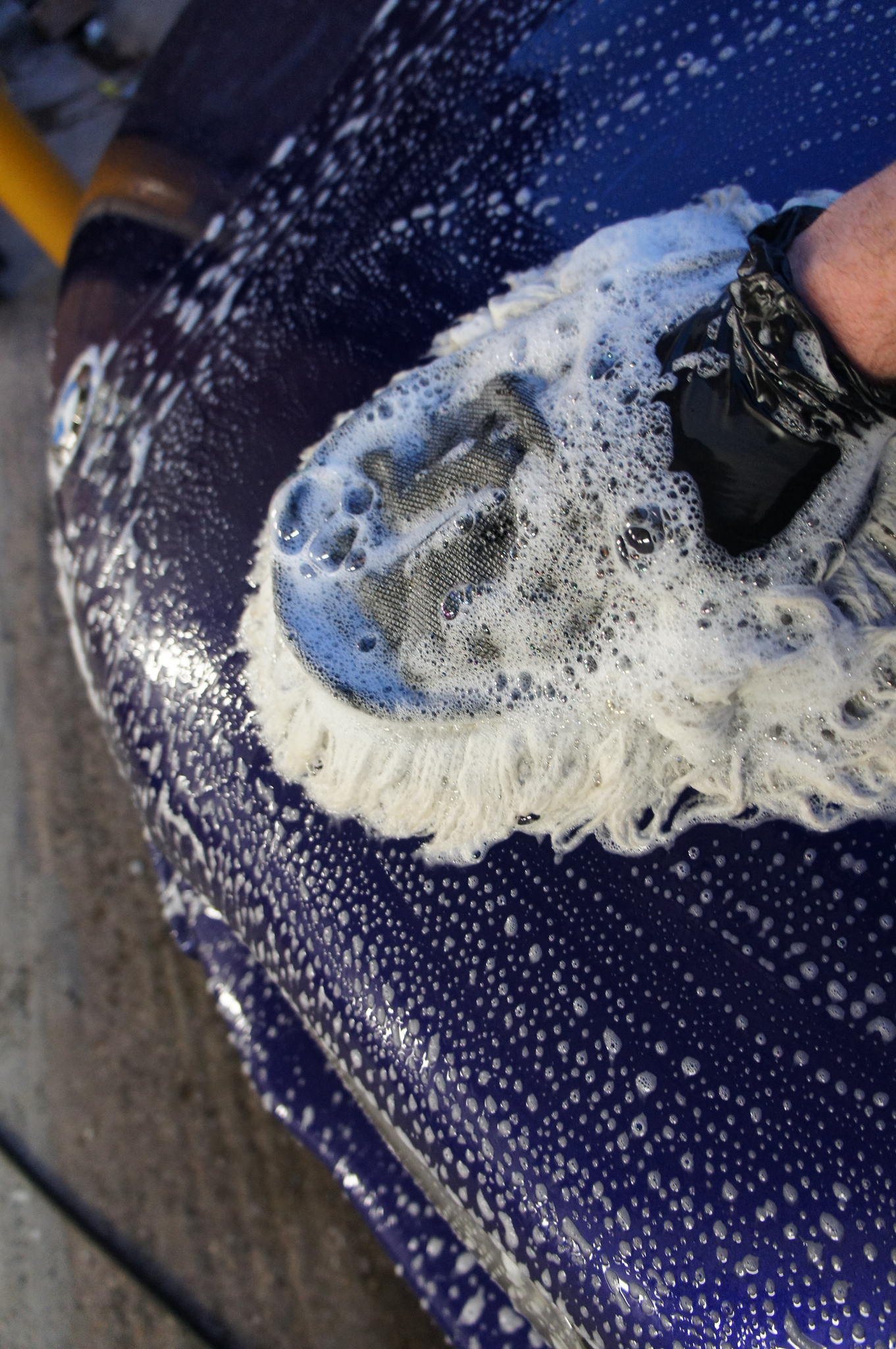

Next the whole car was pressure rinsed to remove any loose dirt, then was hand washed with Concours Oro Shampoo and CarPro Mitt:



DSC00009 by RussZS, on Flickr



DSC00010 by RussZS, on Flickr

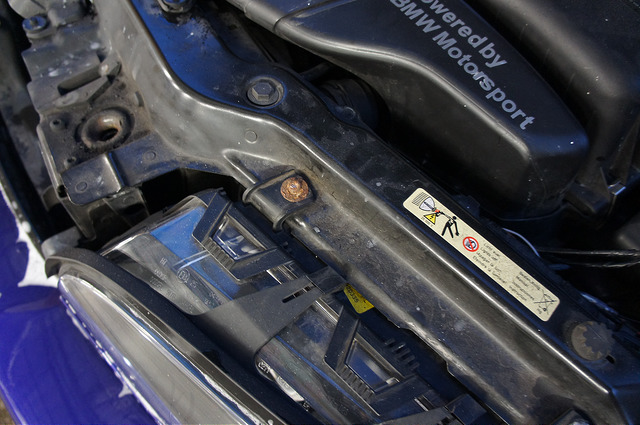

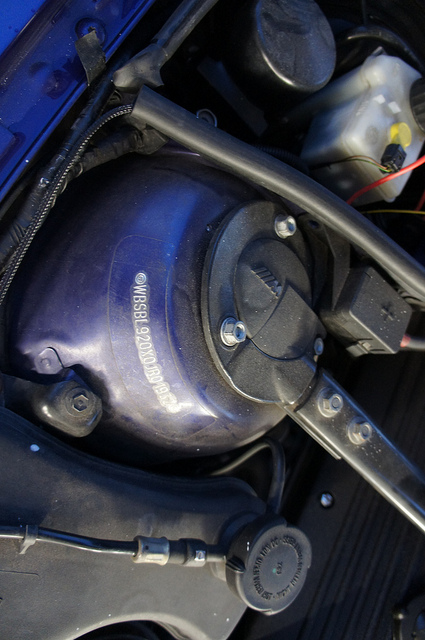

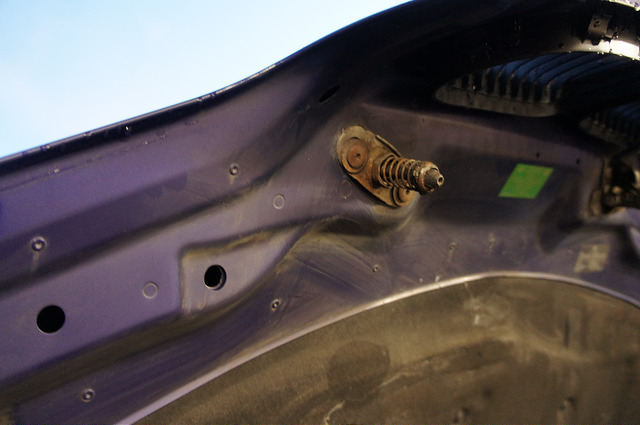

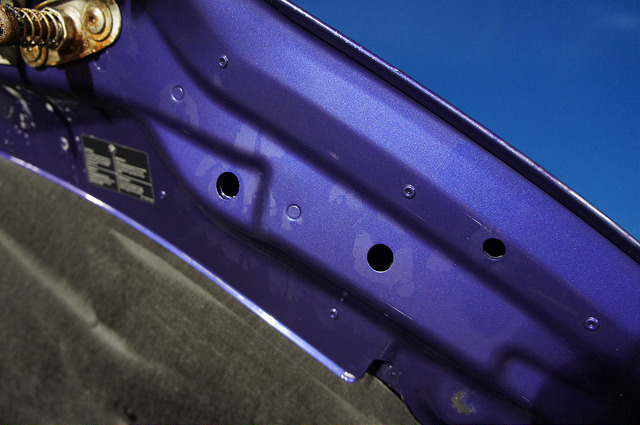

After rinsing, we turned attention to the mucky engine bay areas:



DSC00012 by RussZS, on Flickr



DSC00013 by RussZS, on Flickr



DSC00015 by RussZS, on Flickr

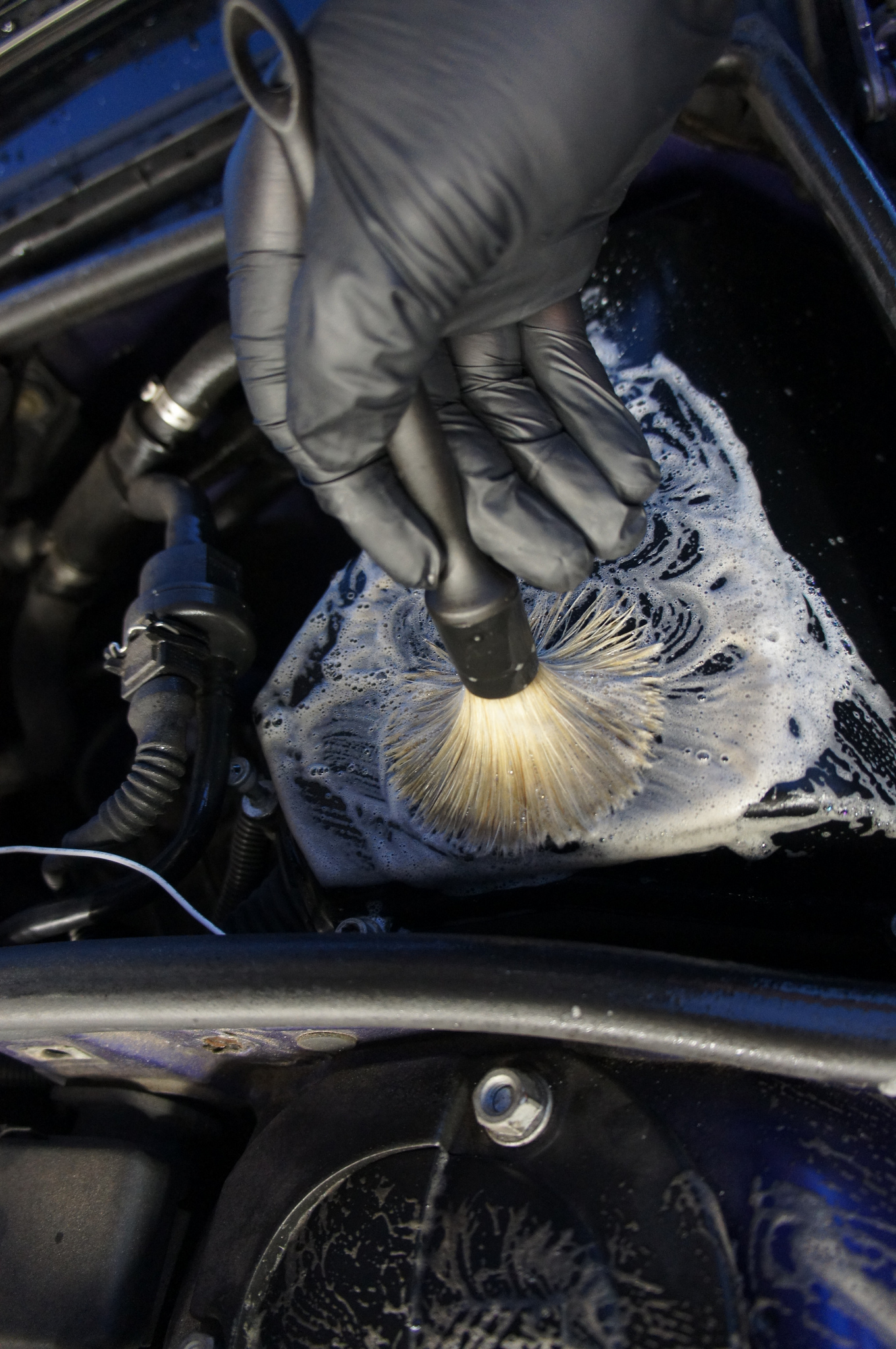

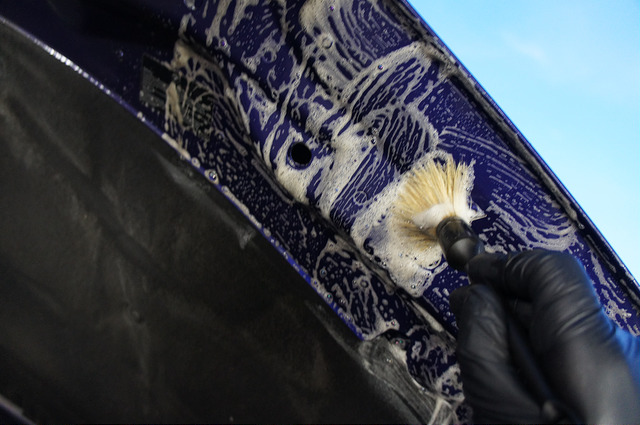

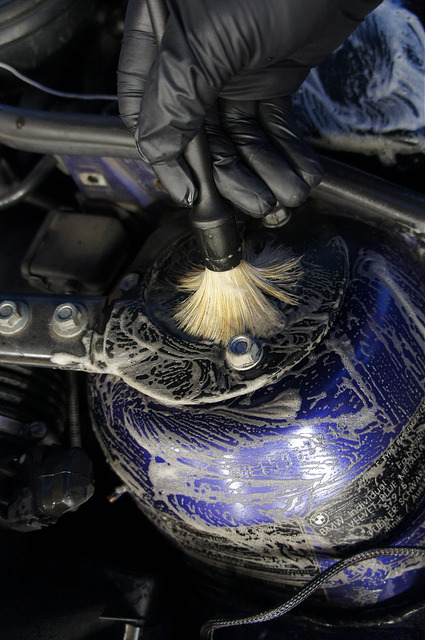

This area was addressed with Citrus Power and a VP brush:



DSC00018 by RussZS, on Flickr



DSC00019 by RussZS, on Flickr



DSC00020 by RussZS, on Flickr

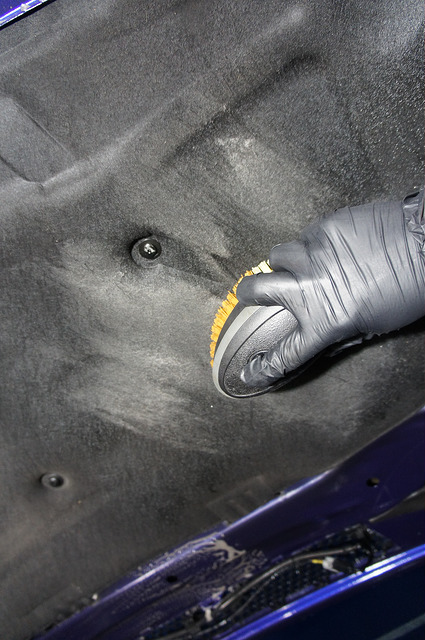

The material area with G101 and a Megs Interior brush:



DSC00021 by RussZS, on Flickr


Much better!



DSC00023 by RussZS, on Flickr

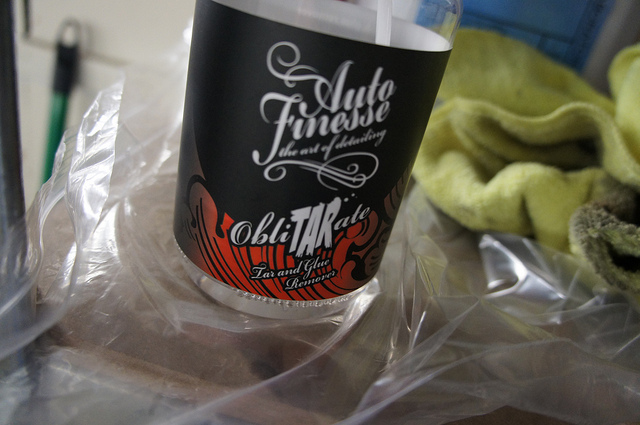

Next the car was treated to IronX to safely remove any fallout, followed by Oblitarate to remove any tar deposits:



DSC00027 by RussZS, on Flickr



DSC00031 by RussZS, on Flickr

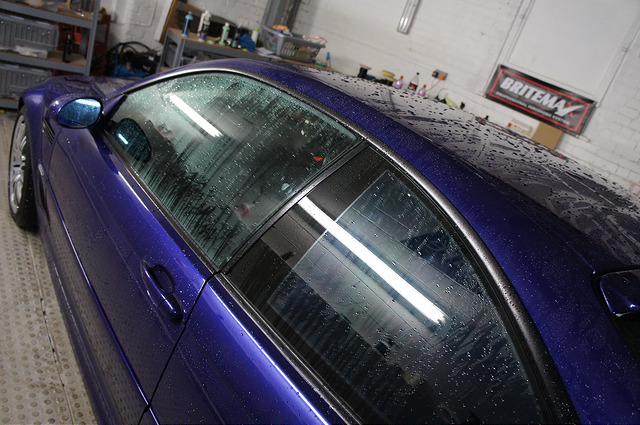

Then rinsed again before moving inside!



DSC00028 by RussZS, on Flickr



DSC00032 by RussZS, on Flickr

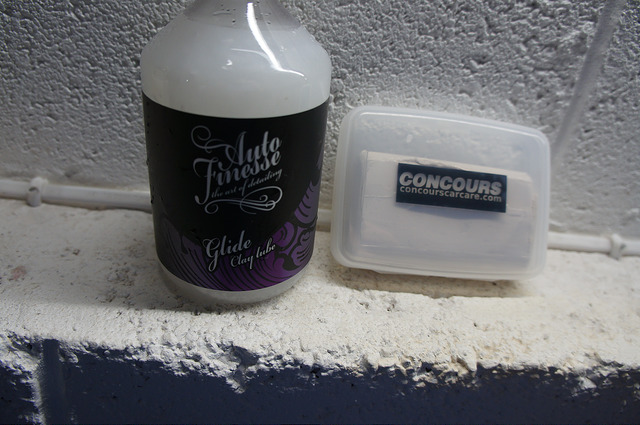

Next we clayed with Concour Soft Clay and Auto Finesse Glide:



DSC00033 by RussZS, on Flickr

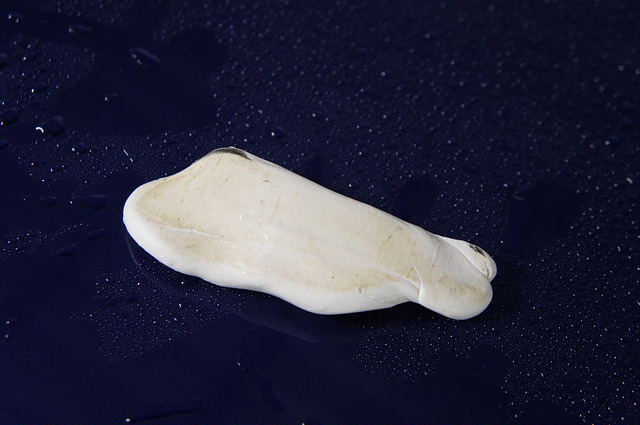

There wasn't much left to use after IronX and Oblitarate, just a small amount of tree sap:



DSC00035 by RussZS, on Flickr

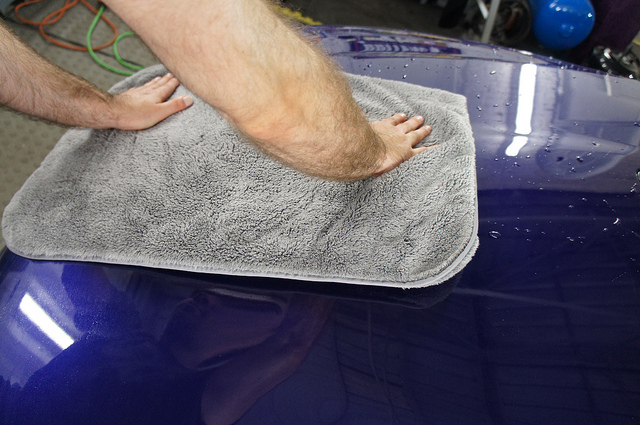

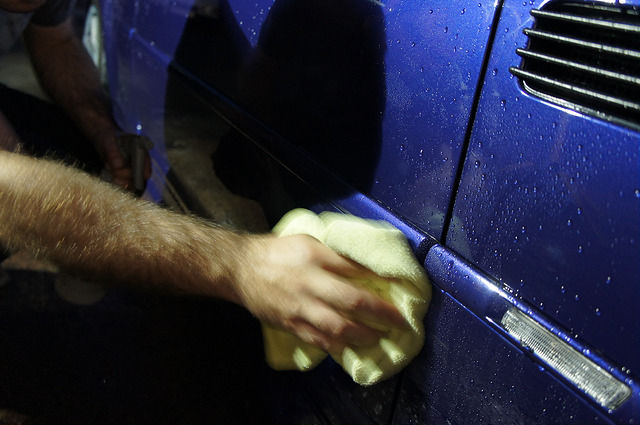

The car was then fully dried with CG Wooly Mammoth Towels and a Blower to release any trapped water:



DSC00036 by RussZS, on Flickr



DSC00037 by RussZS, on Flickr


Next we moved to paintwork assessment. We knew that the front end had been resprayed so this would be treated differently to the rest of the car - fewer defects were present and it was evident that the paint was somewhat softer.


Various polishing combinations were used to safely bring this car up to standard, including:


- Megs Mf Cutting Discs with M101 and D300 via CleanYourCar DAS6 Pro
- Rupes BigFoot System with Zephir and Yellow Polishing Pad
- Festool RAP150 Rotary using Megs 205, Scholl S3, Wool pads and 3M Polishing Pads

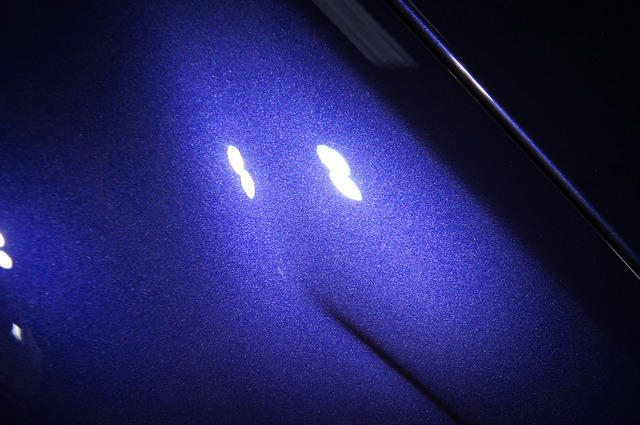

Some pictures from the corrective phases:



DSC00042 by RussZS, on Flickr

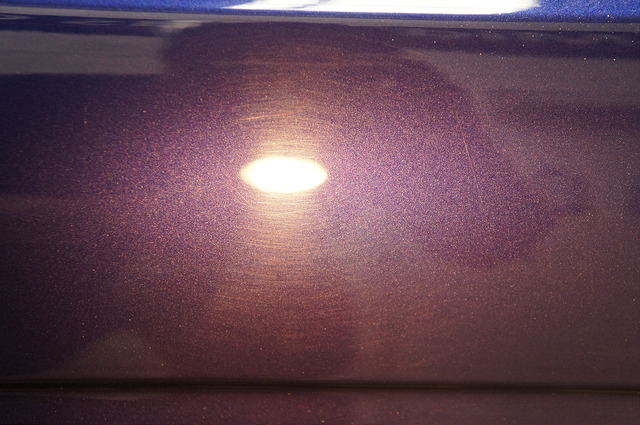

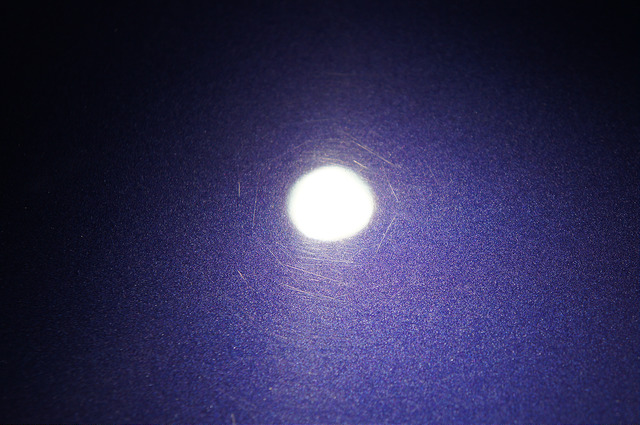

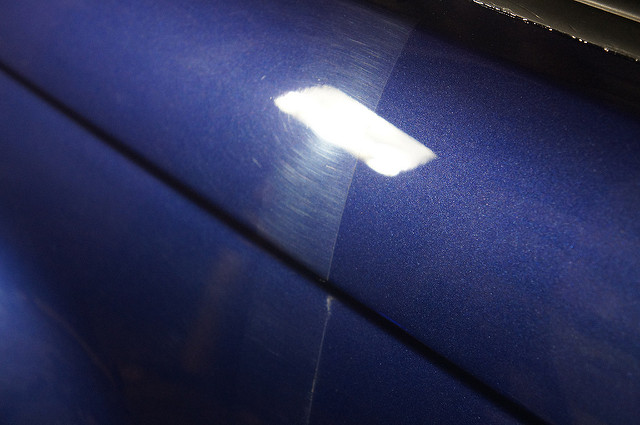

Before:



DSC00045 by RussZS, on Flickr


After:



DSC00046 by RussZS, on Flickr

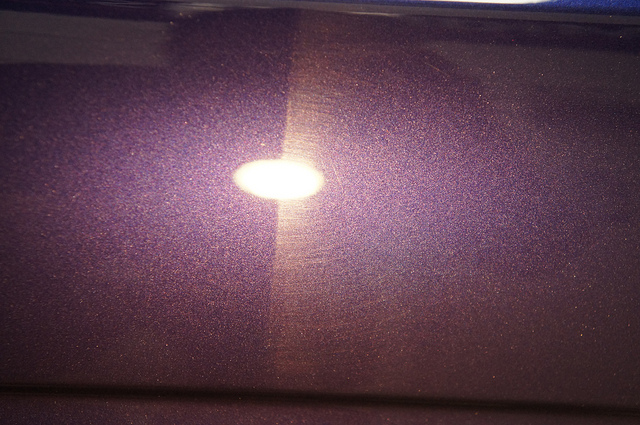

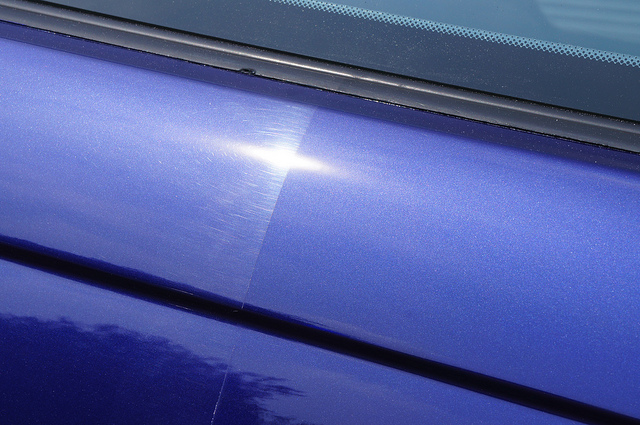

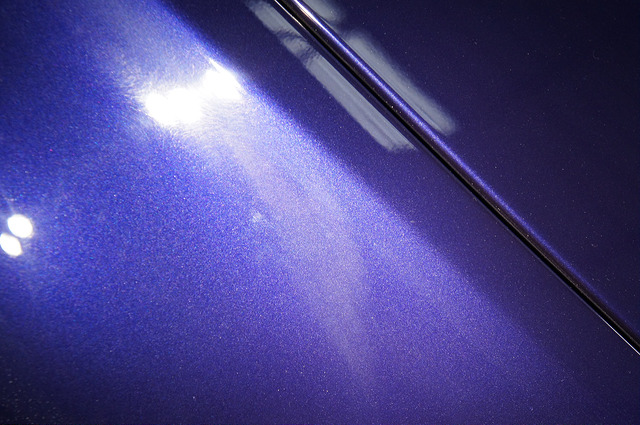

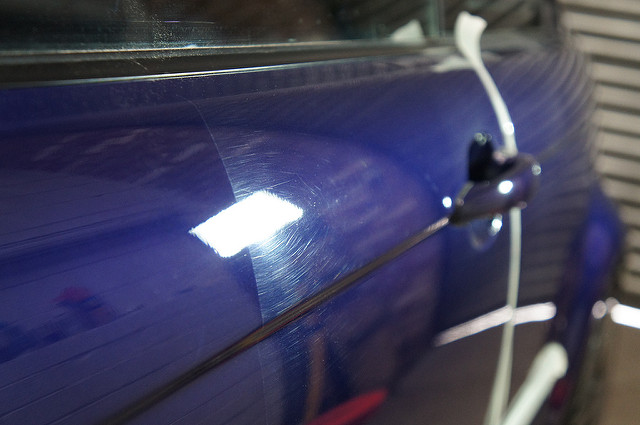

50/50:



DSC00057 by RussZS, on Flickr


Before:



DSC00060 by RussZS, on Flickr

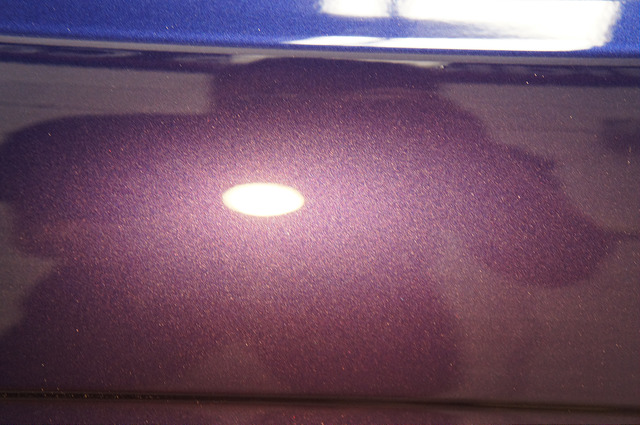

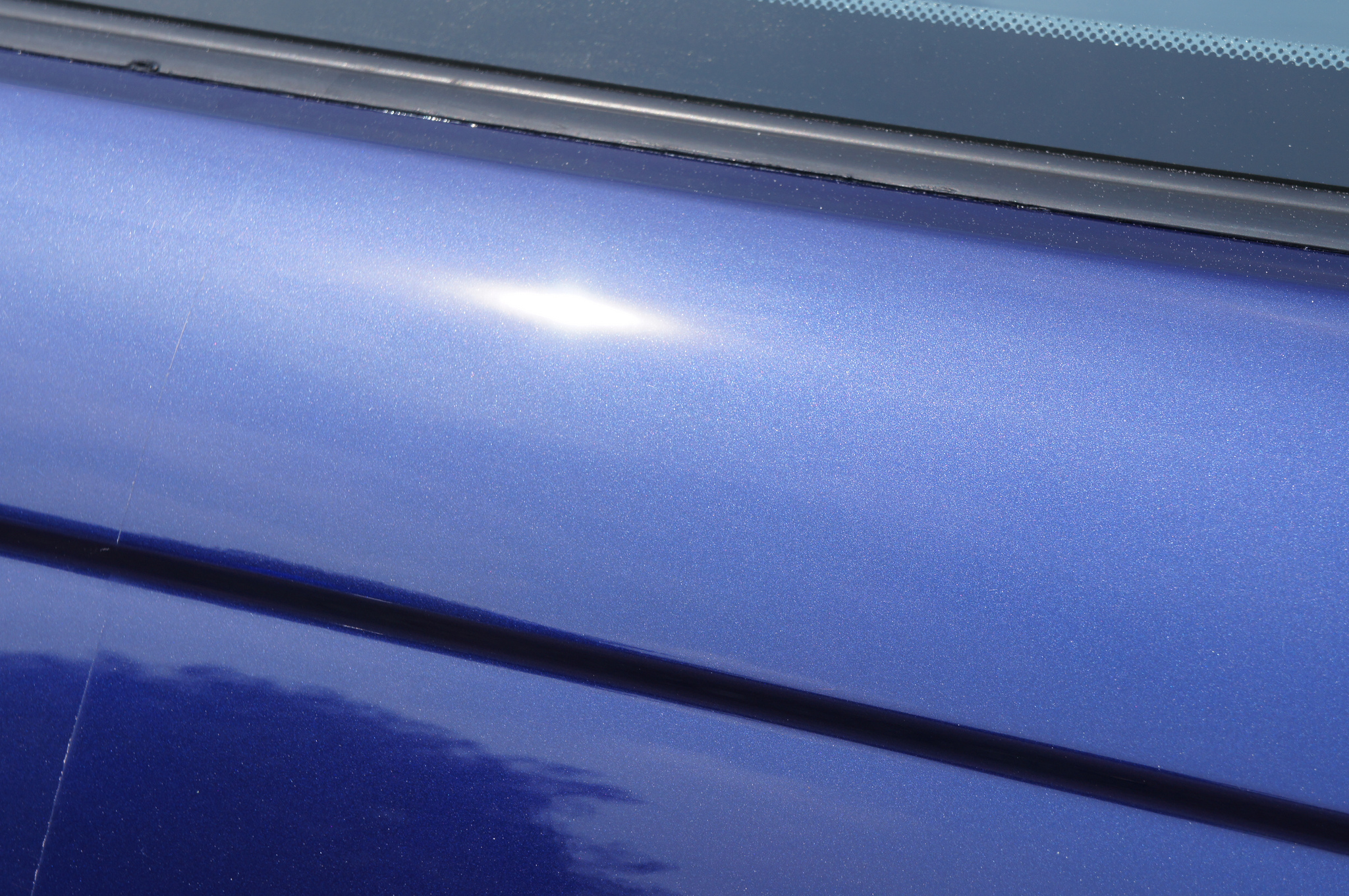

After:



DSC00059 by RussZS, on Flickr


The car was pulled outside periodically to assess the finish in direct sunlight:



DSC00064 by RussZS, on Flickr



DSC00066 by RussZS, on Flickr


The corrective work continued over 10 hours or so:



DSC00089 by RussZS, on Flickr

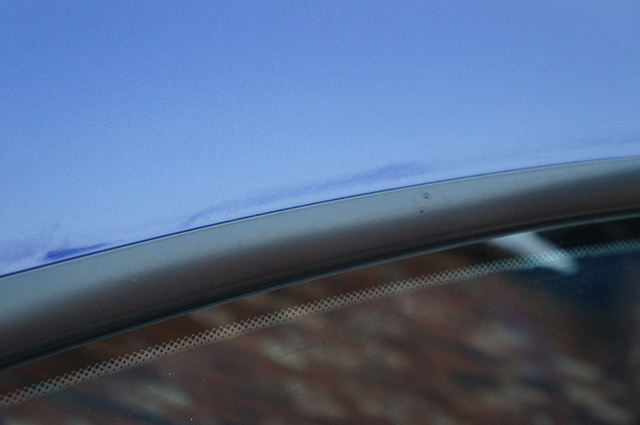

The newly painted areas were finished VERY well but there were a few sanding marks in areas which were dealt with:



DSC00108 by RussZS, on Flickr


After:



DSC00114 by RussZS, on Flickr



DSC00115 by RussZS, on Flickr

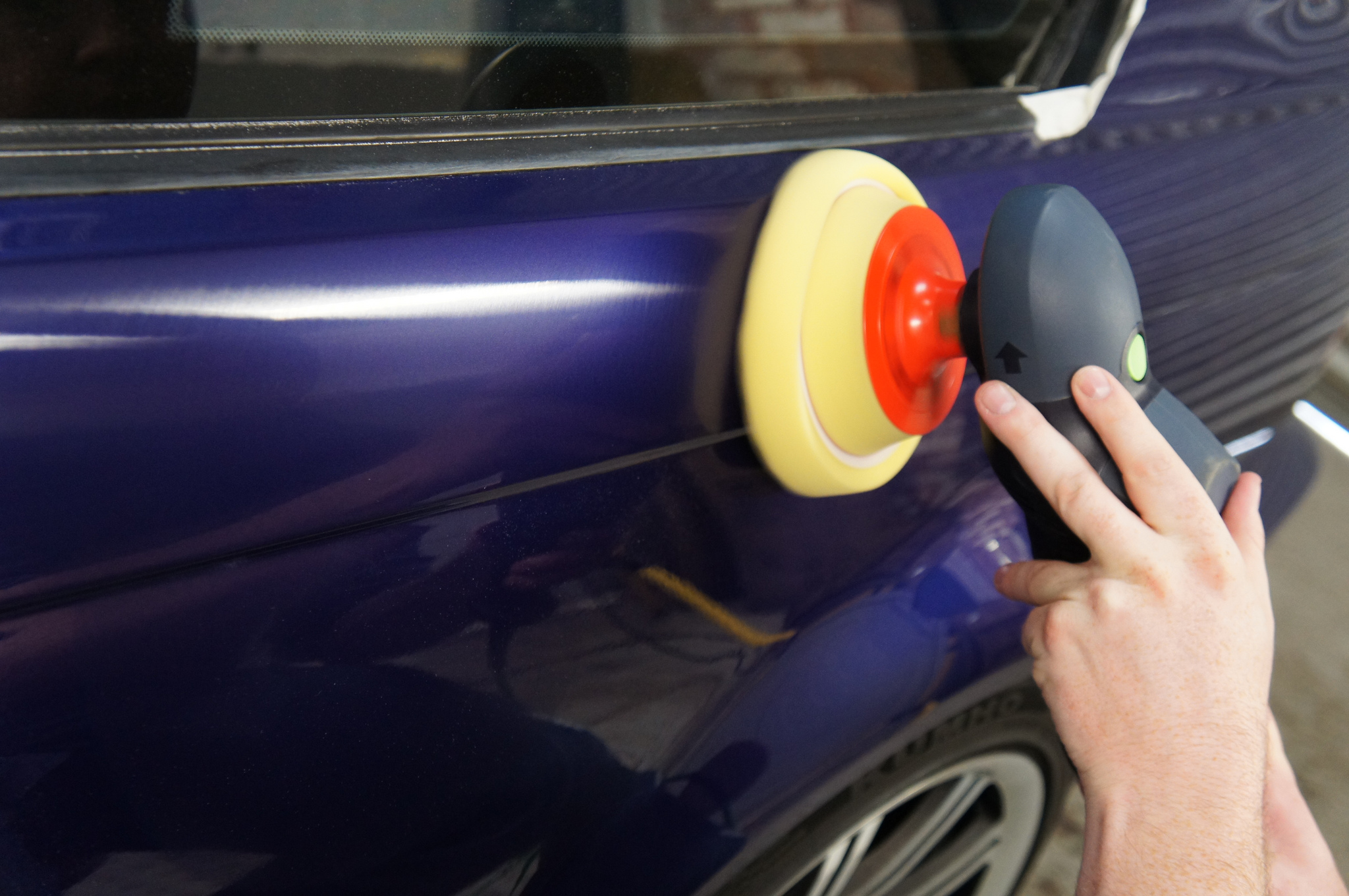

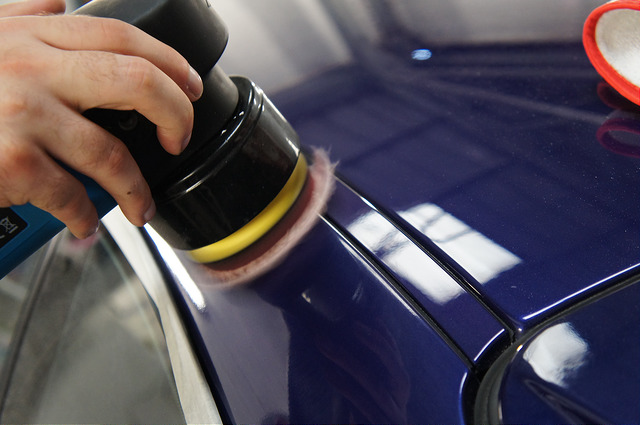

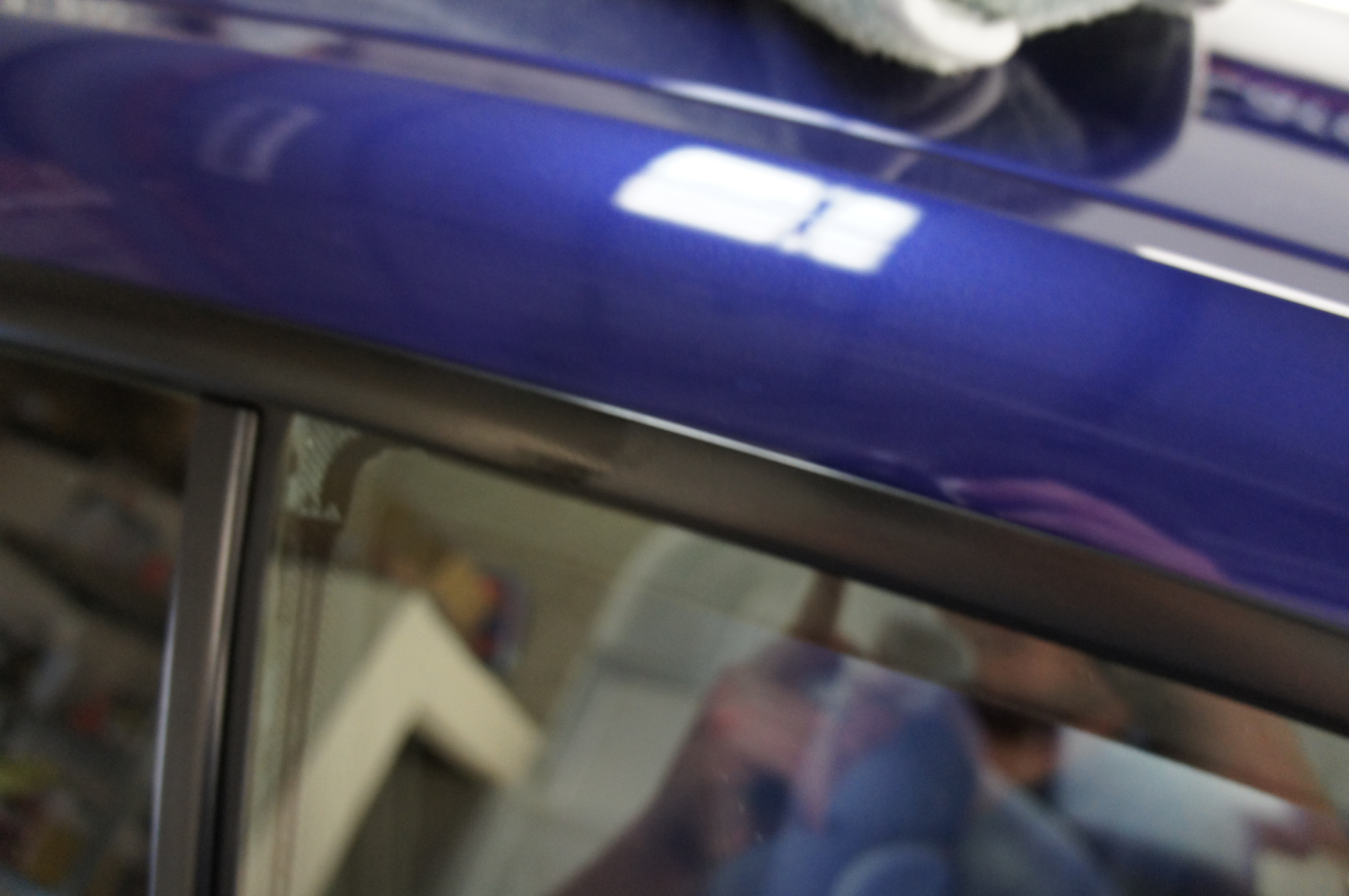

A few pics of the polishing:



DSC00132 by RussZS, on Flickr


Refining via Rotary:



DSC00131 by RussZS, on Flickr

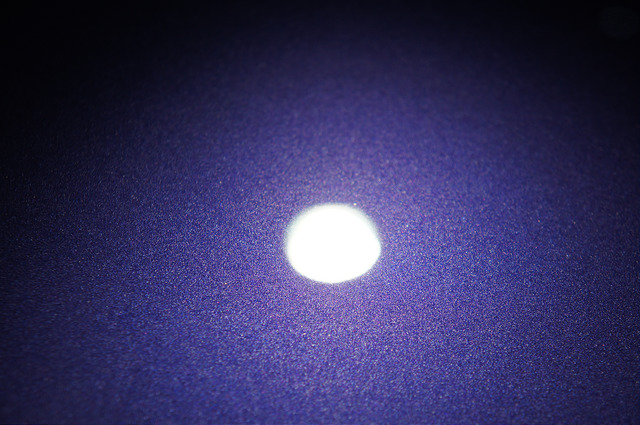

More checking in the Sun - I find the Brinkmann to be the best light source for spotting hologramming but you can't beat the Sun...



DSC00124 by RussZS, on Flickr

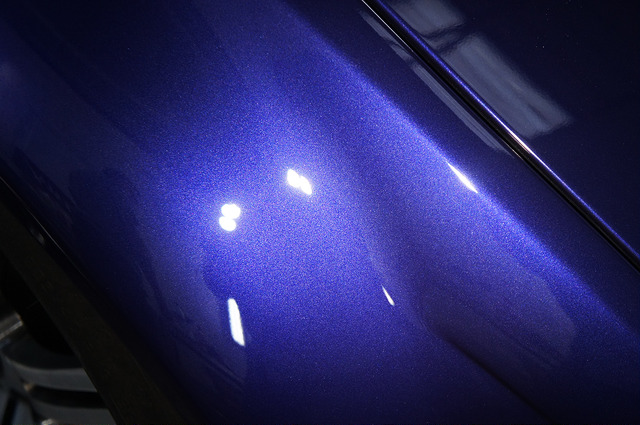

Starting to look extremely sharp...



DSC00129 by RussZS, on Flickr


After all polishing was completed, the M3 was given a very thorough rinse to remove any traces of polishing dust:



DSC00145 by RussZS, on Flickr

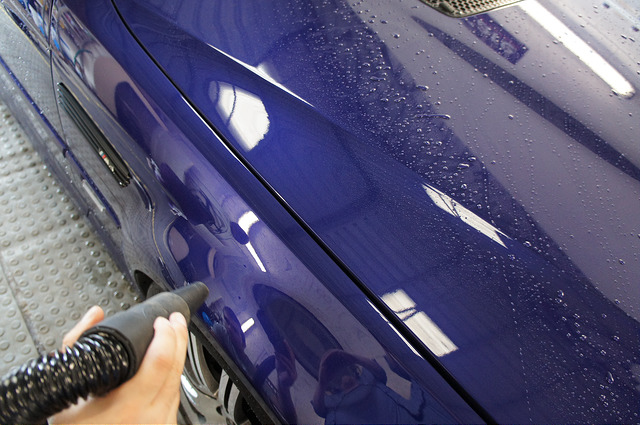

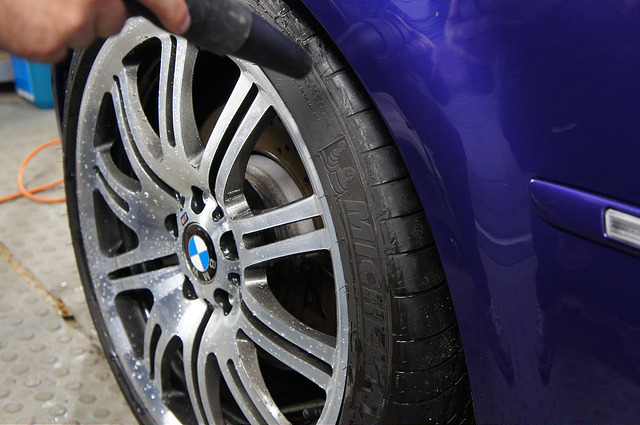

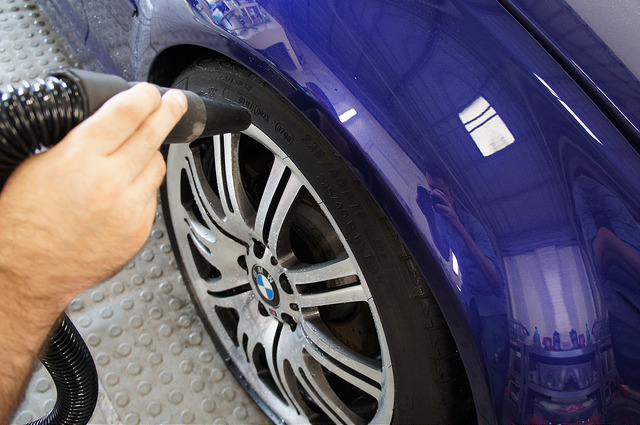

Then re-dried carefully using blowers:



DSC00148 by RussZS, on Flickr



DSC00149 by RussZS, on Flickr

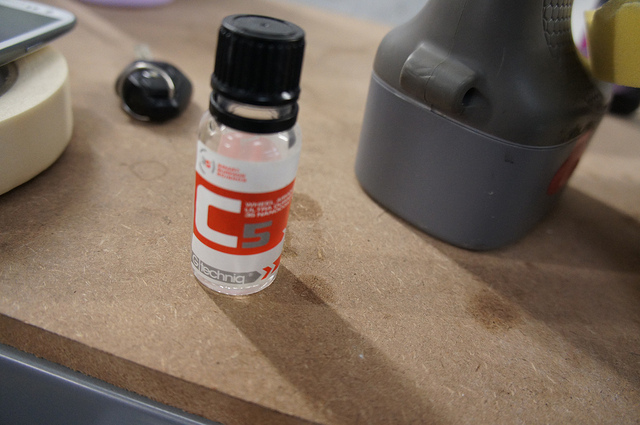

The trim was protected with GTechniq C5:



DSC00151 by RussZS, on Flickr



DSC00150 by RussZS, on Flickr

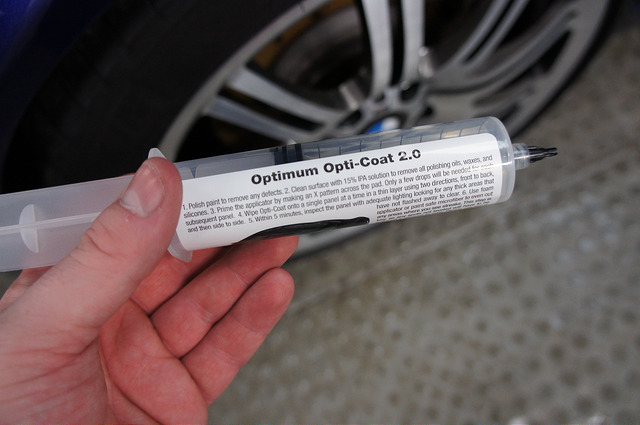

Opti Coat 2.0 was used on the wheels:



DSC00154 by RussZS, on Flickr

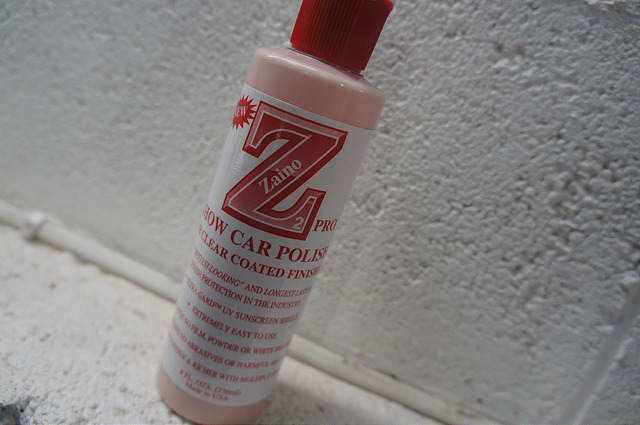

The paintwork was treated to 3x ZFX'd Z2, Z6 between layers and Z8:



DSC00153 by RussZS, on Flickr


Gally

Formerly Mashed up egg in a cup
ClioSport Club Member
You missed the afters Russ. :) Great job though, I read on DW. As a guest I may add. That colour is so so rewarding like Imperial Blue!

  Megane R26
Oooooops, here's the rest of it :)

Revive was used on the engine bay:



DSC00158 by RussZS, on Flickr


Crystal on the glass:



DSC00161 by RussZS, on Flickr


Getting there...



DSC00164 by RussZS, on Flickr


Meguiars detailing sticks used to clean hard to reach areas and dress them:



DSC00165 by RussZS, on Flickr



DSC00167 by RussZS, on Flickr



DSC00168 by RussZS, on Flickr


Z16 was used on the tyres.

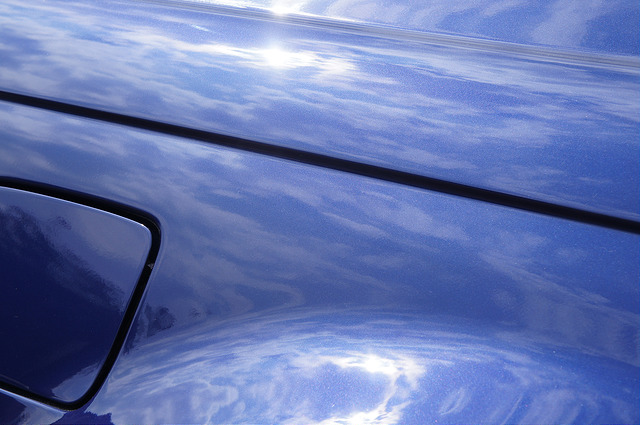

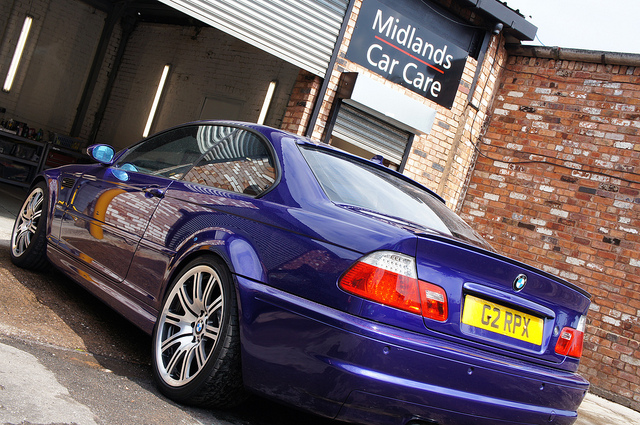

Finally, after many hours, the afters...



DSC00169 by RussZS, on Flickr



DSC00172 by RussZS, on Flickr



DSC00173 by RussZS, on Flickr



DSC00174 by RussZS, on Flickr



DSC00175 by RussZS, on Flickr



DSC00177 by RussZS, on Flickr



DSC00182 by RussZS, on Flickr



DSC00188 by RussZS, on Flickr



DSC00191 by RussZS, on Flickr



DSC00192 by RussZS, on Flickr



DSC00196 by RussZS, on Flickr



DSC00197 by RussZS, on Flickr



DSC00200 by RussZS, on Flickr



DSC00205 by RussZS, on Flickr


A quick interior shot of those awesome seats!



DSC00209 by RussZS, on Flickr



DSC00215 by RussZS, on Flickr



DSC00217 by RussZS, on Flickr



DSC00222 by RussZS, on Flickr



DSC00227 by RussZS, on Flickr



DSC00246 by RussZS, on Flickr



DSC00257 by RussZS, on Flickr



DSC00259 by RussZS, on Flickr



DSC00272 by RussZS, on Flickr


One last check before the customer arrived:



DSC00273 by RussZS, on Flickr



DSC00274 by RussZS, on Flickr


and of course, some Tesco pics...



DSC00280 by RussZS, on Flickr



DSC00281 by RussZS, on Flickr



DSC00284 by RussZS, on Flickr



DSC00285 by RussZS, on Flickr



DSC00286 by RussZS, on Flickr



DSC00287 by RussZS, on Flickr



DSC00289 by RussZS, on Flickr



DSC00290 by RussZS, on Flickr



DSC00291 by RussZS, on Flickr



DSC00296 by RussZS, on Flickr



DSC00298 by RussZS, on Flickr



DSC00300 by RussZS, on Flickr


This was a very challenging but extremely enjoyable car to work on. It's amazing to think it's got over 100k on the clock!!!


Thanks for reading - if you have any questions then feel free to ask and I'll answer them all.



DSC00301 by RussZS, on Flickr


Russ.


Silent_Scone

ClioSport Club Member
  Evo 5 RS
Awesome wet finish! The only down fall is nothing to do with you, that awful purple interior!

  Z4
Stunning as always.
Id hate to think how much you boys spend on detailing products! I'd imagine you get trade prices but even still..

Im amazed how fast you can do the whole works tbh, I've just spent 2 days washing/correcting my z4, not enough time for interior, trims, wheels&tyres, windows etc lol. Very impressive.
