Fuel rail connector



scott.kir

ClioSport Club Member
  BMW 120D M Sport
Hello all,

Can anyone point me in the right direction for a connection that will clip onto the fuel pipe that connects to the fuel rail.

Im wanting make a drain for the fuel, So need a pipe made up that i can connect to the fuel pipe that clips to the fuel rail so i can switch the pump on and drain the fuel into a tuff jug between races.

Ive searched the forum for a while but cant find any answers for what im after.

any help would be appreciated

thank you

  172 Ph1

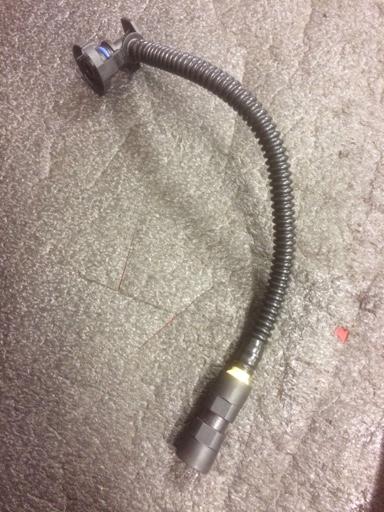

I make these , is this what your after ?




Sent from my iPhone using Tapatalk


scott.kir

ClioSport Club Member
  BMW 120D M Sport

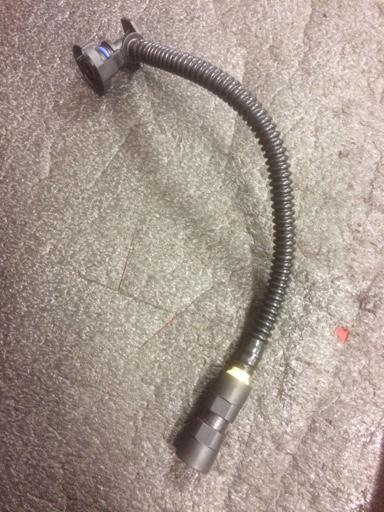

I make these , is this what your after ?

View attachment 1561167


Sent from my iPhone using Tapatalk

I think so mate, Assuming you can take the fuel pipe off the original fuel rail and then plug it into this to use as a drain?

are you able to make them longer? I was looking for one to be long enough to easily reach from the original fuel rail down the front bumper in order to get into a fuel jug thats sat on the floor infront of the car

  172 Ph1
I think so mate, Assuming you can take the fuel pipe off the original fuel rail and then plug it into this to use as a drain?

are you able to make them longer? I was looking for one to be long enough to easily reach from the original fuel rail down the front bumper in order to get into a fuel jug thats sat on the floor infront of the car

It can be yes , I can supply a long pipe to reach the container / floor.
Message me and we can chat


Sent from my iPhone using Tapatalk


JamesBryan

ClioSport Club Member
  Titanium 182
Would it not be better to have something you can tap into rather than keep removing the connector on the fuel rail.

Over time it might weaken and lose it's grip on the rail, potentially popping off and causing a fire.

Not really designed to be taken on and off a lot.

  172 Ph1
Would it not be better to have something you can tap into rather than keep removing the connector on the fuel rail.

Over time it might weaken and lose it's grip on the rail, potentially popping off and causing a fire.

Not really designed to be taken on and off a lot.

I’m open to your suggestions , poss a t-piece of some sort .
Issue is it’s another weak point in the line to poss fail maybe.


Sent from my iPhone using Tapatalk


banhama

ClioSport Club Member
Is it to comply with MSA regulations to be able to take fuel samples for analysis?
If so I think there are MSA regulations regarding it being a dry-break coupling tee'd onto the fuel line. You then have the other half of the coupling and a minimum length of hose available in parc ferme.
I can take a photo of what I've done if it's of any help. Not that I've ever had to use it, you need to win for anyone to be bothered to demand a fuel sample:D


scott.kir

ClioSport Club Member
  BMW 120D M Sport
Is it to comply with MSA regulations to be able to take fuel samples for analysis?
If so I think there are MSA regulations regarding it being a dry-break coupling tee'd onto the fuel line. You then have the other half of the coupling and a minimum length of hose available in parc ferme.
I can take a photo of what I've done if it's of any help. Not that I've ever had to use it, you need to win for anyone to be bothered to demand a fuel sample:D

Its not for msa or anyone,

just myself so i know exactly what fuel is in the car before/after each session


Gus

ClioSport Moderator
  182Turbo,DCi90
Hello all,

Can anyone point me in the right direction for a connection that will clip onto the fuel pipe that connects to the fuel rail.

Im wanting make a drain for the fuel, So need a pipe made up that i can connect to the fuel pipe that clips to the fuel rail so i can switch the pump on and drain the fuel into a tuff jug between races.

Ive searched the forum for a while but cant find any answers for what im after.

any help would be appreciated

thank you
Normal garden hose pipe is fine. That's what I used to do exactly what you want to do. Just unplug the fuel rail connector , put hose on to that and then just power the fuel pump.
