Help...Xenon (Daz,Has,Dutty?)

[Mattsclio!]

hi jua got these 172 xenons this morning,should i have two of thesegrey/silver boxes?one on each unit? can somebody tell me from the pics if i have everything for that light to work? also the xenon projector lense seems to be very loose,can this be tighted as there are screws surrounding it?thanks



[b3nje]

the grey box not gas discharge?



[Mattsclio!]

do u need them to work?



[Has]

Rite

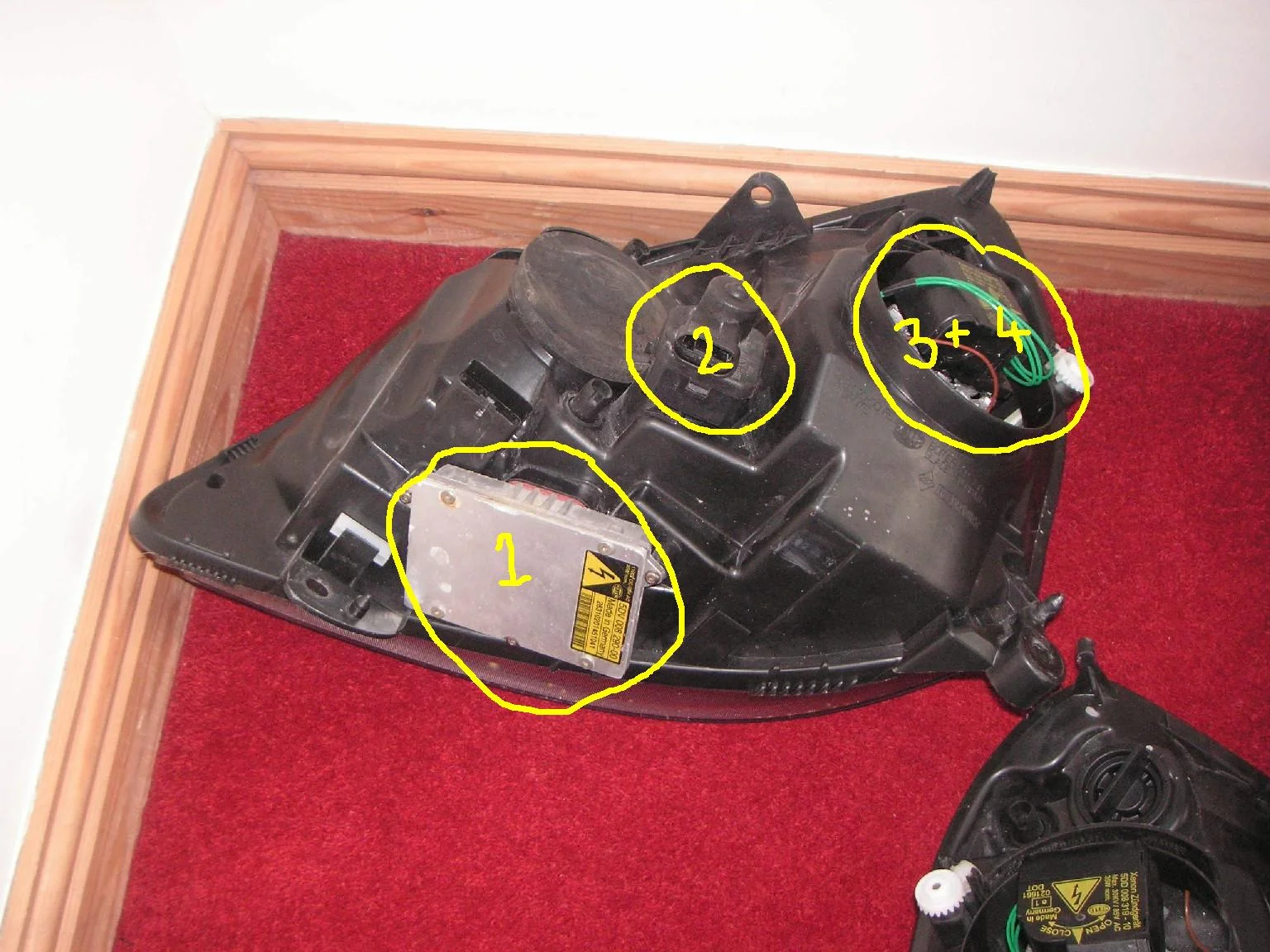

As per my labelling:

1) Charge Pack

2) Leveling Unit

3) Xenon Bulb

4) Ballast


The xenon bulb will be under this, but be VERY carefull if you decide to "unplug" it all to have a peek. Its hard to put back into place.

You must have 2 of everything above! ^^^
So each one per light unit.


I know exactly what you mean by "loose" i had the same problem.
You are now faced with 2 possible outcomes:

a) Its simply just the leveling unit un-hooked itself from the inner light (easy fix)

b) The unit has been damaged bringing it internally damaged (no fix) !



PM me if u need more info mate. Possibly see you this weekend?



[Da]

bit late...but yep, as Has says mate



[Has]

why thank you



[Da]

just 1 thing tho Has, you've got 1) charge pack and 4) ballast the wrong way round The ballast is bolted to the headlight unit whereas the charger/starter is attached to the lamp
