Photo request: Clio 172 cup alternator set-up

[Gray]

Got all the 172 cup alternator set up to fit on the PH-1 this week..

Just wanting to see a few photos of the set-up fitted to give me a better idea of the mess I shall be getting into



[mini-valver]

Remove everything, install alternator and bracket, fit belt. Done.


Cant be that hard dude, lol....



[Gray]

Oh it can be hard... especially with me doing it!



[sideways danny]

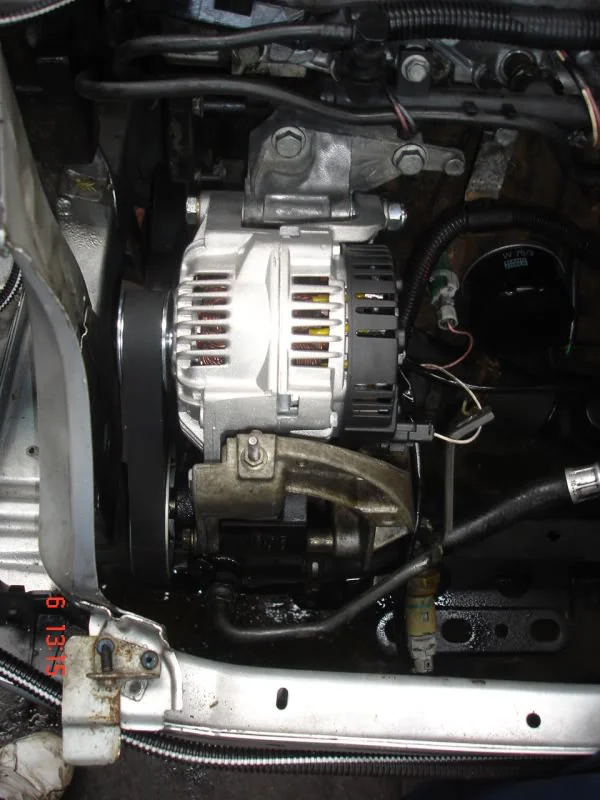

it's really simple, i put one together today

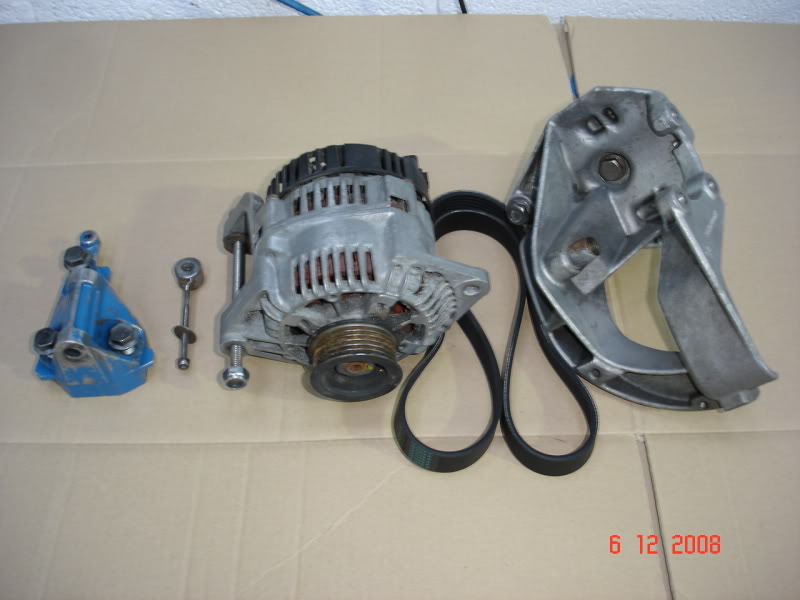

the small blue bracket bolts near the top of the block and is the pivot for the alternator. the large bracket needs the PAS pump bolting to it AFTER fitting the bracket to the block.



[Gray]

Nice one!

Did you fit a different PAS line to clear the new alternator set-up Danny?

Ive heard it can be "bent" out of the way... but unsure about this tbh



[sideways danny]

yes, you need a new line on the high pressure side



[Barron]



[Gray]

yes, you need a new line on the high pressure side

Any specs on this Danny... custom made, or off the shelf part?



[sideways danny]

buy a cup one, or have the old one cut and re-swaged by a hydraulic hose company



[mini-valver]

Bend it over your knee FTW.

Get a cup one would be easiest I reckon like Danny says.



[sideways danny]

new cup line is expensive (!!!)



[Bazzon]

We just bent it!



[Gray]

new cup line is expensive (!!!)

I imagined you would say that!

How much did it cost you to get a new line made up?
