Pistachio's Racing Blue 182 Project Thread

[Pistachio]

I thought I should start a thread to keep track of what I've done and need to do. I bought this RB last week from @JPJ89 at 104k miles. This is my second 182. I've missed my BG ever since I sold it.

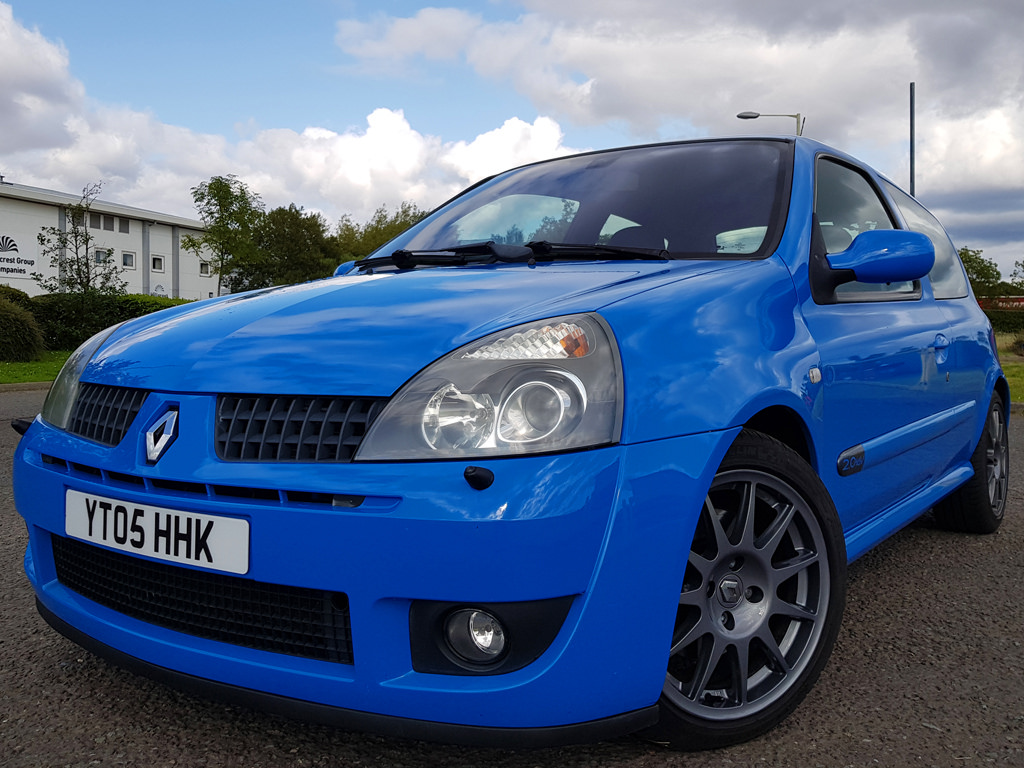

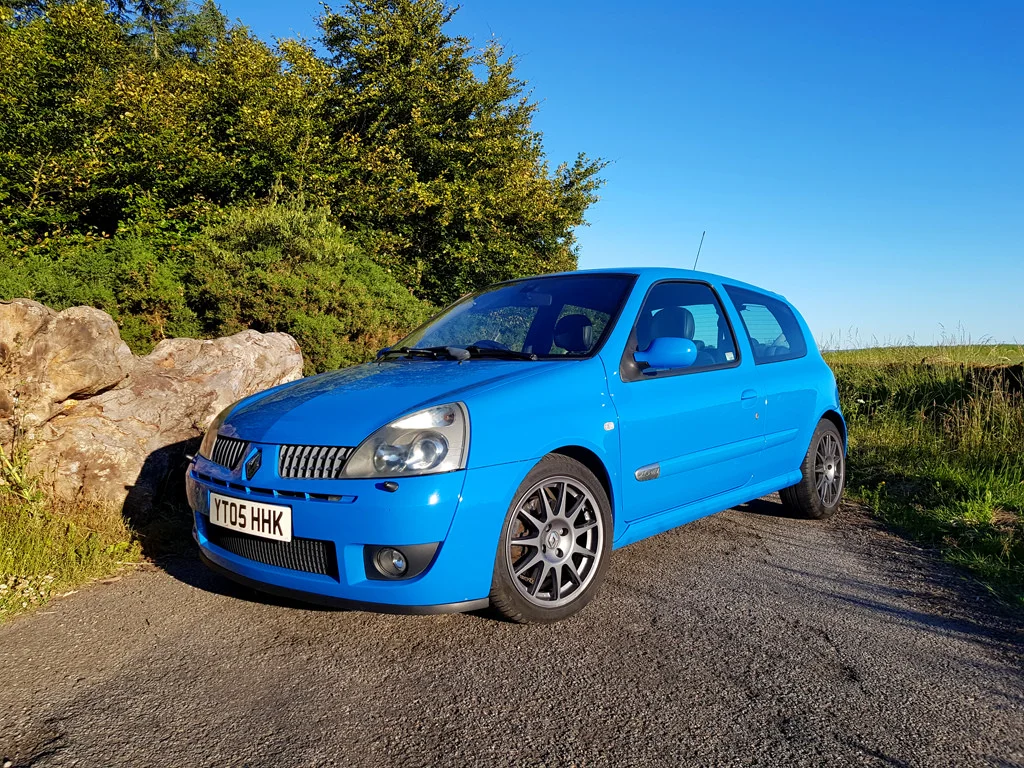

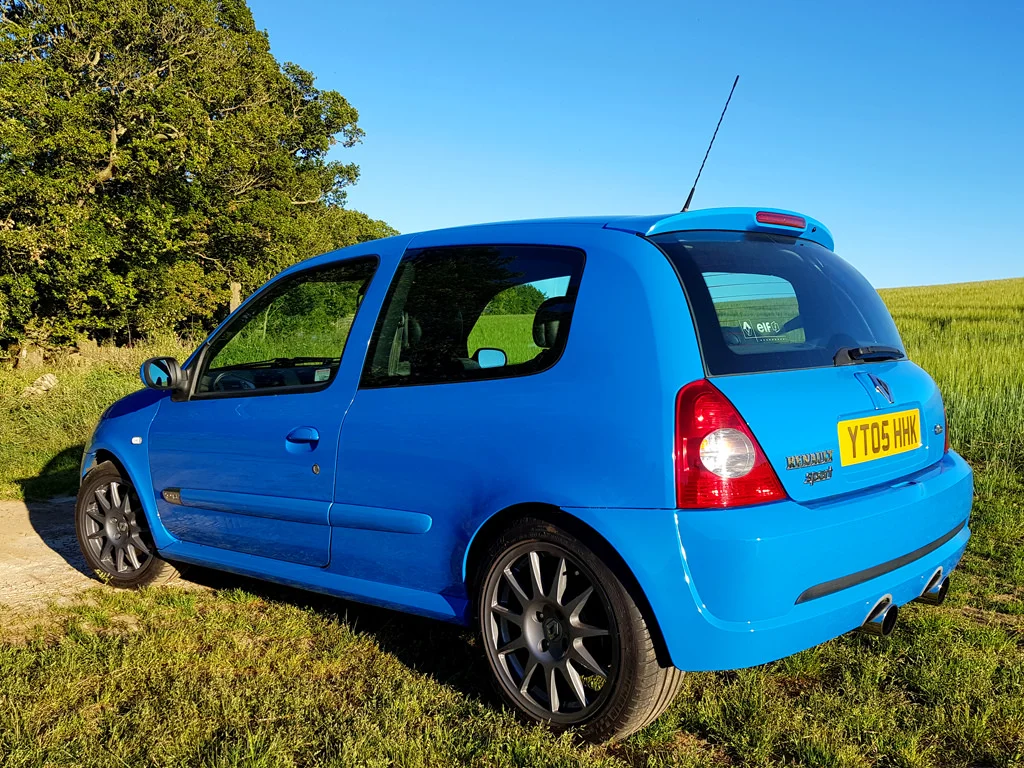

I still really need to get some decent pictures but these will do for now

Snappy retrimmed steering wheel
Powerflex dogbone lower engine mount
Eibach Sportline springs
172 cup turini's
Miltek cat-back

Since I've got it I've fitted a new head unit, disconnected the alarm because it was playing up and adjusted the boot catch as it was showing as open on the dash.

I've ordered some touch up paint from Autopaint to try fix a few stone chips. And I've got a headlight restoration kit sitting here for when I can be bothered. The plates are a bit faded so I'll probably replace them at some point. Maybe get a 3/4 front plate actually

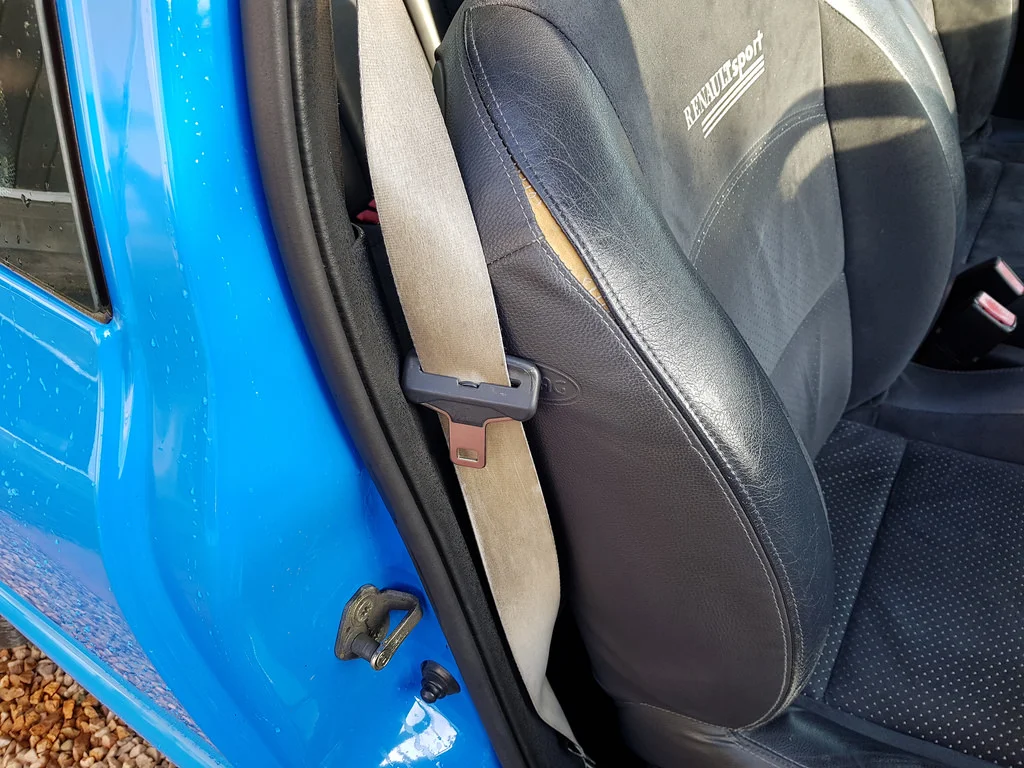

The seatbelts need a clean and the bolster restitched. The seats are in decent nick apart from that

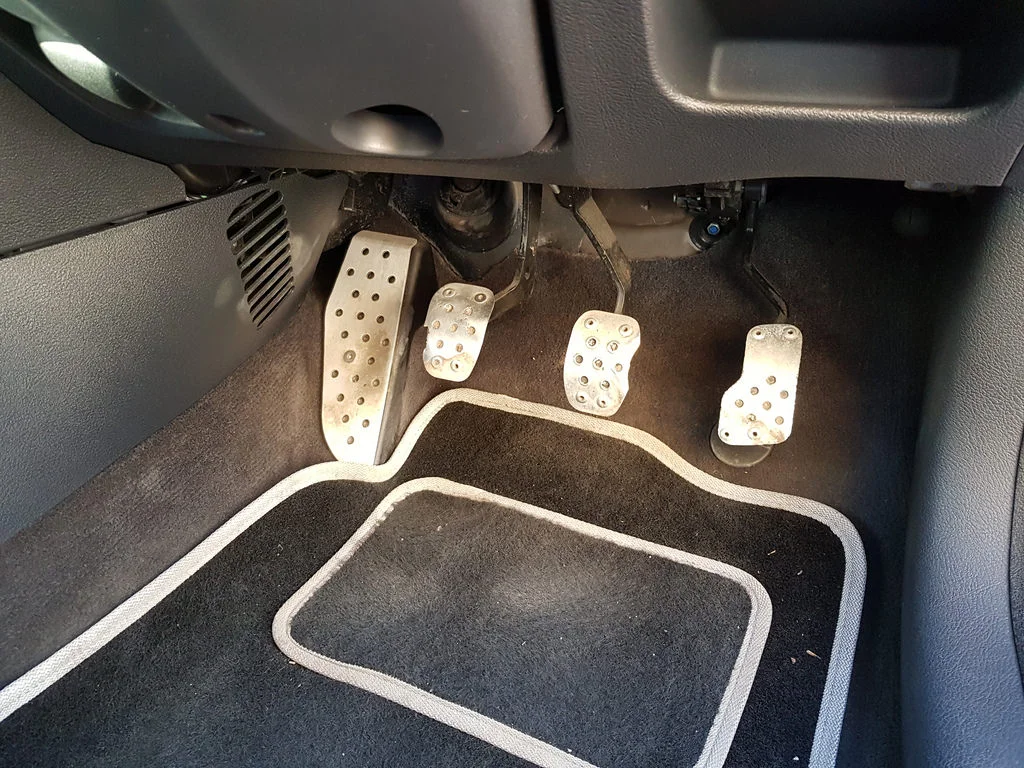

I'd like to replace the chewed up pedals too

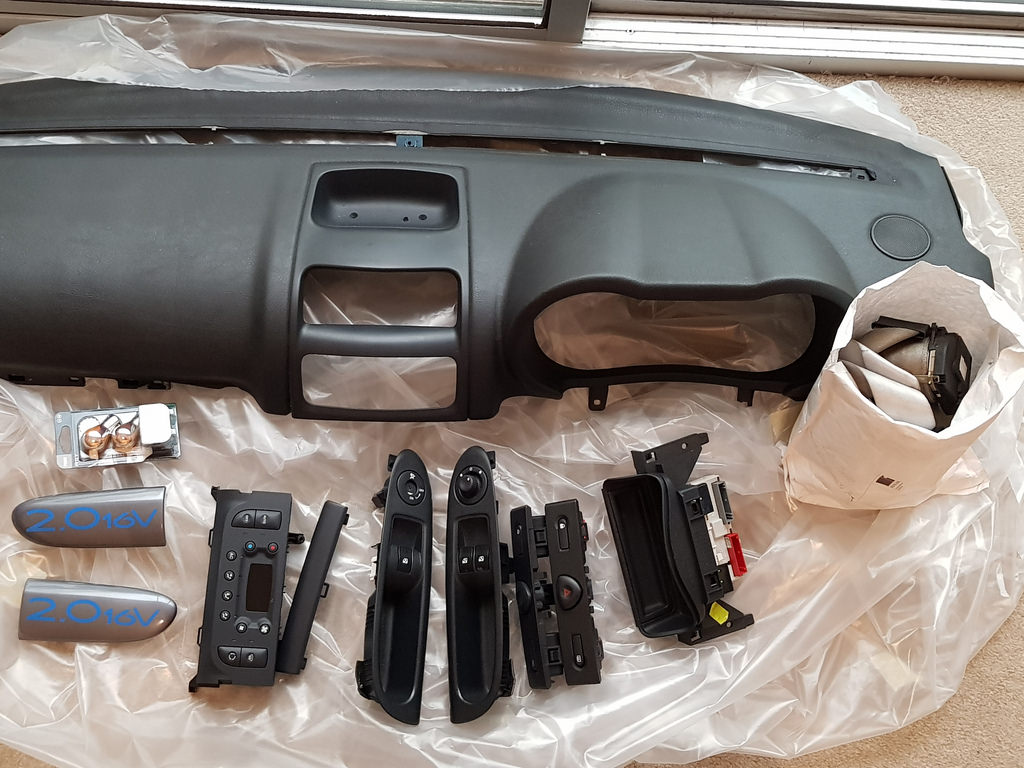

I've also looked out the part numbers for the non sport interior parts to replace the sticky bits. I haven't decided if I'm going down that road yet though because it's never going to be a show car



[Pistachio]

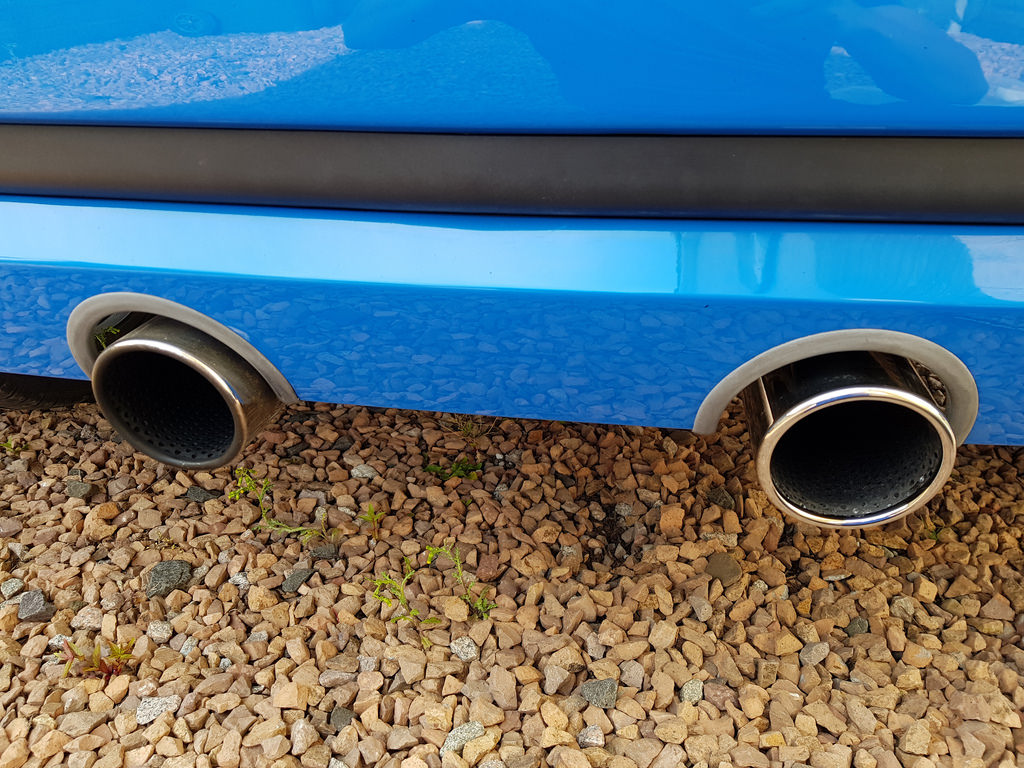

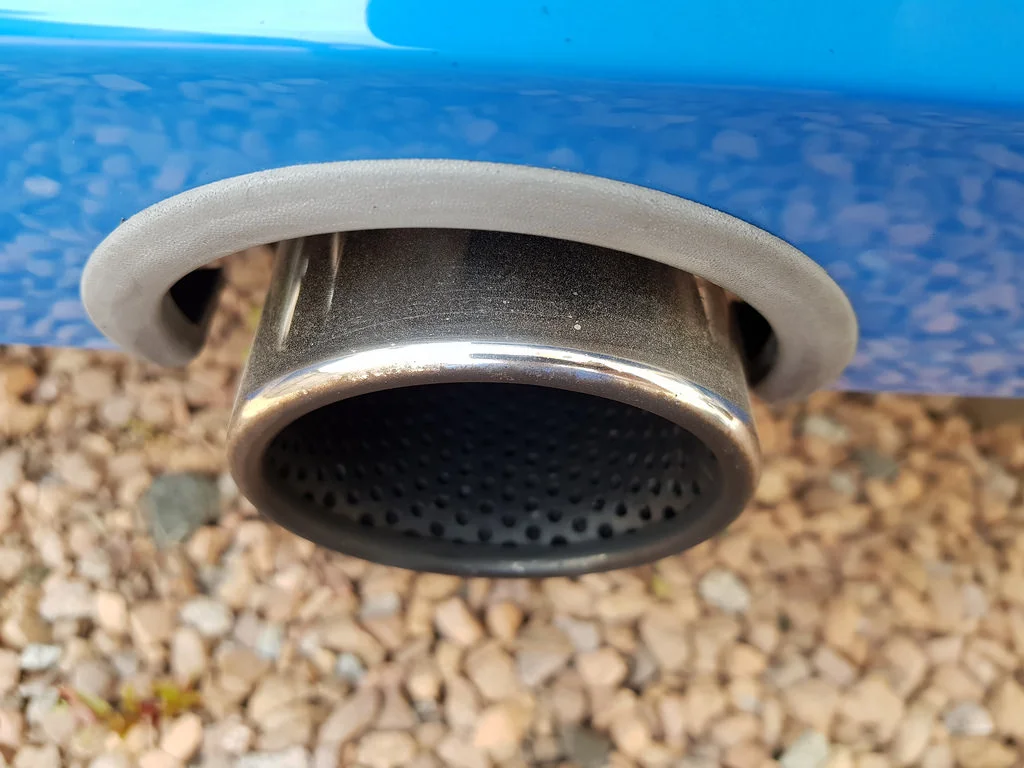

Tonight I gave the millteks a little polish. I need to get some back-to-black for the exhaust trims. I also used T Cut to remove the scratches from the door mirrors. No pics of that though

Comparison



[20vKarlos]

Don’t buy T-Cut if you want to Remove the scratches mate, t-cut will only fill the scratches.

To remove them you’ll need to use a cutting/polishing compound with some elbow grease or a machine polisher.

Looks like a nice example, are you going to get the seat re-upholstered or are you on the hunt for a low mileage seat?



[Pistachio]

They were scuffs. I don't know why I said scratches. I might get some cutting compound though because there is a long but light scratch running down the drivers door. Can you recommend one?

I'm just going to get the stitching repaired on this seat thanks



[Louis]

Don’t buy T-Cut if you want to Remove the scratches mate, t-cut will only fill the scratches.

To remove them you’ll need to use a cutting/polishing compound with some elbow grease or a machine polisher.

Looks like a nice example, are you going to get the seat re-upholstered or are you on the hunt for a low mileage seat?

The seats are common to go there, it's down to the tilt release pull. The mechanism strains the stitches, mines the same but not as bad!



[Sunglasses_Ron]

They were scuffs. I don't know why I said scratches. I might get some cutting compound though because there is a long but light scratch running down the drivers door. Can you recommend one?

I'm just going to get the stitching repaired on this seat thanks

Where you located mate? I’ve got a machine polisher and compounds.



[Pistachio]

Im in Dundee



[Sunglasses_Ron]

Im in Dundee

Ah ok might be a bit far to come to Essex ?



[Pistachio]

Yeah a little bit too far ?



[182_steve]

Looks a cracking little car that, nice buy!



[Pistachio]

I'm polishing my headlights just now but the rain keeps interrupting me! I've sanded and just started polishing the right one. I'm going to have to get the flies out of it somehow

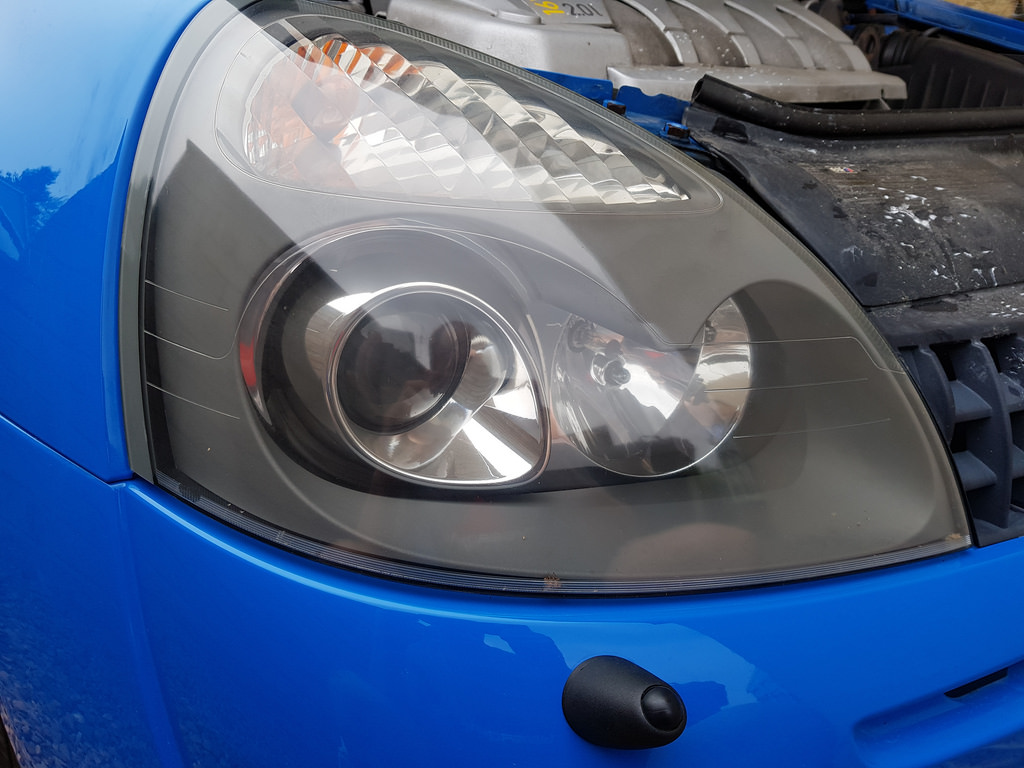

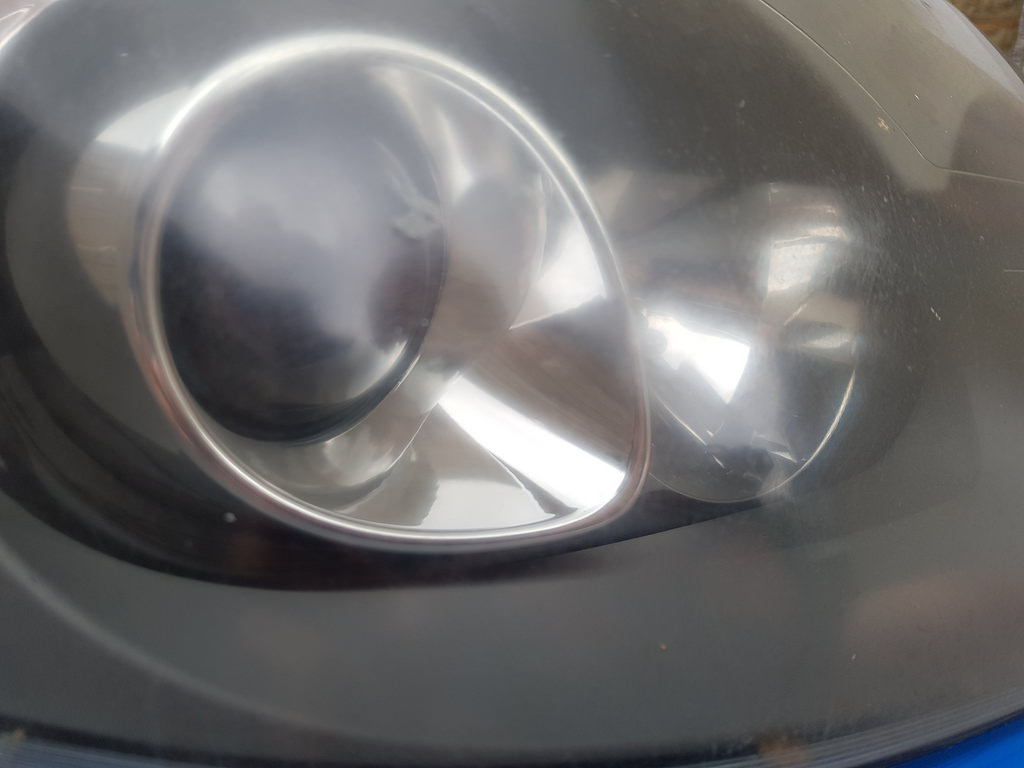

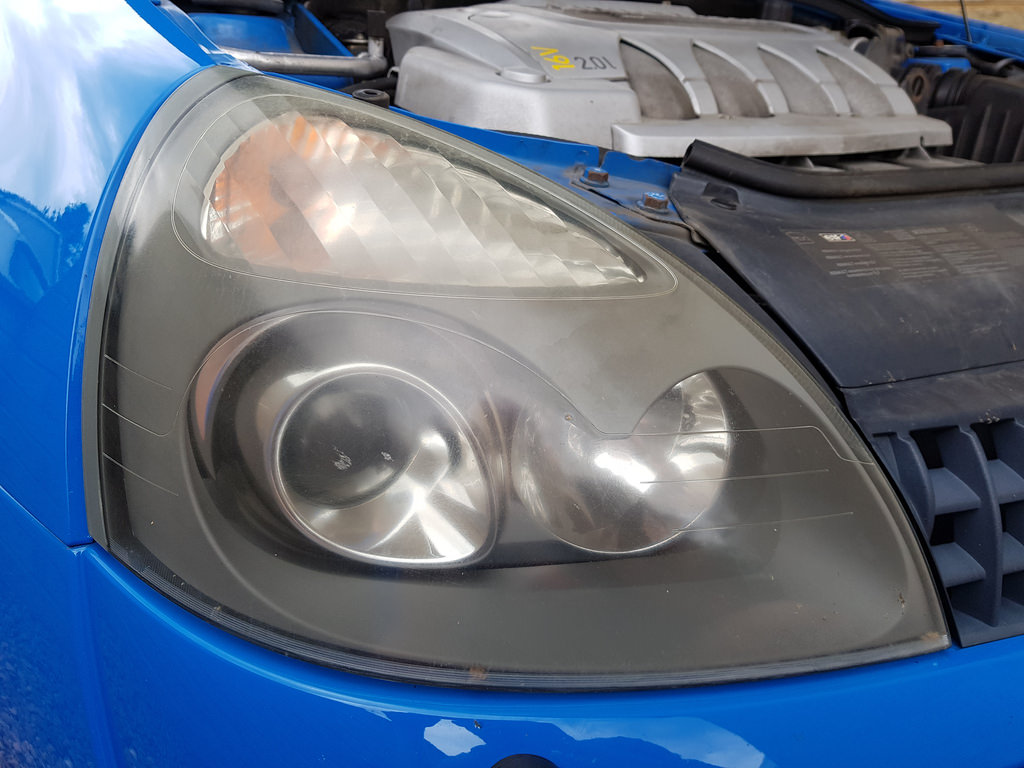

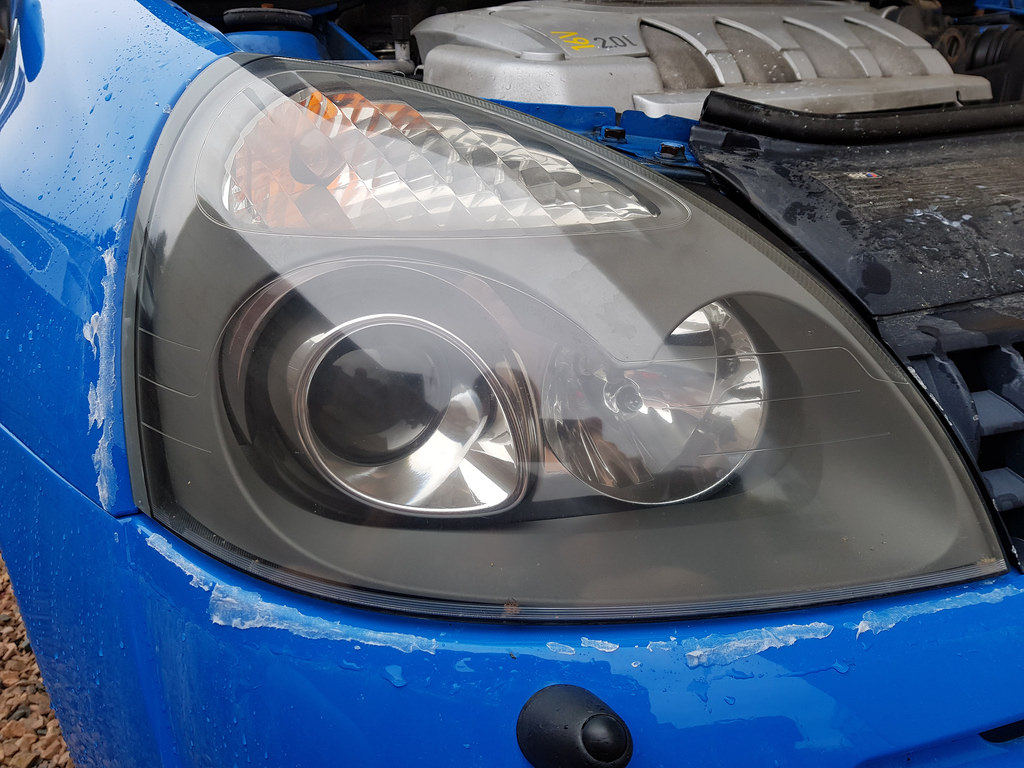

Before

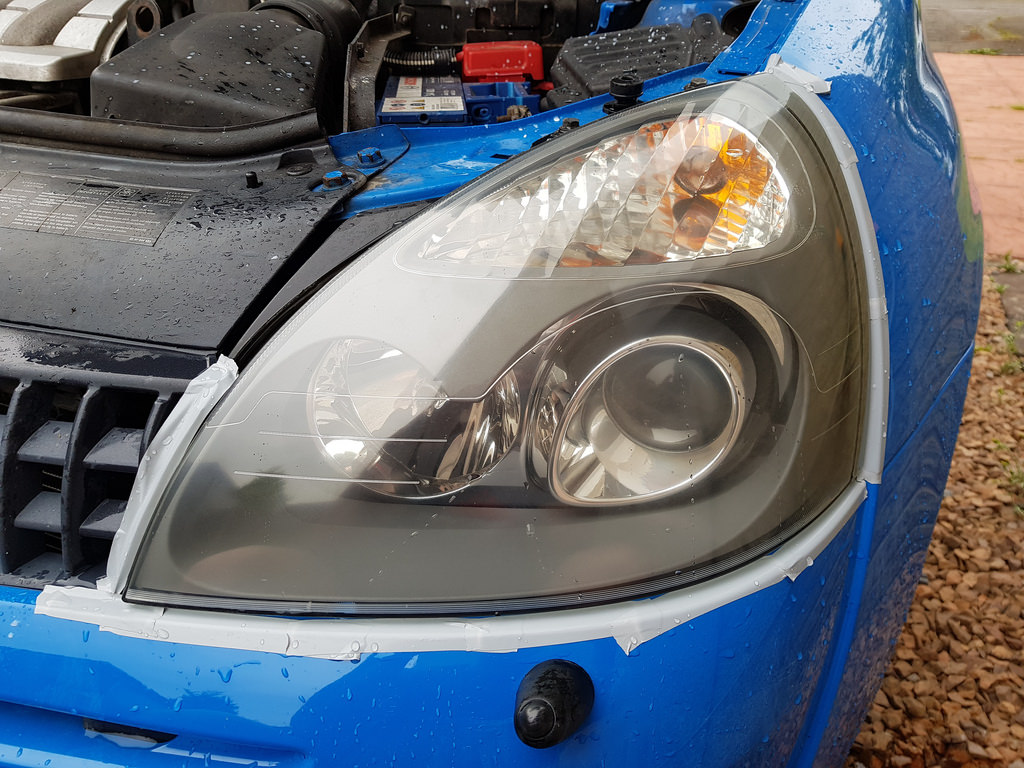

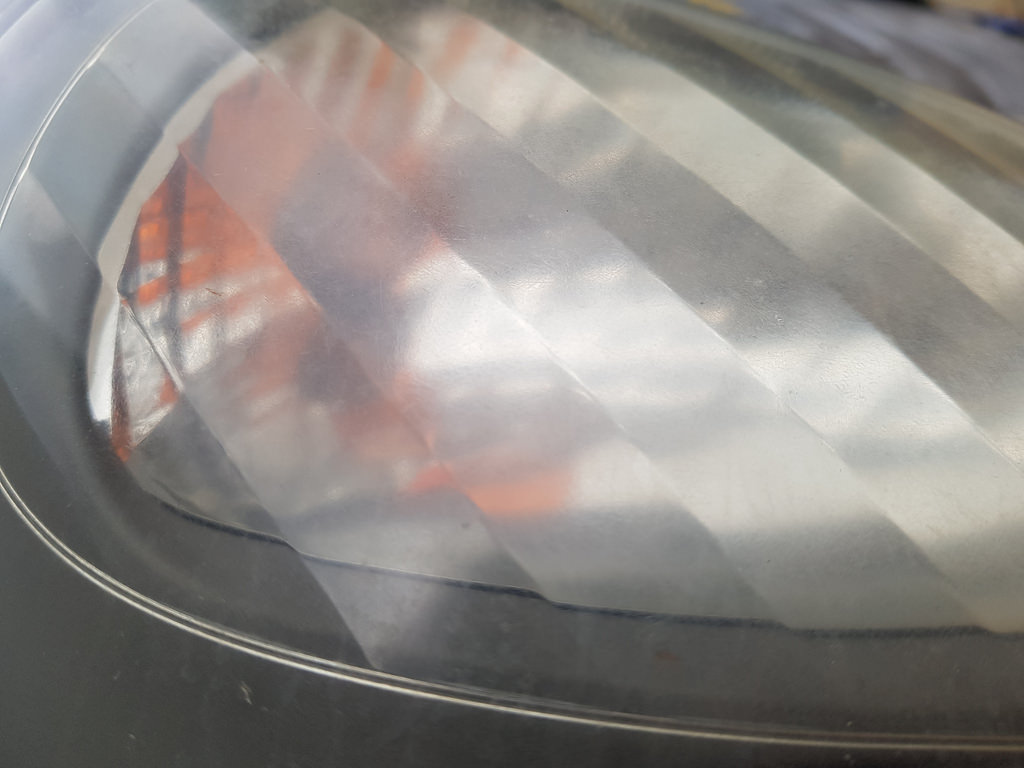

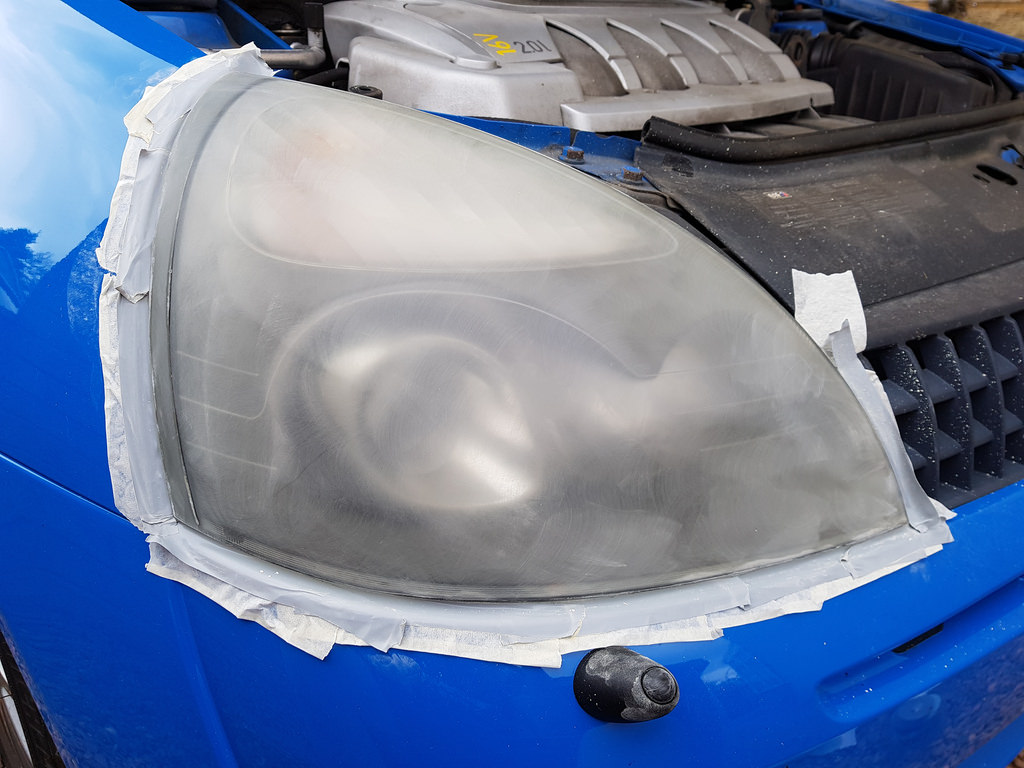

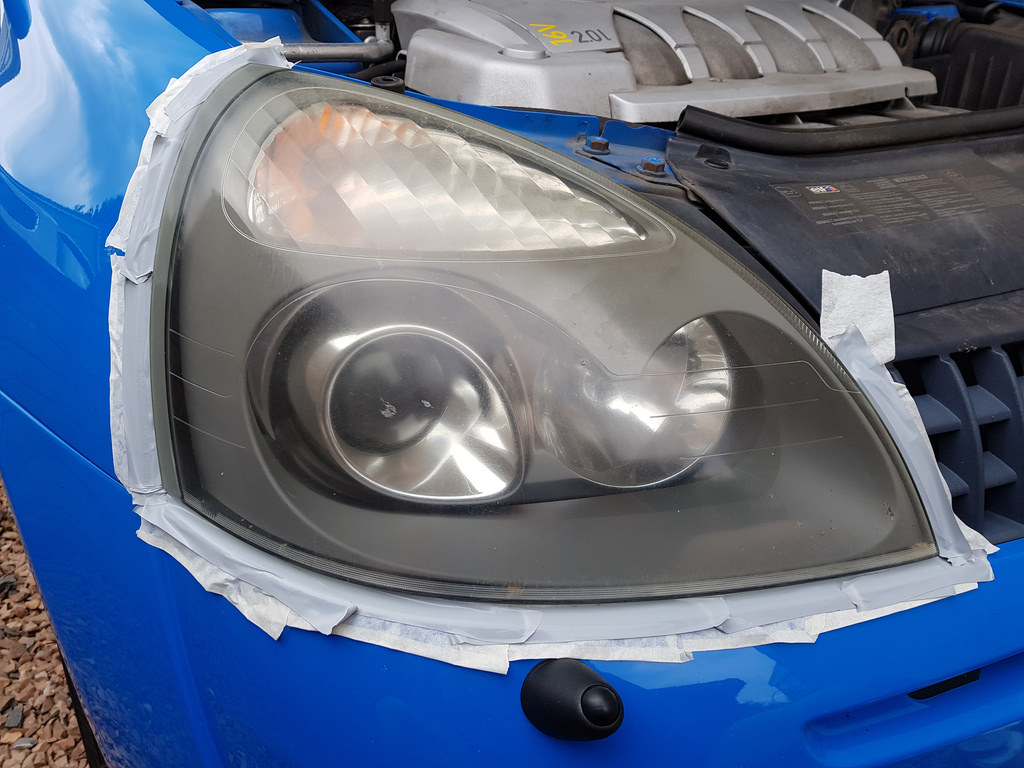

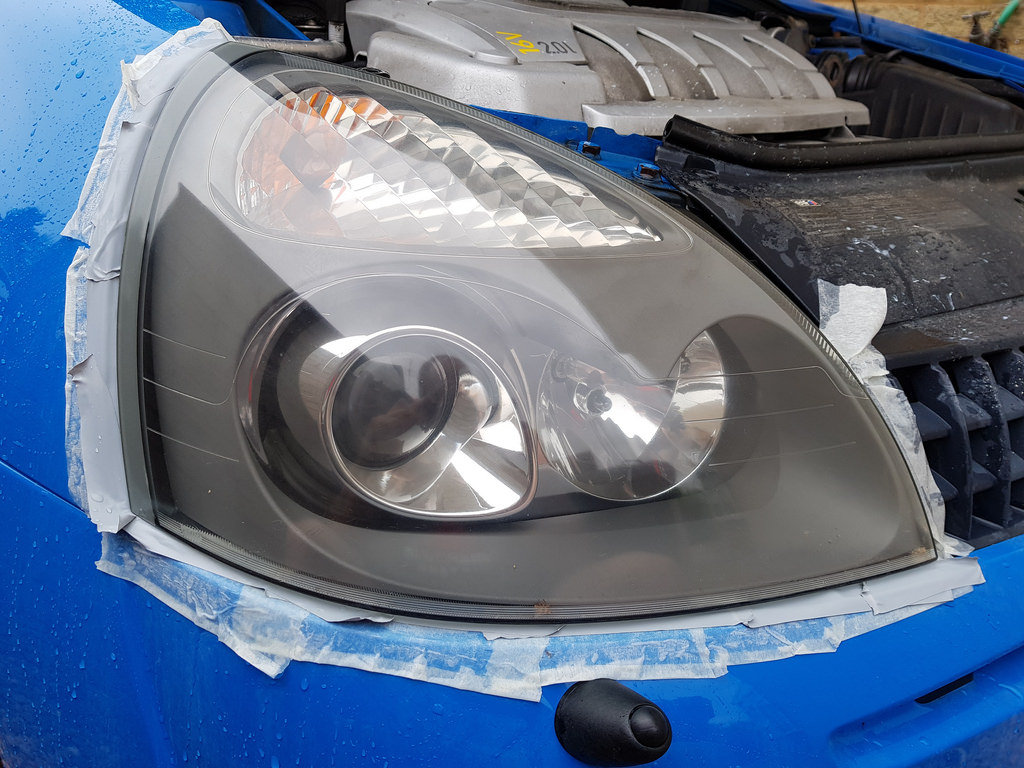

Double taped for safety

The scary part

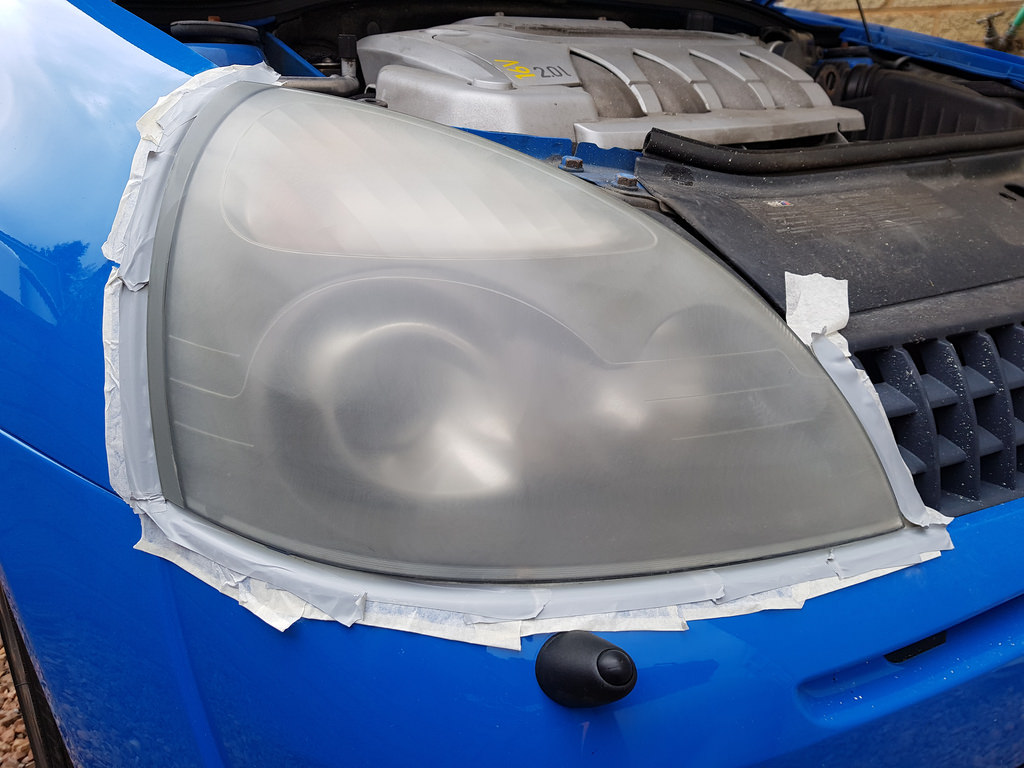

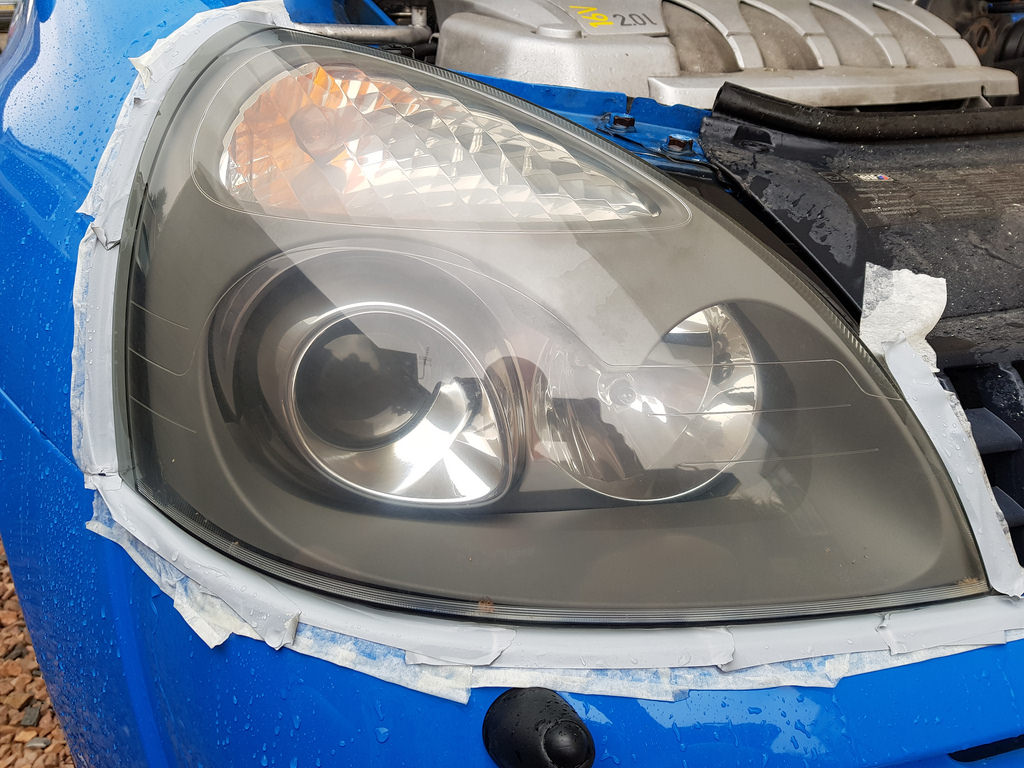

And wet sanded with abrasive sponges. I've still to go over it with compound



[Louis]

To get the flies out try just an airgun through the back. Keep blasting and obliterate them haha.

Either that or take it off and all electrics out and flush with distilled water and dry thoroughly. Refurb looks good



[Pistachio]

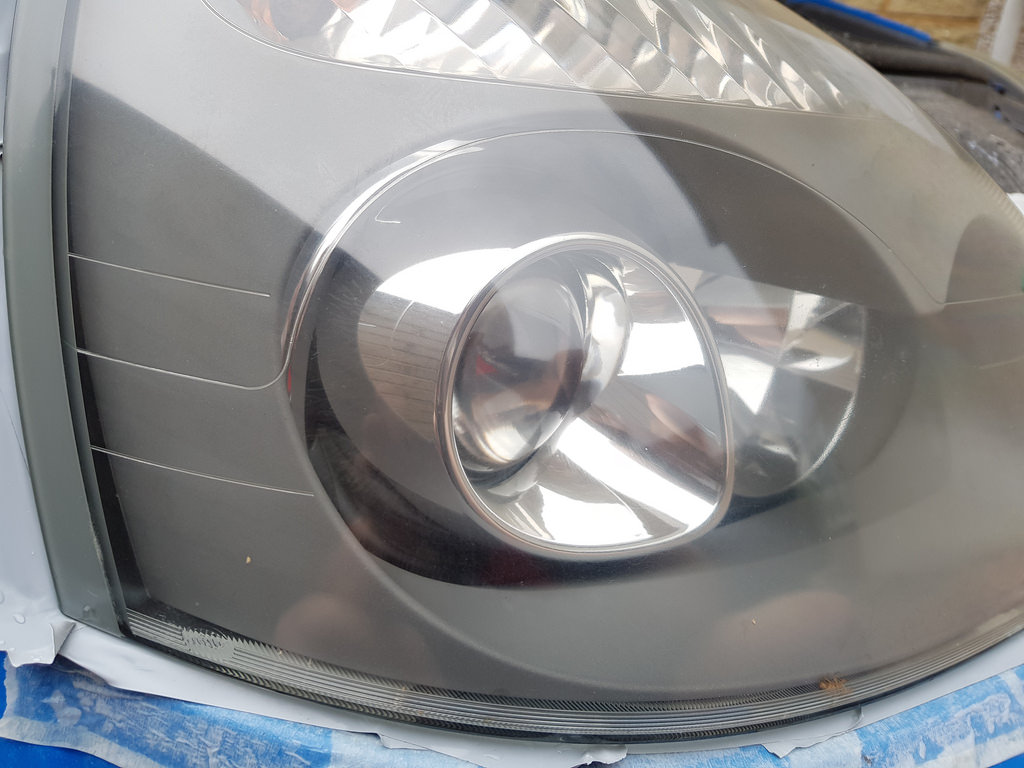

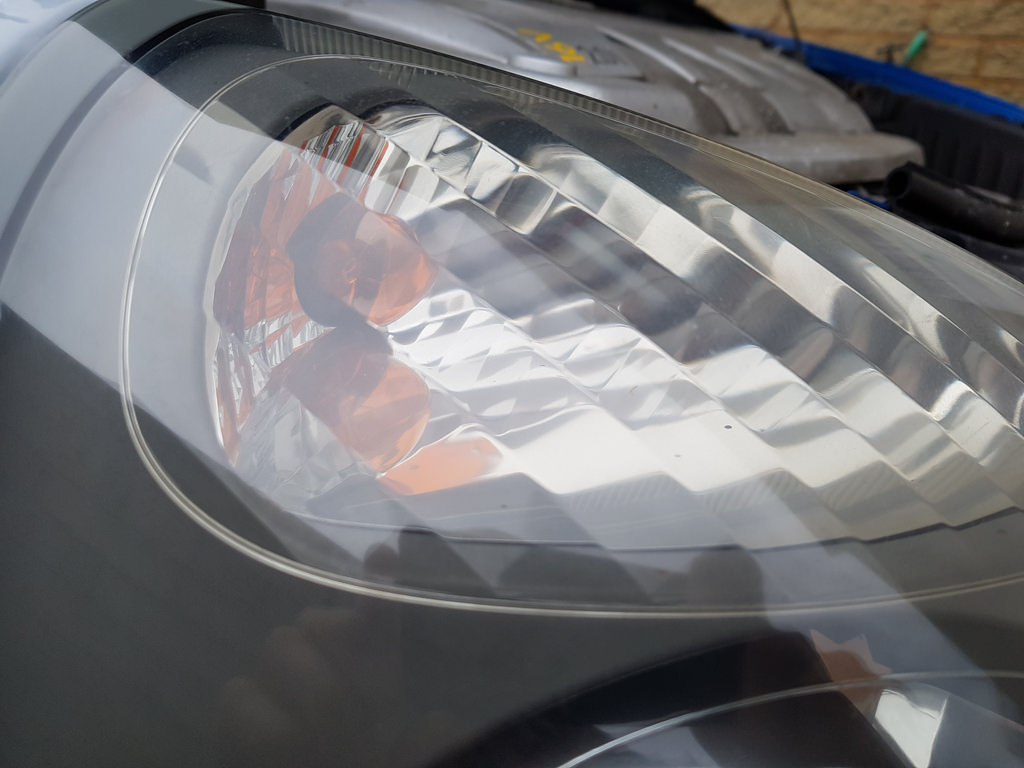

All polished up ?

Don't buy masking tape from Halfords. Took me 20 minutes to get this off

Pretty happy with how it turned out. There are some marks on the inside of the lens but I can't do much about that

The other side came up good too

Then managed to get the car washed just in time for the rain to come on ?



[182_steve]

Good work there, headlights look great!



[Pistachio]

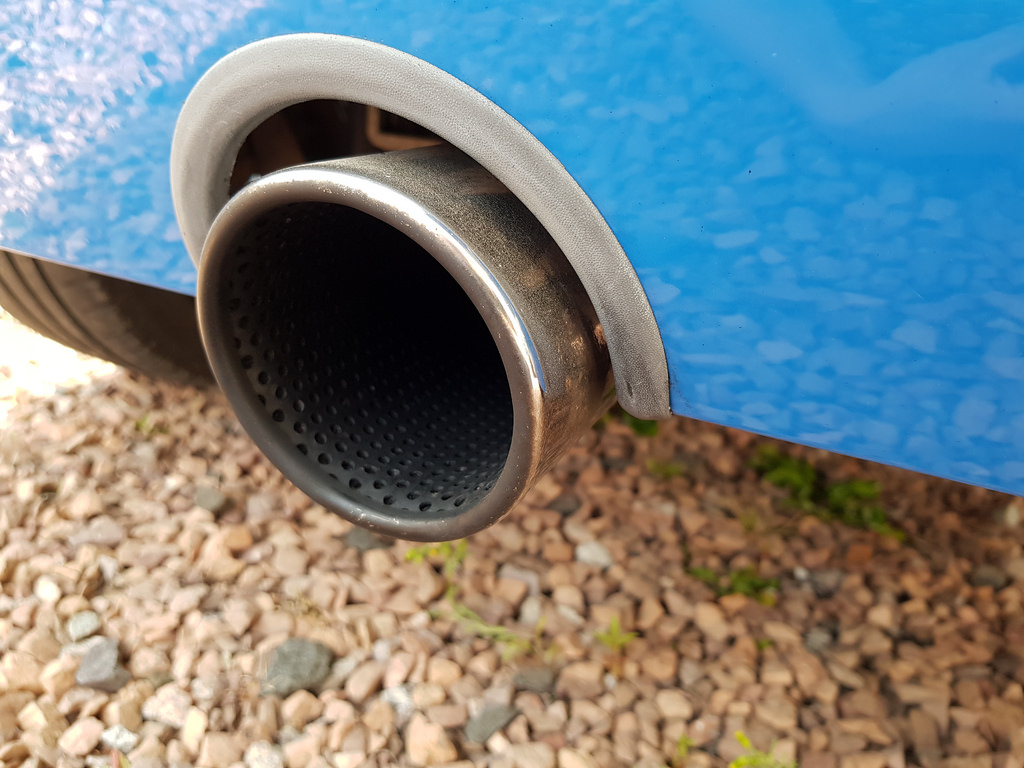

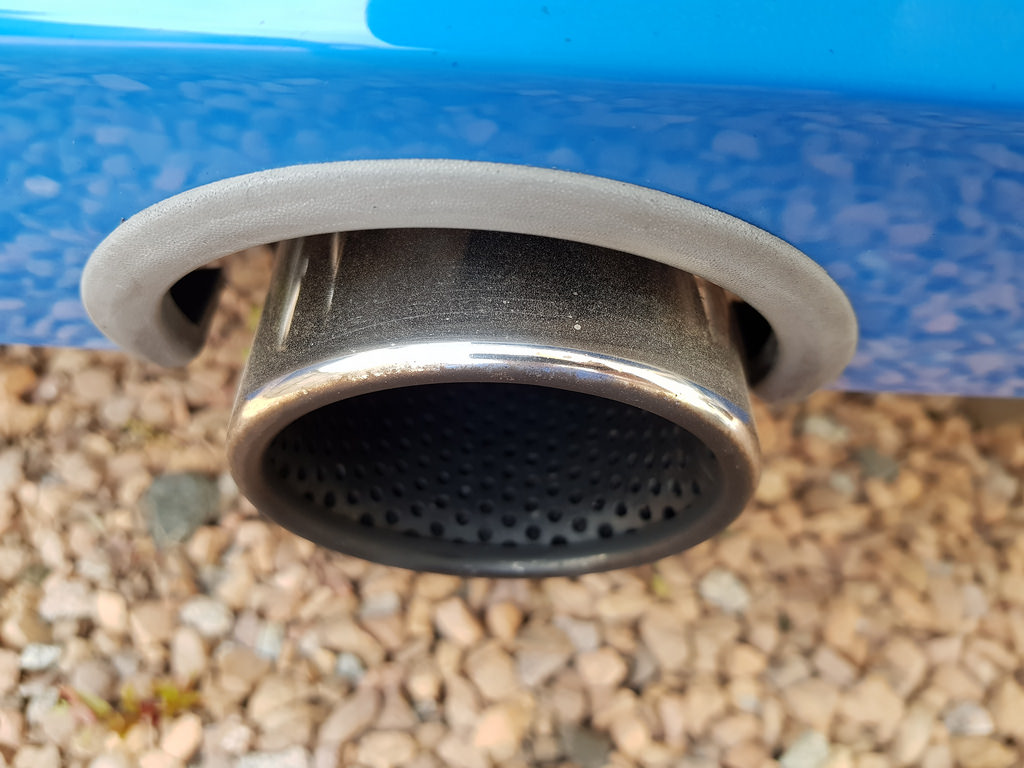

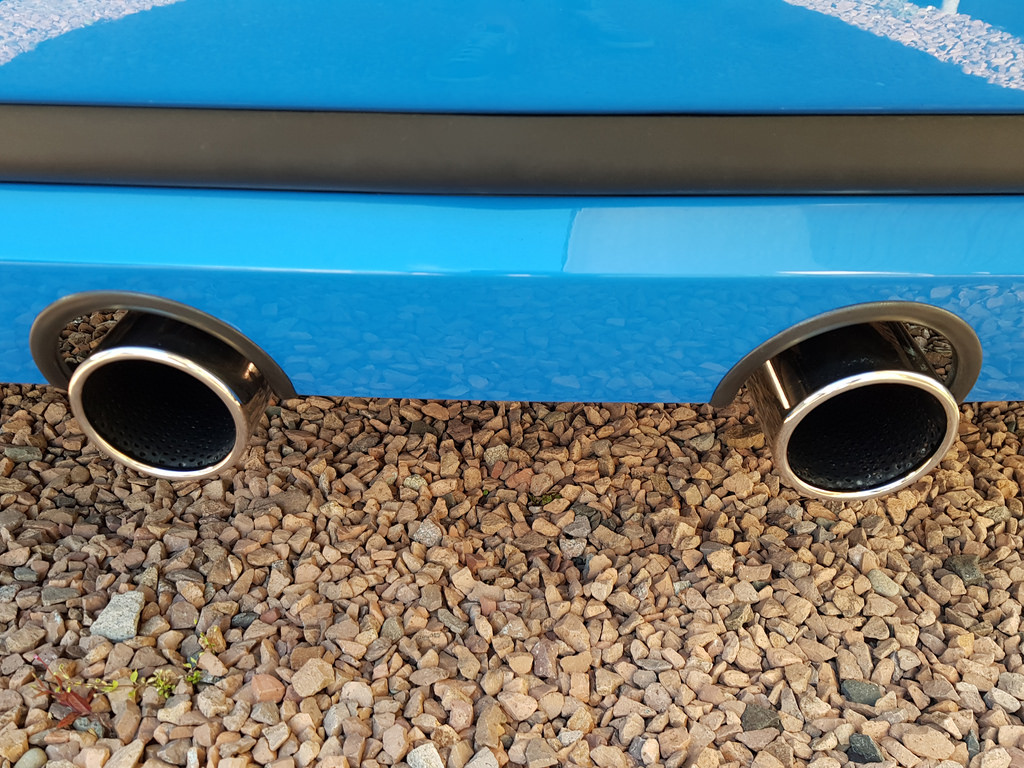

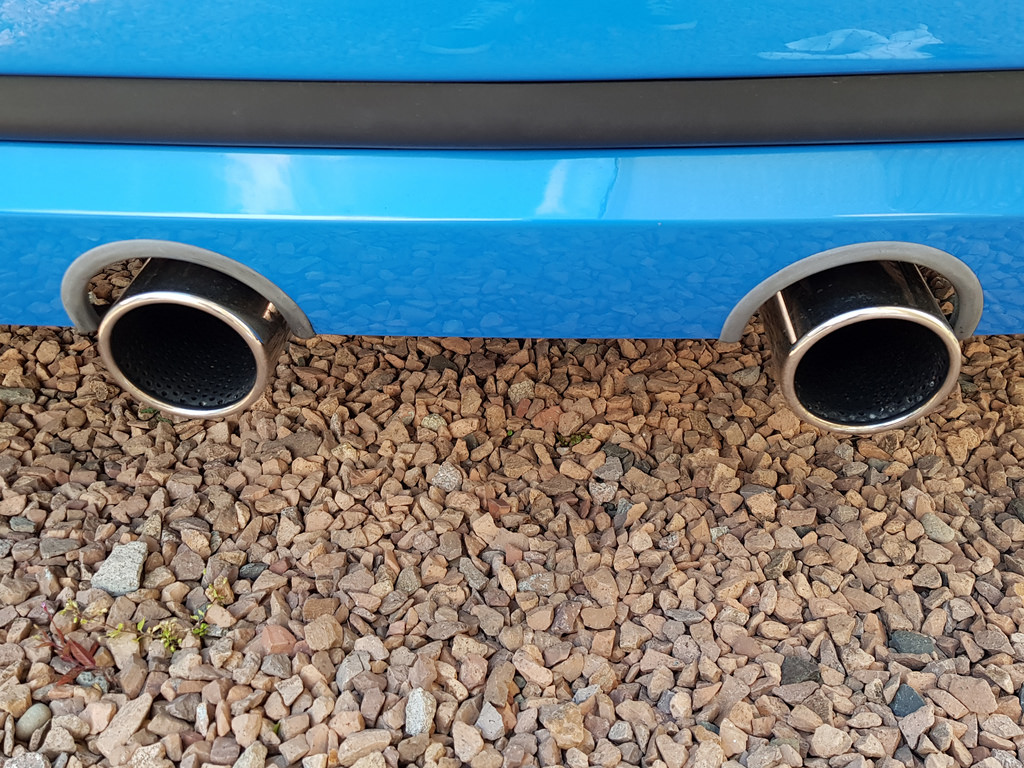

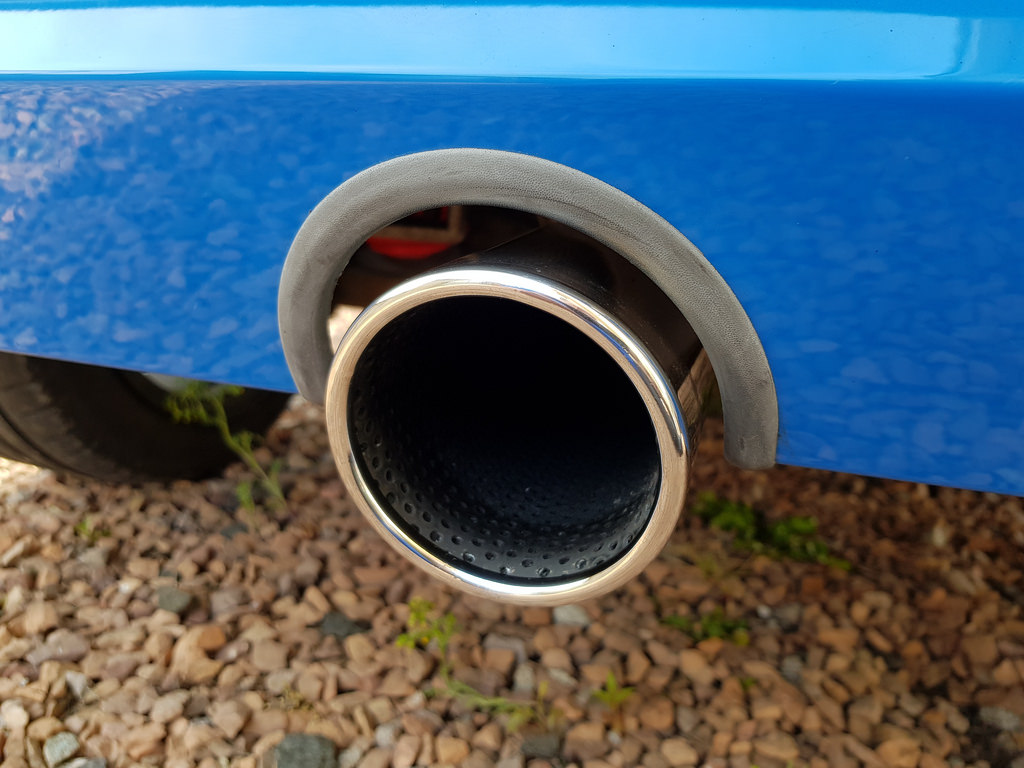

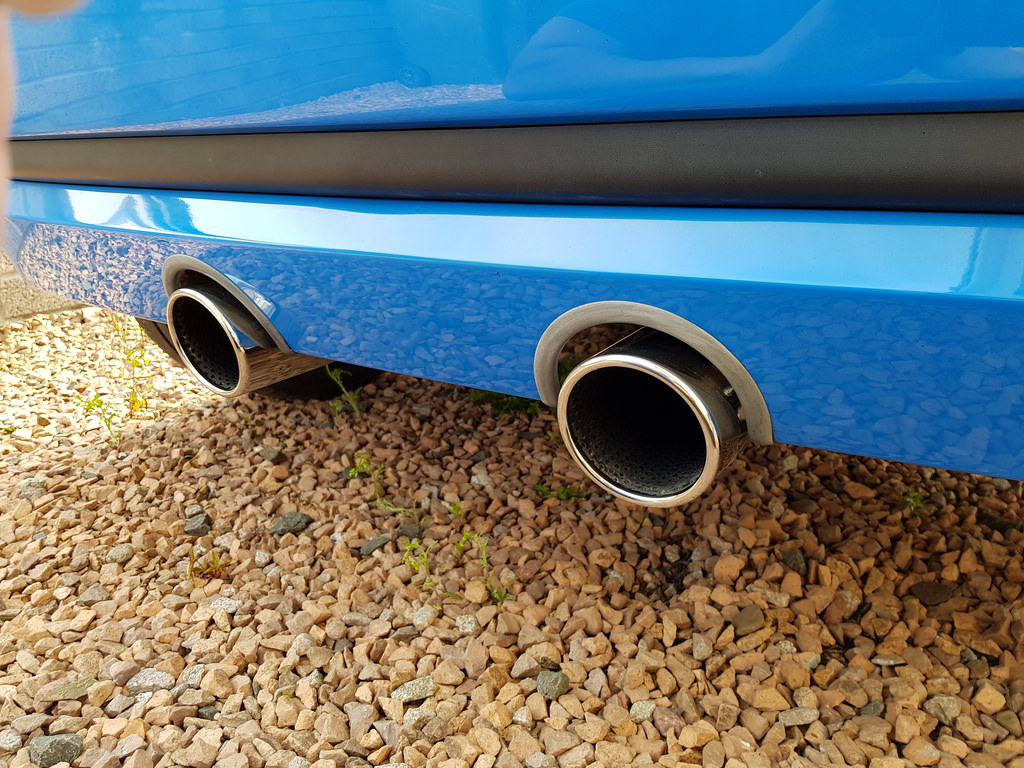

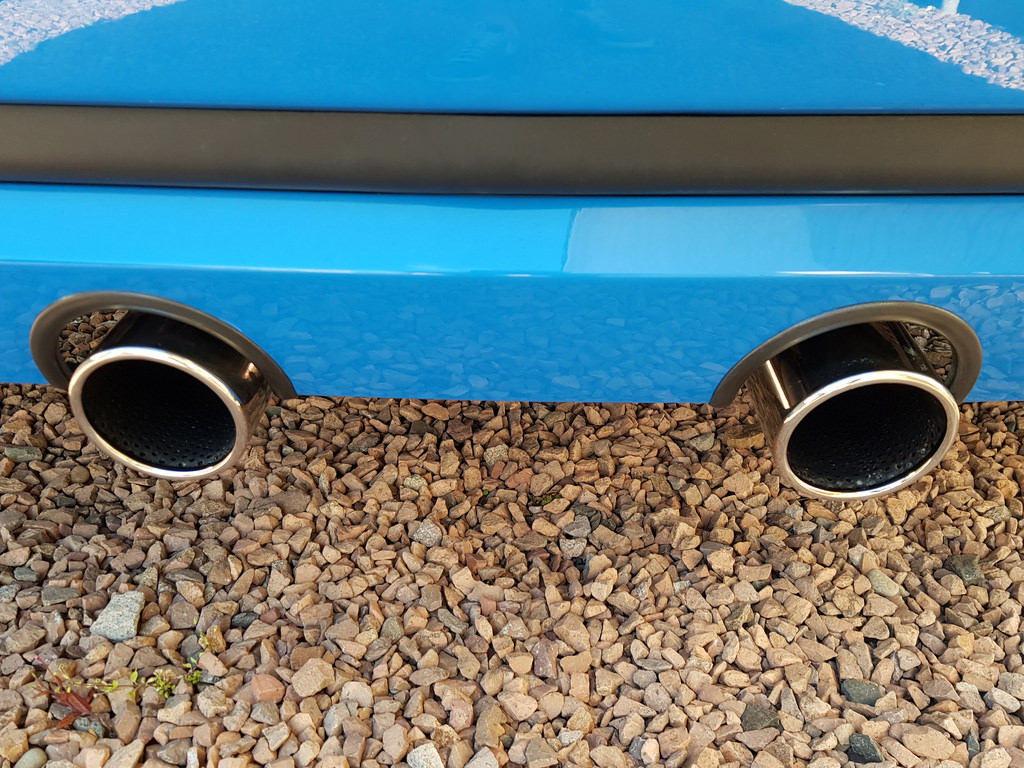

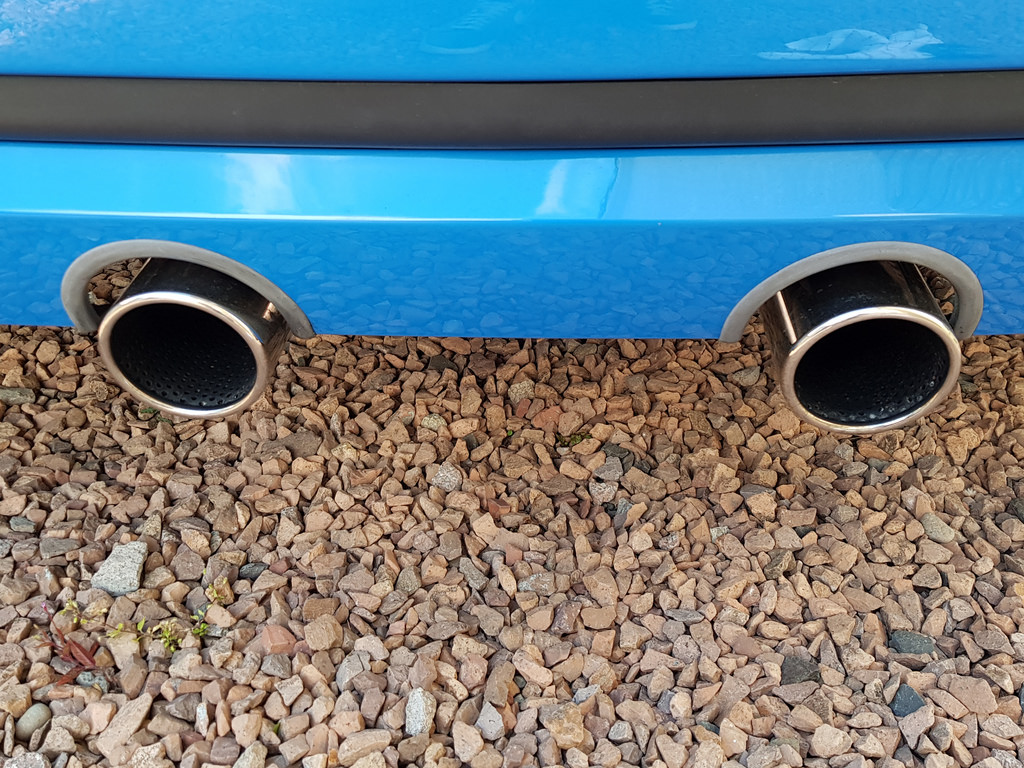

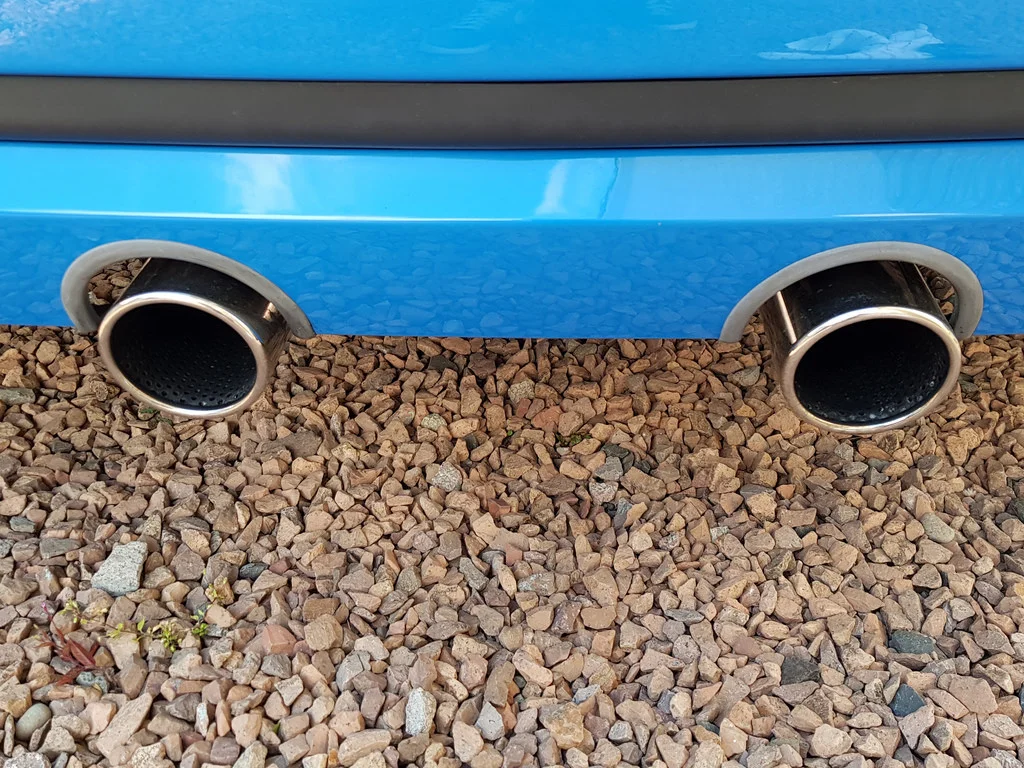

Back-to-black'd my exhaust trims ... and my fingers

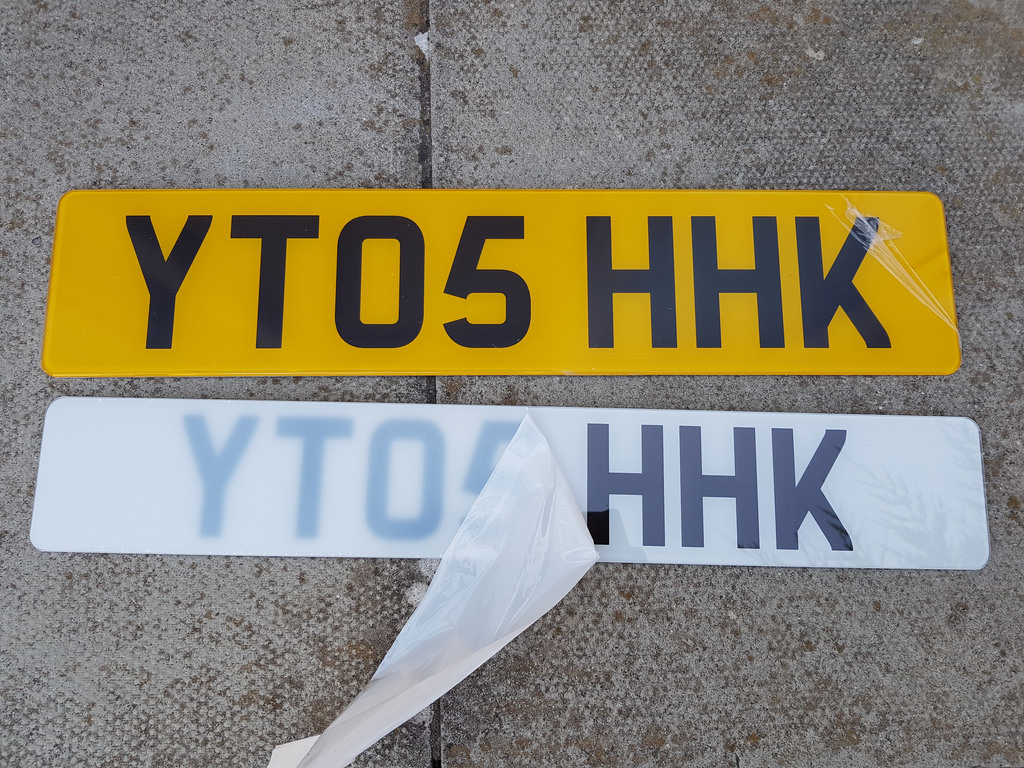

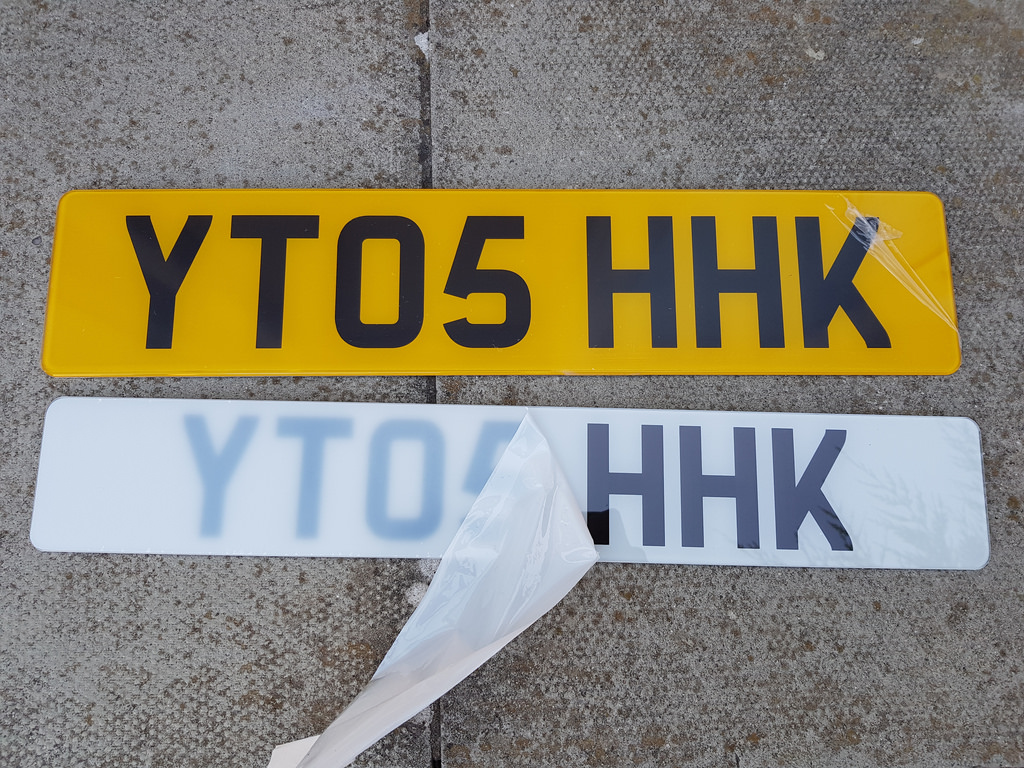

Also got these to fit when I get some velcro coins



[Pistachio]

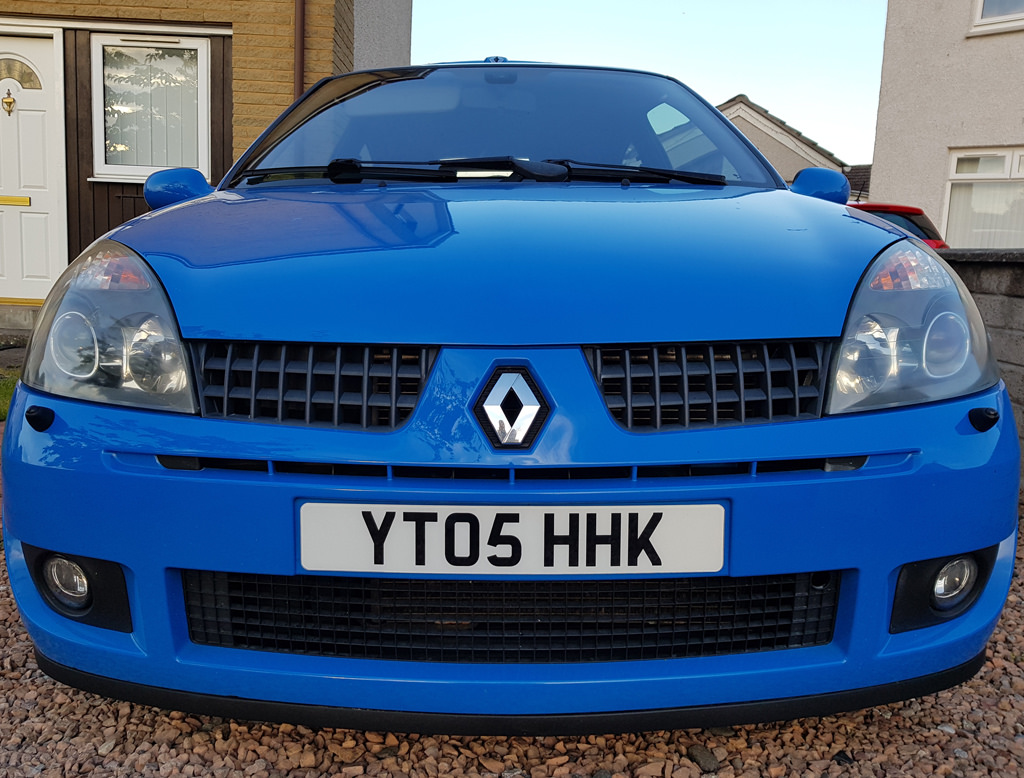

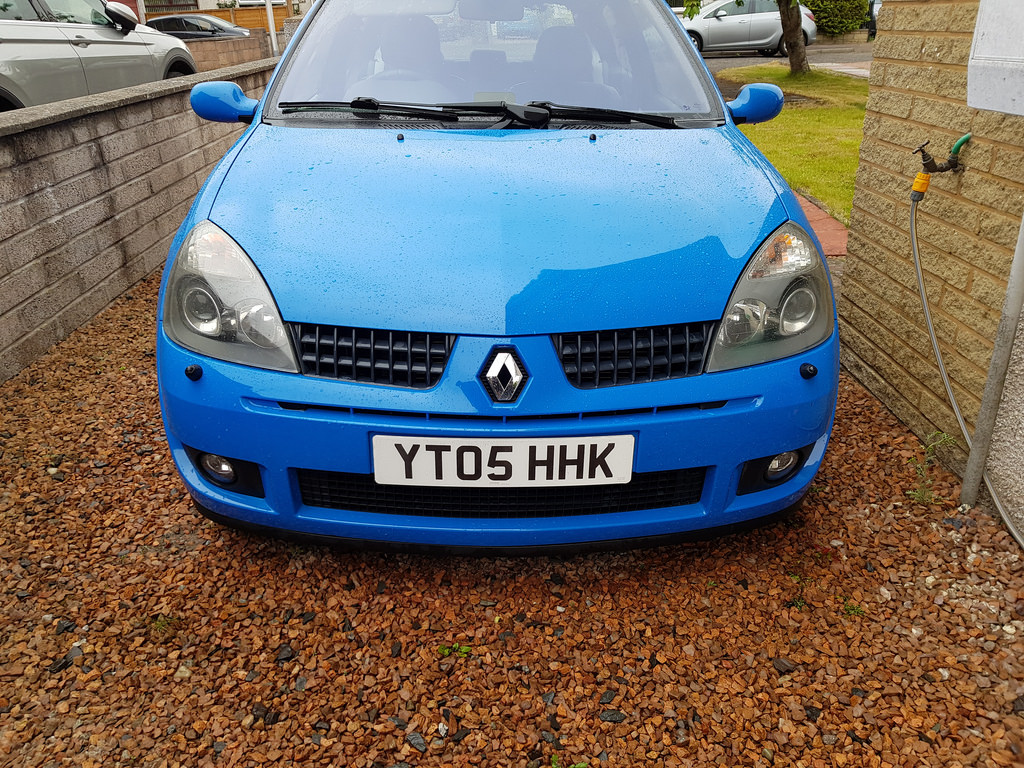

Fresh plates front and back fixed with velcro coins. 3/4 on the front. Does anyone else wonder what your neighbours must think of you when you spend 2 hours cleaning off old number plate sticky pads?



[JPJ89]

Looks great with the new size plate on the front and headlights cleaned up, nice to know it’s being looked after! ?

Also the sticky interior parts, they bugged the life out of me and was never sure what route to go with them, especially the inner door grabs!



[Pistachio]

Also the sticky interior parts, they bugged the life out of me and was never sure what route to go with them, especially the inner door grabs!

Watch this space



[Pistachio]

Plenty to keep me busy ?



[Pistachio]

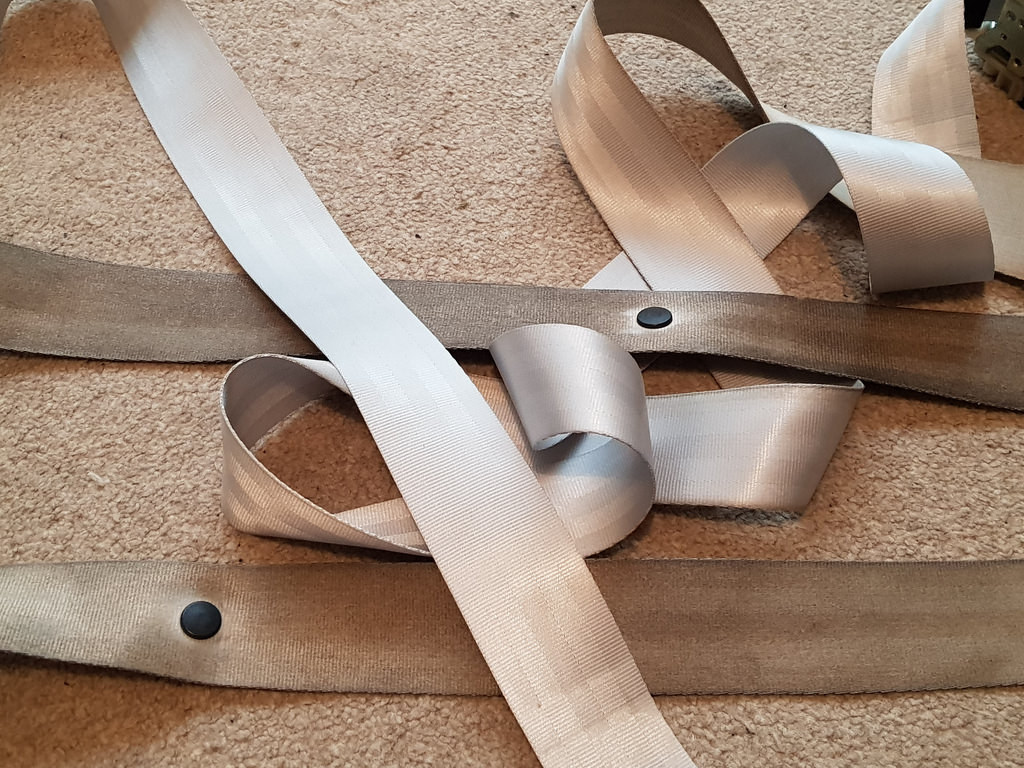

Before

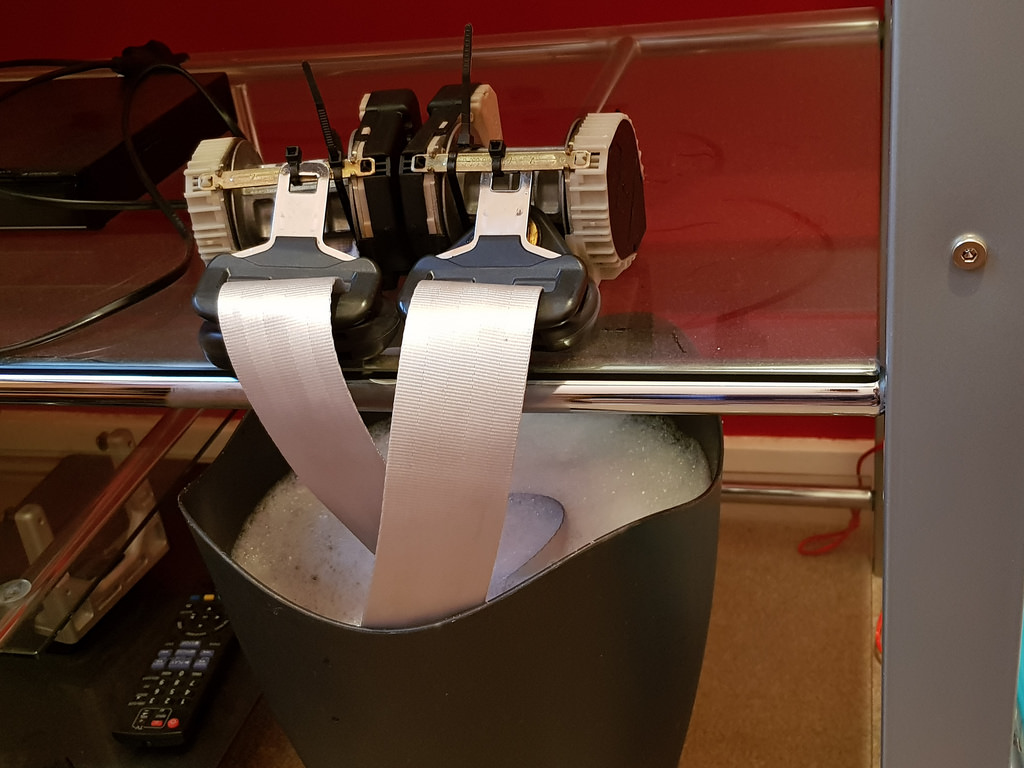

During

And I'll post after in a couple of days ?



[182_steve]

Nice work This really needs to inspire me to do my belts...….. for a car that I regard as pretty 'mint' my belts are the only thing that is minging!!



[Pistachio]

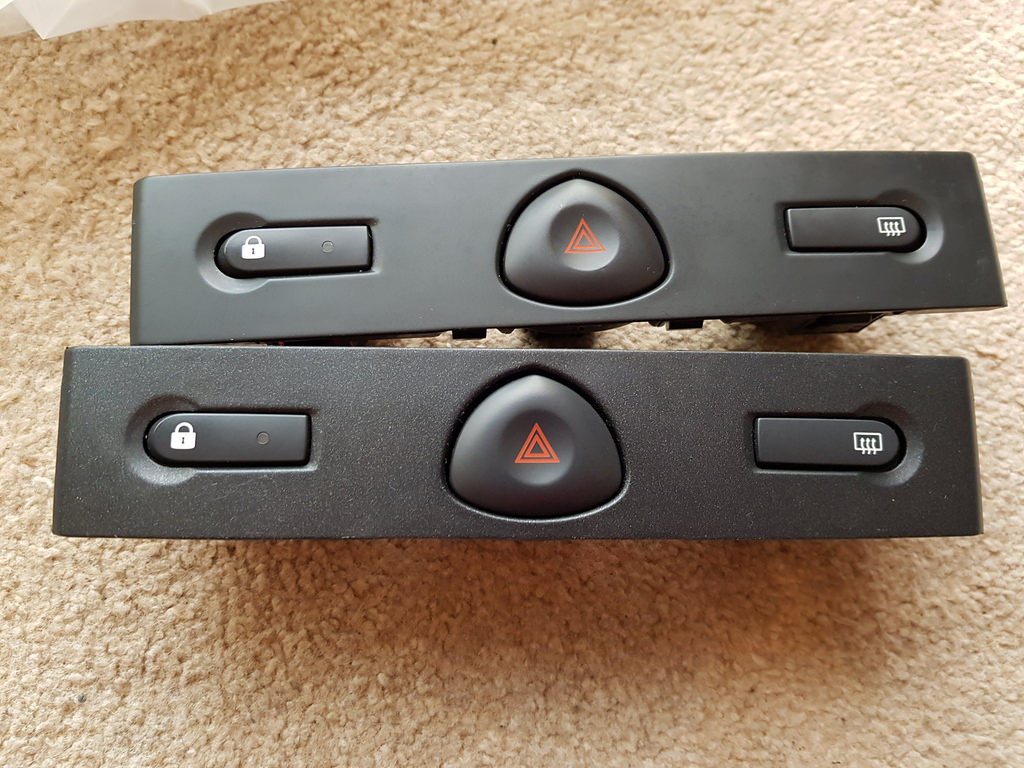

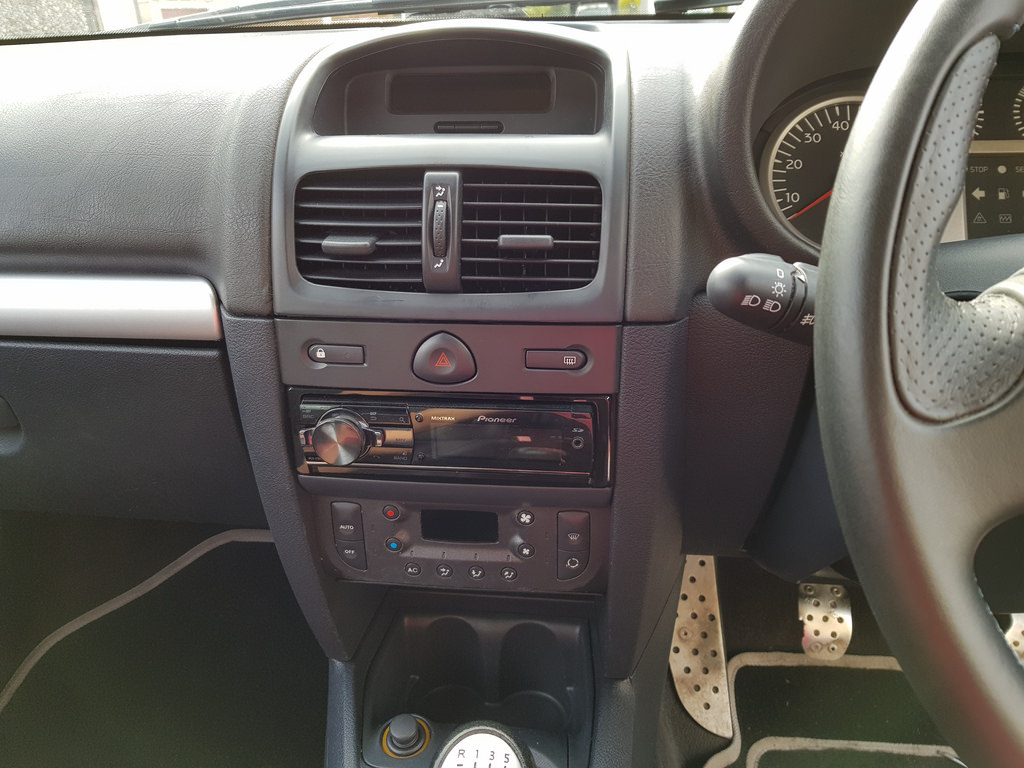

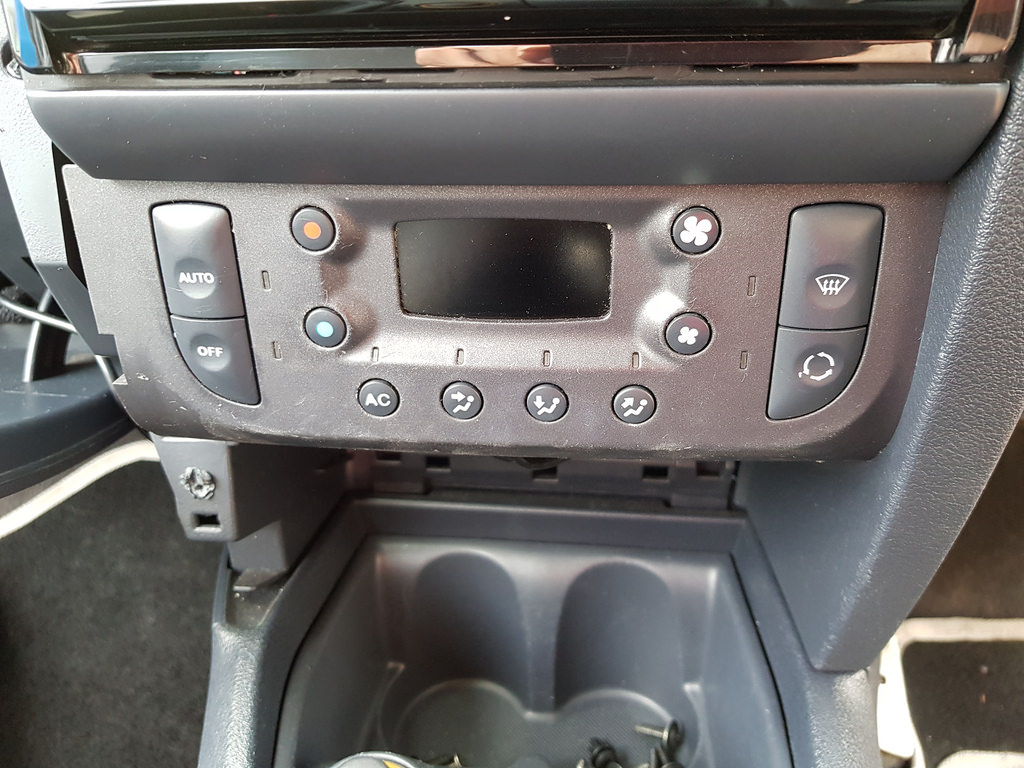

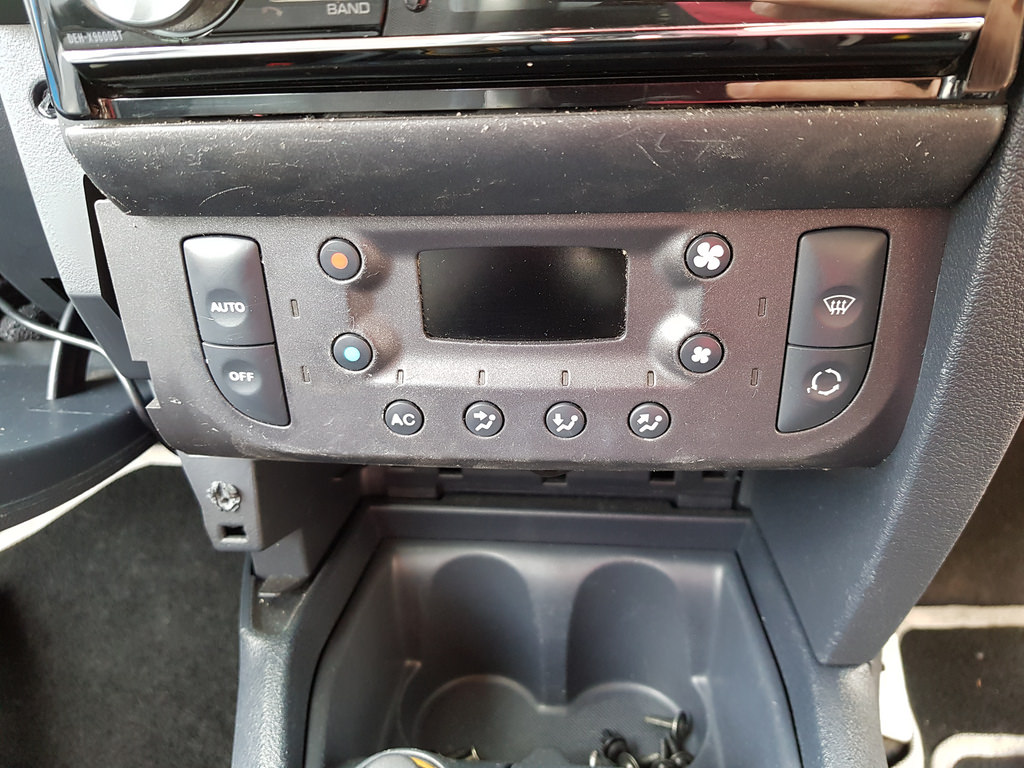

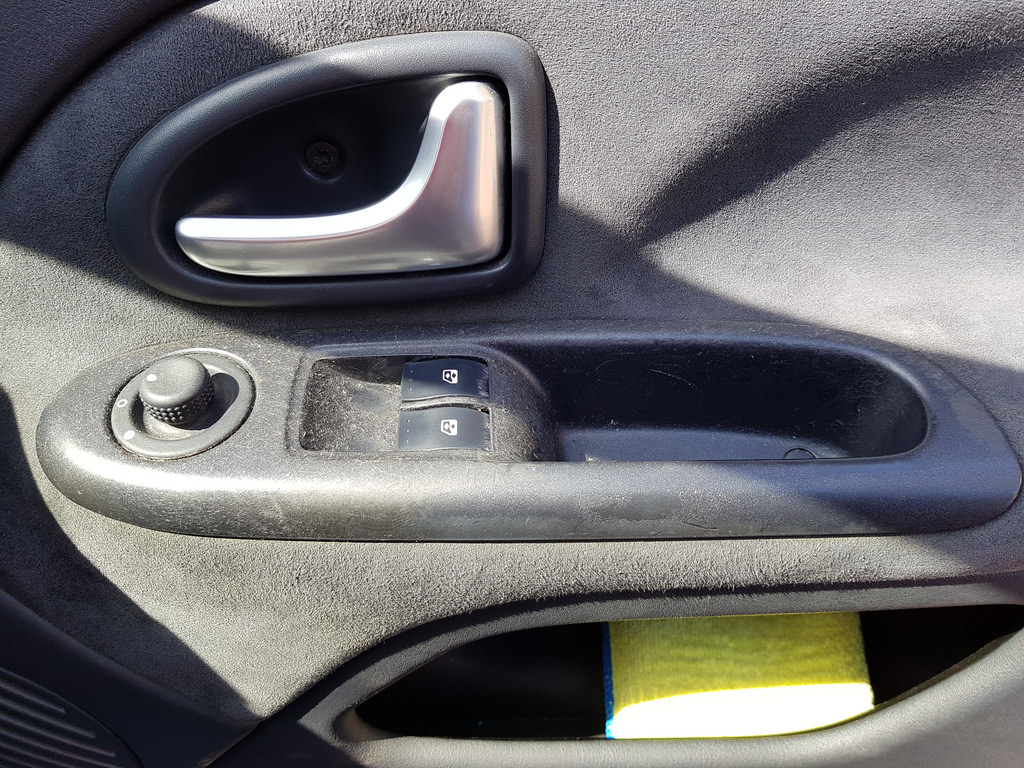

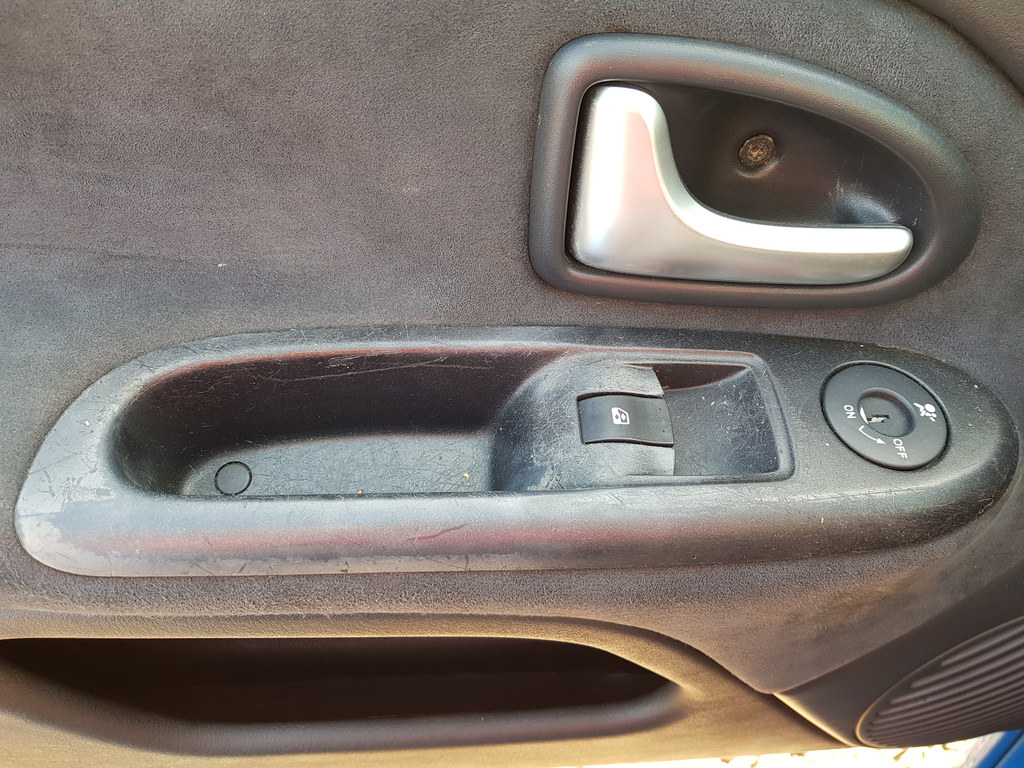

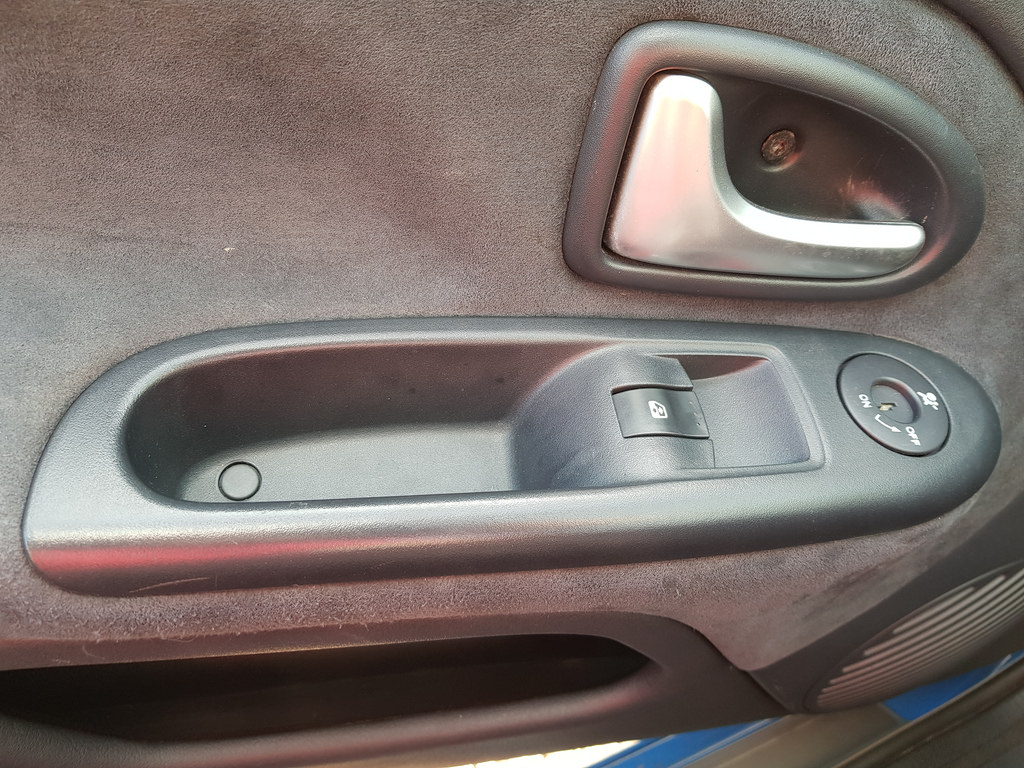

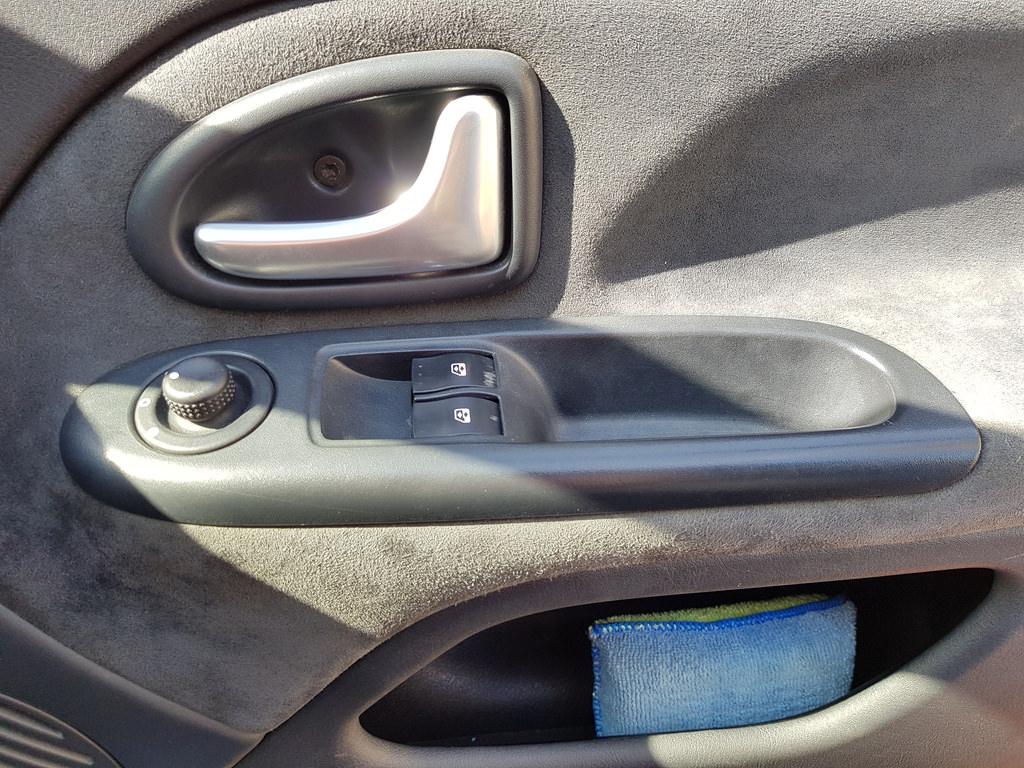

I got a few of the non-sticky interior bits swapped over today. I didn't have time to get the lower dash out though so the heater controls will have to wait

I swapped the top dash too but I'm not sure I'll keep it. It's a bit scuffed up and doesn't sit flush in the middle.



[20vKarlos]

Good effort so far!!

I love these snappy steering wheels, they suit the Clio so well!



[Captrollerpig]

Looking good so far dude!,

makes such a difference swapping out them scratched soft touch trims for the non soft touch ones, really need to do the same to mine at some point lol



[Pistachio]

Looking good so far dude!,

makes such a difference swapping out them scratched soft touch trims for the non soft touch ones, really need to do the same to mine at some point lol

Thanks! The door pulls especially are so worth doing. They only take 2 minutes and it's something you notice every day.



I've been having some problems with the exhaust. I thought replacing just the cat would be enough, but the flange on the manifold is pretty thin and wont last long. The heat shield is also rattling inside the engine bay, plus the two rear hangers are shagged. The centre silencer is also touching the tunnel. So I've booked it in to Rentec next week who are going to drop the subframe, remove the manifold, weld on a stainless flange and of course sort the above issues.

As well as that I want to take it to a PDR place to sort some minor dents. Maybe touch up some stone chips too. I'm off for 2 weeks now so I'd like to get everything sorted before I go back.

Oh and I also drove over a kerb, putting a slight bump in to one of the turinis, so I'm on the look out for one



[Pistachio]

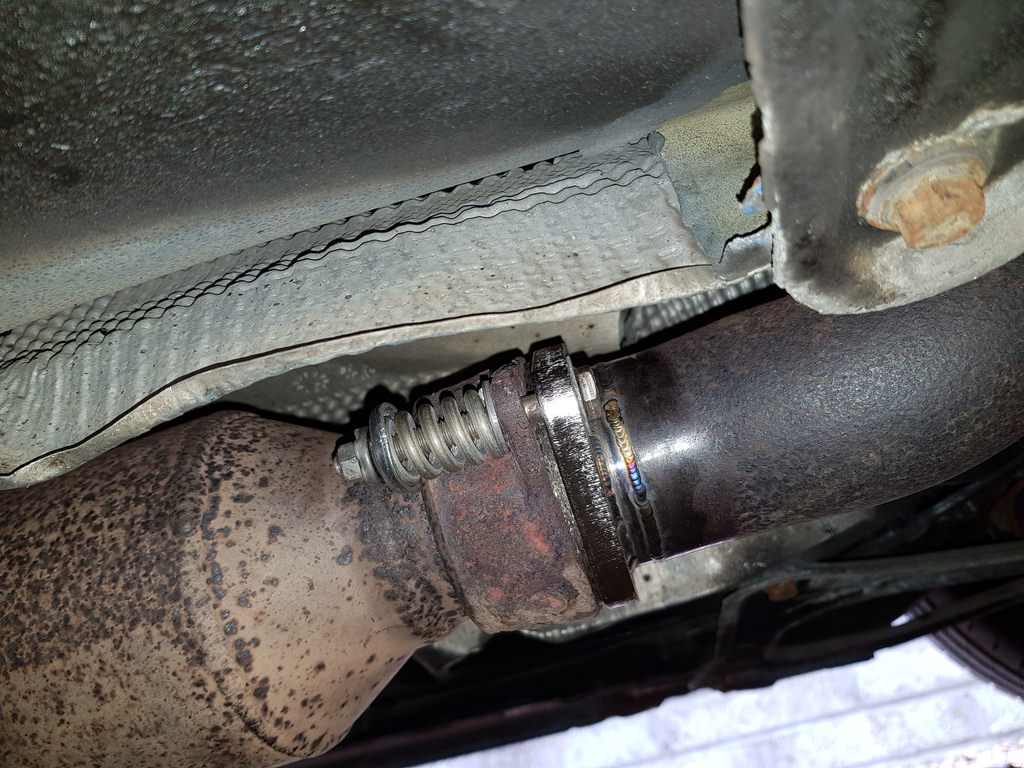

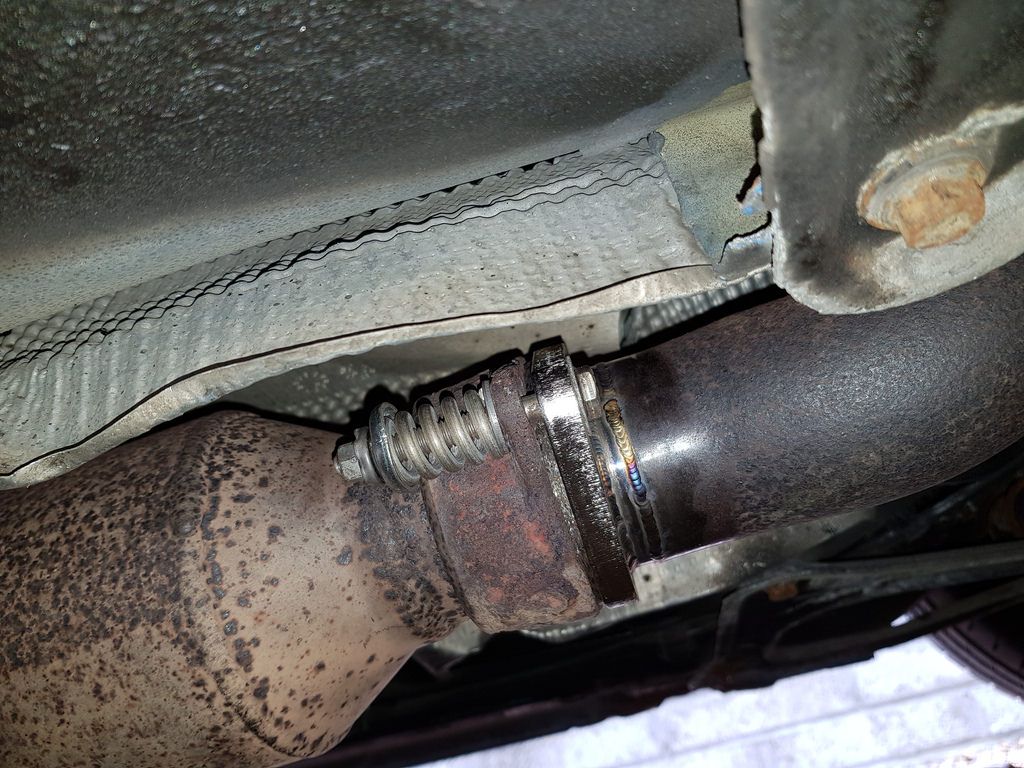

New stainless flange for the manifold. Should last a while! Second hand cat fitted too

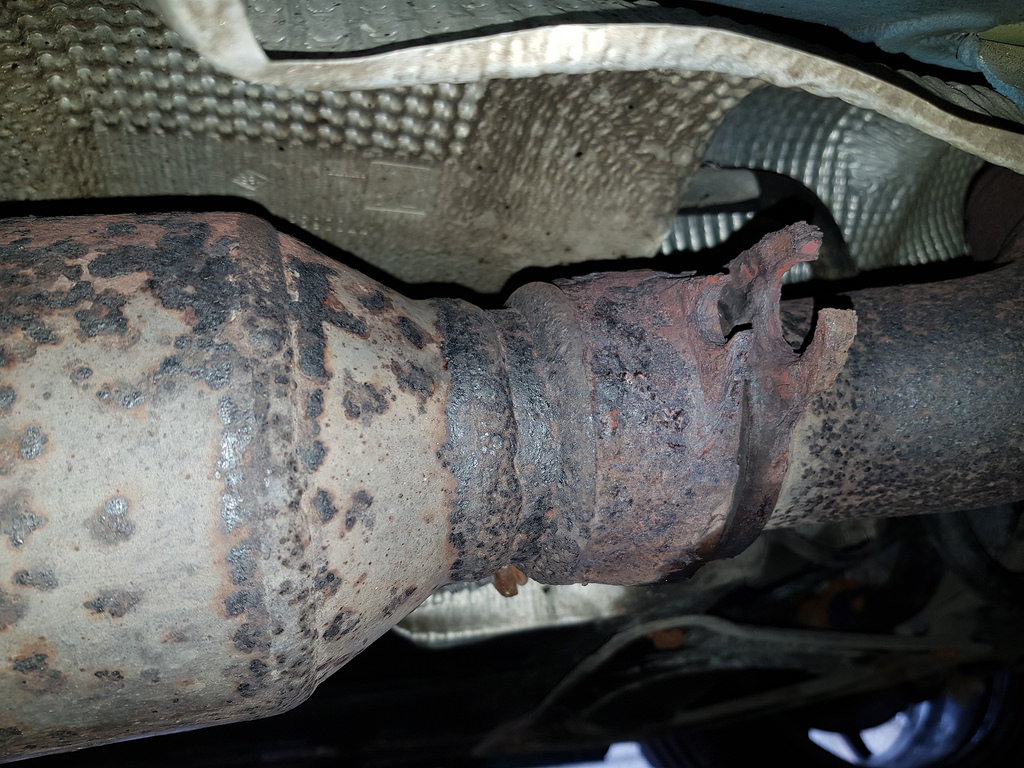

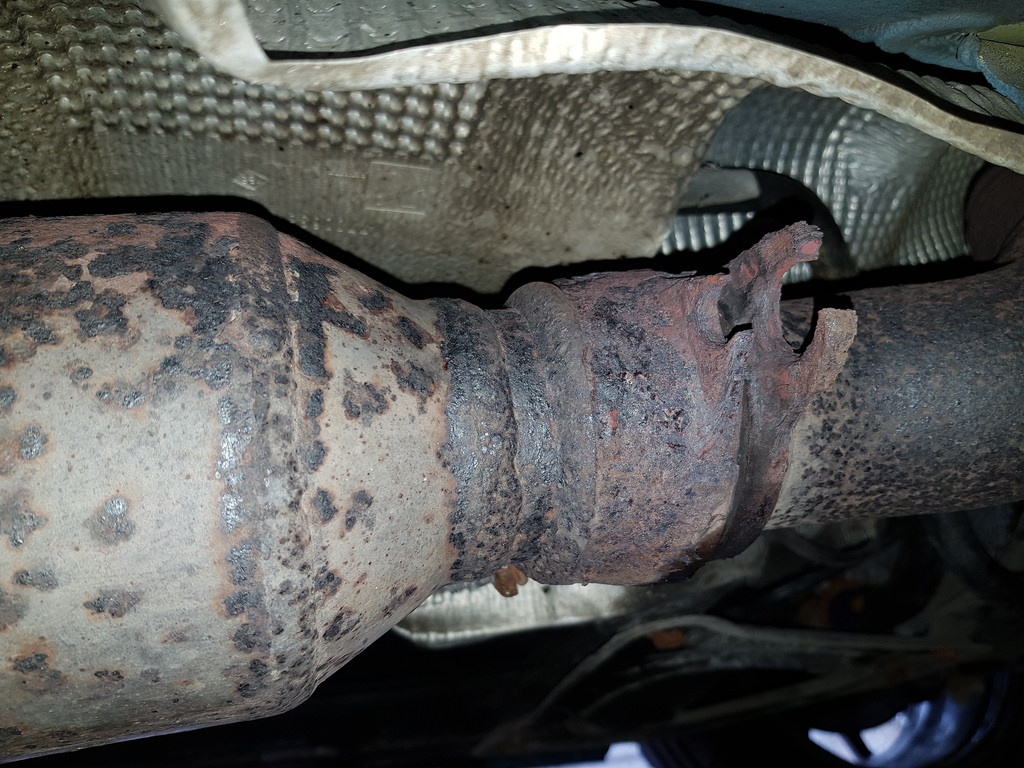

Before

After

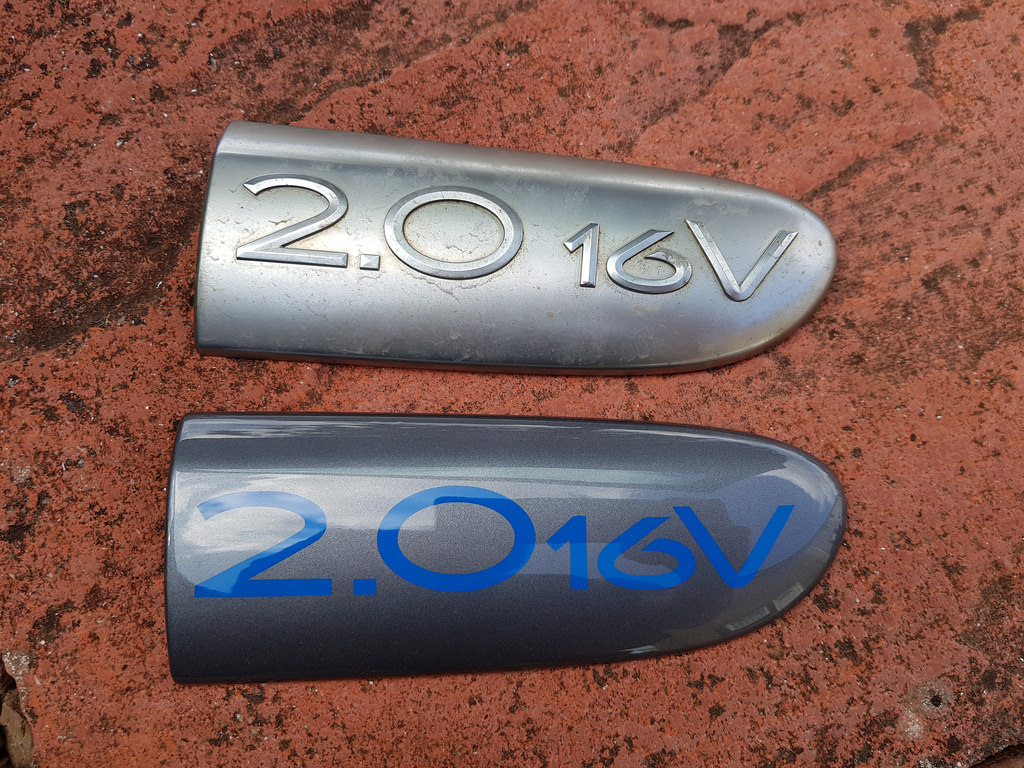

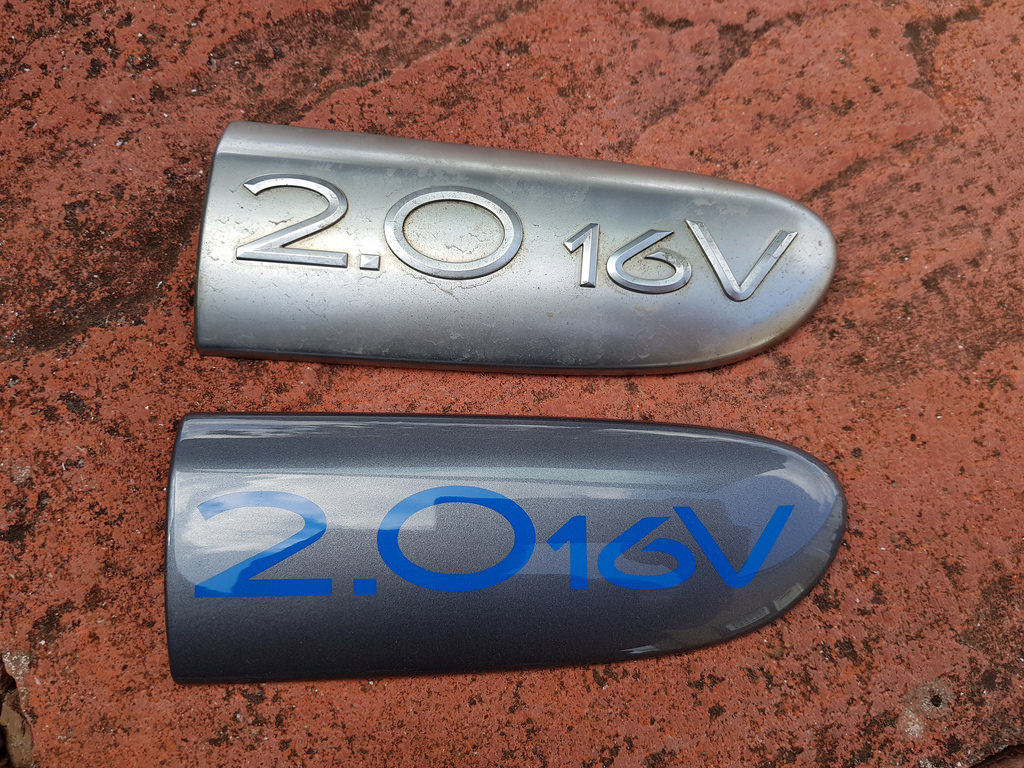

And fitted the new bullets today. The colours tie in so well!

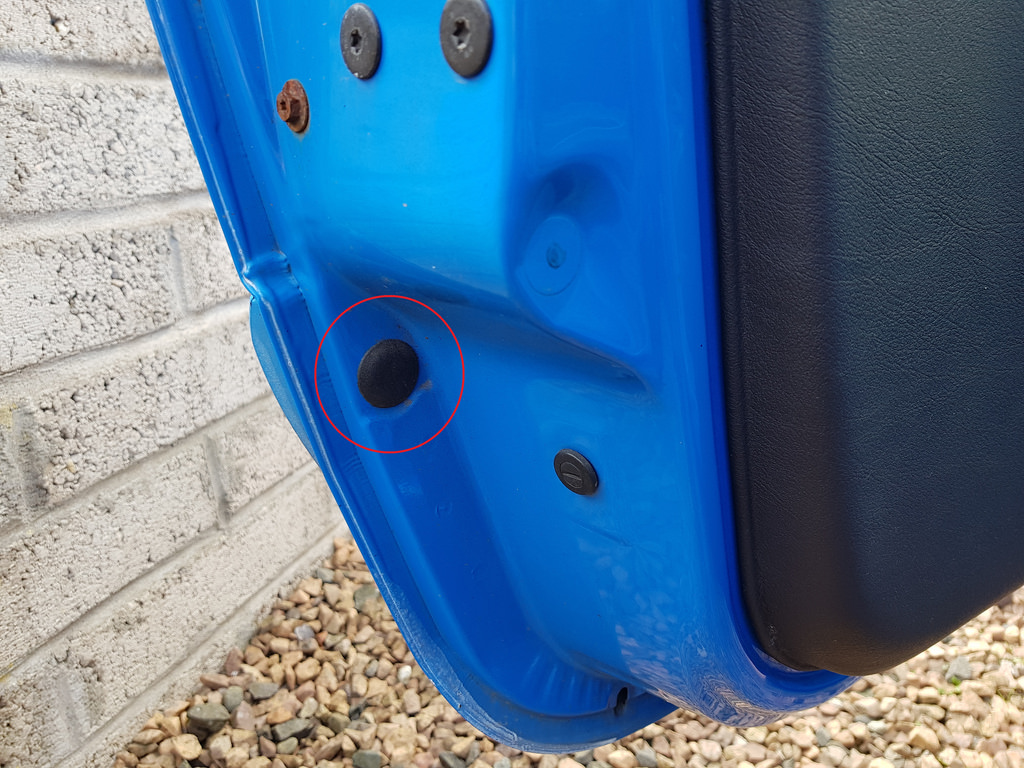

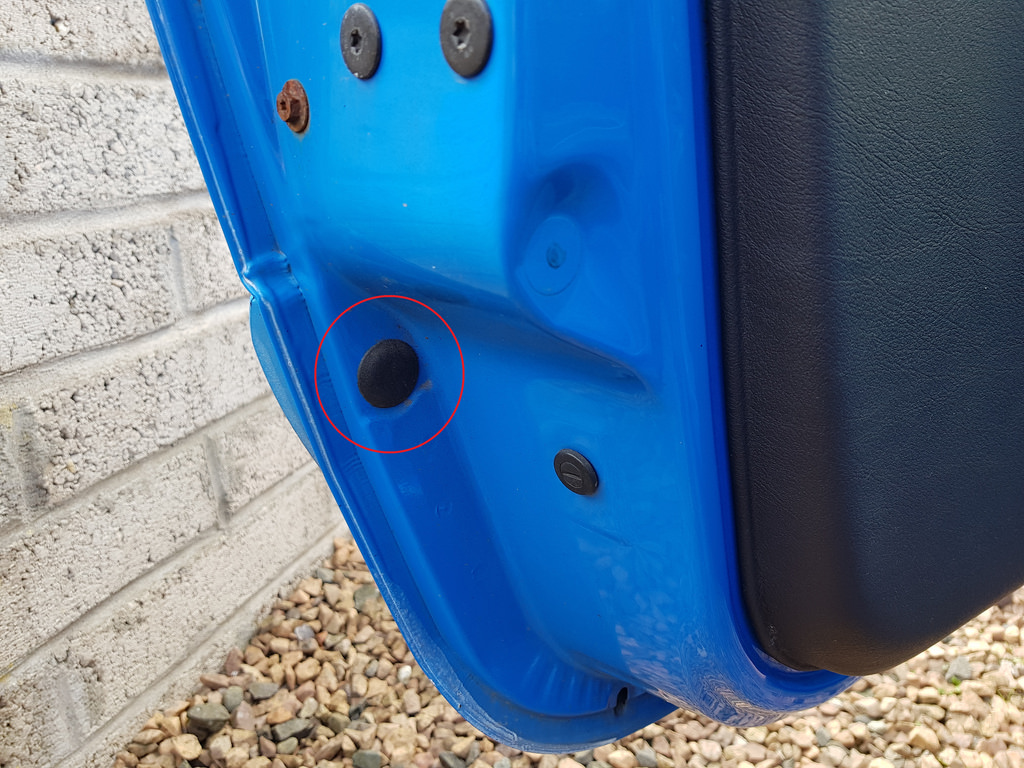

For anyone that doesn't know how to remove them. Take off this bung in the door

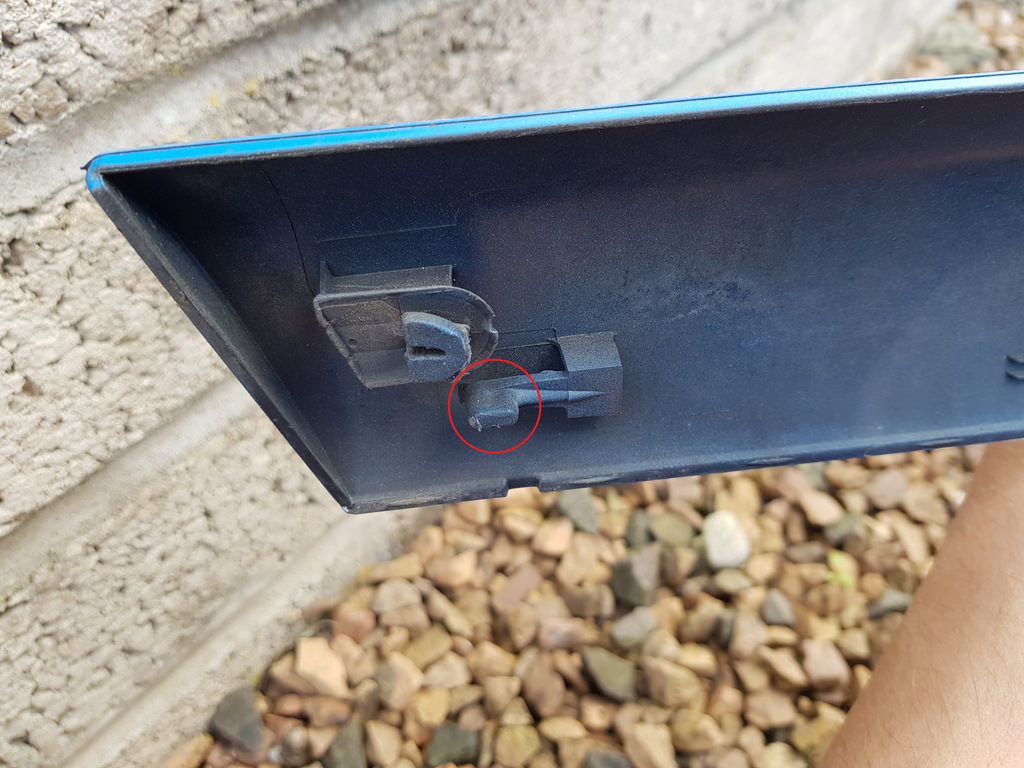

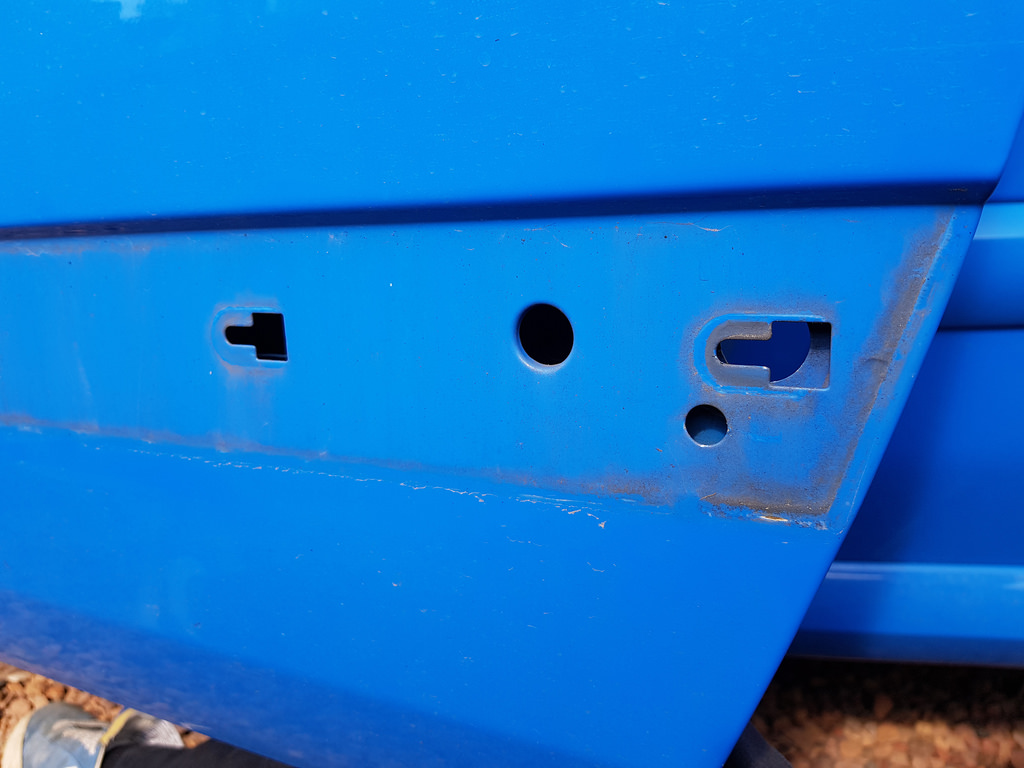

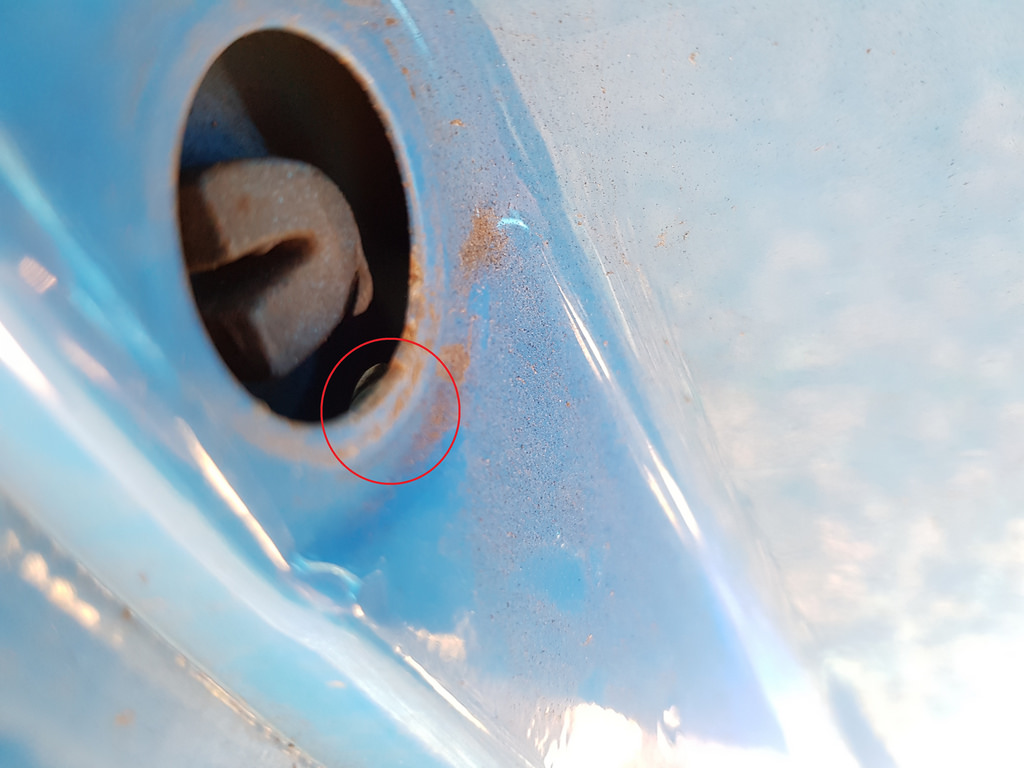

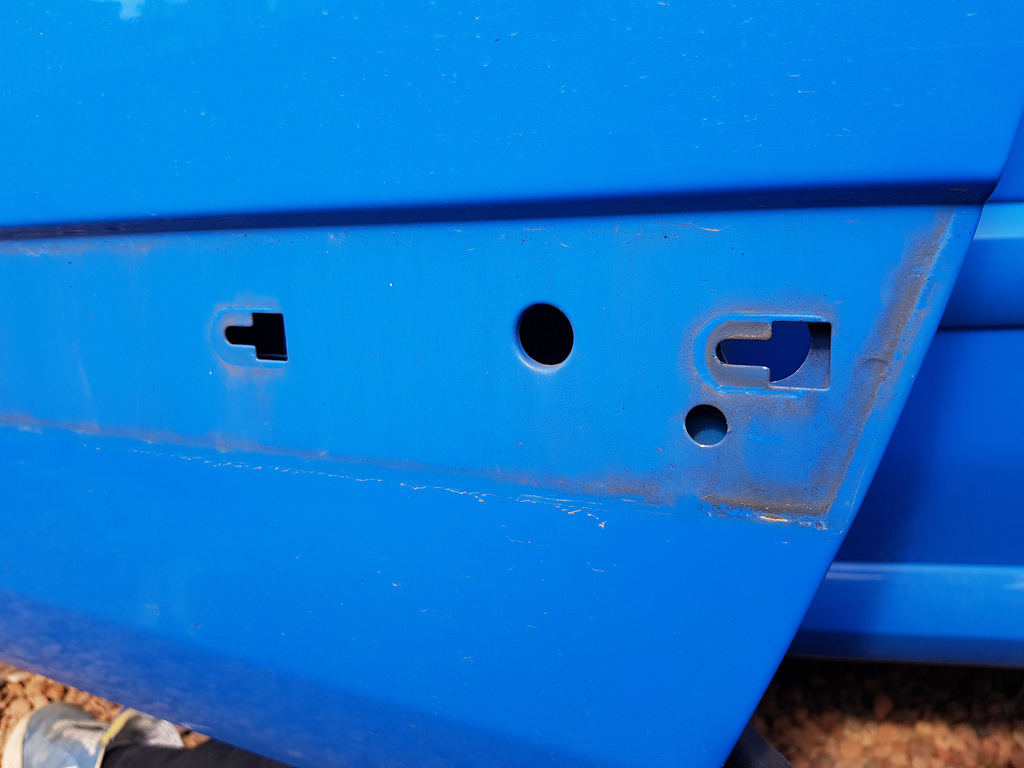

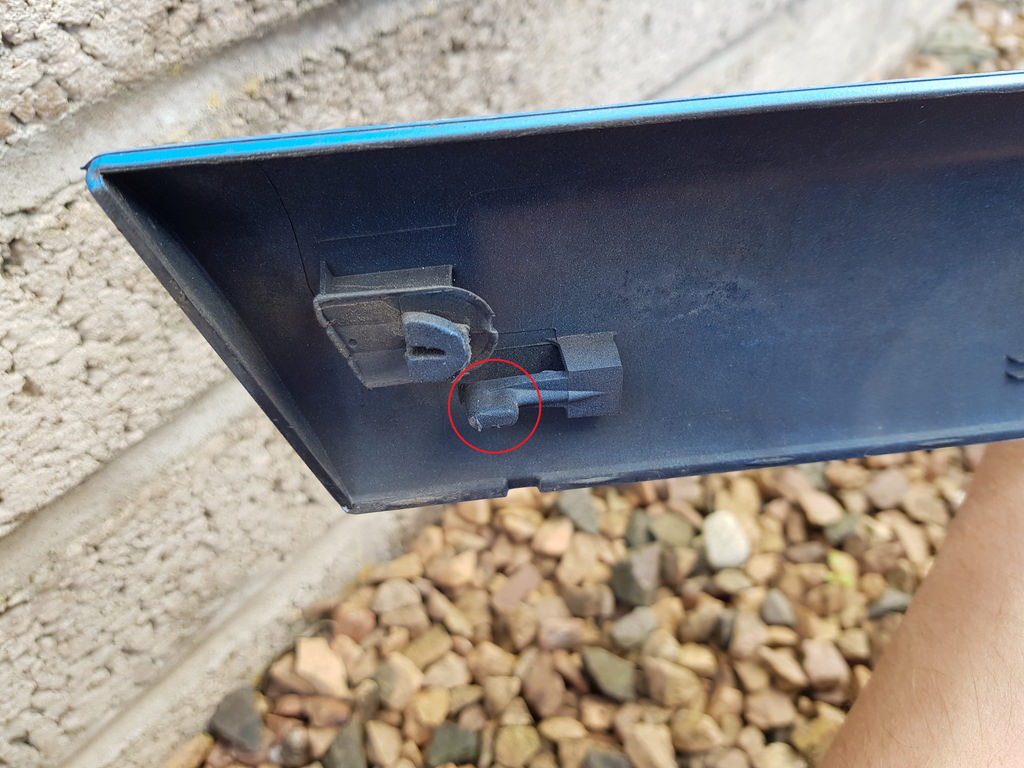

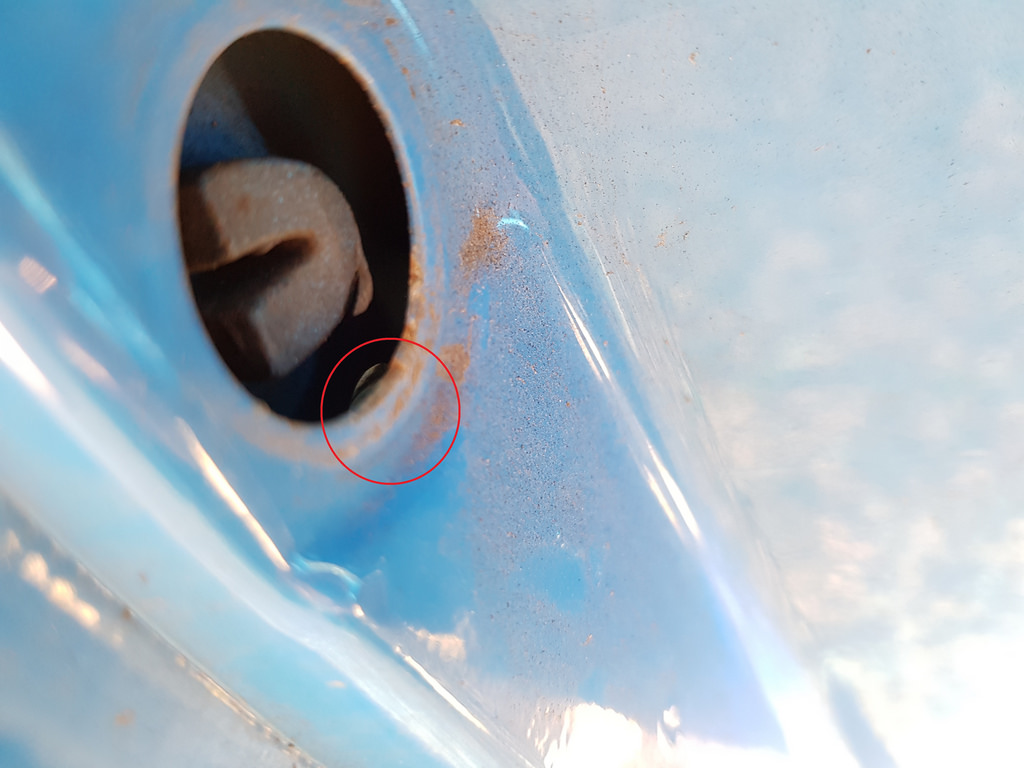

Push this clip outwards and prise the strip towards the rear of the car. Then just unclip the bullets

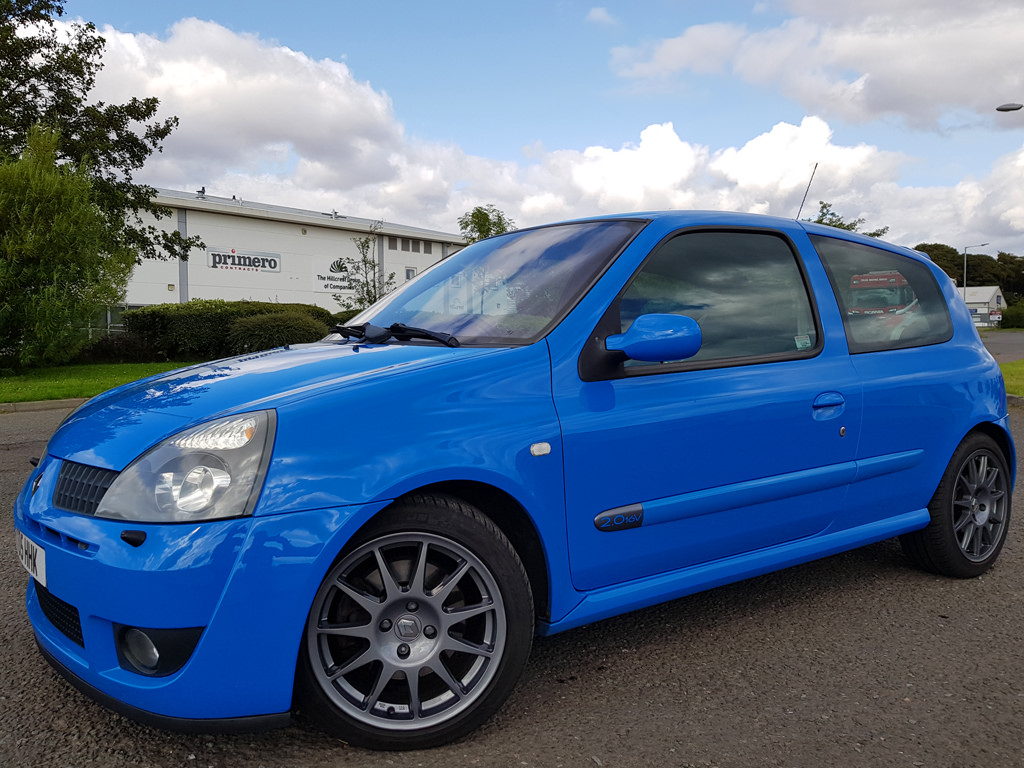

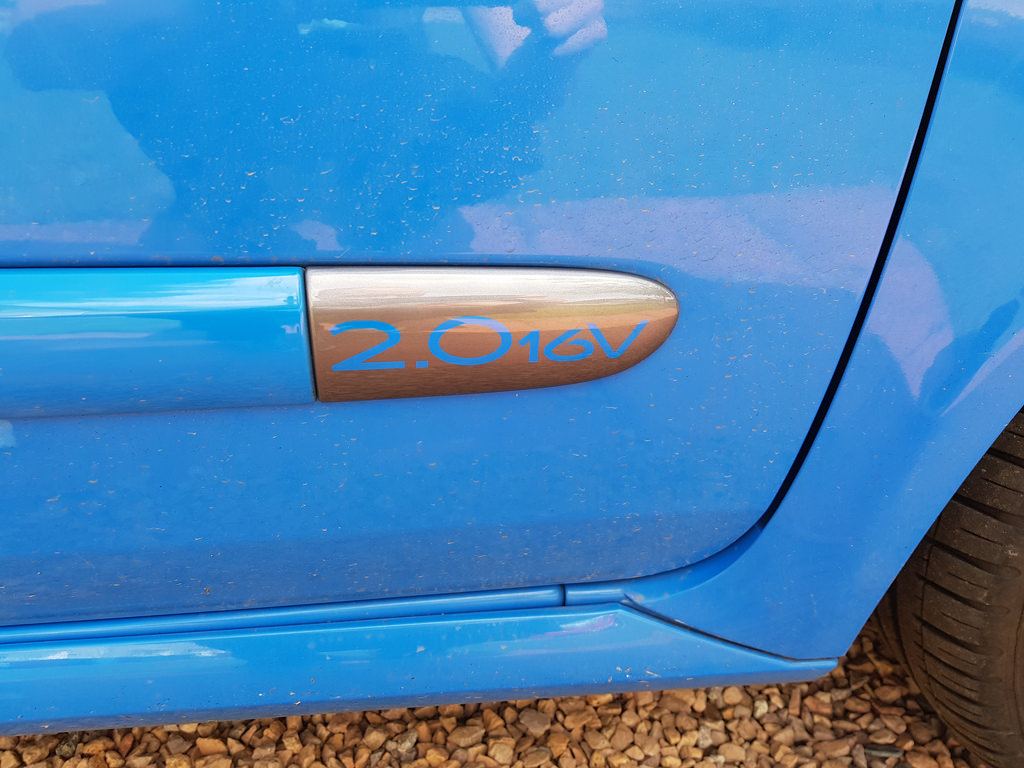

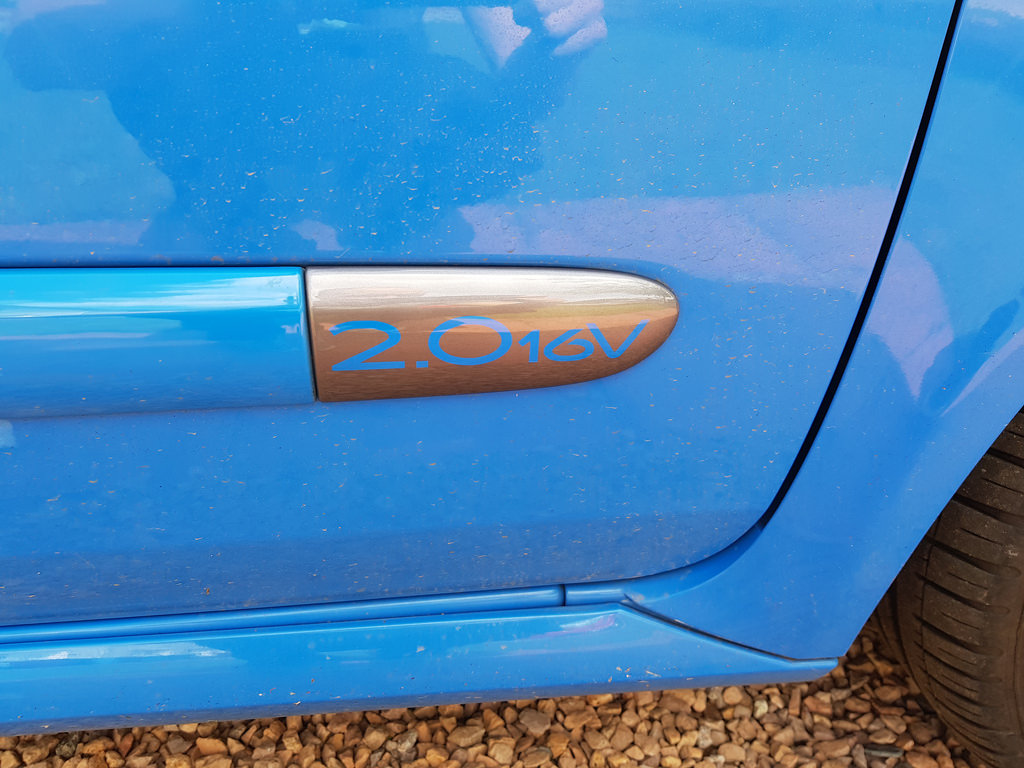

Other side fitted. Don't worry I will wash it ?



[Darren61]

New stainless flange for the manifold. Should last a while! Second hand cat fitted too

Before
View attachment 1382910

After
View attachment 1382911

And fitted the new bullets today. The colours tie in so well!
View attachment 1382912

For anyone that doesn't know how to remove them. Take off this bung in the door
View attachment 1382913

Push this clip outwards and prise the strip towards the rear of the car. Then just unclip the bullets
View attachment 1382914

View attachment 1382915

View attachment 1382916

Other side fitted. Don't worry I will wash it ?
View attachment 1382917

Thanks for the tip, just sorted mine ?



[Pistachio]

? I thought about cleaning under mine but couldn't be bothered lol



[Pistachio]

Nice and clean ?

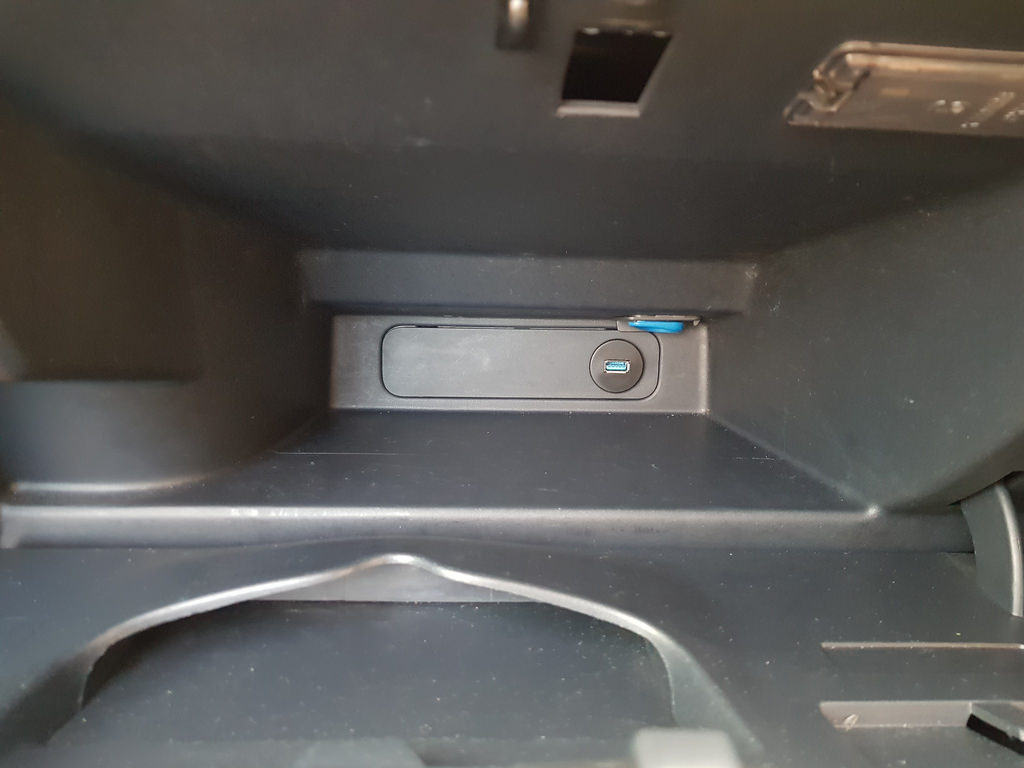

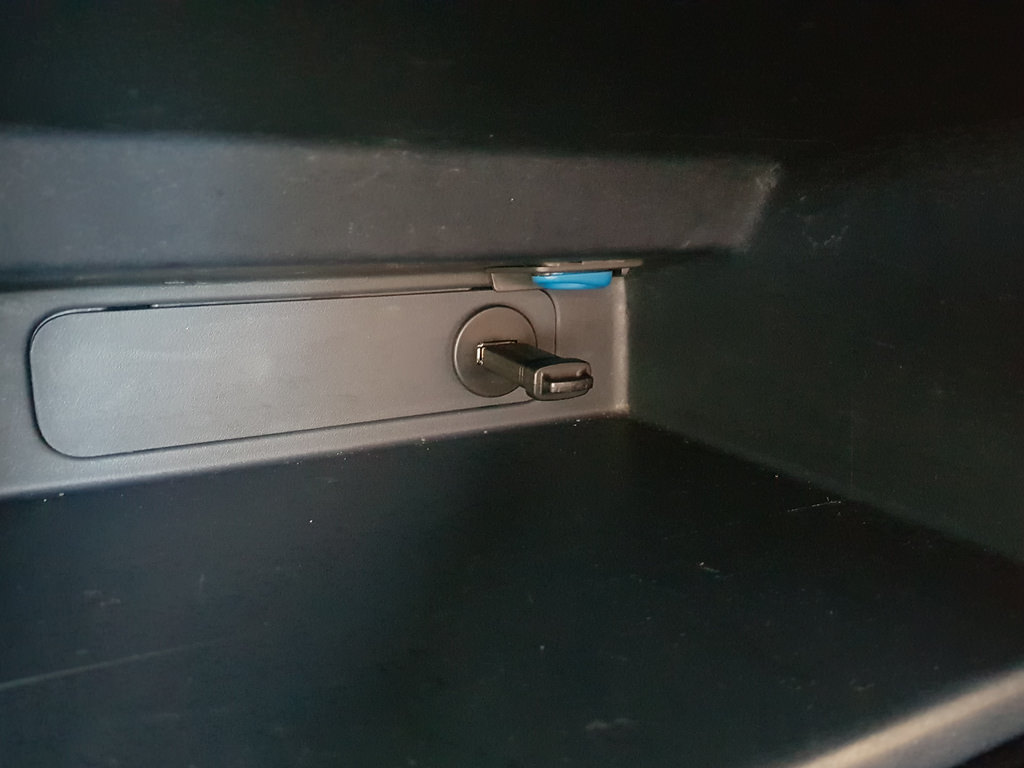

And I installed a usb port for my music. It's on a removable panel so easy to put back to stock. I've also got a usb charging port coming to replace the cigarette lighter which displays the batteries voltage - https://www.amazon.co.uk/dp/B07F8R9F6L/?tag=cliospnet01-21



[Louis]

New stainless flange for the manifold. Should last a while! Second hand cat fitted too

Before
View attachment 1382910

After
View attachment 1382911

And fitted the new bullets today. The colours tie in so well!
View attachment 1382912

For anyone that doesn't know how to remove them. Take off this bung in the door
View attachment 1382913

Push this clip outwards and prise the strip towards the rear of the car. Then just unclip the bullets
View attachment 1382914

View attachment 1382915

View attachment 1382916

Other side fitted. Don't worry I will wash it ?
View attachment 1382917

Flange looks good! Where did you have this done mate? Did they have to drop the manifold down or just do it all in place?
Mines ruined on the flange and needs changing but was going to have a v-band put in, but this might be as easy.



[Pistachio]

Flange looks good! Where did you have this done mate? Did they have to drop the manifold down or just do it all in place?
Mines ruined on the flange and needs changing but was going to have a v-band put in, but this might be as easy.

Rentec in Edinburgh. They dropped the manifold then sent it somewhere to be welded. Don't know where. A v-band sounds good, but I like that it is standard so I can swap out the cat if I want to without any other work



[Louis]

Rentec in Edinburgh. They dropped the manifold then sent it somewhere to be welded. Don't know where. A v-band sounds good, but I like that it is standard so I can swap out the cat if I want to without any other work

I see! Just a shame it's a pain in the arse to drop the manifold really! Seem to have done a great job, i was struggling finding a suitable flange that matched OEM but they seem to have done. Agree with the ease of fitting a cat, that's the one thing I dislike about going v-band, You'll have to v-band everything!

Car looks really good, loving the little USB in the glovebox. Very OEM +



[Pistachio]

I see! Just a shame it's a pain in the arse to drop the manifold really! Seem to have done a great job, i was struggling finding a suitable flange that matched OEM but they seem to have done. Agree with the ease of fitting a cat, that's the one thing I dislike about going v-band, You'll have to v-band everything!

Car looks really good, loving the little USB in the glovebox. Very OEM +

Thanks for the nice comments! ?

Yeah it is a lot of work. They had to drop the subframe to get it out. I'm very happy with the welding, although I can't say I'll be hurrying back to Rentec any time soon. I put it in to do 4 jobs and they only did 2



[Stefan.]

Awesome work!!
Keep the updates coming, love it



[JPJ89]

Thanks for the nice comments! ?

Yeah it is a lot of work. They had to drop the subframe to get it out. I'm very happy with the welding, although I can't say I'll be hurrying back to Rentec any time soon. I put it in to do 4 jobs and they only did 2

Top work, nice to see it looking so clean with the door bullets on at last! If you are looking for somewhere to work on it I highly recommend SWR in Stirling, they know the car inside out and are excellent! They carried out the full suspension refresh amongst all the other servicing bits, brakes, alignments etc.



[Pistachio]

Top work, nice to see it looking so clean with the door bullets on at last! If you are looking for somewhere to work on it I highly recommend SWR in Stirling, they know the car inside out and are excellent! They carried out the full suspension refresh amongst all the other servicing bits, brakes, alignments etc.

Yeah they did the timing belt on my old 182. I think I'll be going to them in the future



[incy-spider]

Back-to-black'd my exhaust trims ... and my fingers

View attachment 1375757

View attachment 1375758

Also got these to fit when I get some velcro coins
View attachment 1375759

Where do you get the narrow front plates?


Sent from my iPhone using Tapatalk



[Pistachio]

Where do you get the narrow front plates?


Sent from my iPhone using Tapatalk

www.fancyplates.com ?

https://www.cliosport.net/threads/custom-size-numberplates.389536/#post-4934542



[182_steve]

Those bullets look awesome, very oem looking with a nice twist, where did you get them? Got a link?



[Pistachio]

Yeah I'm really happy with them. They are sprayshack ones that @JPJ89 put up for sale
