Project 432 - Mk1 Track Car



hardy

ClioSport Club Member
  Clio Mk1 Track Proj
Thanks for uploading your progress photos! I am currently restoring Clio Dimma 31, I was concerned about cutting away the rotten inner sill around the seat rails until I had the rest of it welded up as they are the only things attaching the inner to the floor pan at the moment. I see you found a novel solution.... Same difference I guess :wink:

What are the specs on the Safrane hubs ? Do they allow for bigger discs / caliper upgrade. I was thinking about fitting 172 hubs/discs/calipers as by all accounts they are more than sufficient in terms of stoppage.
No worries. It's been long overdue anyway!
I bet that will be a fun project!
I was a bit unsure how to tackle the inner sill at first but once I started cutting away it became more apparent.
The idea behind getting the Safrane hubs is to enable me to change the roll centre like one the Clio cup race cars. These fit differently to the 172 ones as the ball joint needs to be changed for a rose jointed one and an adaptor/pin needs to be put in place between the hub and ball joint to achieve the roll centre correction (moving the front axle centre line further away from the wishbone ball joint).
The 172 calipers/disc setup is certainly more than enough. I ran this for a good amount of years. It is an easy upgrade once you drill out the holes for the damper/strut. However, I used Megane coupe 1.6 16v hubs as they have smaller drive splines that are more suited to the valver/Williams shafts.
I have a full brake swap available with brand new discs and used Carbon Lorraine RC6 pads. Just pm me if you are interested.
Cheers Josh


massiveCoRbyn

ClioSport Club Member
  Several
Lordy that has some rot in it. Fair play for fixing that, many wouldn't have bothered!

Are the Safrane hubs as used on the MK1 Cup cars? Am I right in thinking the 172 used Laguna hubs?

I would really love a MK1. I have a 1/18 model of one of the DIAC Group A 16S rally cars, and it just makes me want a real one!

  X2 Clio Valvers
Nice to see someone else taking pride in a valver! I've got 2 to do and all I keep getting is why don't you get rid. That's some brilliant welding work there btw, Better than most "reputable body shops"
Off topic but is the welder any good? I was looking at getting one of these but never really heard anything about them.
Cheers and good luck with the rest of the work!
Mark


hardy

ClioSport Club Member
  Clio Mk1 Track Proj
Lordy that has some rot in it. Fair play for fixing that, many wouldn't have bothered!

Are the Safrane hubs as used on the MK1 Cup cars? Am I right in thinking the 172 used Laguna hubs?

I would really love a MK1. I have a 1/18 model of one of the DIAC Group A 16S rally cars, and it just makes me want a real one!

Thanks for the boost! Yeah I have had A LOT of people say 'why are you bothering?' But the answer is always 'why not?'.
Yeah.... About that. I cocked up with that one. I now have the correct hubs off a 1994-1998 Laguna 2.2D. There are distinct differences between the Laguna and Safrane hubs one major one being the hub-to-strut mounting offset from the inner side of the bearing being 14mm different. This would have a massive difference!

I've also had a very similar model of the Williams DIAC car! Embedded from an early age!

Cheers, Josh


hardy

ClioSport Club Member
  Clio Mk1 Track Proj
Nice to see someone else taking pride in a valver! I've got 2 to do and all I keep getting is why don't you get rid. That's some brilliant welding work there btw, Better than most "reputable body shops"
Off topic but is the welder any good? I was looking at getting one of these but never really heard anything about them.
Cheers and good luck with the rest of the work!
Mark

Thanks for the comments!
Yeah it seems to be a massive trend of scrapping Valvers in the hope to get one without rust. One is enough for me though! Ha

Thanks! I'm trying to make the car last at least another 20odd years so I better do it properly. Plus m grandad used to be in the bodywork trade so he has given me quite a few pointers etc as I don't work in bodywork. All a learning curve.

Yeah the R-Tech welder is mega. It does exactly what I want from it. The guys at R-Tech are also very nice to deal with. Certainly worth spending money with them.

Cheers, Josh


hardy

ClioSport Club Member
  Clio Mk1 Track Proj
Bit more of an update of progress:

12/11/2015

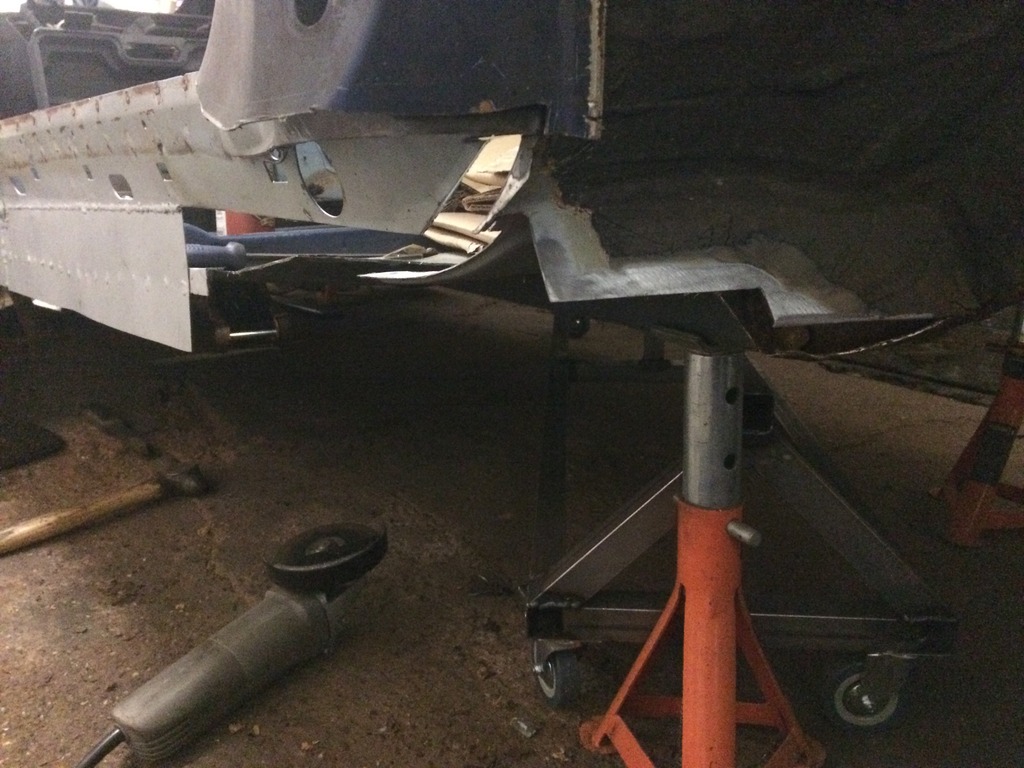

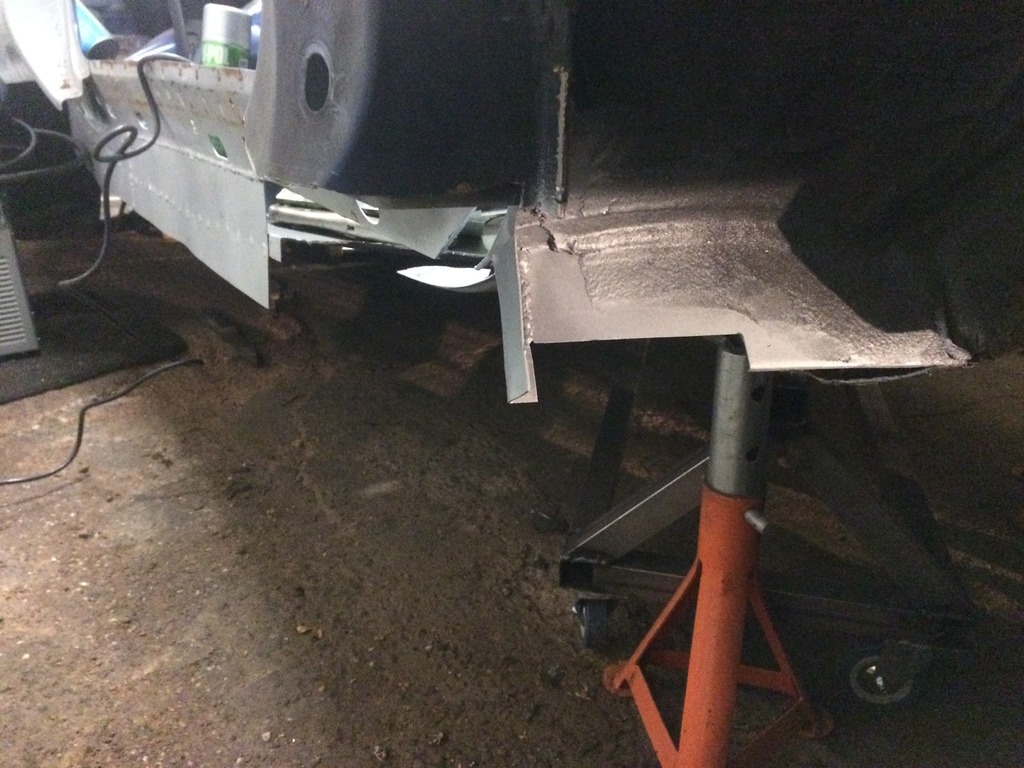

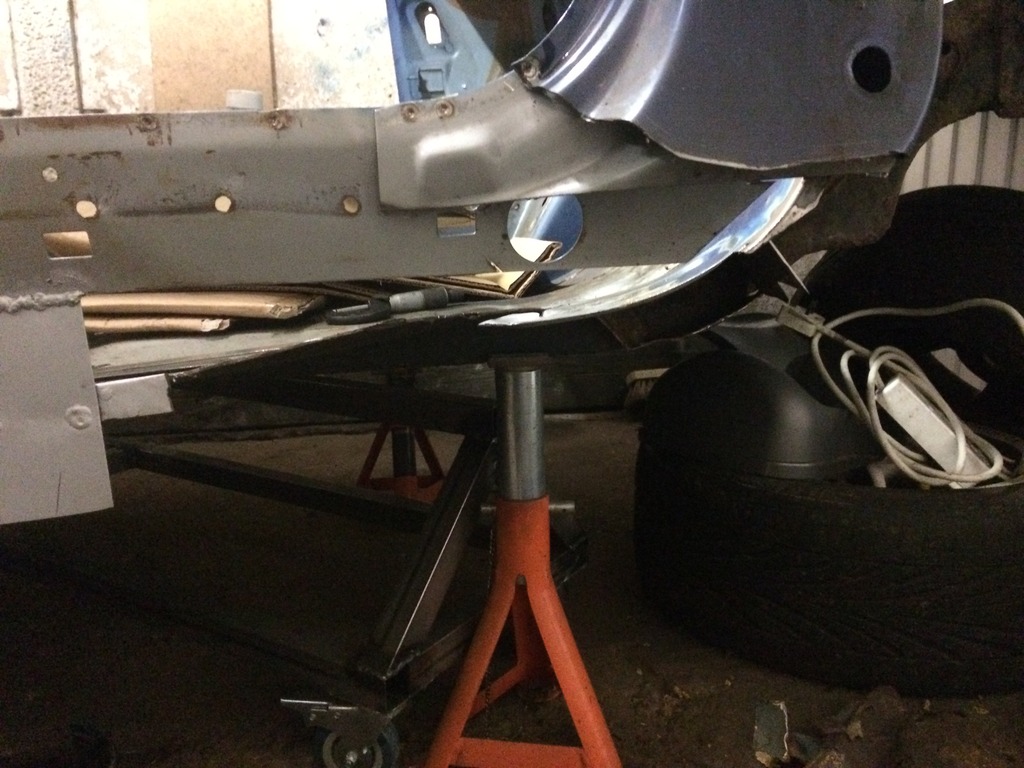

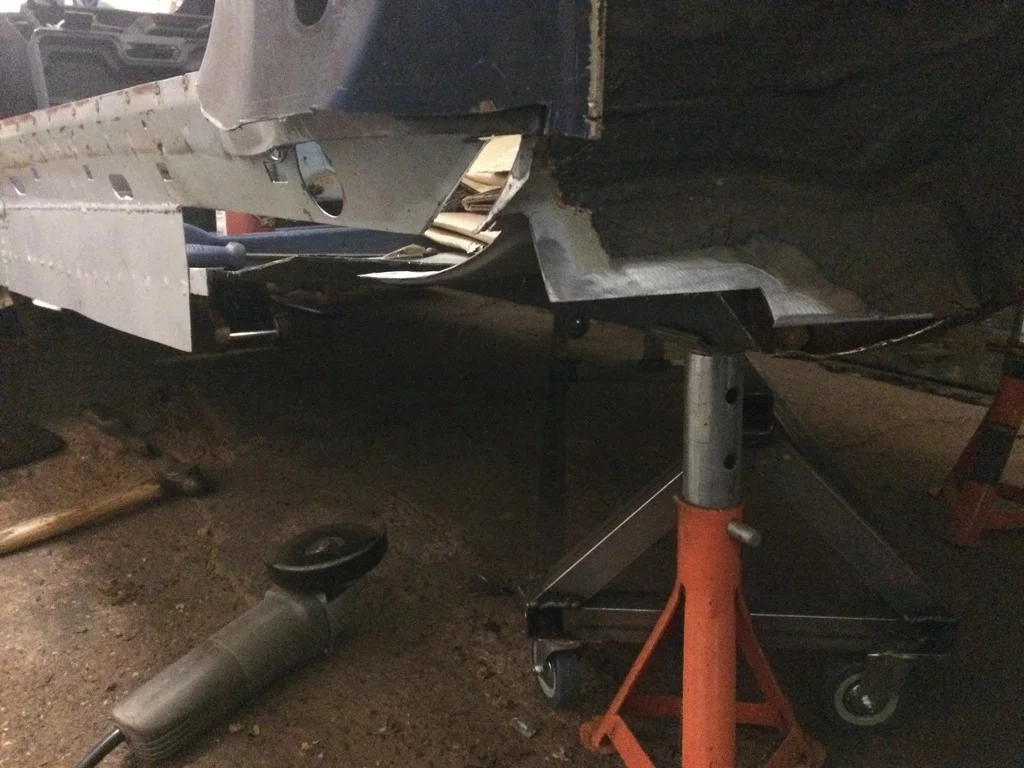

Did a bit more on the floor/sill/drivers footwell.




During all this, my Laguna hubs arrived!

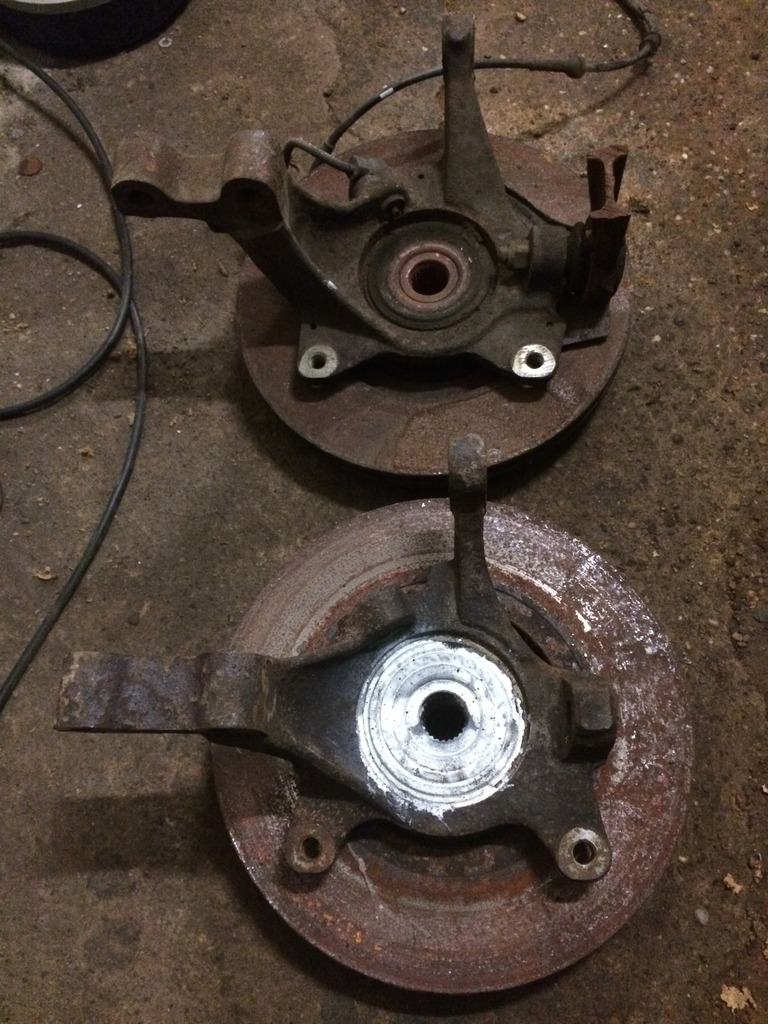

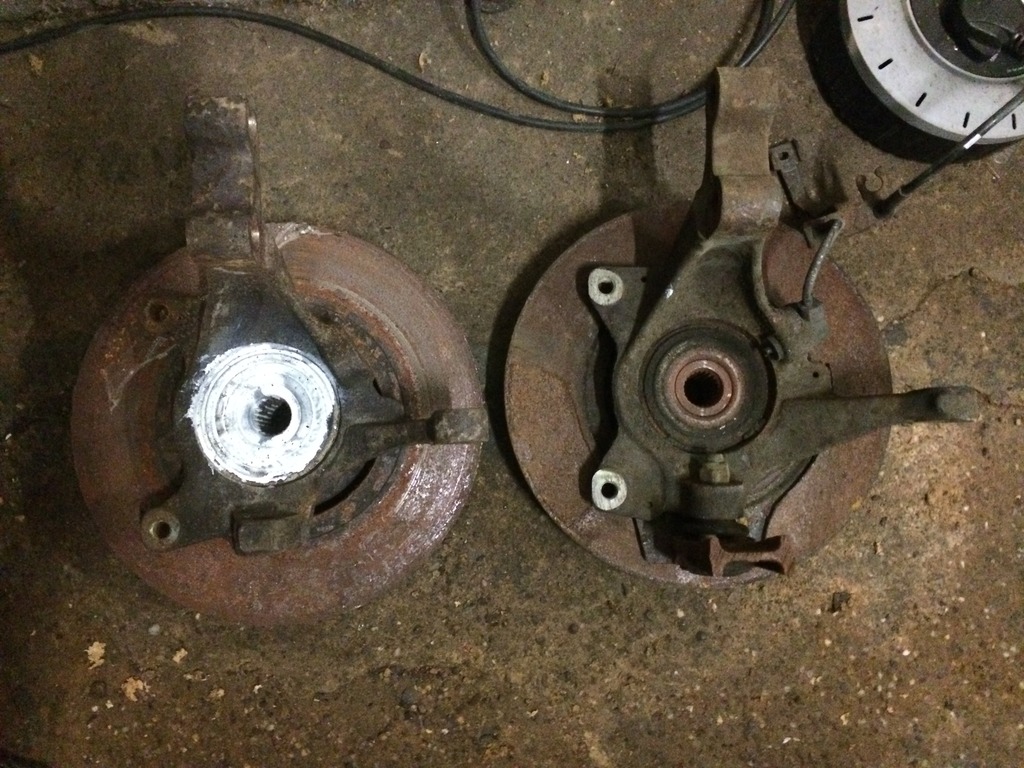

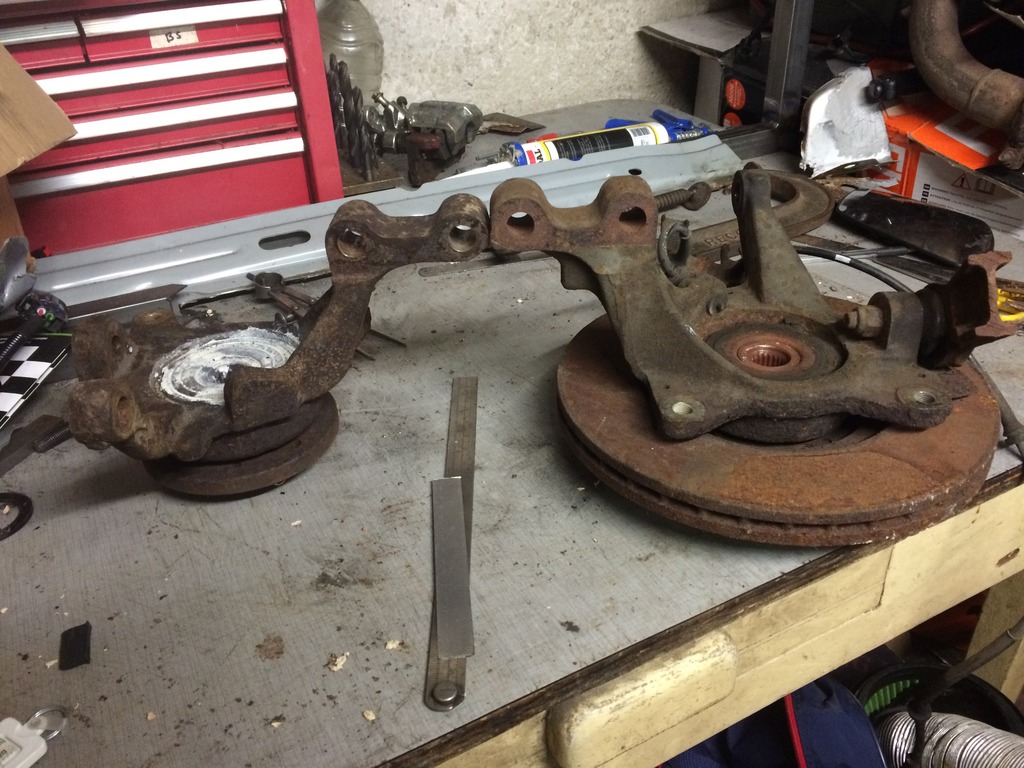

Laguna 2.2D hub on the Left, Safrane on the Right.

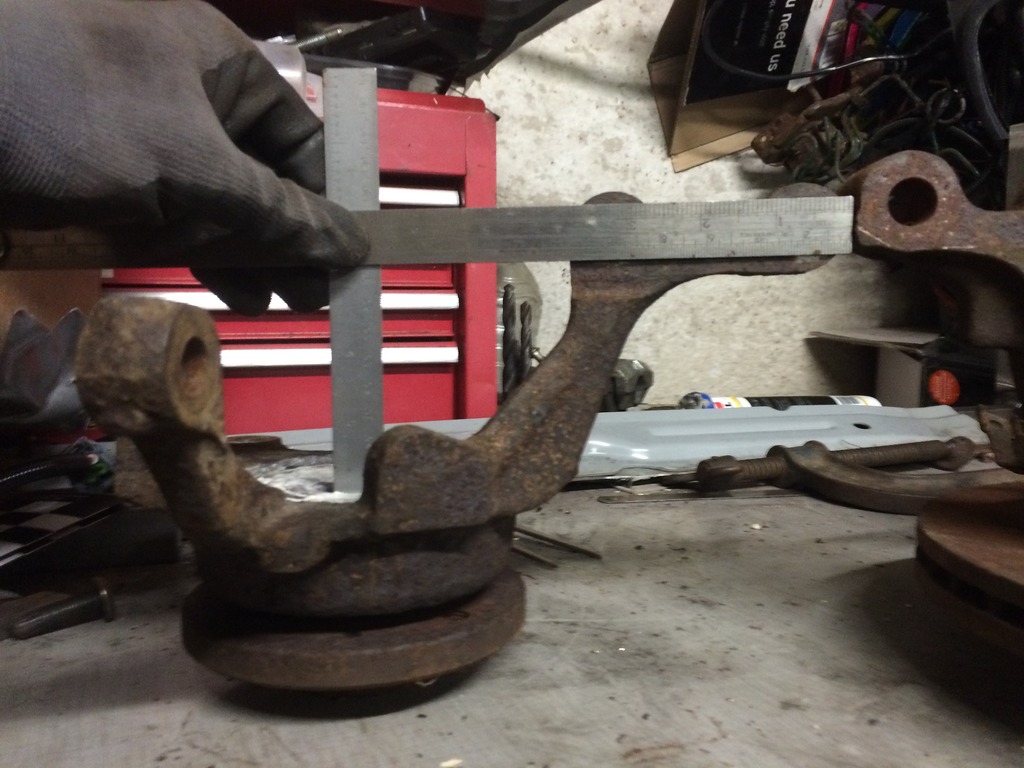

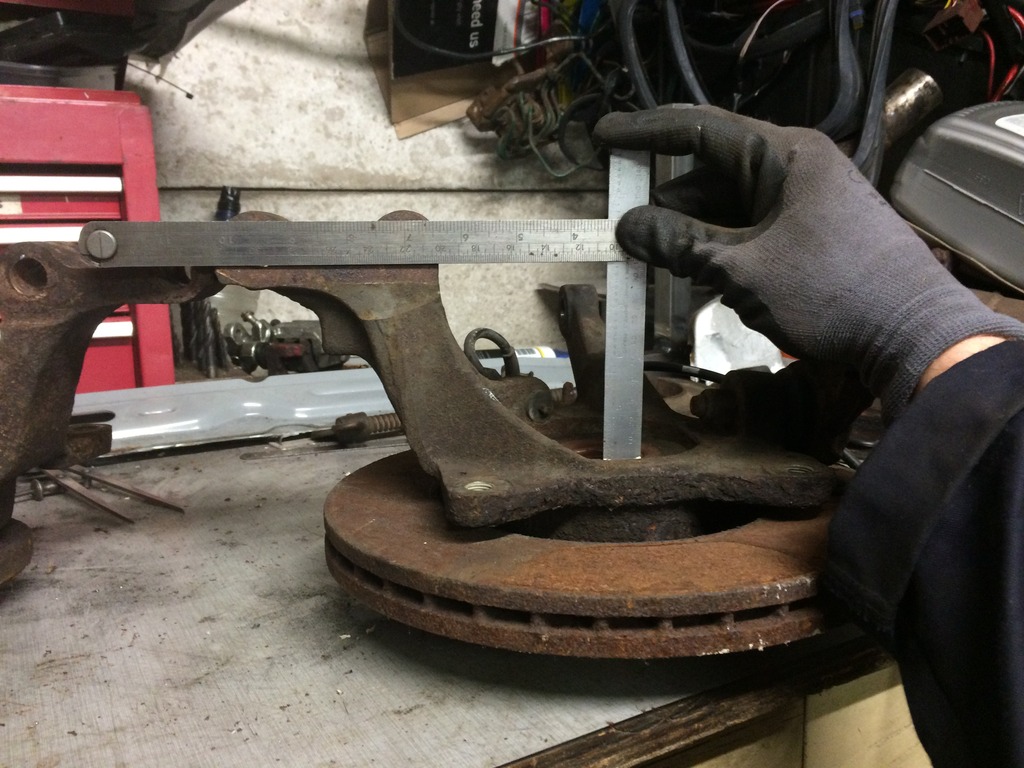

You can see that there is a noticeable offset difference between the hub face and the top of the hub (hub-to-strut mounting). After measuring, the Safrane hub has 14mm more offset than the Laguna one.


Laguna:


Safrane:

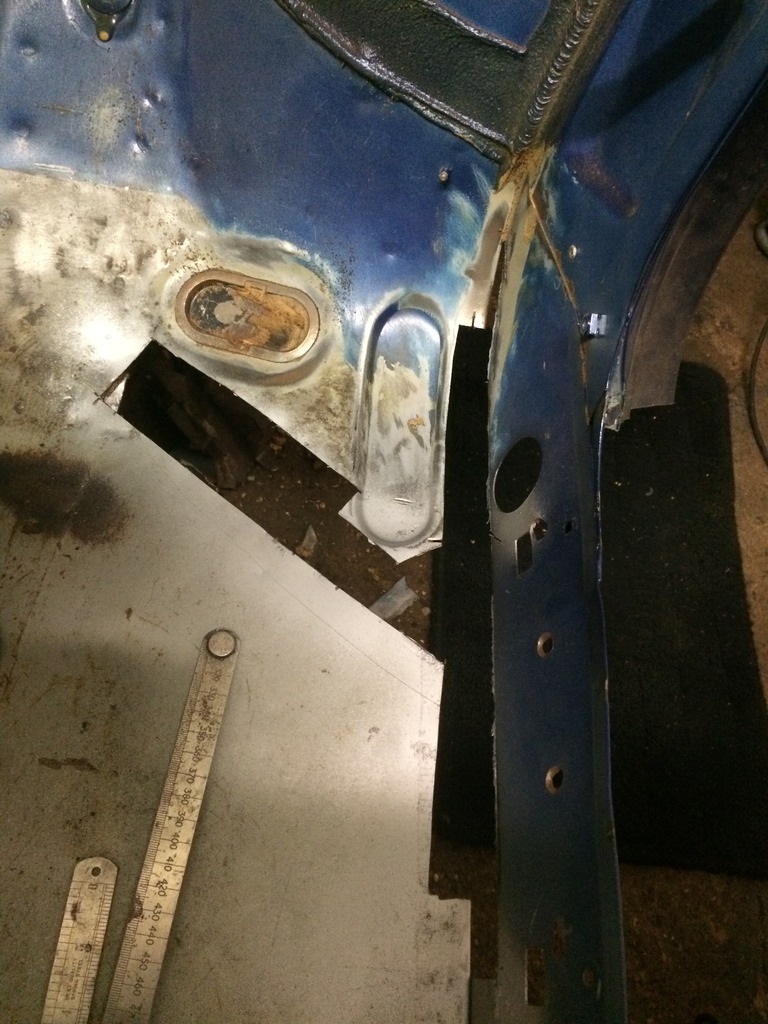

Finally, after faffing with the hubs, I added a small plate to the floor panel.


Cheers for looking.
Josh
