Red connector instrument cluster - no rpm

[Briank_]

Hi,

I'm stripping back my wiring loom, but seem to have removed the wire for the RPM gauge in the instrument cluster.
All the other stuff works, maybe not the speedo but can't test that at the moment.

Anybody here that has or can take a picture of the red connector that goes into the instrument cluster? That way I can see what wire I'm missing and hopefully identify it and place it back..

If anybody on here known wich colour wire it is and where it comes from that would be great info too!

Thanks in advance,

Brian



[Briank_]

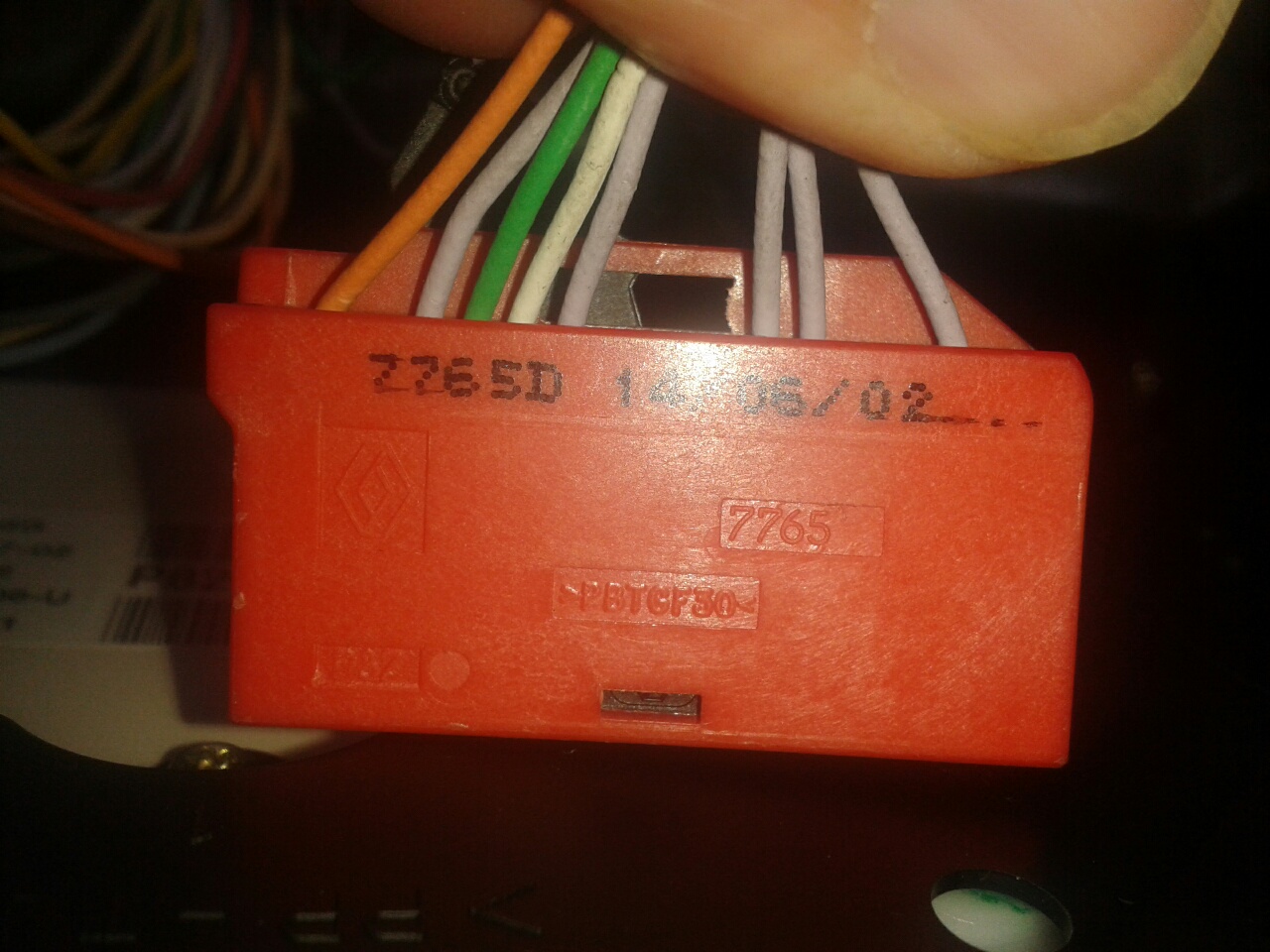

I found a picture of the connector I was looking for, it's this one;

Is there anybody stripping back their wiring that could find out where the following wires go to?
From left to right counting wires I need 2, 4 and 5.
So the grey, white and another grey one.

Is someone could help me I would greatly appreciate it!



[Stuiemc]

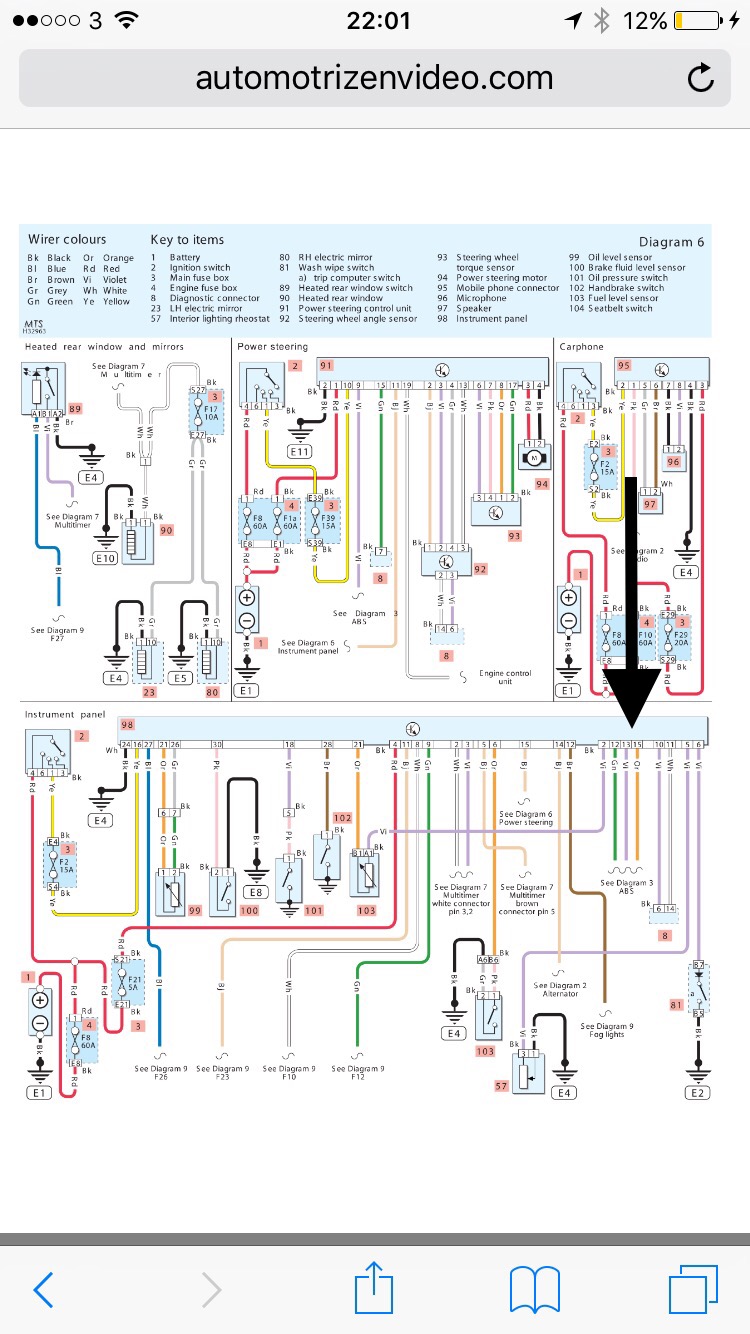

Not sure if this is any use to you, I've marked up what I think seems to be the connector your after.

http://automotrizenvideo.com/wp-con...loads/admin/2014/07/4168-Renault-Clio-01-.pdf
