Wiring diagram needed, Clio 2 172

[lizardlick1985]

Has anyone got a wiring diagram for a 2002 Clio 172, found a fault in the loom next to the base of the battery tray which is giving me throttle problems.



[loggyboy]

http://www.getflat.co.uk/0125_A3.pdf

http://www.getflat.co.uk/REPORG.pdf



[eon172]

Has anyone got a wiring diagram for a 2002 Clio 172, found a fault in the loom next to the base of the battery tray which is giving me throttle problems.

What type of symptom, I get an initial stall like response when depressing the pedal but it then recovers and finally revs - driving me nuts



[lizardlick1985]

Thanks for that loggyboy.

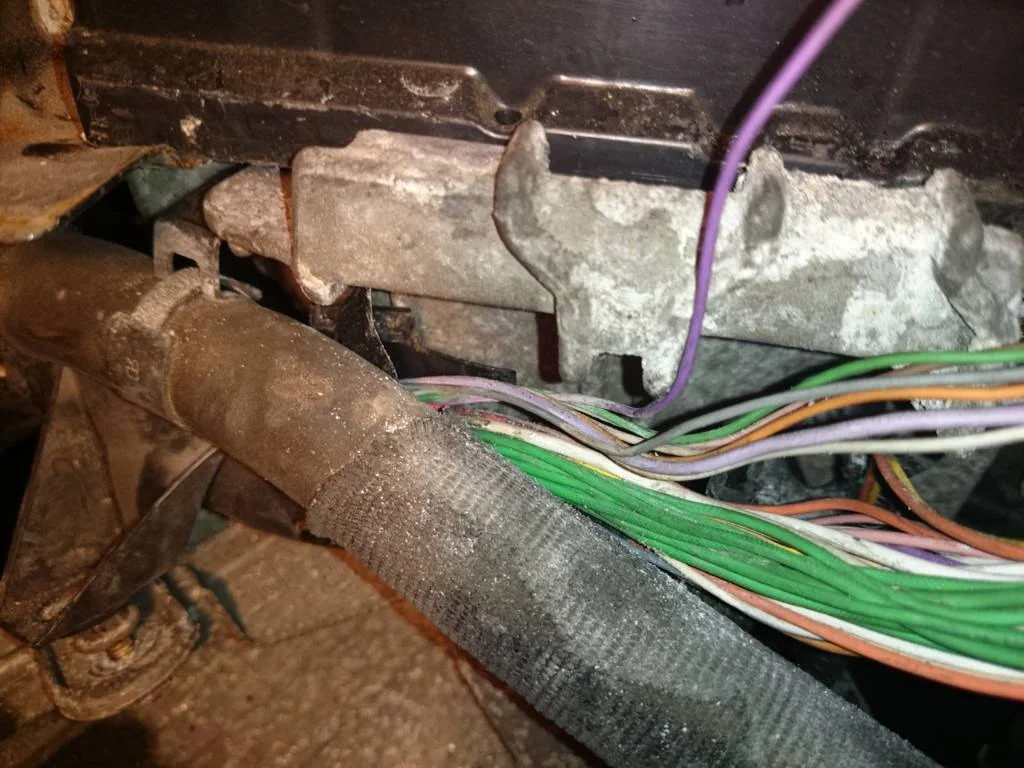

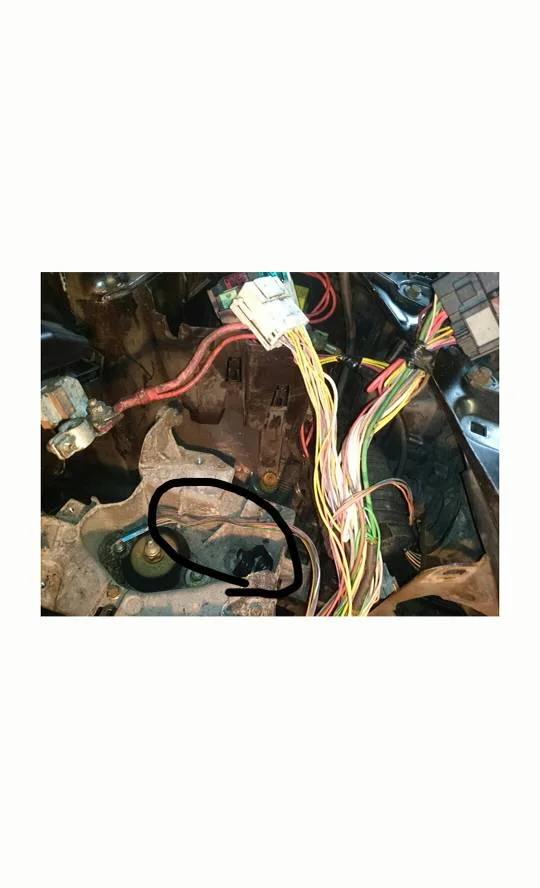

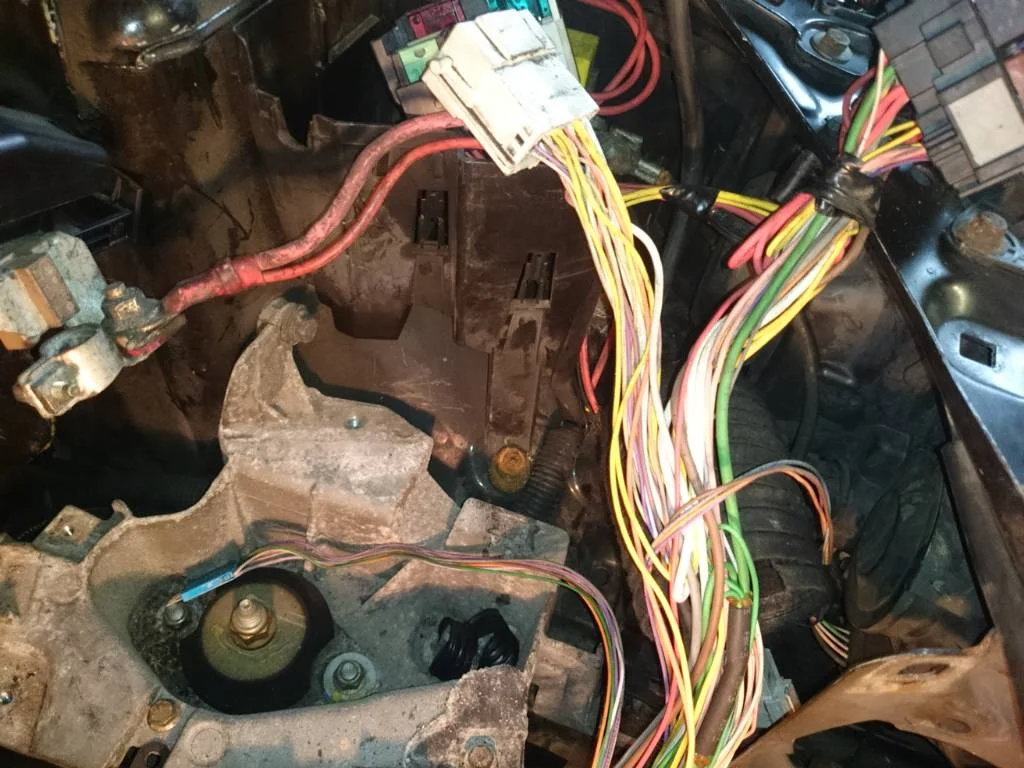

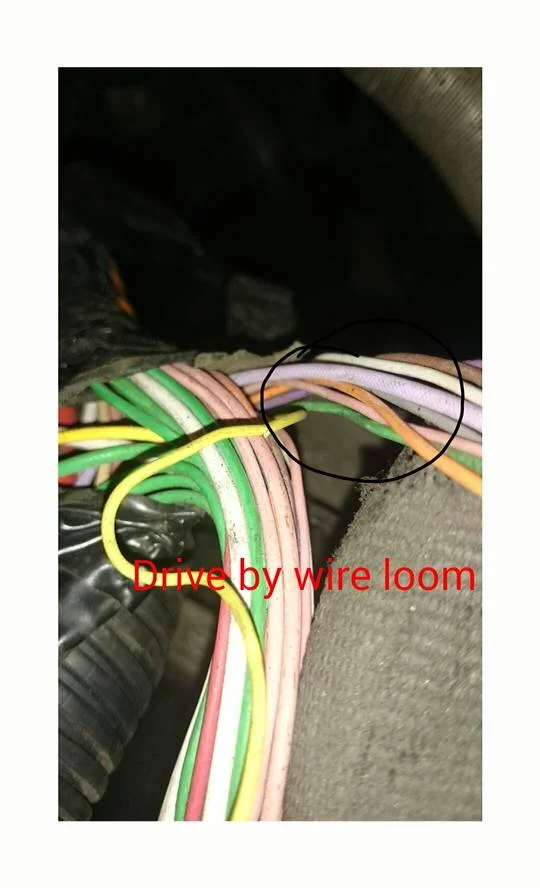

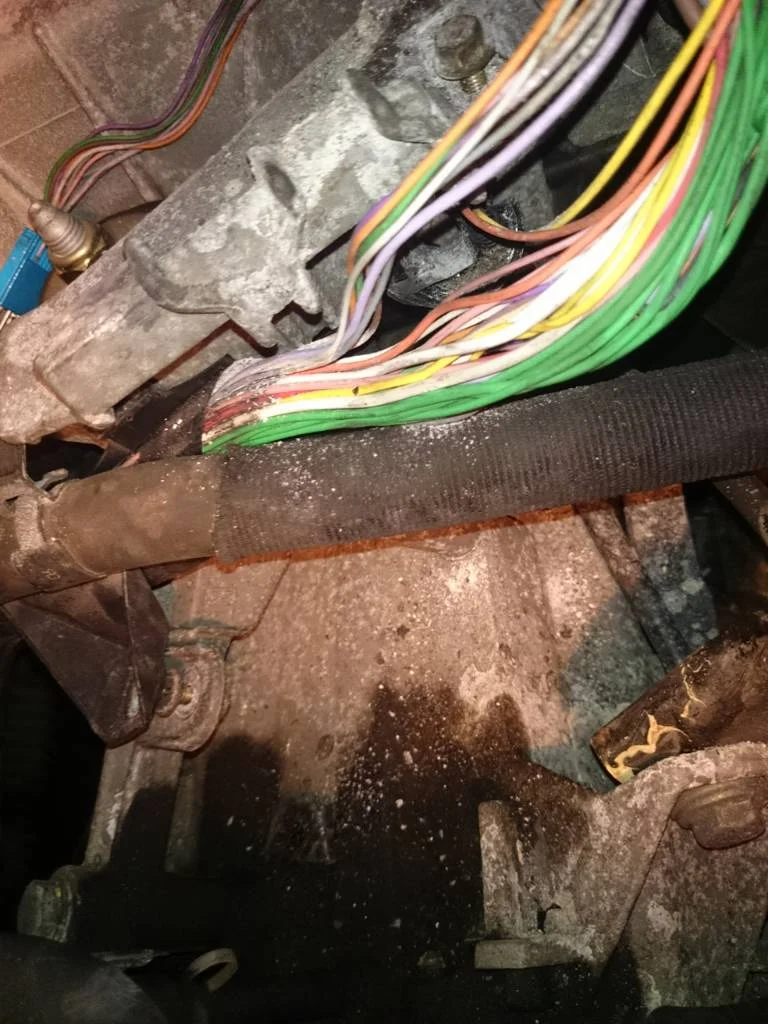

Eon I was getting limp mode and over revving at different times when I was in the car and the throttle was just eratic while driving, almost like having cruise control that I couldn‘t turn off. I have eventually sorted the problem. It was The wiring loom down by the base of the battery tray, there are six wires which run uptown the underneath of the white multiple under the relay box that join to a blue connector strip, these wires are all in charge of the drive by wire throttle. 3 of the wires on my car were burnt out so I have made a new section of loom and replaced that with the broken 1 which has cured all my problems. Quite annoying as the wire cost me 4 pound and all the other parts I fitted cost me over 100 and didn't fix it lol.



[eon172]

Thanks for that loggyboy.

Eon I was getting limp mode and over revving at different times when I was in the car and the throttle was just eratic while driving, almost like having cruise control that I couldn‘t turn off. I have eventually sorted the problem. It was The wiring loom down by the base of the battery tray, there are six wires which run uptown the underneath of the white multiple under the relay box that join to a blue connector strip, these wires are all in charge of the drive by wire throttle. 3 of the wires on my car were burnt out so I have made a new section of loom and replaced that with the broken 1 which has cured all my problems. Quite annoying as the wire cost me 4 pound and all the other parts I fitted cost me over 100 and didn't fix it lol.

Isn't it always the way! Glad to hear you resolved it though.

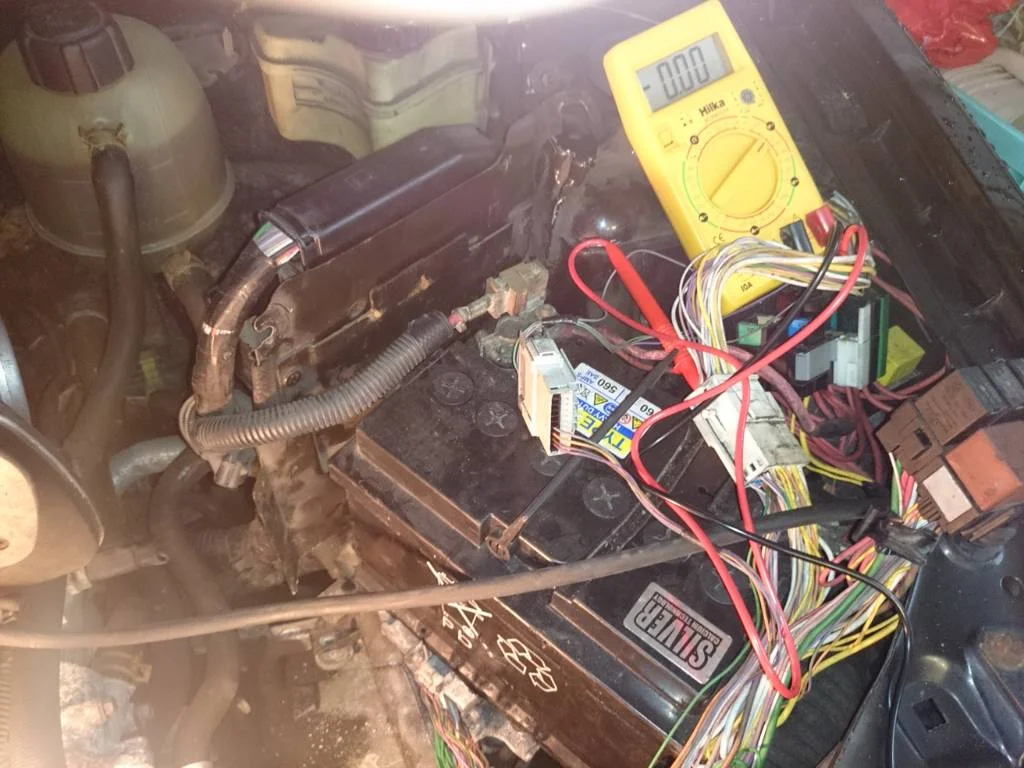

That's why I really appreciate the write ups from people having and resolving problems on their Clio's, so thanks for explaining . Although my symptom is slightly different (initial hesitation when first depressing the throttle), I'll certainly check that area if the harness as I've currently got the battery and ECU out and need to fix a dodgy bit of wiring someone did in the past.



[lizardlick1985]

Could possibly be the same wiring if it‘s hesitating, I have heard about other people taking the pedal and throttle body off and cleaning then with brake cleaner and also resetting the Ecuador so it can re learn all the cars values again with the throttle and pedal a potentiometer. Just a thought. I think of the throttle like a remote control car, if there‘s interference then it won‘t do what it‘s told, also, French cars Don‘t like poor batteries so maybe get the battery tested aswell just to rule that out.



[lizardlick1985]

Ecu, not Ecuador haha!!



[lizardlick1985]



[Simmie]

Was the blue plug that you are speaking about part of the lafge white plug clipped into the base of the fusebox?
