Anyone have a photo of how the Powerflex bush sleeves need to be tack welded?

[shiyan]

I had them fitted 2 years ago but have no idew whether the garage did the job properly.

Don't really know how to check tbh. Is it something I can check without having another garage dismantle the suspension?

There's also a soft bang in the suspension during warmer months at low speed under braking/acceleration, which has dissapeared now that it's cold, so perhaps it's just the bolt that needs tightening? A Renault garage recently took a look at the suspension and declared it free of play.



[shiyan]

help :/

following on from seeing this

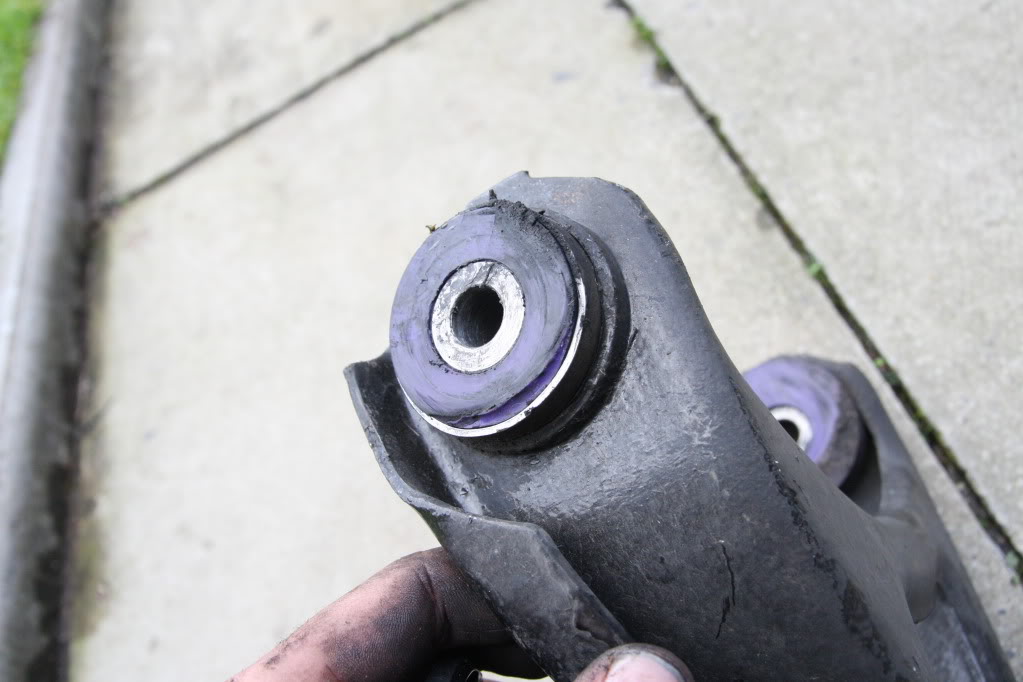

The sleeves do move quite a bit if not tacked, mine did over a years use on track. Although it sort of shows some (well, a lot) of the stuff on this forum is b*llocks as I was told not to bother, then this happened. Whipped them off, adjusted, welded and refitted. Done another 16 months without issue. They looked like this once moved..



[f0xy]

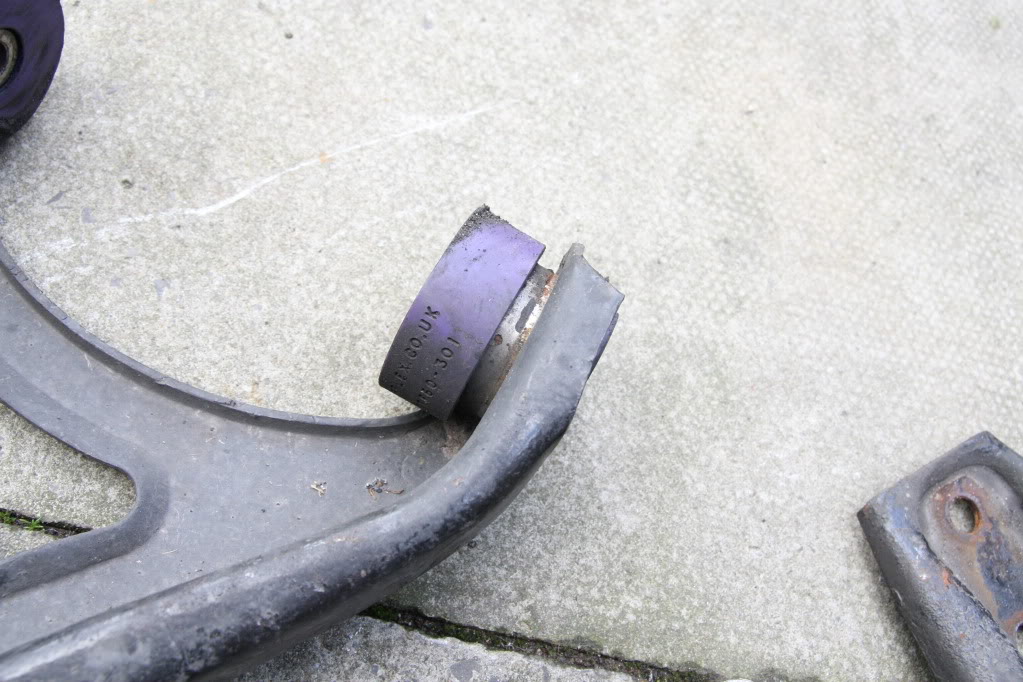

The sleeves have moved in my pics (i.e. they are in the wrong position)

The sleeves should be flush up with the inside of the wishbone, then tack welded on the outer edge. I just ran 3 x half inch welds equally spaced round the wishbone on all of them. Then the bush goes in and sits flush on the inside against the wishbone



[shiyan]

The sleeves have moved in my pics (i.e. they are in the wrong position)

The sleeves should be flush up with the inside of the wishbone, then tack welded on the outer edge. I just ran 3 x half inch welds equally spaced round the wishbone on all of them. Then the bush goes in and sits flush on the inside against the wishbone

Thanks!

I assume there's no way to check without taking the suspension apart?
