Today I finally got to something that seems like I've been waiting forever to do!

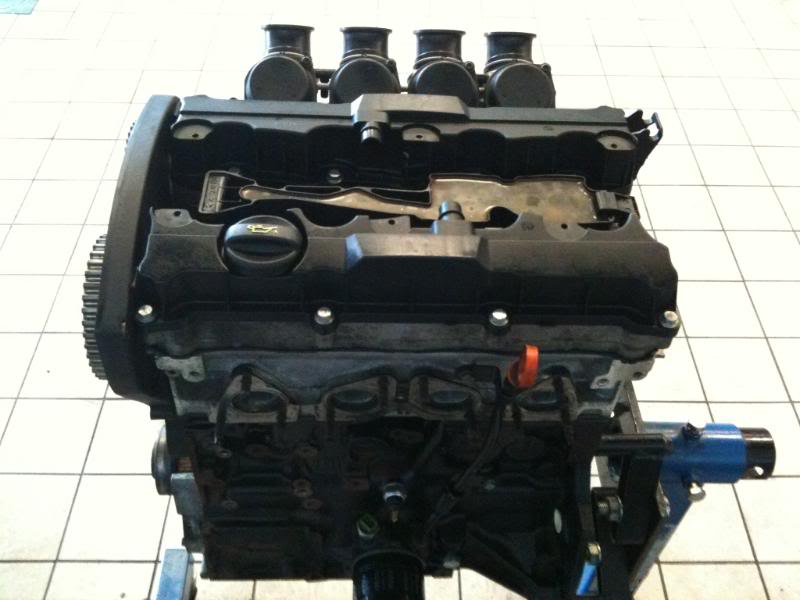

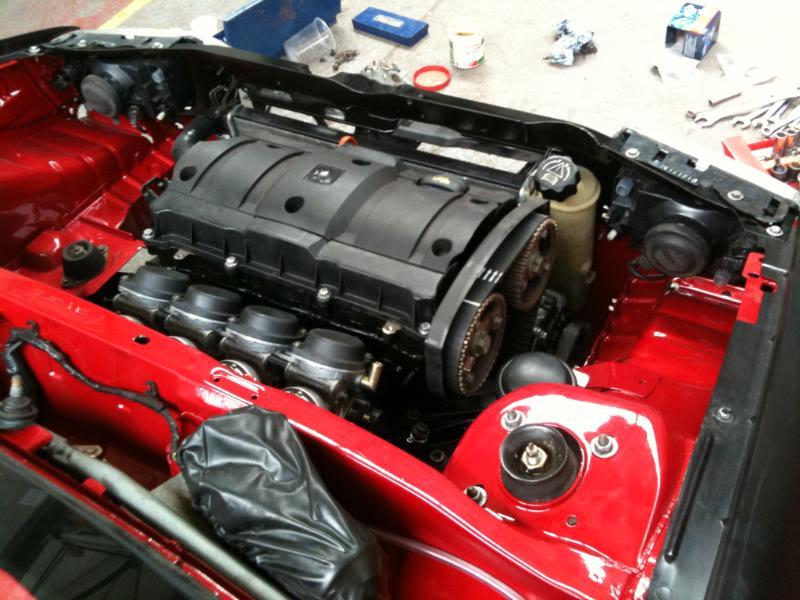

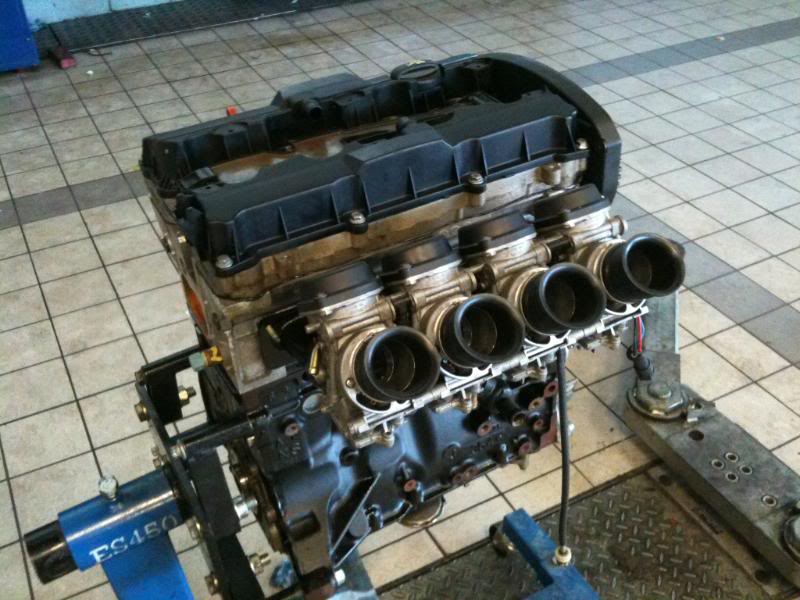

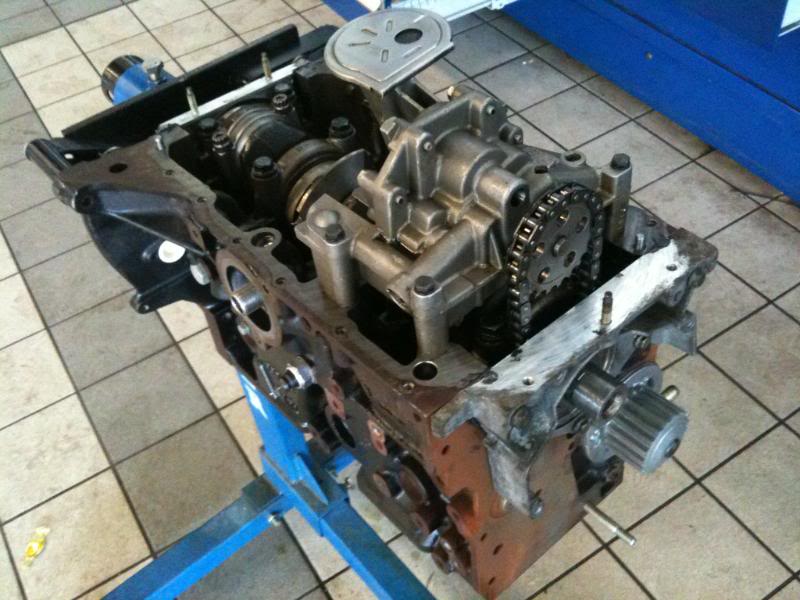

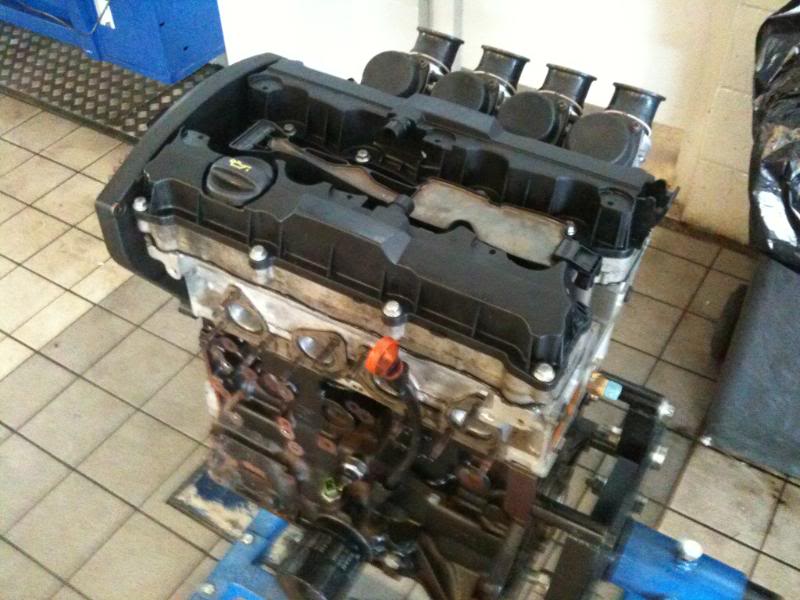

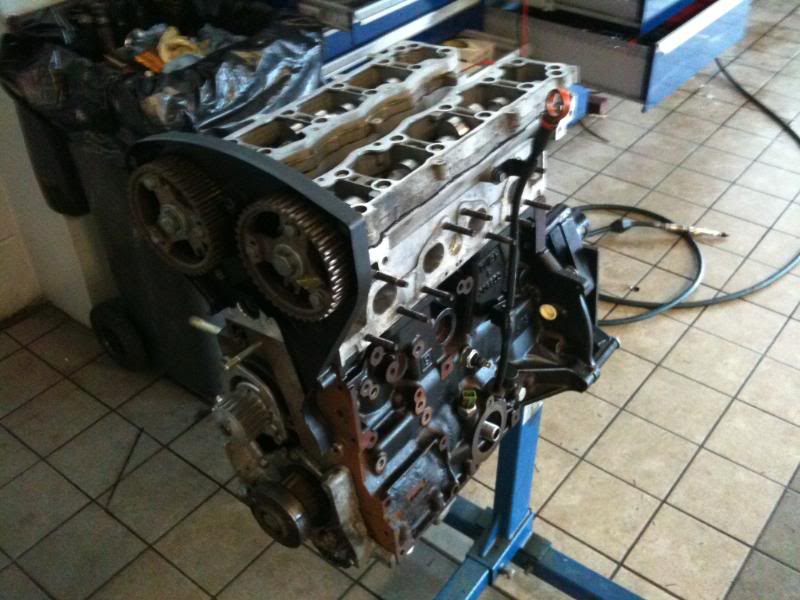

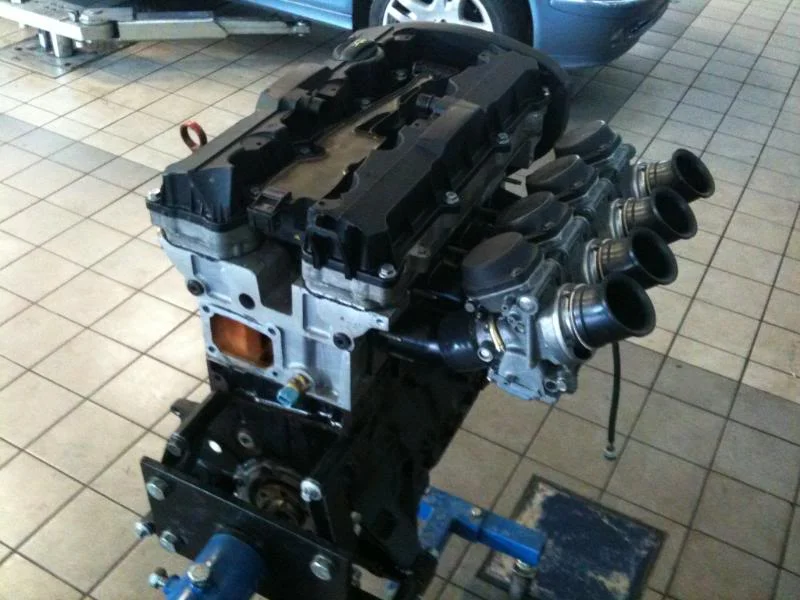

I finally managed to build the engine up (mostly).

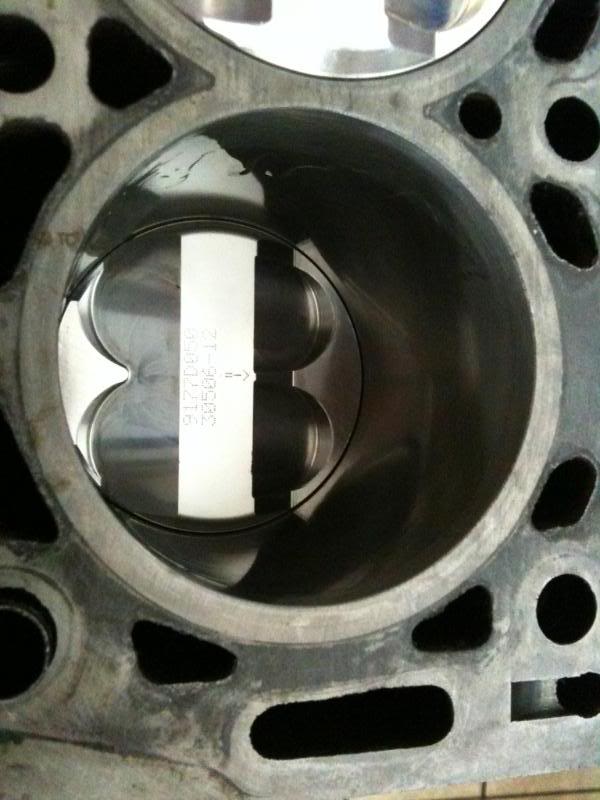

To begin with I get the rest of the pistonsand rods in.

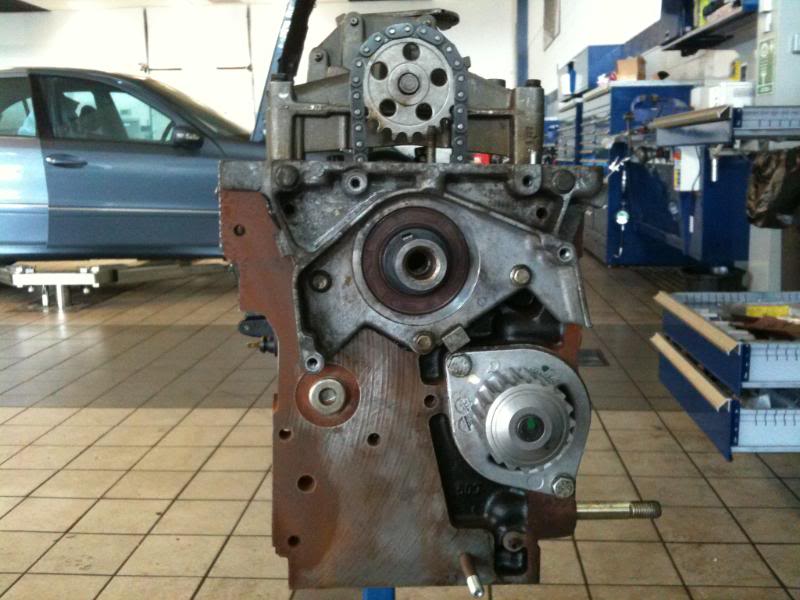

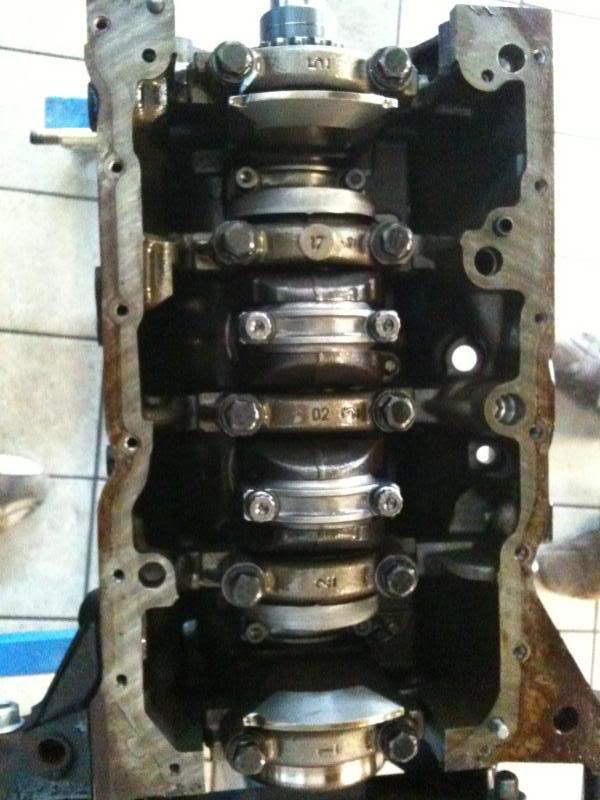

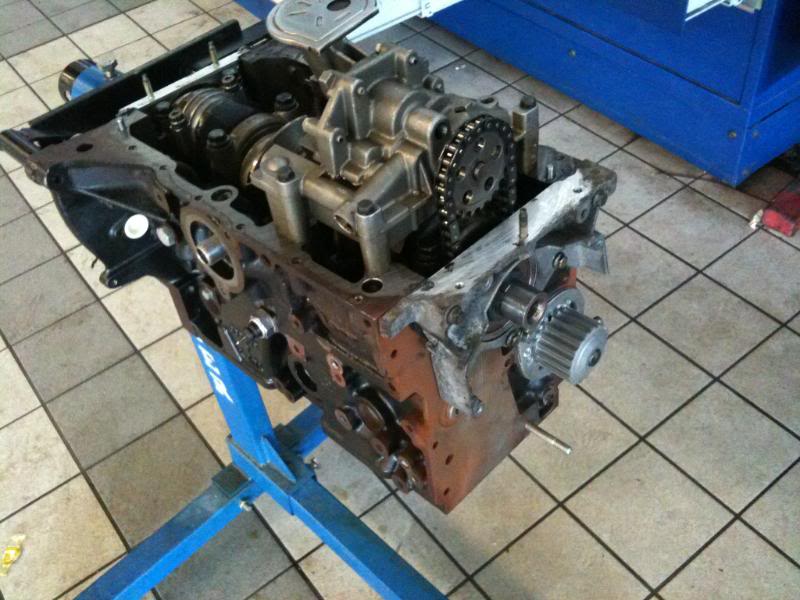

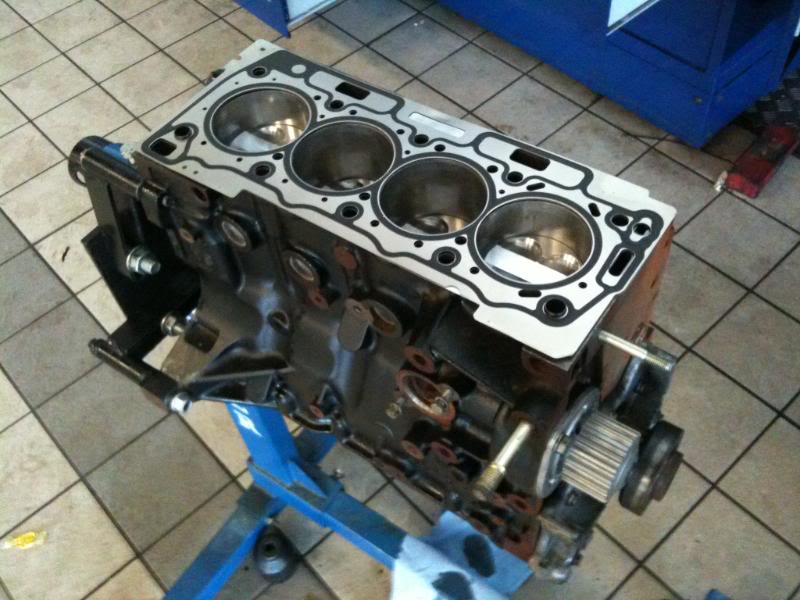

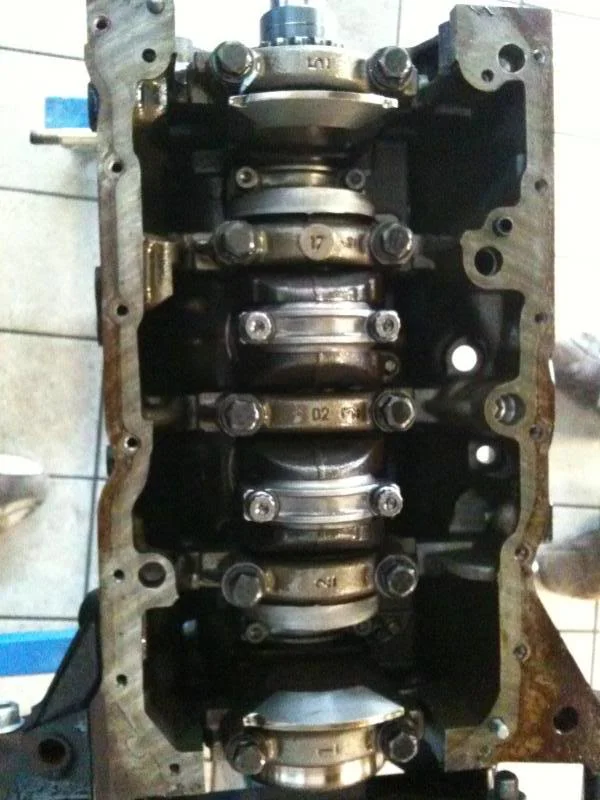

Next I built up the rest of the bottom end, oil pump, main seals etc...

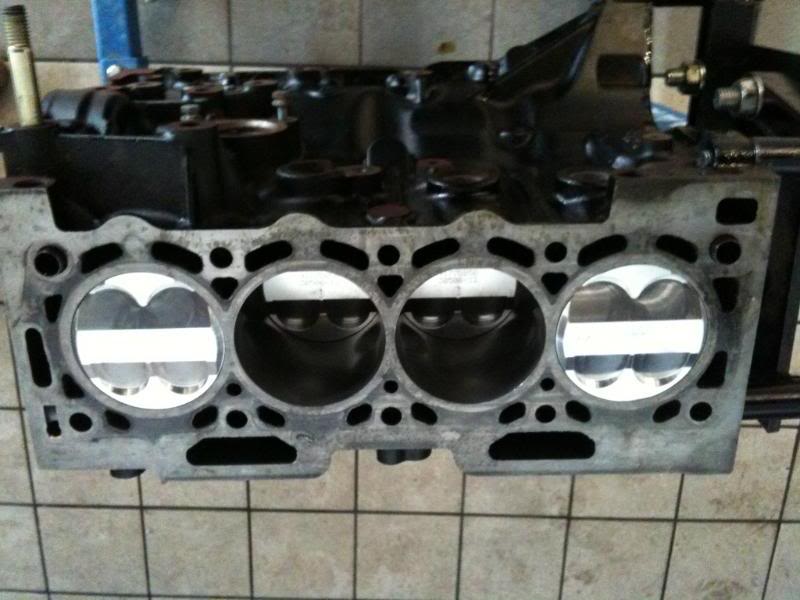

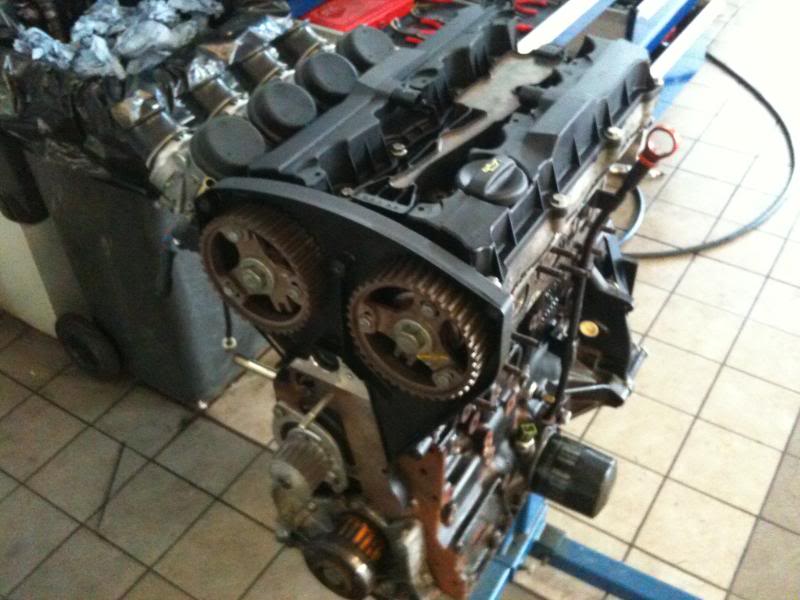

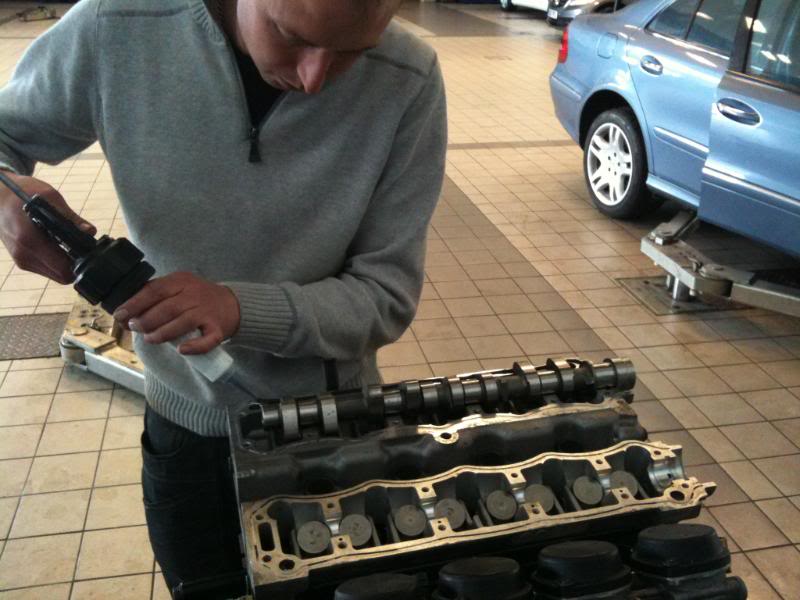

Finally with the bottom end most the way there I get the head bolted on
Just realized I didn't take any picture of this stage, but next we got the cams and cam ladders sealed up and bolted in.
Unfortunately I left the dowl that the cam belt tensioner goes onto on the old J4

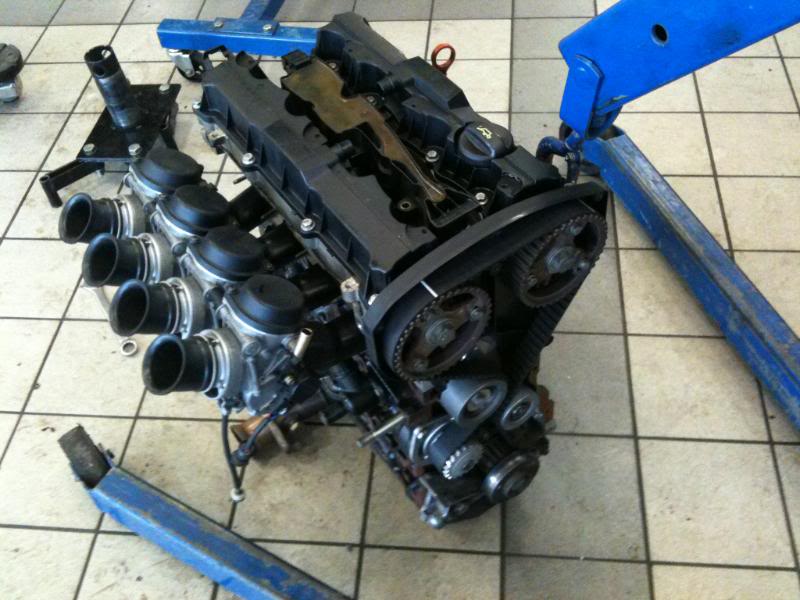

engine so I couldn't get the belt on and get it timed up but I did get the cam covers on, and trial fit the carbs and coil pack and I think it all looks pretty dam good!
Few more bits and bobs to sort and hopefully it shouldn't be too long until its in the car and running.
Cheers for looking, just glad to be finally making progress!
Today I finally got to something that seems like I've been waiting forever to do!
I finally managed to build the engine up (mostly).
To begin with I get the rest of the pistonsand rods in.
Next I built up the rest of the bottom end, oil pump, main seals etc...
Finally with the bottom end most the way there I get the head bolted on
Just realized I didn't take any picture of this stage, but next we got the cams and cam ladders sealed up and bolted in.
Unfortunately I left the dowl that the cam belt tensioner goes onto on the old J4
engine so I couldn't get the belt on and get it timed up but I did get the cam covers on, and trial fit the carbs and coil pack and I think it all looks pretty dam good!
Few more bits and bobs to sort and hopefully it shouldn't be too long until its in the car and running.
Cheers for looking, just glad to be finally making progress!
Rob
ClioSport Moderator
Join the club
Some of a Clio 1.8 16v
So so sorry chaps, we use one photobucket account for both the clio and the saxo and due to the progress being made and veiwed on both cars we've used up all our monthly bandwidth. But if you check back tomorrow it'll be a new month and all the pics will be back to veiw and post about to your hearts content.
Cheers
Cheers
Yeah I can see them fine, good bit of progress. I assume you'll be painting the block? What colour?
Some of a Clio 1.8 16v

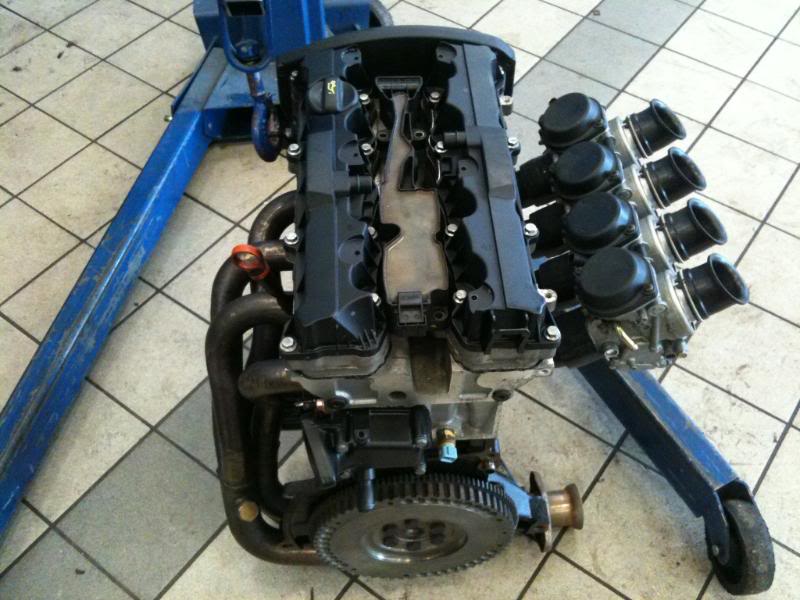

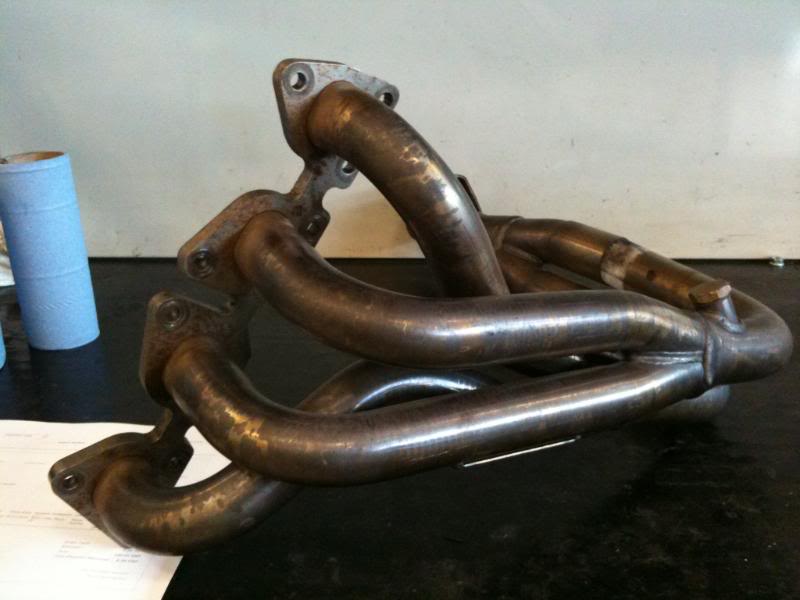

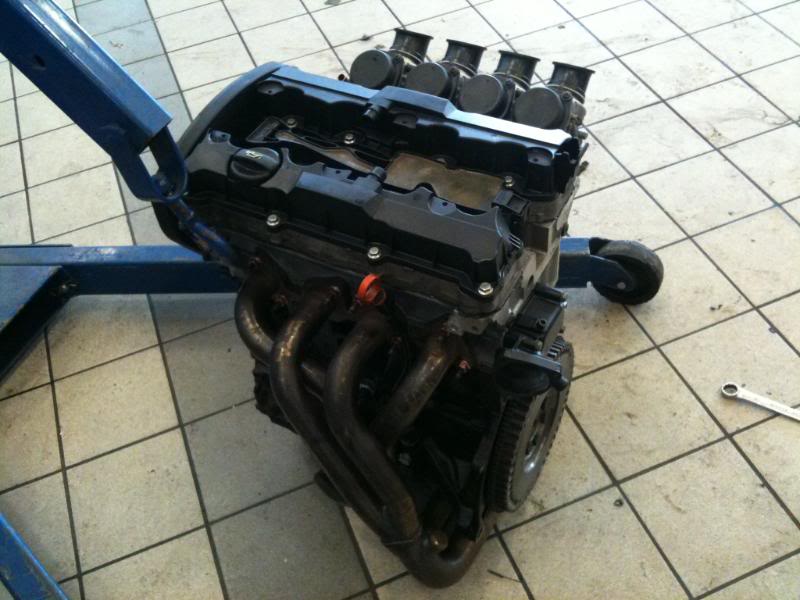

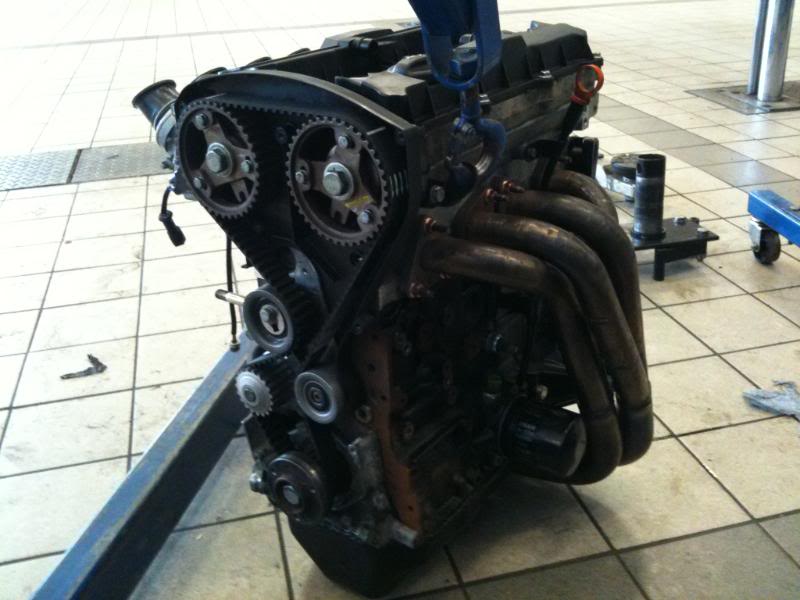

Not a hugely picturey update here, but my Supersprint exhaust manifold arrive today and I got my cambelt on and tensioned so my engine is now finally fully built up
That leaves my engine spec as follows:
TU5 JP4 engine converted for a Saxo
Gas flowed head with valve guides shaved
Newman Ph4 cams
Wossner high compression pistons
PEC forged rods
Race crank and big end bearings
Lightened by 3.7Kg and balanced crank
Lightened by 1.7Kg and balanced flywheel
Supersprint exhaust manifold
R1 carburettors
Custom modified and flowed Bogg brother inlet manifold
Now just need to drop it in the car
That leaves my engine spec as follows:
TU5 JP4 engine converted for a Saxo
Gas flowed head with valve guides shaved
Newman Ph4 cams
Wossner high compression pistons
PEC forged rods
Race crank and big end bearings
Lightened by 3.7Kg and balanced crank
Lightened by 1.7Kg and balanced flywheel
Supersprint exhaust manifold
R1 carburettors
Custom modified and flowed Bogg brother inlet manifold
Now just need to drop it in the car
Some of a Clio 1.8 16v
More updates again!
Sorry about all the pictures, I just can't stop taking pictures of my car!
I'm liking this, we're making good progress in the car again!

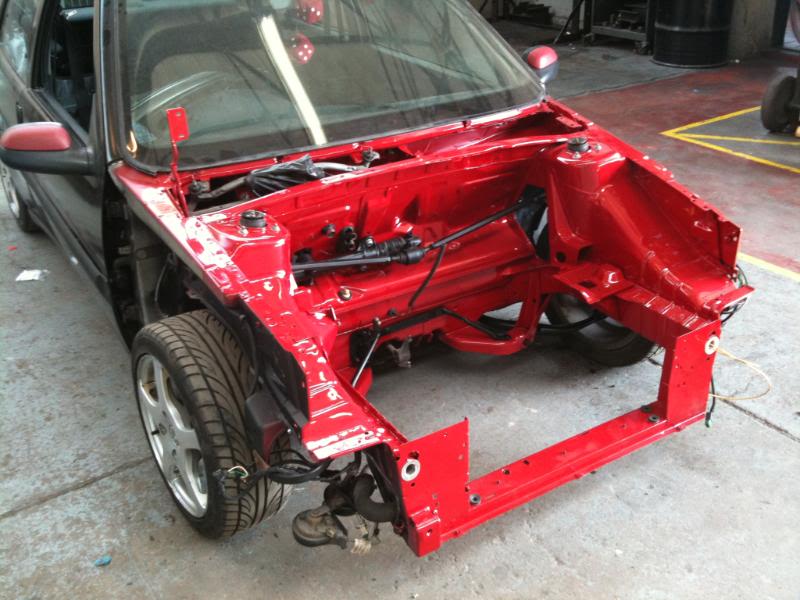

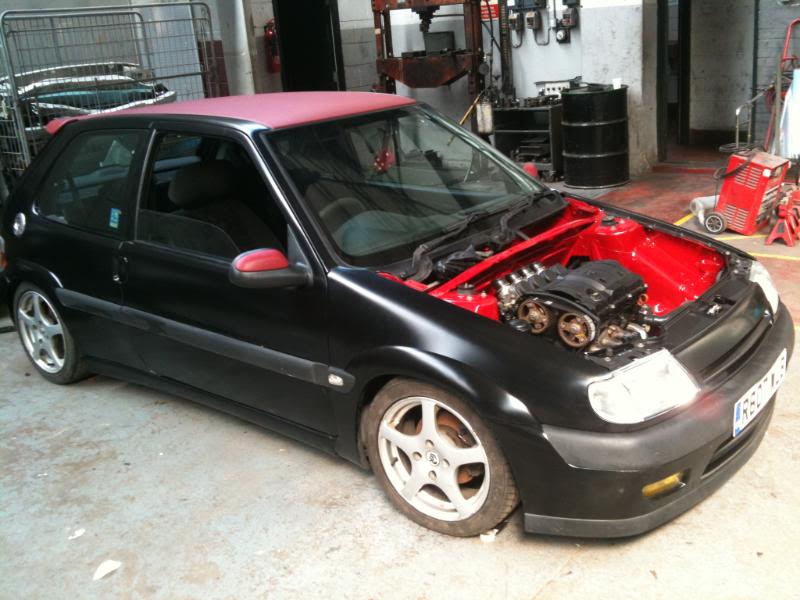

Not many pictures of us working on the car as it was a bit nerve racking working around the engine bay!

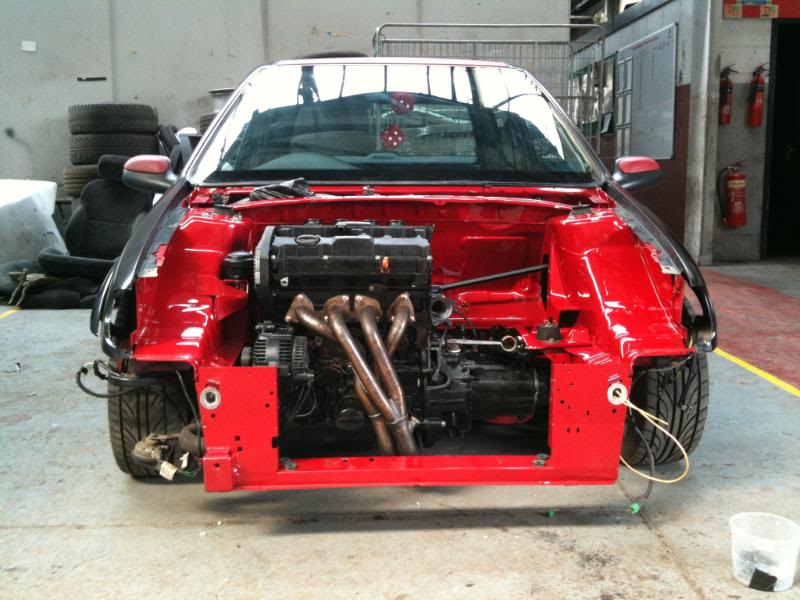

Firstly we bolting the dash as the engine loom is in the dash!

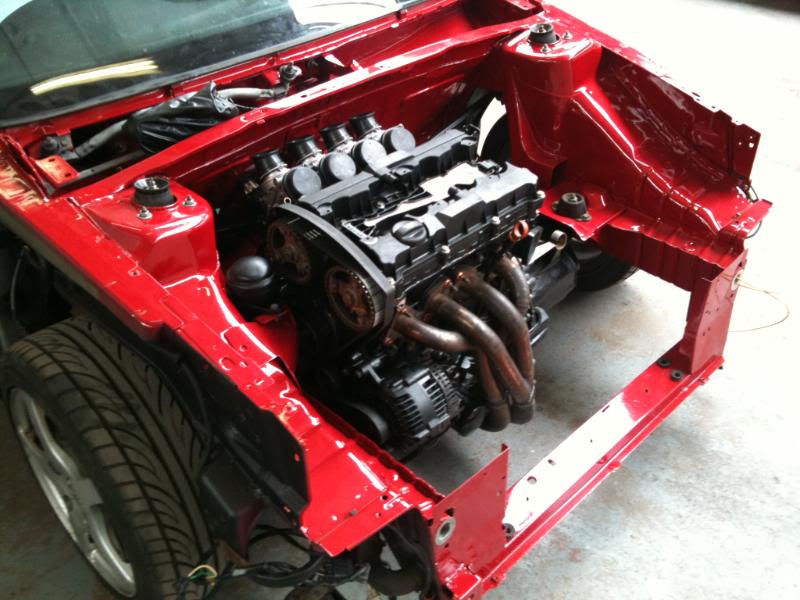

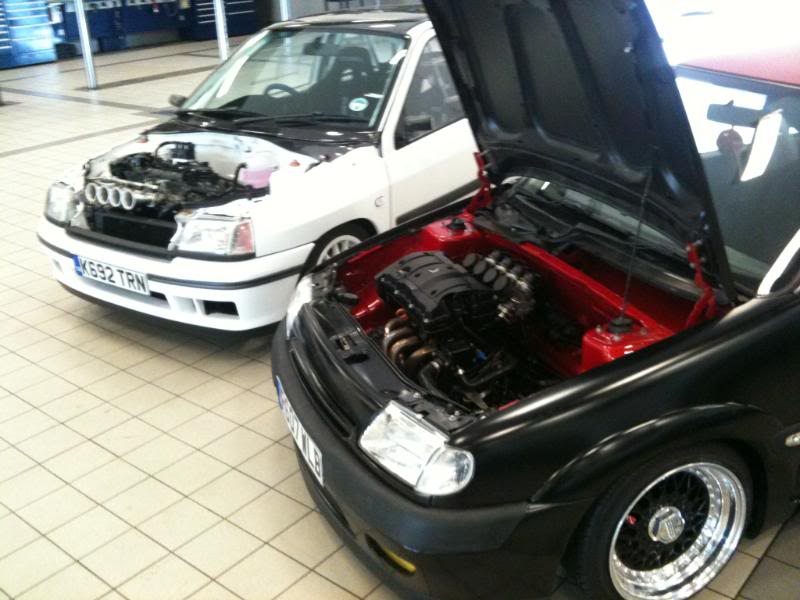

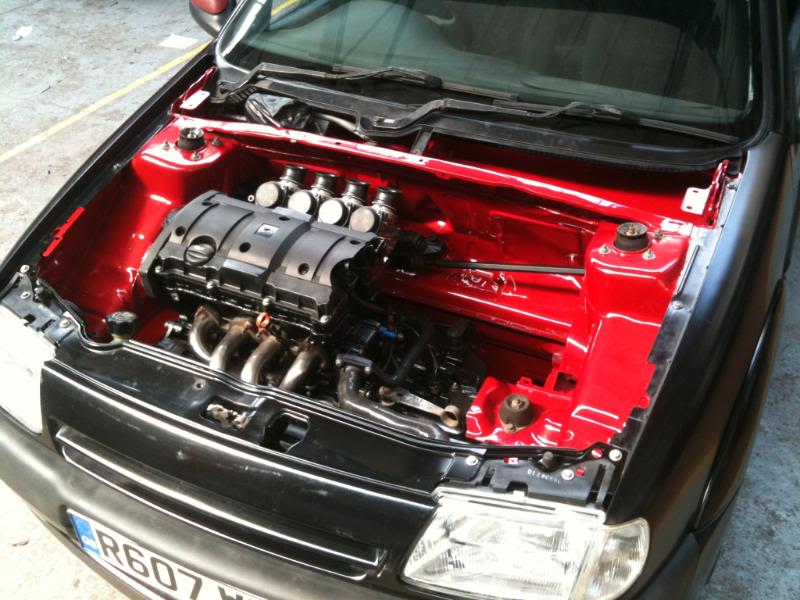

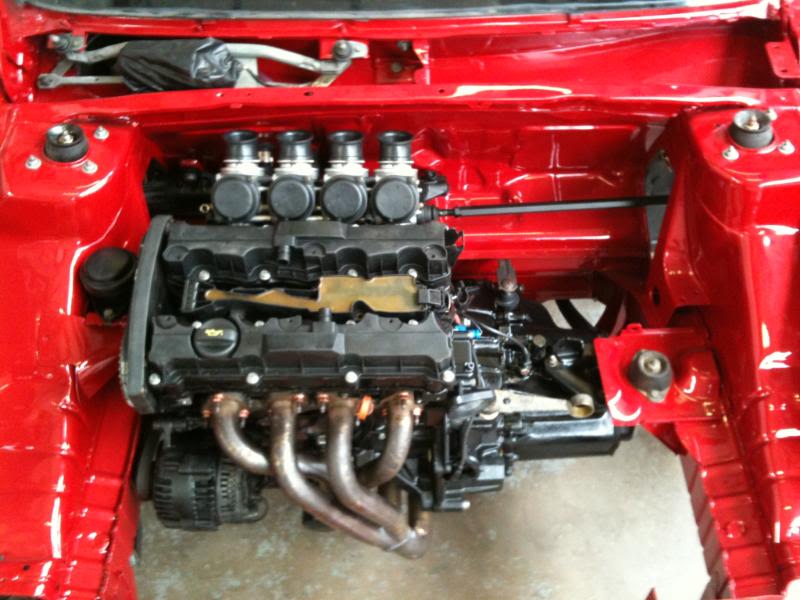

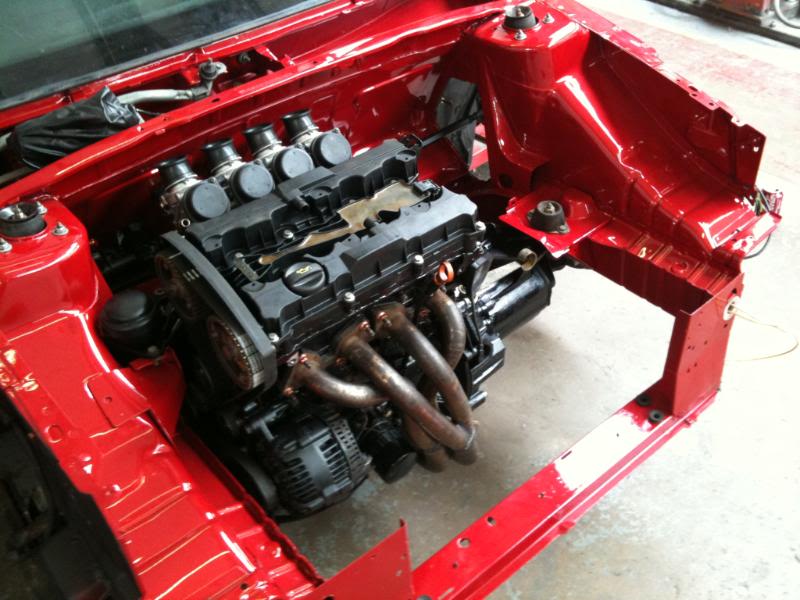

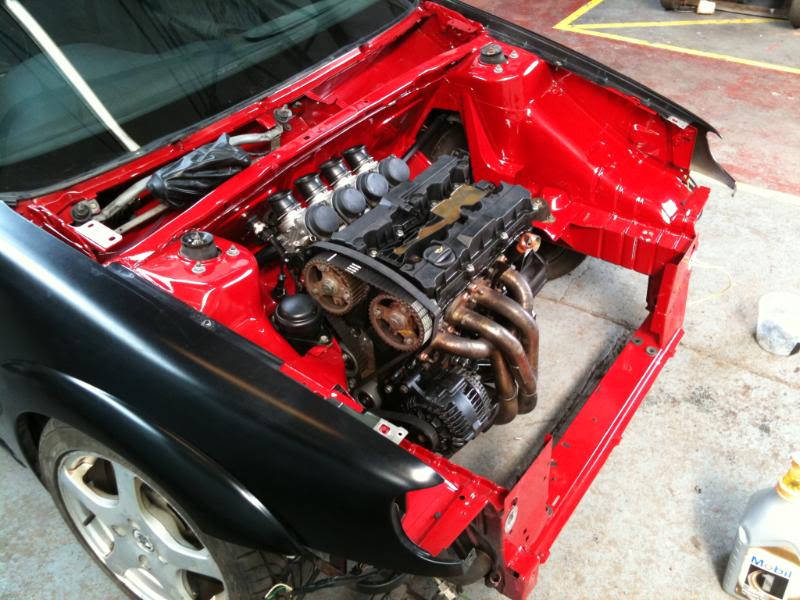

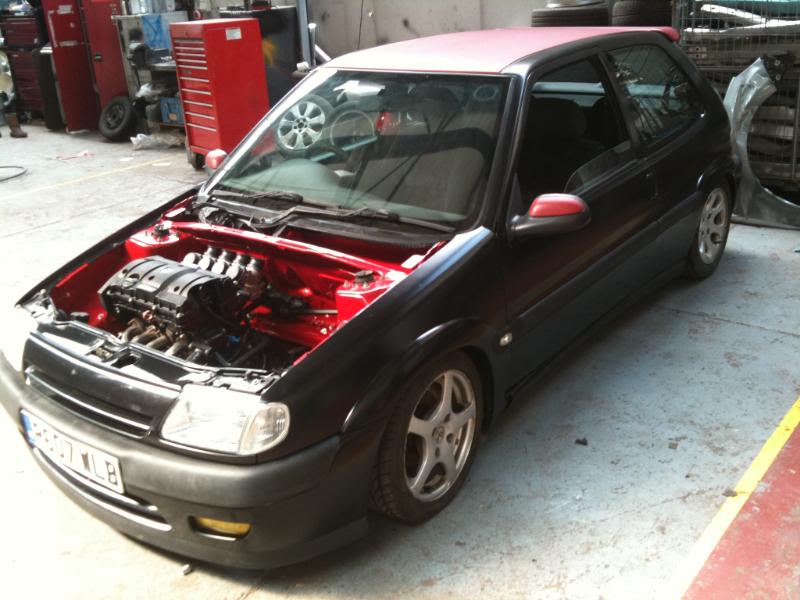

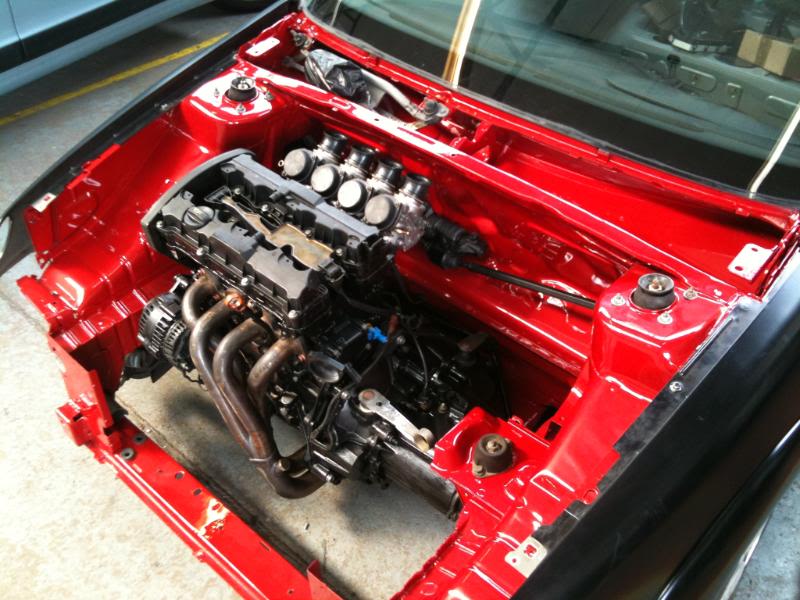

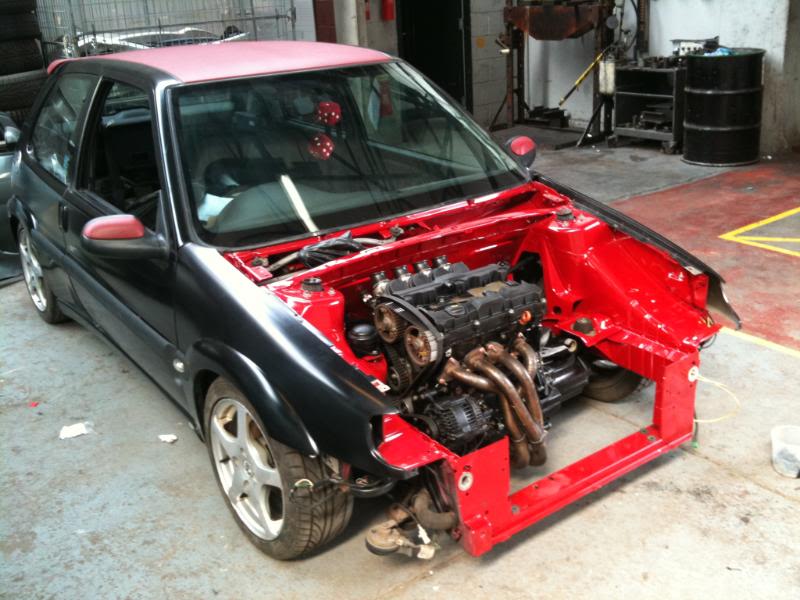

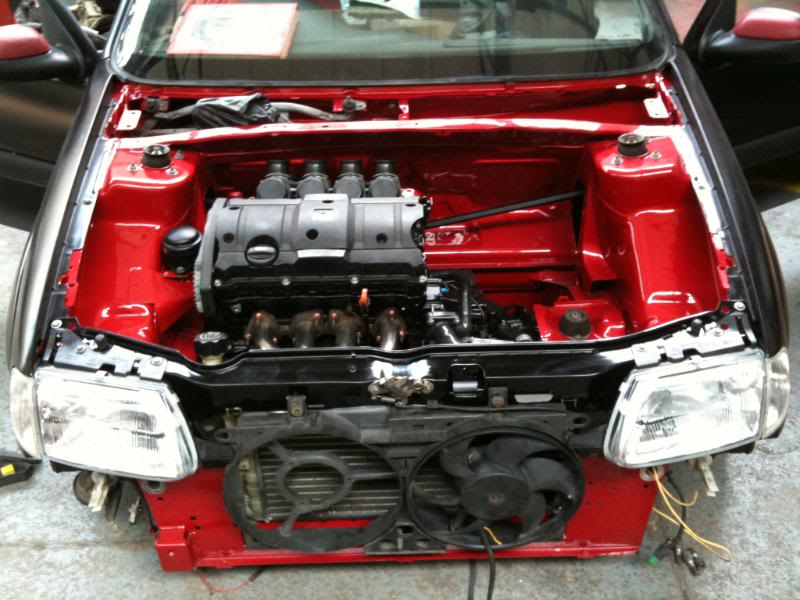

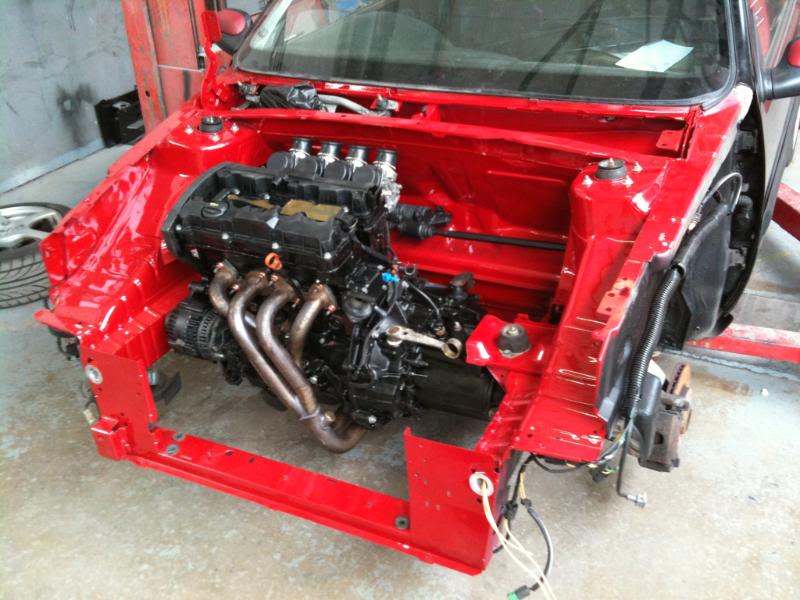

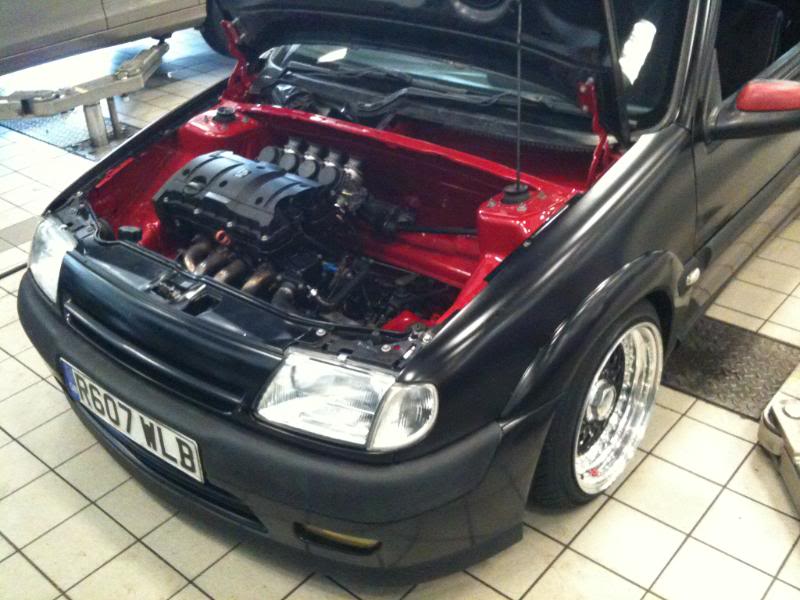

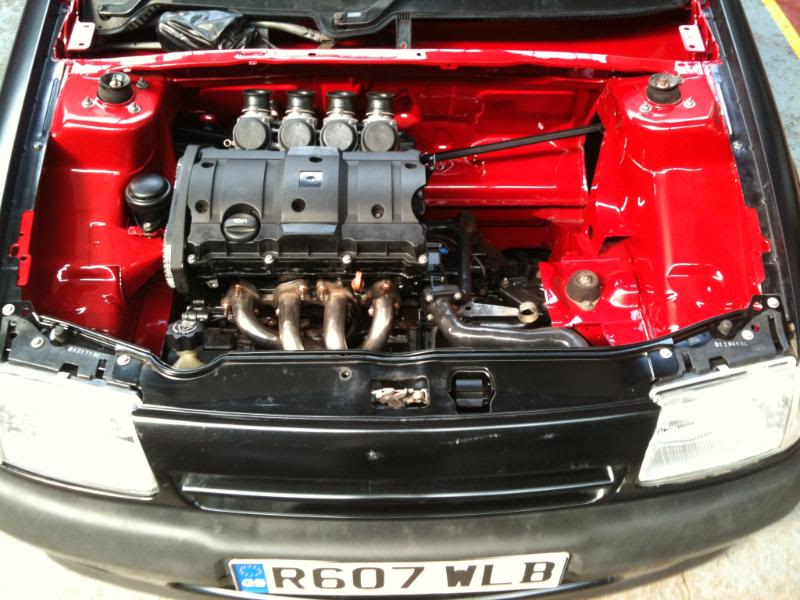

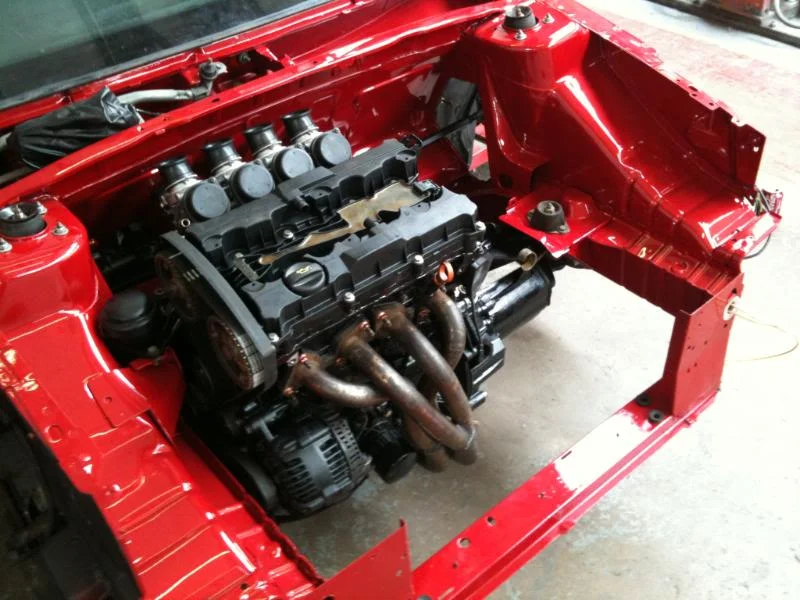

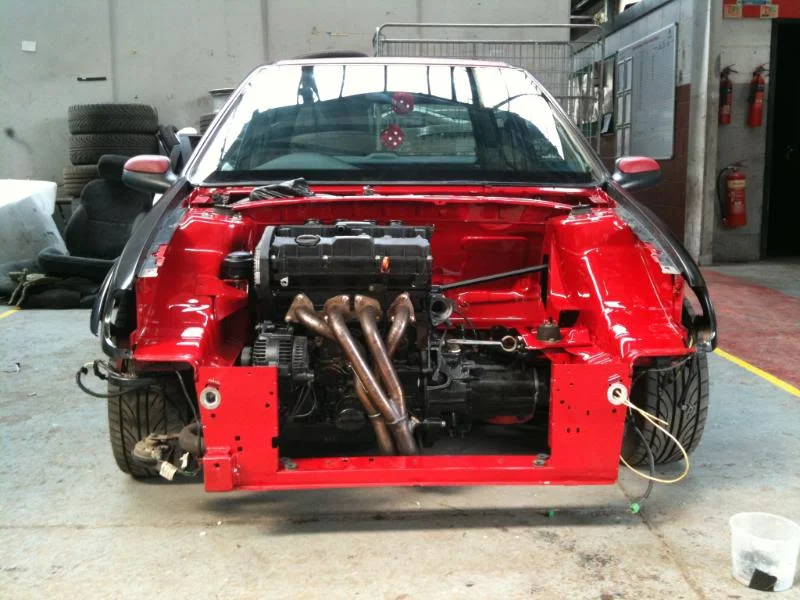

But anyways, the engine is now in and I think it looks amazing!

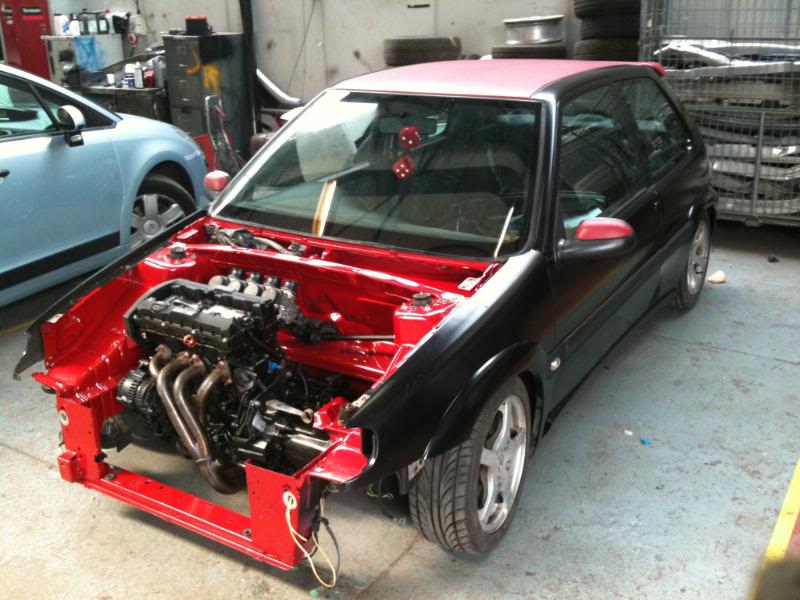

Also ot the wings bolted back on and leathered the car off

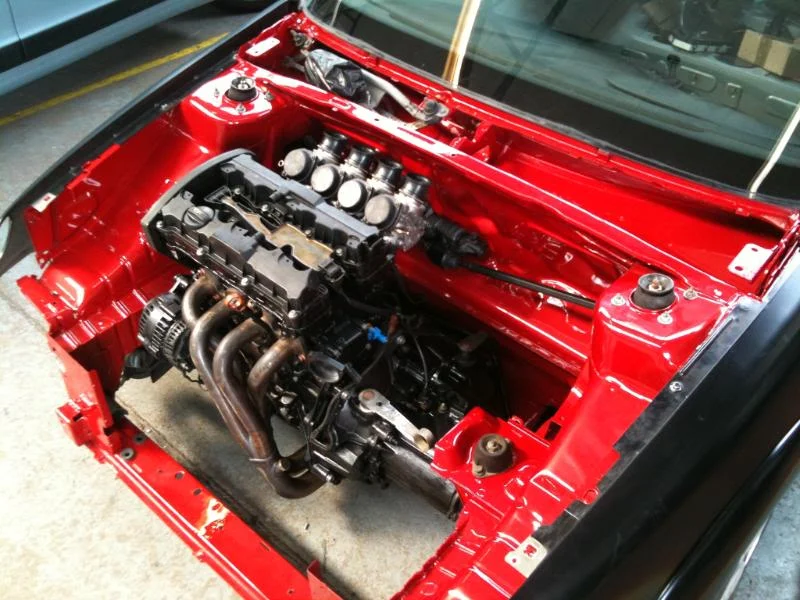

That is pretty much everything (bar the front end, rad etc) in the engine bay, wiring is all in and the carbs are piped up!
Hopefully more progress very soon.
Sorry about all the pictures, I just can't stop taking pictures of my car!
I'm liking this, we're making good progress in the car again!
Not many pictures of us working on the car as it was a bit nerve racking working around the engine bay!
Firstly we bolting the dash as the engine loom is in the dash!
But anyways, the engine is now in and I think it looks amazing!
Also ot the wings bolted back on and leathered the car off
That is pretty much everything (bar the front end, rad etc) in the engine bay, wiring is all in and the carbs are piped up!
Hopefully more progress very soon.
Rob
ClioSport Moderator
Superb
Love it, especially the bay colour.
Love it, especially the bay colour.
j plate 91 449 valver,
looks absolutely epic, the engine bay looks like my kind of heaven, no visible wires. i have a question about the flywheel though, as it can be seen in the pics the holes drilled to lighten it dont seem to be the same distance apart in each segment. does this mean that the flywheel originally was not balanced. or have other holes been drilled slightly further out to compensate for this?
i have a question about the flywheel though, as it can be seen in the pics the holes drilled to lighten it dont seem to be the same distance apart in each segment. does this mean that the flywheel originally was not balanced. or have other holes been drilled slightly further out to compensate for this?
Says a few pages back iirc its due to there being less wiring therefore neater.
Trophy Turbo :)
WOW Great Work lads, Fantastic
Some of a Clio 1.8 16v
Cheers for all the comments
We've been busy again and this time we've finally sorted a couple of things that we've been needing to do for sometime.
Having our other breaking black VTS has helped with supplying some later spec bits.

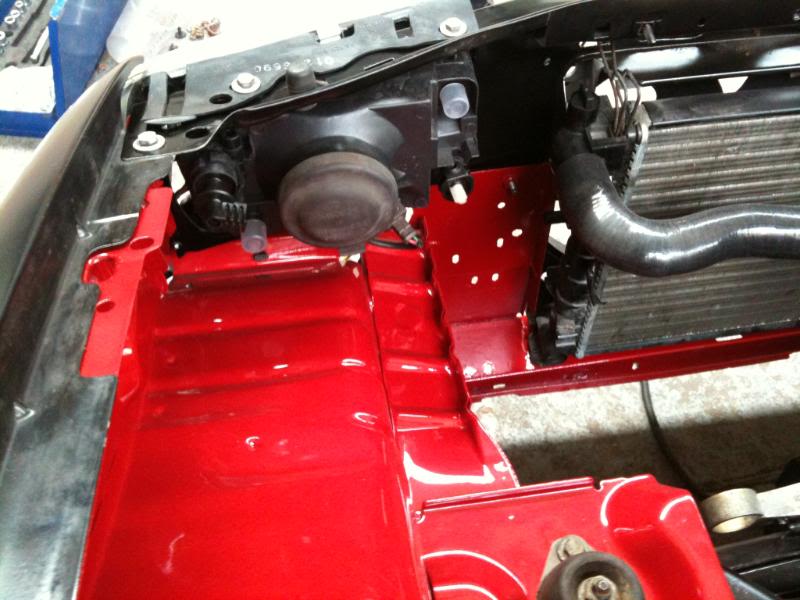

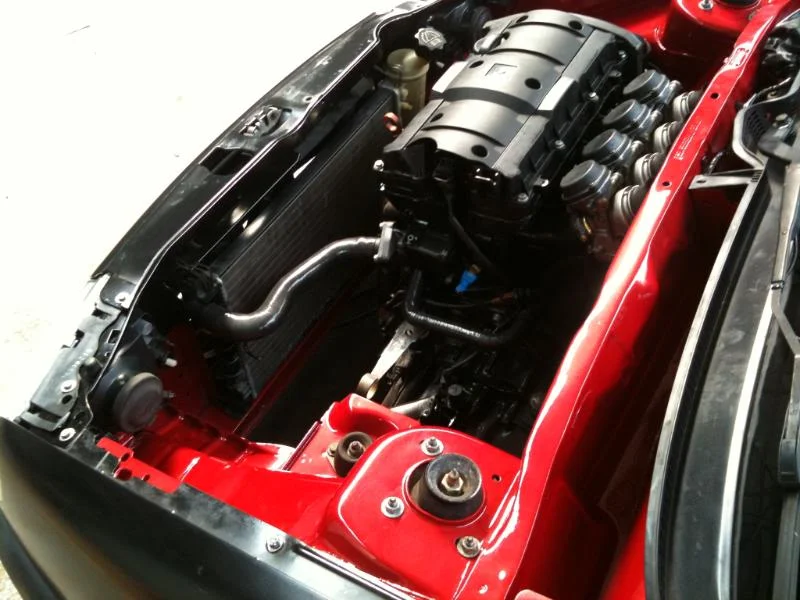

First thing we did was bolt the front end together using the later spec rad as I prefere the cap. Also got our hidden bonnet cable connected and checked.

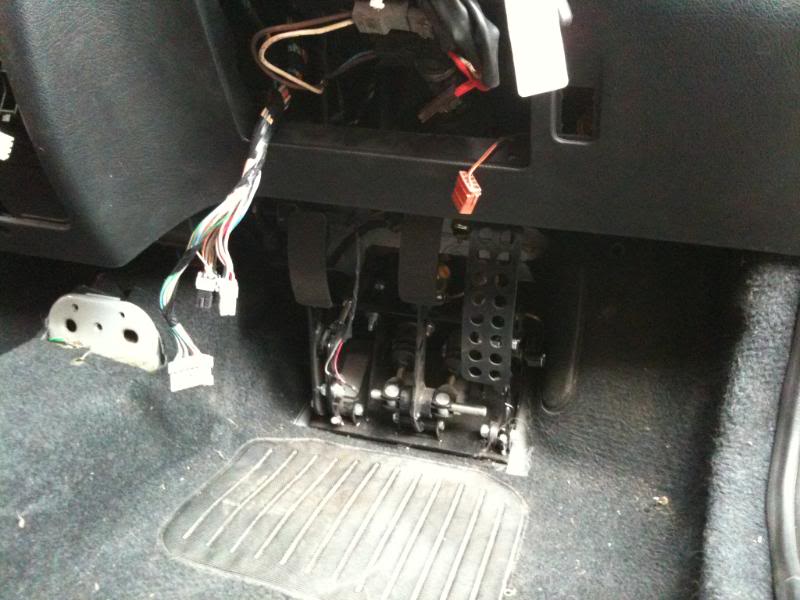

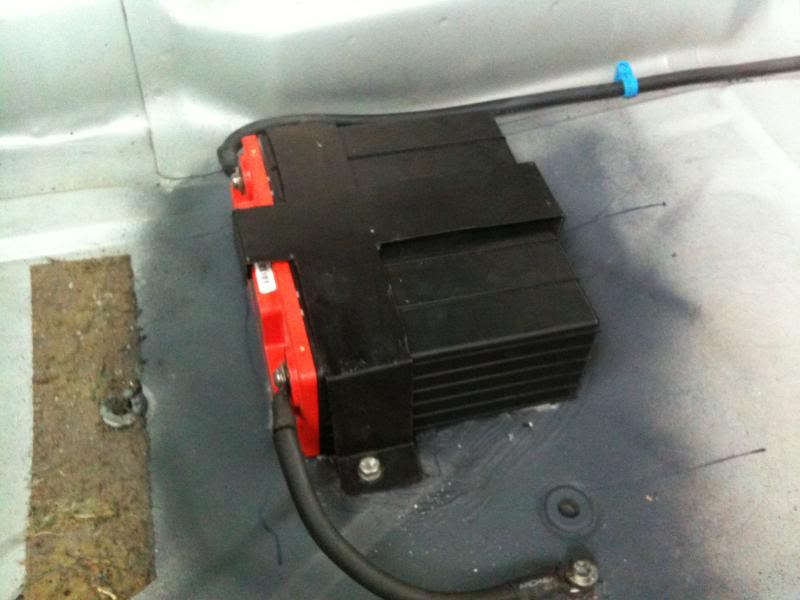

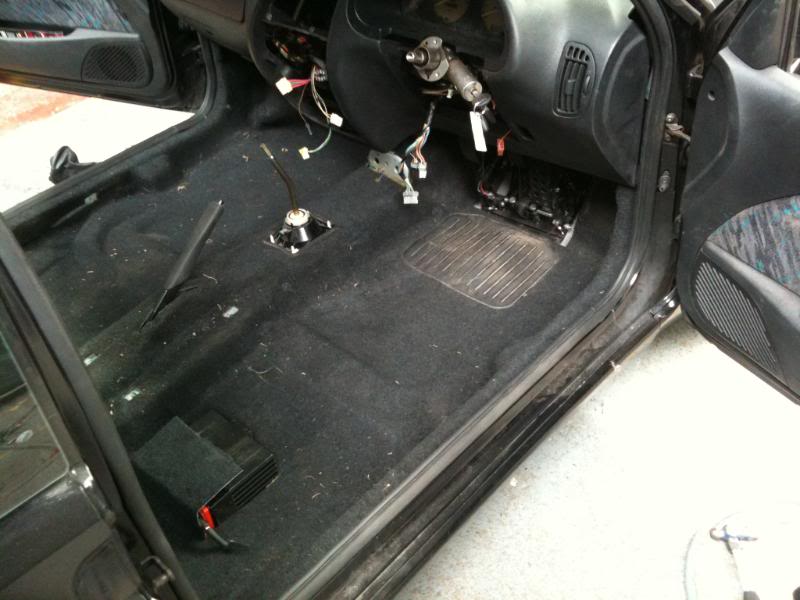

Then with that bolted together, we set about mounting the battery, which turned out to be a bit of an arse as the floor wasn't flat where we wanted to mount the battery so we had to cut and plate a section in the floor.

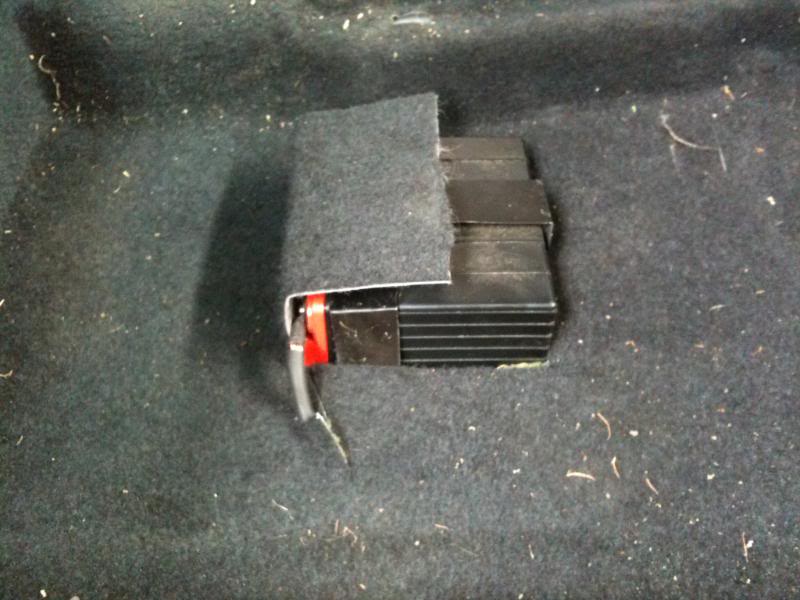

Then with the floor flatterned we made ourselves a battery bracket which we are rather happy with.
As we had now FINALLY got round to mounting the battery we could at last fit the interior, but the old interior was looking awful, covered in welding burns and stored in a leaky garage so not smelling its best.

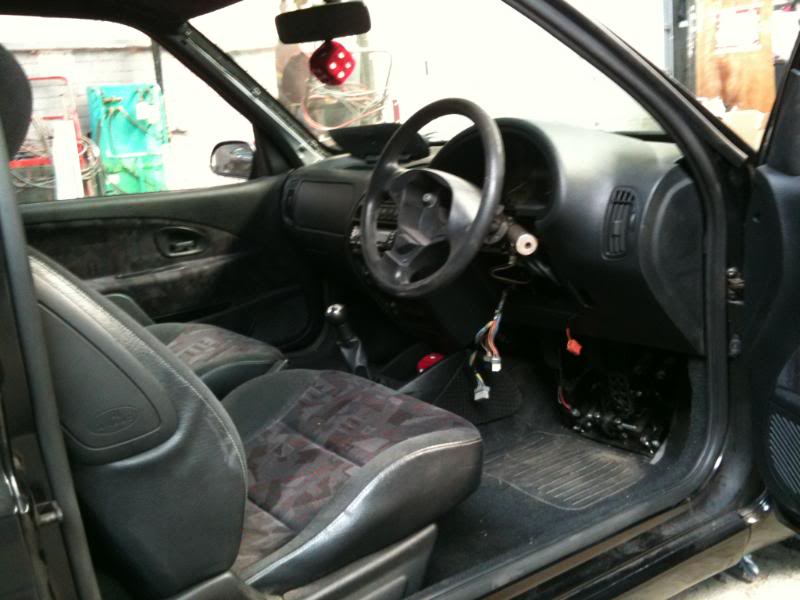

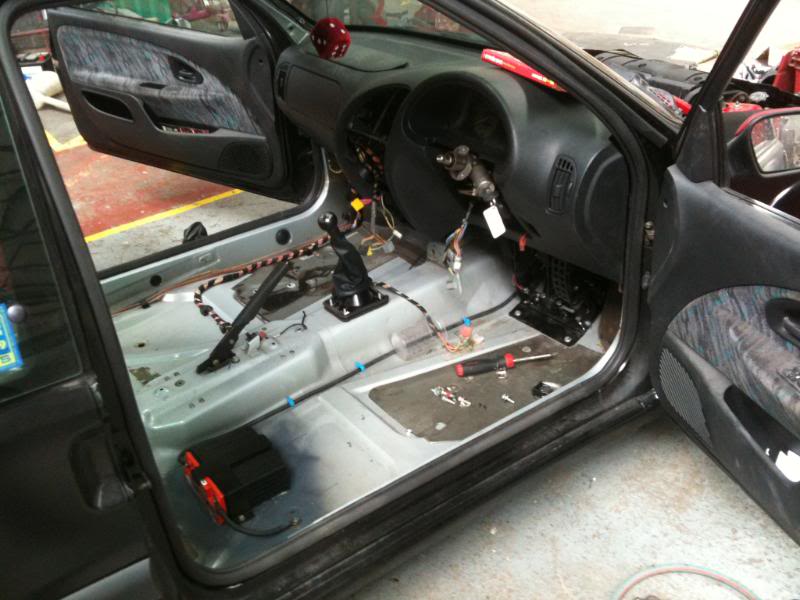

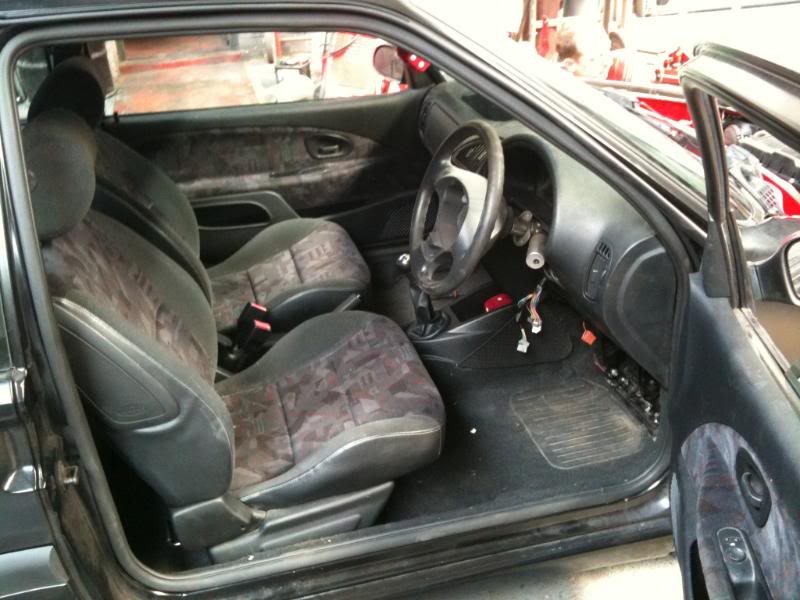

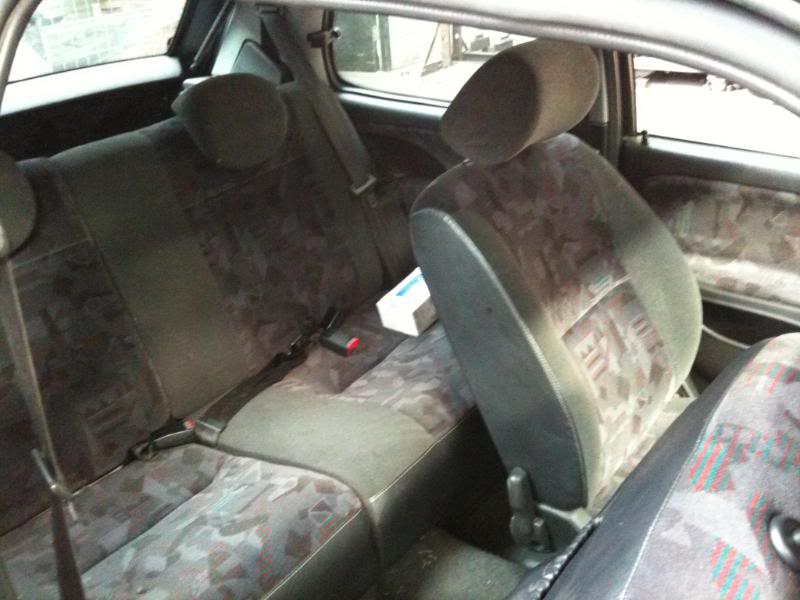

So, we decided to use the interior out of our breaking 03 plate VTS.
The car is now showing sme signs of life, although we haven't put the engine earth on yet
Then just to make ourselves feel a bit better we clipped the front bumper and grill on to get an idea of how it will look when its finished.
Still have a few things left to do but definitely getting there.
We've been busy again and this time we've finally sorted a couple of things that we've been needing to do for sometime.
Having our other breaking black VTS has helped with supplying some later spec bits.
First thing we did was bolt the front end together using the later spec rad as I prefere the cap. Also got our hidden bonnet cable connected and checked.
Then with that bolted together, we set about mounting the battery, which turned out to be a bit of an arse as the floor wasn't flat where we wanted to mount the battery so we had to cut and plate a section in the floor.
Then with the floor flatterned we made ourselves a battery bracket which we are rather happy with.
As we had now FINALLY got round to mounting the battery we could at last fit the interior, but the old interior was looking awful, covered in welding burns and stored in a leaky garage so not smelling its best.
So, we decided to use the interior out of our breaking 03 plate VTS.
The car is now showing sme signs of life, although we haven't put the engine earth on yet
Then just to make ourselves feel a bit better we clipped the front bumper and grill on to get an idea of how it will look when its finished.
Still have a few things left to do but definitely getting there.
Nafoff
ClioSport Club Member
noice
Nimbus 197, Ph1 172
Looks great. Exterior not quite to my taste, but I certainly admire the work going into this. I'm gussing you should see upwards of 190bhp with that set-up?
Some of a Clio 1.8 16v
We're back!
Not a huge amount of pics to go with this post as, well I forgot to be honest, but we've been doing a little finishing off this weekend.

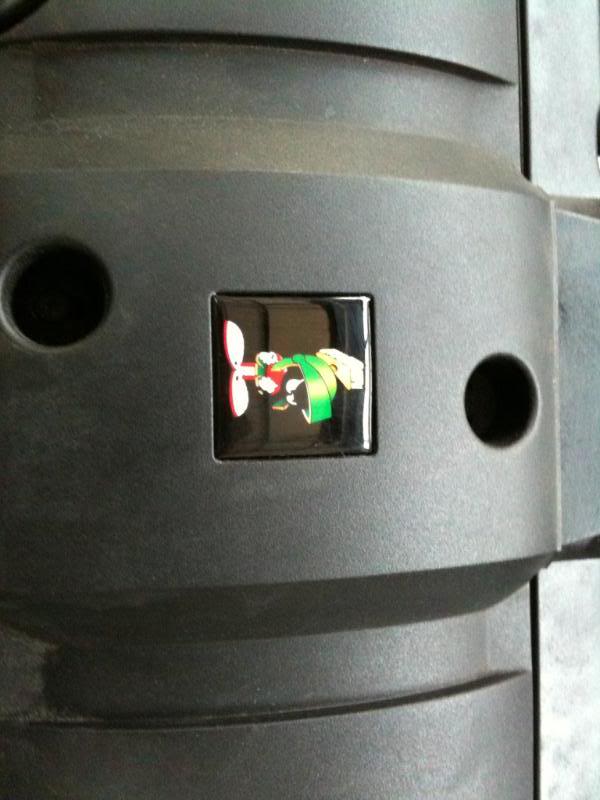

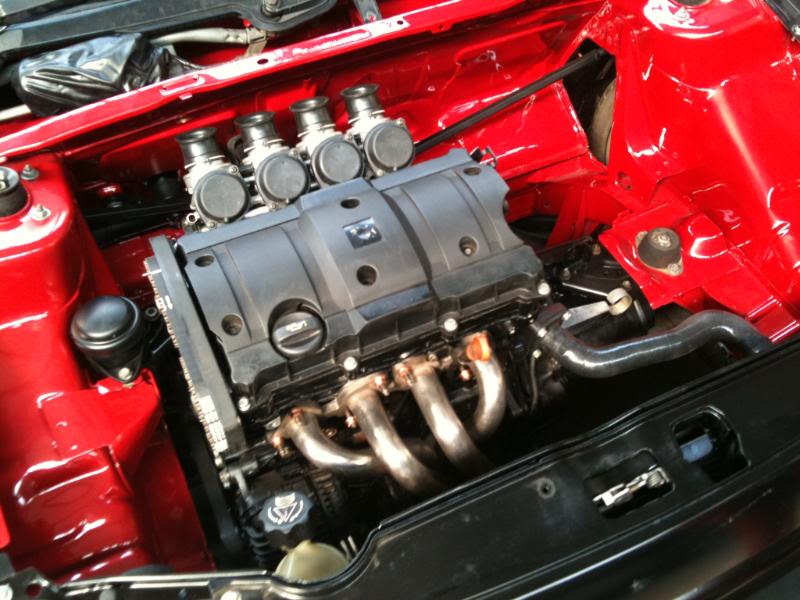

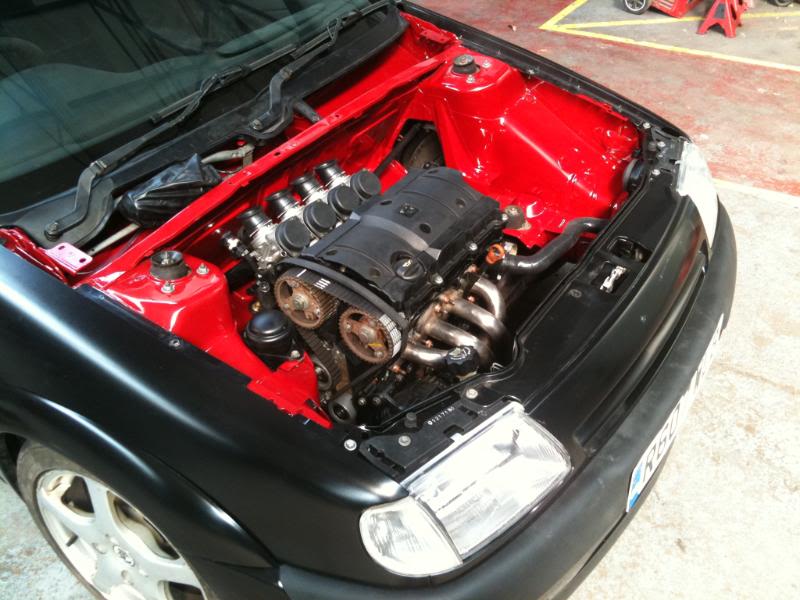

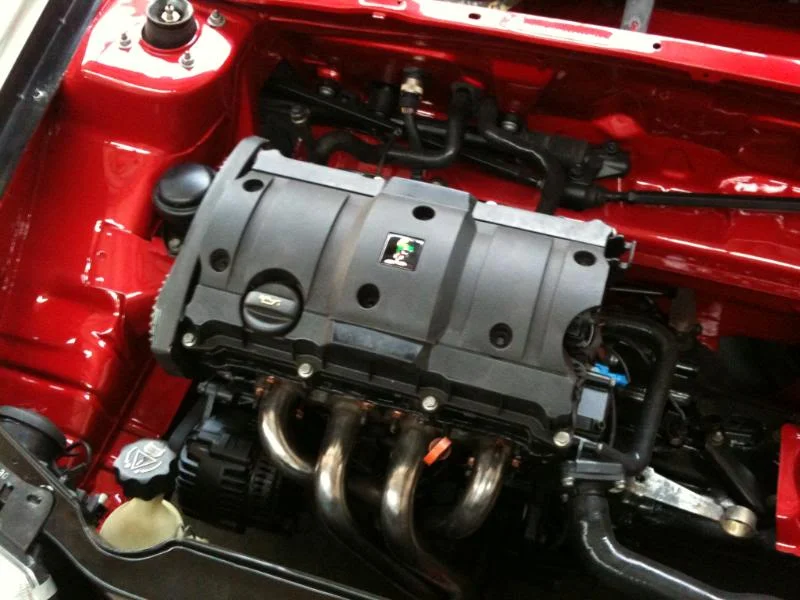

As my engine was out of a Peugeot I removed the badge off the coil cover earlier, but today I finally got hold of the replacment badge for the coil cover, and I think it looks amazing.
This image has been resized. Click this bar to view the full image. The original image is sized 600x800 and weights 56KB.
Next, we spent a lot of time devising and constructing a bracket to hold the throttle cable beneath the carbs so as to seem invisible, once again not many pics but...

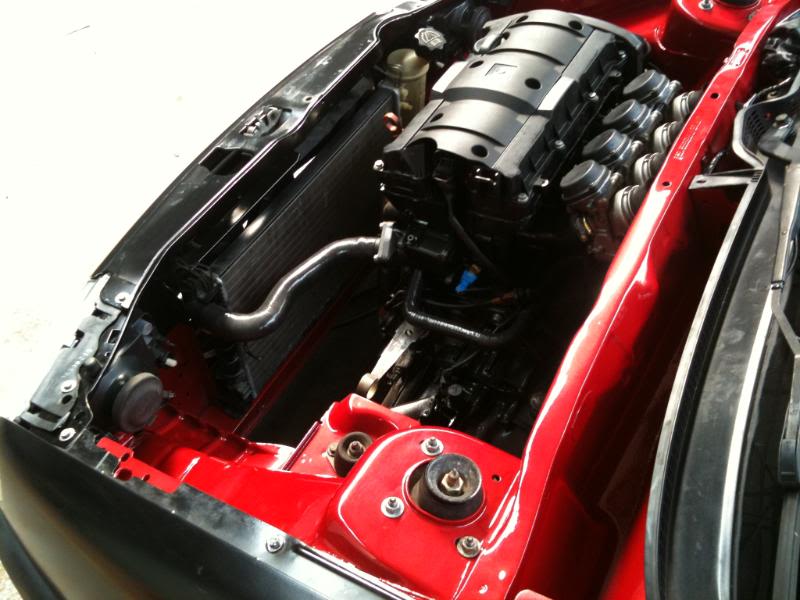

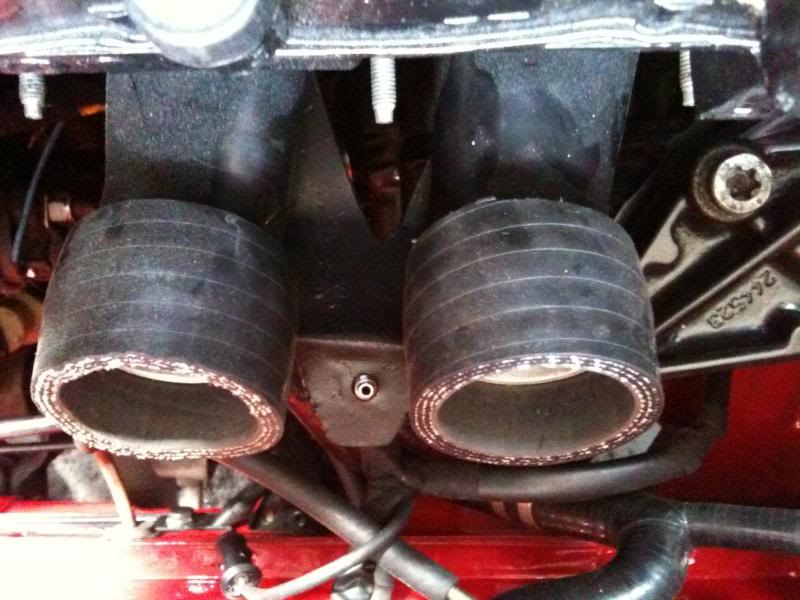

Then wew finally got the hose clips on the coolant and induction hoses, filled it with coolant and oil, fitted an engine earth strap and set about a function check.
Here are the videos, sorry about the quality
CLICK ON THE VIDEO'S BELOW
Engine START!!!!:

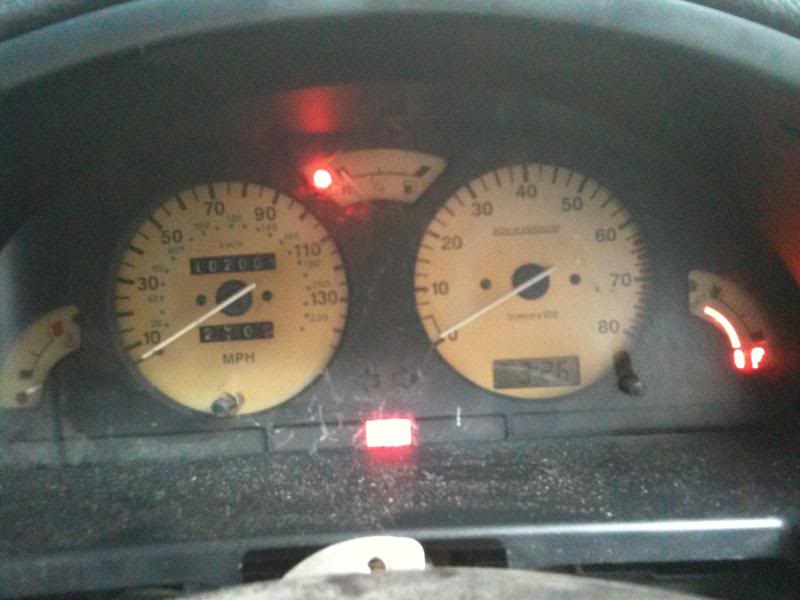

Dials, gauges and lights:
Ancilleries:
Sill needs mapping and carbs set up, the throttle and clutch cable fitting to the pedal box and the brakes bleeding, but we're getting there!
Not a huge amount of pics to go with this post as, well I forgot to be honest, but we've been doing a little finishing off this weekend.
As my engine was out of a Peugeot I removed the badge off the coil cover earlier, but today I finally got hold of the replacment badge for the coil cover, and I think it looks amazing.
Next, we spent a lot of time devising and constructing a bracket to hold the throttle cable beneath the carbs so as to seem invisible, once again not many pics but...
Then wew finally got the hose clips on the coolant and induction hoses, filled it with coolant and oil, fitted an engine earth strap and set about a function check.
Here are the videos, sorry about the quality
CLICK ON THE VIDEO'S BELOW
Engine START!!!!:
Dials, gauges and lights:
Ancilleries:
Sill needs mapping and carbs set up, the throttle and clutch cable fitting to the pedal box and the brakes bleeding, but we're getting there!
Nafoff
ClioSport Club Member
good work again guys...
Some of a Clio 1.8 16v
I'm BACK!
I've been very quiet of late as its been the build up to the proof!
The week before last I rang ATSpeed and got my car booked in for the following Thursday to be rolling road set up, so then I rang a recovery firm to get the car down there, who picked it up Wednesday night and delivered it to ATSpeed Thursday!
After a couple of phone calls about problems they were having I decided, this morning to head down Essex to do some of the donkey work required to get it into a condition to be mapped.
The main problem was the way we had got the throttle cable was too difficult to remove (pretty much impossible) meaning the carbs weren't easy to remove meaning they couldn't rejet them.
So I got there this morning, got it all stripped out and with a couple of choice modifications to the bracketry and we were ready to go!

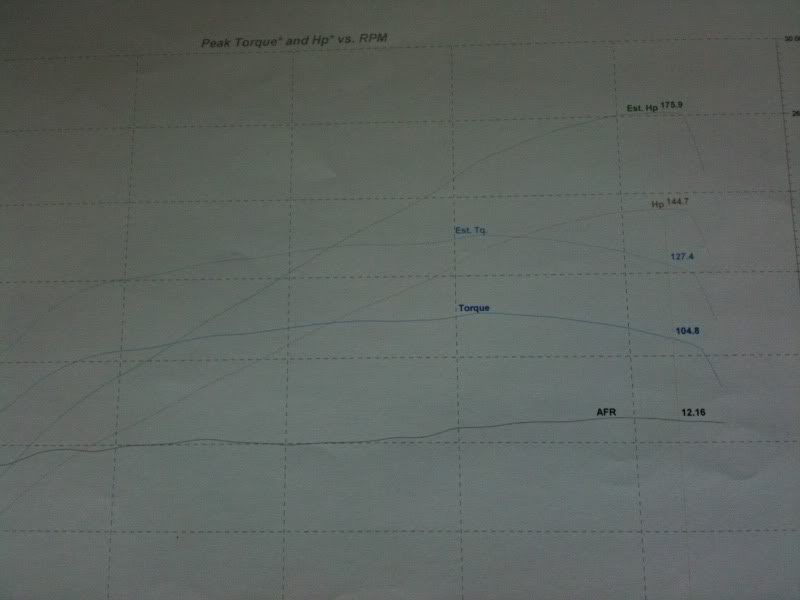

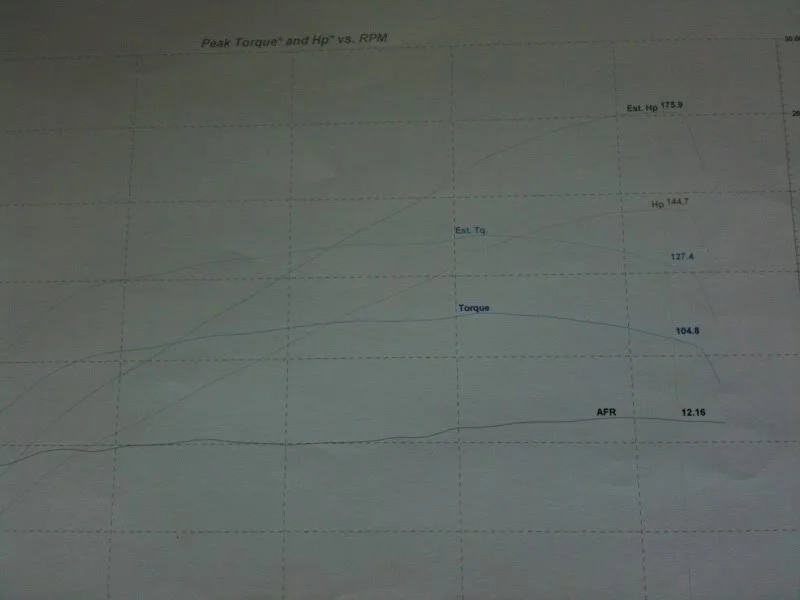

We got the car onto the rollers at about 11 this morning and after about 7 jet changes we finally got a HP figure out of the engine!
144.7HP at the wheels
104.8 Torques at the wheels
Meaning, about:
175.9HP at the flywheel
127.4 Torques at the flywheel
I have to admit that I have had a brilliant, fun, if very stressful day with some really good lads!
I really couldn't recommend ATSpeed more, as long as you're thick skinned, they utterly know what they are on about and are a good crack to work with to boot!
Also sorry to Mattyvts (I think) it was, for holding him up all day for his second power run!
I've been very quiet of late as its been the build up to the proof!
The week before last I rang ATSpeed and got my car booked in for the following Thursday to be rolling road set up, so then I rang a recovery firm to get the car down there, who picked it up Wednesday night and delivered it to ATSpeed Thursday!
After a couple of phone calls about problems they were having I decided, this morning to head down Essex to do some of the donkey work required to get it into a condition to be mapped.
The main problem was the way we had got the throttle cable was too difficult to remove (pretty much impossible) meaning the carbs weren't easy to remove meaning they couldn't rejet them.
So I got there this morning, got it all stripped out and with a couple of choice modifications to the bracketry and we were ready to go!
We got the car onto the rollers at about 11 this morning and after about 7 jet changes we finally got a HP figure out of the engine!
144.7HP at the wheels
104.8 Torques at the wheels
Meaning, about:
175.9HP at the flywheel
127.4 Torques at the flywheel
I have to admit that I have had a brilliant, fun, if very stressful day with some really good lads!
I really couldn't recommend ATSpeed more, as long as you're thick skinned, they utterly know what they are on about and are a good crack to work with to boot!
Also sorry to Mattyvts (I think) it was, for holding him up all day for his second power run!
Rob
ClioSport Moderator
Great work, can't help but think with the outside and engine bay looking so awesome and unique, you could do with some better seats? Maybe something for the future?
Nice power that, too!
Nice power that, too!
Some of a Clio 1.8 16v
Finally, I've been waiting SO long to do this!

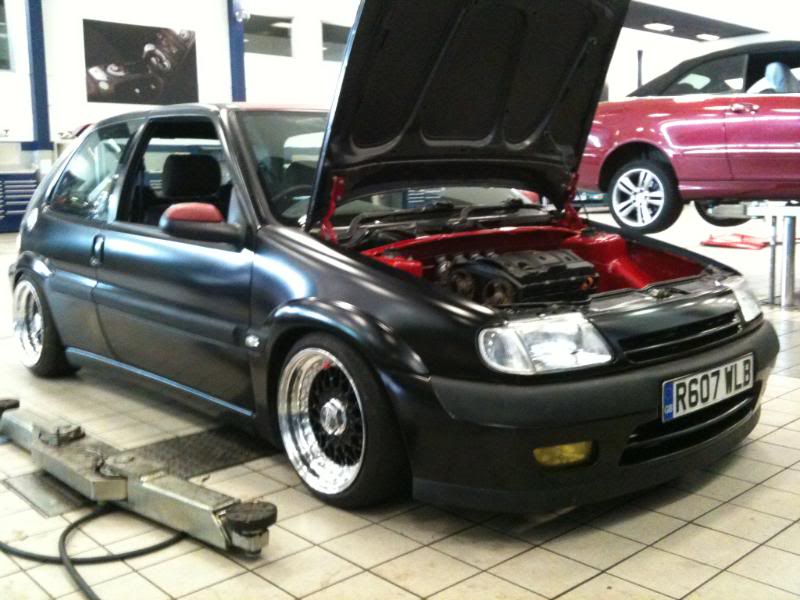

With the car set up, and running beautifully we thought it was about time to make the ol' Saxo look purdy again.
So this morning, we got up early, loaded up the derv and followed one another to my work!

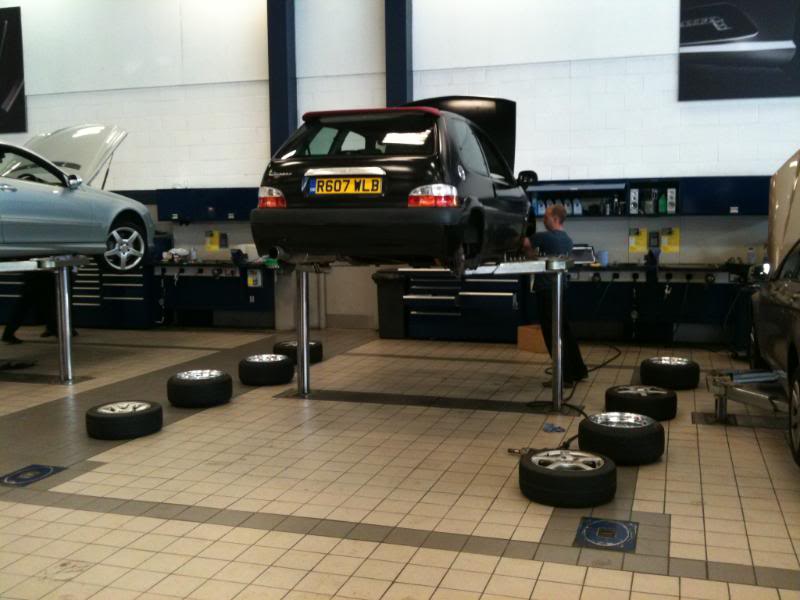

First job was to get the tyres on the rims!
Front: 8.5x15 running 185/45 R15
Rear: 9x15 running 195/45 R15
I think the sideswall must have been shaped my already having been stretched as they went on and inflated really easily!?
Brother slaving away to help me out
Then with them all fitted we wound the coilovers down to the bottom again as we had them up a couple of inches to make it easier to work on!
Also replaced the handbrake cable that snapped when we put it on the recovery truck to get it to be mapped (thank you!)

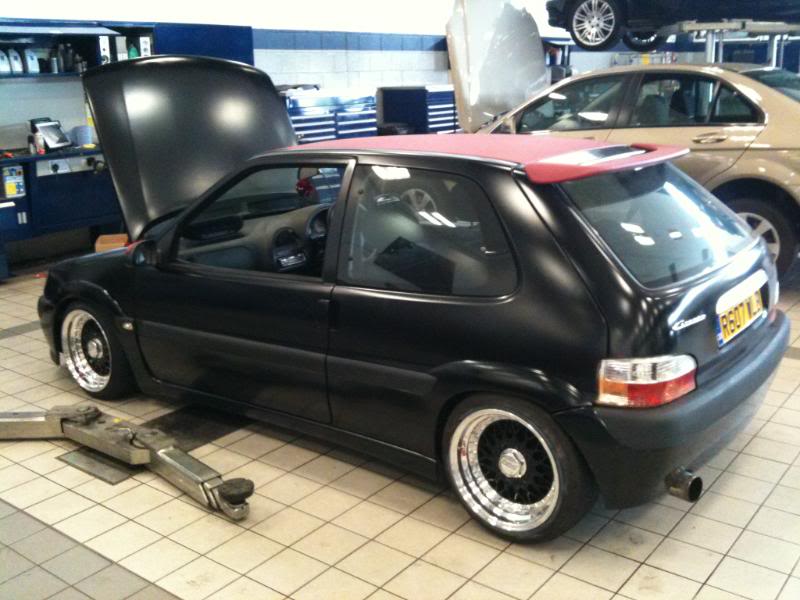

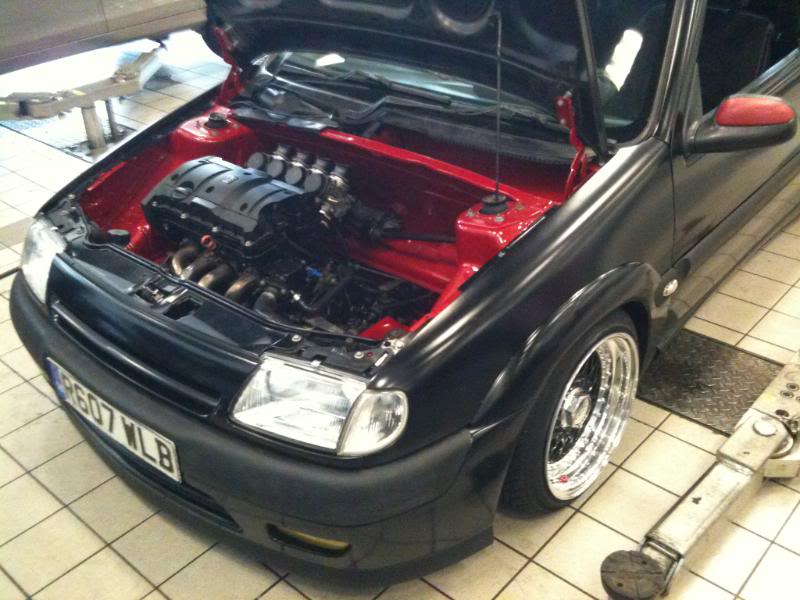

Next we lowered in down off the ramp and took LOTS of photos!

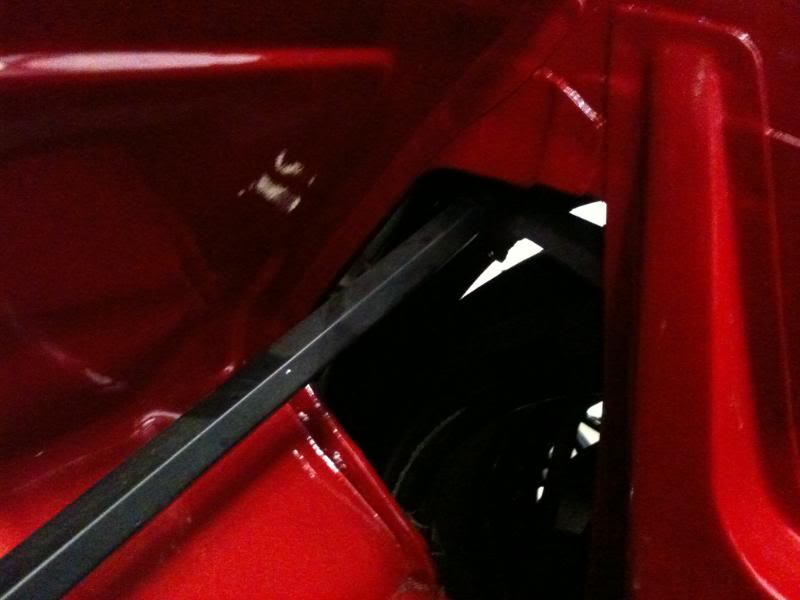

Not much room to get lower as the track rods will hit the inner wings!?
...and back to the ASWing lol

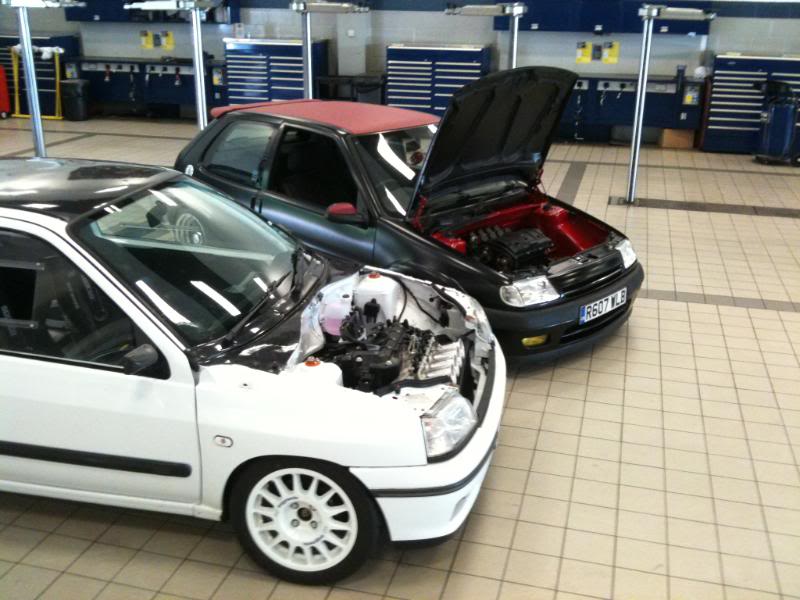

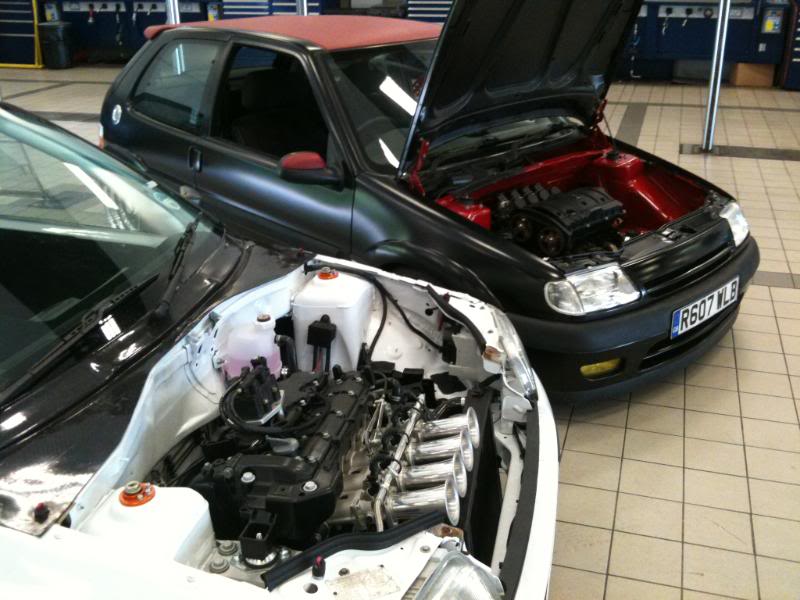

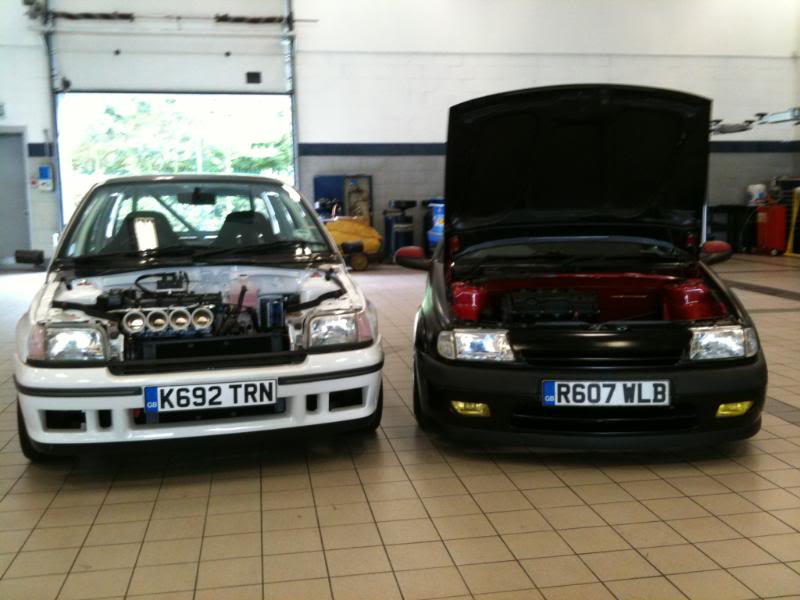

We've also got my brothers track Clio build nearly finished, so that got in on the action
...and the Derv
Starting to realize how few pictures there are of my car all together and looking good so I may have to do a photo shoot soon!
I still can't get over how well my car runs and drive, I really can't thank and recommend Atspeed enough!
Cheers for looking
With the car set up, and running beautifully we thought it was about time to make the ol' Saxo look purdy again.
So this morning, we got up early, loaded up the derv and followed one another to my work!
First job was to get the tyres on the rims!
Front: 8.5x15 running 185/45 R15
Rear: 9x15 running 195/45 R15
I think the sideswall must have been shaped my already having been stretched as they went on and inflated really easily!?
Brother slaving away to help me out
Then with them all fitted we wound the coilovers down to the bottom again as we had them up a couple of inches to make it easier to work on!
Also replaced the handbrake cable that snapped when we put it on the recovery truck to get it to be mapped (thank you!)

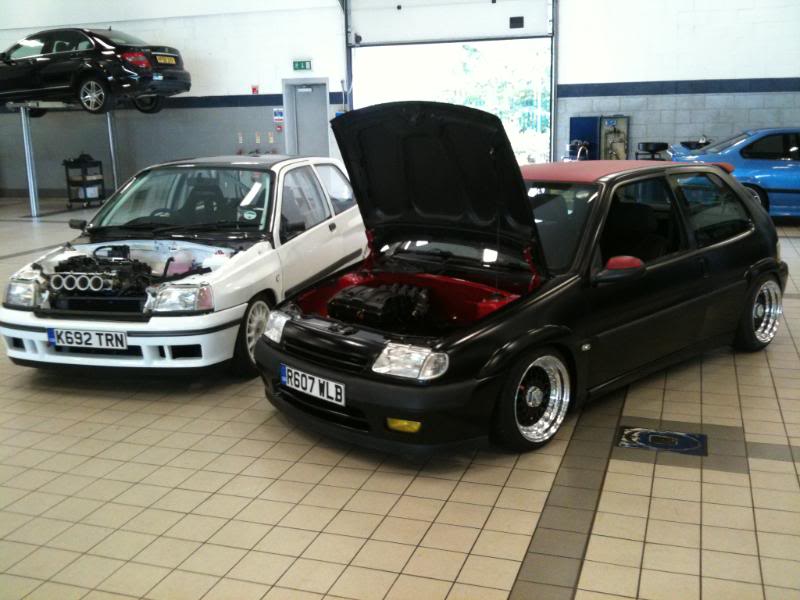

Next we lowered in down off the ramp and took LOTS of photos!
