Burnt cables on this sensor ??

[Walla12345]

Hi,
I need some help please !!
Whilst changing plugs and pencil coils I noticed what I think is a sensor down inside this part in the photo (not the cables you can see ?) had bear wires that were touching each of as the insulation had burnt off I’m sorry I have no idea what it is ?? it has 2 wires and plugs in with a u clip to hold it in. Anyone know ????
thanks.



[Mavez]

MAP sensor?



[Walla12345]

MAP sensor?

Thank you Really the car seemed to be running fine even with the 2 wires melted together ???



[Mavez]

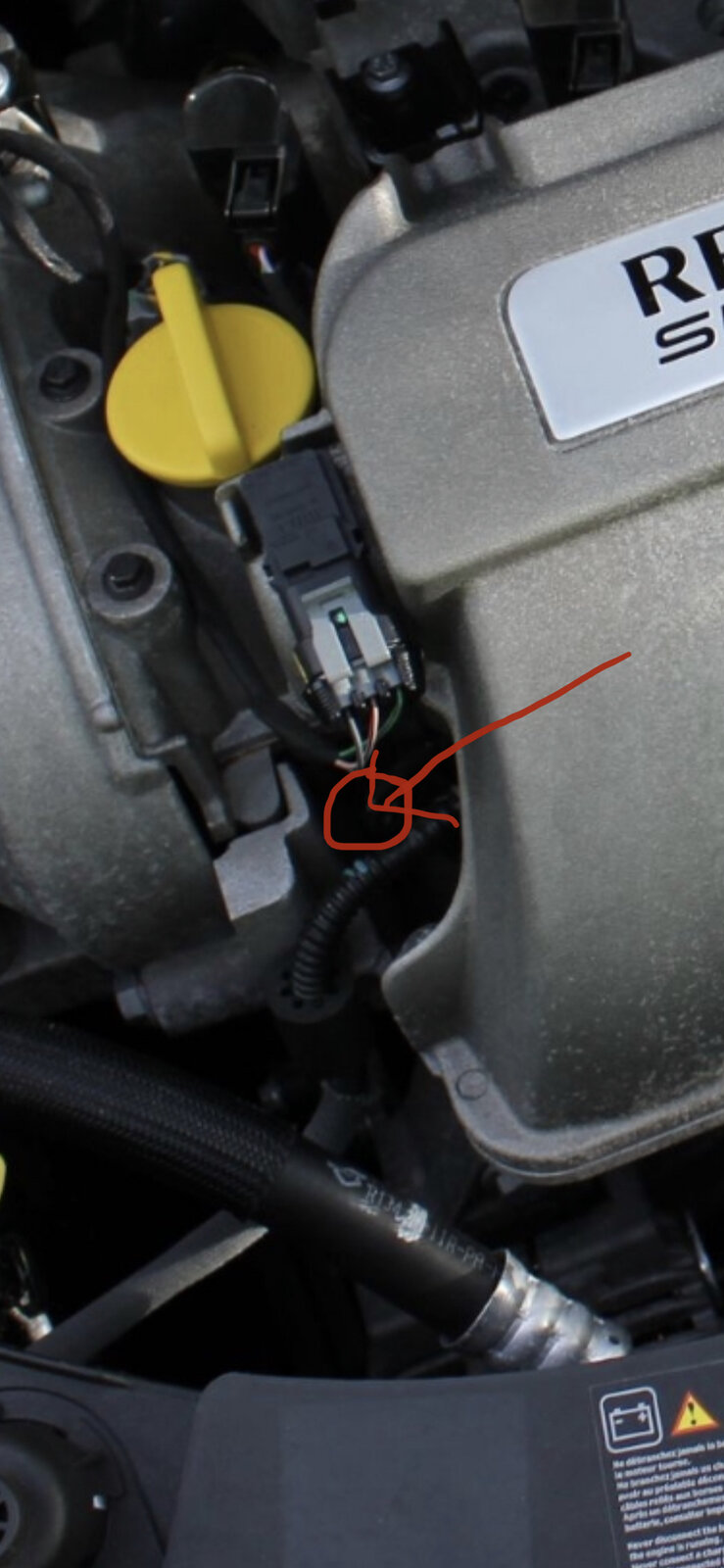

MAP sensor is the sensor just above where you've circled, do you mean something else in that black void?



[Walla12345]

MAP sensor is the sensor just above where you've circled, do you mean something else in that black void?

yes not that one, it’s in that black void pain to get to mate !!



[Mavez]

Maybe VVT solenoid sensor then



[Walla12345]

Ok thank you mate
I’ll try and get a better photo of it ??



[Mavez]

I'm not 100% sure maybe someone else can be certain I think the VVT solenoid is further up on top of the head next to cylinder 4 plug hole.



[Walla12345]

Your right mate I just check and the vvt sensor is next to spark plug 4.
I wonder what the is ????



[Mavez]

Maybe one of the connectors for the fuel injectors? (Full on guess mode initiated)



[Walla12345]

[emoji23]
I’ve tried looking online for a sensor wiring map but no joy !!!
Glad you mentioned the vvt solenoid as it needs a new seal as oil pissing out !! Might just change it at the same time ??


Sent from my iPhone using Tapatalk



[Mavez]

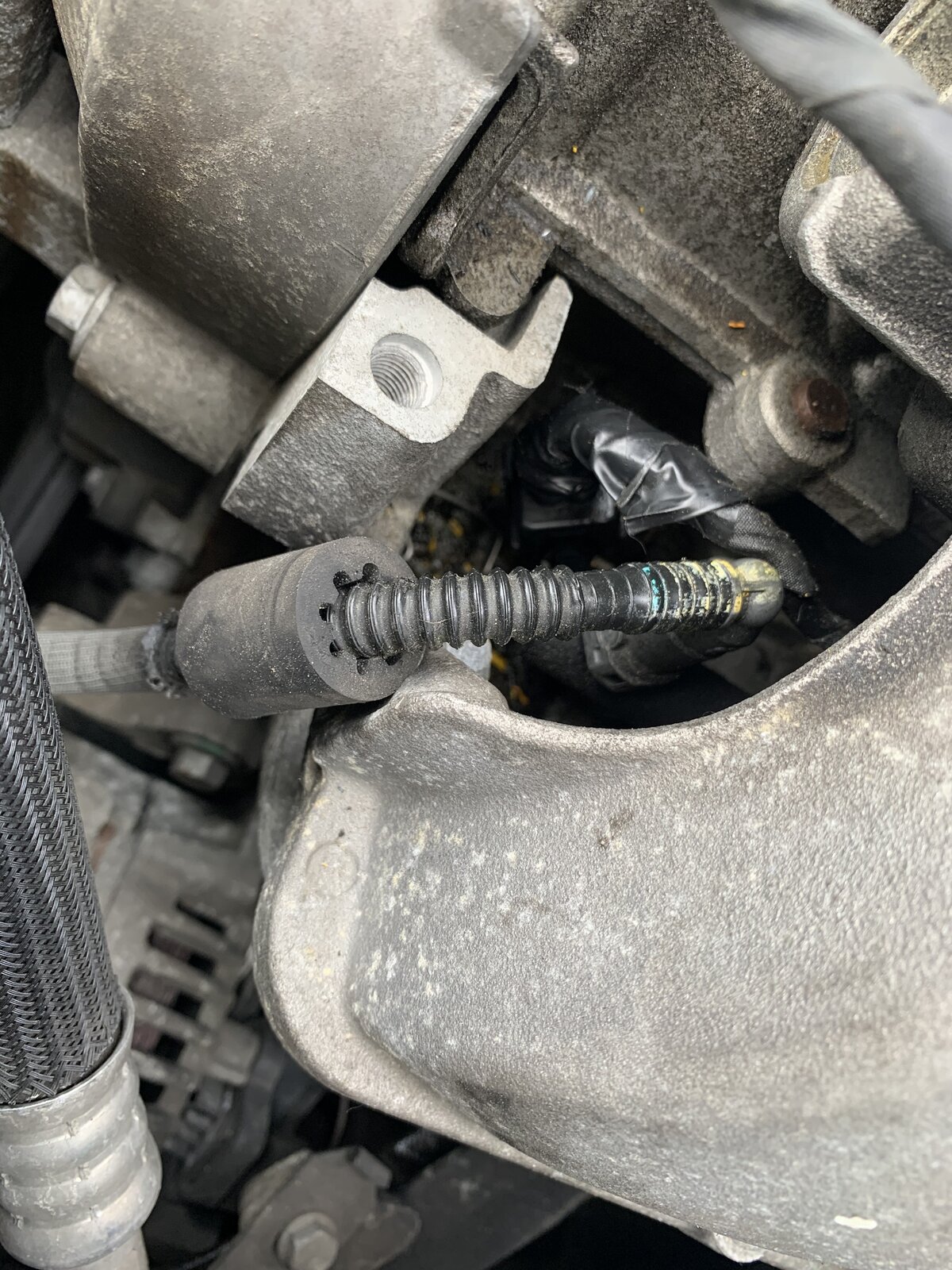

Can you get a torch or closer in for a better picture?



[Walla12345]



[Walla12345]

Thanks



[Walla12345]



[Mavez]

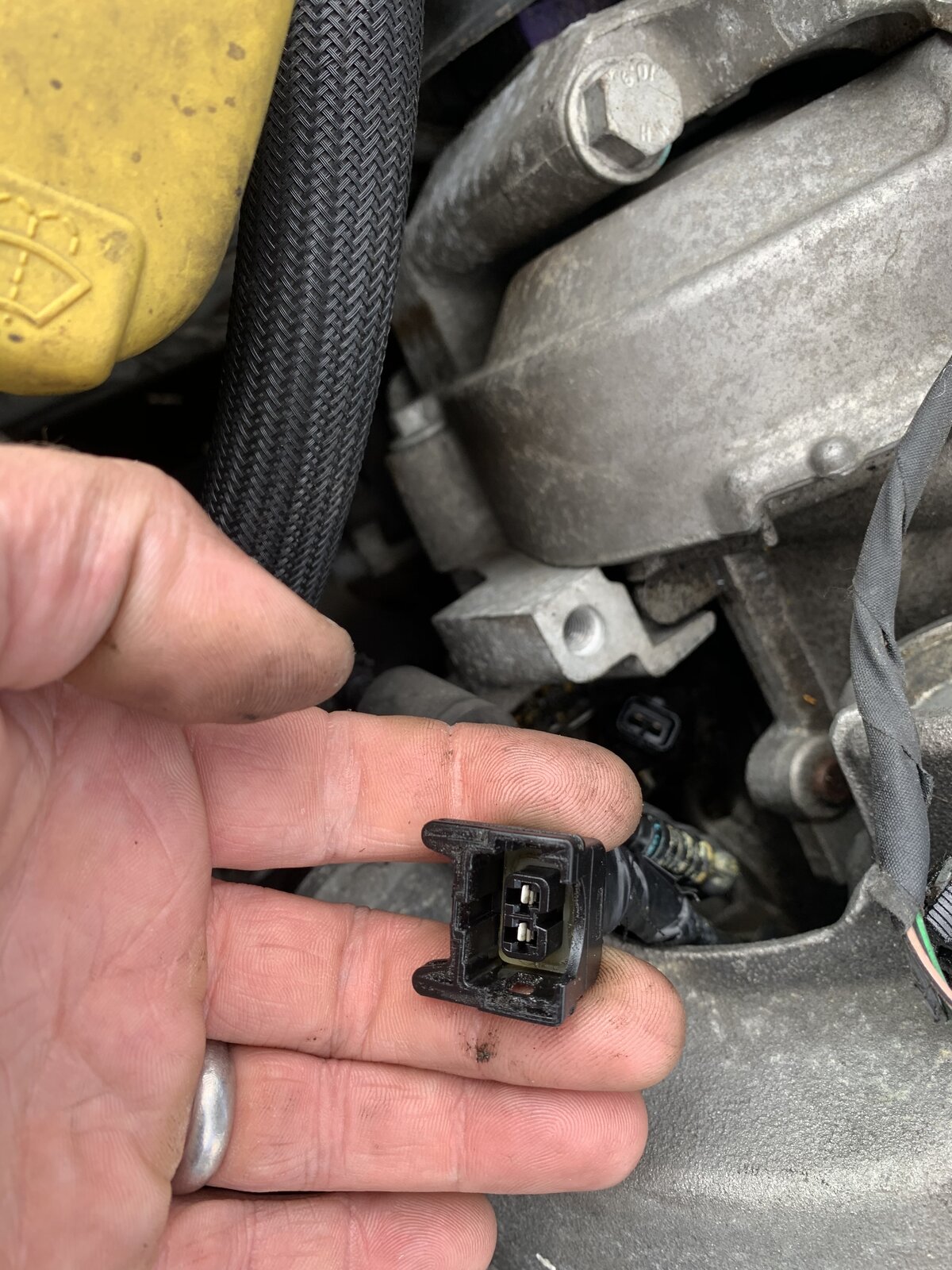

Yeah that's a connector for one of the fuel injectors.



[Walla12345]

s**t that doesn’t sound good if it overheated and burnt the insulation off ???
Sorry I’m not clued you on this but I take it there is 4 of these ? Are the easy to replace ?
Thanks again mate.


Sent from my iPhone using Tapatalk



[Mavez]

Yeah there are 4 like that, has the car been running fine? has it thrown up any Engine management issues?



[Walla12345]

To be honest I’ve only had the car 2 weeks and pulling it apart for track racing.
Haven’t had it out much but the other night it seemed to misfire while foot on the floor ?
That’s why today I changed plugs and pencils to NGK
That when I noticed the burnt cable ?
Not sure if the other 3 are damaged ?? Can I take the cover off to check or do I need a gasket on that part ??
Having trouble finding the wiring loom to replace the lot not just that one !
Thank you mate.


Sent from my iPhone using Tapatalk



[Mavez]

Yeah maybe that's why it's misfiring if the injector wiring on that number 4 injector is goosed.

I'm no expert but you'll have to remove the upper inlet to get access to check and change. Yeah i think the loom comes like this if you're planning to change the whole lot for new/2nd hand.



[Walla12345]

Your a star thank you mate for your help much appreciated. I’ll let you know how I get on



[Mavez]

No problem mate, yeah hope you get it sorted, i'll keep an eye out



[Walla12345]

Do you know if the plugs I buy to replace the burnt out one need to be for my rs200 or can they be for any Clio that fits ???
Sorry!



[M90SR]

Your a star thank you mate for your help much appreciated. I’ll let you know how I get on

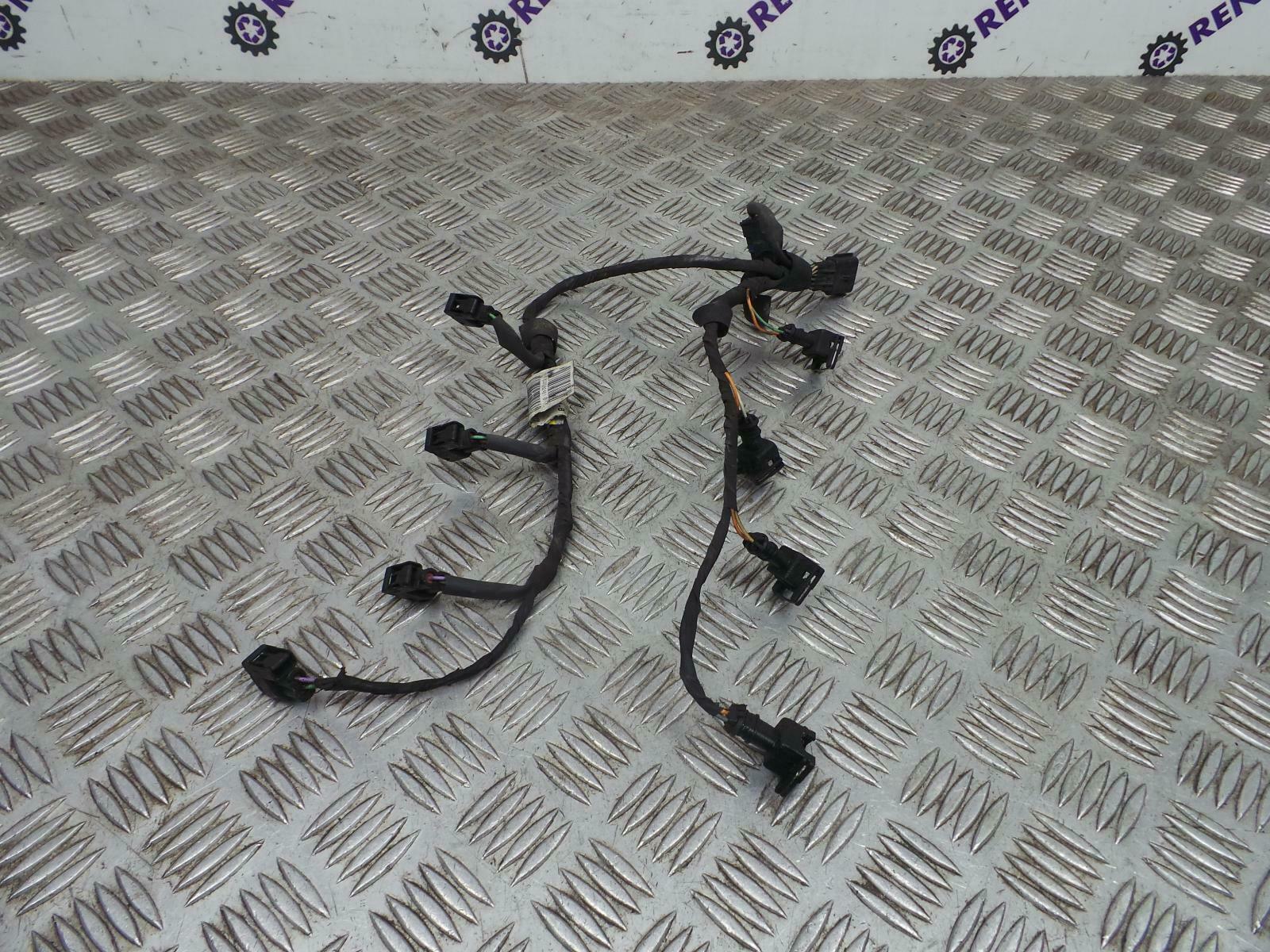

https://www.ebay.co.uk/itm/4x-Fuel-...262171&hash=item260de70ed2:g:Mu0AAOSwxtVcG15n

The loom could be repaired with the above
