Engine Fuse Box List !

[Chris_Beer]

See this also...

http://www.cliosport.net/threads/wanted-engine-bay-fuse-box-list-diagram.786992/#post-10978721

Someone must have a list?!



[Chris_Beer]

Fuses?

Relays?



[Mattty]

I've been looking for a diagram for the engine fuse box too. Can't believe how difficult it is!



[Ads29]

This may be a bit long winded but these are for 2002 ph2 sport according to what I have

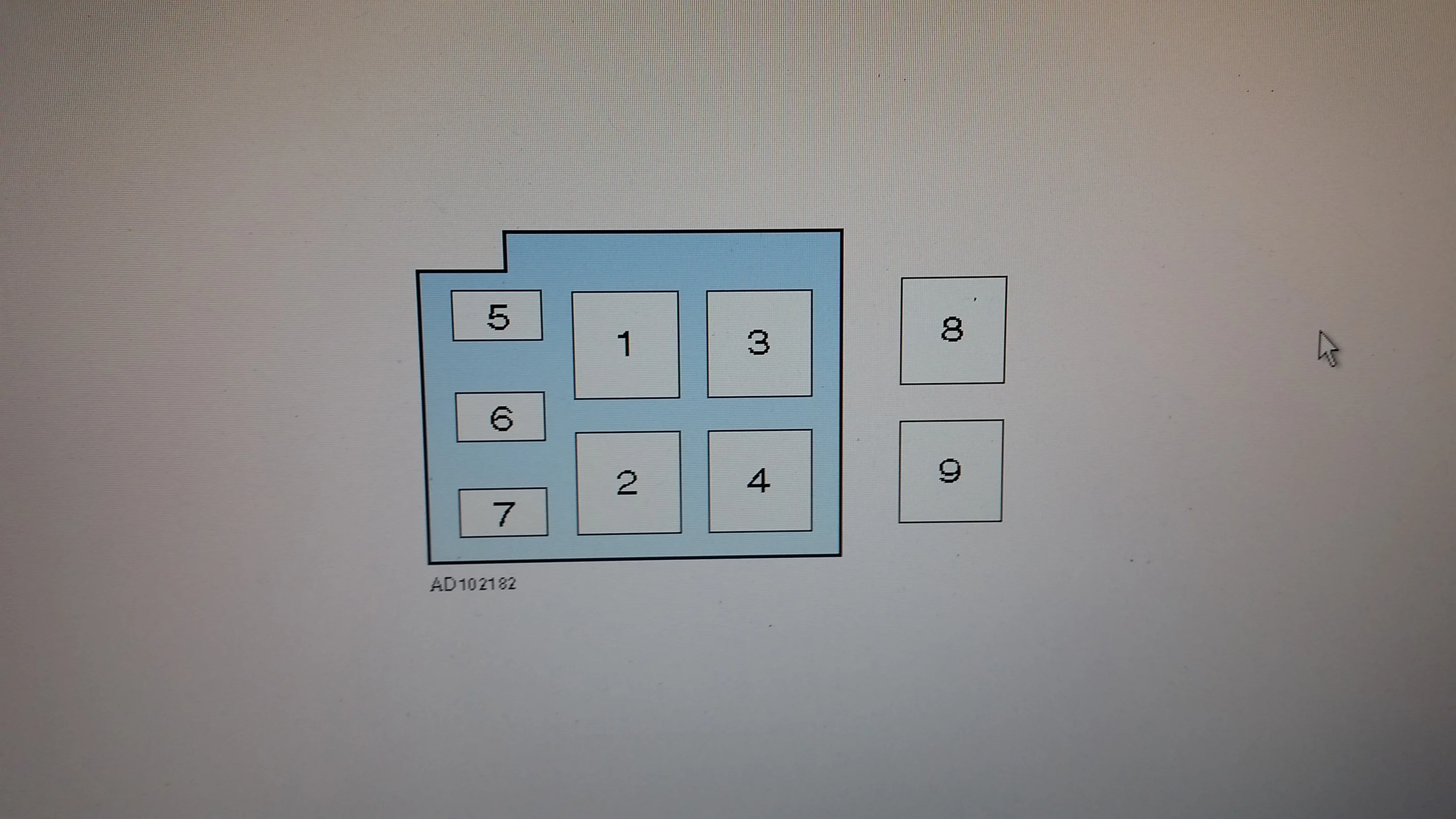

1 Engine Coolant Blower Motor Relay (with AC)
2 Fuel Pump
3 Engine Coolant Blower Motor Relay (without AC)
4 AC Compressor Clutch Relay
5 Anti Percolation Engine Coolant Blower Relay/Engine Coolant Blower Motor Relay - Low Speed
6 Starter Motor Relay
7 Engine Control Relay
8 Heater Blower Relay
9 Reversing Lamp Relay

Note 8 & 9 are located near but not on relay housing

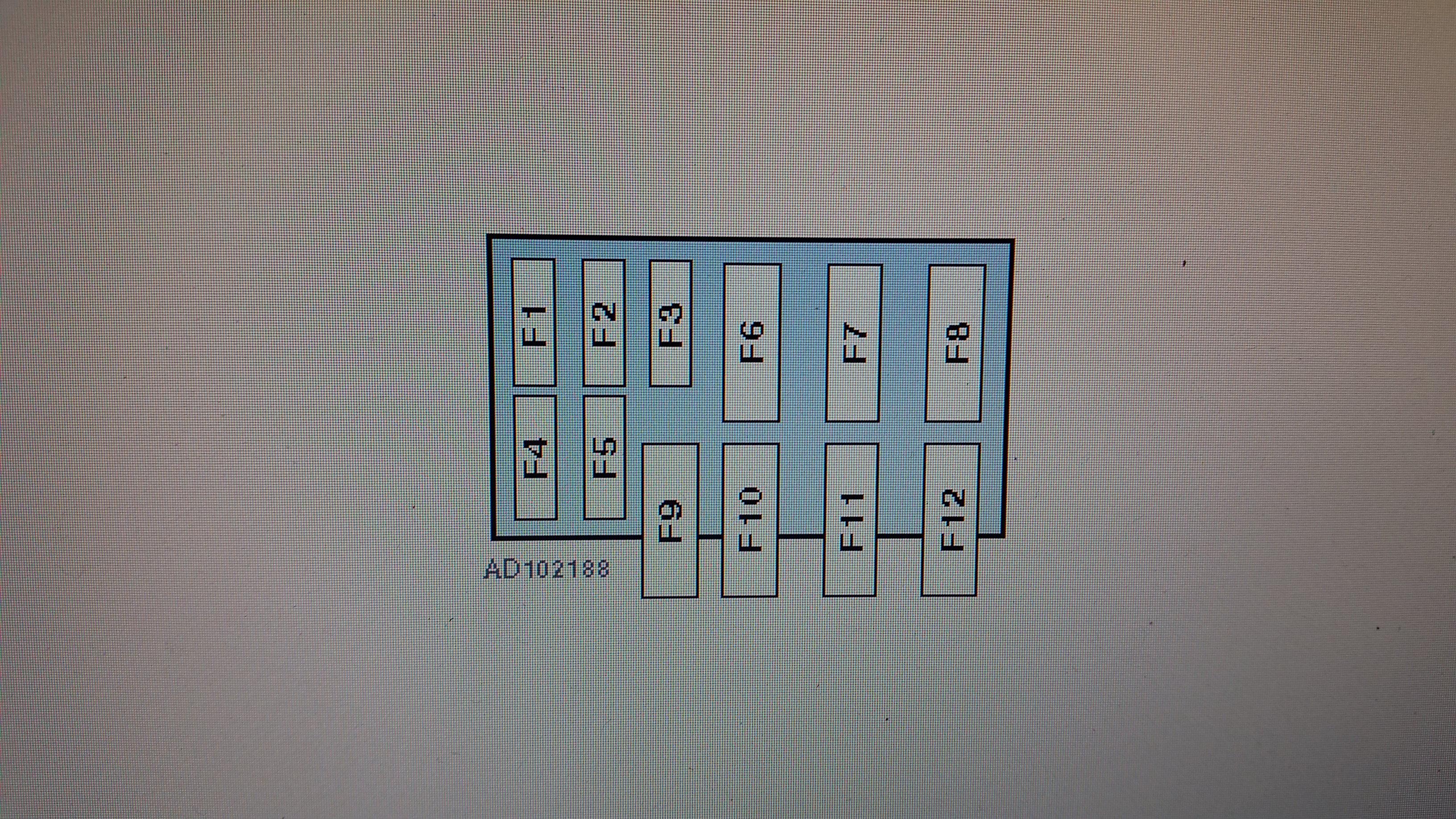

F1 Engine Management
F2 Engine Coolant Blower Motor Relay (without AC)
F3 Engine Management (K4J/K4M/F4R 736)
F4 Automatic Transmission
F5 Engine Management
F6 Sequential Manual Transmission (D4F)
F7 Anti Percolation Engine Coolant Blower Motor Relay/Engine Coolant Blower Motor Relay - Low Speed (with AC)
F8 Alarm System/Light Switch/Multifunction Control Module
F9 Anti Lock Brake System - Bosch 8.0
F10 as F9 and also with ESP - Bosch 5.7
F11 Ignition Auxiliary Circuits Relay/Light Switch/Multifunction Control Module
F12 Heater Blower Motor (with AC)

Hopefully this helps



[Ads29]

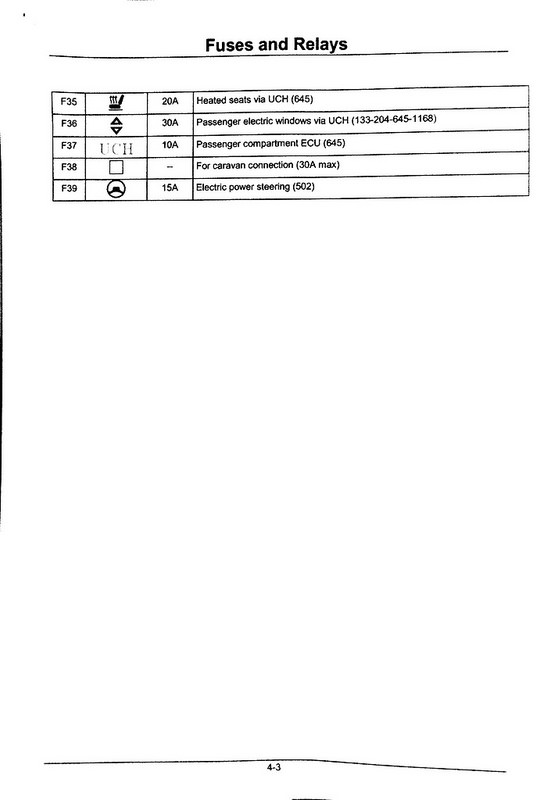

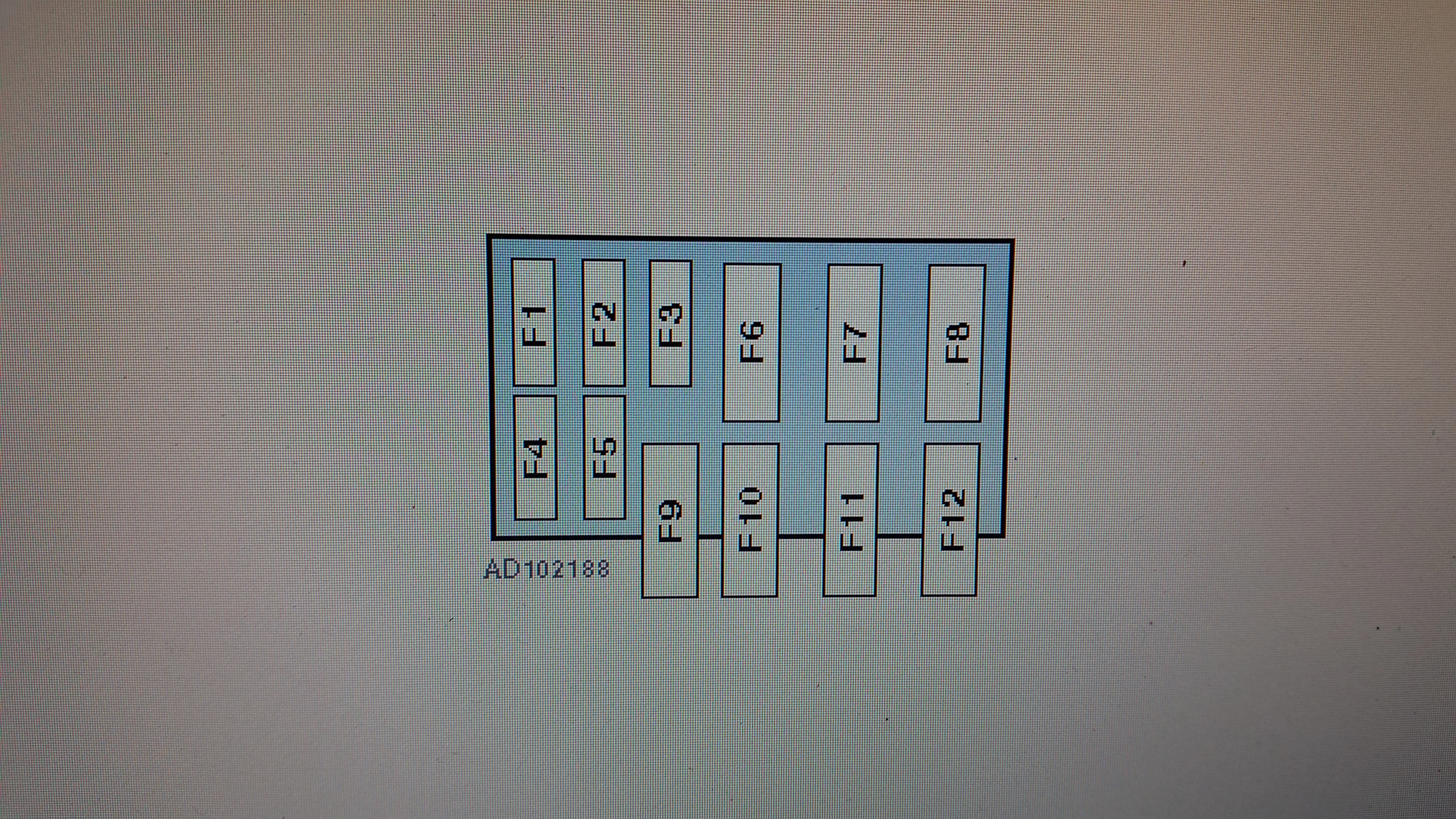

Apologies for the poor photo's unfortunately I had to photo the screen on the laptop as it's old and the interweb gizmo's no longer work on it



[Mattty]

Apologies for the poor photo's unfortunately I had to photo the screen on the laptop as it's old and the interweb gizmo's no longer work on it

Looks perfectly readable! Thanks. Where did you get the info from?



[Ads29]

I have a mate who runs his own garage, and has an autodata account so I have some access when he's not too busy



[Chris_Beer]

Thank you !

Someone sticky this please!?!



[Rubicon_]

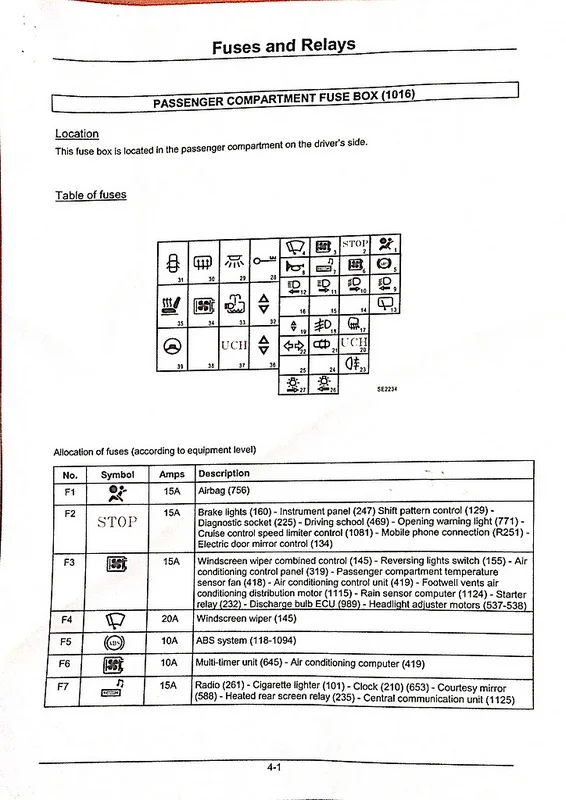

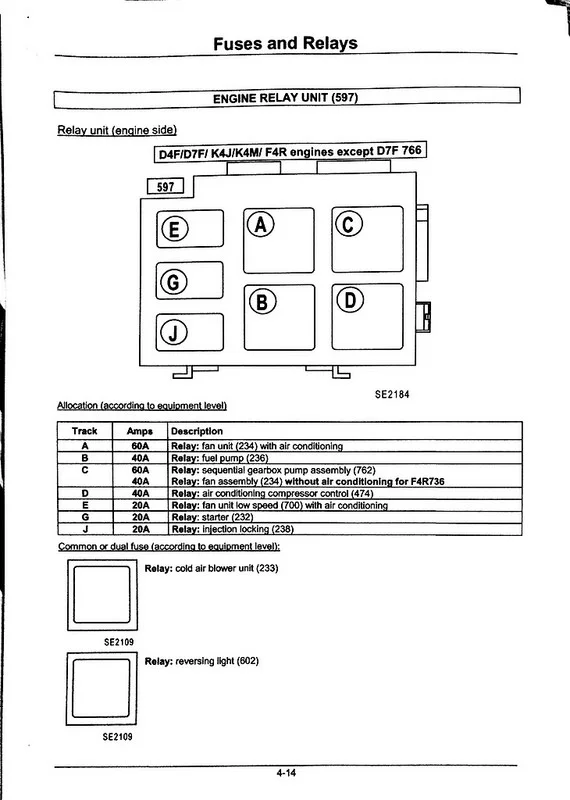

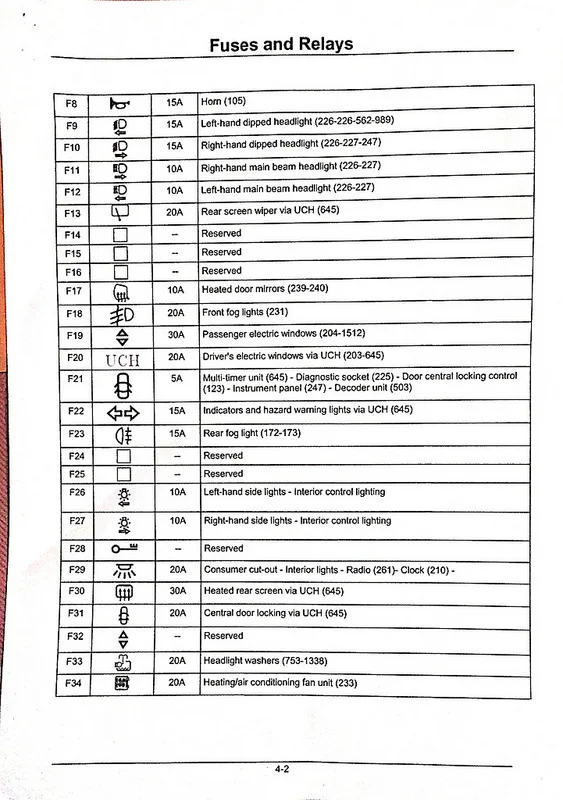

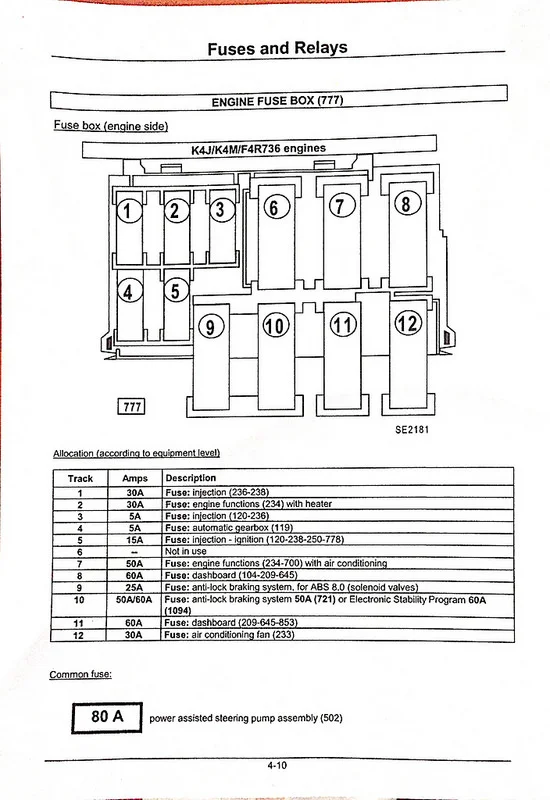

Enjoy!

Untitled by Arran Bell, on Flickr

Untitled by Arran Bell, on Flickr

Untitled by Arran Bell, on Flickr

Untitled by Arran Bell, on Flickr

Untitled by Arran Bell, on Flickr



[MrBlonde]

Where is the Alarm fuse?



[Ads29]

Should be fuse 8 in the engine bay fuse box
