FUSE 30 amp under bonnet - Cuts engine out?? PICS 172 2002

[justinbowness15]

Hi guys, hope you can help me.

Engine keeps on cutting out when running, varied times, no exact reason, electrical lights / management & stop light on dash. Engine just turns over, all other items work fine but wont fire up. Can run fine for 2 months then do 2 fuses in days then run fine again. I've had to be towed home / recovered a few times. Now i carry a bag of fuses with me.

Had a ECU diagnostic check by 2 garages: gave electrical fault but no more. Got me to the fuse problem anyway but now stuck!!

Pics to the fuse box underneath, sorry i cant edit the pic well but its the GREEN 30 AMP top left in the box.


http://i131.photobucket.com/albums/p305/justinbowness15/CLIO PICS/FUSECLIO2.jpg


http://i131.photobucket.com/albums/p305/justinbowness15/CLIO PICS/FUSECLIO1.jpg


http://i131.photobucket.com/albums/p305/justinbowness15/CLIO PICS/1349180592786.jpg








THANKS allot



[justinbowness15]

Does ANYONE know what that fuse is supposed to do??

Can i get a wiring loom diagram from somewhere?



[skinz]

I'll check my manual when I'm out in the car, will post back when u get home (approx 1hour)



[justinbowness15]

thanks allot! Will help extremely.

I've got to find what that 30 amp fuse is used for and why it constantly keeps blowing and cutting the engine out!



[stokie4ker]

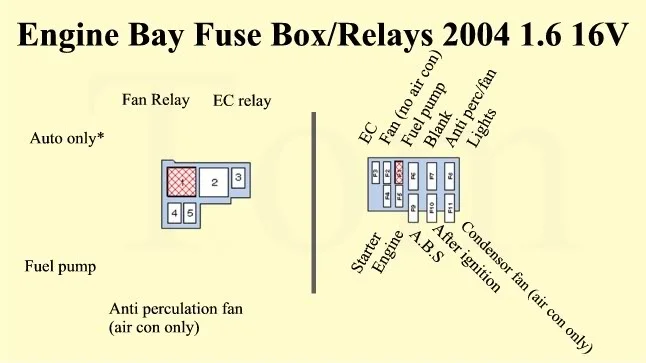

According to this layout, your green fuse would be EC.

These any help made them up a while back for a mate just uploaded them
