Help with wiring!!

[CDMullins]

Got amps wired up fine and 1 of thems running a set of 6x9s.

2nd amp as power and all connections are good but i cannot get the subs to work.

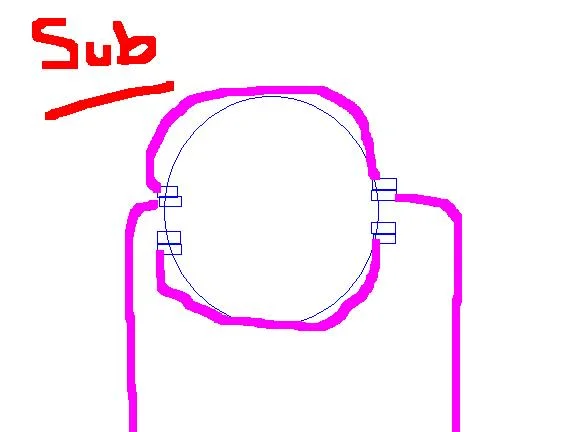

4 channel amp, Im an ice amature so dont know my technical stuff, so i drew a couple of diagrams!!

Plz help is driving me mad!!



[Dink]

take the link off the sub that is acting as a dead short(top one in pic)

what is the resistance of the coils of the sub??

it needs to be wired to 4 ohms to run it off the bridged channel of the amp



[CDMullins]

Youve lost me mate. Ice really not my thing!



[Dink]

lol

model number of subs???



[CDMullins]

Dont know and bx and cars at my mates.

Think aw15 for some reason, 12" 400w rms if that helps



[Dink]

aw1251T?

[FONT=Arial, Helvetica, sans-serif]12” NATURAL SOUND WOOFER
45 oz. Strontium Magnet
Power Handling: 400 watts RMS
Frequency Response: 24Hz - 1kHz
Efficiency: 92.1 dB
PHAT Foam Surround
Non-Pressed, Non-Transfer Paper Cone
KM3’ Coated for Virtually No Cone Distortion
2” 4-Layer ASV Voice Coil
Dual 4 Ohm
2 or 8 Ohm Operation
Mounting Dimensions: Depth; 5 1/4”
Hole; 10 7/8” Diameter; 12 1/2”
MULT-CONNECT Lug Lock Terminals

if so you can wire them to 8 ohms but thats not ideal
[/FONT]



[CDMullins]

Hmmmm, yeh could be that one??

Whats best way to wire it up then



[Dink]

get a different amp

one with the about 900wRms @ 1 ohm

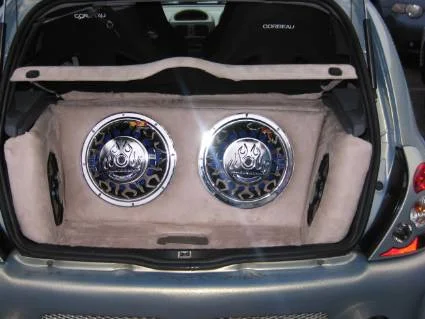

like this



[CDMullins]

Is there no way of that amp working???
Cant afford another amp



[p3rcy1]

sorry for the spam but i love that install



[CDMullins]

Dont worry about it!!
cheers!



[Dink]

yeah wire it to 8 ohms + from amp to +on voice coil 1 then a wire from - on voice coil 1 to + on voice coil 2 then - on voice coil 2 back to amp

then connect the wires to bridged across ch1&2

repeat for other sub but use ch3&4



[CDMullins]

Pics plz!! dont understand



[Dink]

i can't show you pics as i havent got the equipment here infront of me lol



[CDMullins]

Can u do a quick pic on paint. Just gonna have another go!
