HID fitting help



  phase 1 172
hey guys

just recieved my HID kit for my phase 1 172. i`m confused to where the black and red spade connectors connect to. i`ve checked the existing plug that comes out of the rear of the bulb but doesnt match so not sure if i have to play around

any advice or pictures to help would be greatly appreciated


rich

  phase 1 172
cant take pictures right now but will try to explain using this

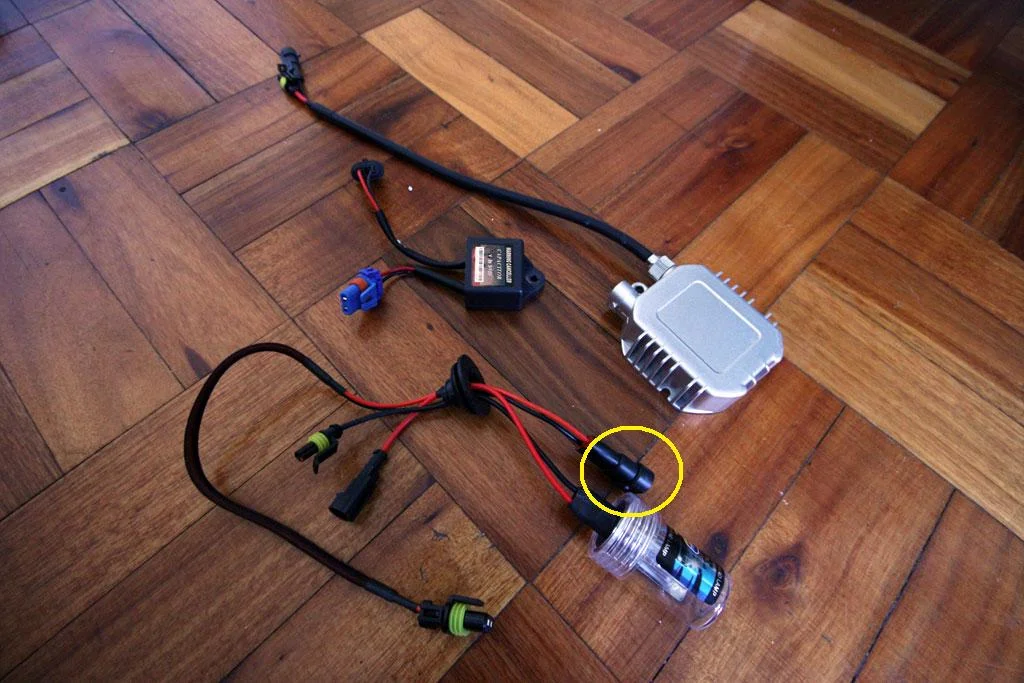

in this image there is a connector circled, with the kit i have recieved it has 2 spade connectors which dont match any of the connectors within the light unit!

  Bus w**ker
That's a plug and play kit mate. Literally just plug it in line to your original loom and you're away. If it wasn't dark I'd go take pictures of mine to show you, but I fitted mine; which are nearly identical to yours, without instructions.

  phase 1 172
no, i believe thats where the issue is? i presume if it did it would connect directly into the existing plug that was connected to the rear of the bulb

  phase 1 172
That's a plug and play kit mate. Literally just plug it in line to your original loom and you're away. If it wasn't dark I'd go take pictures of mine to show you, but I fitted mine; which are nearly identical to yours, without instructions.

so symon did yours have the plug system missing? if so what do i have to do to connect it?

  Bus w**ker
I can't see any spade connectors in that picture mate lol. Looks near enough identical to the one thrown in mine.

Jamie there was nowt missing on mine mate. In that picture you posted above mine had everything except that black separate block with the two cables coming out of it (in the middle of the shot) but obviously wasn't required for my kit.

  phase 1 172
that looks similar to mine as oppose to actual plastic connectors. any idea how to connect these to the existing plug?

  Evo 6, E92 320d


Can you see the spades in that pic? Maybe they have to be wired directly to the mains or just left off.

  phase 1 172
I can't see any spade connectors in that picture mate lol. Looks near enough identical to the one thrown in mine.

Jamie there was nowt missing on mine mate. In that picture you posted above mine had everything except that black separate block with the two cables coming out of it (in the middle of the shot) but obviously wasn't required for my kit.

the photo above is not mine, its an example of another members. on my kit instead of having a plastic connector like circled in the picture mine has 2 spade connectors like attatching to car speakers

was wondering how i can connect these as they dont suit my existing plug

  Bus w**ker
Ah right yeah I can see them on that one Chris. Looks like a universal kit TBH and not specific for a Clio.

Rich are there no plugs at all on your kit just spade connectors?

  phase 1 172
Ah right yeah I can see them on that one Chris. Looks like a universal kit TBH and not specific for a Clio.

Rich are there no plugs at all on your kit just spade connectors?

apart from the plugs that connect hid bulb and ballast nope!!!!!!!

what options do i have then is it possible to maybe wire a clio plug (h3) onto the the spade connectors
