Mk1 185 Clio Racing Blue Hybrid

[Jay_Kay]

Smashed the sump on a ramp which had a high lip on it. Didn't see it in the dark and it took the bottom end with it. No idea how as I turned it off within seconds of it occurring.

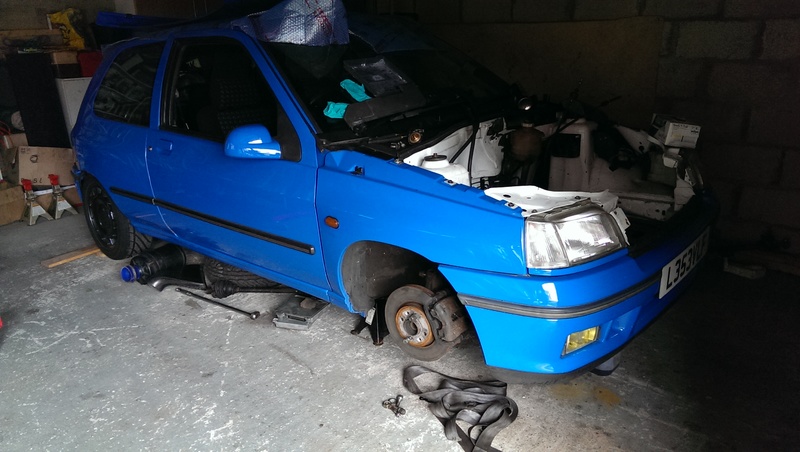

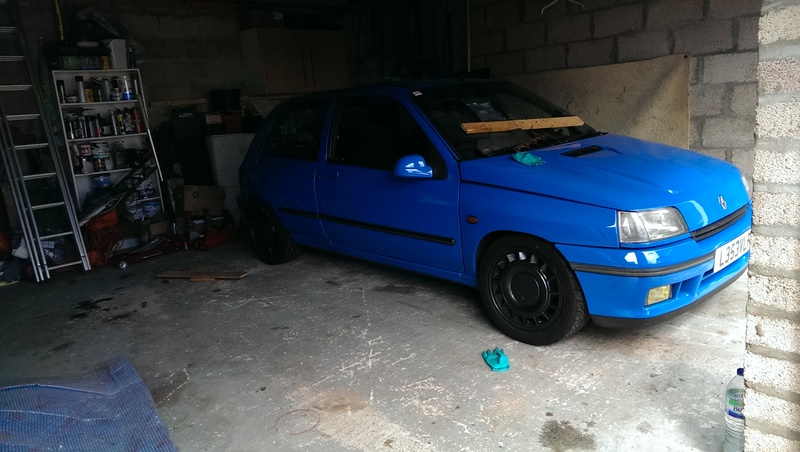

How the car sits. Smashed the engine out in rage. The new engine. Lets see what I can make out of these two!

Got it in performance french car magazine. Little consolation considering my luck.

Got the engine back together and the alternator died after 50miles!! Typical bad luck continues.

And a little reminder of whats happened since the last track day

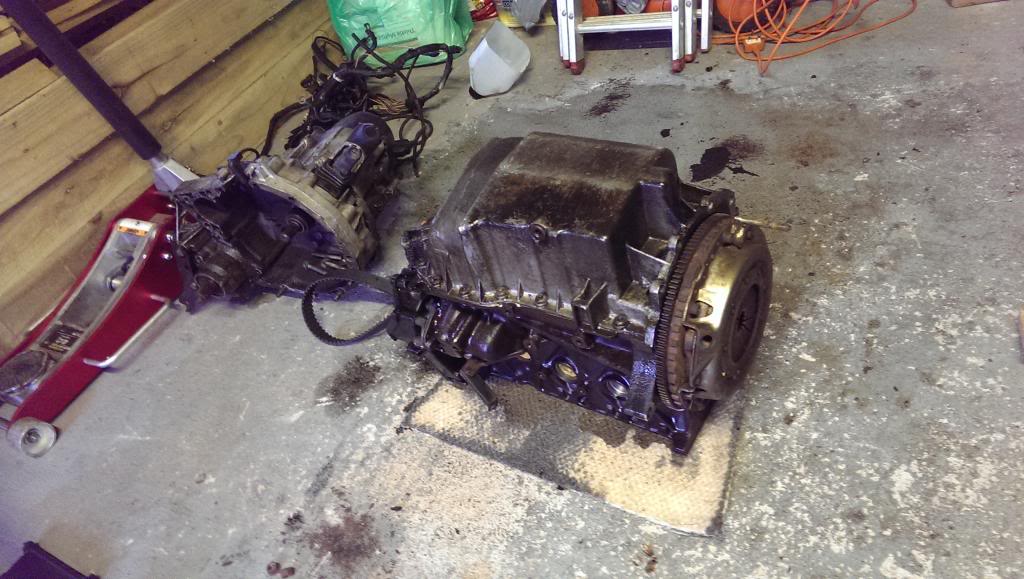

Engine went bang
rebuild
high kerb cracked sump
engine dead again

But I couldn't afford to rebuild it again and lost faith in that engine. So got a replacement engine, dropped the head off my old one on to new engine and slapped it back in.

Engine is awesome! Need to get it on a set of rollers and see what power its putting out



[rctempire]

What did you do with the leather interior? Im after bits.
Also great build thread



[Jay_Kay]

Kept it in the attic. Going to keep it as leathers are a bit hard to source these days.

Thank you for the kind words



[Advikaz]

Lovely mate.



[Jay_Kay]

Bought this a while ago

Resprayed bonnet vent satin black

Sunk the battery into the boot.

172 stub axle modification

Valver setup

172 setup

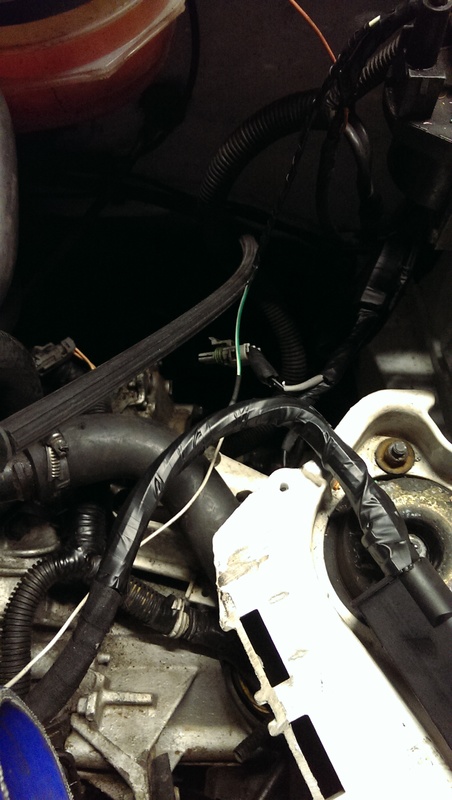

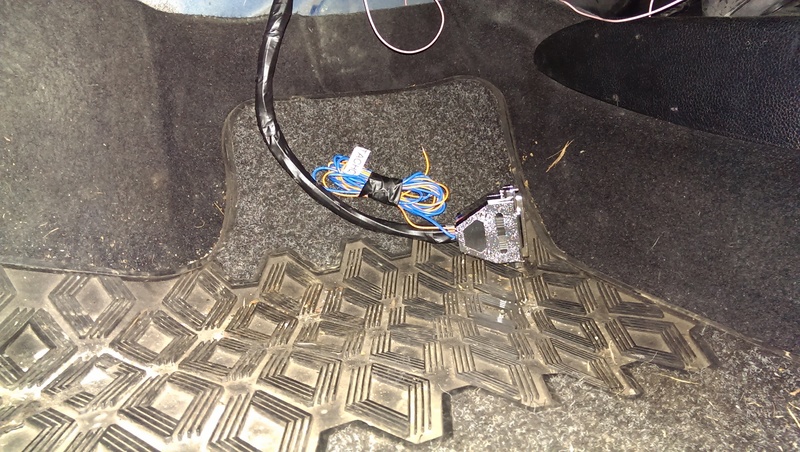

Wired in the megasquirts loom ready for mapping

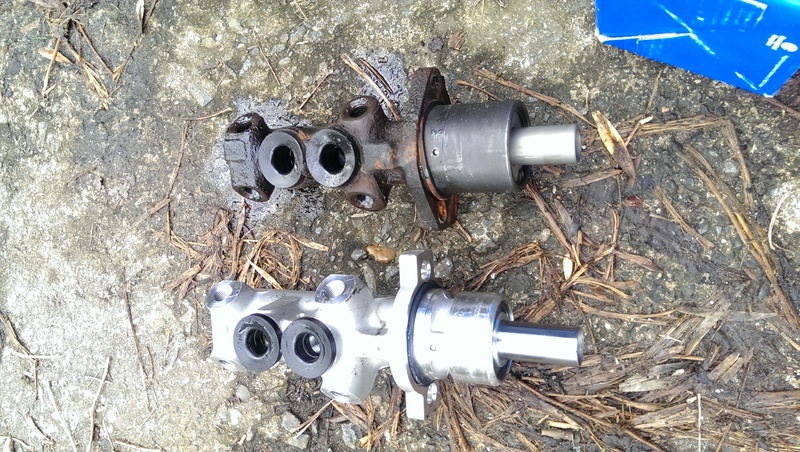

Peugeot 406 v6 master cylinder to go with the 172 front brakes I've now added.



[Jay_Kay]

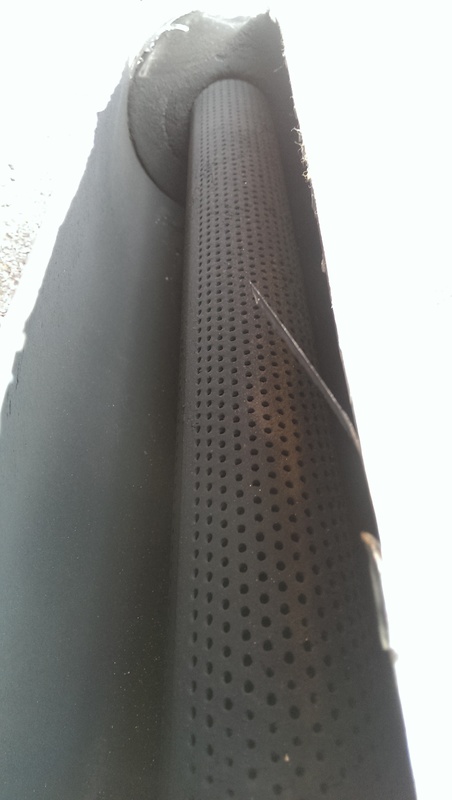

Opened the mongoose exhaust to find it has nothing

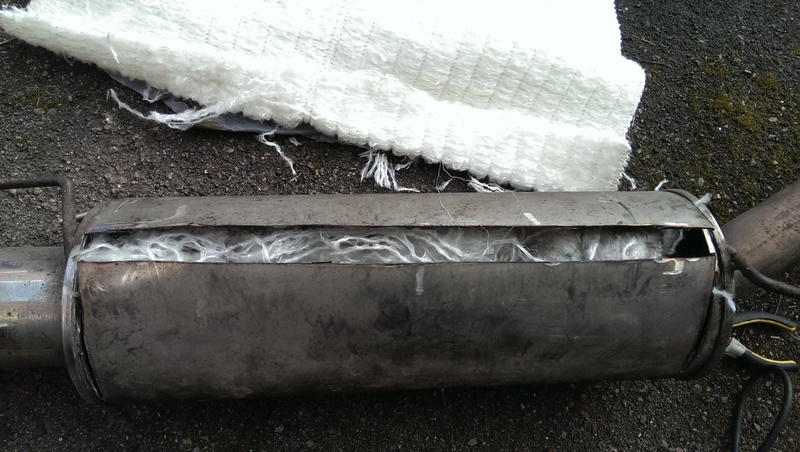

Restuffed

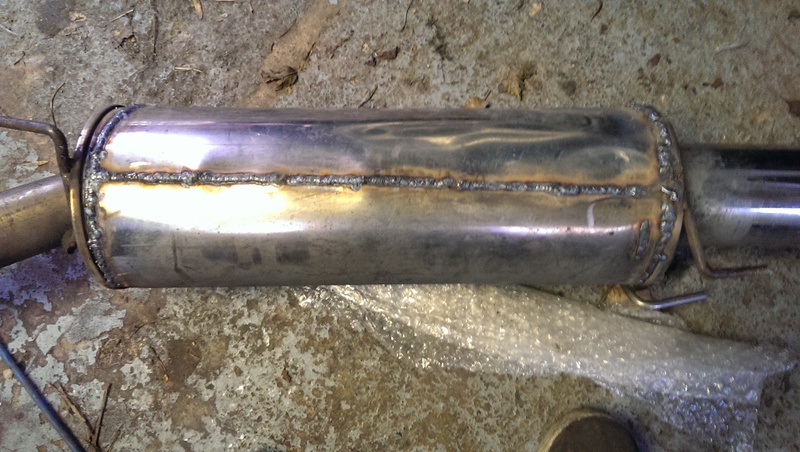

Welded back up

Sounds much better now!!

Compression tested it. Came back at 190-200 psi over all 4 cylinders! Can't wait for mapping.



[Chip-mk1]

Is the 172 stub axle swap a case of just cutting off the large spigot and it bolts straight on or was there more to it?
cant tell from the pics.
Good way to end up with the ability to shim toe/camber as it's a real sticking point on the MK1



[Matt@codered]

Heat up the stub, knock it out with a big hammer, cut the small flange off, grind/file it flat, modify the threads to accept countersunk bolts, bolt on 1*2 stubs with shims if you have some. Easy peasy!
Did it to one of the R5 gt turbos we race and my mk1 16v.



[Chip-mk1]

Modify the thread? Do you mean just counter sink the 172 stub axle going on? As surely the thread is no different?
bolt spacing the same I take it from the pics?



[Matt@codered]

No, one of the treads is different in the axle, was such a long time ago I can't remember which one it is.....
jaykay will probably tell us, or if the bloke he borrowed the pics from is on here too he may be able to clarify.......and yes, bolt pattern the same.



[Ph1 Tom]

Nice work!



[Chip-mk1]

No, one of the treads is different in the axle, was such a long time ago I can't remember which one it is.....
jaykay will probably tell us, or if the bloke he borrowed the pics from is on here too he may be able to clarify.......and yes, bolt pattern the same.

Cool stuff, looks simple enough then, will do it on mine at some point as I will want to be able to alter camber and toe.



[Jay_Kay]

Valvers use m8x1 bolts on the standard beam. The bolts are too short to re-use.

172 use 3 m10x1.5 and 1 m8x1.25 thread.

So you do as matt said. But then drill out all 4 holes to 8.5mm and tap in a m10x1.5 thread into the beam.
And also drill out the fourth hole on the stub axle bigger to accept the m10 bolt. Top left one I believe.

You could in theory just find 4 longer m8x1 bolts use the standard holes and create a shim insert in the 172 stub axle to close up the hole.
But seeing as all the standard renault stuff fits I just bought 2 extra m10 bolts.



[George@RTR_Parts]

Great work mate :approve:



[Chip-mk1]

Valvers use m8x1 bolts on the standard beam. The bolts are too short to re-use.

172 use 3 m10x1.5 and 1 m8x1.25 thread.

So you do as matt said. But then drill out all 4 holes to 8.5mm and tap in a m10x1.5 thread into the beam.
And also drill out the fourth hole on the stub axle bigger to accept the m10 bolt. Top left one I believe.

You could in theory just find 4 longer m8x1 bolts use the standard holes and create a shim insert in the 172 stub axle to close up the hole.
But seeing as all the standard renault stuff fits I just bought 2 extra m10 bolts.

Thanks for the extra details, I would be inclined to do it the same way you did as well, keeps it simple if its the same as our mk2s even down to the fittings.

Handbrake cable the same fitment?



[Jay_Kay]

Yer handbrake fitment exactly the same.

Just remember to use the 172 disc spacer as its different to the valver one.



[Chip-mk1]

Cool

Will do it at some point even if its only temporary as its much easier than the alternatives I was looking at for getting adjustment onto the rear end (was thinking of a beam, or more accurately wishbones, off another car)



[Jay_Kay]

Next story of this cars life.


Boost!!!

In typical me fashion. This will be done on a masively low budget.

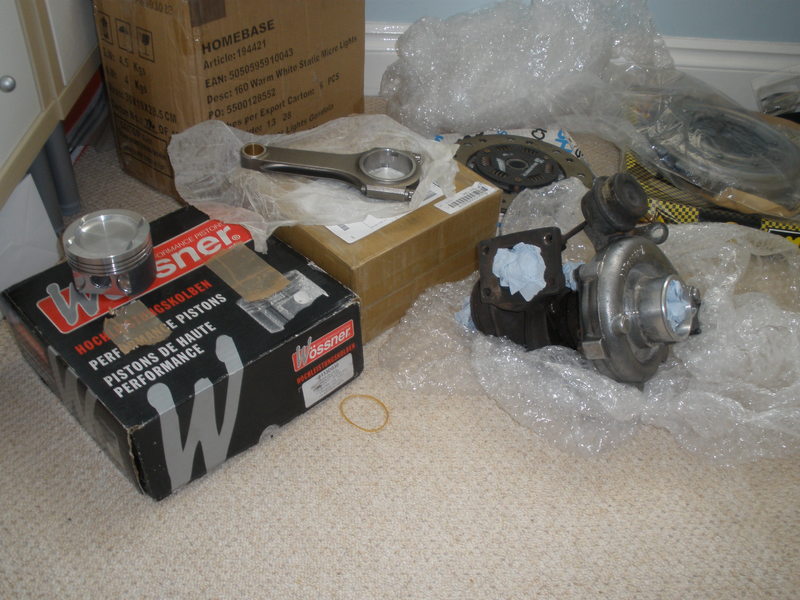

I didnt get any of these for retail prices even though they're all brand new bar the turbo



[Chip-mk1]

Top stuff. Clios need boost IMHO.



[tomhunt85]

Not seen this thread before. Very nice car and I admire your commitment, many would have given in after that many engine rebuilds lol.



[NaplesMark16v]

Love this! Great colour choice and commitment... So tempted to change the colour of mine but my intentions was to make it original... Love mk1s in new clio colours, they really do work well with the body shape IMHO



[Jay_Kay]

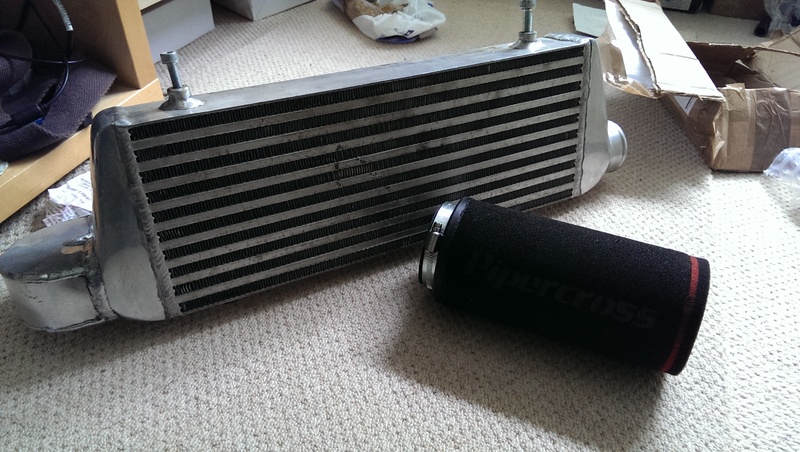

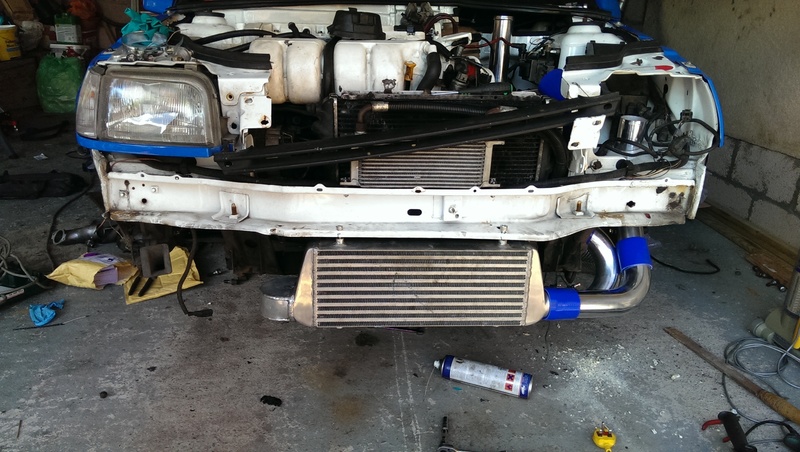

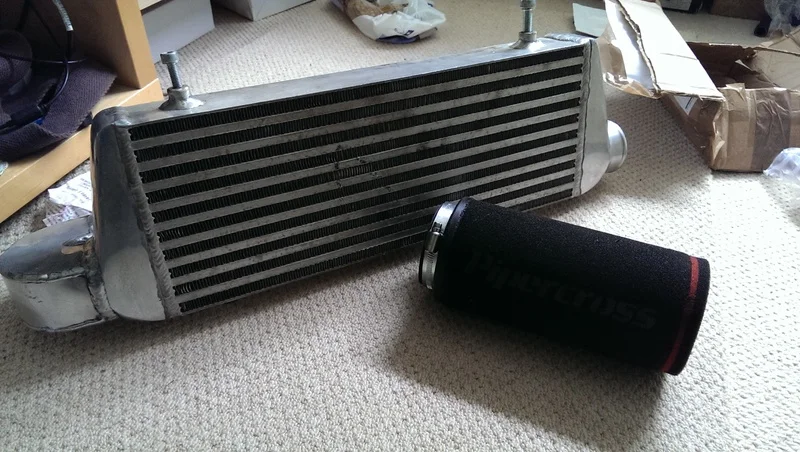

Intercooler and air filter

May pull the old engine out tomorrow if I can be bothered.



[NaplesMark16v]

Intercooler and air filter

May pull the old engine out tomorrow if I can be bothered.

Boost FTW!!
What power will it put out afterwards mate



[Jay_Kay]

Around 260-280hp Totally depends on the turbo really.

Done a bit more today.

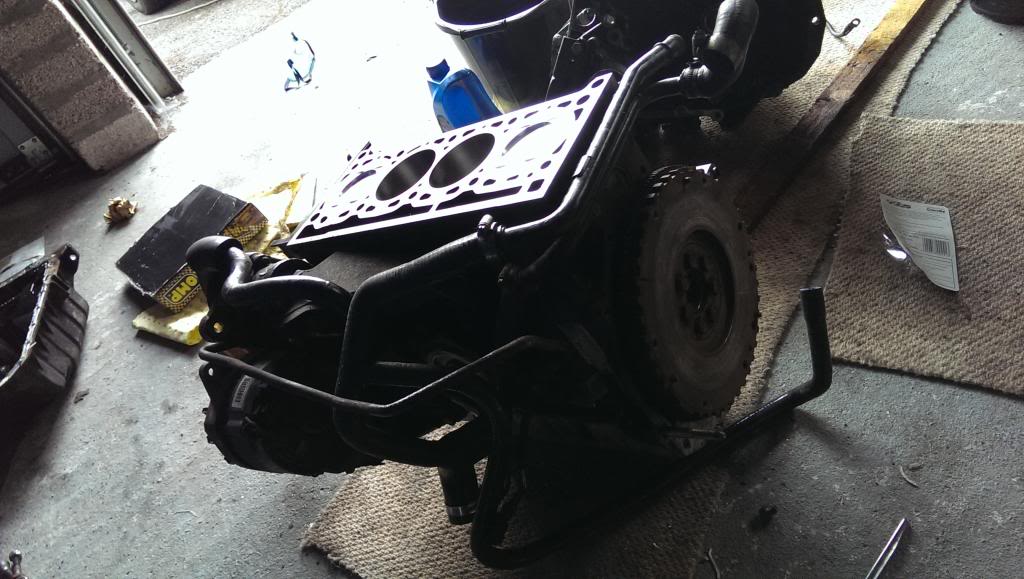

Engine out

Im proper rusty. Bent the gear linkage and bent the speedo cable. Need to get my game on again!



[NaplesMark16v]

Around 260-280hp Totally depends on the turbo really.

Done a bit more today.

Engine out

Im proper rusty. Bent the gear linkage and bent the speedo cable. Need to get my game on again!

Should be nippy then!

I snapped my speedo cable lol
Always forget them things. Happens to the best of us



[Jay_Kay]

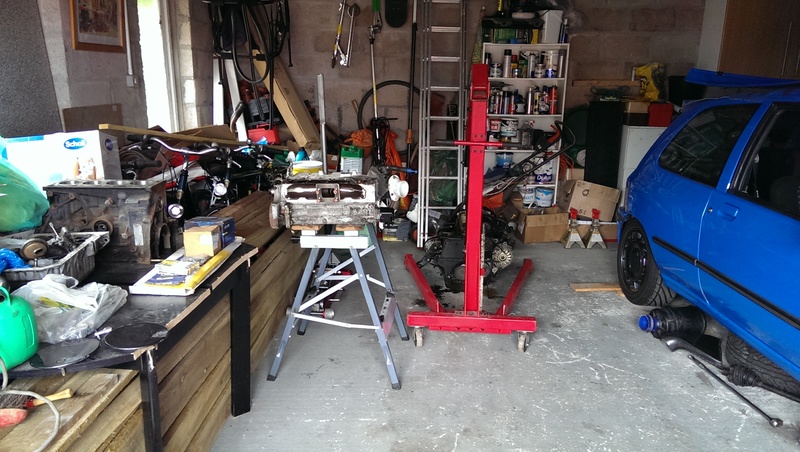

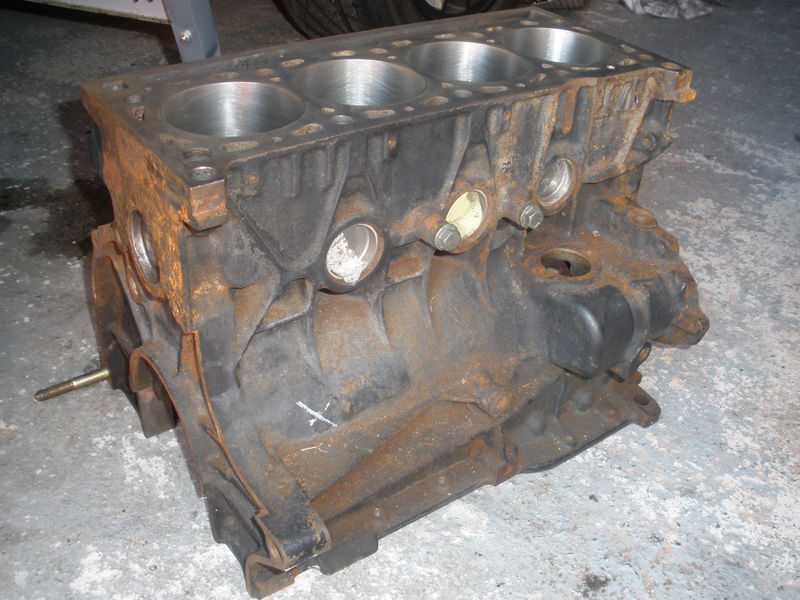

Engine ready for crank to be opened out.



[Jay_Kay]

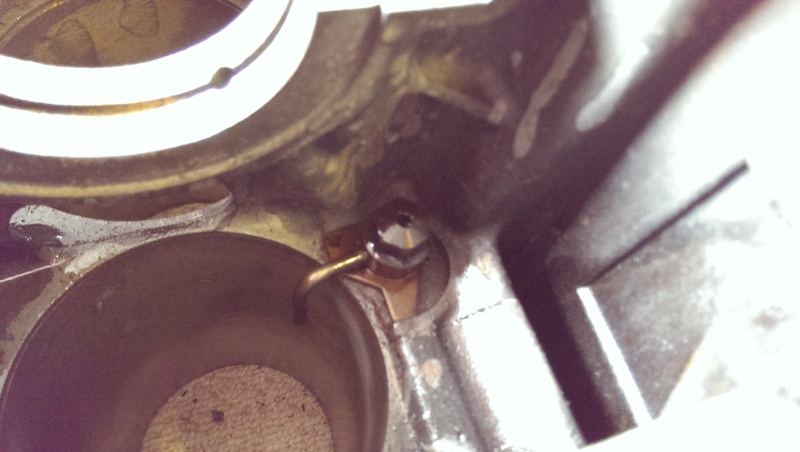

Fitted the oil jets

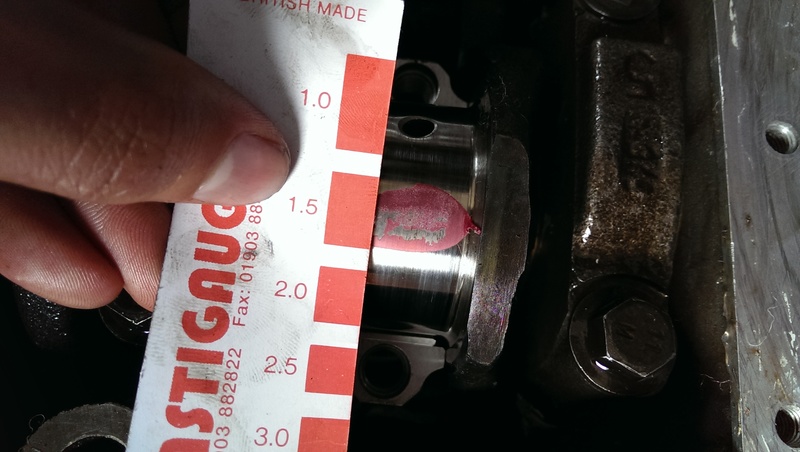

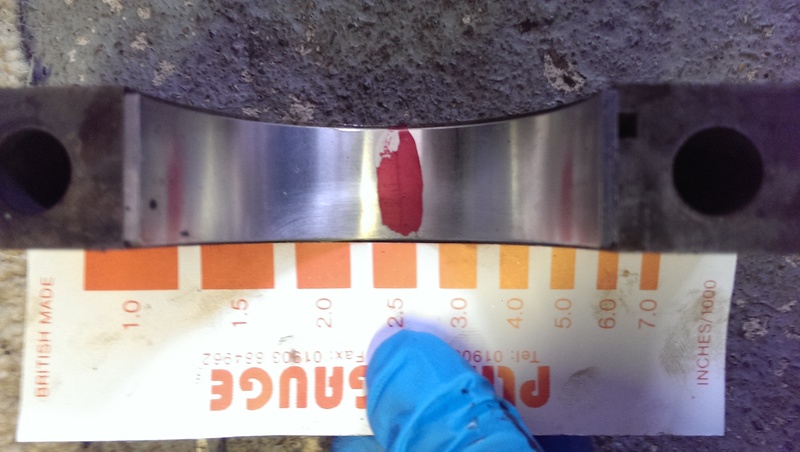

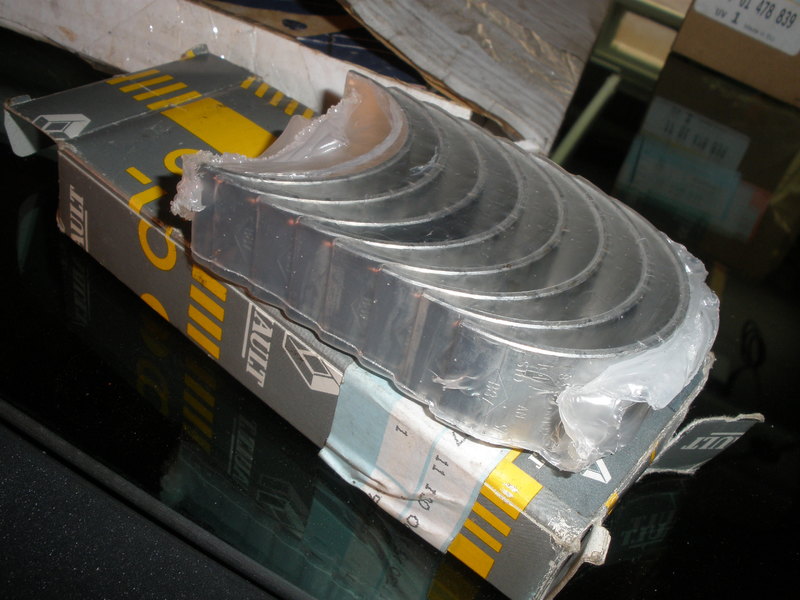

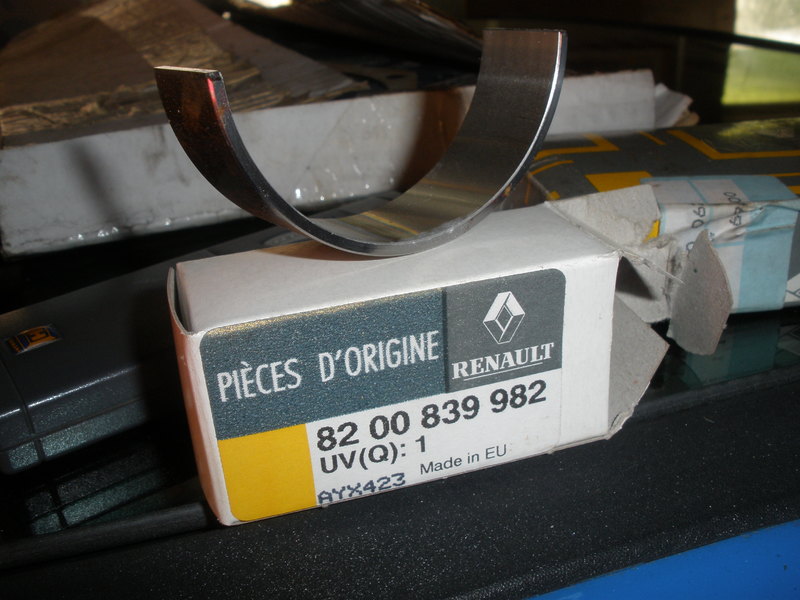

Plastigauge the main bearings. Came to 2-2.5 thou

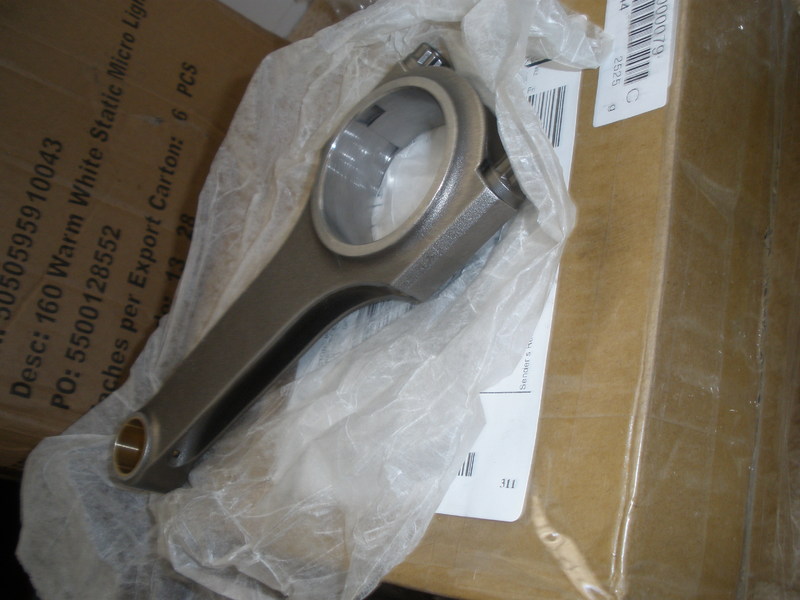

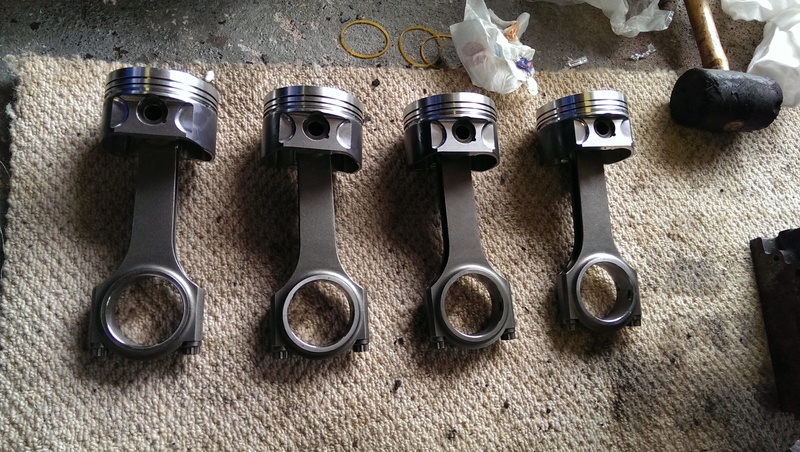

Rods and pistons assembled

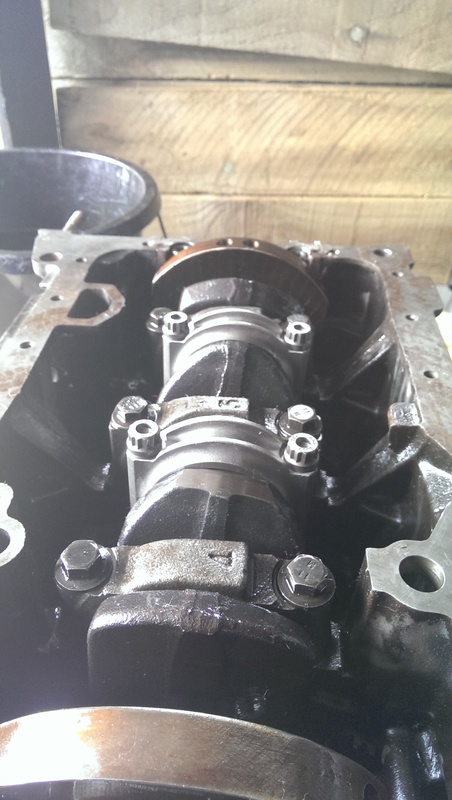

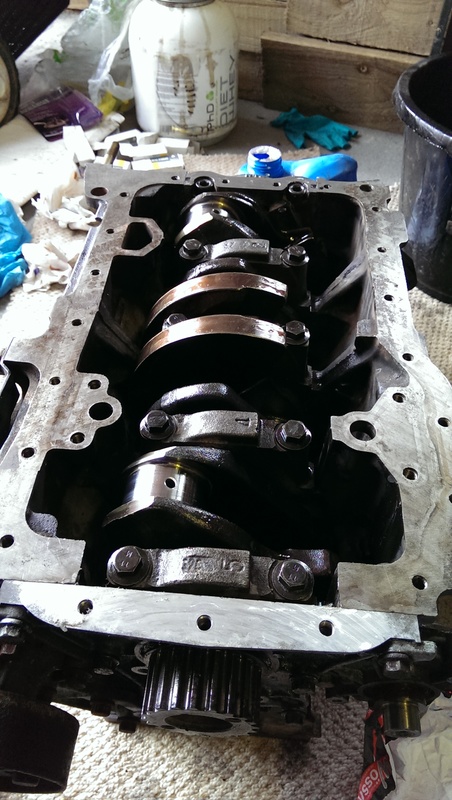

Crank in with both ends sealed up



[Jay_Kay]

Big ends plastigauge

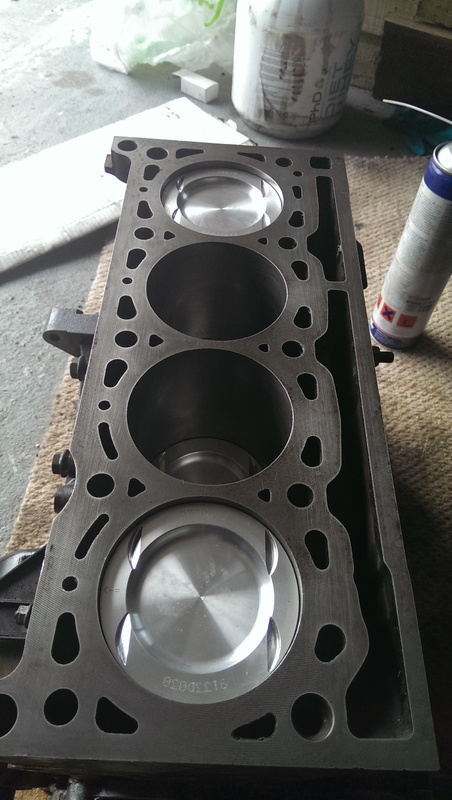

All the pistons and rods in. Torqued up and released the arp bolts 3 times. Done them up to 46ft/Lb.

Oooo Shiney



[unofficialPete]

Oh amazing, has to be my favourite CS build and that was before I even got to the BOOST era..



[NaplesMark16v]

Coming on nicely mate, contemplating boosting mine after reading Coops Turbo's thread lol. Think I'd be happy just cramming it up and stuff though, be more affordable more me too :lol:



[Jay_Kay]

I have to say going boost is expensive . Doubled my budget already!

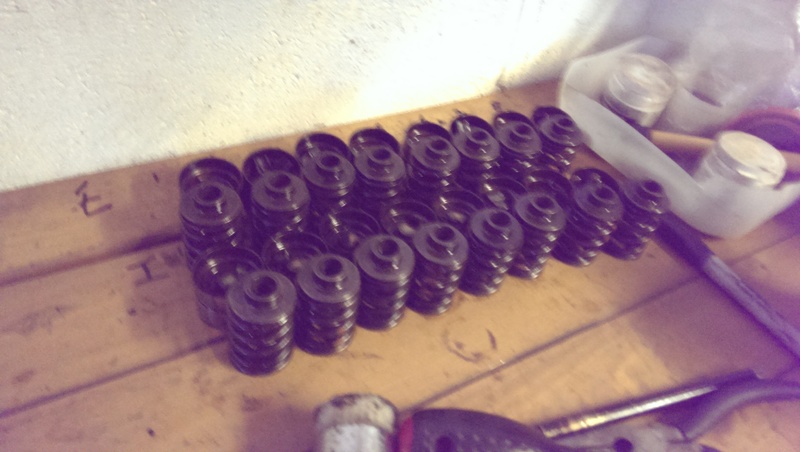

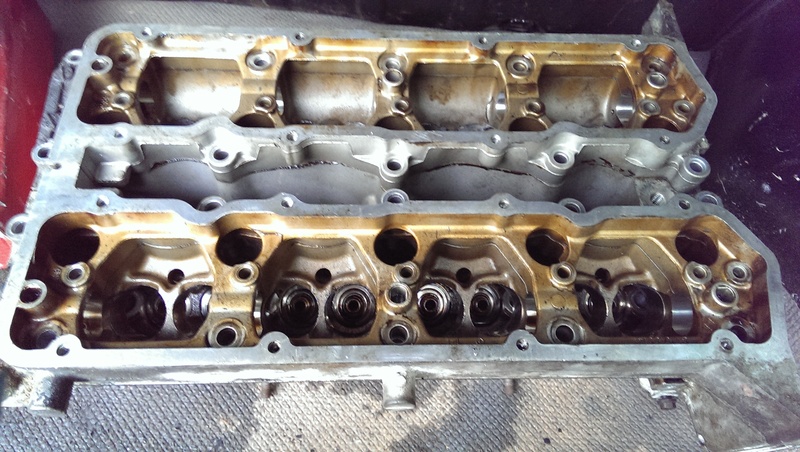

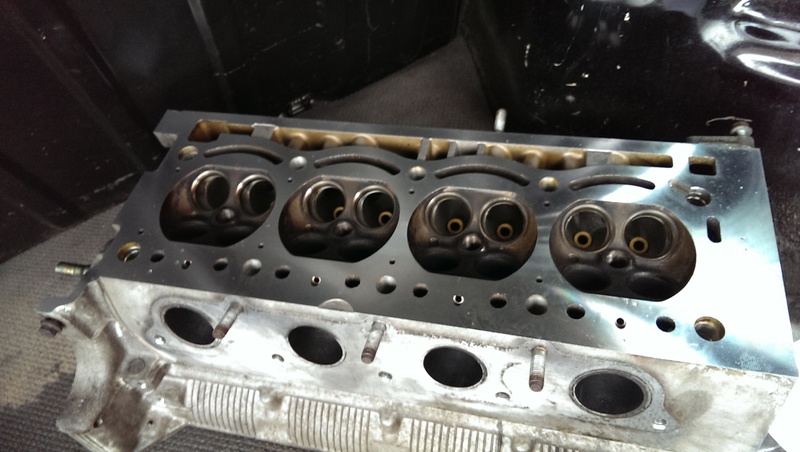

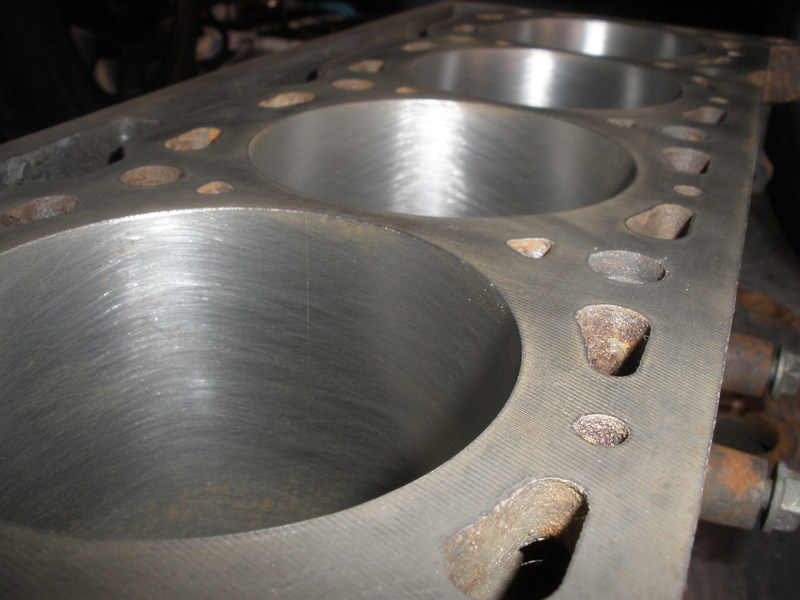

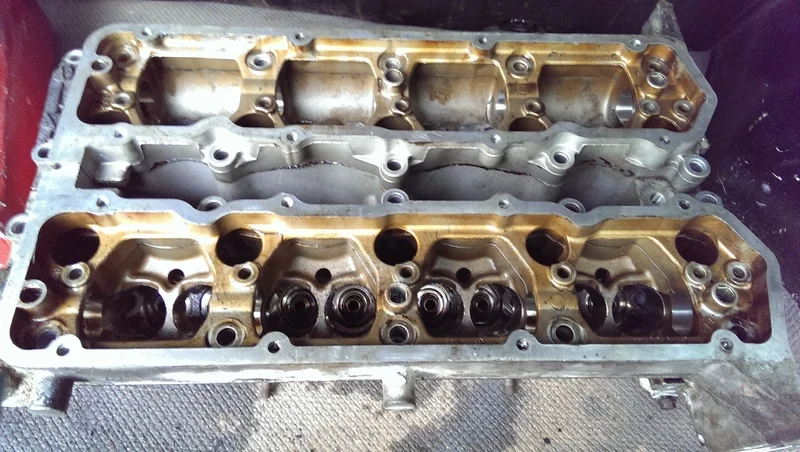

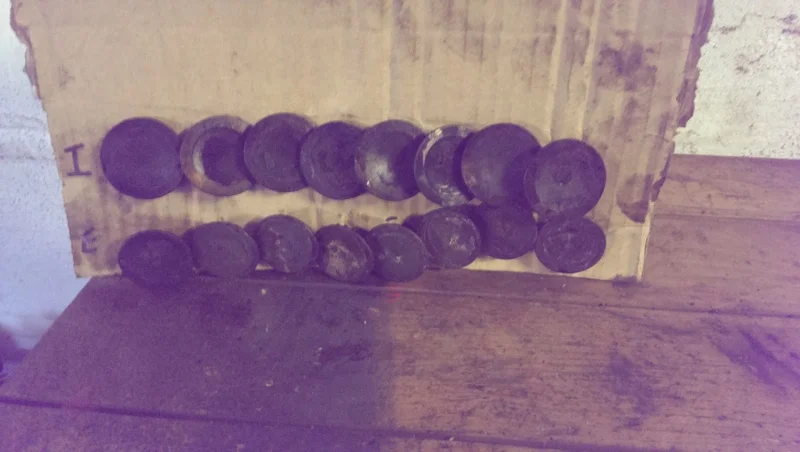

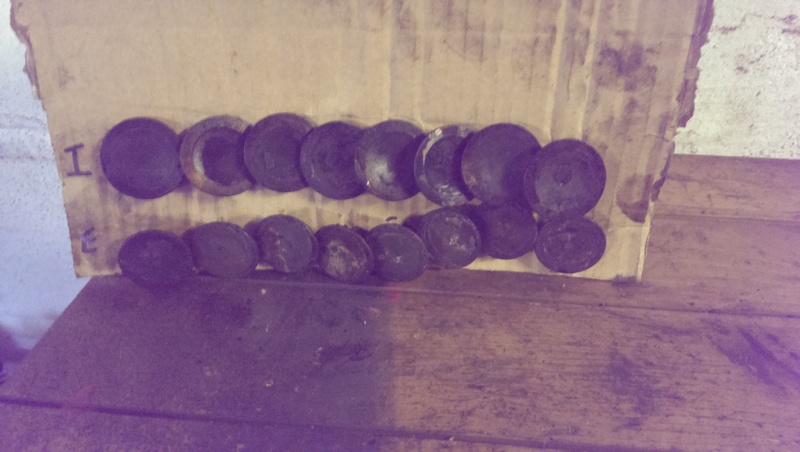

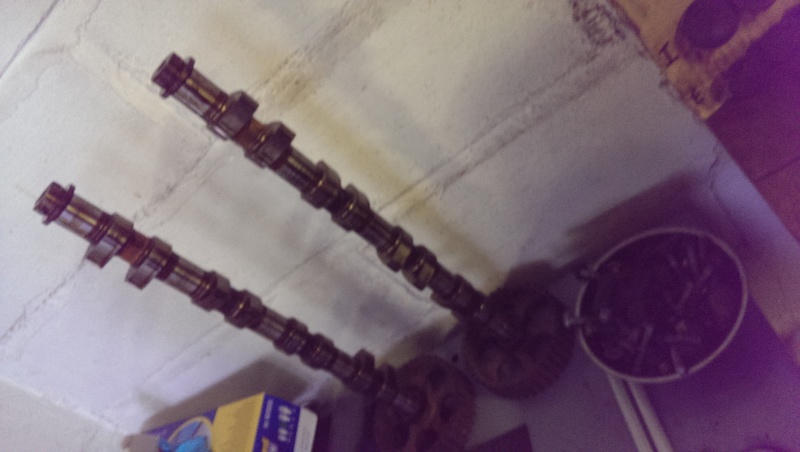

Head stripped down for new valve stem seals and a light skim for the mls head gasket.



[NaplesMark16v]

I have to say going boost is expensive . Doubled my budget already!

Head stripped down for new valve stem seals and a light skim for the mls head gasket.

Lol. I've been looking into it but going boost is similar price to the whole restoration!
Is yours an f7p or f7r? Those valves look bigger than mine :lol:



[Jay_Kay]

Lol. I've been looking into it but going boost is similar price to the whole restoration! 
Is yours an f7p or f7r? Those valves look bigger than mine :lol:

F7R baby! 32mm inlet valves

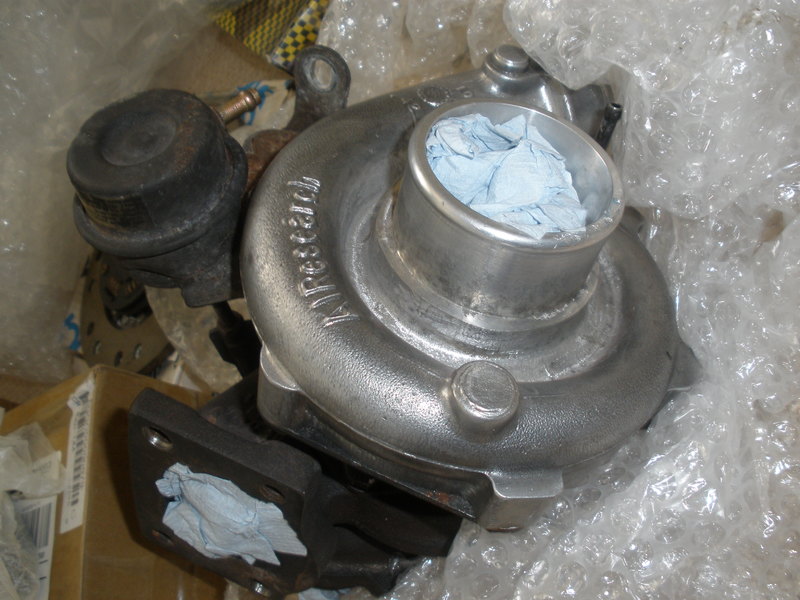

Just bought a GT28R so the power may creep upto 300hp

The head is back from its skim. Now to build it back up.



[NaplesMark16v]

F7R baby! 32mm inlet valves

Just bought a GT28R so the power may creep upto 300hp

The head is back from its skim. Now to build it back up.

Lol. I'm in 2 minds weather or not to buy my mates williams head,
It's virtually done no miles since it was rebuilt, not even been fitted to a car iirc,
It's cammed, ported and polished and something about valves from a megane I think he mentioned (don't hold me to the valves bit as I could've possibly heard that elsewhere) :lol:
What would you do? Pointless in fitting a williams head to an f7p722 bottom? Or a good investment?



[Chip-mk1]

Worth doing if its cheap.



[NaplesMark16v]

Worth doing if its cheap.

Might consider it lol...
Apparently it has piper cams with adjustable pulleys, bigger valves, gas flowed, ported etc, has been skimmed and even comes with a mls head gasket, and new head bolts.
It's also polished up too so will save me a job :lol:

Sorry for blabbing on your thread mate



[Jay_Kay]

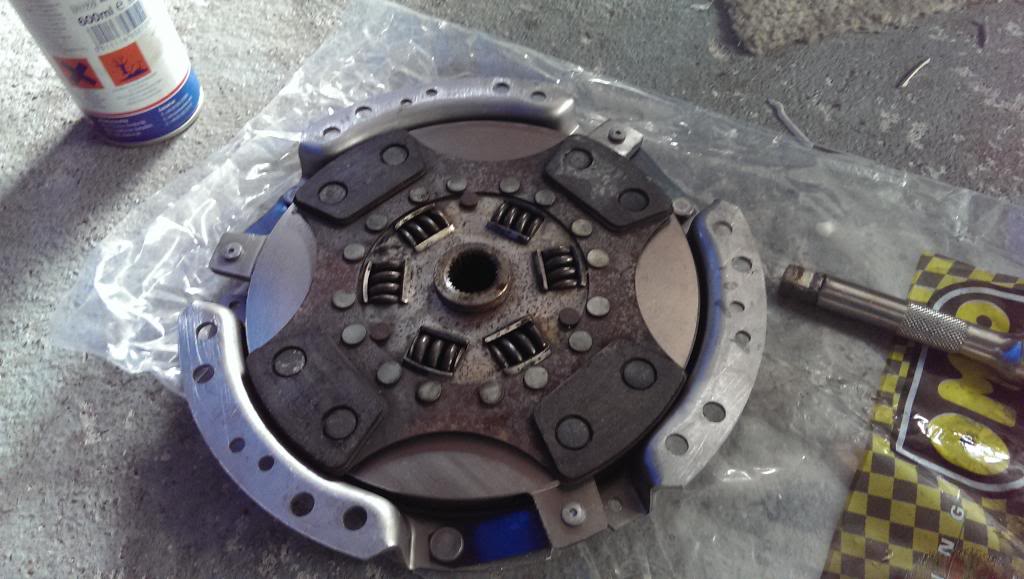

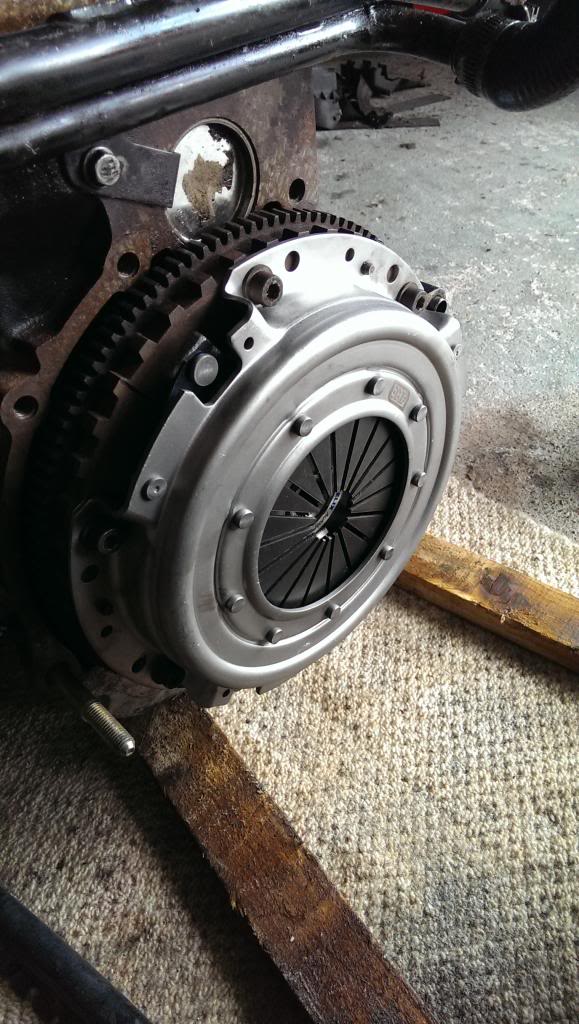

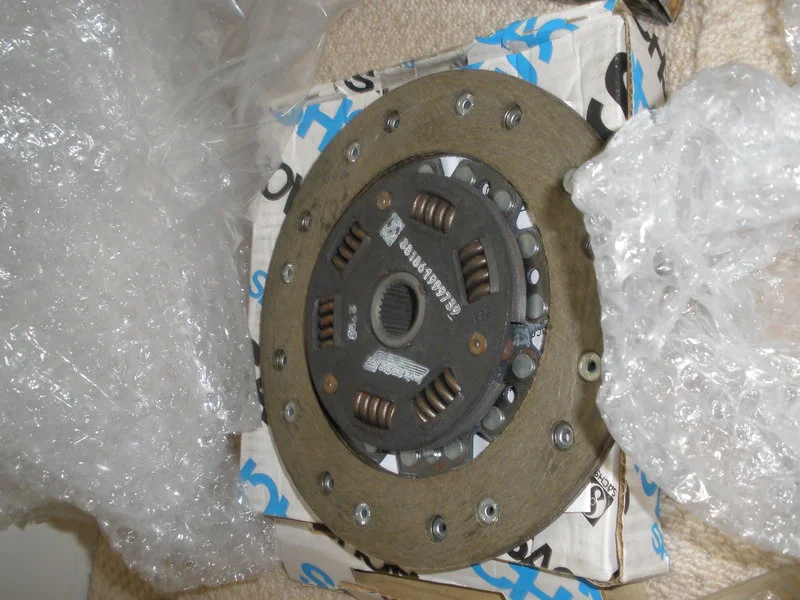

Helix 4 paddle clutch fitted

Waiting on the head gasket to progress more.



[Jay_Kay]

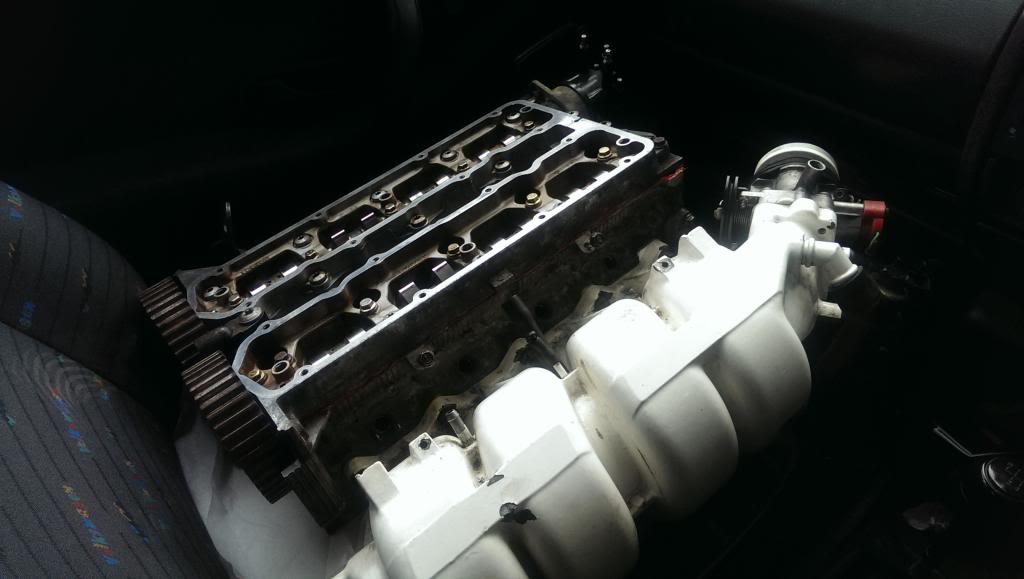

Head rebuilt

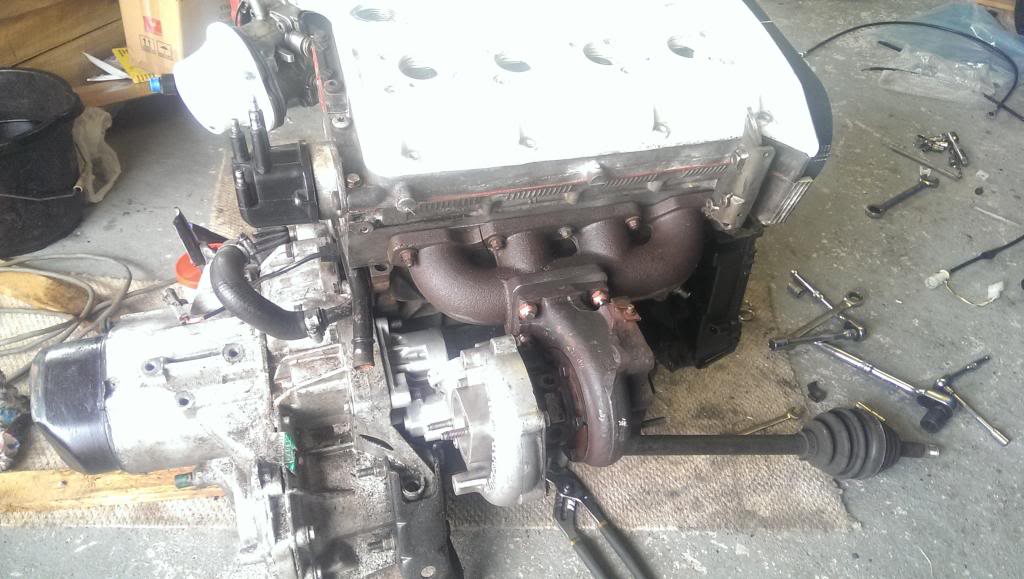

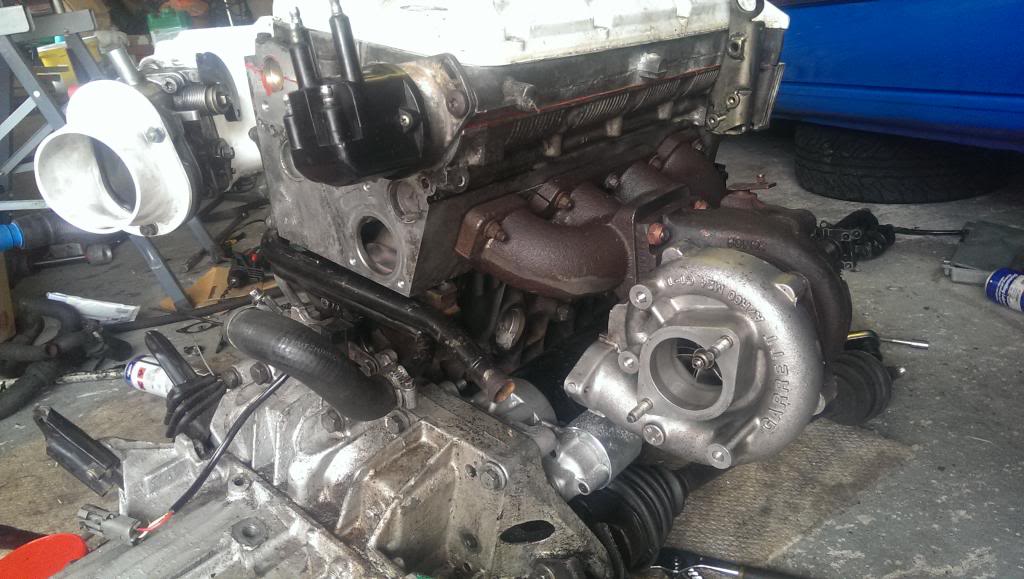

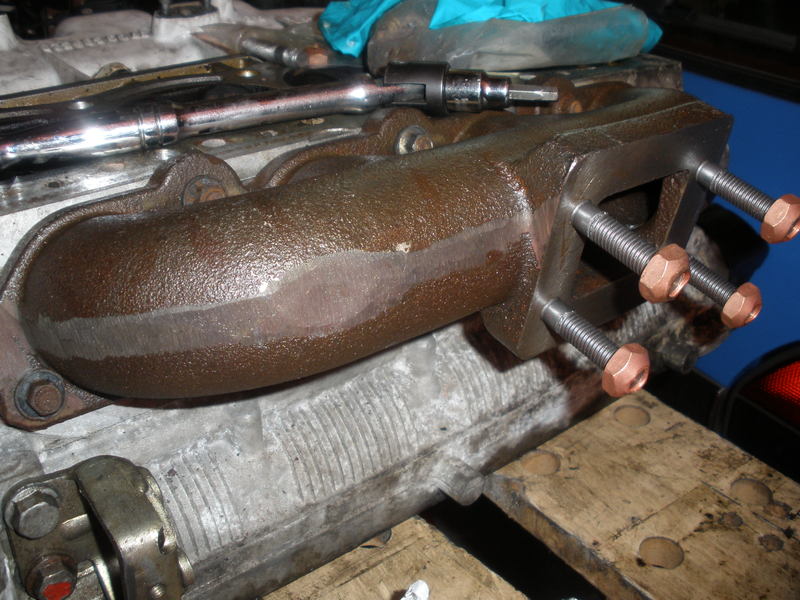

Turbo bolted to the manifold

_________________



[Jay_Kay]

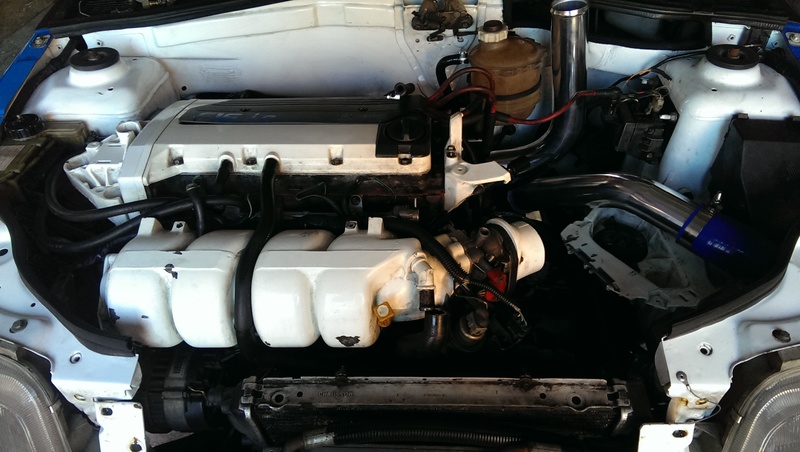

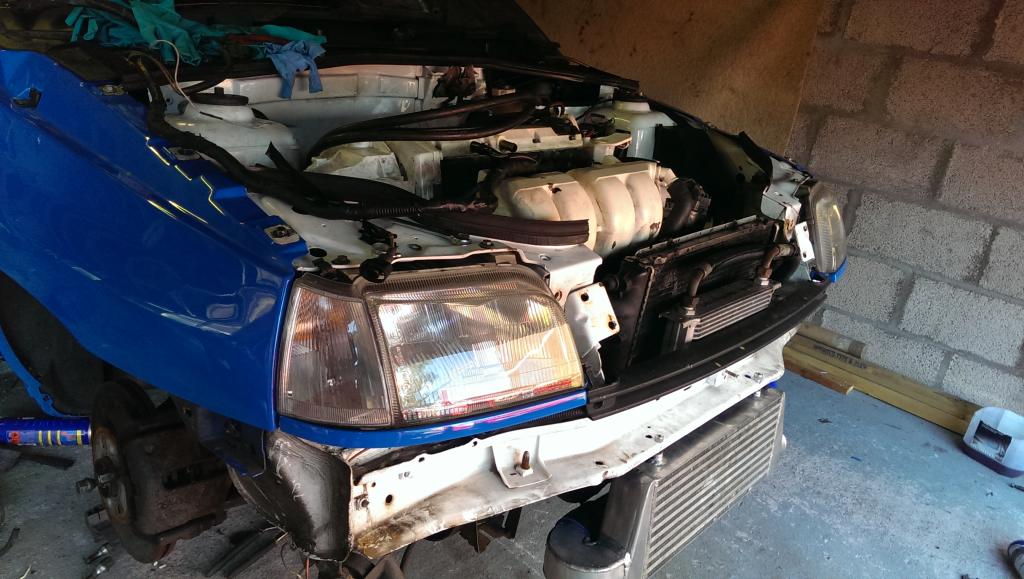

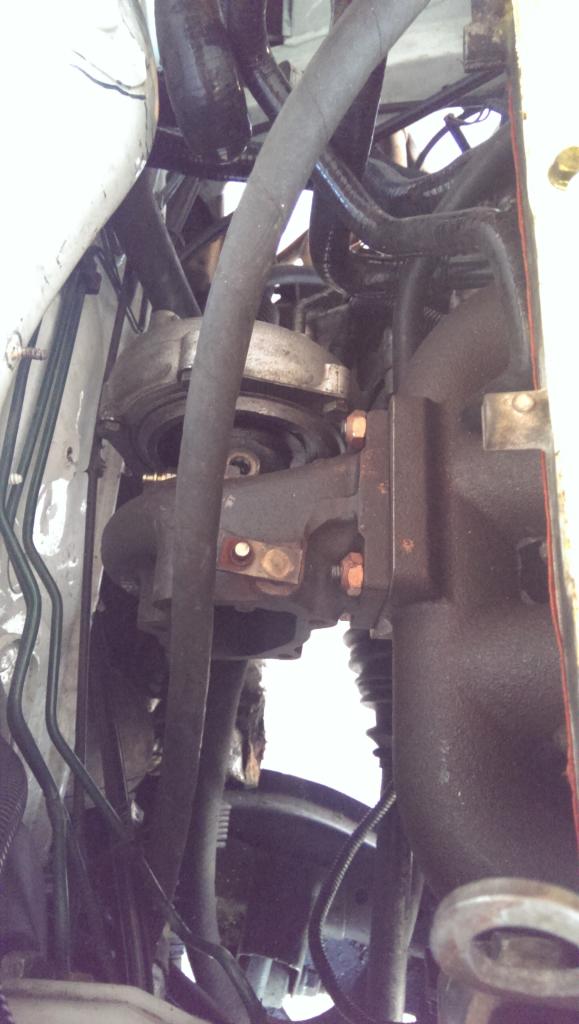

Engine in, most of it is hooked up not long till it's running.

Damn its tight by the bulkhead! Also struggling to do the intercooler pipe work as I've smoothed one of the holes most of the others use.



[Jay_Kay]

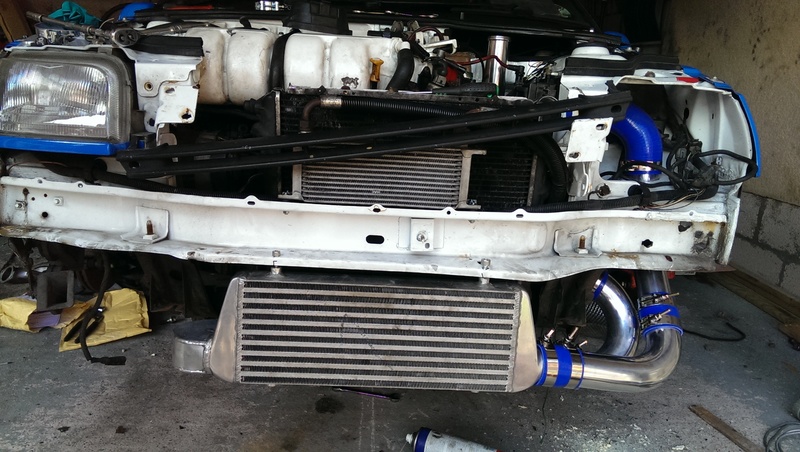

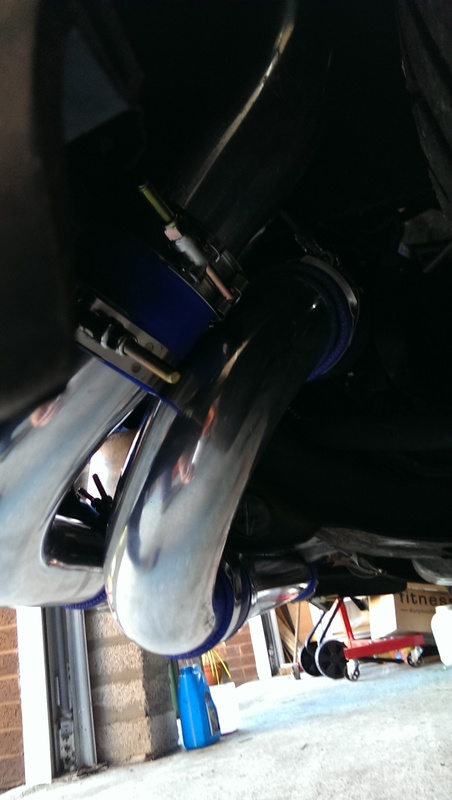

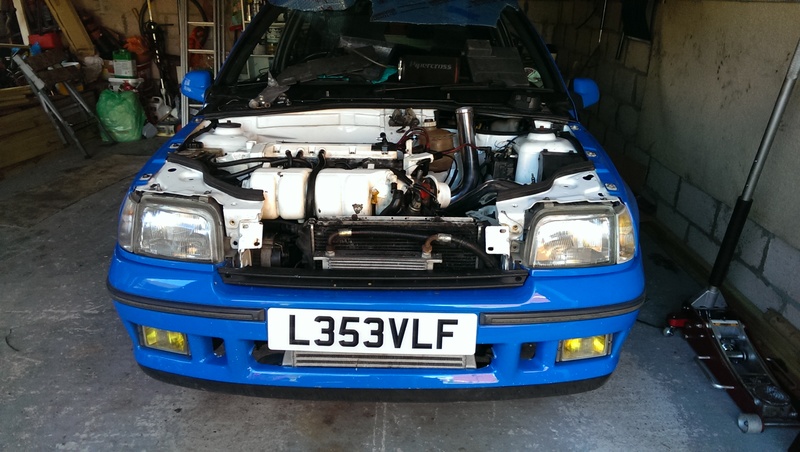

Most of the boost piping is done. Just need to order a few more in.... Spent so much on silicone bends.


The hole I cut is RAF style but I have f**k all tools here for that s**t.


Not long left till its running again!
