Obsidian Black Mercedes C63 AMG Enhancement Detail...



Gally

Formerly Mashed up egg in a cup
ClioSport Club Member
Hullllo again people. Been looking forward to this one for a while.

The owner has given us a lot of work over the years and he recently picked up a C63, thought I should offer to get it looking it's best again. He has a lovely collection of Porsches, a few rare ones, few Ruf ones also, a stunning Yellow Ferrari 575M (one of my favourites) looking forward to getting my hands on a few of them at some point.

I must say a massive thank you to @JD for sending me BoS up, being black it was the only option for this type of car!

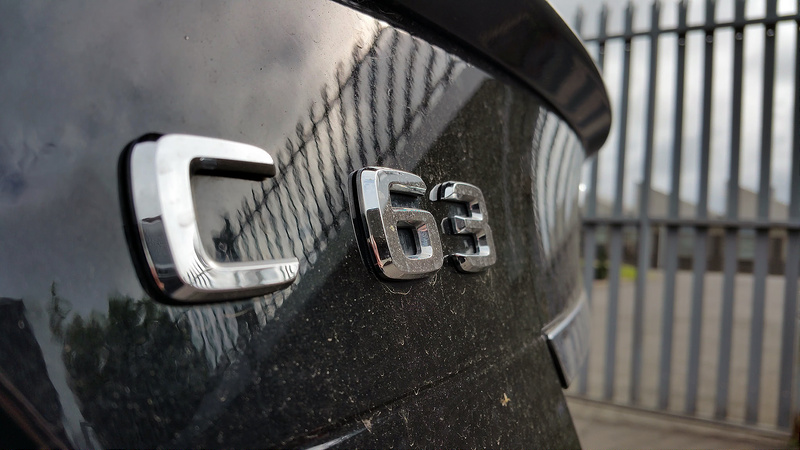

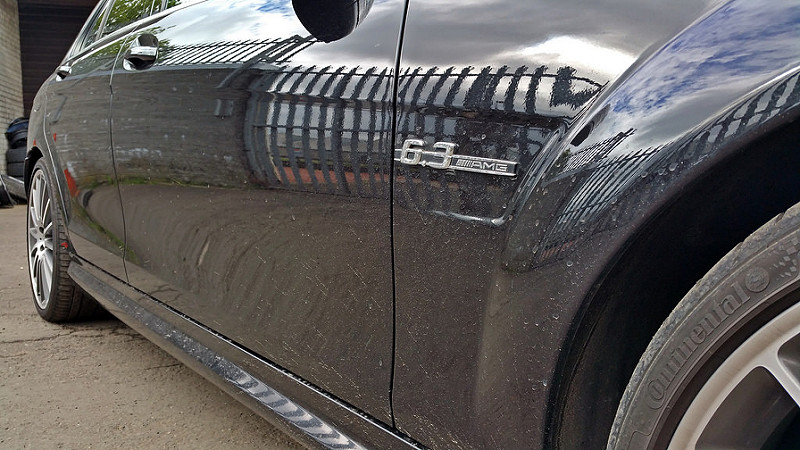

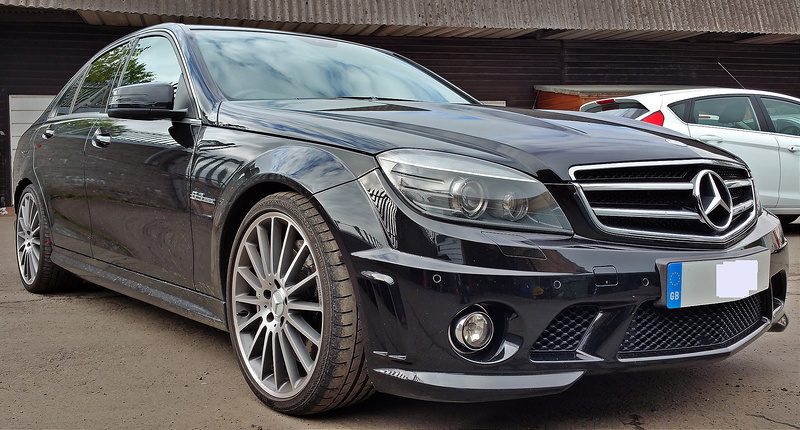

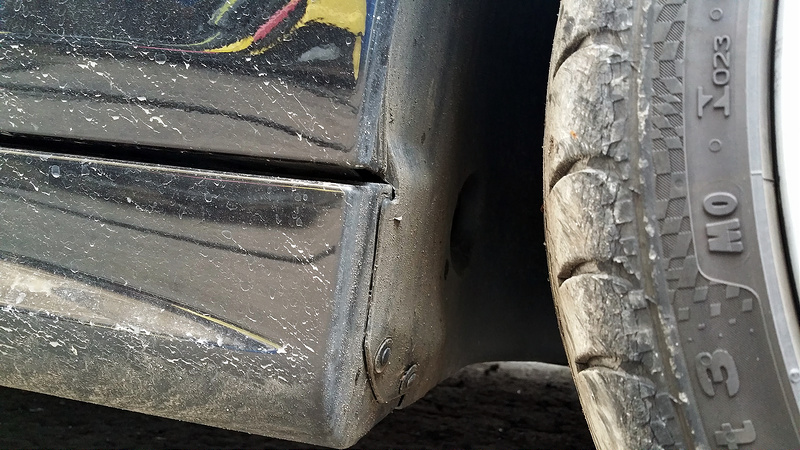

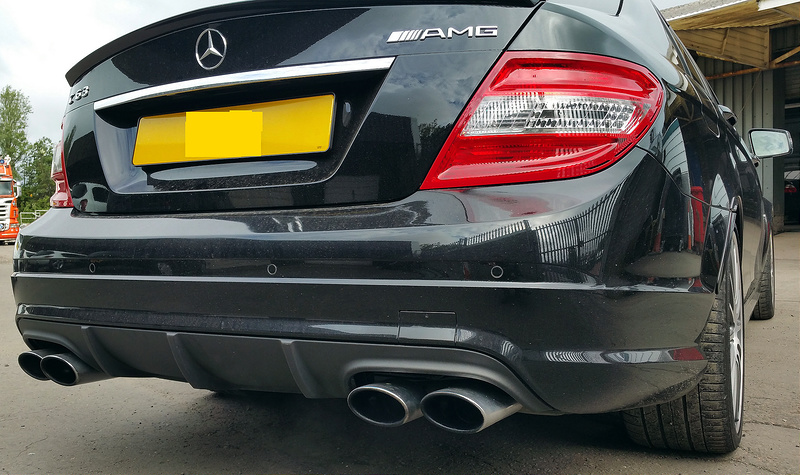

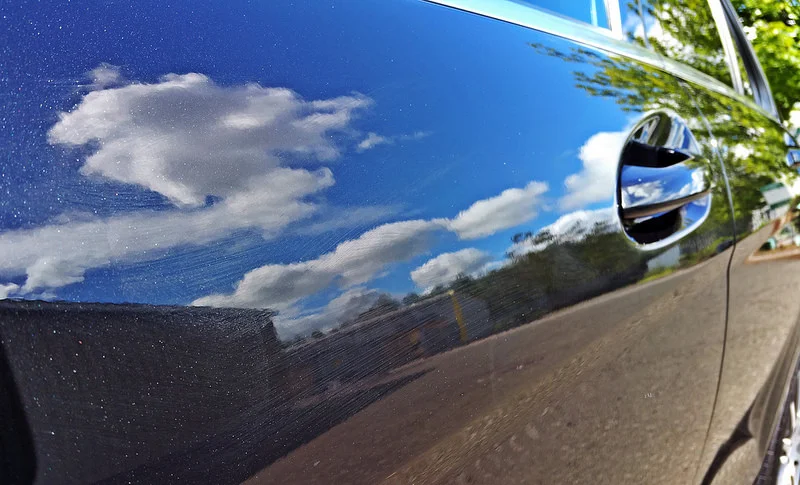

Anyway, on to the detail, I mentioned to the owner that I could improve the finish quite well as it was rather dull and tried looking, I probably surprised myself with just how well it came up.

20150621_083045 by gally.., on Flickr

20150621_083052 by gally.., on Flickr

20150621_083119 by gally.., on Flickr

20150621_083147 by gally.., on Flickr

20150621_083157 by gally.., on Flickr

20150621_083204 by gally.., on Flickr

20150621_083218 by gally.., on Flickr

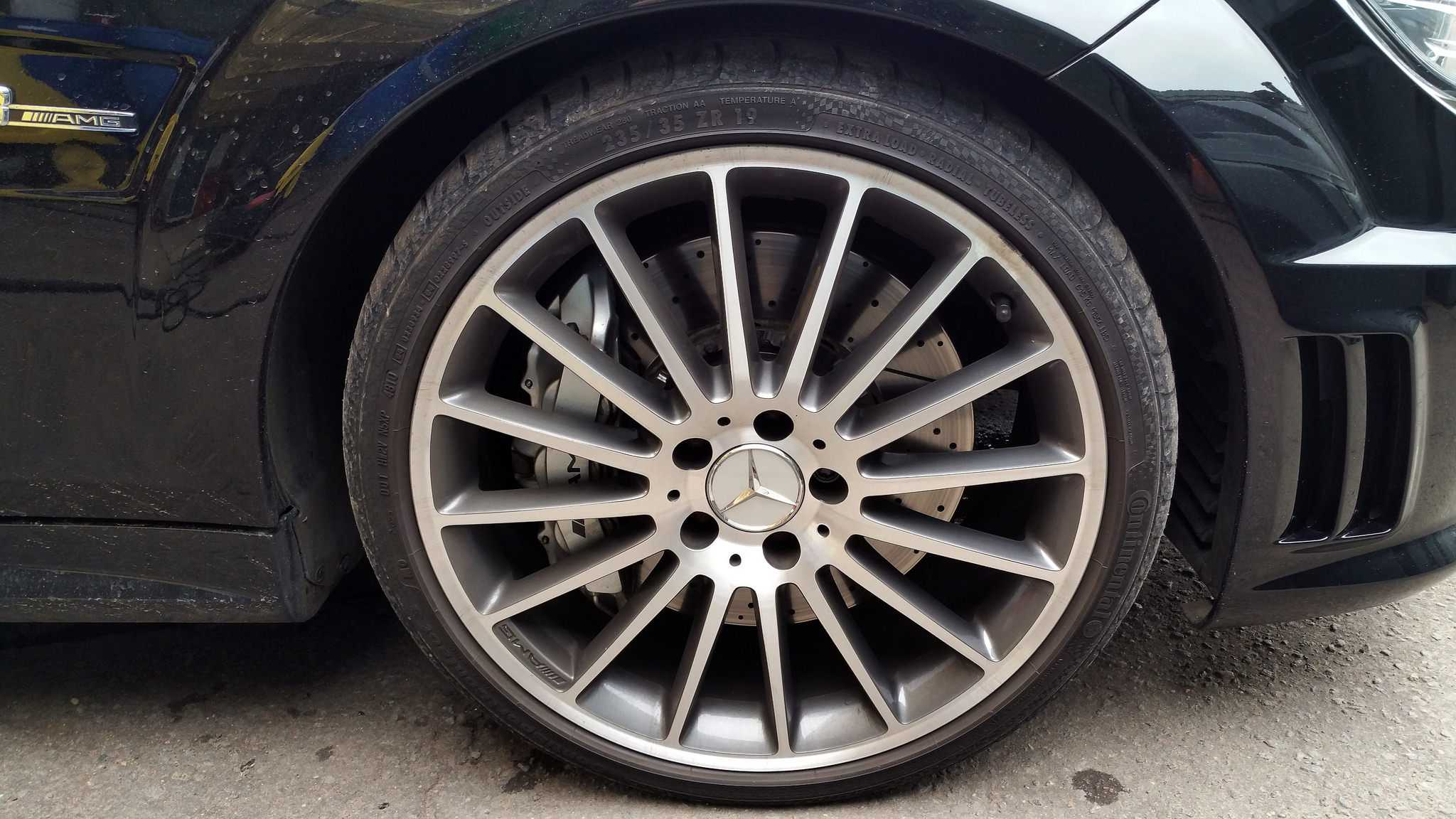

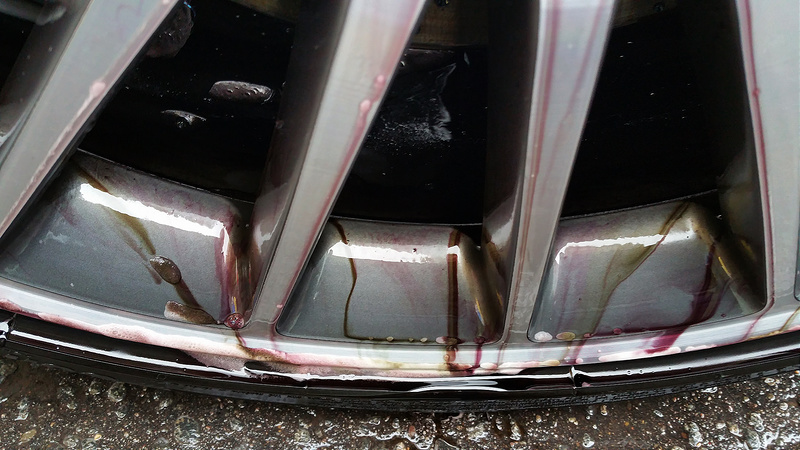

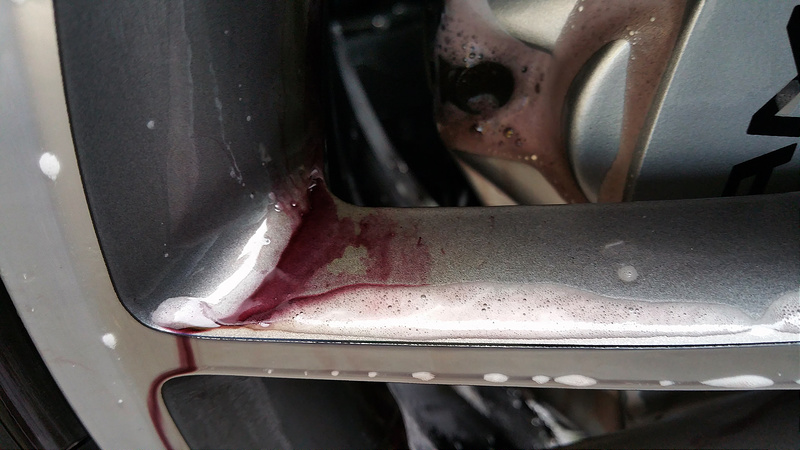

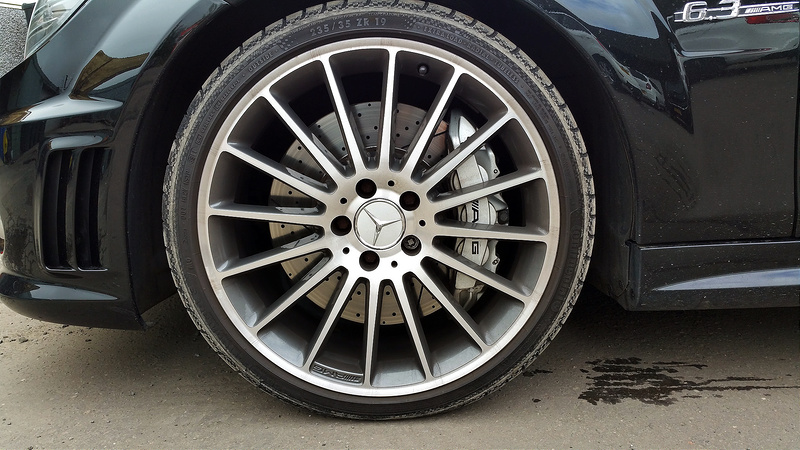

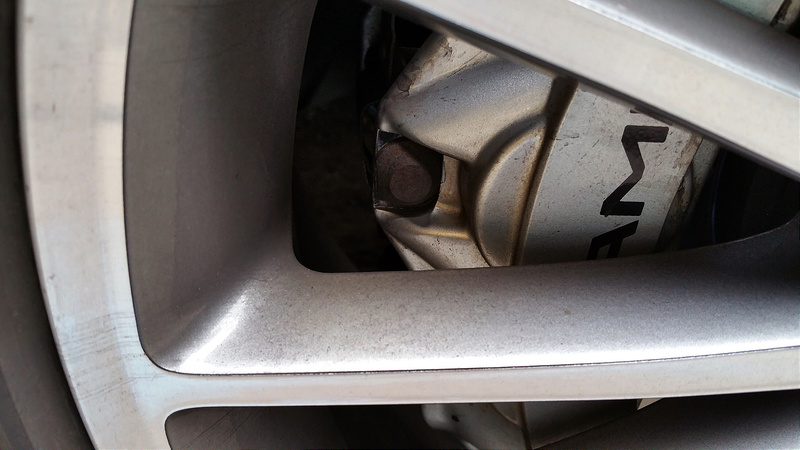

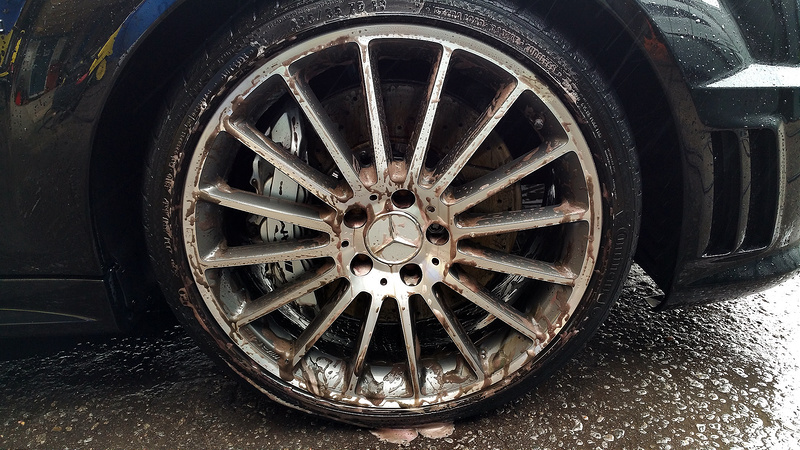

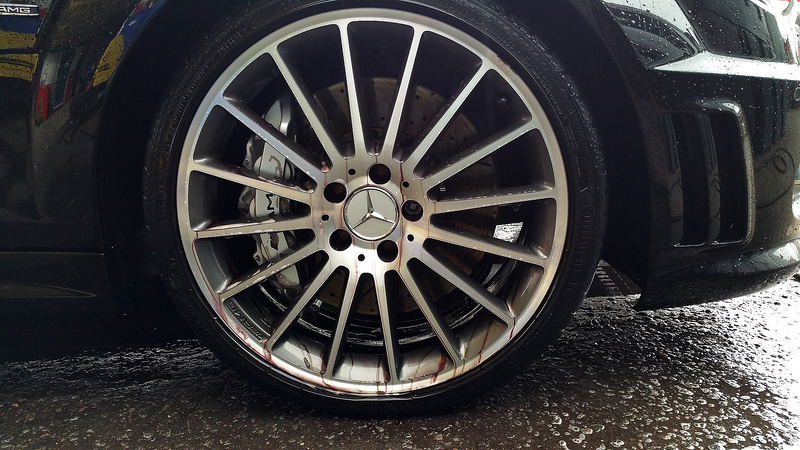

Wheels are going for a diamond cut refurb so nothing in the way of sealing or deeper cleaning required. Arches heavily cleaned with Vikan brush and G101!

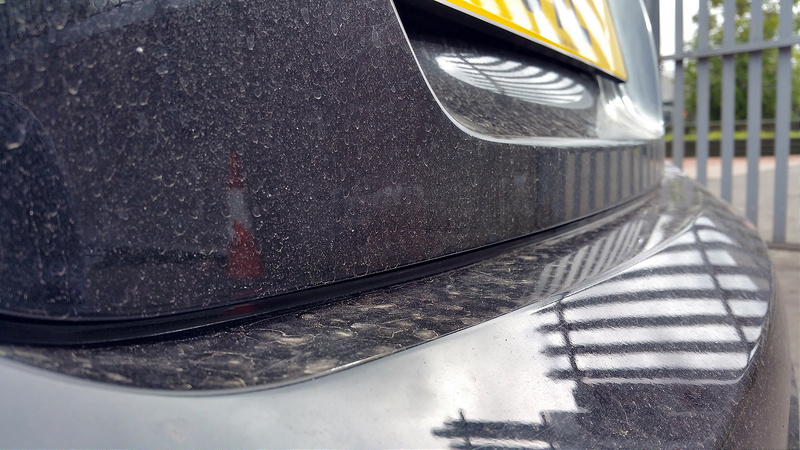

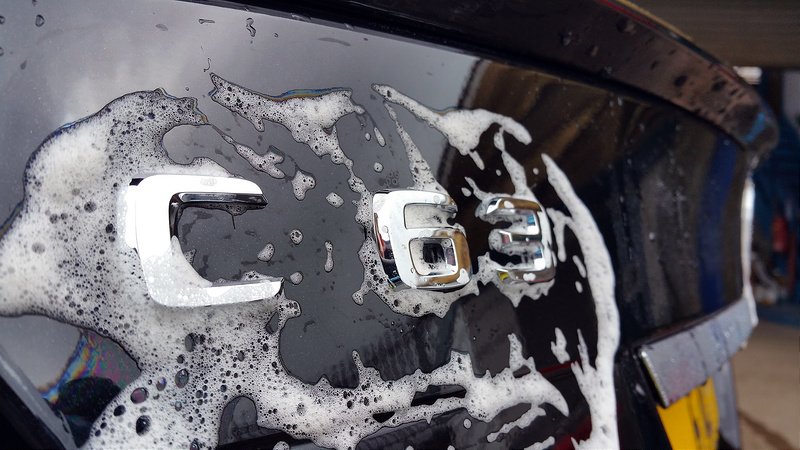

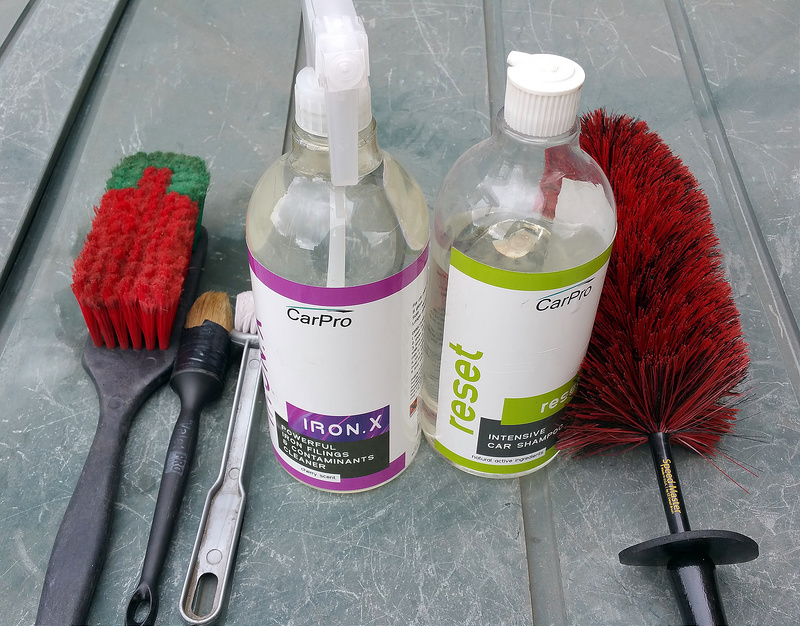

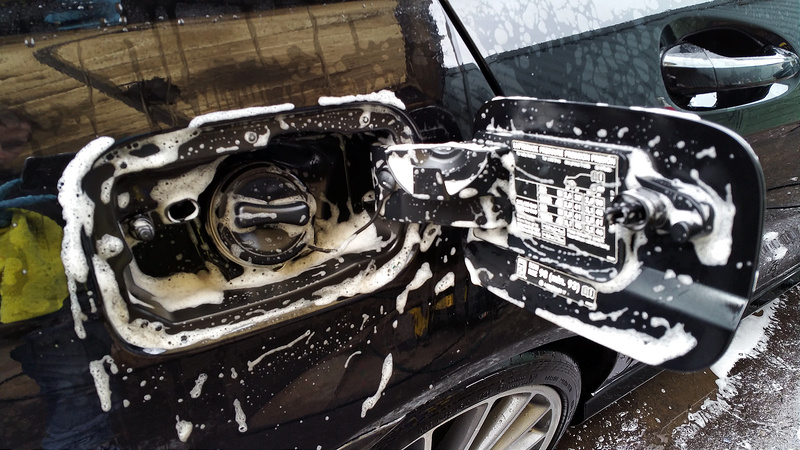

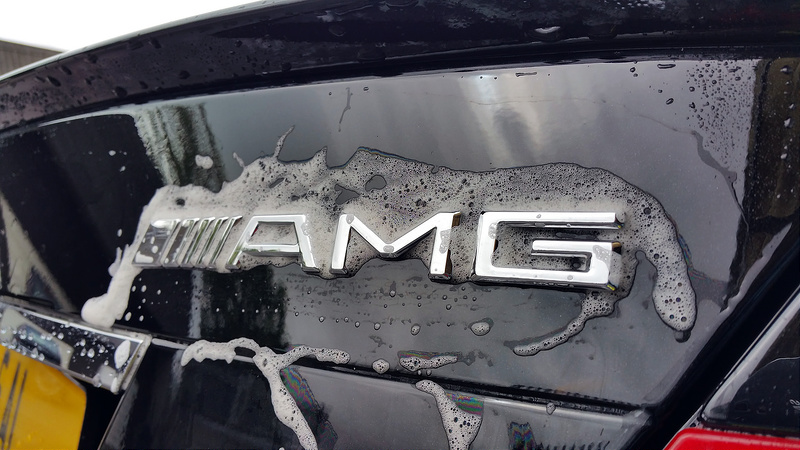

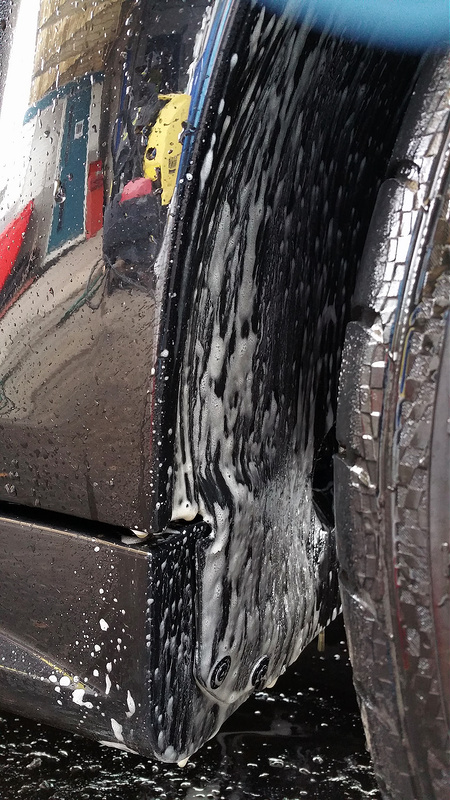

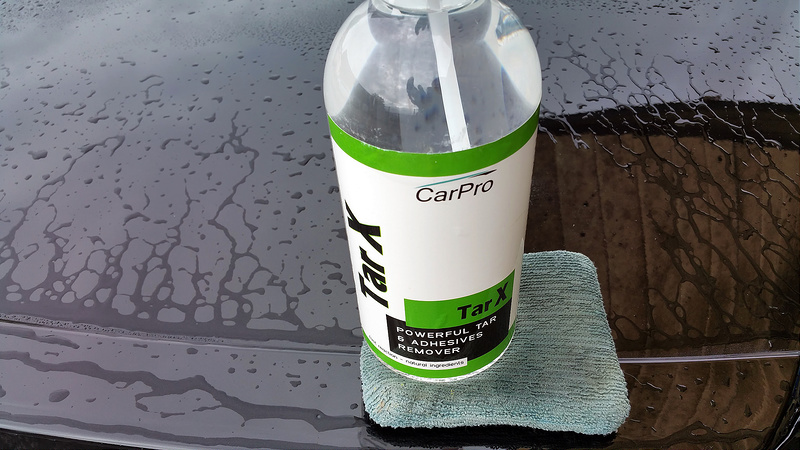

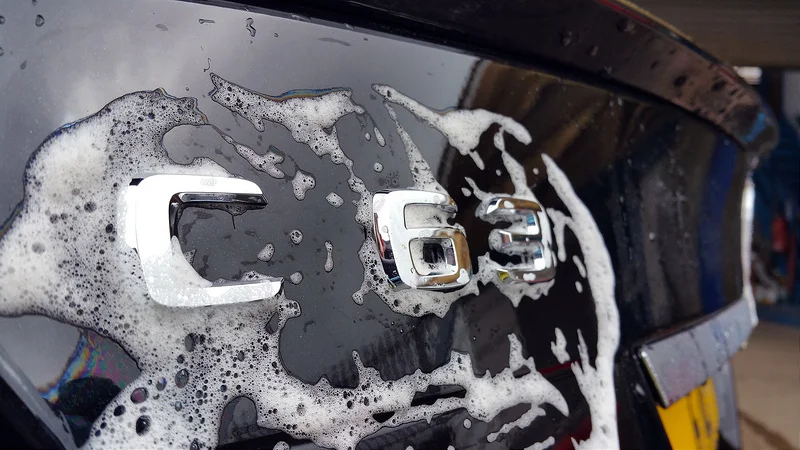

Autosmart snowfoam/reset/g101 on badges and rubbers etc. Tarx and iron x used for further decontamination. BH soft clay also used, very lightly! Hydro used a drying aid (the most expensive one that ever existed I know but it's just amazing stuff).


20150621_083900 by gally.., on Flickr

20150621_083909 by gally.., on Flickr

20150621_083916 by gally.., on Flickr

20150621_083935 by gally.., on Flickr

20150621_084147 by gally.., on Flickr

20150621_084652 by gally.., on Flickr

20150621_084701 by gally.., on Flickr

20150621_084706 by gally.., on Flickr

20150621_084945 by gally.., on Flickr

20150621_093010 by gally.., on Flickr

20150621_093014 by gally.., on Flickr

20150621_093022 by gally.., on Flickr

20150621_093620 by gally.., on Flickr

20150621_100443 by gally.., on Flickr

20150621_100448 by gally.., on Flickr

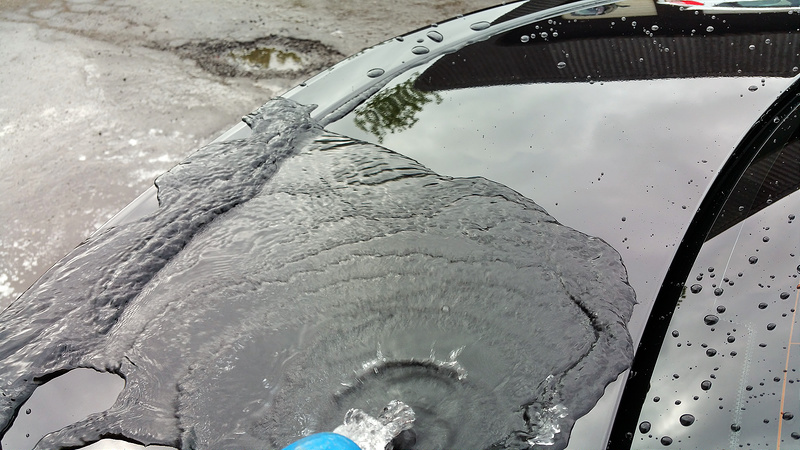

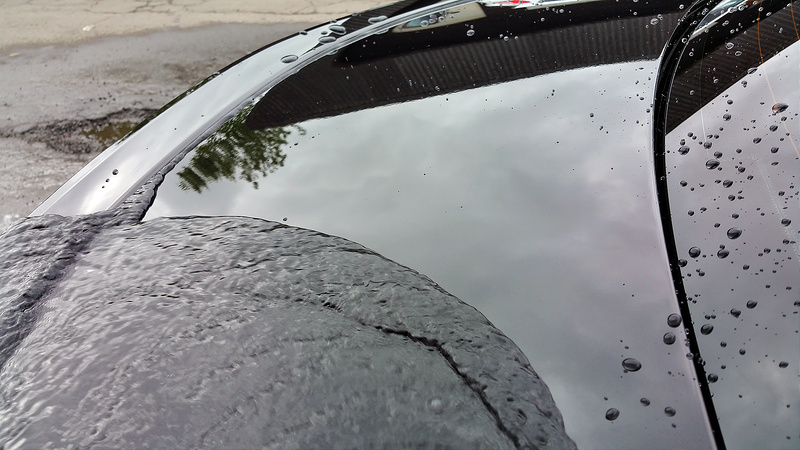

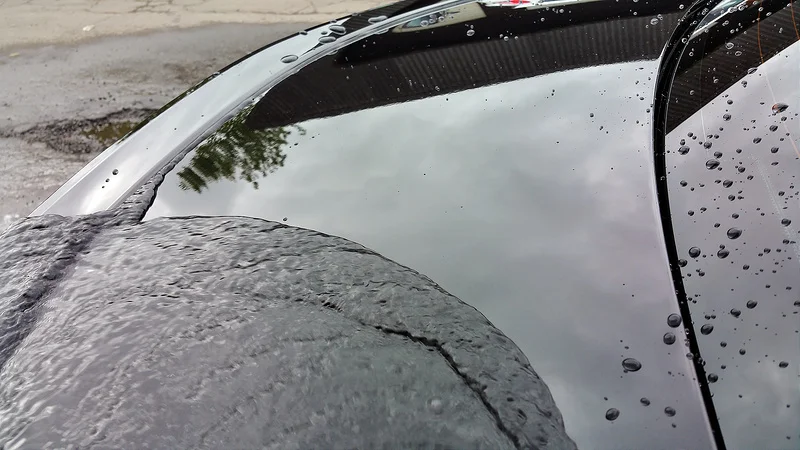

Although silly to use as a drying aid it will leave the car almost bone dry if water sheeting is done correctly, you can see half the bootlid is dry. After sheeting I made a cuppa, came back and there was only minor droplets left on the roof, screens and bonnet. It's hard not to use it!

Inside for some checking and masking!

20150621_110812 by gally.., on Flickr

20150621_110935 by gally.., on Flickr

20150621_110958 by gally.., on Flickr

20150621_111009 by gally.., on Flickr

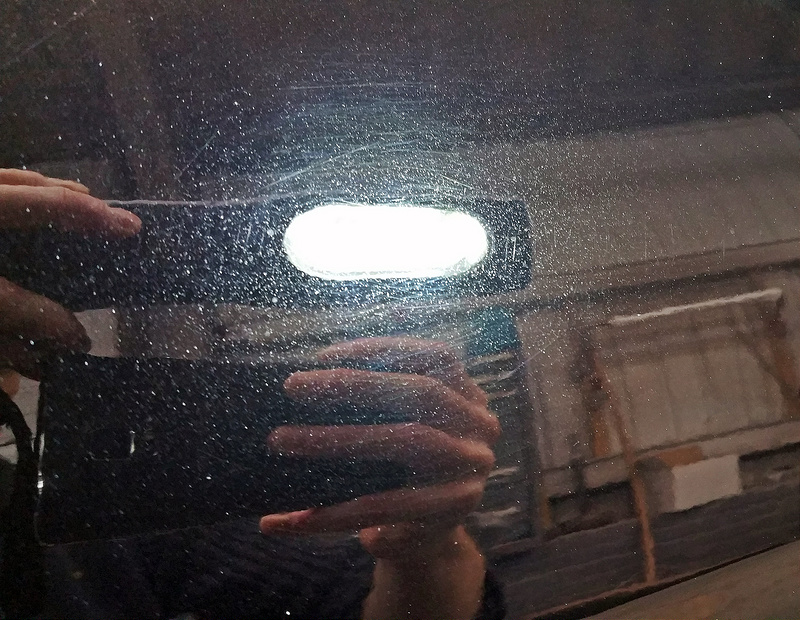

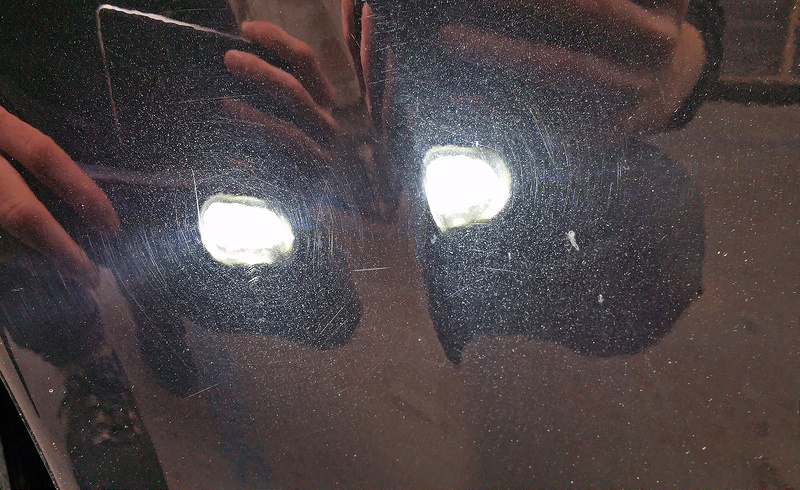

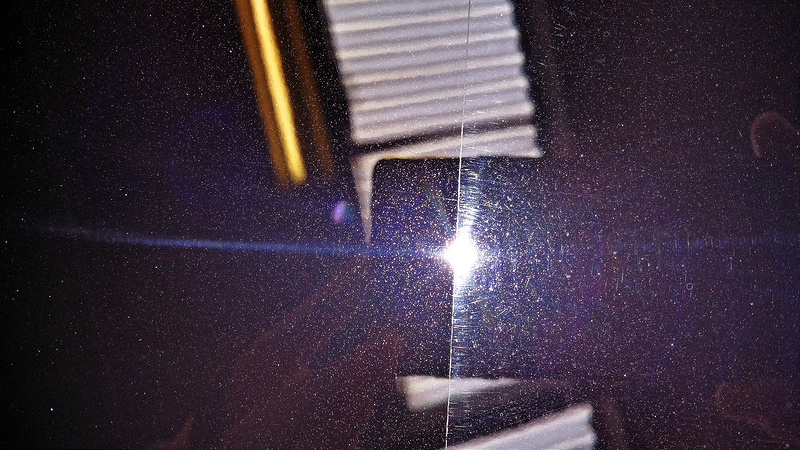

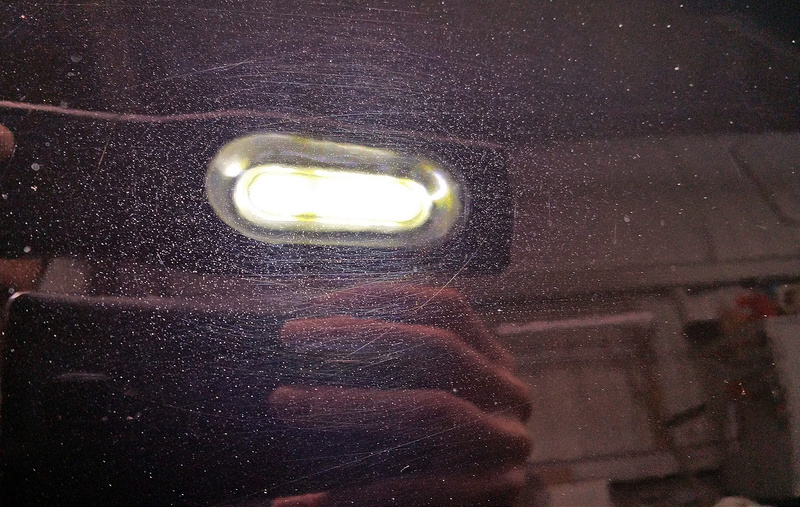

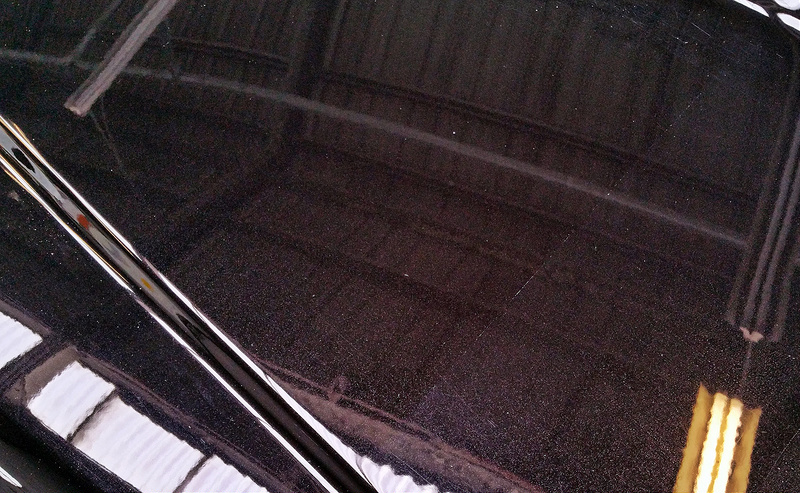

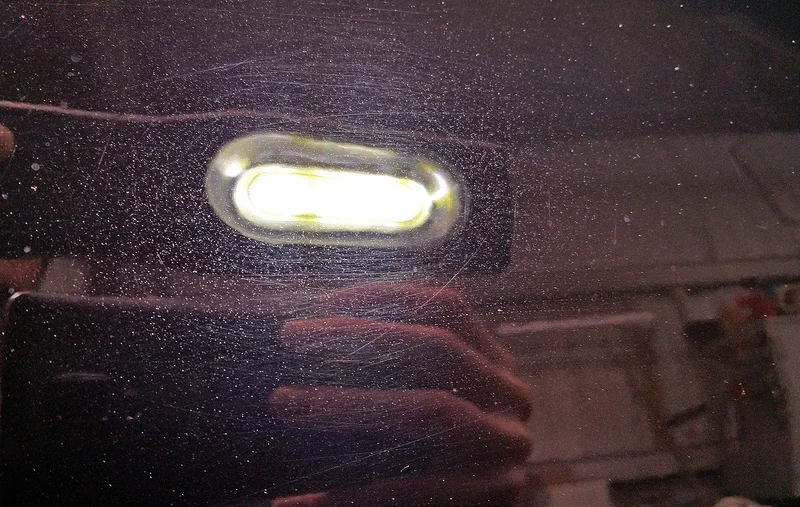

My LED pretty much lost most of it's power by this point, you can see from the previous images it's struggled to light up the panels unlike previous detailing thread. Camera flash came in handy.

Tested bonnet square as always, I had worked on Mercedes paint of this age a few times but mostly light colours. White Hex and CarPro Fixer used. I really like the polish due to the low dusting and the fact you can change the pad to suit the paint and correction required!

20150621_112125 by gally.., on Flickr

20150621_112507 by gally.., on Flickr

20150621_112532 by gally.., on Flickr

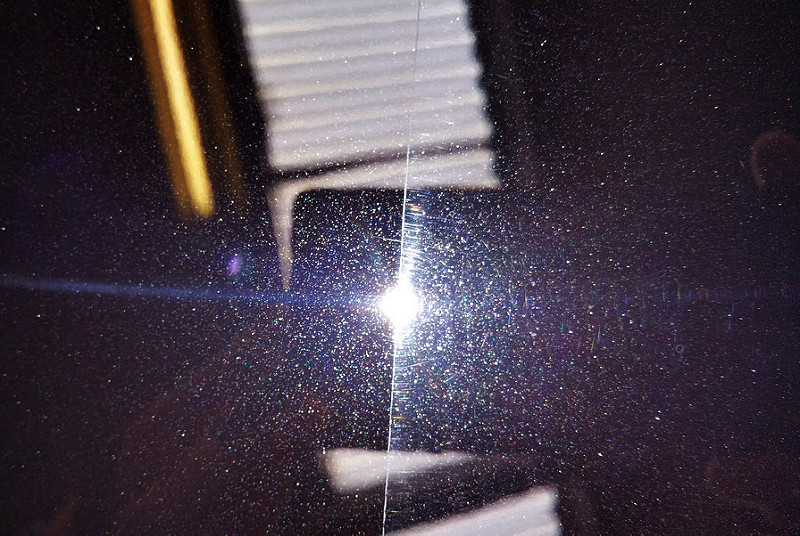

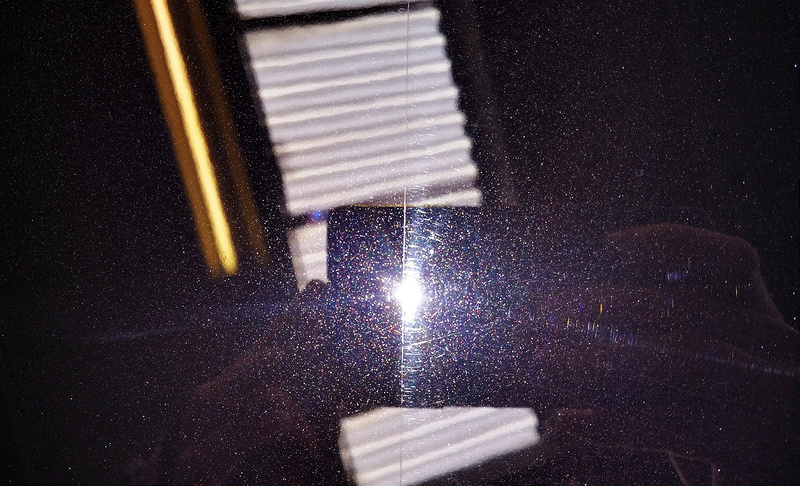

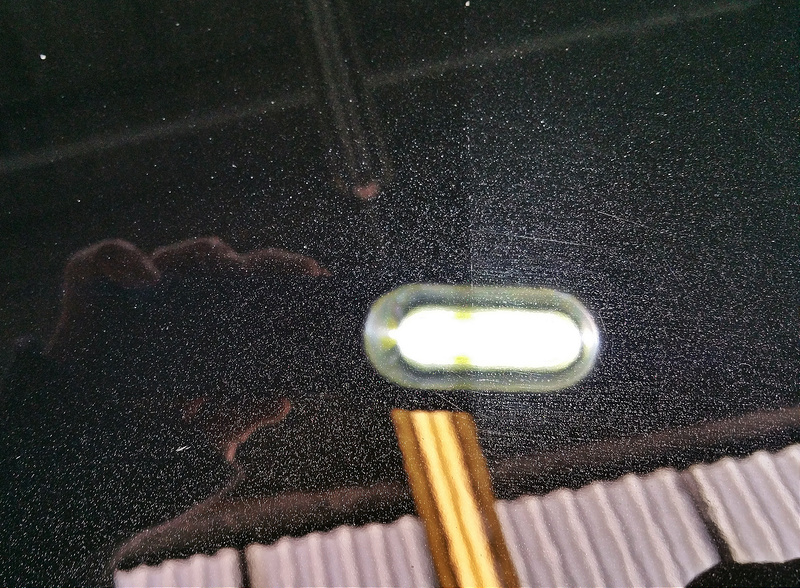

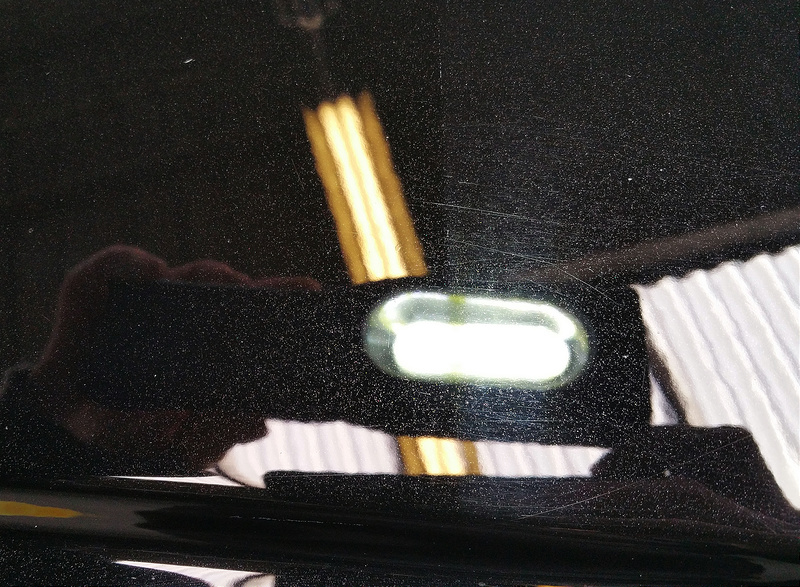

Couple from the bootlid, the light coming into the workshop really doesn't help as it's flooded with daylight! Couple of deeper marks left in the clearcoat but a very good improvement from a simple combo. All panels checked with Spies Hecker panel-wipe wipe down, Menzerna never seems to fill much anyway from my experience.


20150621_120853 by gally.., on Flickr

20150621_120856 by gally.., on Flickr

20150621_120929 by gally.., on Flickr


Hand cleansed with Werkstat Prime (I can't stop using it) enhanced the finish and brought more clarity again. Seems to missing my picture of my applicator, love how cleansers can remove dirt even after polishing, microscopic pores are fascinating.

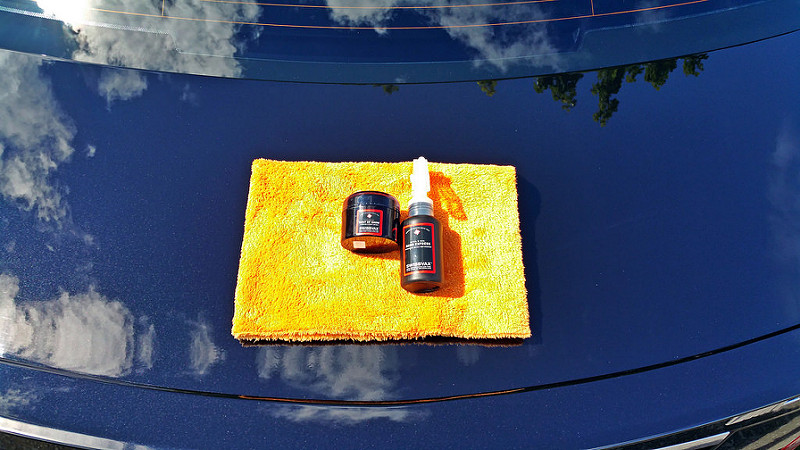

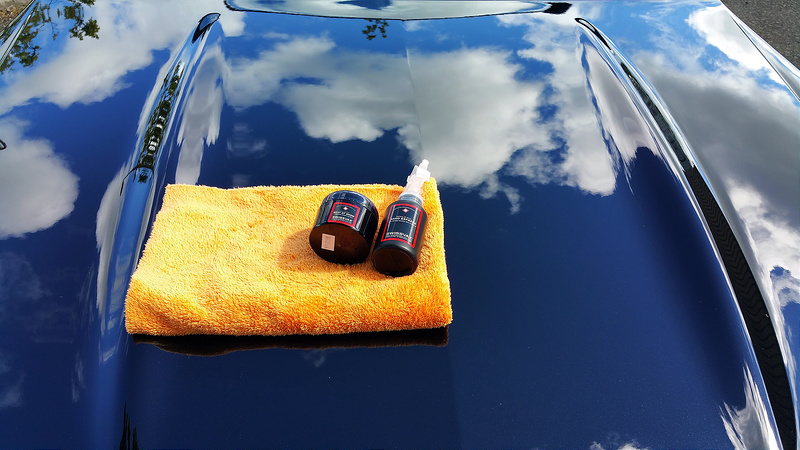

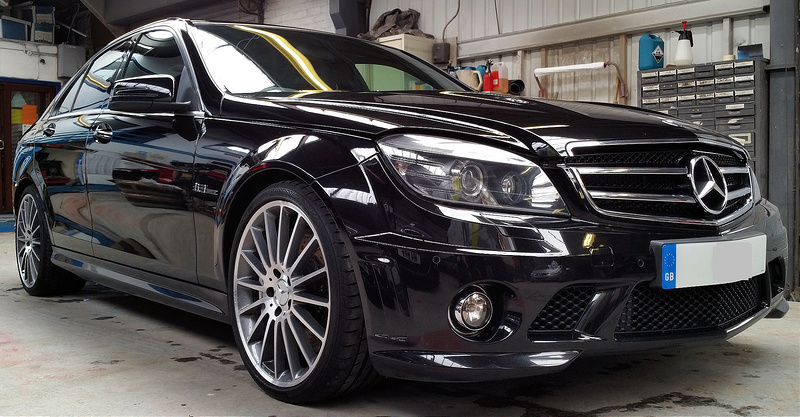

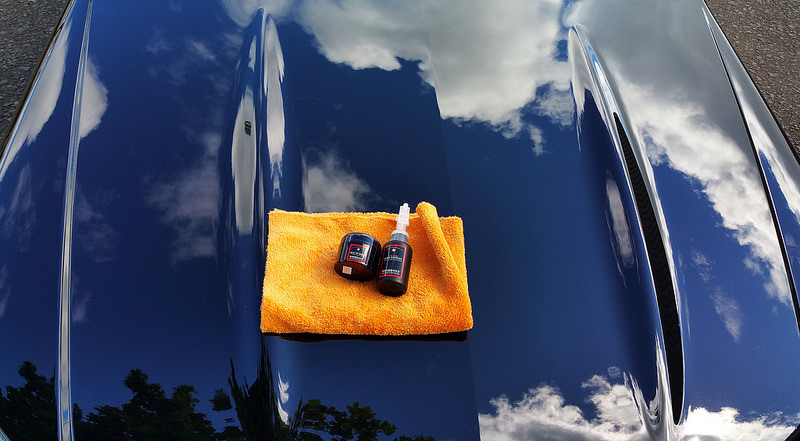

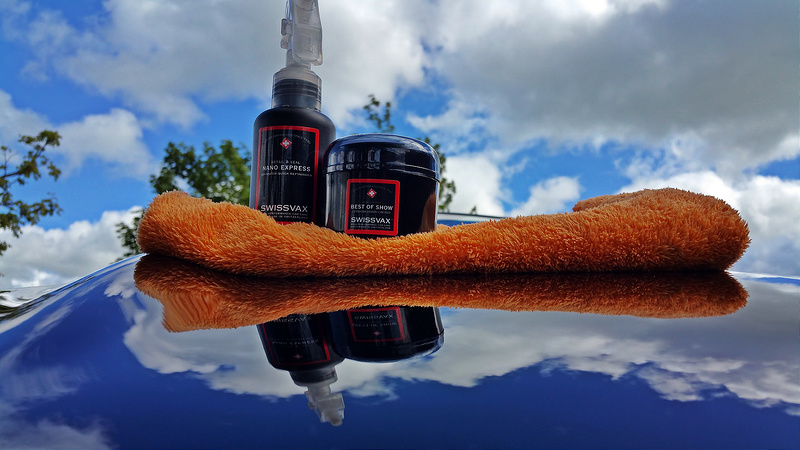

At this point I gave the car it's first coat of Bos, you can see it curing away. It's hand downs still the easiest wax in the world to use/remove. It's always had that graininess, that still old school character and as always that smell! Distinctive.

Prime used on the glass, g5 on the front screen
Megs/CarPro perl used on the tyres
CarPro Perl used n the plastics and rubbers

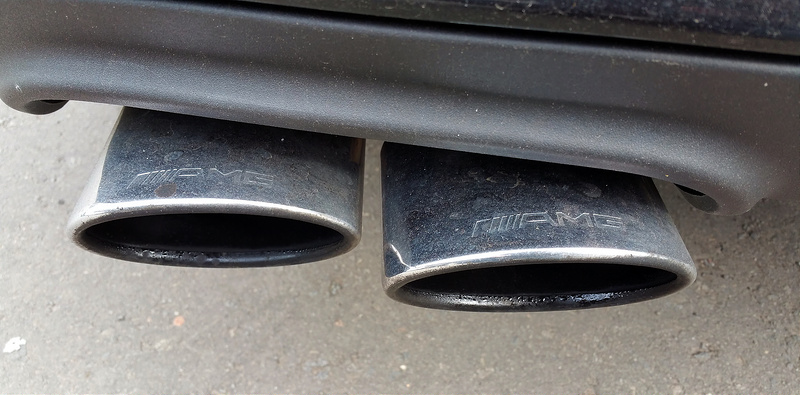

Britemax on the exhausts.

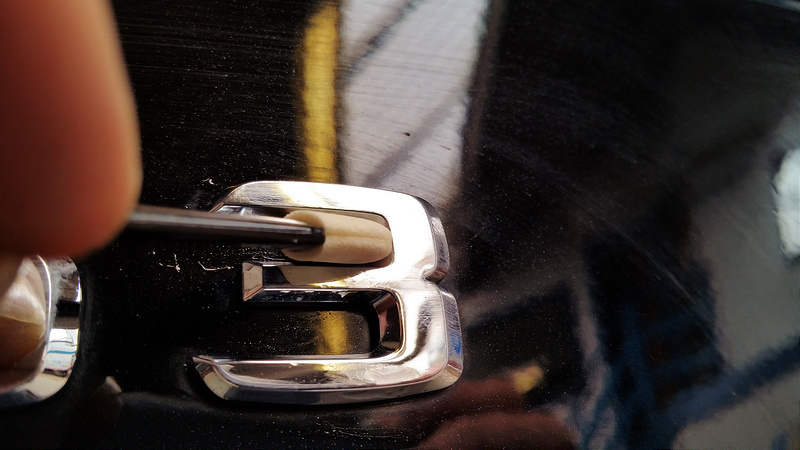

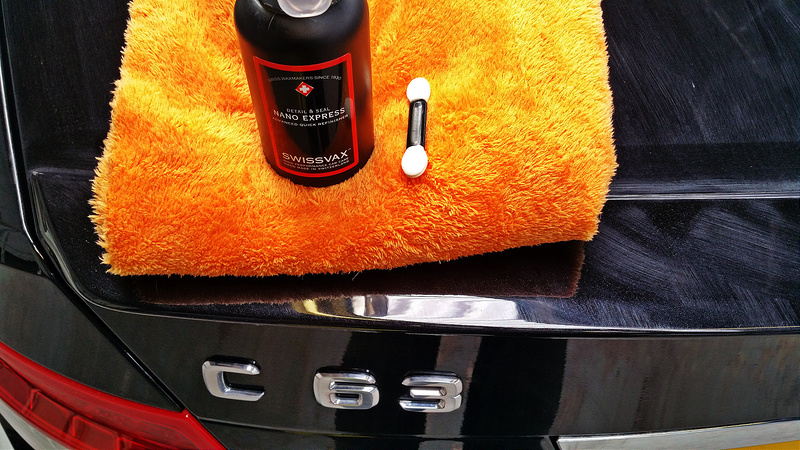

Round badges etc with the buds and nano express before a final coat of BoS and a nano express wipedown.



20150621_150332 by gally.., on Flickr

20150621_150435 by gally.., on Flickr

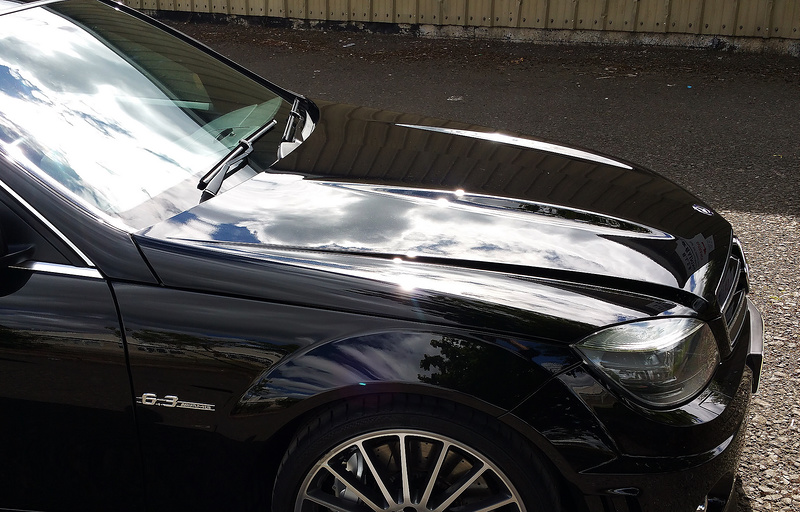

Outside after applying the second coat and remove in the nice weather whilst wiping down.


20150621_153451 by gally.., on Flickr


Gally

Formerly Mashed up egg in a cup
ClioSport Club Member

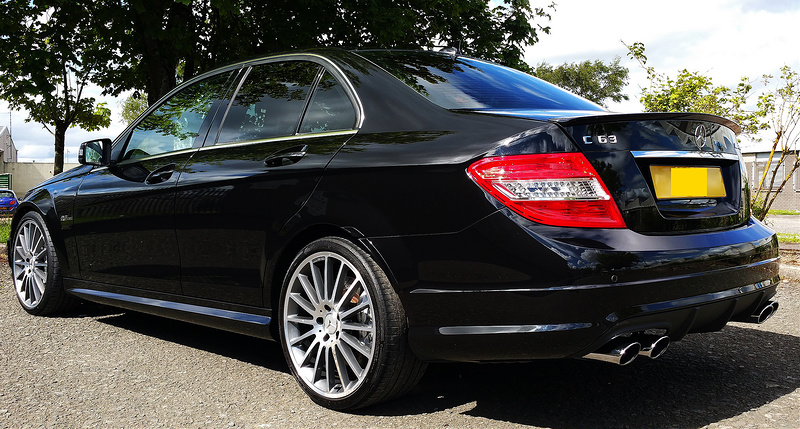

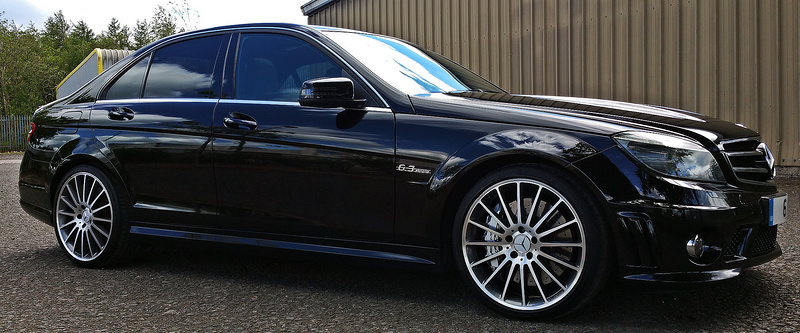

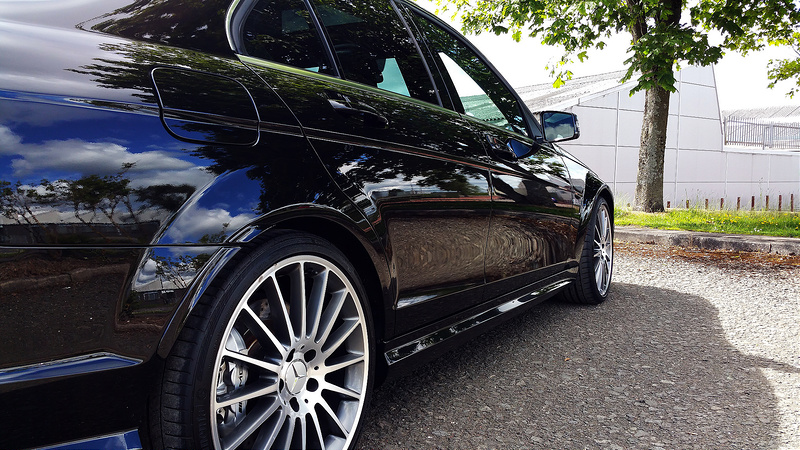

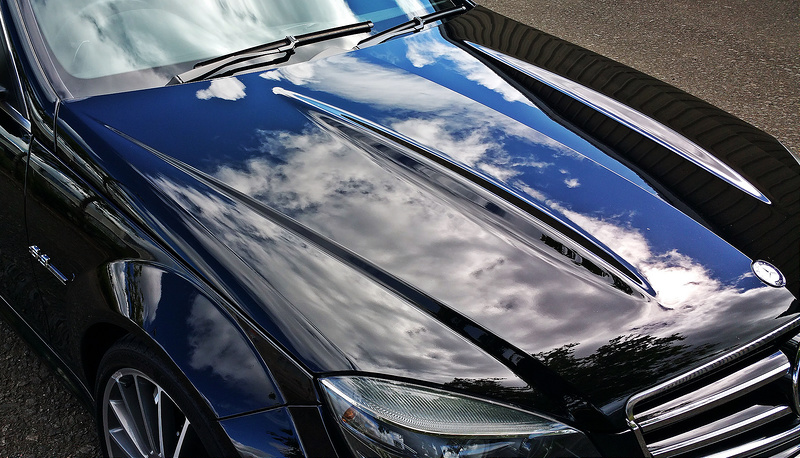

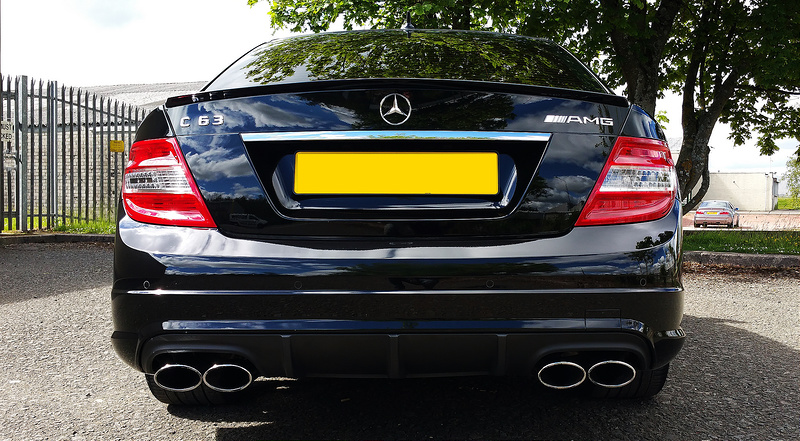

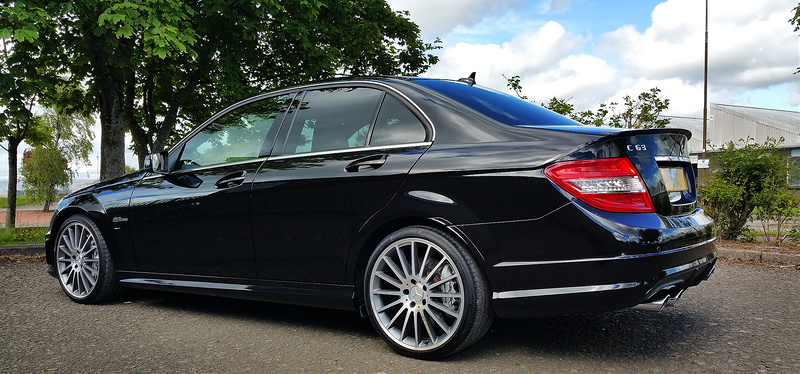

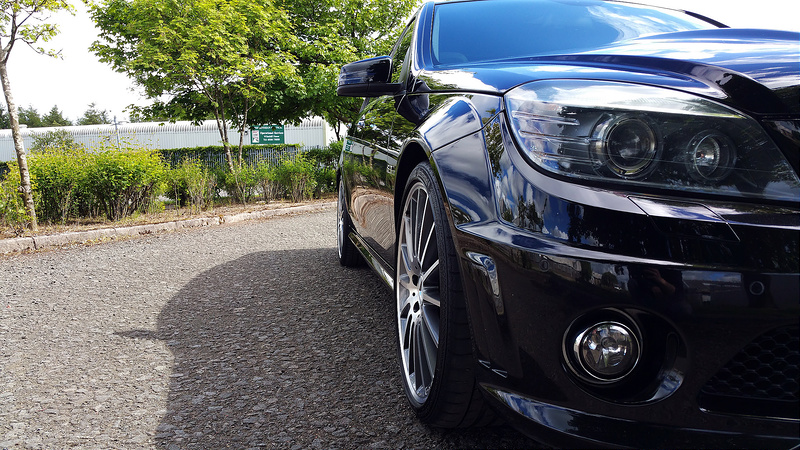

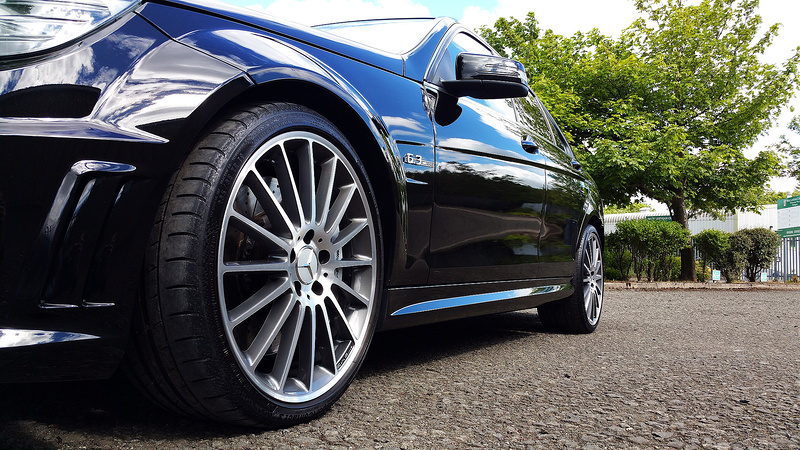

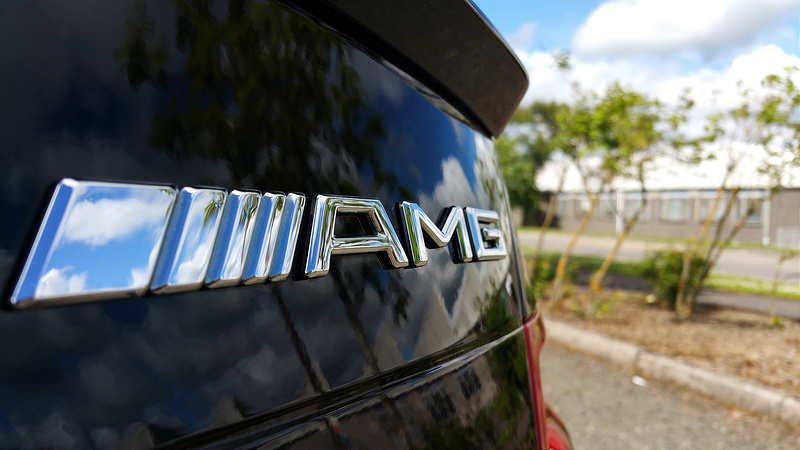

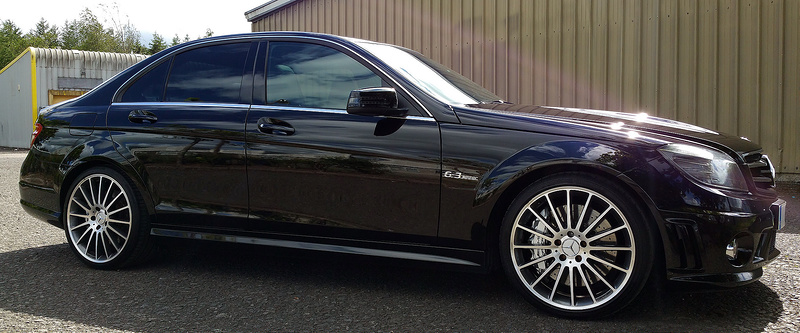

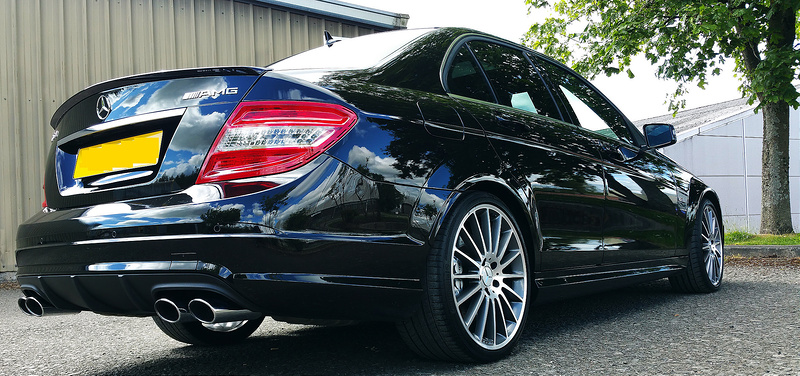

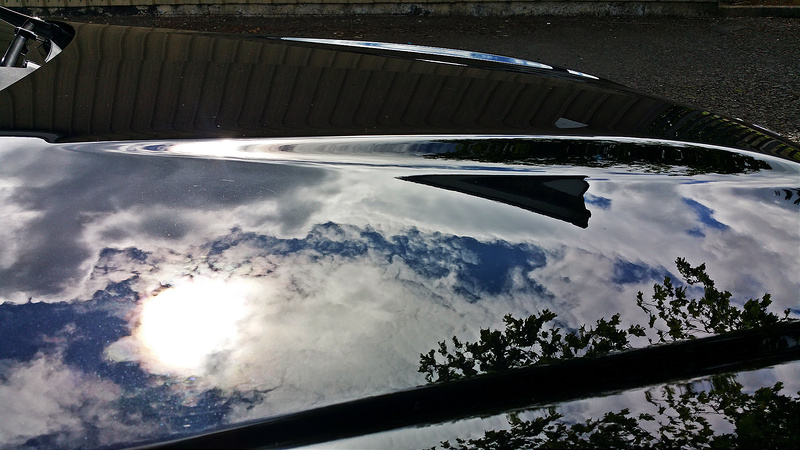

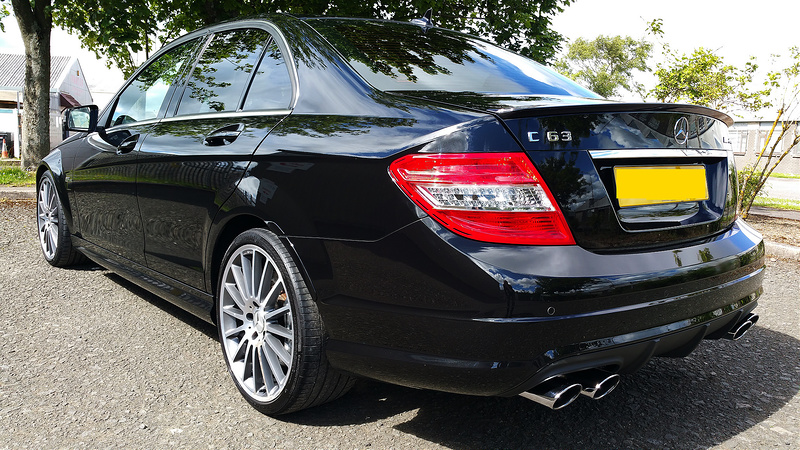

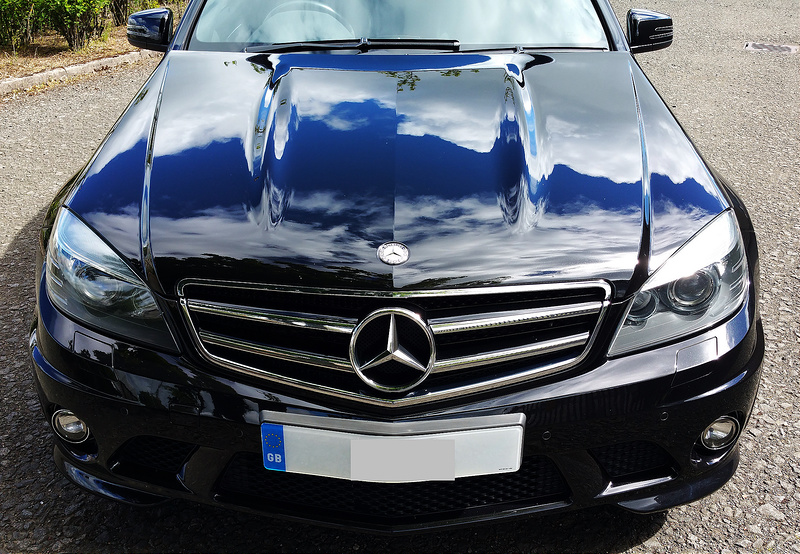

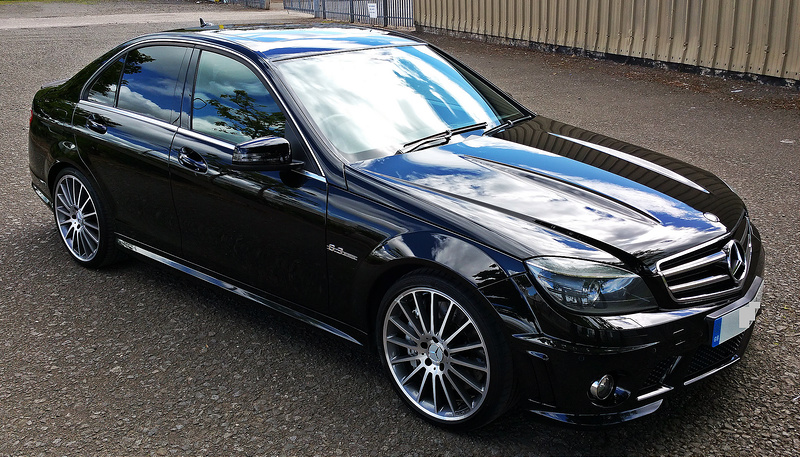

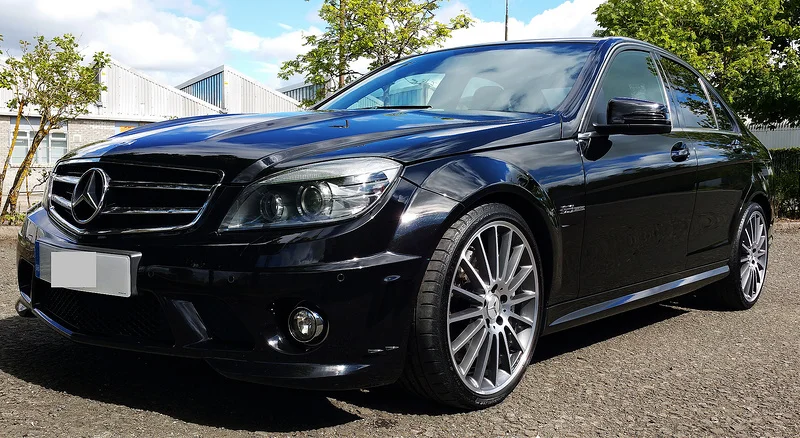

Enjoy the afters guys and thanks for reading the usual drivel!


20150621_153800 by gally.., on Flickr


20150621_153922 by gally.., on Flickr


20150621_153933 by gally.., on Flickr


20150621_154018 by gally.., on Flickr


20150621_154046 by gally.., on Flickr


20150621_154057 by gally.., on Flickr


20150621_154108 by gally.., on Flickr


20150621_154115 by gally.., on Flickr


20150621_154138 by gally.., on Flickr


20150621_154150 by gally.., on Flickr


20150621_154205 by gally.., on Flickr


20150621_154318_001 by gally.., on Flickr


20150621_154336 by gally.., on Flickr


20150621_154358 by gally.., on Flickr


20150621_154412 by gally.., on Flickr


20150621_154434 by gally.., on Flickr


20150621_154522 by gally.., on Flickr


20150621_154536 by gally.., on Flickr


20150621_154559 by gally.., on Flickr


20150621_154639 by gally.., on Flickr


20150621_154127 by gally.., on Flickr

  Turbo 182 Alfa 159
Nice work! Looks great. Epic cars them.

I really want to do a black car next, might persuade the mrs dad to let me at his Lexus.


Stay Puft

ClioSport Club Member
  Clio 172
That looks fantastic.

Can I ask how long something like that takes, and how much you charge? Feel free to not say!


Gally

Formerly Mashed up egg in a cup
ClioSport Club Member
That looks fantastic.

Can I ask how long something like that takes, and how much you charge? Feel free to not say!

I don't charge... I reckon it took around 10 hours all in on this particular one. I started about 7am.

f**king ROYAL MAIL. Dicks.
Anyway, nice work Highlander.

I hate them. Lost another sample I sent last week. Most incompetent compan i've ever dealt with. I'll pop them back down mate. Thanks again, I wouldn't have worked as well with anything else. I love Midnight Sky, had a small pot years ago. Might try it again on Joe's UG FRS.

Average x

Well look who the f**k it is! All grown up BMW driver!


Scrooge

ClioSport Moderator
  E55 AMG
Lovely job!!

I need to detail something black soon. The last one was that obsidian black ML I did.


Gally

Formerly Mashed up egg in a cup
ClioSport Club Member
Lovely job!!

I need to detail something black soon. The last one was that obsidian black ML I did.
That's a big bus! I gave up detailing jeeps years ago! f**k that. I nearly died after doing an older Range Rover a year or so back!

I don't charge... I reckon it took around 10 hours all in on this particular one. I started about 7am.



I hate them. Lost another sample I sent last week. Most incompetent compan i've ever dealt with. I'll pop them back down mate. Thanks again, I wouldn't have worked as well with anything else. I love Midnight Sky, had a small pot years ago. Might try it again on Joe's UG FRS.



Well look who the f**k it is! All grown up BMW driver!
Not at all. Pleasure. Did you get to play with the Midnight Sun then? I almost preferred it.


Gally

Formerly Mashed up egg in a cup
ClioSport Club Member
Not at all. Pleasure. Did you get to play with the Midnight Sun then? I almost preferred it.
I did consider it over Bos but I think i'll try it on Joe's FRS topped with a reload mix that I concocted. UG seems to work well with wax and sealants so either is an easy choice.


Gally

Formerly Mashed up egg in a cup
ClioSport Club Member
Just seen some pics of one on Instagram, they've aged well so far!


neil a

ClioSport Club Member
Stunning work :cool:
What sort of cost is involved in this level of work ? I really want to get my Porsche done again at some point.

  Leon Cupra 300
Lovely, I think they work well as pre facelift too...

Shame values are strong, when I can get into an estate at 15/16k I'll be there!
