a rallye you may remember, cherry red itb content



  Rb182cup+s2 rallye
I'd been lead to believe it was a company that fitted it all? I wasn't sure hence me not naming names it certainly seems abit pikey but also on the other hand when it's done right it'll just mean a little bit more power


leeds_182

North Yorkshire & Humber
ClioSport Area Rep
I'd been lead to believe it was a company that fitted it all? I wasn't sure hence me not naming names it certainly seems abit pikey but also on the other hand when it's done right it'll just mean a little bit more power

I'm sure he told me he had fettled it but I could be wrong.



Who was the company? Pm me if you want.

  CBR1000RR Fireblade
That sealant is shocking.

Good progress! I'm looking forward to the new engine going in

  Rb182cup+s2 rallye
little update, my strut top plates came





the other day i removed the rear beam, leaving just the tank.

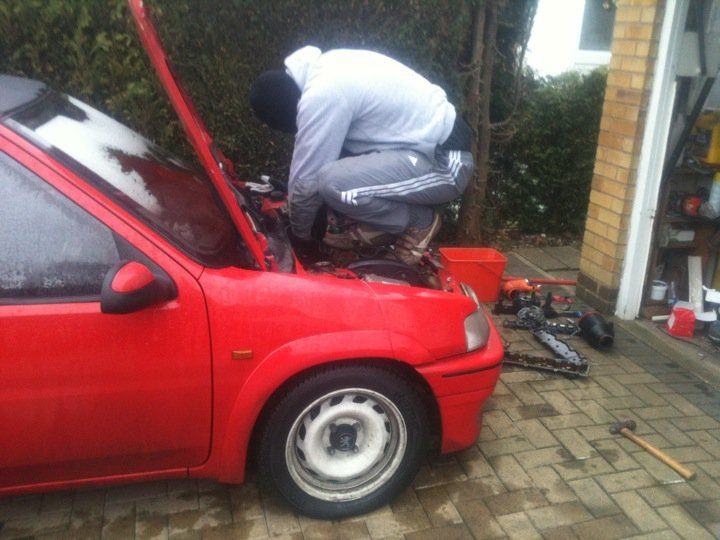

bit more stripped from the bay





inside slowly getting bits removed





and previously i said id bought a jp4 engine to go in well i got that and then the week after i ended up buying a high comp lump with wossner pistons ph4 newman cams and some headwork, so with that id hope for 170-180 brake maybe even more?
im also still waiting for bits from 106parts, i ordered them ages ago and ive since emailed them but not heard anything.

  Rb182cup+s2 rallye
bit of an update again more purchases....


just to keep things fresh



more bushes



wishbone bushes



some manky looking arb bushes



vibra technic wishbone mounts






some hi specs









test fitted my brake line, may need some angled banjos or would these be ok?



i stripped the steering rack down, assembled

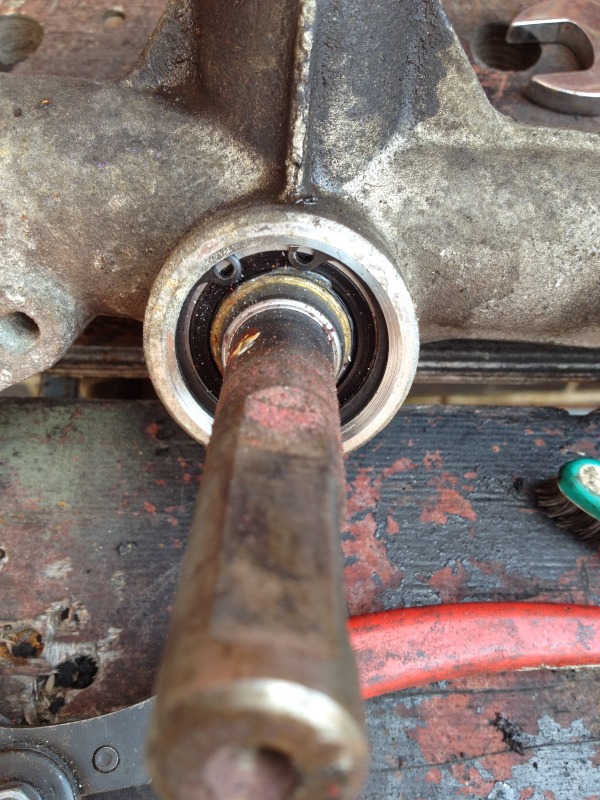

started by pulling the rubber bush off and taking the circlip out

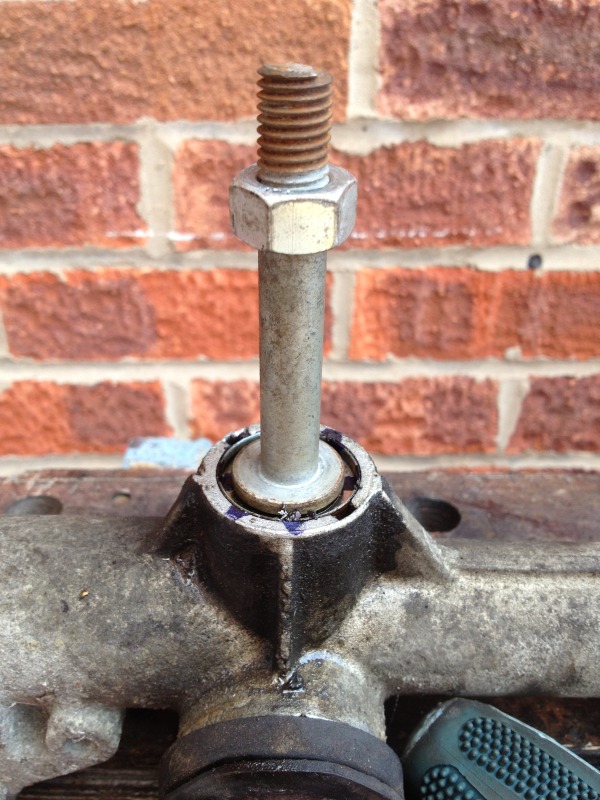

then the bolt that needed abit of a bodge tool to remove, fairly straight forward and doing abit of reading this is what adjusts the feel of the rack so marked the rack so i know where it bolts back up to.

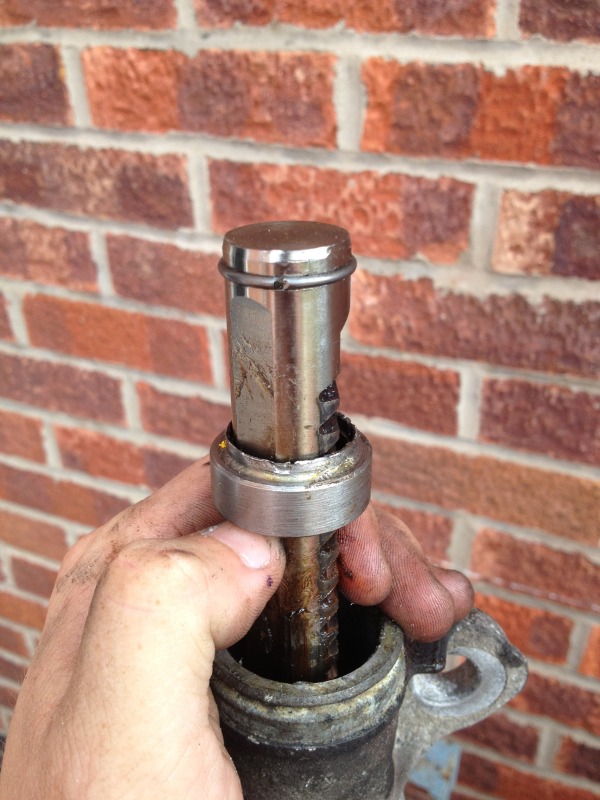

then i pulled the 3 pressed bits out and knocked this metal ring down to reveal a metal ring that keeps the rack secure and pulled that off, a little tricky.



after that its a case of carefully knocking the pinion out, here it all is seperated.

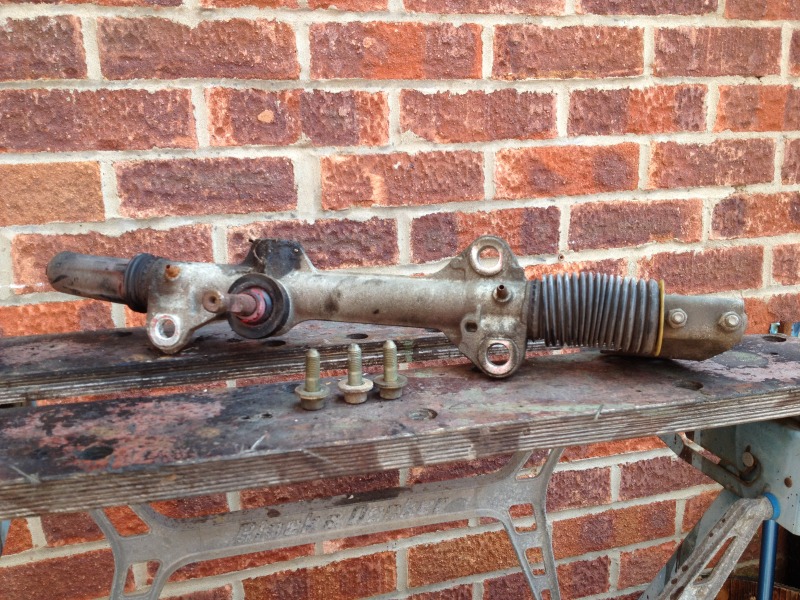

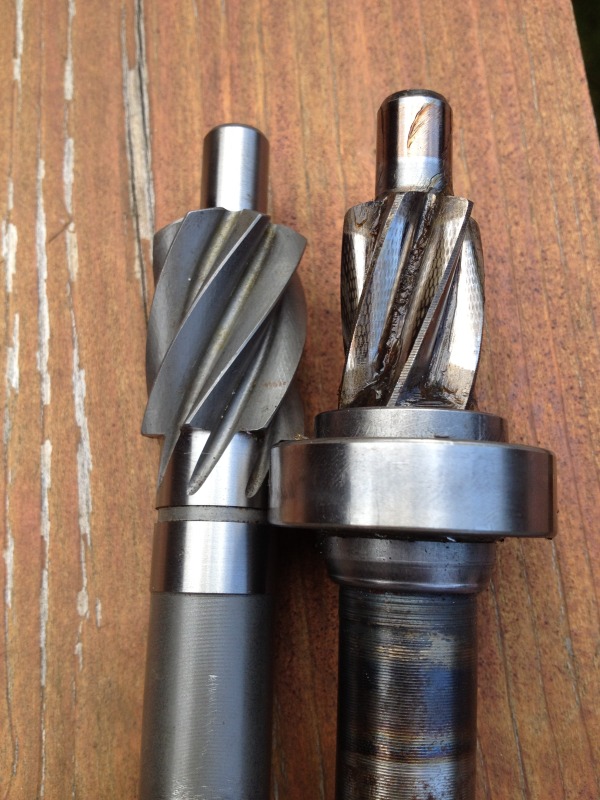

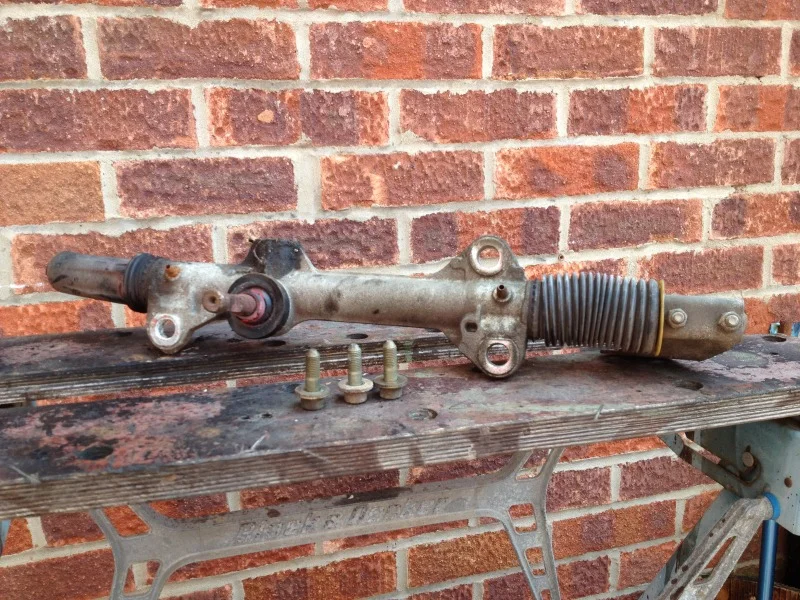

some shots of the old and new rack,






after this lot it was onto the shell, firstly i needed to remove the tank but it was half full so needed the petrol out (vpower of course) of the tank and into the new gti daily. i got this contraption from my mate.

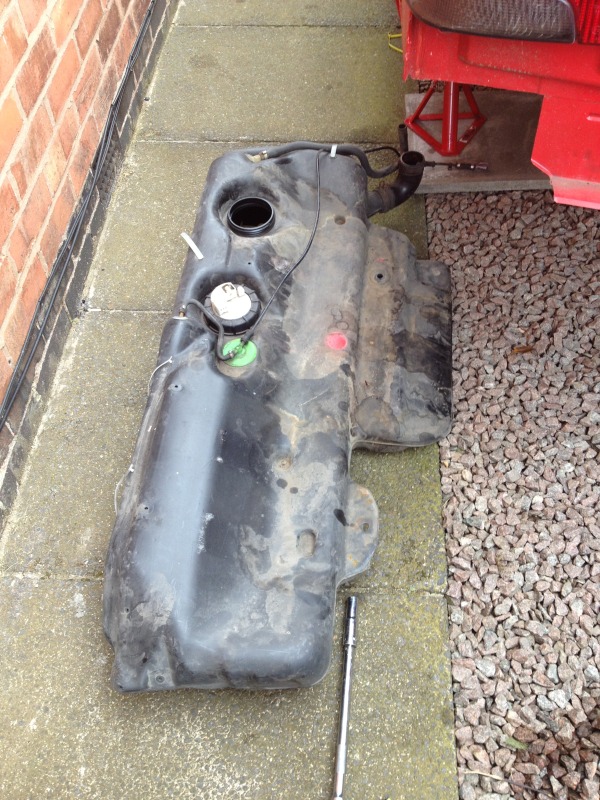

got the tank out, nice and easy as id done it at christmas.



checking the shell out underneath and it should be fairly straight forward, i just need to get another engine stand and ill use them for a spit so i can get the shell rotated so i can do a decent job.



i got the shifter sorted and out the engine bay, also got the pedal box off so thats everything from the inside.

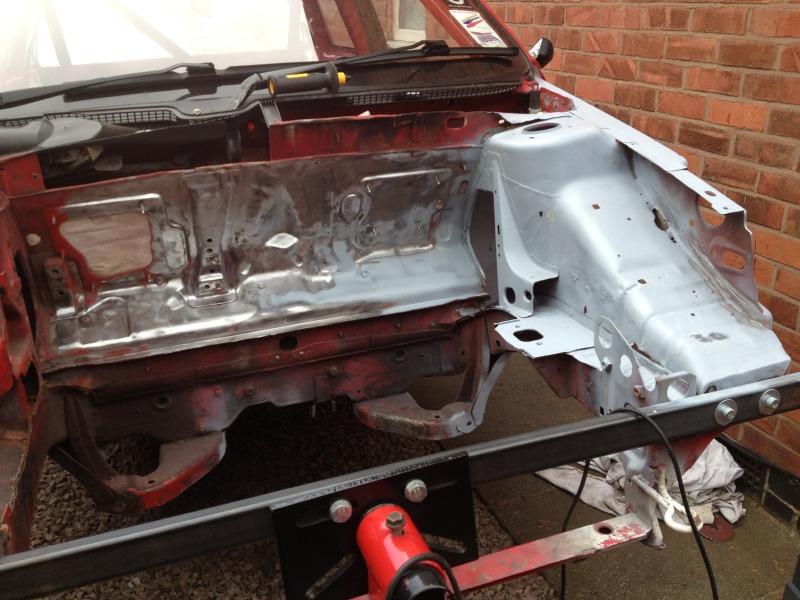

engine bay is now ready for some sanding back and welding, this ill get it seam welded whilst im putting the strut top reinforcement plates on.



and thats as far as ive got. going to get the fuel system sorted next ive been saying that for months tho.

  Rb182cup+s2 rallye
My account is certainly feeling the strain but hopefully soon enought it'll be a case of putting it back together and not spending too much money

  Rb182cup+s2 rallye
just done some adding up, the fuel system ill be putting in is going to cost around 500 quid so i guess ive got another 1500 to spend. i may just end my life soon

  Rb182cup+s2 rallye
yesterday i went and picked another engine stand up went for the more expensive 550kg stand this time. maybe not my wisest choice as its slightly taller but i should be able to get round the problem.





i also picked some box section steel up and got the two bits bolted to the shell.

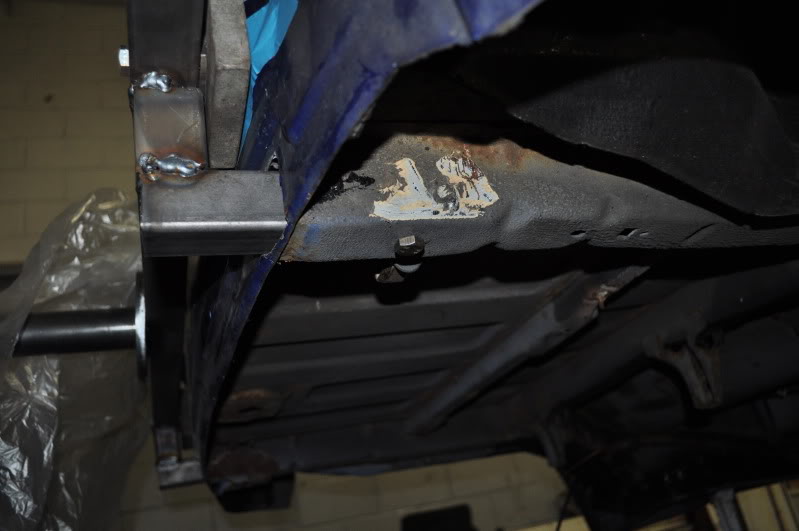

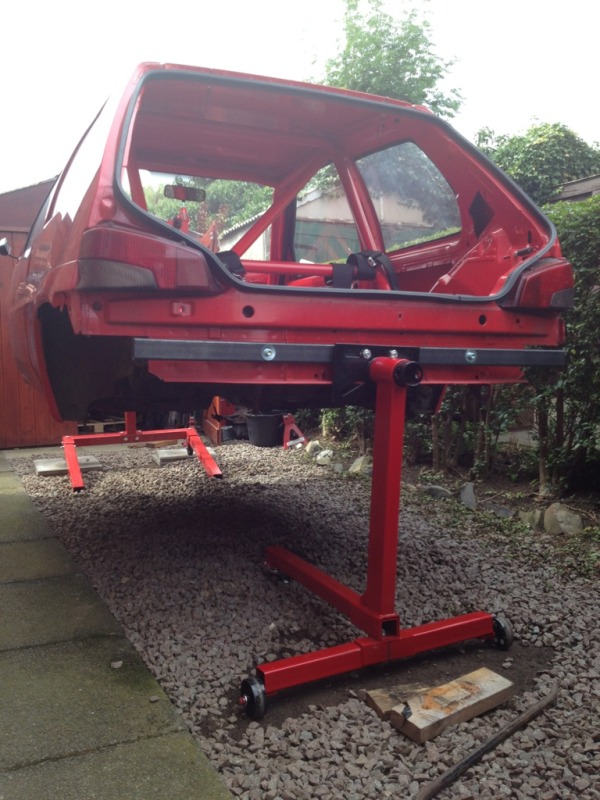

bolted to the rear. now this is what others have done but it doesn't seem very stiff? well obviously not as stiff as the front. i guess it'll be ok when on the stand tho



  172 cup
great project you've got going on here, like how it keeps getting better and better.

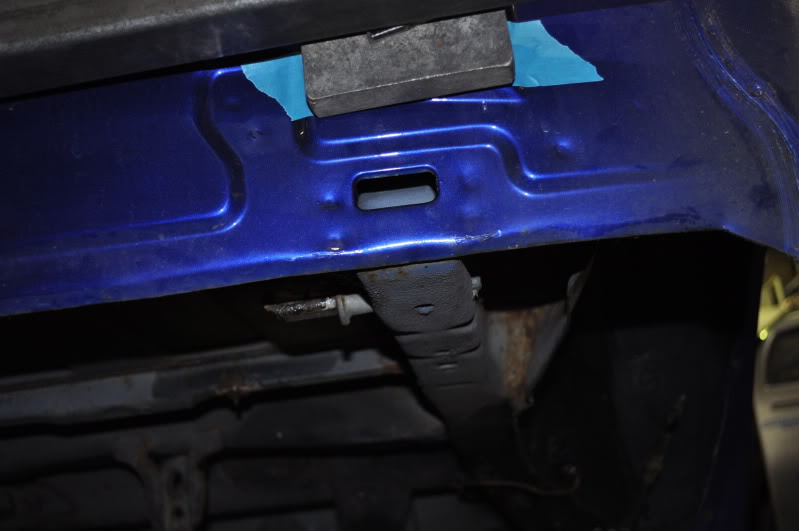

sorry for the pictures but was the easiest way to help explain (not mine but i doubt the owner will mind) how he fixed his jig at the rear of the car to make it more secure and solid,
as we started before
This image has been resized. Click this bar to view the full image. The original image is sized 799x531 and weights 51KB.

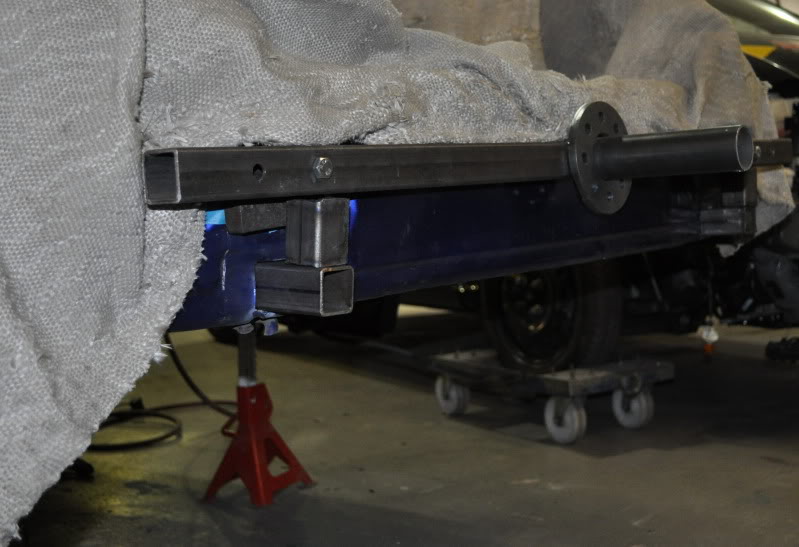

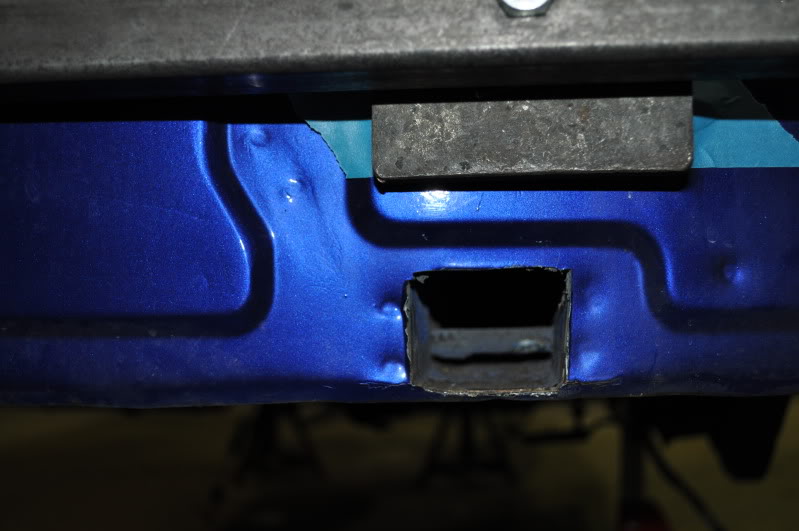

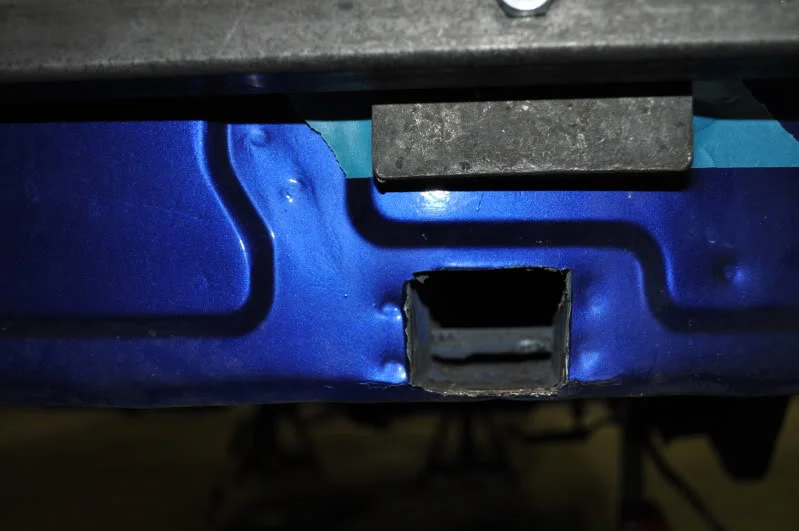

after the hole being opened up with a belt sander to reveal the inside of the rear chassis leg
This image has been resized. Click this bar to view the full image. The original image is sized 799x531 and weights 63KB.




This image has been resized. Click this bar to view the full image. The original image is sized 799x548 and weights 91KB.

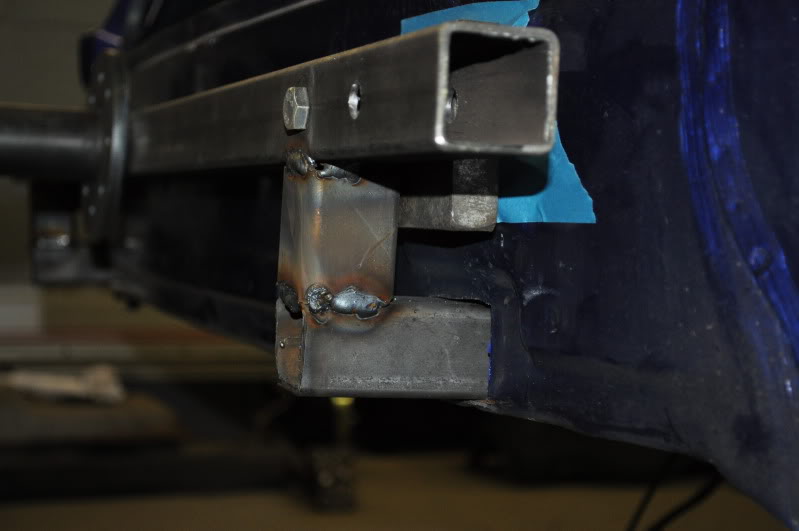

a close up of eveything ready to weld
This image has been resized. Click this bar to view the full image. The original image is sized 799x547 and weights 80KB.

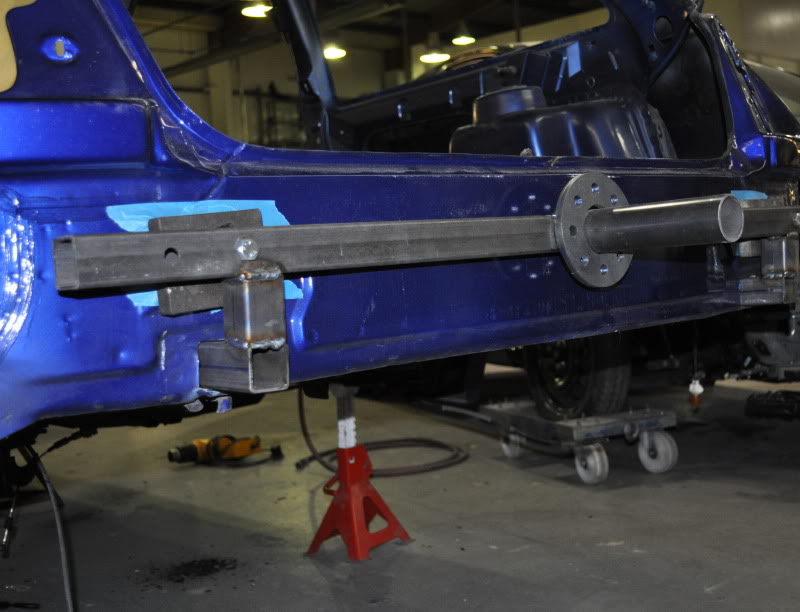

job done, nothing pretty to look at but does the job we want!!
This image has been resized. Click this bar to view the full image. The original image is sized 799x531 and weights 44KB.

This image has been resized. Click this bar to view the full image. The original image is sized 800x612 and weights 84KB.





a nut was tacked inside the new tube before welding to the jig,
so that the metal tube is tight inside the chassis leg,
using existing factory holes in the rear leg the nut and bolt work well
This image has been resized. Click this bar to view the full image. The original image is sized 799x531 and weights 53KB.

I think you'll be fine the way you've bolted it - the back of the the 106 without anything on it weighs nothing. I've picked a back half up and put it on the back of a trailer on my own before lol

  Rb182cup+s2 rallye
thanks for the pics mate thats a good idea. i think itll be fit when its on it just flexed a little when i tried putting it on myself. yeah it weights nothing lol it now rocks on the axle stands haha.

  Rb182cup+s2 rallye

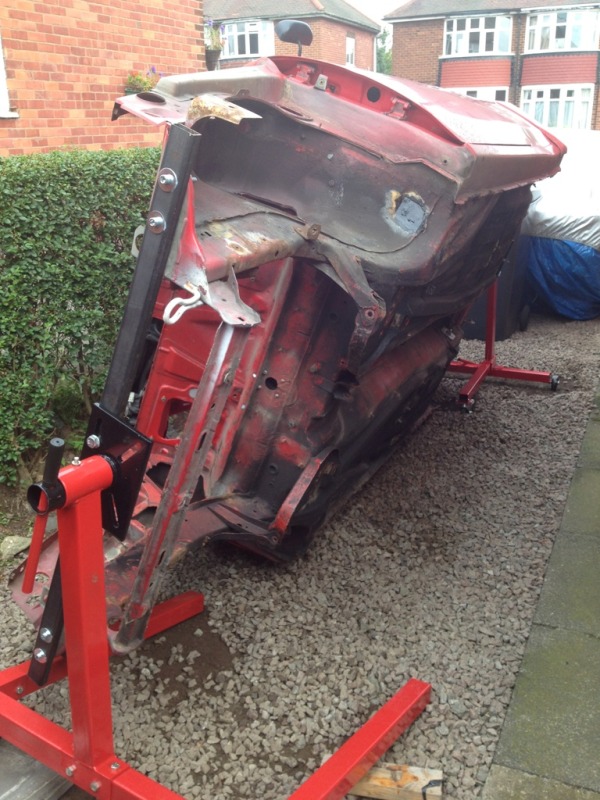

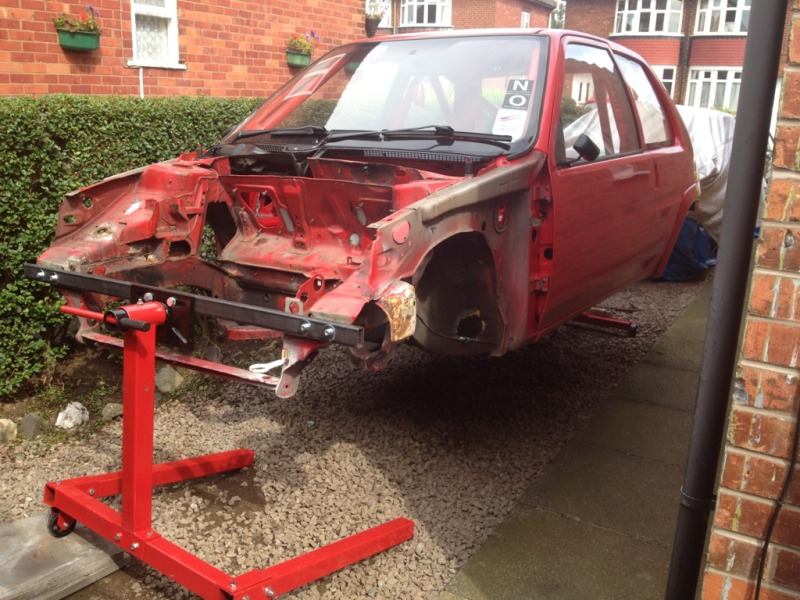

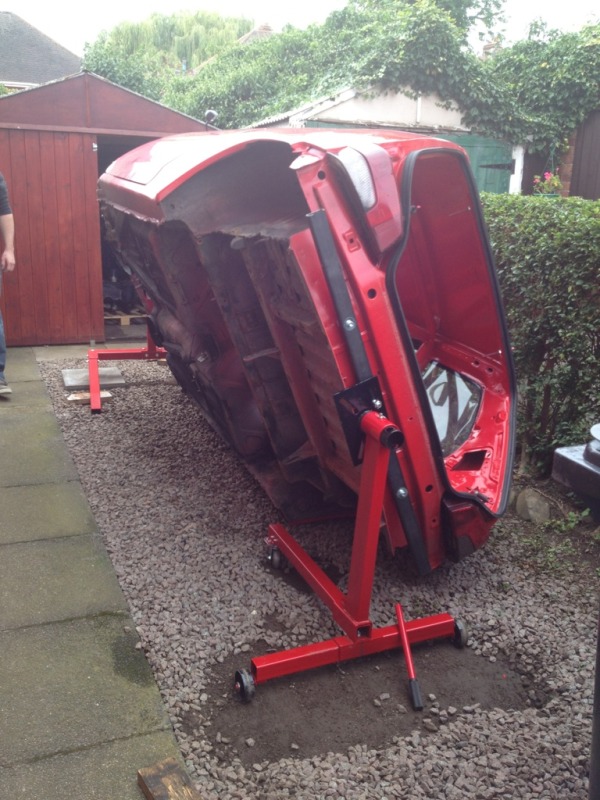

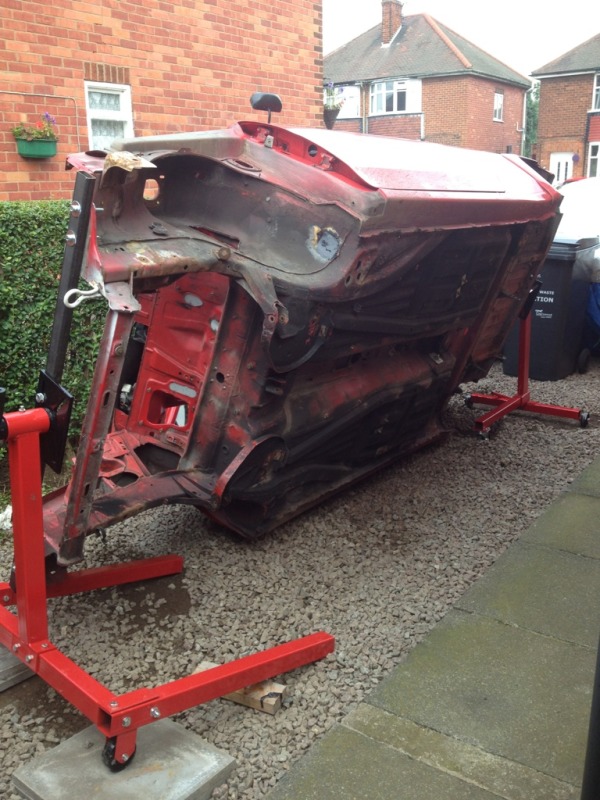

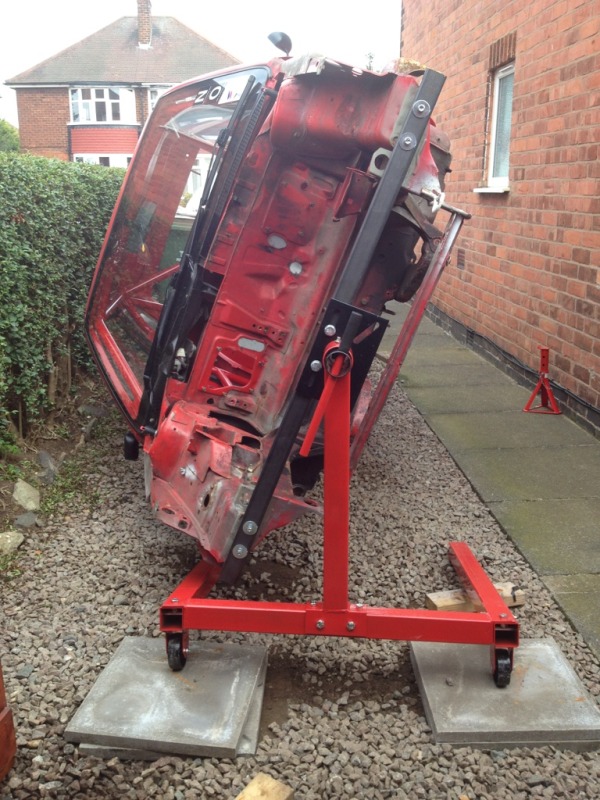

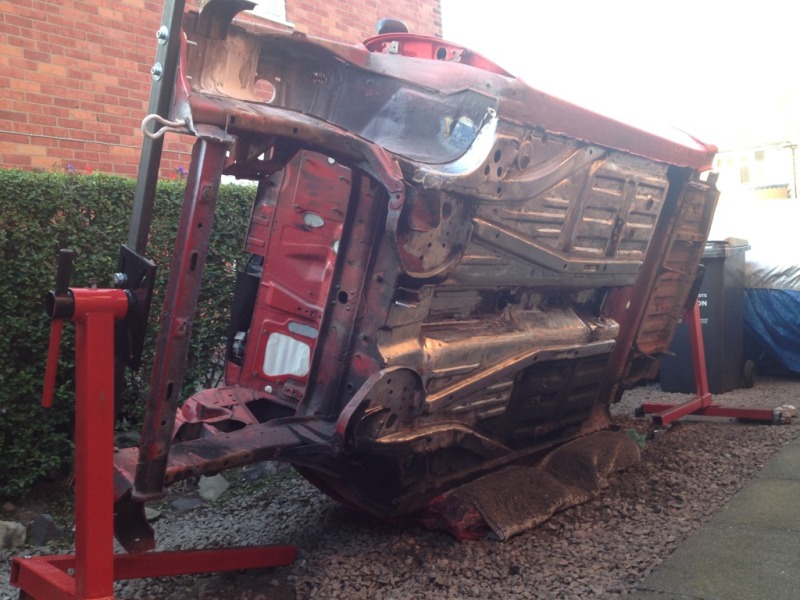

i got the car on the spit yesterday, hard work getting it right but its up and on. i had to take the wheels off the front of the front stand and stick a couple slabs under the rear to level it out.

















quite low to the ground. cleared some stones out so theres plenty of room now.

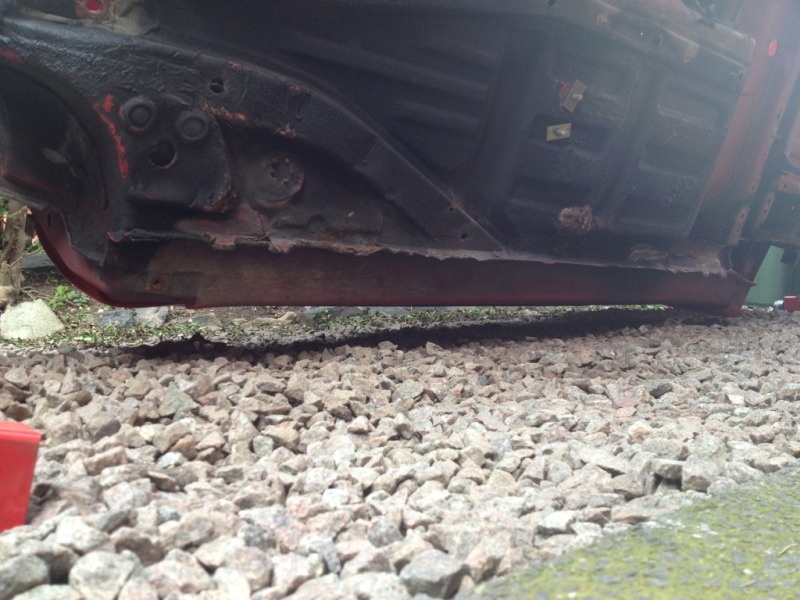

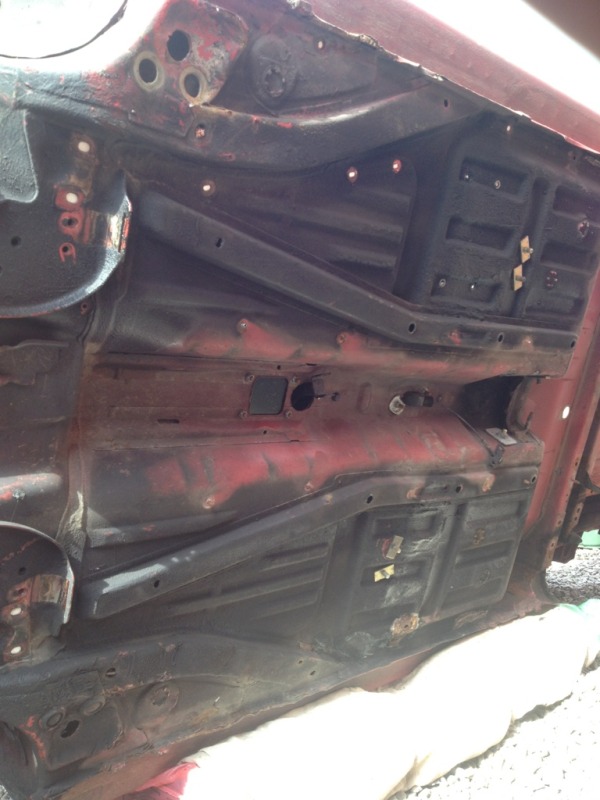

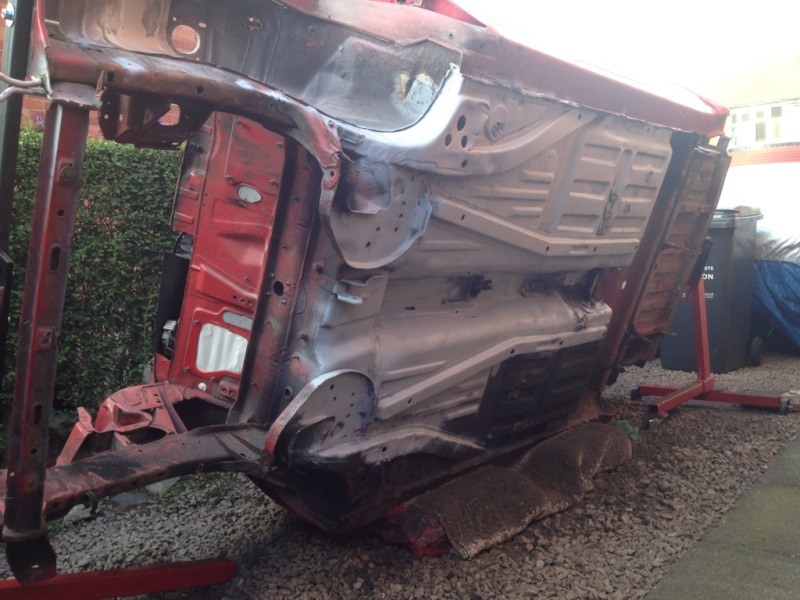

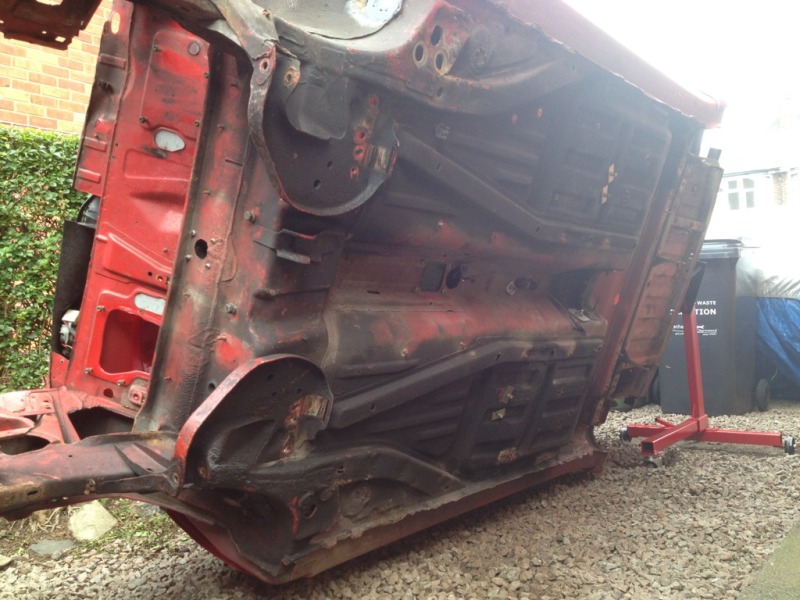

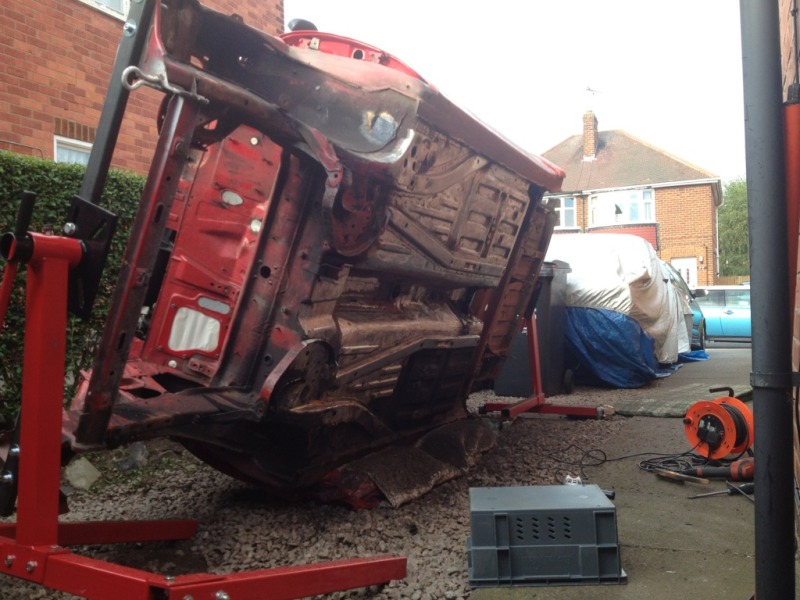

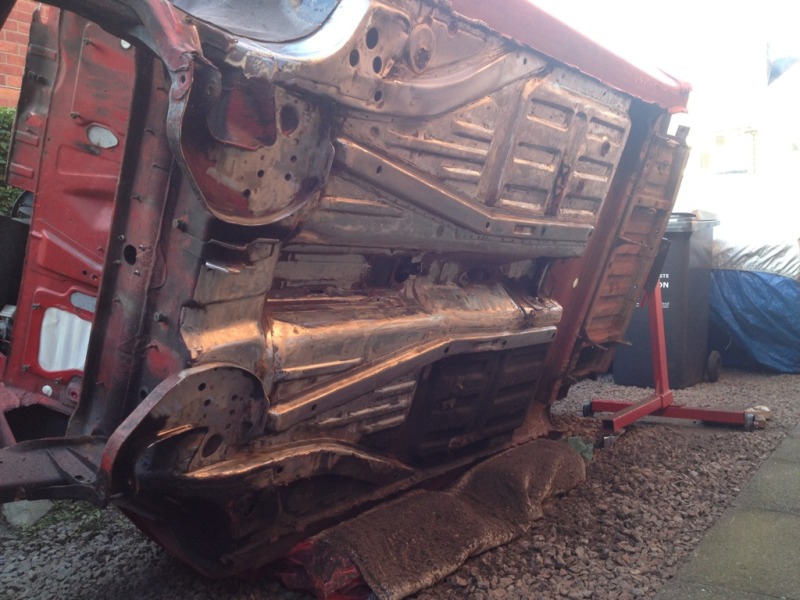

the underside was very tidy it had been undersealed before so there was no real rust to take back






very tiring and filthy work









the light started to go so stuck some etch primer on to keep the rust away

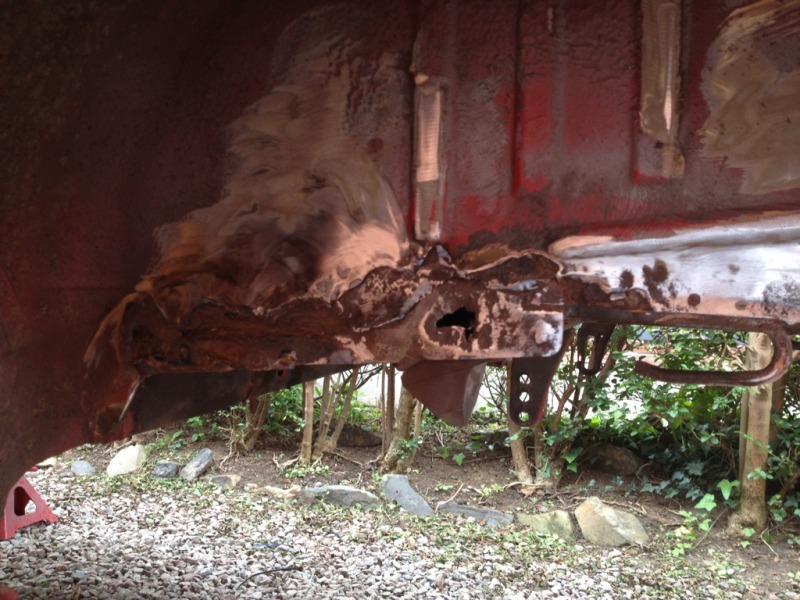

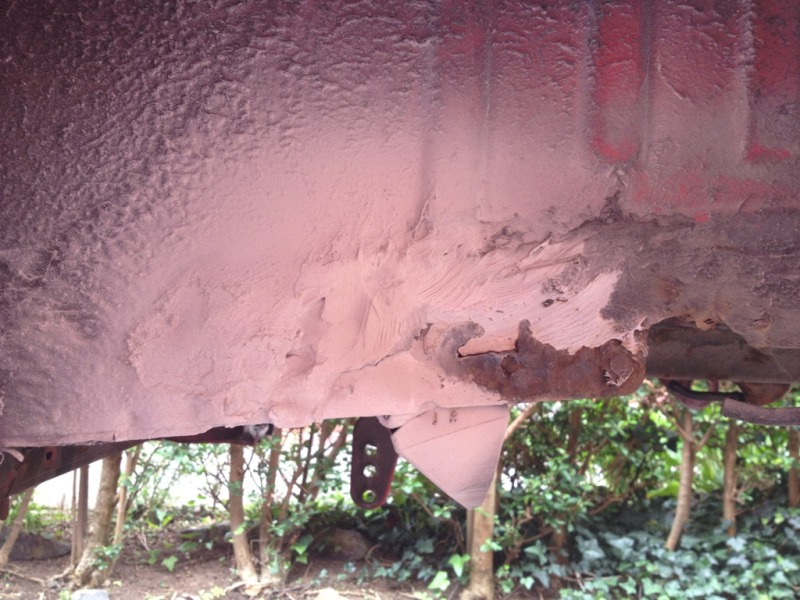

i had also previously found some tasty rust on the rear arch. shouldn't be a problem for the guy i have doing my welding as he works with old vw's daily.
it was hidden by aload of filler

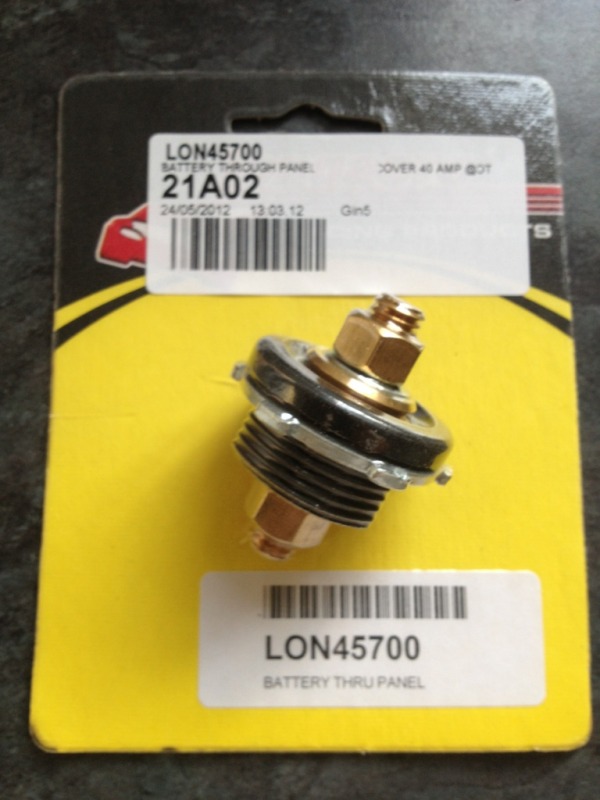

id also had some parts turn up yesterday, a battery terminal for the bulkhead.

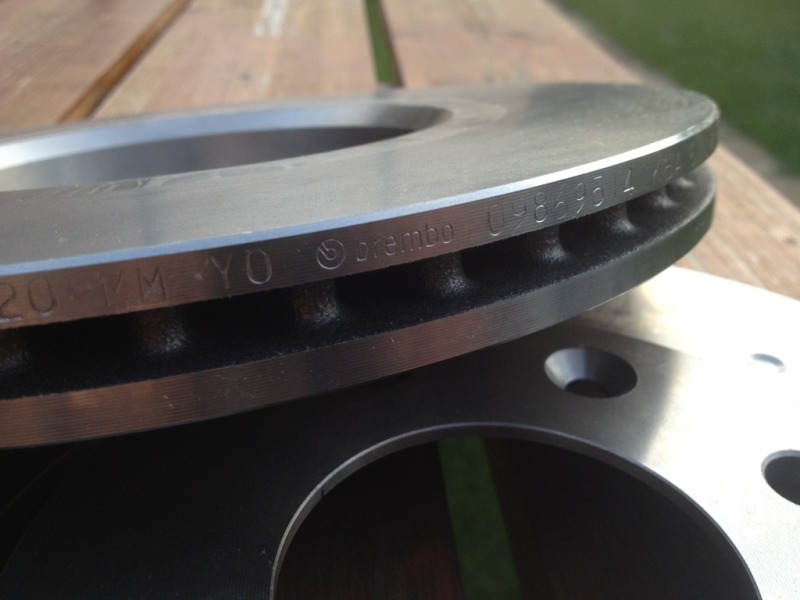

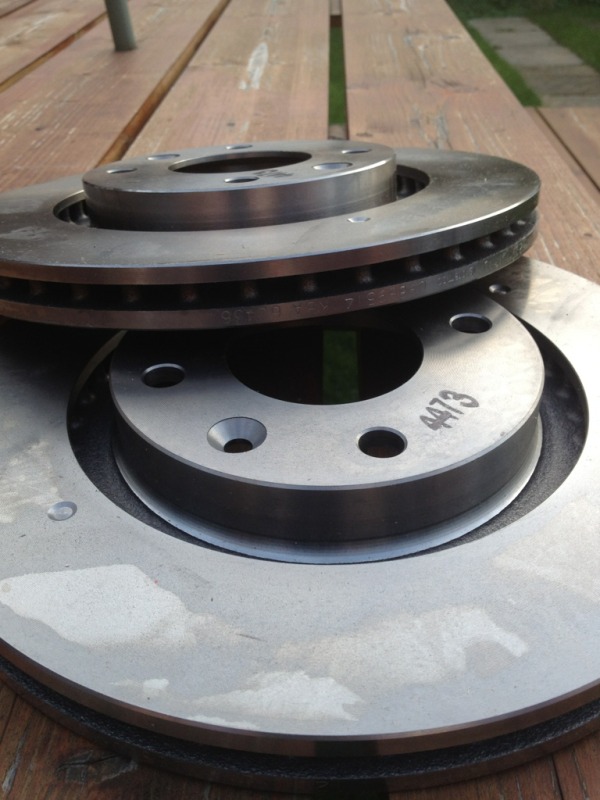

some brembo disks




  Rb182cup+s2 rallye
and finally my swirl pot with dash 6 fittings and a dash 8 for the outlet to external fuel pump.




ive ordered the fueling set up so that should be here next week. spent about 530 all in madness.

  Rb182cup+s2 rallye
yesterday i finally managed to get the middle part of the underside etch primered and then undersealed. 2 days of sanding grinding bleading and swearing just for 20 mins of the fun stuff painting.



still lots more to do.


and today the fancy stuff arrived my sytec filter with dash 6 fittings



bosch 044 external fuel pump with dash 8 in and dash 6 out



the torques fittings 9 dash 6 straight, 3 dash 6 90 degree, 2 dash 8, 2 bulkhead fittings.






all the bits

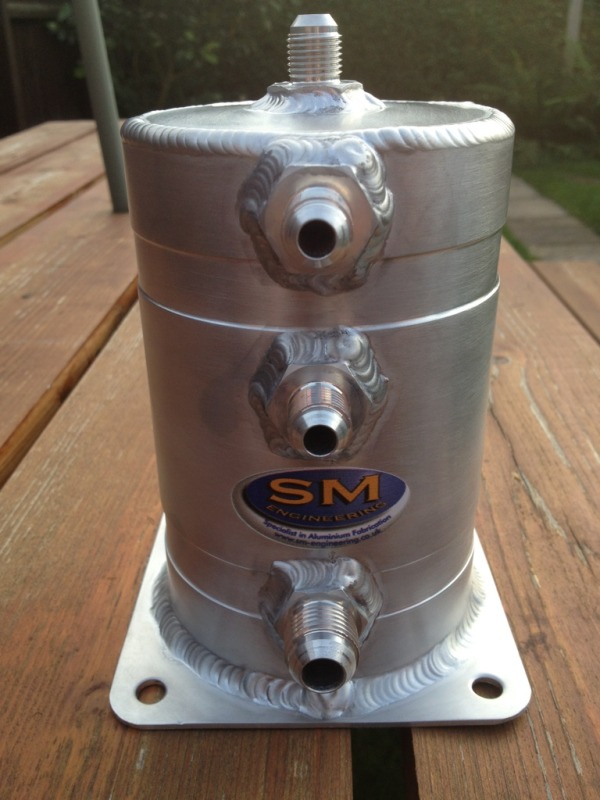

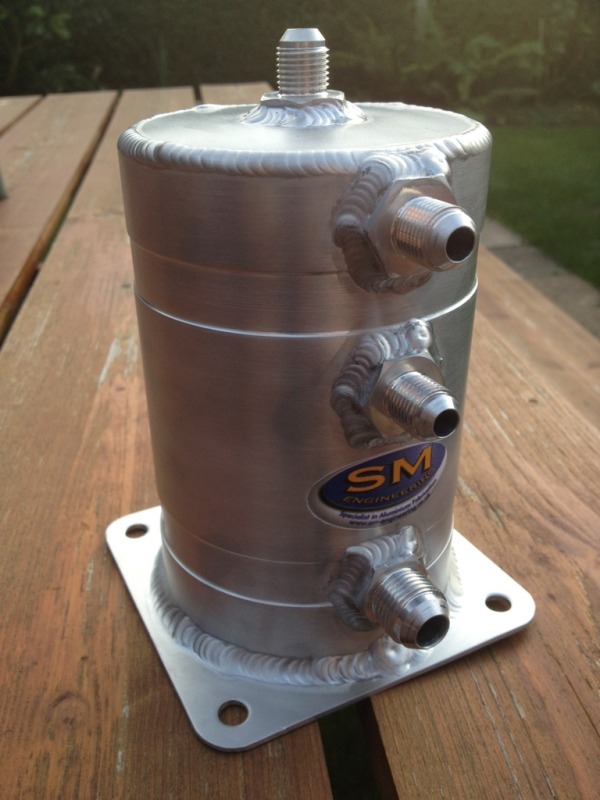

swirl pot with fitting on



filter with fittings on






bulkhead fittings with the 4 dash 6 fittings attached



all the bits together, including the one meter of dash 8 teflon lined braided fuel line.



sorry for all the pics, im a little excited.

  Rb182cup+s2 rallye
Tbh I regret buying the car as a whole I should of got a mint shell and gone from there. I've pretty much replaced everything now it would of only of been a few hundred more spent.

  Rb182cup+s2 rallye
Yeah your right but I'm too anal about some stuff and it drives
me mad I won't be happy until I start with a brand new shell and that won't happen

  Rb182cup+s2 rallye

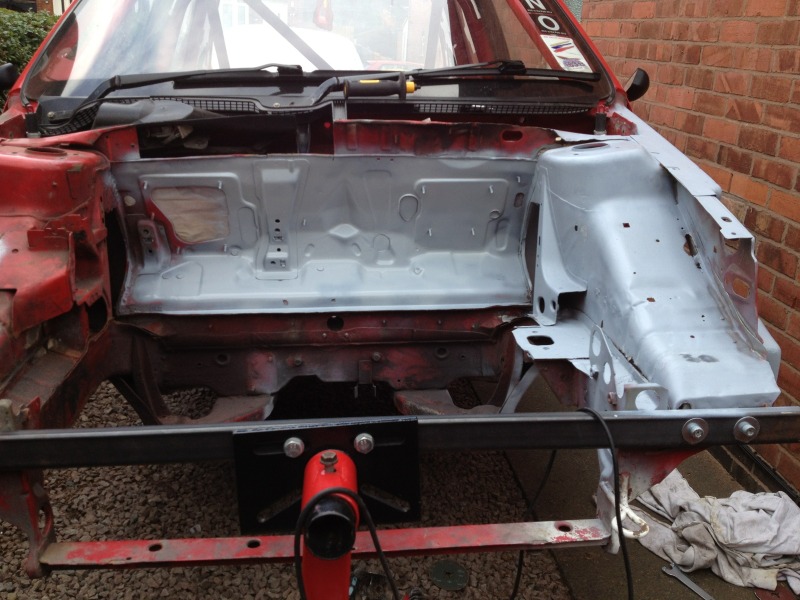

As my housemate was away on holiday it meant i couldn't flip the car over to continue with the underside so today on my day off i started on the engine bay, didn't get too long just a few hours but it was enough to find plenty of rust more filler and fiberglass :(

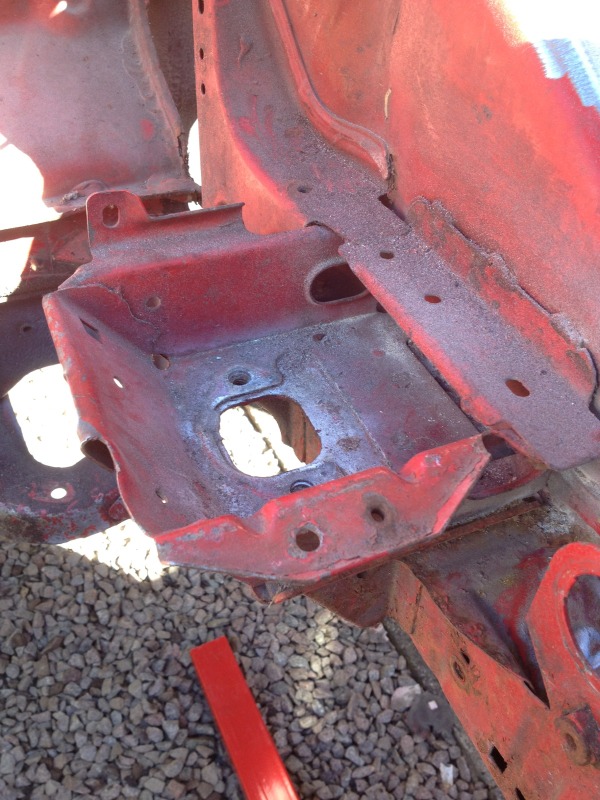

i wanted to do something different with the gearbox mount so gave it a trim as it was pretty ugly i plan to stick a sheet of metal with the same holes etc over whats left and weld round it.

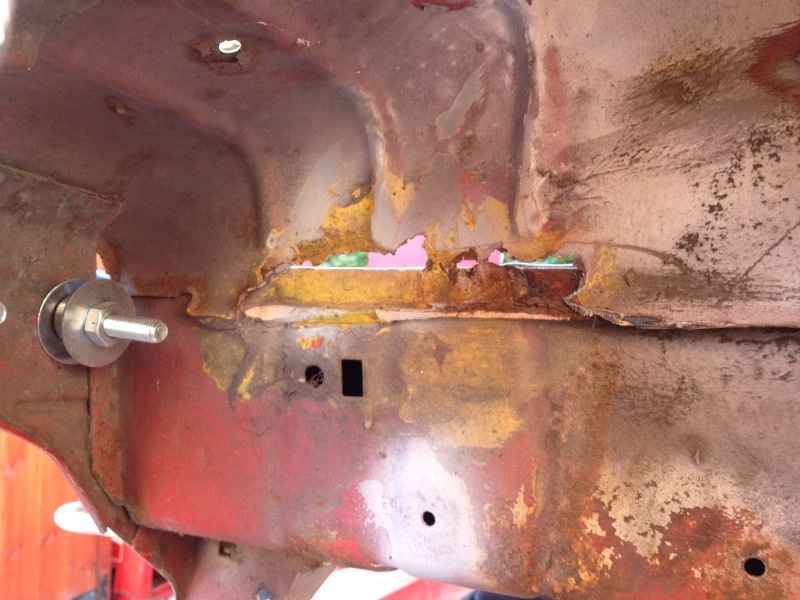

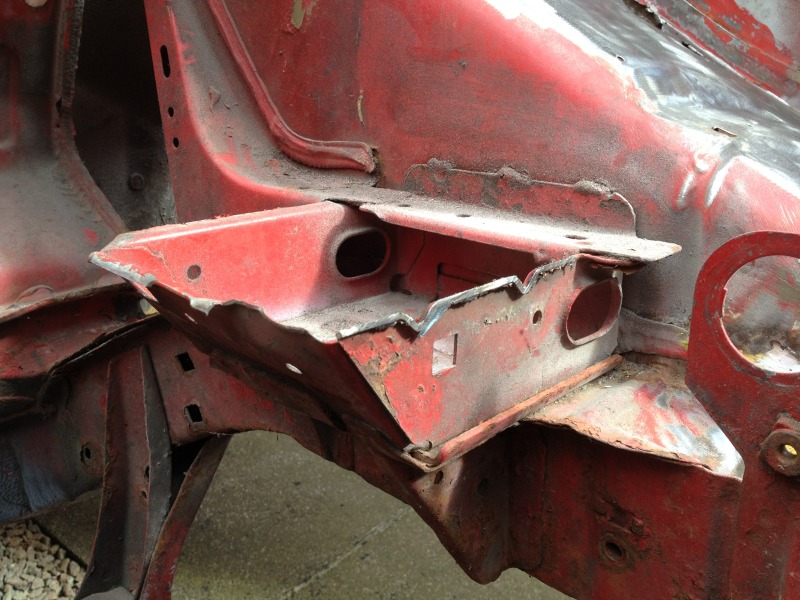

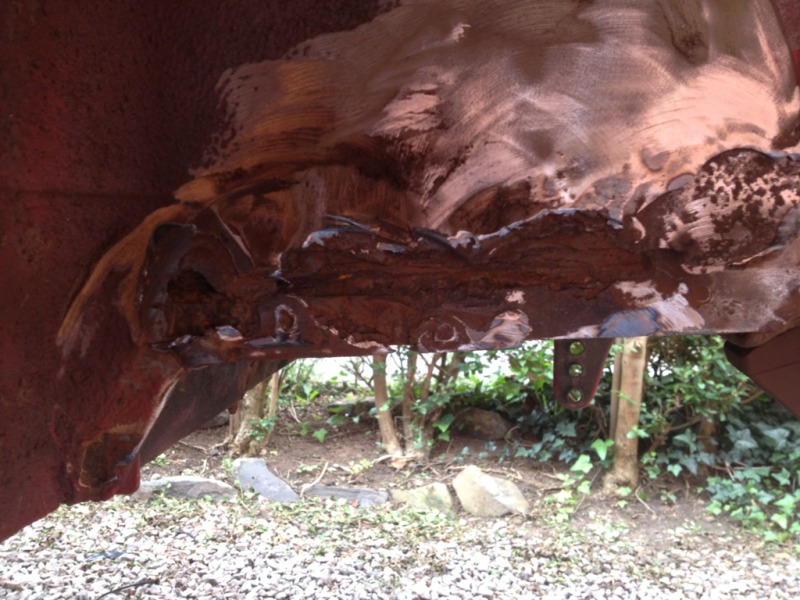

heres the rust found inside the arch



in the engine bay

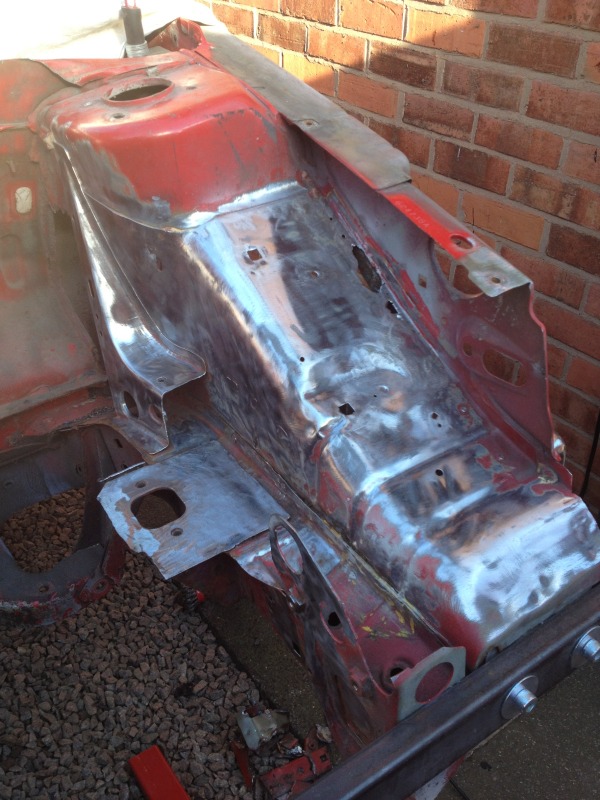

heres how it ended up obviously left it with some etch primer on



had some more fuel line turn up, goodrich stuff teflon lined.



also broke my grinder :( is it wrong that im excited to buy a new one?

  Rb182cup+s2 rallye
did some more grinding sanding fileing back today, my ears are ringing i purchased a new grinder and enjoyed using it a little too much.

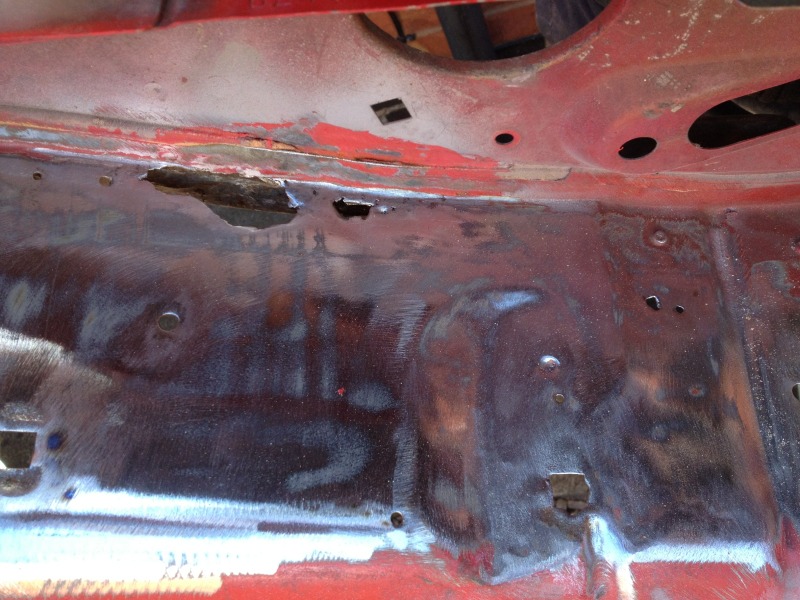

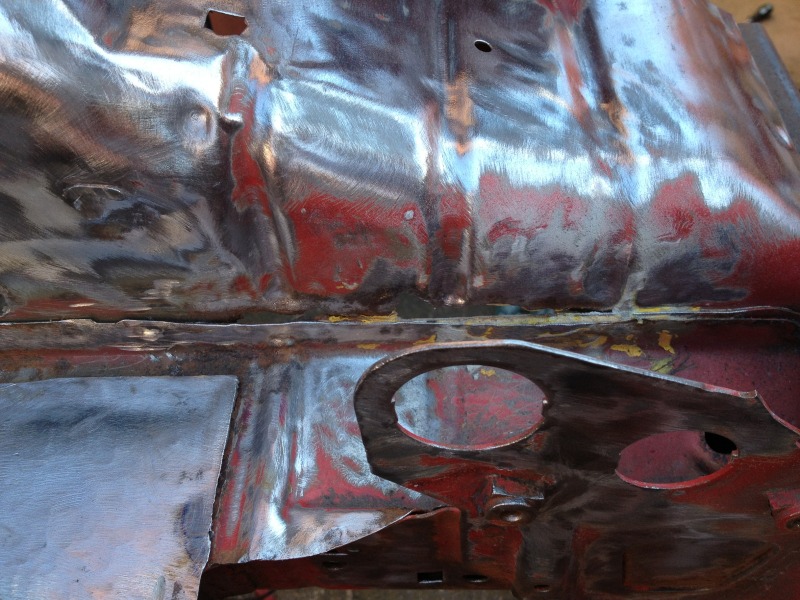

made a start on the underside of the arch. should be straight forward sorting the rust in these areas. finished it off with some etch primer again.



started on the top half of the bulkhead nice and easy.






and again finished off with primer


Hixle

Hi Kiss Luke E****
ClioSport Club Member
  E90 M3
Awesome build! Well done mate, look forward to seeing the result.

  Rb182cup+s2 rallye
started the more serious side of the body work today, cutting welding and replacing rusty panels.
it started slowly and seemed to stay that way but these things where never going to fly by especially making panels from scratch.
i hated the inner wings too many holes and uneven surfaces. so they had to go.

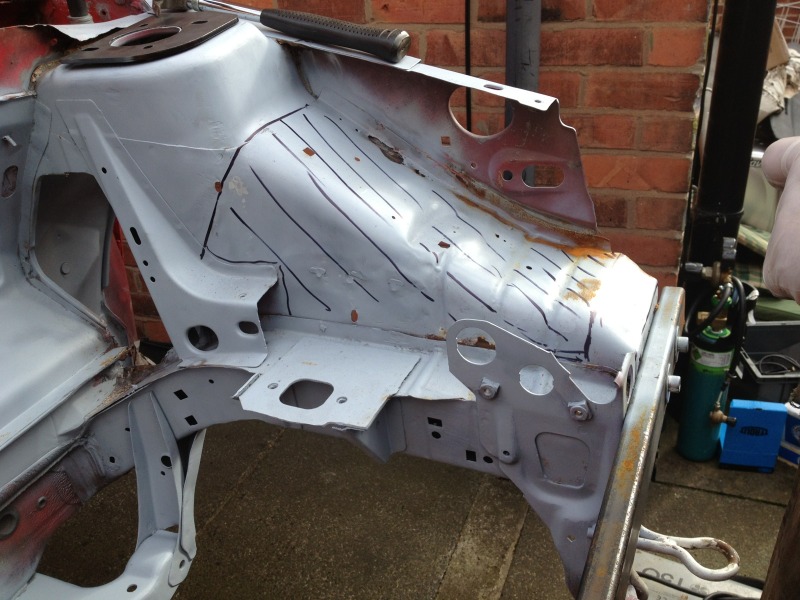

marked out what we wanted rid of and made the panels up before cutting it out.





panels made up

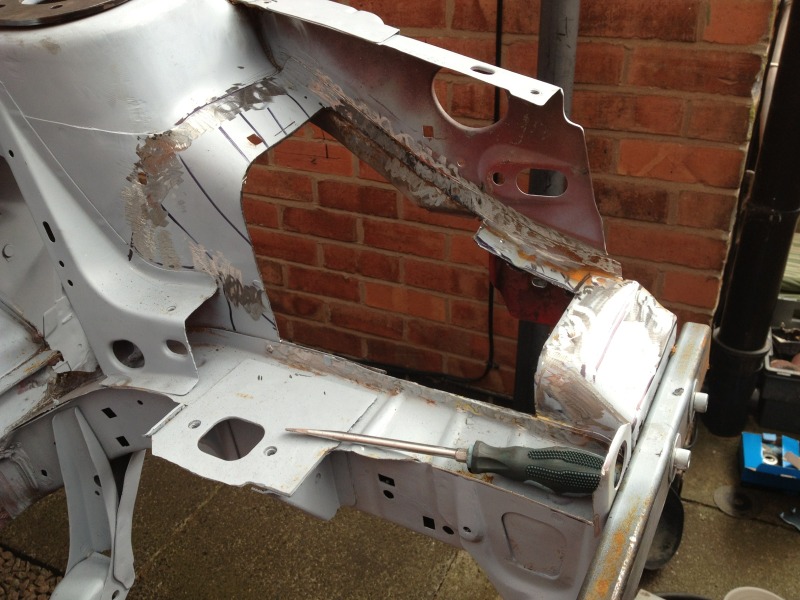

section cut out, more was taken out to allow the panel to properly fit

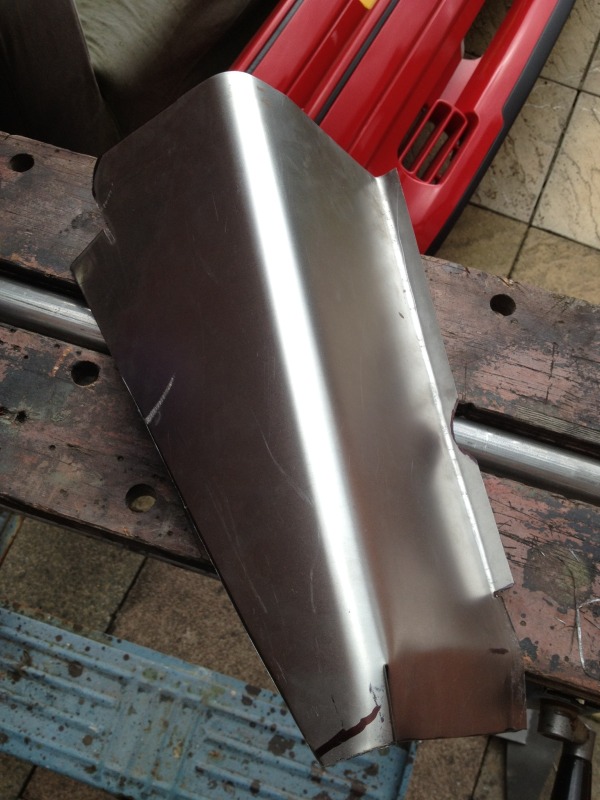

the made up panel before fitting.

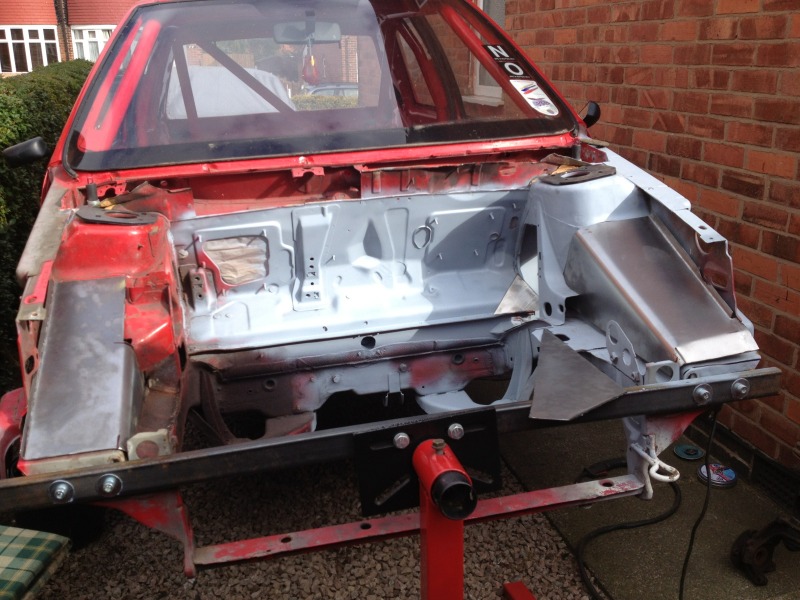

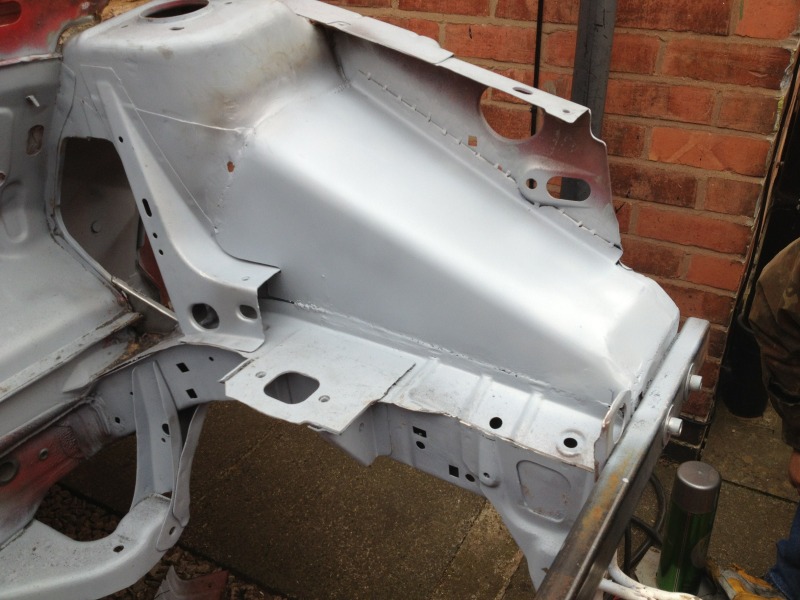

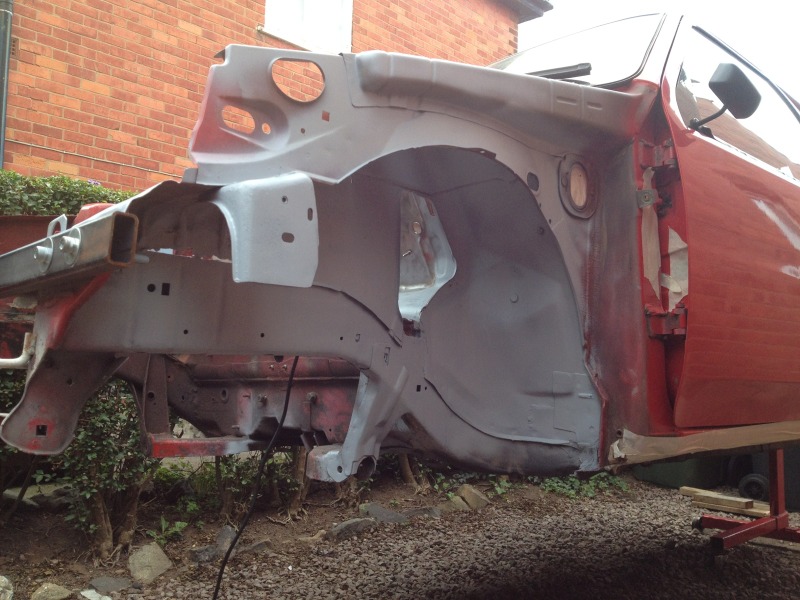

the panel fitted, theres still more welding required on this but we got it on and stuck some primer on to keep it rust free overnight.



so far that had taken us 4 hours i had started to tidy the drivers side of the engine bay up ready for the other panel... more to come tomorrow.
