Lots of Alfas
Ive got the wiring diagram somewhere (yes its lost!). Split the earth at both sides, then wire the high beam wire to the h7 bulb and the low beam wire to the hb3 bulb and earth them both with the split earth wire. The connections for servos, indicators and sidelights are same. Next you just need to pop an extra red fuse in the fusebox to keep the sidelights on with the low beam to pass a mot.
Carrera 4S. Clio 172. M5
Carrera 4S. Clio 172. M5

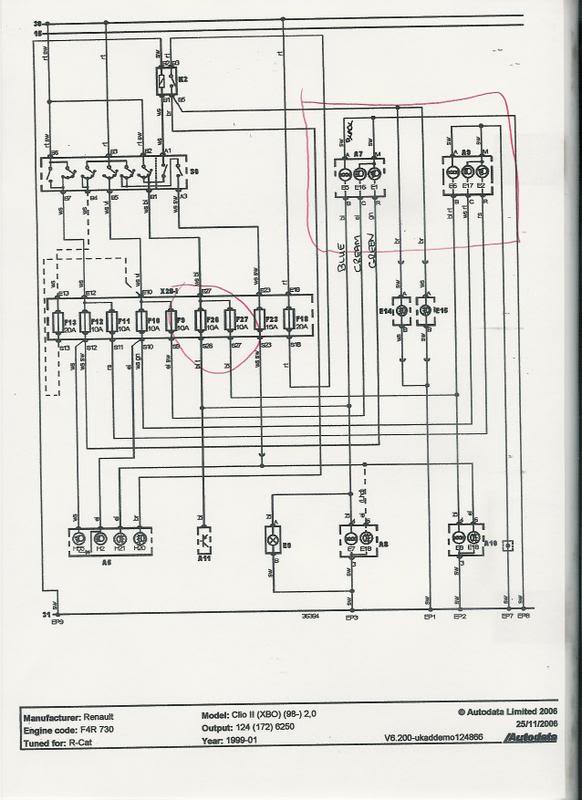

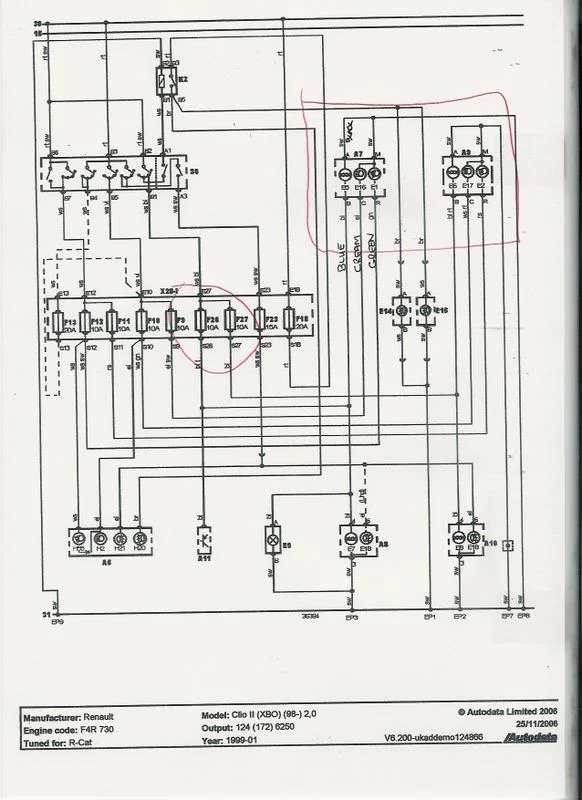

From your existing wiring find the black wire, which is earth.
This needs to connect to the main, dipped and side light bulbs earth side.
The wiring is such that the main and dipped are earthed at the same point on the new headlight unit. The sidelight will need a new wire.
On one side
The blue wire is the sidelight.
The green wire is the dipped beam
The cream wire is the main beam.
On the other side
The blue/red wire is the sidelight.
The pink wire is the dipped beam
The cream/red wire is the main beam.
Make sure there are 10 Amp fuses in position s 26 & 27 if not put them in, this will make sure the sidelights work.
This needs to connect to the main, dipped and side light bulbs earth side.
The wiring is such that the main and dipped are earthed at the same point on the new headlight unit. The sidelight will need a new wire.
On one side
The blue wire is the sidelight.
The green wire is the dipped beam
The cream wire is the main beam.
On the other side
The blue/red wire is the sidelight.
The pink wire is the dipped beam
The cream/red wire is the main beam.
Make sure there are 10 Amp fuses in position s 26 & 27 if not put them in, this will make sure the sidelights work.
Last edited:
Carrera 4S. Clio 172. M5
Carrera 4S. Clio 172. M5
Come on, its 6 wires......what could possibly go wrong !!! :evil:
Lots of Alfas
Basically your car has 3 wires either side that is your current H4 single light setup, on each side there is a wire for Low beam, high beam and earth. For each side you need to just split the earth wire into 2 for 2 bulbs.
Left Main beam Green - to H7 bulb inner
Left Dipped beam Beige - to HB3 bulb outer
Left earth Black - to both bulbs
Right main beam yellow - to H7 bulb inner
Right dipped beam white/red - to HB3 bulb outer
Right earth Black - to both bulbs
Just split the black into 2 and wire to the 2 bulbs and connect the others as above.
You need some wire and connectors from an electrical place or halfords.
Hella/renault actually make an adapter but good luck trying to find one.

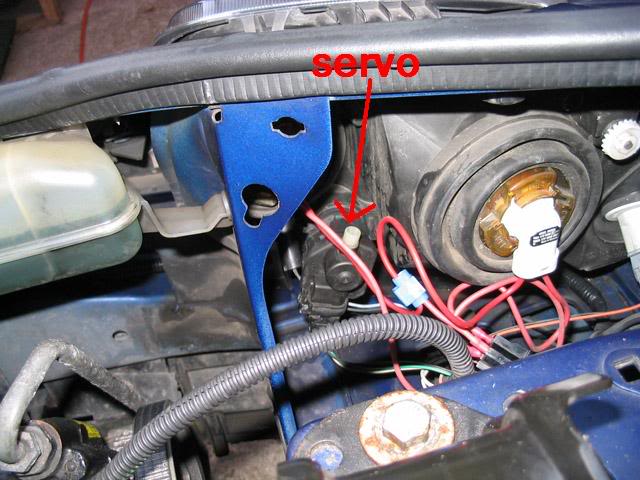

This pic shows my wiring on my old car.
Left Main beam Green - to H7 bulb inner
Left Dipped beam Beige - to HB3 bulb outer
Left earth Black - to both bulbs
Right main beam yellow - to H7 bulb inner
Right dipped beam white/red - to HB3 bulb outer
Right earth Black - to both bulbs
Just split the black into 2 and wire to the 2 bulbs and connect the others as above.
You need some wire and connectors from an electrical place or halfords.
Hella/renault actually make an adapter but good luck trying to find one.
This pic shows my wiring on my old car.
Last edited:
Hi my first post, i recently bought a clio 1.6 rxe and wanted to change the headlights to dual optics one. i found a guide but have to be a paid member. Is there any point in me becoming a paid member with my puny 8v engine or is there useful content even for me?
Anyway I need help with something please, I came across this:
Basically your car has 3 wires either side that is your current H4 single light setup, on each side there is a wire for Low beam, high beam and earth. For each side you need to just split the earth wire into 2 for 2 bulbs.
Left Main beam Green - to H7 bulb inner
Left Dipped beam Beige - to HB3 bulb outer
Left earth Black - to both bulbs
Right main beam yellow - to H7 bulb inner
Right dipped beam white/red - to HB3 bulb outer
Right earth Black - to both bulbs
Just split the black into 2 and wire to the 2 bulbs and connect the others as above.
Now Ive got the light, waiting for the connector but Ive got another problem, I have actually got 4 wires in my current H4 setup. 2 Yellow/Beige, 1 Green and 1 Yellow and Black. This is completely against everything Ive read online. Help please.
Anyway I need help with something please, I came across this:
Basically your car has 3 wires either side that is your current H4 single light setup, on each side there is a wire for Low beam, high beam and earth. For each side you need to just split the earth wire into 2 for 2 bulbs.
Left Main beam Green - to H7 bulb inner
Left Dipped beam Beige - to HB3 bulb outer
Left earth Black - to both bulbs
Right main beam yellow - to H7 bulb inner
Right dipped beam white/red - to HB3 bulb outer
Right earth Black - to both bulbs
Just split the black into 2 and wire to the 2 bulbs and connect the others as above.
Now Ive got the light, waiting for the connector but Ive got another problem, I have actually got 4 wires in my current H4 setup. 2 Yellow/Beige, 1 Green and 1 Yellow and Black. This is completely against everything Ive read online. Help please.
