Arch Liner Clip Tool



  Clio 2.0 138hp
What tools are we all using to remove the fir tree clips holding arch liners in.
I'm fed up of breaking them by using pliers and brute force
Are those pliers sort of thing any good or are the levers better ?
Help...


DomP182

ClioSport Club Member
  ph1 172, Arctic182
Drive a no. 4.0 posidrive screw into the hole in the middle and use that to leave the fir tree out.


Coops Mk1

ClioSport Club Member
  RB 182/Mk1 F7P+F4R
I've just got the Neilson ones, seem well made and will put them to use removing front bumper tomorrow


Eddie555

ClioSport Club Member
  Q7 2018 & 172 Cup.

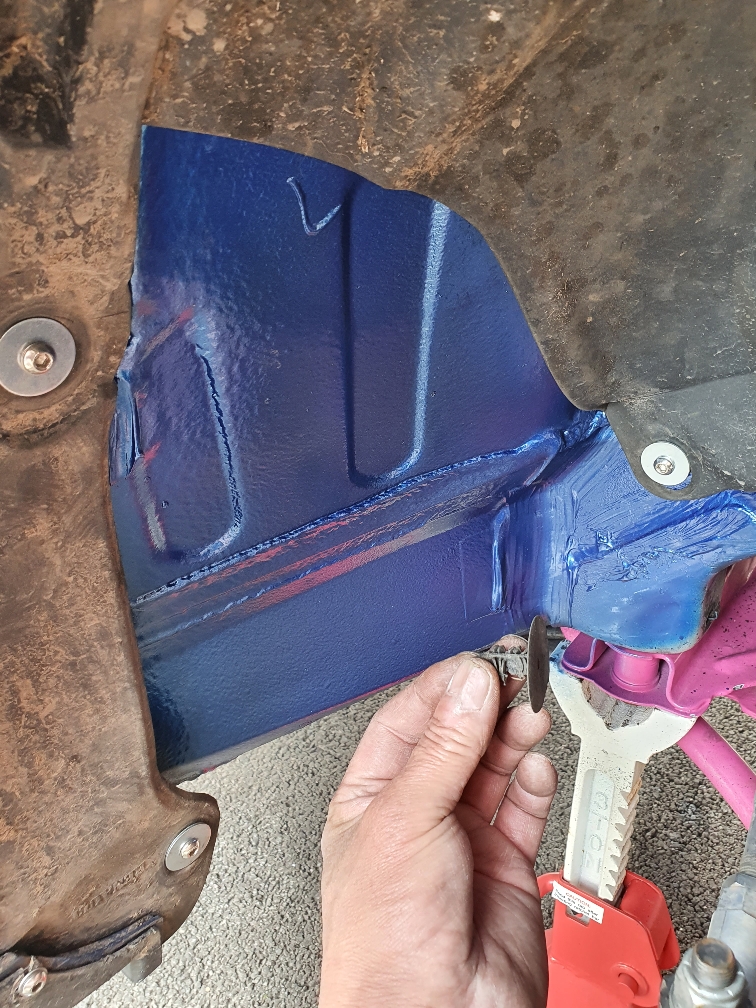

I've done away with those stupid bungs.. I've used m6 Riv-nuts and domed allen bolts..You don't even have to make the holes bigger, it was a perfect fit for the Riv-nut.. And yes ive since washed the arch liner..

Sent from my SM-G977B using Tapatalk

  Clio 2.0 138hp
I've done away with those stupid bungs.. I've used m6 Riv-nuts and domed allen bolts..You don't even have to make the holes bigger, it was a perfect fit for the Riv-nut.. And yes ive since washed the arch liner..

Sent from my SM-G977B using Tapatalk
View attachment 1465758
Now that sounds like my kind of solution. Time to find myself a rev nut kit.
No more ruined knuckles pulling out plastic pieces of junk. Stick a bit in the impact driver and boom

10 points for this solution. Love your work


scoobywil999

ClioSport Club Member
  Renault Clio 182 FF
I've done away with those stupid bungs.. I've used m6 Riv-nuts and domed allen bolts..You don't even have to make the holes bigger, it was a perfect fit for the Riv-nut.. And yes ive since washed the arch liner..

Sent from my SM-G977B using Tapatalk
View attachment 1465758
Stupid noob question but is the paint on the inside of the wheel arch the same code as the body? I have some rust where those plastic clips go so I am going to do all the inside of the wheel arch and your paint finish looks great so just wondered if it was the same paint over stonechip or similar to get this finish?


Eddie555

ClioSport Club Member
  Q7 2018 & 172 Cup.
Stupid noob question but is the paint on the inside of the wheel arch the same code as the body? I have some rust where those plastic clips go so I am going to do all the inside of the wheel arch and your paint finish looks great so just wondered if it was the same paint over stonechip or similar to get this finish?
Yes and yes..

Sent from my SM-G977B using Tapatalk
