Proper update time................
A few days ago my Bro came over to help me with a few things. He's much better with a dremel and has a good imagination. Just what we need.

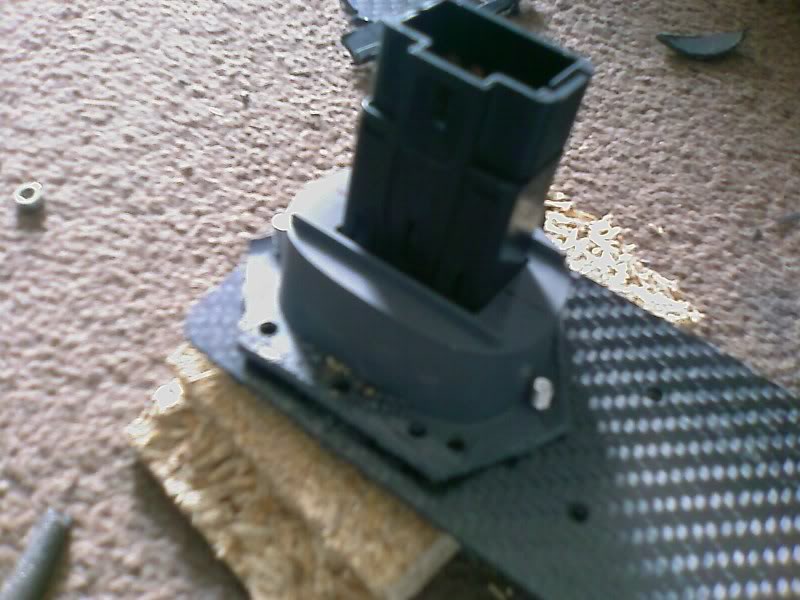

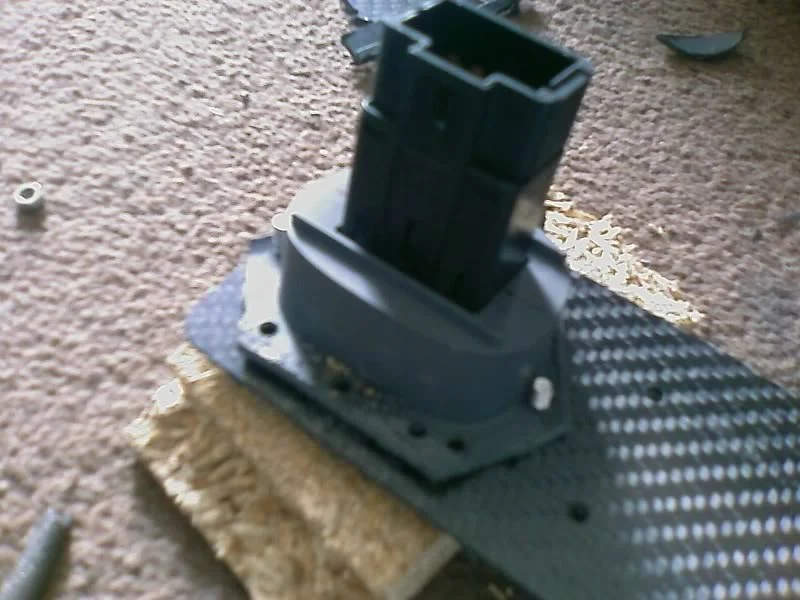

We rescued the centre vents from the bin and with a piece of carbon set about making a housing for the hazard switch to go into. I was going to put in in the panel where the headlamp adjuster normaly lives but I wanted to fill the gap left by the centre vents.
As I now have no space for the radio in the centre of the dash I decided to relocate it to the glove box. I need it to stop me gong insane on long drives.
I got myself one of those housing like they use on old mini's to bolt the radio under the dash. Needed to trim it down to fit in the glovebox.

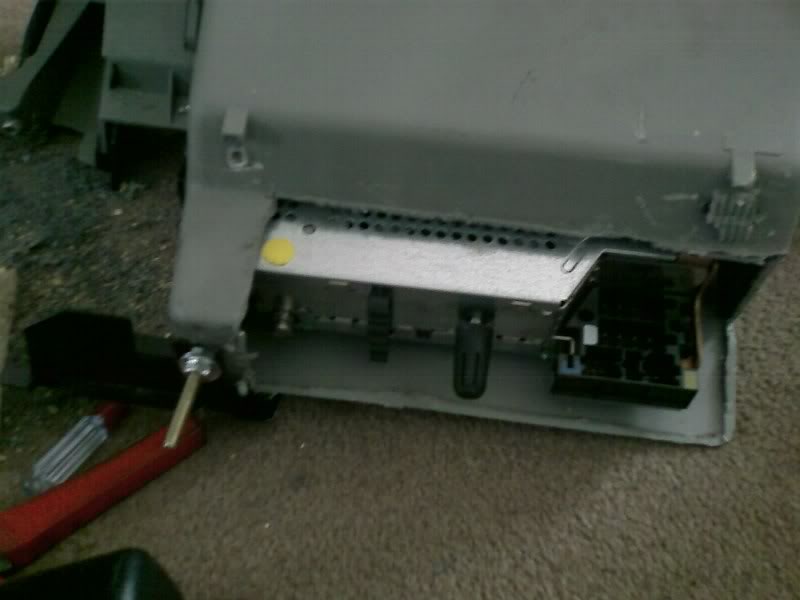

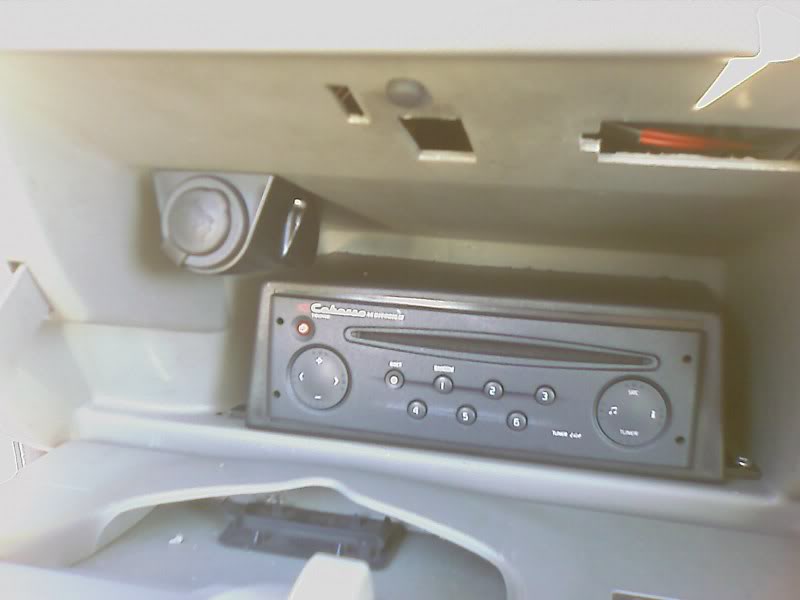

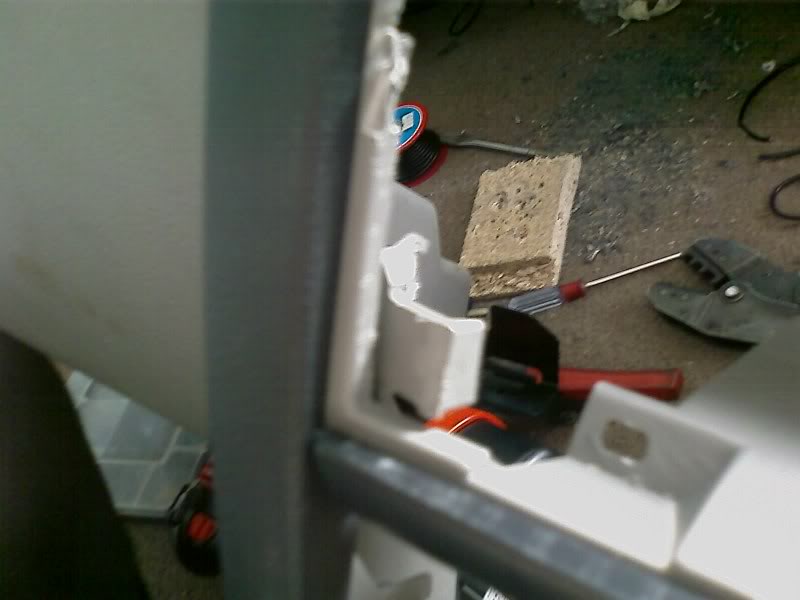

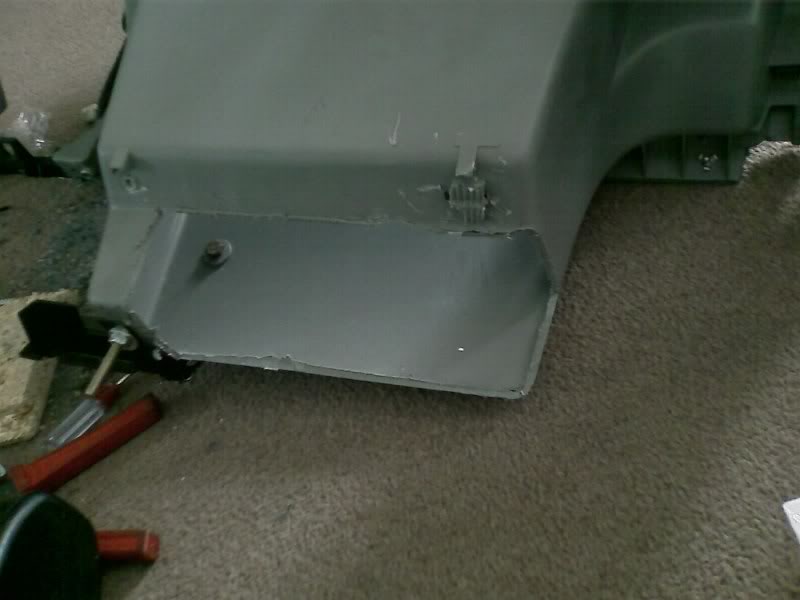

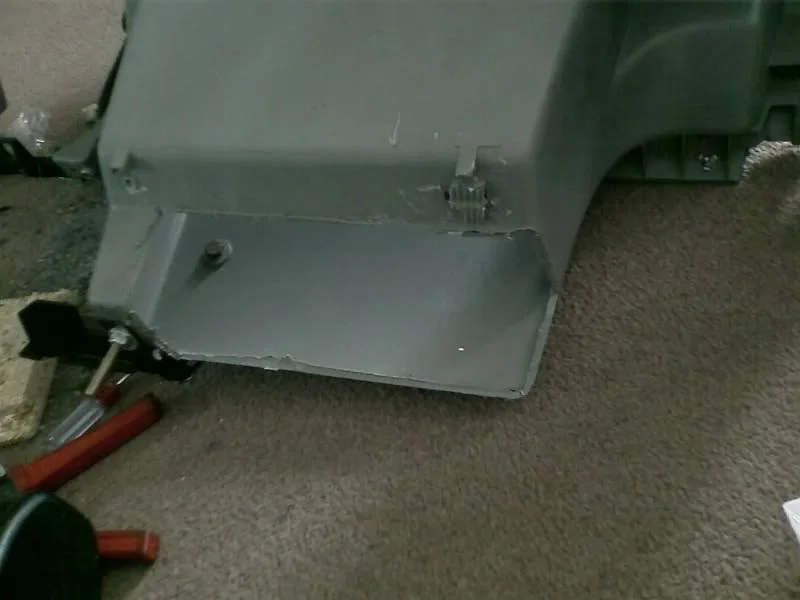

Cut the back of the glovebox to allow the radio to stick out the back, making the wiring connecion easier and so it fits nice in the space.

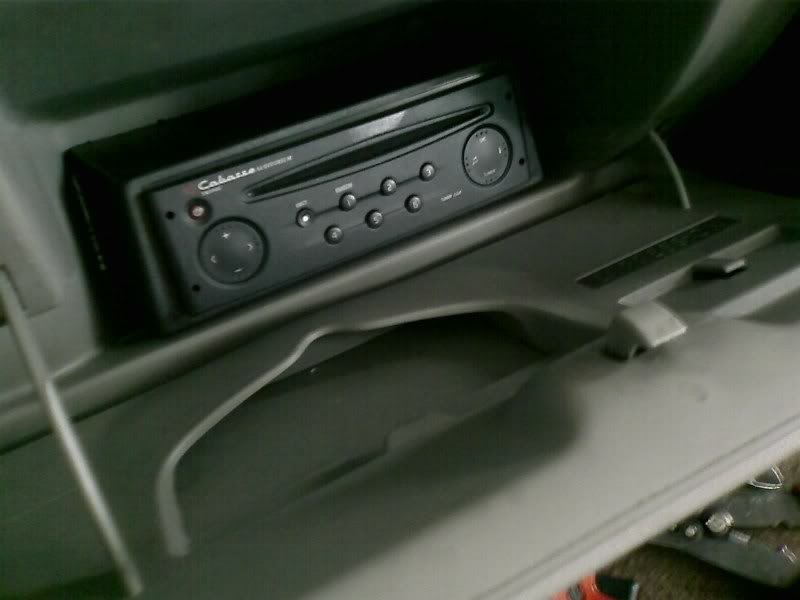

Quite neat I think.
All I need to do before setting off is switch it on and put a cd in, the display and steering coloumn controls still work, so its fine when on the move. Makes me look more hardcore coz it looks like Ive binned it.

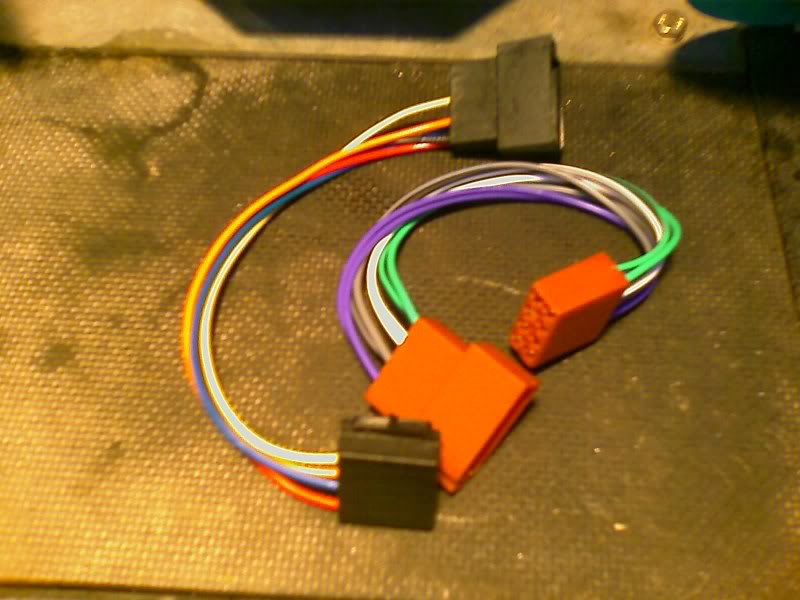

The wiring looms dont reach this far. the display one and the ariel are fine so its just power and speakers that needed to be extended. To save me having to cut the loom and extend it I got hold of a short iso loom ad extended this to make it all plug and play.
^ that pic is of my first attempt, before id actually measured how far it needed to go. Thay are much sorter now.
While my bro was over he made me some small brackets form some dash off cuts to secure my panel in better.
Now, a few weeks ago when my mate was over and I started to get the new dash in, he made a start on removing the ABS!!
2 Reasons for this. It was nothing but trouble at Curbourgh back in the summer (As Tony will agree) and I need the space where it sits for my new pas pump.

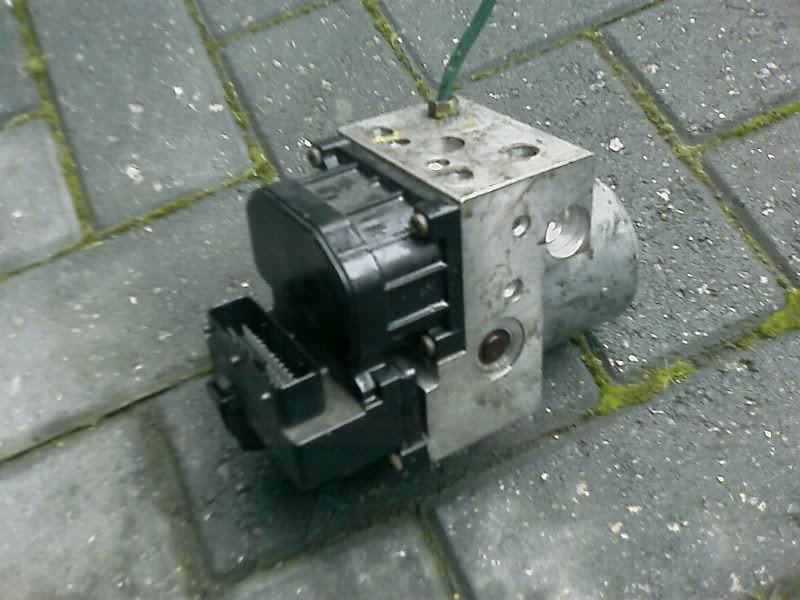

The pump is off.

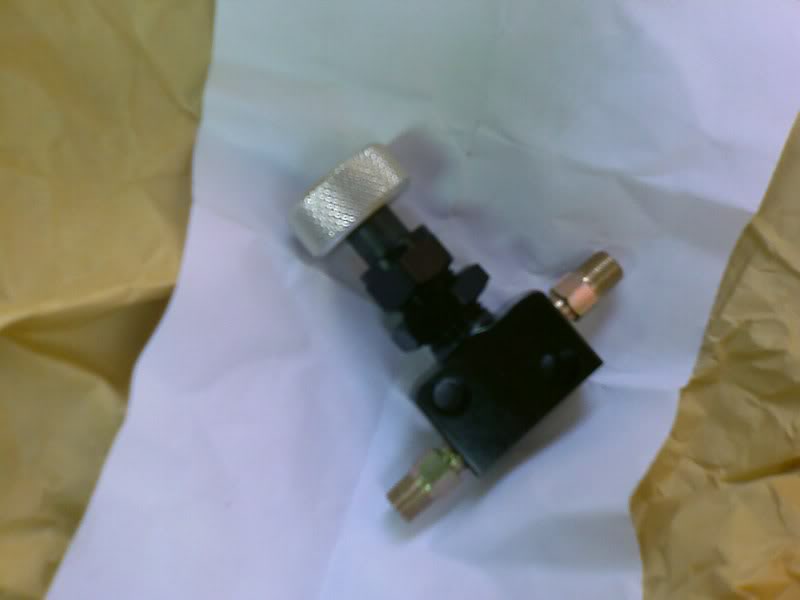

and I have bought a bias valve to put in the rear line.
No further rogress has been made with this so far, altho I do have everything I need to make up new brake lines etc. Now, after removing the pump, the ABS light has stayed on. Of course. Now I did think about tracing the loom back and maybe putting a resistor in or something like people do with airbags but it would take me ages. So I decided to strip the clocks apart and deal with the lights themselves.
Got down to the board and as some of you will know the Clio doesnt have bulbs in its dash clocks, like normal, but has surface mounted LED's.
So do we de-solder them, NO, Just break the top off it, Lol.

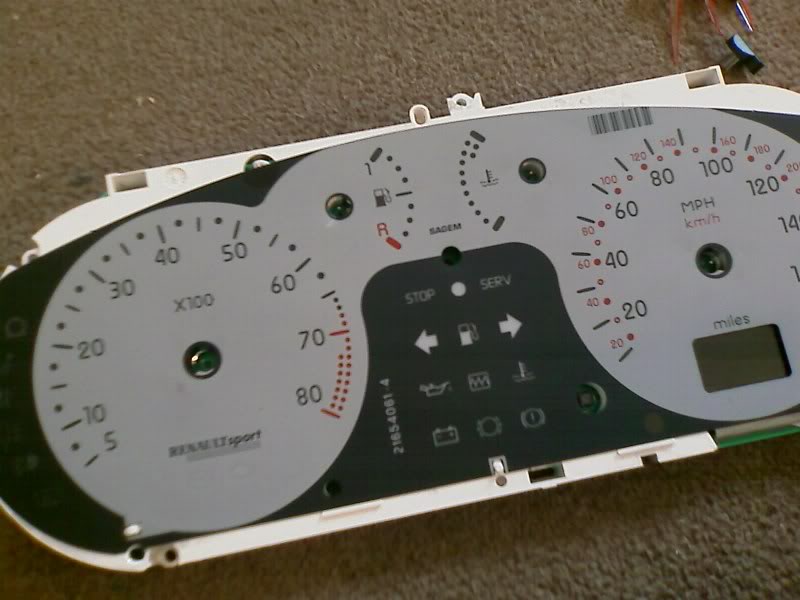

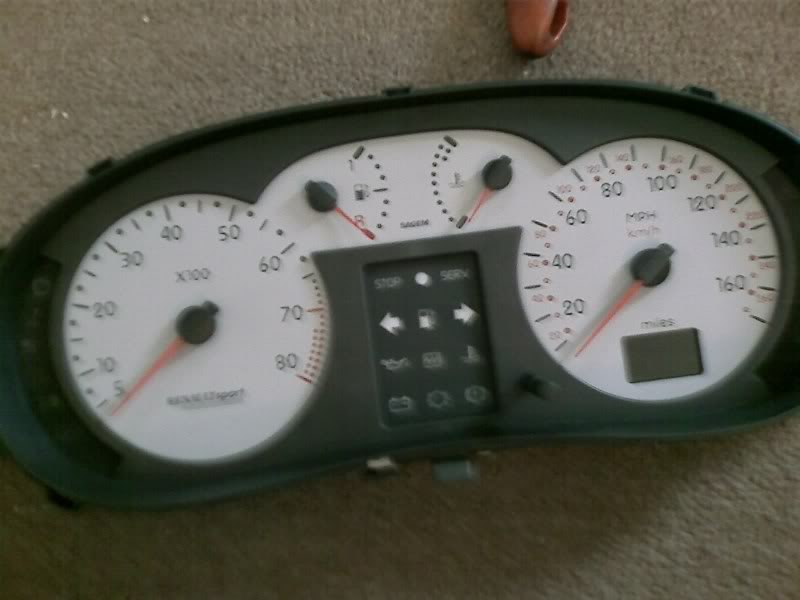

Had to do the ABS light, Serv Light, Stop light AND brake warning light (more on this in a bit) All these lights stay on coz of the abs fault. While I was there I took out the front fog and airbag (even tho it isnt on anyway) warning lights. This works well as it leaves the other lights working. The other idea we had that would be NON permanent woud be to put a very smal bit of tape over the led so it doesnt show on the dash. Might be a good tip for anyone with an airbag light on after bucket/steering wheel fitting and is a girl so wont cut the loom.

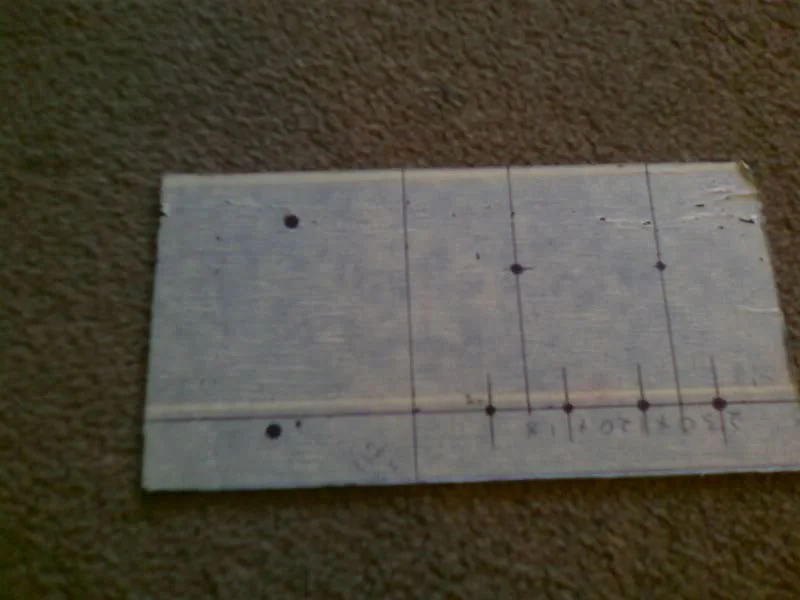

After this I set about marking up my switch panel after a tyring a few layouts made from cardboard.

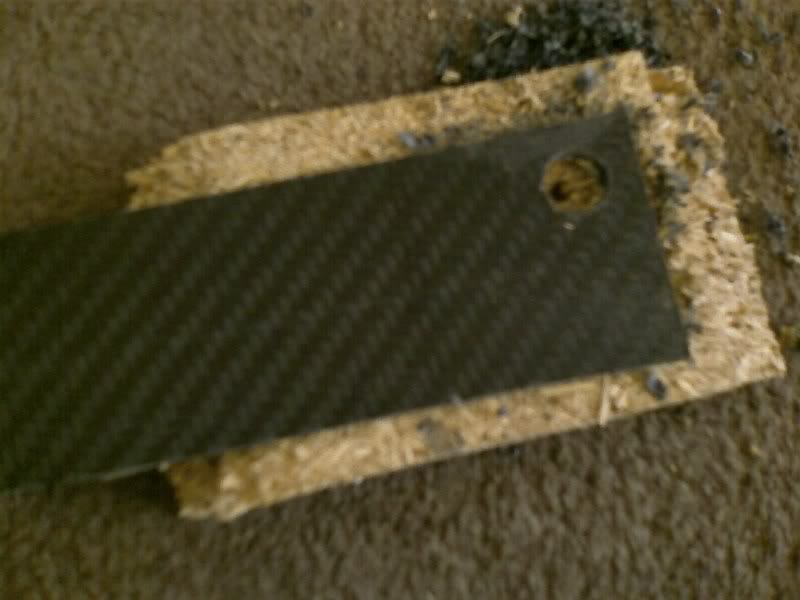

Trial drilled a scrap bit to make sure it wasnt going to look s**t after id drilled it

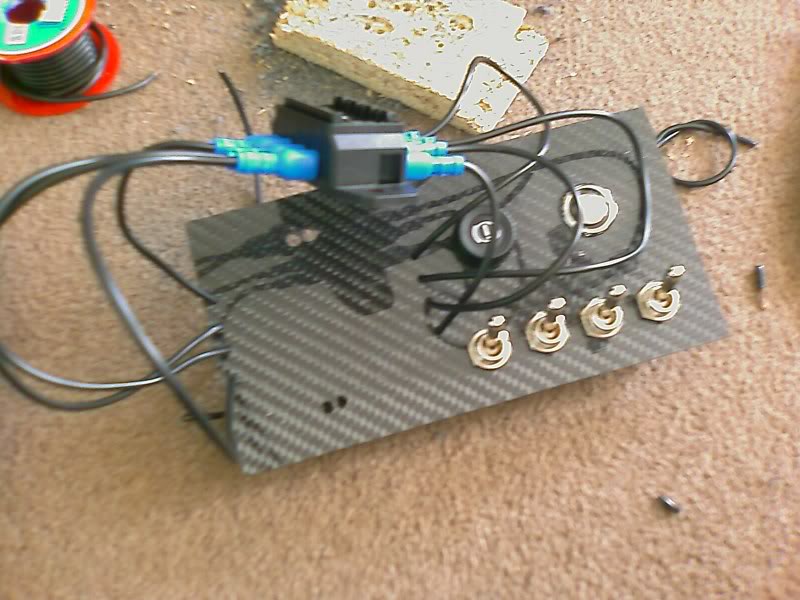

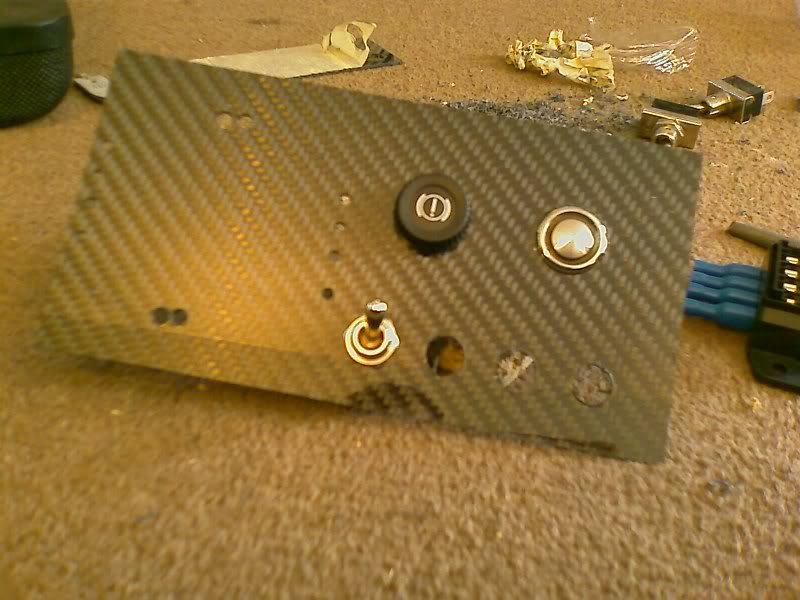

Started drilling and fitting the switches. I have a brake warning light on the panel to overcome the problem with the one I had to break on the dash clocks.

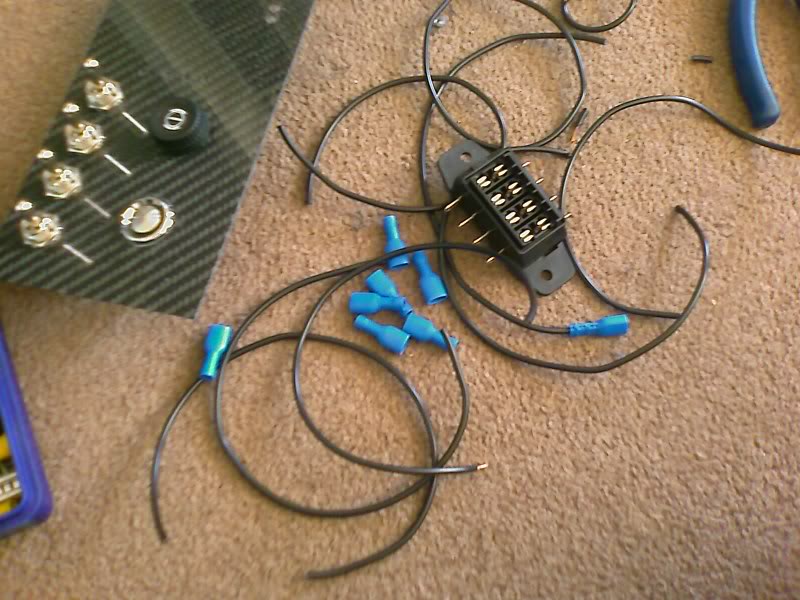

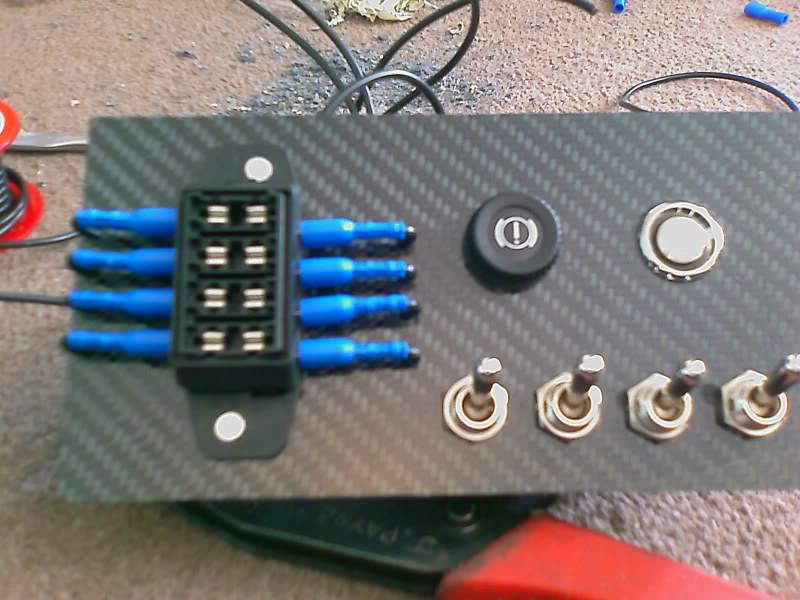

Having a surface mounted fuse box for a couple of extra circuits I need to run.

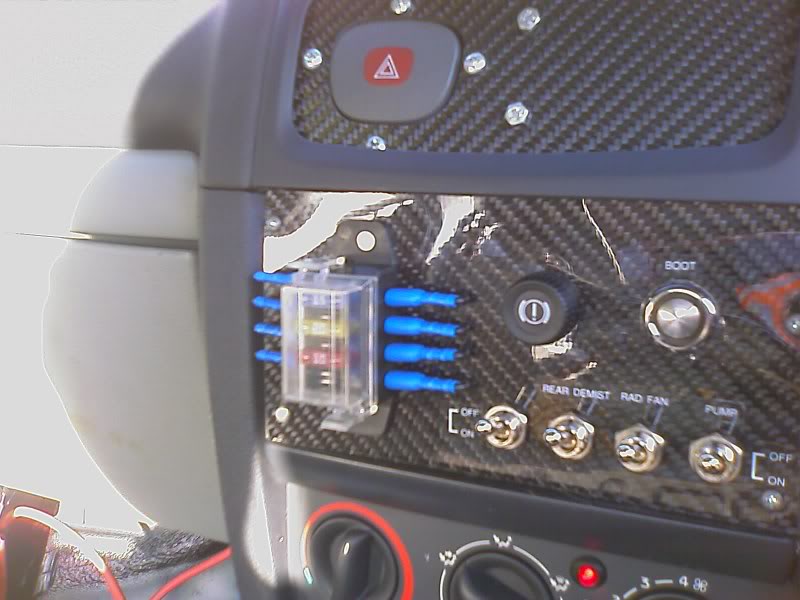

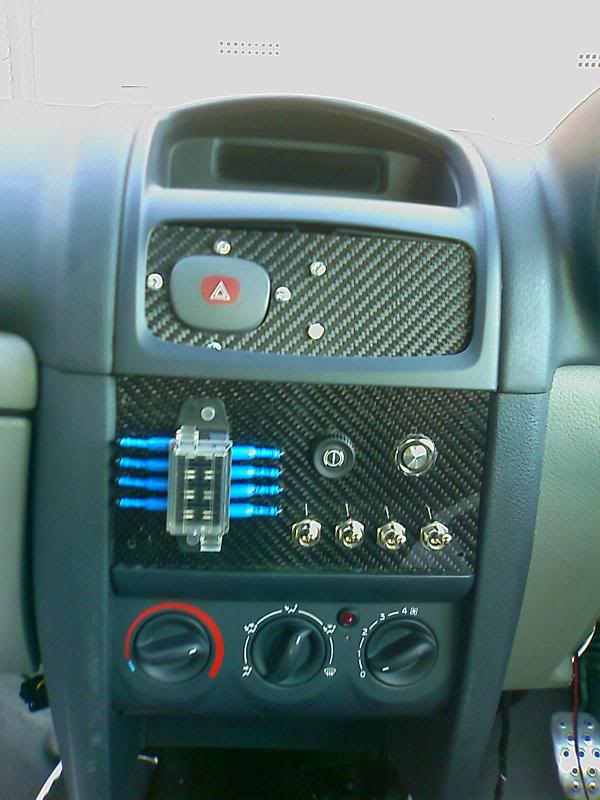

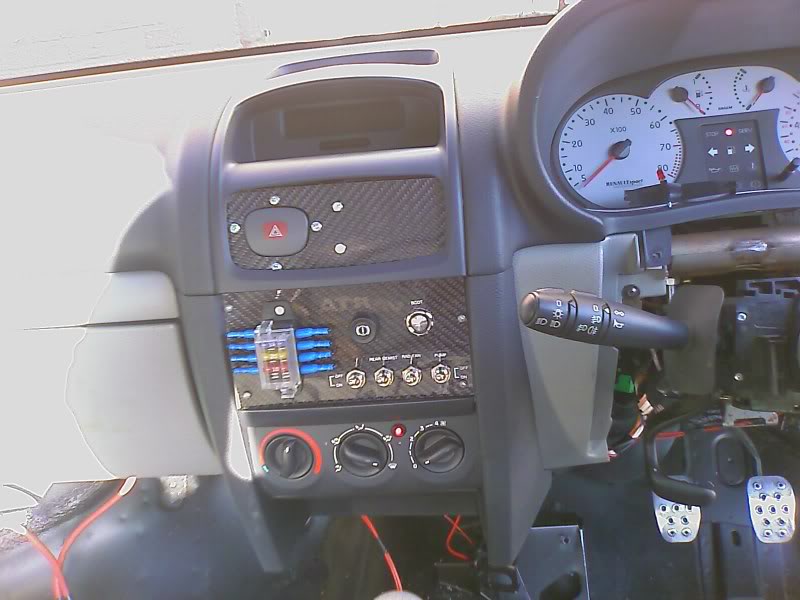

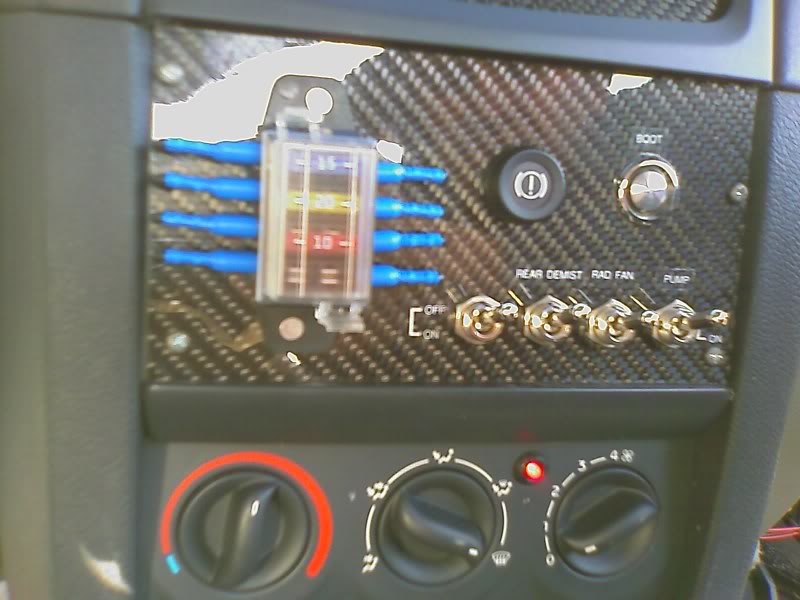

trial fitted it all to see how it looks........
Very good I think :approve:
Proper update time................
A few days ago my Bro came over to help me with a few things. He's much better with a dremel and has a good imagination. Just what we need.
We rescued the centre vents from the bin and with a piece of carbon set about making a housing for the hazard switch to go into. I was going to put in in the panel where the headlamp adjuster normaly lives but I wanted to fill the gap left by the centre vents.
As I now have no space for the radio in the centre of the dash I decided to relocate it to the glove box. I need it to stop me gong insane on long drives.
I got myself one of those housing like they use on old mini's to bolt the radio under the dash. Needed to trim it down to fit in the glovebox.
Cut the back of the glovebox to allow the radio to stick out the back, making the wiring connecion easier and so it fits nice in the space.
Quite neat I think.
All I need to do before setting off is switch it on and put a cd in, the display and steering coloumn controls still work, so its fine when on the move. Makes me look more hardcore coz it looks like Ive binned it.

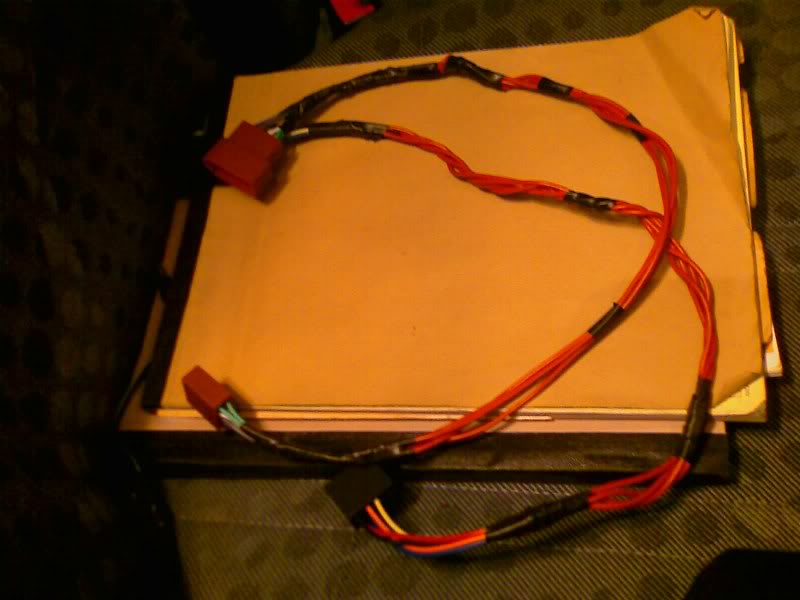

The wiring looms dont reach this far. the display one and the ariel are fine so its just power and speakers that needed to be extended. To save me having to cut the loom and extend it I got hold of a short iso loom ad extended this to make it all plug and play.
^ that pic is of my first attempt, before id actually measured how far it needed to go. Thay are much sorter now.
While my bro was over he made me some small brackets form some dash off cuts to secure my panel in better.
Now, a few weeks ago when my mate was over and I started to get the new dash in, he made a start on removing the ABS!!
2 Reasons for this. It was nothing but trouble at Curbourgh back in the summer (As Tony will agree) and I need the space where it sits for my new pas pump.
The pump is off.
and I have bought a bias valve to put in the rear line.
No further rogress has been made with this so far, altho I do have everything I need to make up new brake lines etc. Now, after removing the pump, the ABS light has stayed on. Of course. Now I did think about tracing the loom back and maybe putting a resistor in or something like people do with airbags but it would take me ages. So I decided to strip the clocks apart and deal with the lights themselves.
Got down to the board and as some of you will know the Clio doesnt have bulbs in its dash clocks, like normal, but has surface mounted LED's.
So do we de-solder them, NO, Just break the top off it, Lol.
Had to do the ABS light, Serv Light, Stop light AND brake warning light (more on this in a bit) All these lights stay on coz of the abs fault. While I was there I took out the front fog and airbag (even tho it isnt on anyway) warning lights. This works well as it leaves the other lights working. The other idea we had that would be NON permanent woud be to put a very smal bit of tape over the led so it doesnt show on the dash. Might be a good tip for anyone with an airbag light on after bucket/steering wheel fitting and is a girl so wont cut the loom.
After this I set about marking up my switch panel after a tyring a few layouts made from cardboard.
Trial drilled a scrap bit to make sure it wasnt going to look s**t after id drilled it
Started drilling and fitting the switches. I have a brake warning light on the panel to overcome the problem with the one I had to break on the dash clocks.
Having a surface mounted fuse box for a couple of extra circuits I need to run.
trial fitted it all to see how it looks........
Very good I think :approve:
172 Race Car
Re: My Ph1 172 track sl*g Progress Thread

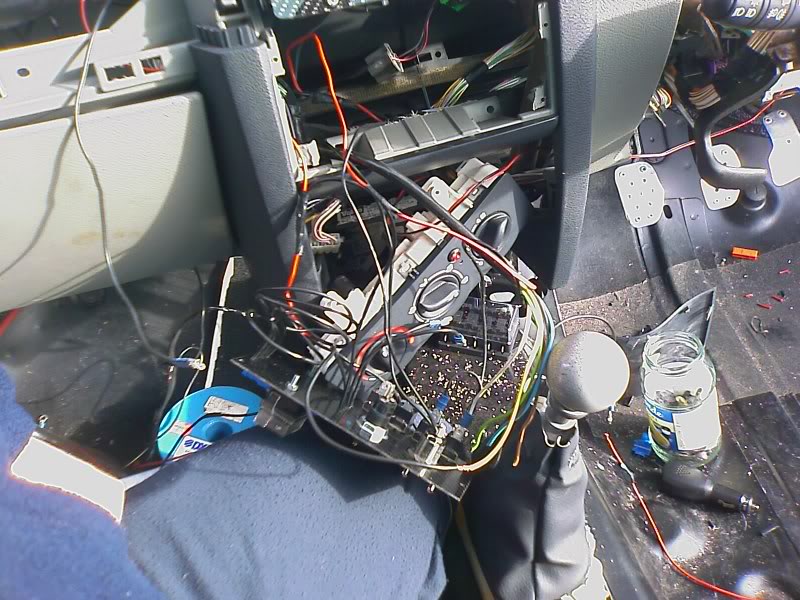

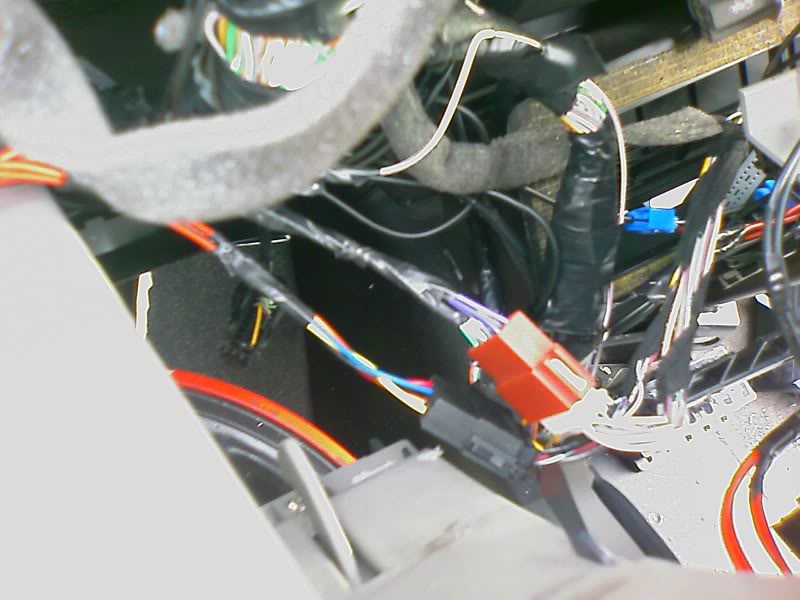

Yesterday I got on with the massive task of sorting all the wiring out. I have to extend stuff, relocate stuff, rewire some of it to work differently etc. Altho it was only 8 or 9 months ago when I did some of the wiring behind the dash, I had no idea what I had done. Multi meter came out to help fathom what I needed.
Radio extension wires were a perfect fit and all working fine.

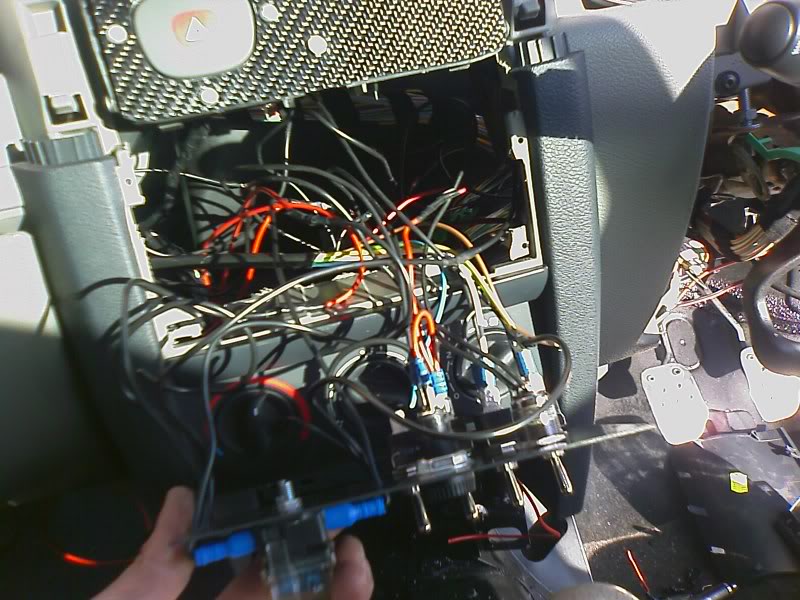

After several hours of soldering and wiring I was starting to get somewhere.

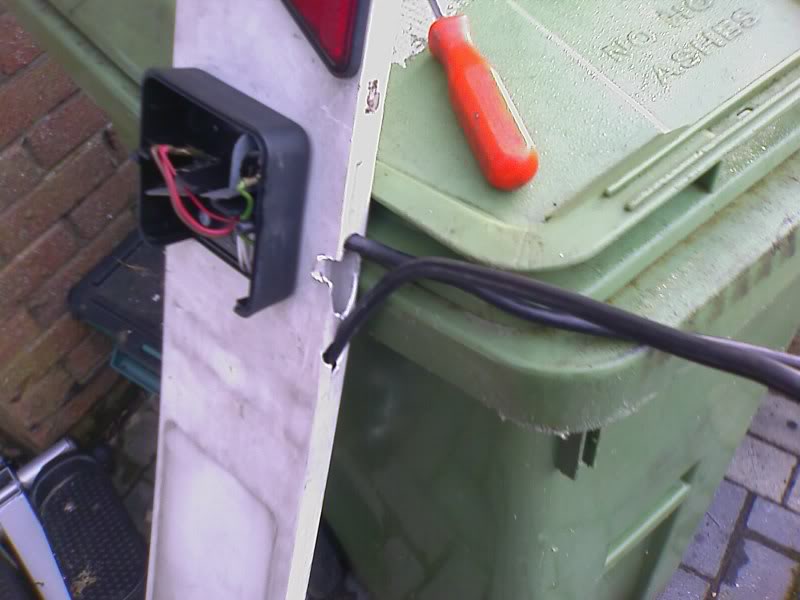

I needed to run a few wires through to the engine bay for various things. Needed to make or find some loom, so I took the cable off an old trailerboard I had lying around.

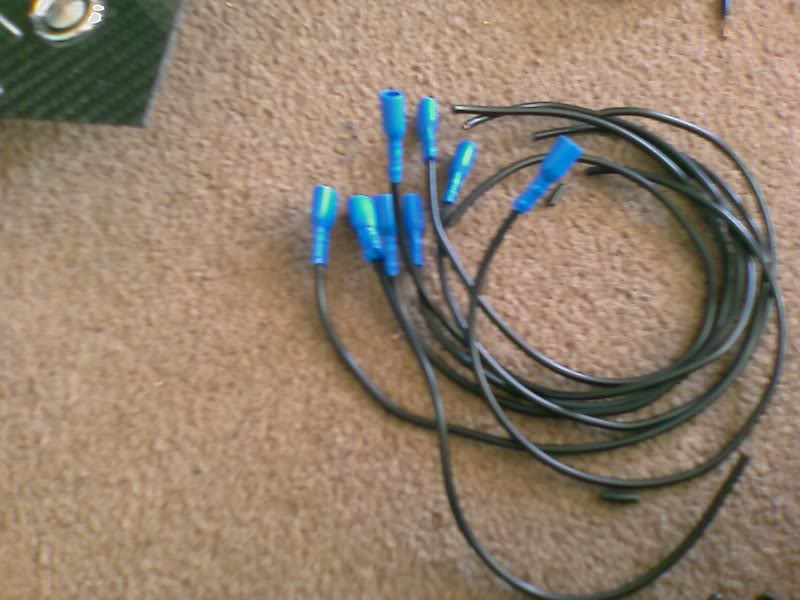

Perfect for the job, nicely insulated and the wires are different colours so finding the right ones at the engine bay end is simple.

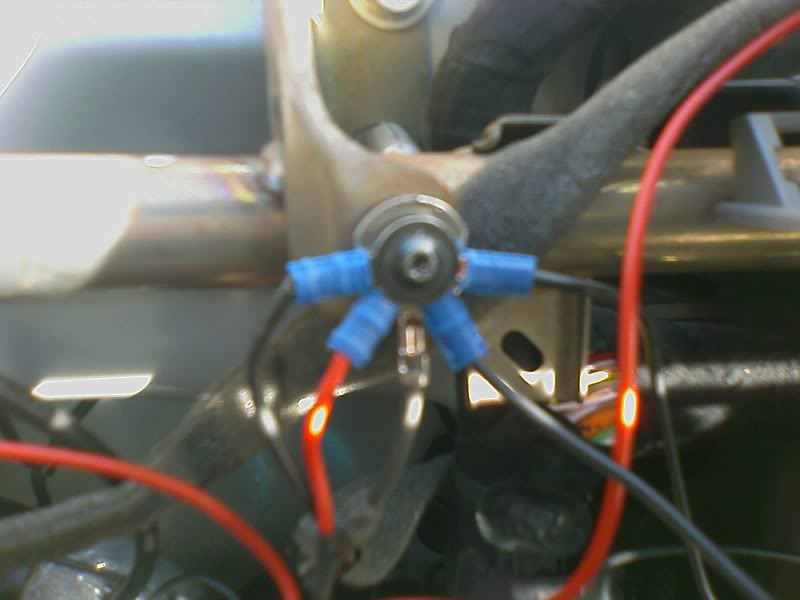

The earth point is getting busy
The FIA spec cut off switch I have requires some additional wiring as it cuts the feed to the ignition coil not just the main battery cable.

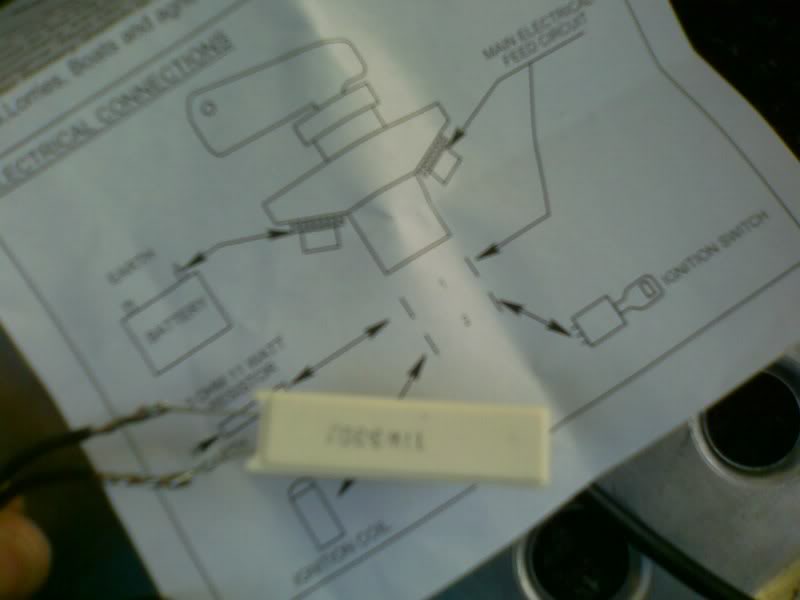

A resistor has to be fitted to one side.

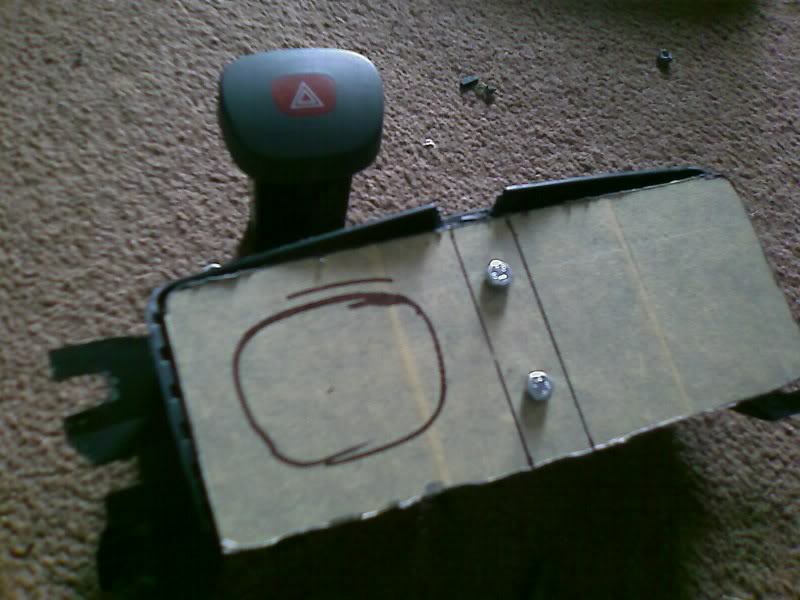

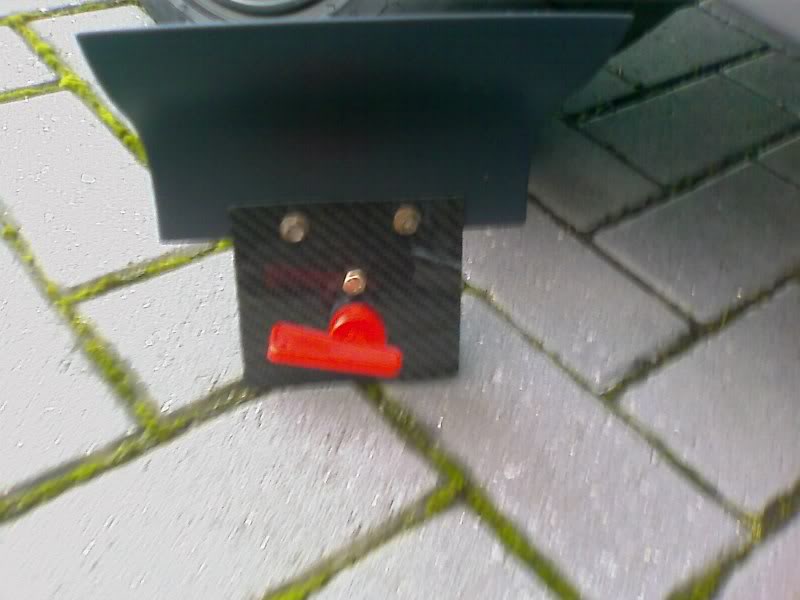

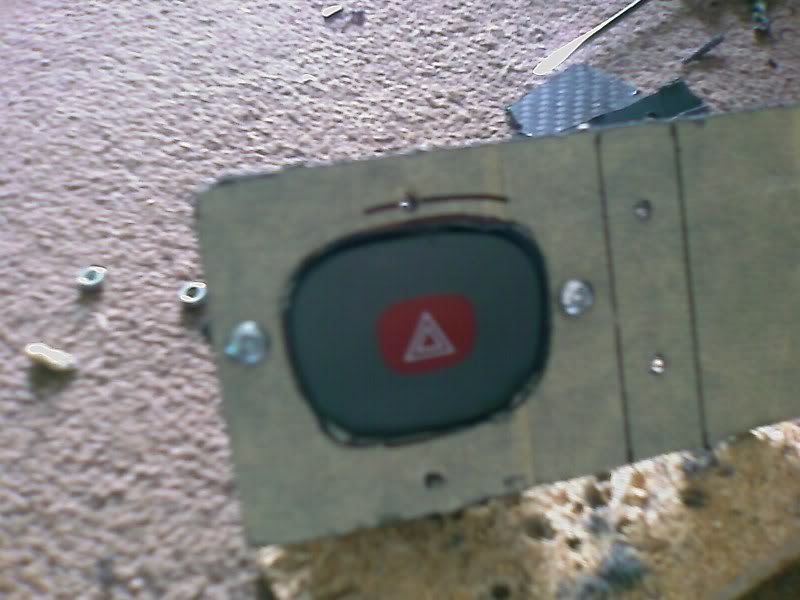

Made up a small panel for the switch. To sit below the dash, where the cup holder would normaly be
Pmsl, Just noticed it looks like a face

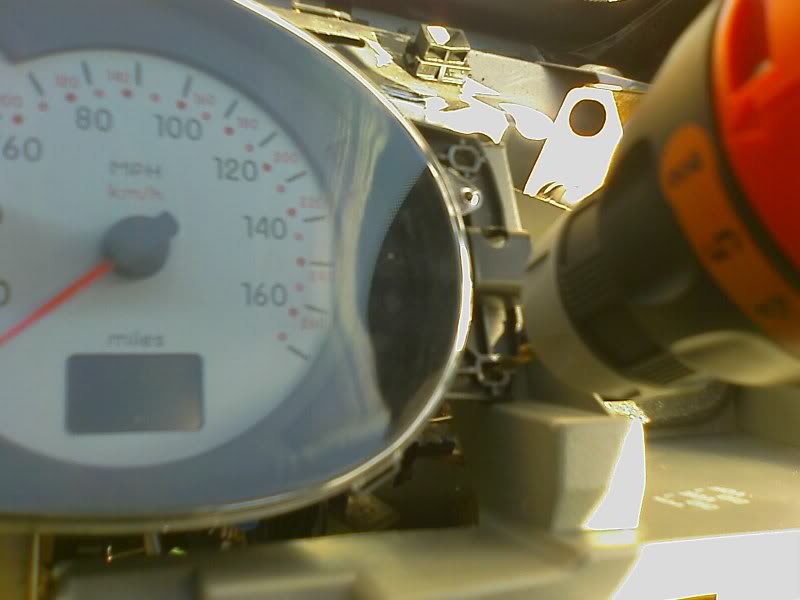

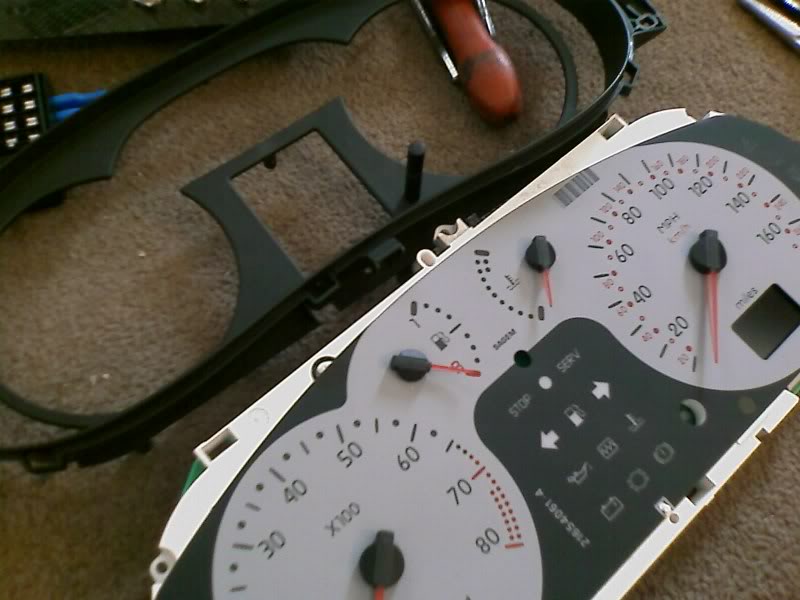

There are no screw holes for the clocks to attatch to the dash on the phase 2, so I had to drill them.
With the dash top on they dont line up with the hole properly, ive cut some of the housing and dash to try and get it sitting better but not finished yet.
Fitted another little power outlet in the glovebox for running the tyre compressor or camera off of.
Doesnt leave much room for gloves now :dapprove:

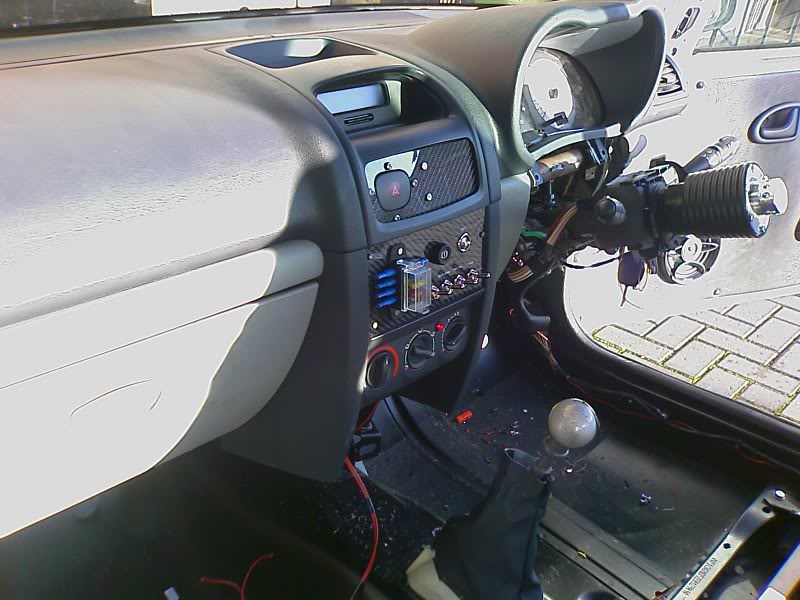

Finished off the dash panel with some stickers to mark the switches.
Nearest the driver side is 'Pump' for the pas pump. Then a cooling fan overide switch and next the heated rear window. 4th one is a spare currently. Push button is for the boot release.
To the right of the hazard switch will be a holder for my pda phone (for sat nav/gps speedo/lap timer) Im looking to upgrade it soon so Ive left it for now as im not sure what in getting yet.
Ive done a bit more on the car, got a new driver seat that im in the process of fitting, but I cant be assed to type anymore today.
Yesterday I got on with the massive task of sorting all the wiring out. I have to extend stuff, relocate stuff, rewire some of it to work differently etc. Altho it was only 8 or 9 months ago when I did some of the wiring behind the dash, I had no idea what I had done. Multi meter came out to help fathom what I needed.
Radio extension wires were a perfect fit and all working fine.
After several hours of soldering and wiring I was starting to get somewhere.
I needed to run a few wires through to the engine bay for various things. Needed to make or find some loom, so I took the cable off an old trailerboard I had lying around.
Perfect for the job, nicely insulated and the wires are different colours so finding the right ones at the engine bay end is simple.
The earth point is getting busy

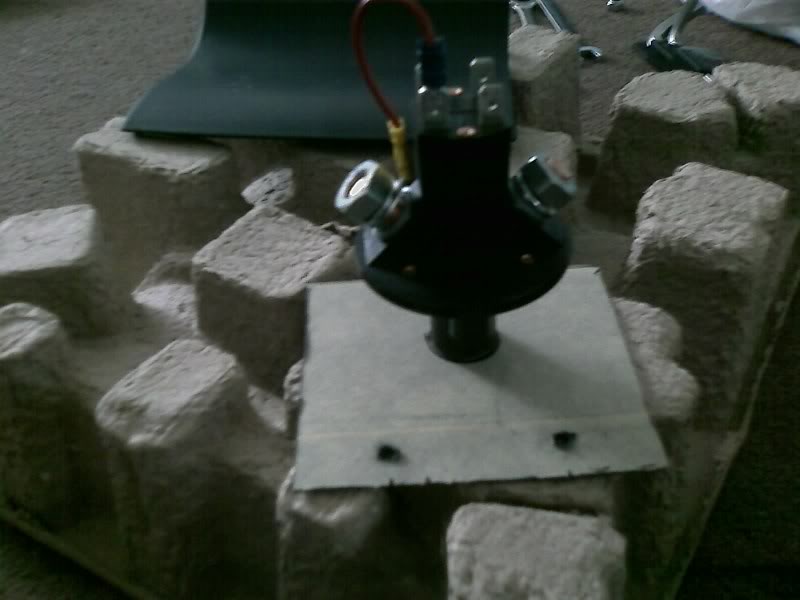

The FIA spec cut off switch I have requires some additional wiring as it cuts the feed to the ignition coil not just the main battery cable.
