Caliper scratching new disc

[mloxey]

Hi.

First sorry for my written english, I am doing my best.

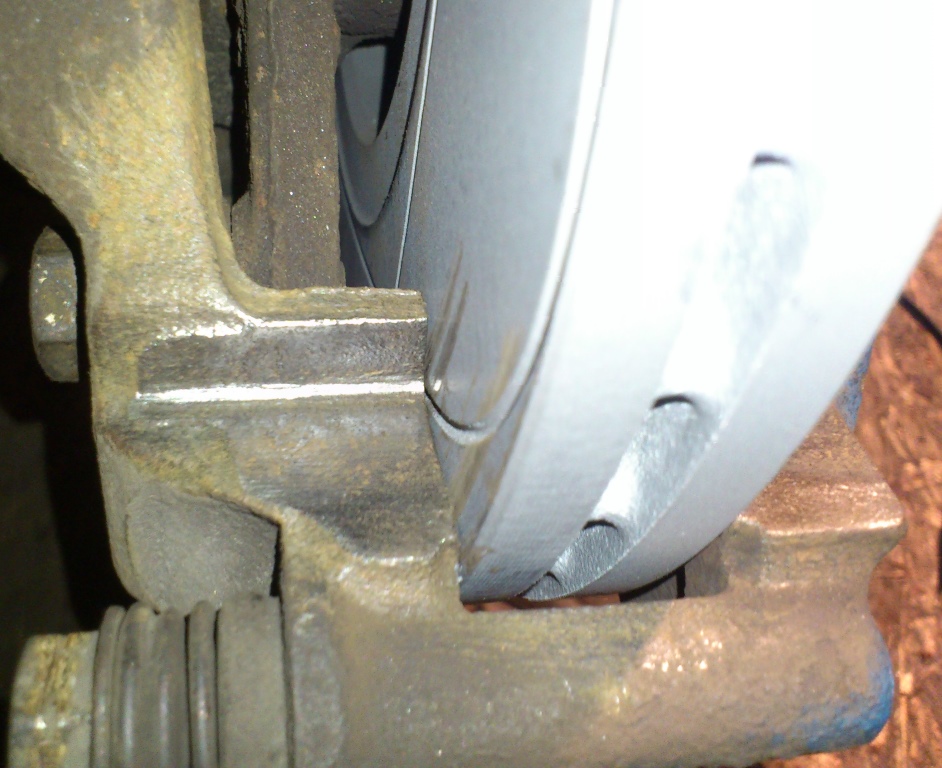

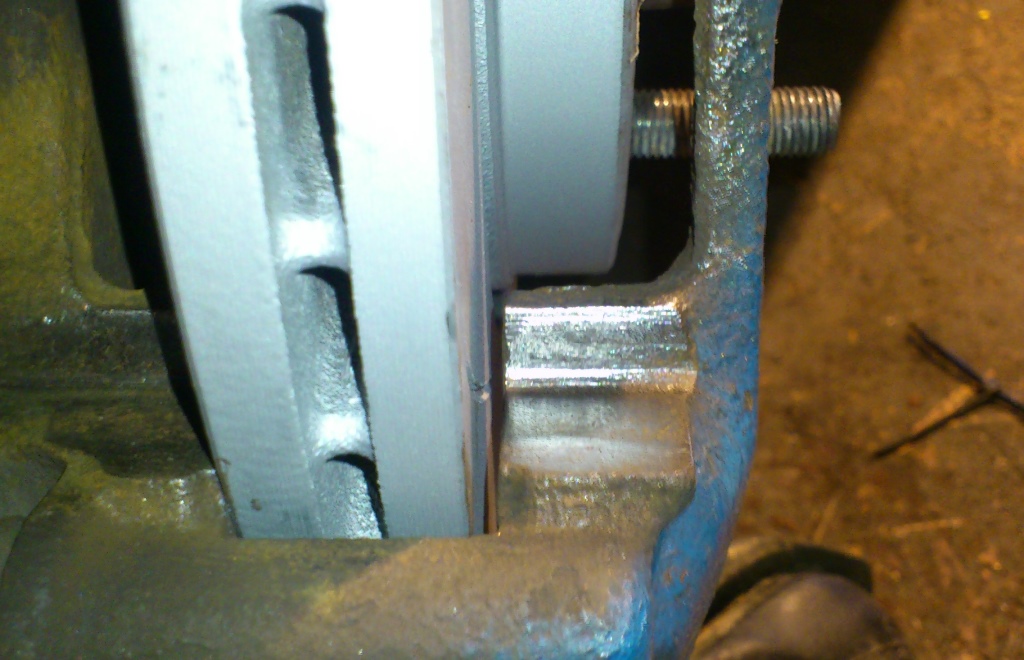

I bought new discs to my 172 Clio: dedicated ATE PowerDisc but after I put them on inside part of caliper is to close to the disc and scratch it. I checked my old discs and it seemt to be smaller offset (whole in disc is 35mm deep and new disc has 36mm). Next I checked few more discs in a shop and all of them have 36mm like PowerDiscs. So I assume that something is wrong with hub that disc enters 1mm to deep. Please see attached picture. One more thing, there are no gaskets or any other modifications.

Anybody can help to say what is wrong? Why disc goes to deep on a hub?

Thank you. Marek



[bozothenutter]

Hi Marek

the below is from the ATE site catalog, height should be 44mm

EAN
Status
Quantity per Packing Unit
Packing Unit
Trade Numbers
to construction year
Fitting Position
Diameter [mm]
Brake Disc Thickness [mm]
Minimum Thickness [mm]
Brake Disc Type
Machining
Surface
Number of Holes
Bolt Hole Circle Ø [mm]
Height [mm]
Centering Diameter [mm]
Inner Diameter [mm]
Bore Ø [mm]
Supplementary Article/Supplementary Info 2
MAPP code available

[TD="width: 100%"]4006633120050 [/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"]Normal [/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"]2 [/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"]1 [/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"]524158[/TD]

[TD="colspan: 3"]

[/TD]

[TD="colspan: 3"]

[/TD]

[TD="class: bgrColorContentTablesBodyAlt2, colspan: 3"]Criteria:[/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"]12/2012 [/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"]Front Axle [/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"]280 [/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"]24 [/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"]21,8 [/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"]Vented [/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"]Alloyed / High-carbon [/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"]Coated [/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"]4 [/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"]100 [/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"]44 [/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"]61 [/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"]140 [/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"]13,6 [/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"]with screws [/TD]

[TD="colspan: 3"]

[/TD]

[TD="width: 100%"] [/TD]



[mloxey]

Hi. They are 44mm. The dimension I gave is the distance beteen rotor surface (scrateched) and surface where hub touch the disc (inside, thats why I said it is whole dimensions not disc).
Reasuming its not disc fault because I tried with ATE Standard, Brembo HC so all of them fits in the same way - to deep. It is trade number 524158.



[bozothenutter]

been ages since I removed my discs, but don't remember any spacer or something.
is yours a Ph1 or Ph 2 (cup maybe?)
maybe that coud be the difference?



[mloxey]

No, it is standard PH2 172 2001 so there is nothing special there. Spacers are not good idea as I heard. Rotors are dedicated and people use them as I can see in the internet.



[mloxey]

Anybody?



[scotty2hotty81]

The disks are wrong.



[bozothenutter]

Are the pads in?



[mloxey]

Why wrong? Any facts?

No pads.



[scotty2hotty81]

Why wrong? Any facts?

No pads.

They dont fit?



[MRBILLYUK]

The discs look too thick . 44mm , when standard dsics are 24mm new . I'd say that was your problem . How can it be your hub that's at fault ?



[mloxey]

44mm i height of rotor in total. 24 is thickness. All dimensions are correct.

I still have a hope that somebody knows the answer.



[MRBILLYUK]

44mm i height of rotor in total. 24 is thickness. All dimensions are correct.

I still have a hope that somebody knows the answer.

Ahhh right , sorry . I misunderstood you about the 44 mm . So inside the new discs it's 36mm deep ? So what you're saying is the new discs sit 1mm further onto the hub , therefore catching the inside of the disc on the caliper / pad carrier ? I don't think anybody will have the answer mate if that is the case .



[mloxey]

I think to change the hub. If not hub than it has to be caliper. That is all what i think.



[MRBILLYUK]

I think to change the hub. If not hub than it has to be caliper. That is all what i think.

I'm assuming the hub and caliper are standard , as it left the factory ? If that's the case , then the only thing that has changed is the disc ? So it can't be the hub ? Maybe , and I've never heard of this happening before , the pad carrier on the caliper is ever so slightly bent ? Just enough for it to touch the new disc ? Just a thought . Maybe someone will come along with a better answer .



[scotty2hotty81]

How do they compare to your original disks? If they are different they are wrong.... Are they the same when you wheel is bolted on?



[mloxey]

Scotty, as I said the whole inside the rotor is 1 mm deeper in new discs BUT Brembo HC and few more other manufacturers disc have the same dimensions. I do not know what kind of discs I have now becasue I can see no name or signs on them. Maybe previous owner of my Clio put different kind of discs (for Laguna or Kangoo i dont know) and they fit but Clio Sport 172 dedicated don't.

So if I am sure that discs are good only hub might be wrong.



[rich-6]

Don't see anything wrong, just fit your pads the caliper will centralise itself once the pads are fitted unless the sliders are seized.



[Matt e]

that's the carrier though, it doesn't move once bolted on



[scotty2hotty81]

The above ^^^ is why I asked is it the same when the wheel is bolted on,



[celicaturbolly]

Have you measured the actual set of discs that you have so they match what the information about them says? ie 24mm wide 36mm spaced? Could be sent wrong from the manufacturer



[The Fatty]

The centre hole offset is too deep, thus the disc wont sit central of the carrier. You could try putting a shim on the hub, but I don't recommend it. The other option is to file down the carrier. TBH I would have stuck with the Brembo HC discs as they are very good for the job.

Also, just because lots of other shops show a 36mm deep offset does not make it right, another prime example of this happening is with driveshaft's.



[mloxey]

I have new 'steering' and caliper so I will assemble all stuff next Friday so I will let you know what was wrong.



[mloxey]

Ok, I have this. Hub was the reason why new discs were scratched by caliper bracket. I dont know if this could be the reason but in January I hit curb on the track so I had to change the wheel.

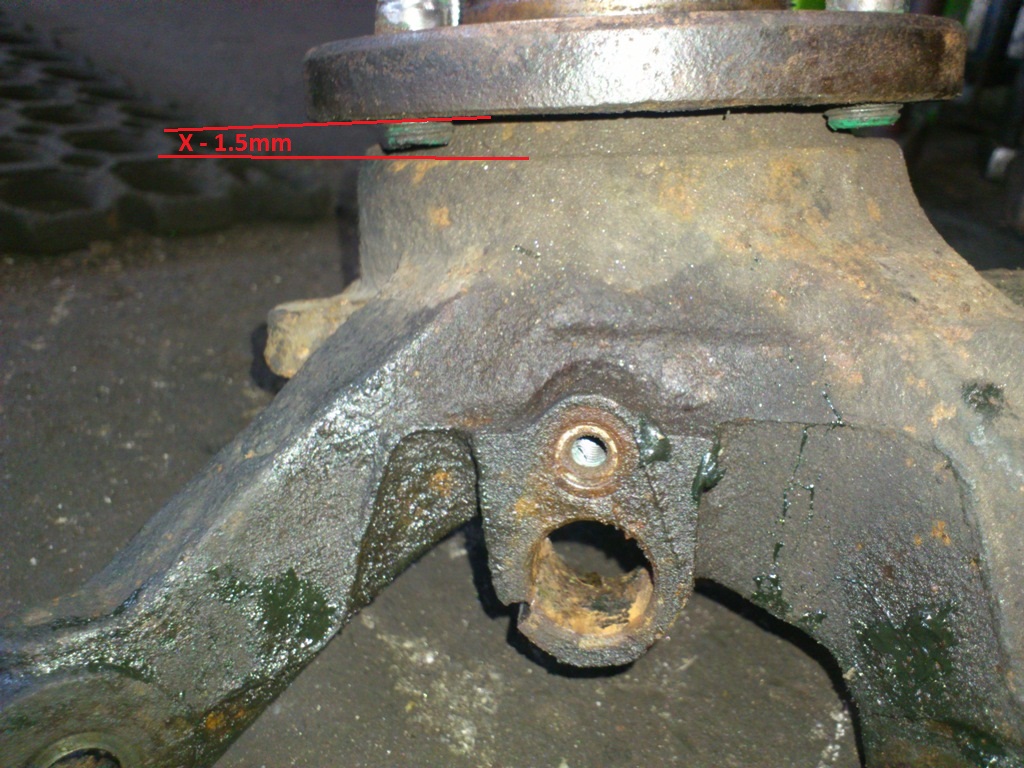

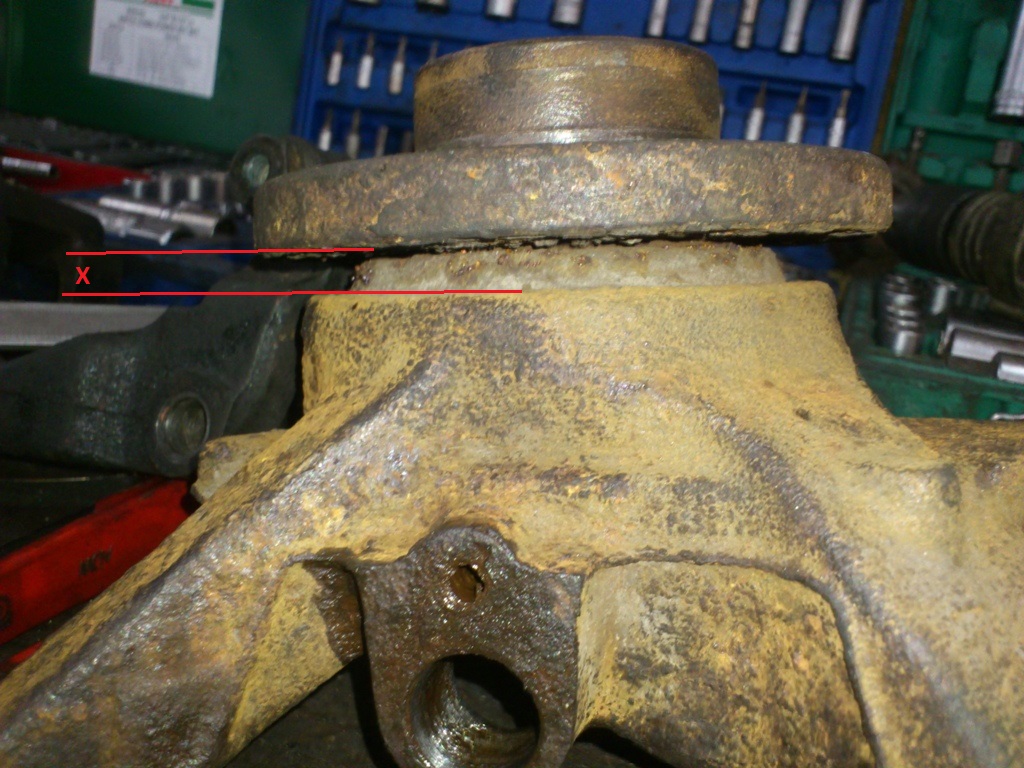

Please see pictures because I dont know how to describe this. Even in thumbnails you can see that offset of rolling part is different.
