Fitting Corbeau Pro Series

[R29TJR]

Morning Chaps,

Could do with a little help.

I've recently purchased a new Corbeau Pro Series XL to replace my Club Sport (standard size). As some of you may know the sidemounts are different as the Pro Series runs M10 bolts while the Club Sports run M8. Before we start I run the seats mounted as follows: Seat > Side Mounts > Subframe. No sliders etc.

I've received the new Corbeau side mounts however once fitted to the seats the side mounts do not line up with the pre-drilled holes in my Jon Foz XL subframe, unless I'm missing something. The only option I currently see is either use the side mounts that I ran with my Club Sports, although will require the holes to be made slightly bigger.

Any help would be great.

Tom



[JamesBryan]

I run the non XL Pro Series with the silver alloy sidemounts with the 35° mounts.

I had to drill some new holes mate.

You may need the 90° mounts with the XL being wider.



[JamesBryan]



[JamesBryan]

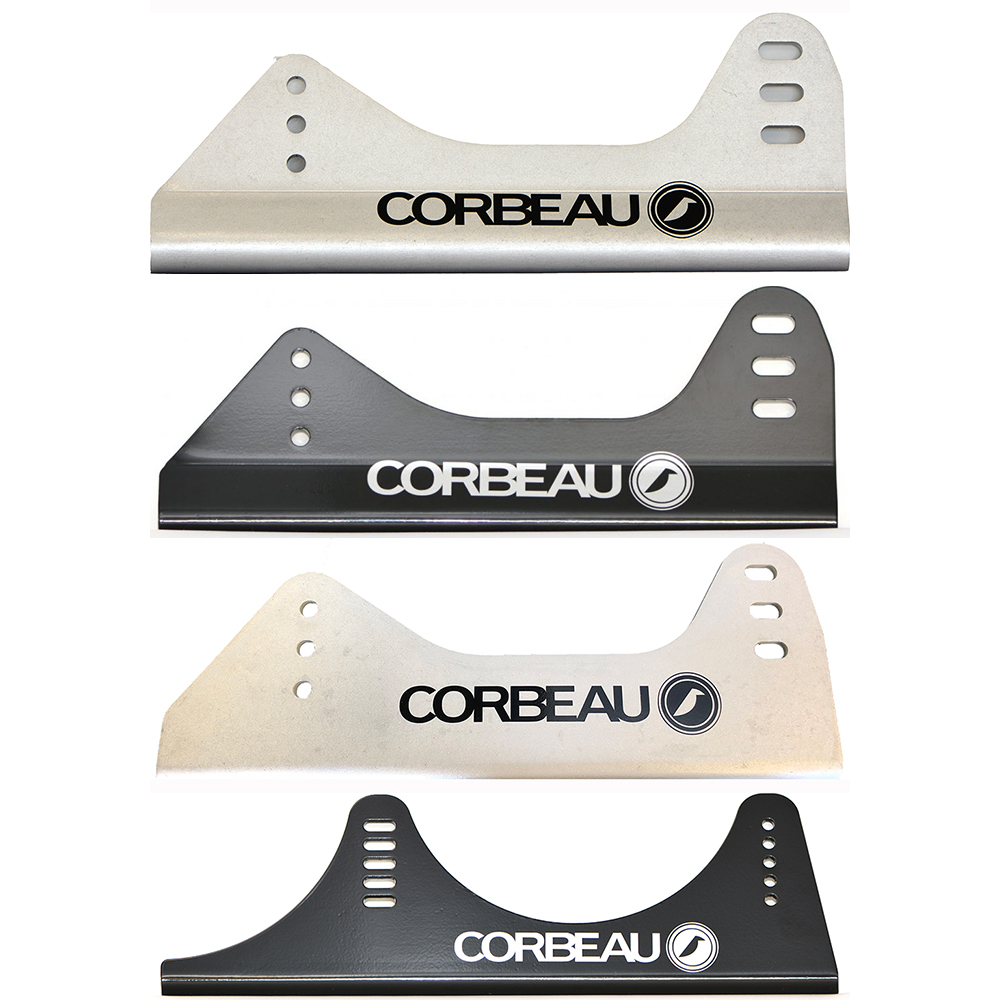

You can see the difference in the sidemounts here.

The 90° gives you the overall width/footprint of the setup to fit the width of the subframe.



[R29TJR]

Makes sense @JamesBryan

I'll see if I can change them over, I didn't realise until now that they did two different types, the only issues is that they'll be silver, but I can always re-paint!

Thanks.



[JamesBryan]

Makes sense @JamesBryan

I'll see if I can change them over, I didn't realise until now that they did two different types, the only issues is that they'll be silver, but I can always re-paint!

Thanks.

They do the silver alloy ones and black in steel for the 90° mounts.

Which ones have you got?



[R29TJR]

They do the silver alloy ones and black in steel for the 90° mounts.

Which ones have you got?

I had a quick look online and it appears they only do silver unless I'm miss reading it, which I could be...

vailable in both a natural alloy finish and a black powder coated finish.

M8

• Pro Team Side Mount – Silver 35°
• Pro Team Side Mount – Black 35°
• Pro Team Side Mount – Silver 90°
• Pro Team Side Mount – Silver Extended 90°

M10

• Pro Team X Side Mount – Silver 35°
• Pro Team X Side Mount – Black 35°
• Pro Team X Side Mount – Silver 90°
• Pro Team X Side Mount – Silver Extended 90°

I've email the chap who has been helping me at Corbeau, he's been really helpful so far.



[JamesBryan]

Ahh maybe me that's got it wrong then ?

My silver ones came to suit the M10 fittings in the seats, although the holes to bolt it to the subframe are still M8 ?



[R29TJR]

Ahh maybe me that's got it wrong then ?

My silver ones came to suit the M10 fittings in the seats, although the holes to bolt it to the subframe are still M8 ?

Yeah mine are the same M10 to the seat yet M8 to the subframe.



[JamesBryan]

Yeah mine are the same M10 to the seat yet M8 to the subframe.

God knows why they've gone up to M10's.

You don't see M8's snapping left, right and centre in motorsport ?



[Mertin]

The jon foz subframes seem to have different mounting holes to others.
I ran mirco seats, OMP side mounts and OMP subframe
Changed to the jon foz subframe and the side mounts when set as far apart as possible on the subframe holes wouldnt let the seat sit between them. Had to elongatw the holes to set them apart wider



[JamesBryan]

The jon foz subframes seem to have different mounting holes to others.
I ran mirco seats, OMP side mounts and OMP subframe
Changed to the jon foz subframe and the side mounts when set as far apart as possible on the subframe holes wouldnt let the seat sit between them. Had to elongatw the holes to set them apart wider

I'm sure Jon said they were based on the OMP bolt spacing, so that's weird how they weren't the same.



[Simon1975]

Any pictures of seats fitted. And James yours look stunning. How did you fit the seatbelt bracket



[JamesBryan]

Any pictures of seats fitted. And James yours look stunning. How did you fit the seatbelt bracket

Used Peugeot rear seatbelt buckles bolted down using the rear subframe bolt.



[Simon1975]

Used Peugeot rear seatbelt buckles bolted down using the rear subframe bolt.

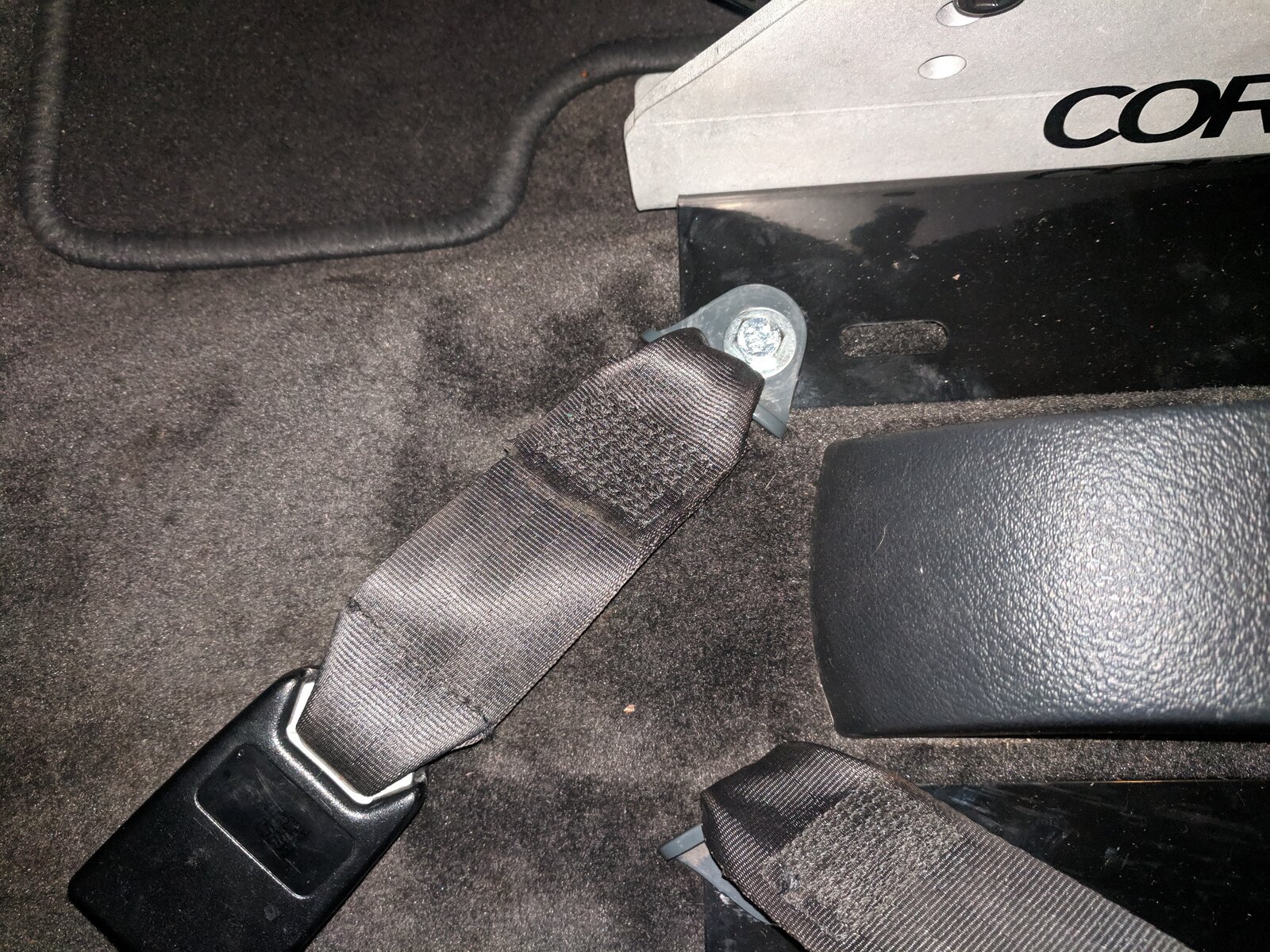

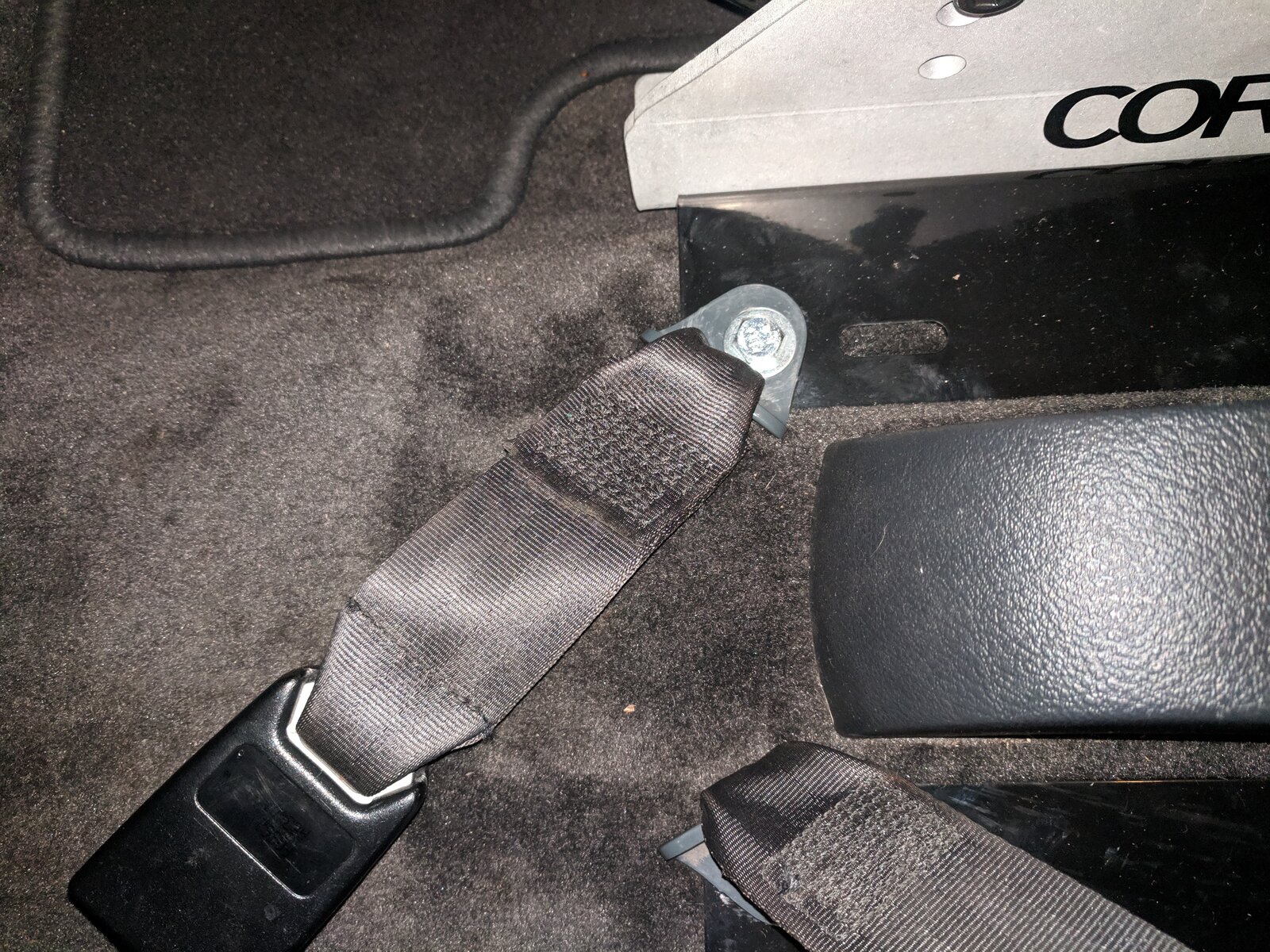

View attachment 1468033

b

brilliant thanks



[Asher172]

Sorry to jump on the back of this thread. Could anyone tell me what size bolts you're all using to attach the foz low subframes to the car?

My guess was m10 x 40mm?



[Simon1975]

M8 X 40



[JamesBryan]

M8 yeah.

High tensile as well.



[Asher172]

M8 yeah.

High tensile as well.

M8 X 40

Thanks Guys!



[Bankrupt_drunk]

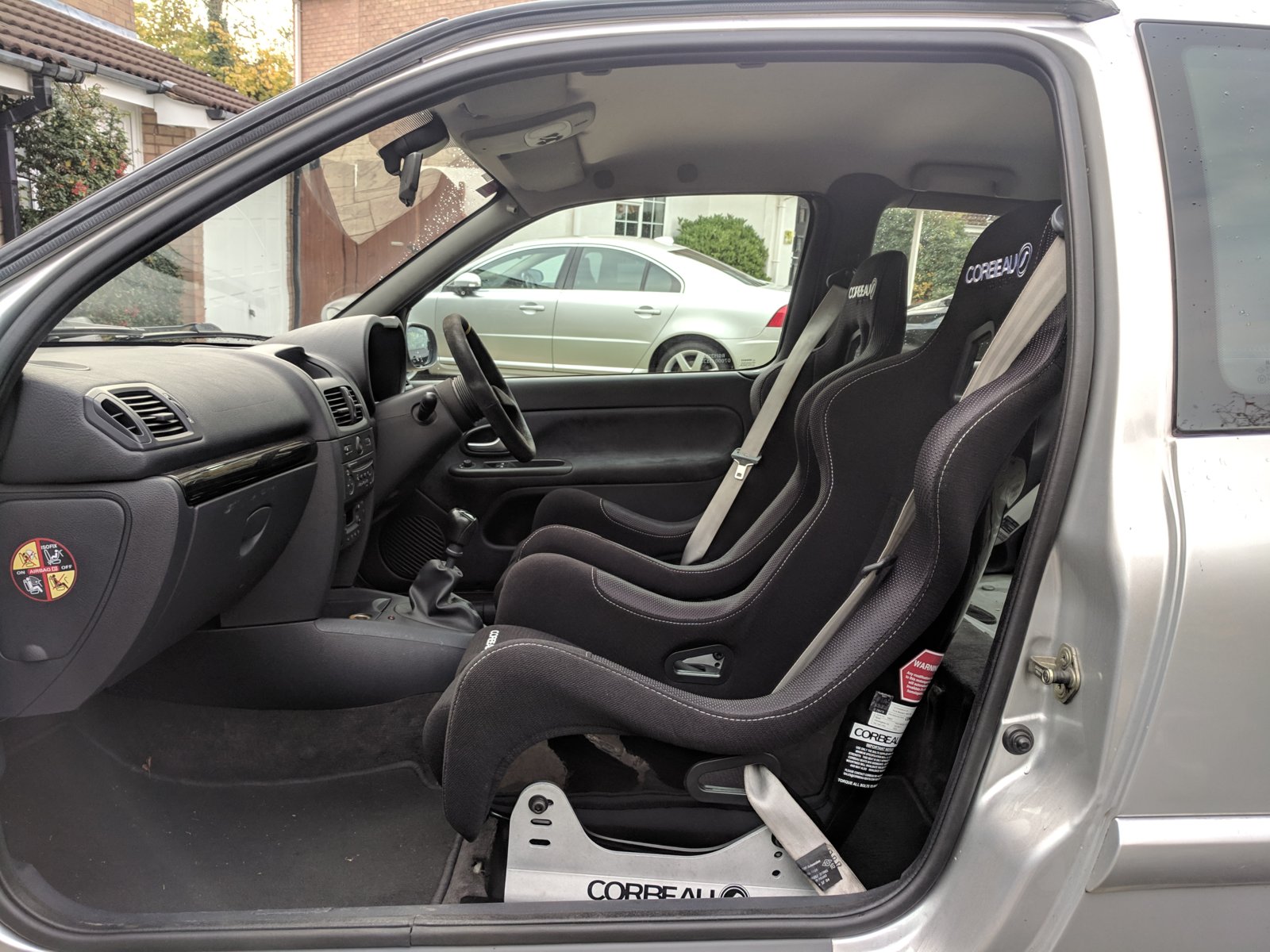

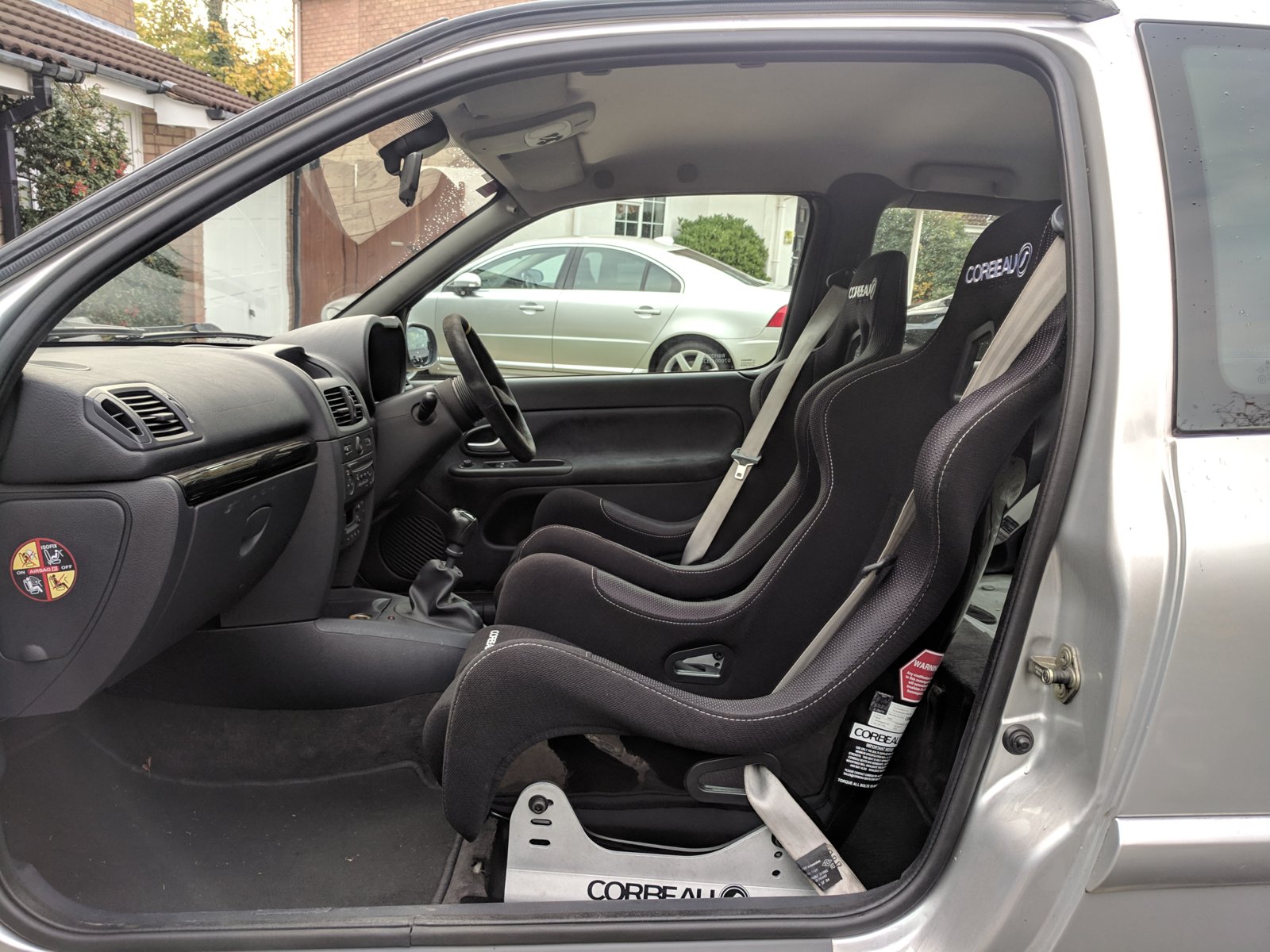

View attachment 1428127

I know it's an old post, but they look great.



[JamesBryan]

I know it's an old post, but they look great.

Cheers mate.

Yeah they're really nice, loads of support.

The high sides give you somewhere to rest your left arm 😂
