Identify These Connectors?

[f0xy]

Just wondering if anyone can identify these, Ph1 172 Engine Loom...

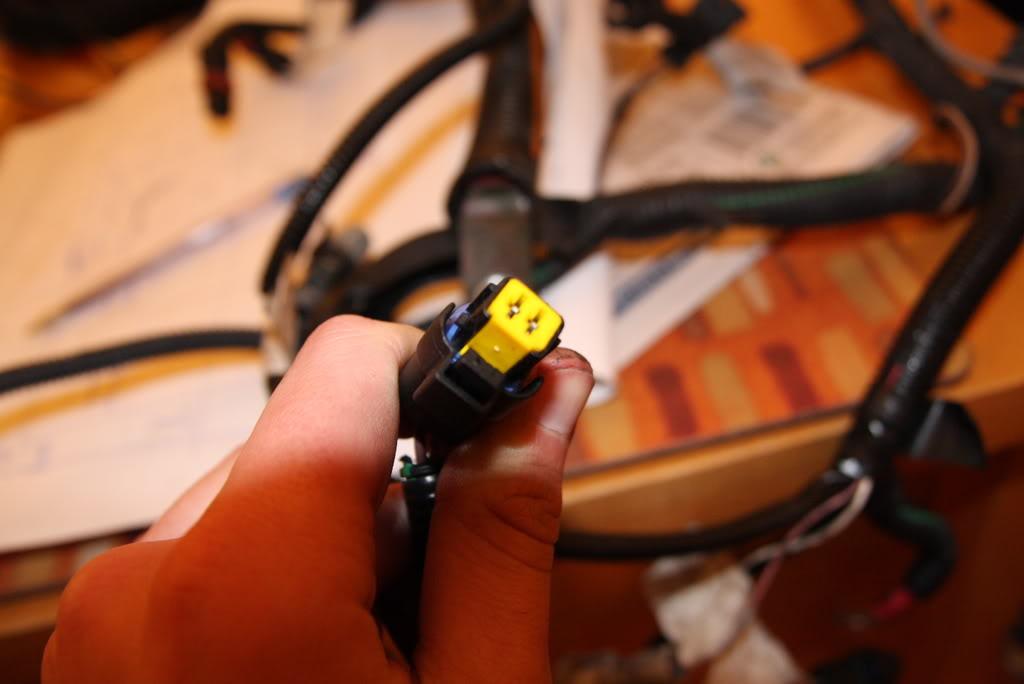

1. Next to the plug for the thermostat housing...?

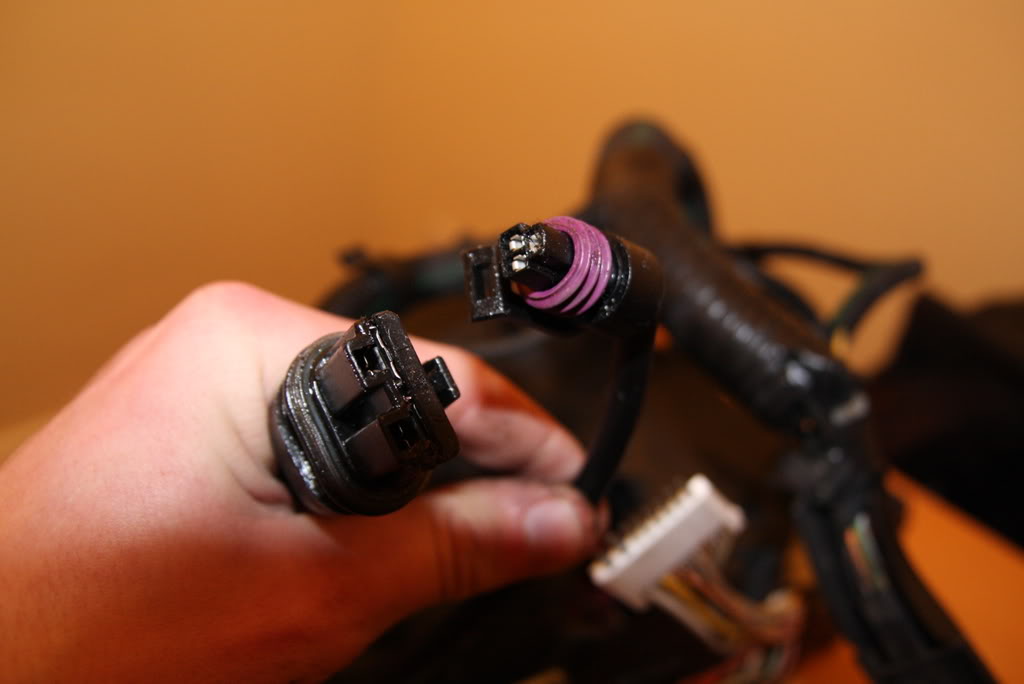

2. On its own wire, about a foot long, nothing else stems from it...?

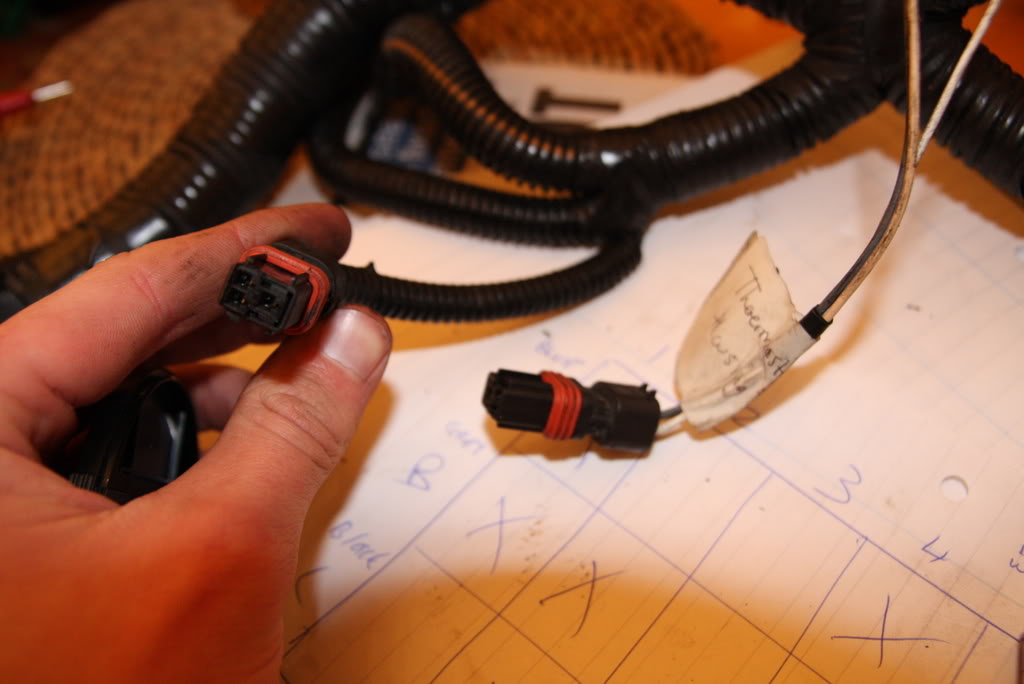

3. These two are on the other side of the loom near the lambda sensor, what are they...?

Cheers!



[bmh.01]

First one could be TPS? Second one looks like the VVT soleniod plug but has a few others with it on a Ph2. Third pass.



[f0xy]

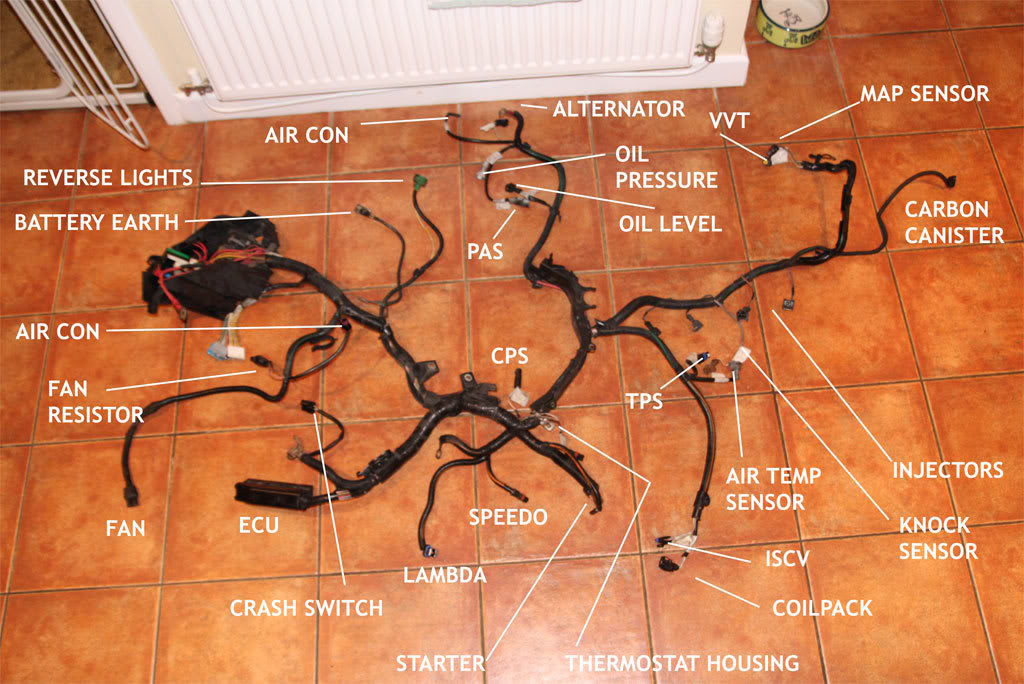

Ive come to the conclusion that those pics are crap, ive just laid out the loom and labelling a picture of it with the ones i know, maybe it will be easier for people to recognise...



[Mark One]

3rd -
how near the lambda is it? could it be starter



[f0xy]

5,6,7 -- are the ones i dont know
the ones underlined are unsures...

Any better?



[sideways danny]

1 - Air temp
2 - carbon canister solenoid
7 - can't see the plug, gearbox somewhere i think
8 - gearbox (reverse switch?)
9 - think it's speed sensor



[f0xy]

Cool........ its just 5, 6 + 10 now, 7 was the battery earth, lol

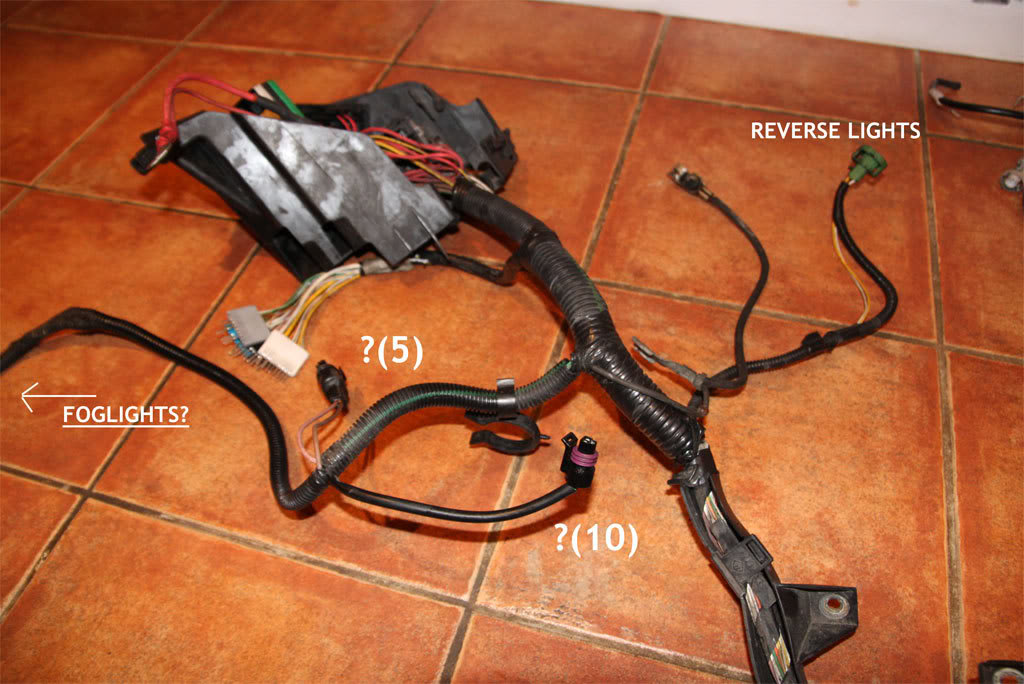

also some random purple one i forgot to label... (number 10)



[f0xy]

Now got everything, apart from number 6. Its next to the battery connection....? Close up:



[sideways danny]

is 5 the fan? 10 i have a complete brain fade on



[f0xy]

fan yep....just 10 now lol



[Matteh]

your 'foglamp' bit looks like the fan to me? 5 is the fan resistor

6 is the crash switch


your series of pics confuses me, which other ones are you missing?


10 is aircon and can be ditched iirc



[f0xy]

The pics might be confusing as i keep over writing it when i update the labels


5 = fan resistor, you mean the rad fan or blower unit?

foglamp could be fan yeah? Im not sure....possibly is....

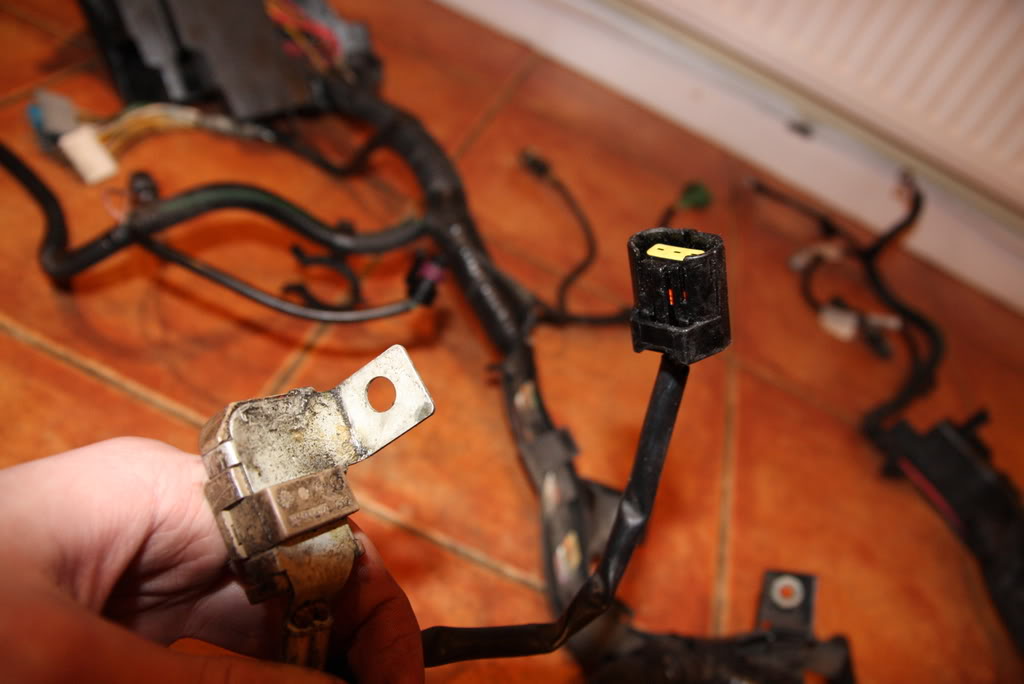

This is number 6, plugs into here......Crash switch you say?



[Matteh]

that's your throttle position sensor ^^ should be on the same branch as the ICV, coil pack and air temp sensor...



the crash switch is the one on the same branch as the +ve battery terminal.

'5' is the radiator fan resistor - to allow the fan to run slower
'foglamps' is the actual radiator fan



[f0xy]

ah cool mate, cheers.....

where does the crash switch plug into though...?



[Matteh]

the crash switch is a stand alone item that bolts to the NS suspension strut iirc

*has a look for a pic*



[Mark One]

edit: better answer above.



[f0xy]

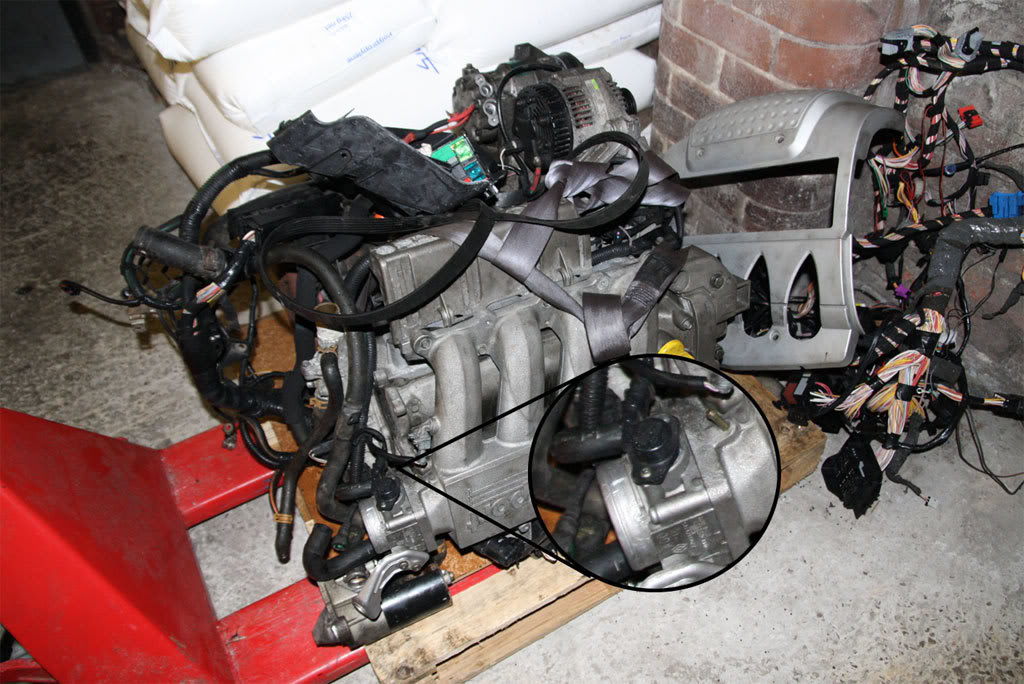

The big pics now updated....the only thing im not 100% sure on is the top right, VVT? or not....it plugs in next to the oil filler cap, under the map sensor, two pin black connector...?



[Matteh]

yeh, that's the VVT solenoid



[f0xy]

Cool......seems easy enough, now to get soldering



[Matteh]

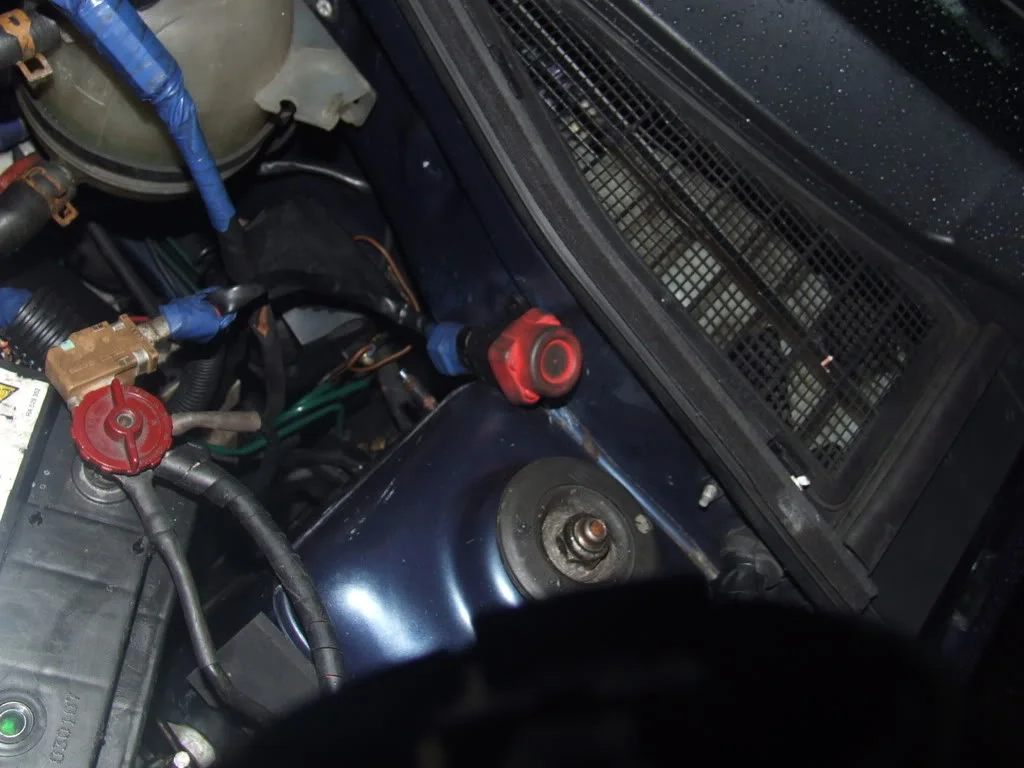

because I love you and I now happen to have a 172'd mk1 parked outside... here's a pic of the crash switch

all it is is an inertial switch which stops the signal wire from the ecu to the fuelpump/coilpack relay... car stops suddenly, fuel and ignition will be stopped!

if you don't want the switch, you can just bridge the wires.

I kept it as it seems a useful thing to have! my car is quite low and stiff and i've not yet had a problem with it cutting in unexpectedly either...



[f0xy]

Cool, i see now.

Looks like il just have to bridge the wires as I dont have the switch, lol



[Matteh]

the switches are the same on most mk2 clio era Renault iirc... so easy to get from a scrappy
