Attemping boosted ph1

[Cupman29]

Will rotating the tb not sort that? Doesn't have to go on that way up.

Very true, I had to do that with mine as it was obstructed in it's standard position.



[danh90]

Will rotating the tb not sort that? Doesn't have to go on that way up.

I tried that and I think it would of worked if I re drilled holes to mount it. Returned it to standard manifold now as didn't have the tools to re drill and thread for it to be moved



[Cupman29]

Been working on the car from about dinner up until now got a few bits done and spent a lot of time doing stuff I shouldn't of had too my own fault though...

Fitted new downpipe (thanks cupman29)
Fitted cup alternator aircon delete kit
Fitted then removed custom manifold :/
Had gearbox off checked clutch
Fitted new Megane 225 injectors

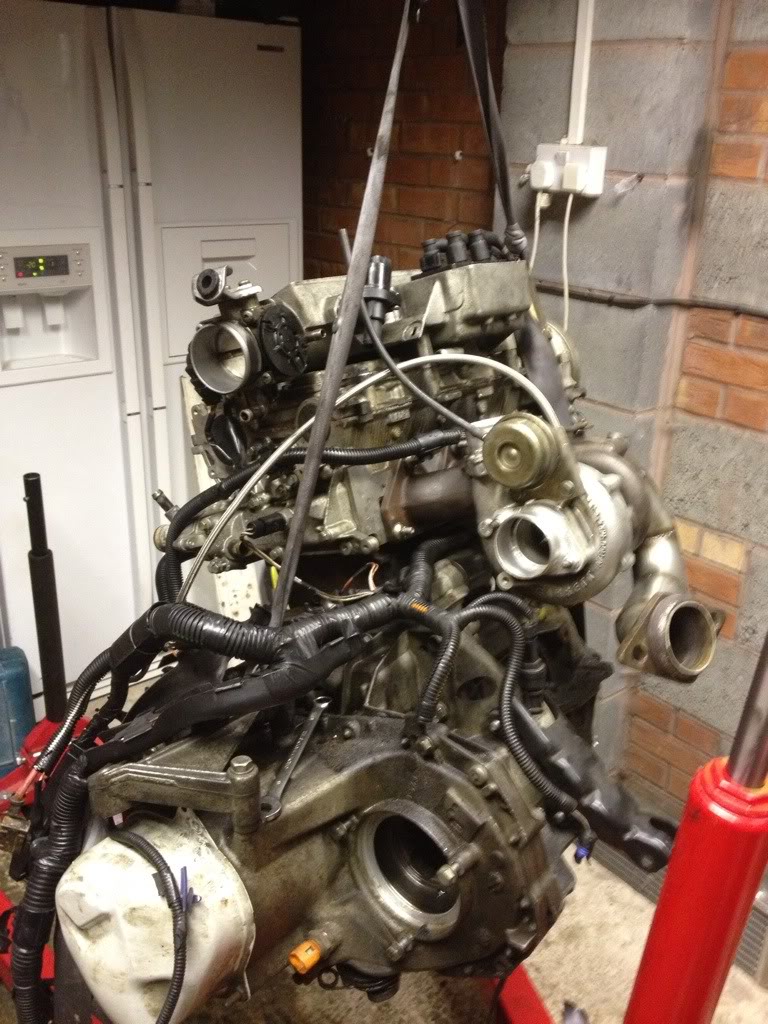

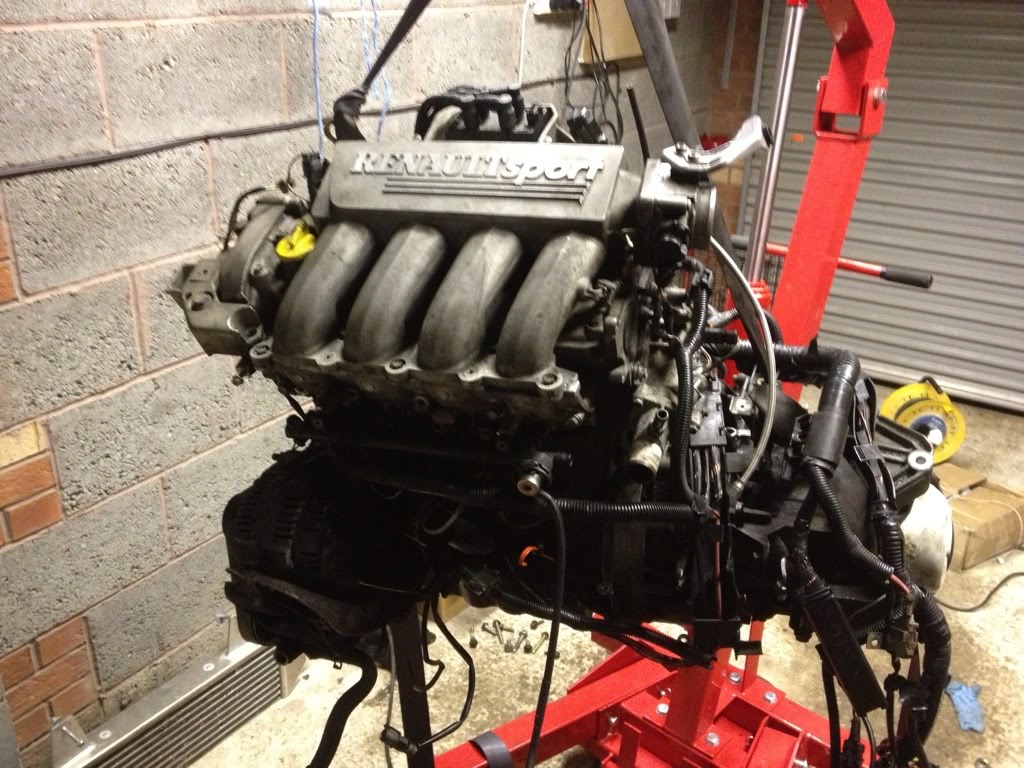

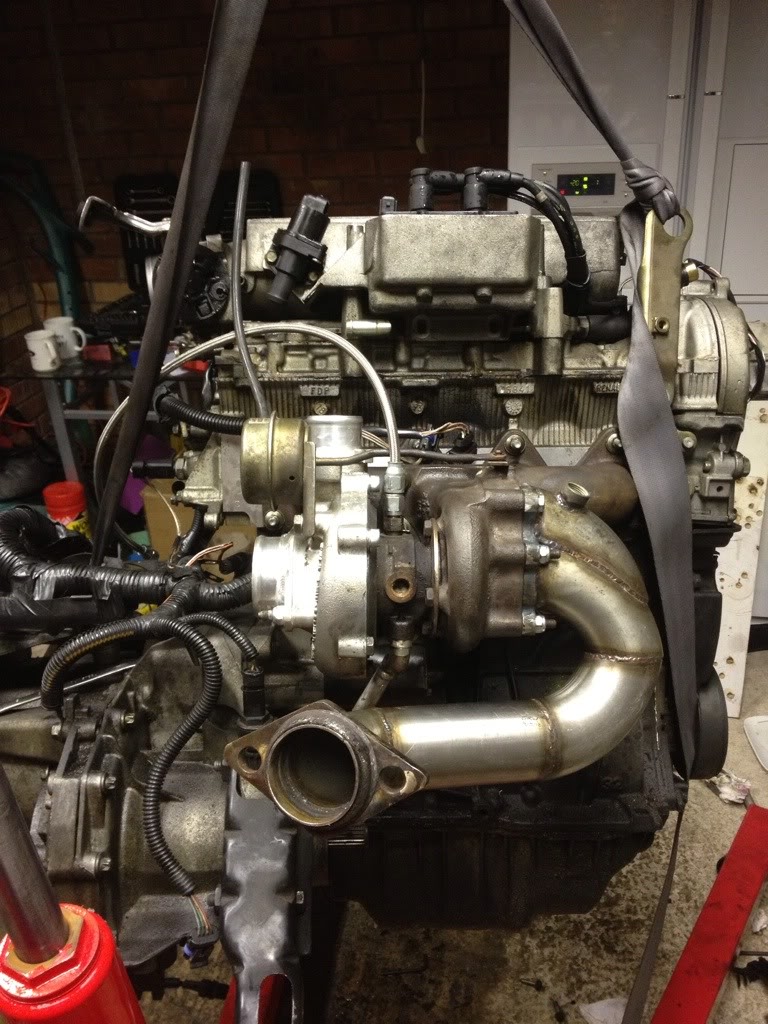

Think that's about it few pics

We had both had enough by 11

Plans for tomorrow:

Somehow get hold of a deep E8 socket to remove cup sump and fit it on my engine.

Fit intercooler
Get some vht paint and do a few bits, manifold,TB,engine mount just tidy it up abit
Basically get everything done and ready for the engine going back in Monday

Very good progress mate and glad the down pipe worked out. :approve:



[danh90]

I'm hoping length wise my straight pipe meets upto it suppose can always pull the exhaust back a touch if short..

Can't wait to actually get the engine back in

Ill be shi@ting myself turning it over first time lol ill need some advice on that Aswell when it comes to it..

Pissed off I paid opie oils £13 for sat delivery and it was a no show



[danh90]

Few questions regarding the turbo now

The pipe coming off the actuator does that connect up with the hose of the outlet?

Also the inlet and outlet for the water feed do I need to block them up or will they be fine as is



[Cupman29]

Needs to connect to the boost side of the turbo or inlet mani.

If you're not using the water feeds then I would block up but personally for what's it's worth, I would just connect up the feed and return to the heater matrix lines. Very easy to do.



[danh90]

It's just getting the fittings to do it before it's in for mapping on Wednesday with everywhere been closed Tuesday..

Ideally I do want to do it as its there so may Aswell



[Djw John]

I know I've missed the boat here a bit but hey ho, this pic might be useful for future reference!



[Cupman29]

It's just getting the fittings to do it before it's in for mapping on Wednesday with everywhere been closed Tuesday..

Ideally I do want to do it as its there so may Aswell

I have two 1/4" bsp to 1/2" hose tails that would have done the job if I'd known could have put them in with the down pipe.



[Chip-mk1]

Leave the inlet off. Fit engine without it. Then sort out fitting the tb to it at your leisure away from the engine.



[Laine_16v]

Also id highly advise you make sure your studs and nuts are good on the turbo to manifold. Mine have rattled loost a few times.

Ill be drilling the studs and wire locking it next time the engine is out (way to much hassle now), wish id done it beforehand, you may want to do the same.



[danh90]

Leave the inlet off. Fit engine without it. Then sort out fitting the tb to it at your leisure away from the engine.

Is that just to make it easier for myself when refitting everything



[danh90]

I have two 1/4" bsp to 1/2" hose tails that would have done the job if I'd known could have put them in with the down pipe.

Your joking lol can you get the fittings from any average motor store or...



[danh90]

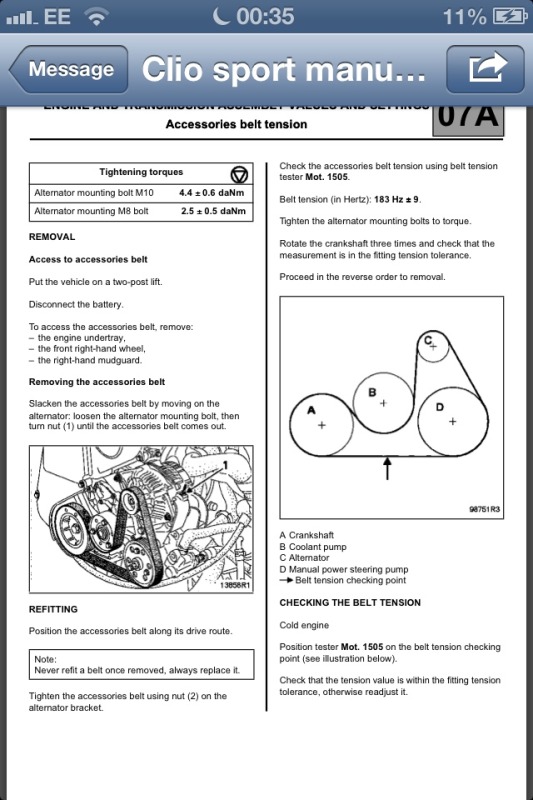

Regarding the belt I now know its wrong but if it will work no worries ill leave it like that..

I had a search and it came up with this

http://www.cliosport.net/forum/showthread.php?642590-172-cup-alternator-kit-fitting

I just copied the fitting of that engine which looked pretty Mint lol



[Cupman29]

Your joking lol can you get the fittings from any average motor store or...

Should be able to. They're nothing special so maybe a machine shop or hydraulics/pneumatics parts shop?



[danh90]

Going to have ring about will I just tee off the heater matrix pipe for feed and return into?



[danh90]

Custom inlet manifold will be going up for sale today too



[Cupman29]

Going to have ring about will I just tee off the heater matrix pipe for feed and return into?

Feed off 1 and return to the other, simples.



[danh90]

Feed off 1 and return to the other, simples.

Ah right sound that's easy then so ill need

2 tees
2 connections for the turbo
Some piping

Have to look around as tomorrow's my last day to collect bits lol mad rush



[Cupman29]

It's a reducing tee you'll need. I'll check the sizes if you are unsure for the tees.



[danh90]

That would be great cheers mate and you don't know the size connections for the turbo do you



[danh90]

It's a reducing tee you'll need. I'll check the sizes if you are unsure for the tees.

Yeah that'd be great if you could mate also do you know what size the connections are that go onto the turbo?



[danh90]

Sorry for the 2 post tapatalk playing up didn't show as I had replied



[2Damnsly Andy]

Looking like some good progress Dan. I want a ride out in this when its all done.



[danh90]

No worries Andy no doubt ill see you on track next year



[Cupman29]

Yeah that'd be great if you could mate also do you know what size the connections are that go onto the turbo?

Turbo connections are 1/4" bsp or npt but either will fit with some plumbers tape.

The water lines are 25mm or 1" off the heater matrix and 13mm or 1/2" to the turbo so you'll need a 1" to 1/2" unequal tee.



[danh90]

Sound now time to try and find somewhere local that will sell them..

List of stuff to get:

1/4" turbo water connection
2x 1" to 1/2" reducer tee
E8 deep socket
Jubilee clips for pipe work
Some pipe for the water feed and return and some for oil return

Need to get that lot tomorrow



[Chip-mk1]

Tbh I would put the fittings and pipes onto the turbo so they are there ready and then not cut into your heater hoses yet, add the water cooling later on if you are on a tight schedule. It won't make any difference for mapping it.



[Cupman29]

Tbh I would put the fittings and pipes onto the turbo so they are there ready and then not cut into your heater hoses yet, add the water cooling later on if you are on a tight schedule. It won't make any difference for mapping it.

More wise words. You don't want another potential leak point on such a tight schedule.



[danh90]

Right ill do that then so connect upto turbo and just leave the pipes free until I get round to connecting to heater matrix pipes...

I'm going to fit the intercooler this afternoon take it that's simply fit it on then put bumper up against it to make sure it all fits okay



[danh90]

2 of these are the correct fittings i presume?

then 1/2" pipe down to the tee on matrix once i fit that

www.ebay.co.uk/itm/1-4-x-1-2-BSP-ma...661?pt=LH_DefaultDomain_3&hash=item3a7c4d20f5



[danh90]

Turbo connections are 1/4" bsp or npt but either will fit with some plumbers tape.

The water lines are 25mm or 1" off the heater matrix and 13mm or 1/2" to the turbo so you'll need a 1" to 1/2" unequal tee.

Measure the ports on my turbo where the water feed connections go and it's 1/2" inside to inside are you running same turbo as me mate



[Cupman29]

Measure the ports on my turbo where the water feed connections go and it's 1/2" inside to inside are you running same turbo as me mate

Remember the size is the internal diameter of the fitting so the od of the 1/4” fitting will be around 13mm. Look up a chart of imperial fittings on the net and you see the major and minor thread diameters for each.



[Tutuur]

They're m14x1.5 mate. I use something like these on my t28 and now on my gt28rs:

http://www.ebay.co.uk/itm/Garrett-T...arts_Vehicles_CarParts_SM&hash=item5aebfb776f



[danh90]

They're m14x1.5 mate. I use something like these on my t28 and now on my gt28rs:

http://www.ebay.co.uk/itm/Garrett-T...arts_Vehicles_CarParts_SM&hash=item5aebfb776f

Sound cheers for that bud



[Cupman29]

They're m14x1.5 mate. I use something like these on my t28 and now on my gt28rs:

http://www.ebay.co.uk/itm/Garrett-T...arts_Vehicles_CarParts_SM&hash=item5aebfb776f

I fitted a 1/4 bsp fitting i had and it went on fine. Need to double check now as ive not got that far with mine yet.



[Laine_16v]

As above, its an M14 thread, i used the same fittings



[danh90]

Will try and get the bits tomorrow but if I can't get them the turbo will still run 100% fine until they arrive won't it



[Tutuur]

Yes it will, journal bearing turbo's don't require water cooling that much because there's enough cooling by the oil.



[danh90]

Okay going to get the piping for my oil return tomorrow what's best pipe to use for that needs to be 15mm inside diameter
