So I've been having some work done by Matt (Icarus) at TDF http://www.tour-de-force.co.uk/

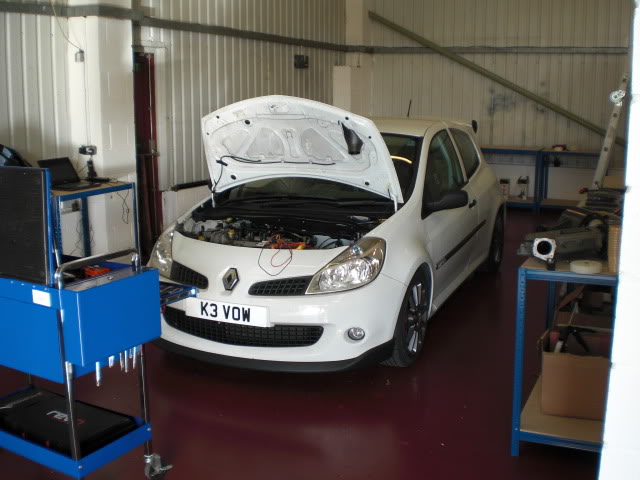

As some of you may know, since fitting the cams my car has been rough as a dog!!! To the point that when I was at the last RR day at Matts place it ran 170BHP due to it running massively rich 9:1 AFR

To combat the constant running issues we decided on an aftermarket ECU. Coincidently Matt has developed his own ECU, the EC1 http://www.tour-de-force.co.uk/tdf-engine-control.html

This is a monty bit of kit!!

We also decided to fit a WTCC throttle body and convert the DBW to cable throttle to aid responsiveness etc... We also fitted a cup racer inlet manifold from Oreca to accompoate this!

Some pics....



[kevo66]

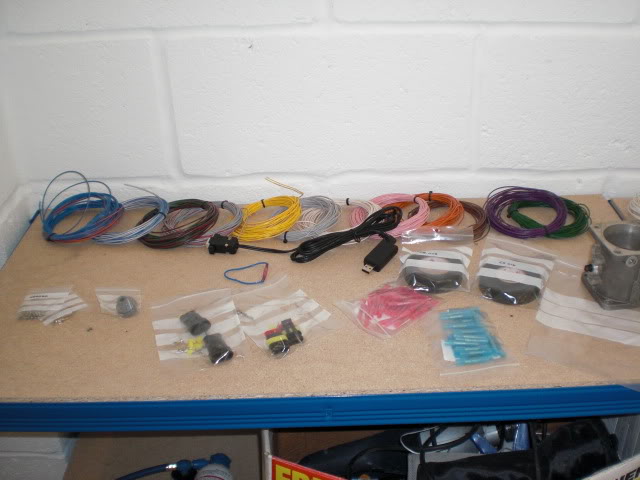

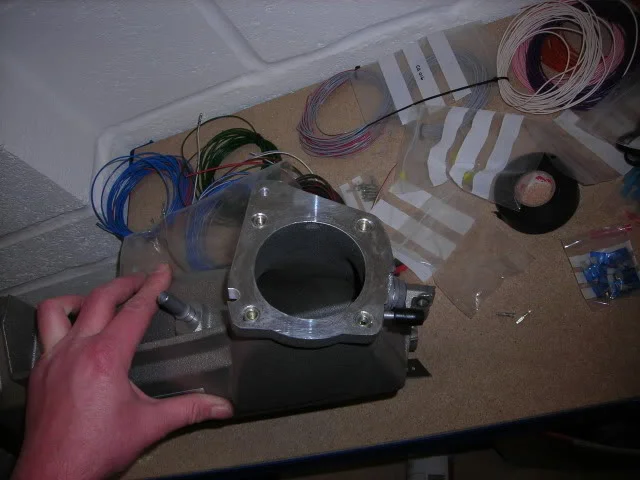

All my kit layed out!

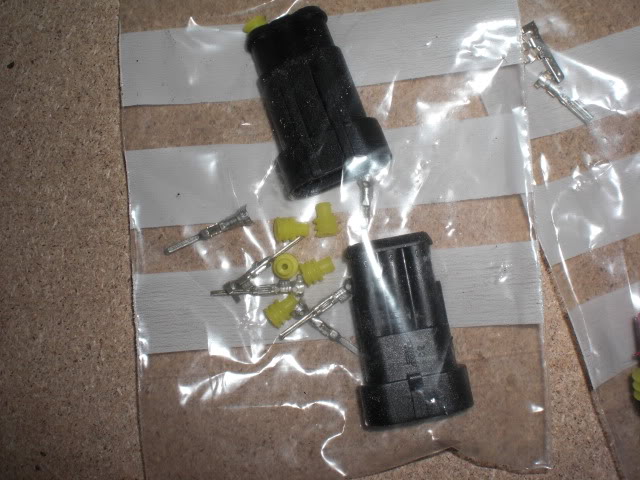

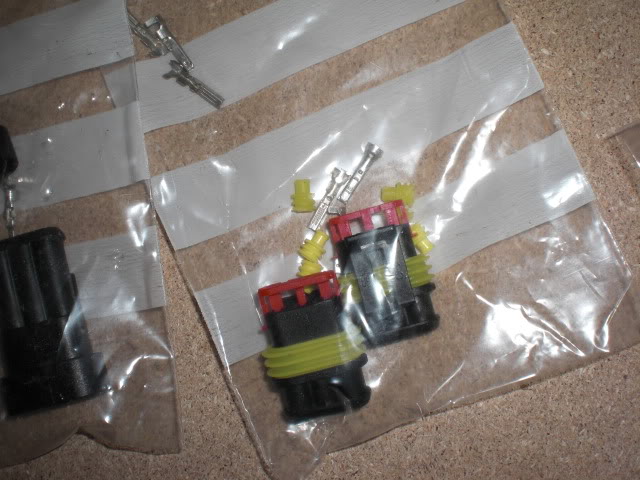

Some of the proper weather proof connectors

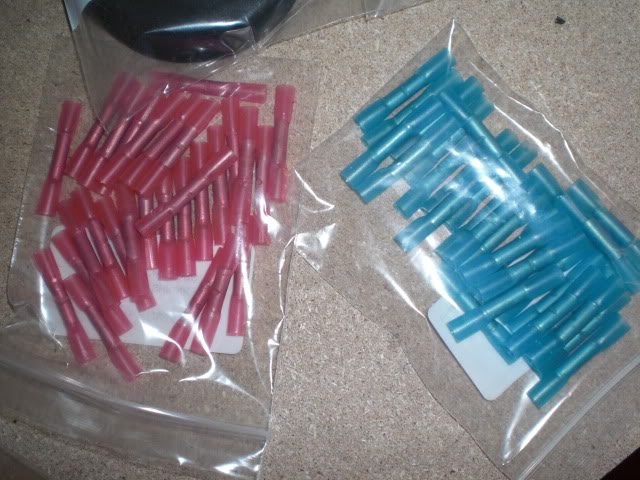

Now these heat shrinks may look ordinary to you and me but they are top stuff, £4 a pop but they also glue just the end of the wires in place when heated to weather proof themselves

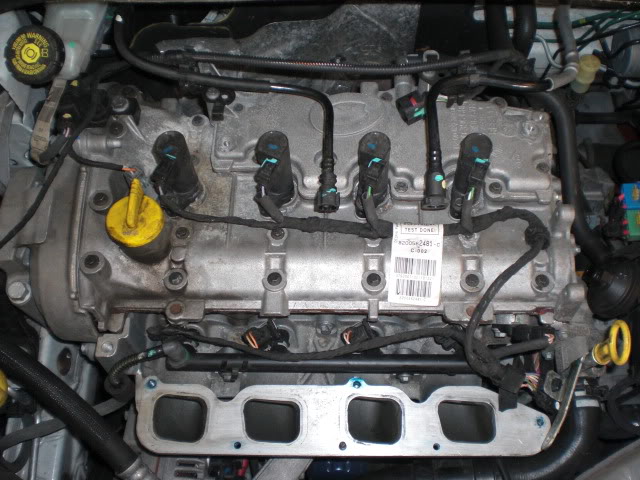

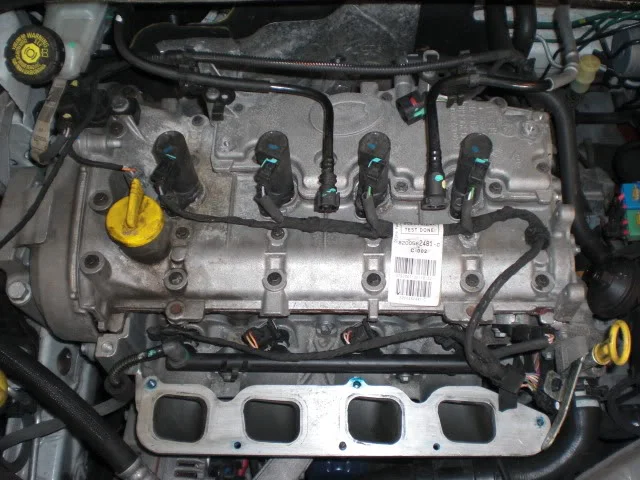

Old inlet manifold removed, we have ordered a new one from Oreca (the Cup series engine builsers) in France to run with the new TB

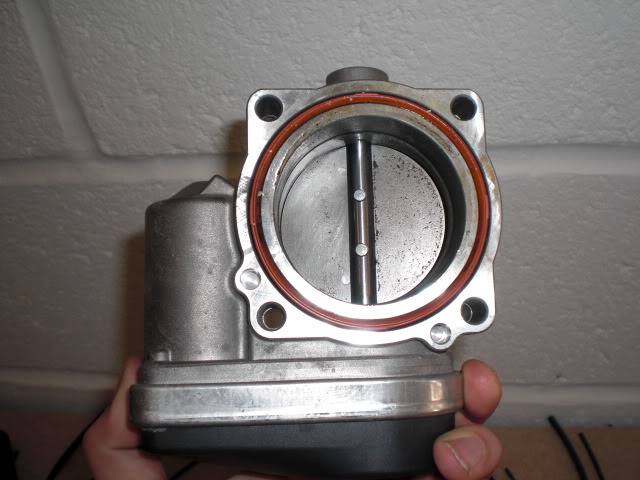

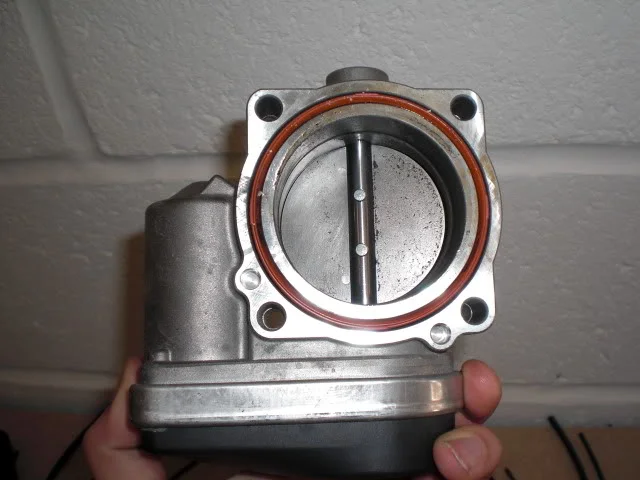

Old DBW body off

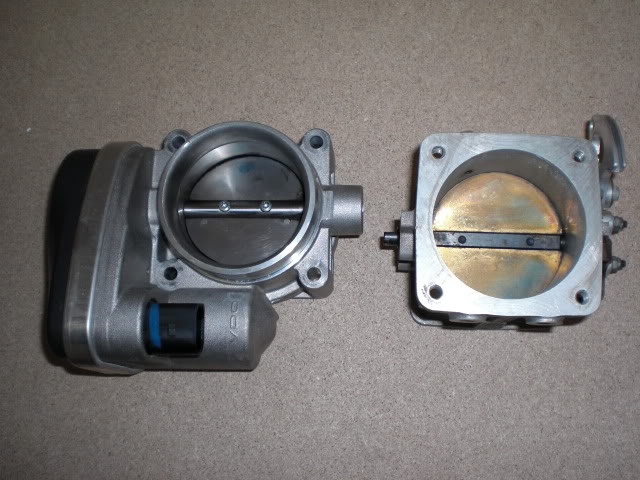

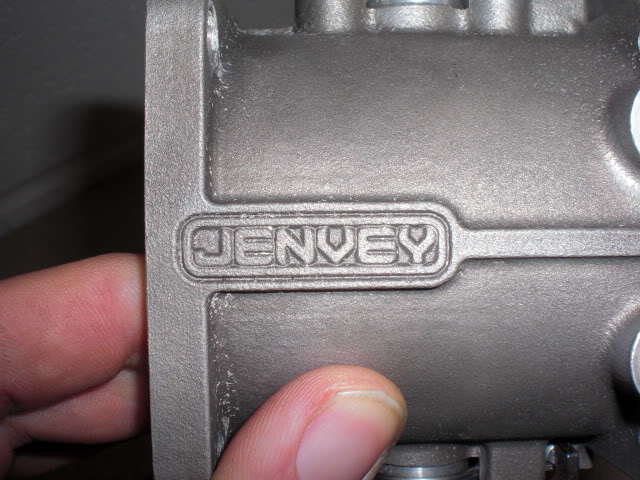

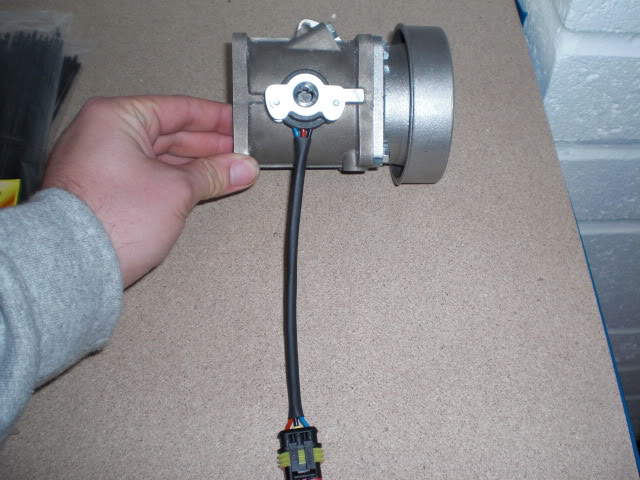

Old and new body side by side, the new WTCC body is also lighter which is a bonus!!



[kevo66]

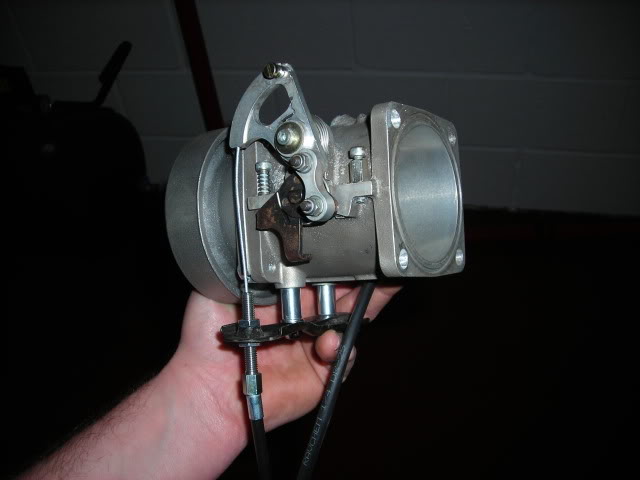

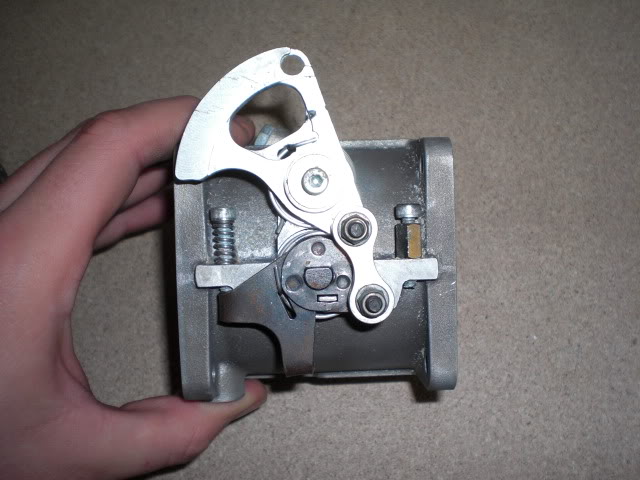

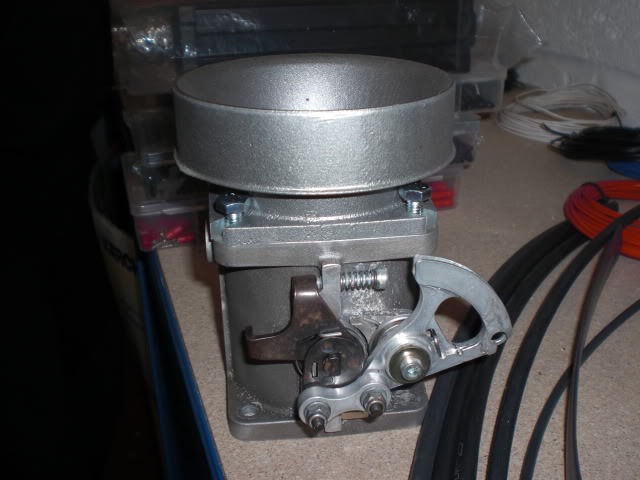

New body side on,

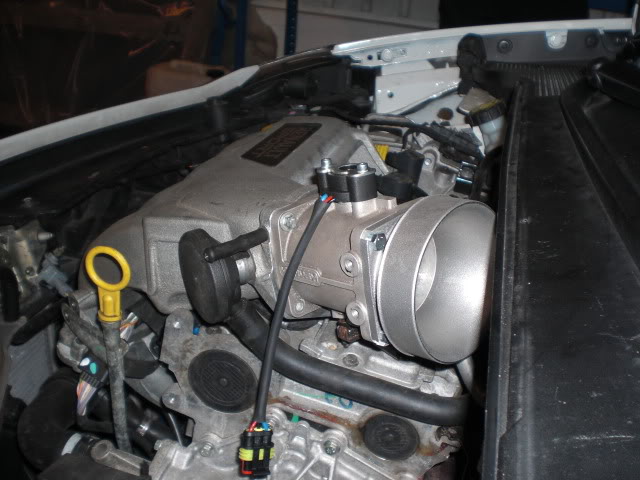

New body with the custom connectors

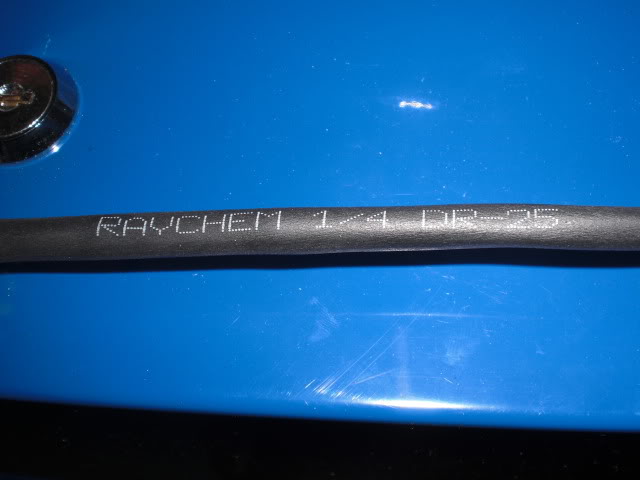

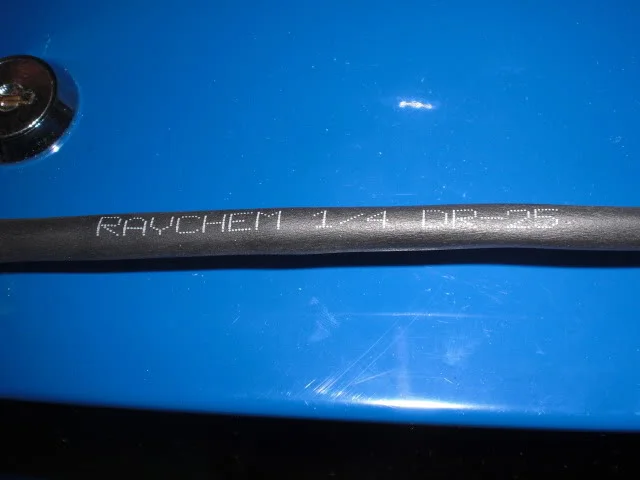

Raychem (expensive as hell) heat shrunk into place!

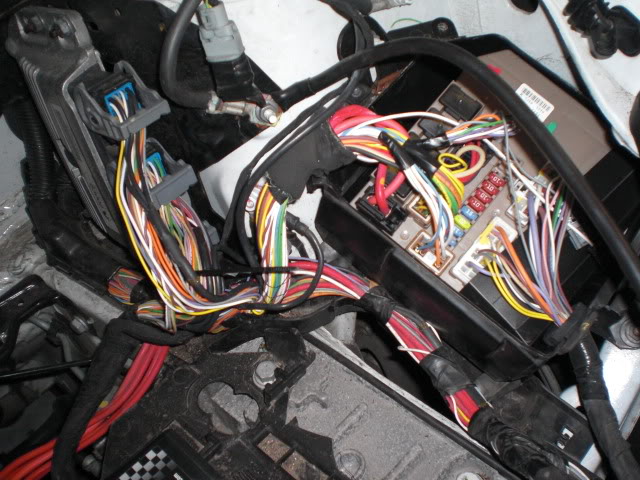

Old ECU unplugged ready for de-pinning and tracing back to the sensors we need (cam position, crank position, injectors, coil packs)etc....

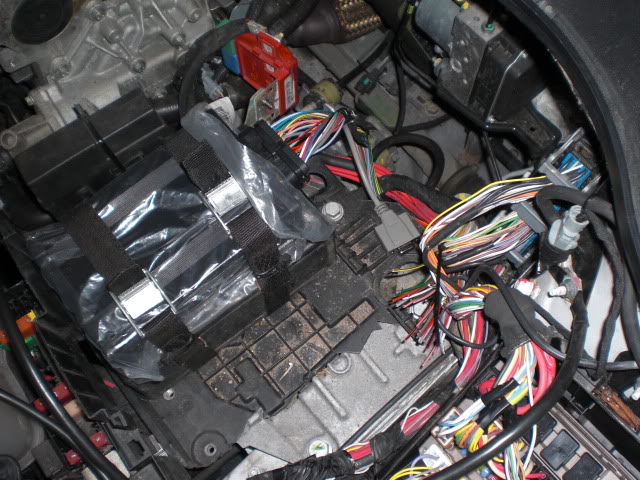

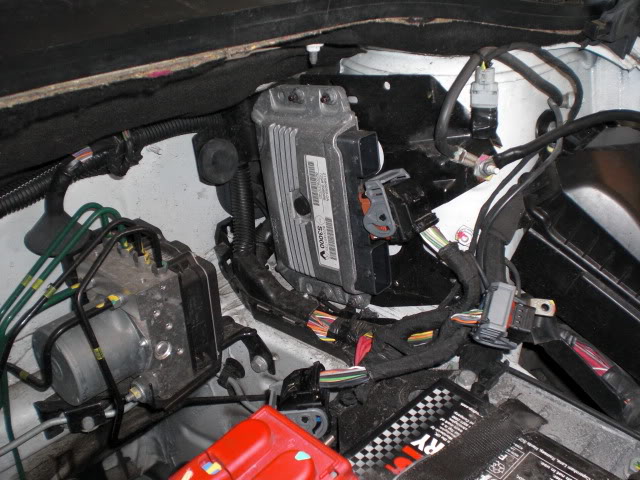

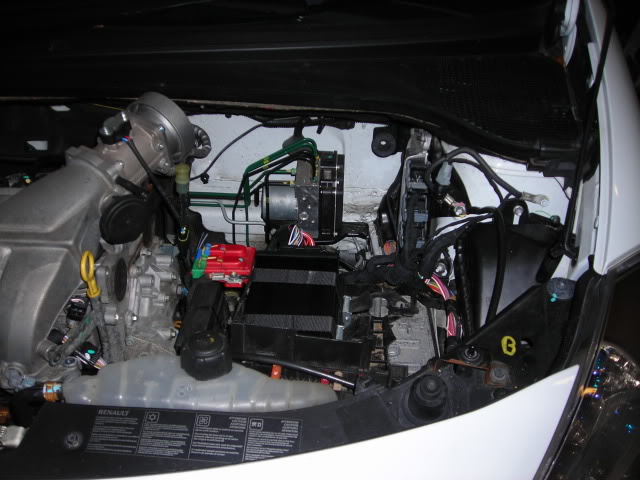

ECU trial fitted in its end location



[kevo66]

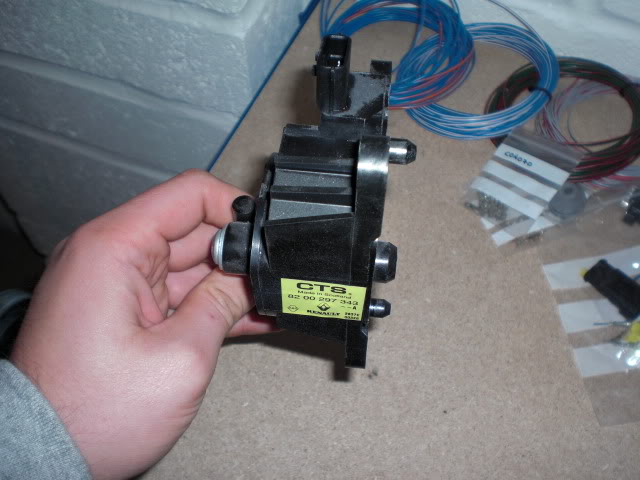

Throttle pedal removed for the new cable unit from a cup racer

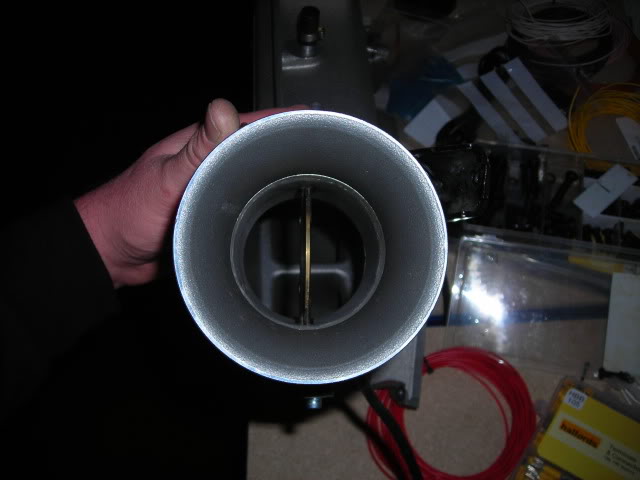

BIG inlet trumpet on the body to help force the air in a little

Body trial fitted to check clearance

Thats where we are at as of today.
Matt is working on the rest of the loom(s).
Awaiting the new inlet manifold and pedal assy.
VVT cal will be done next week and final mapping/power testing next Sat
Will need to cut the bulkhead for the TB clearance but will be an easy job.



[kevo66]

Couple of updates from the man!!!

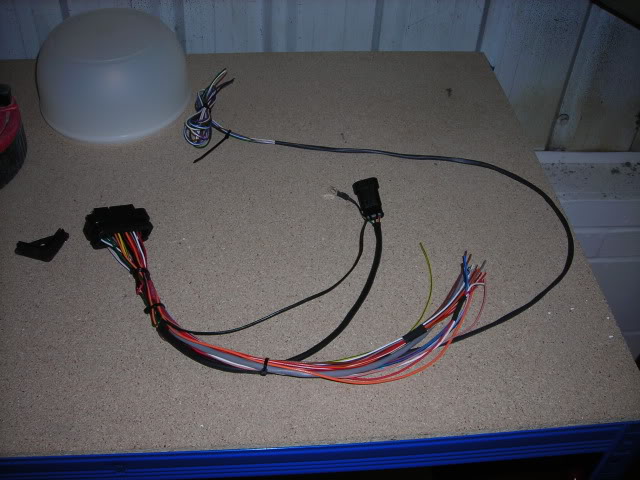

Loom with comms breakout, comms point will be mounted in the dash for quick map changes!!

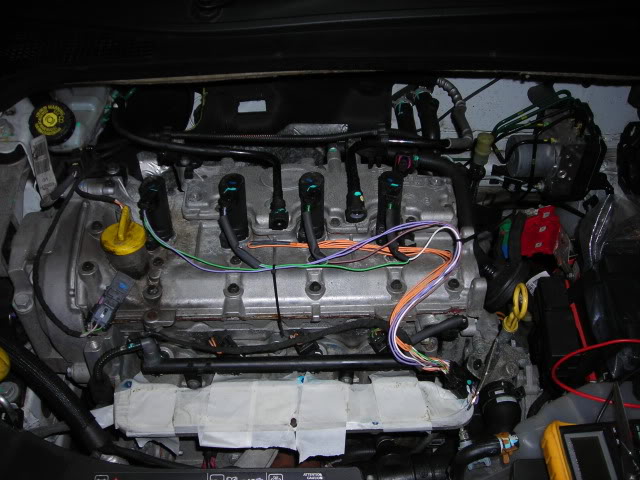

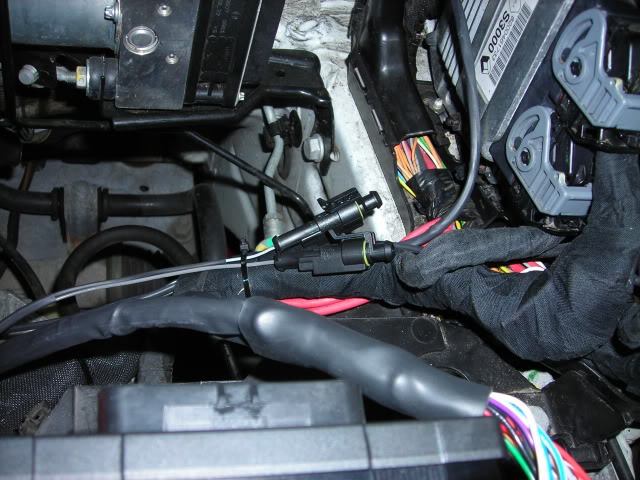

Coil pack loom

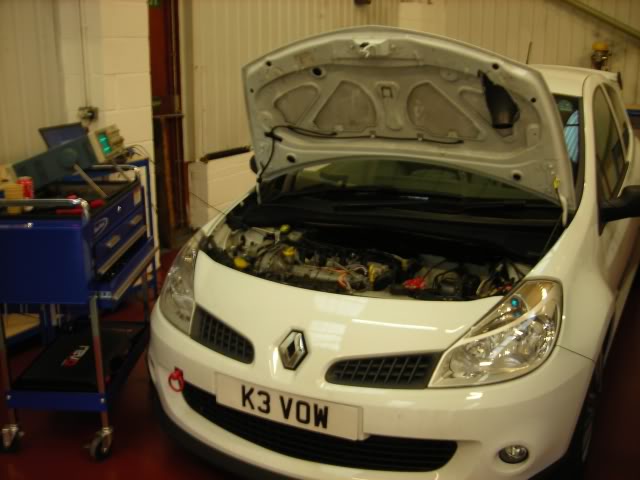

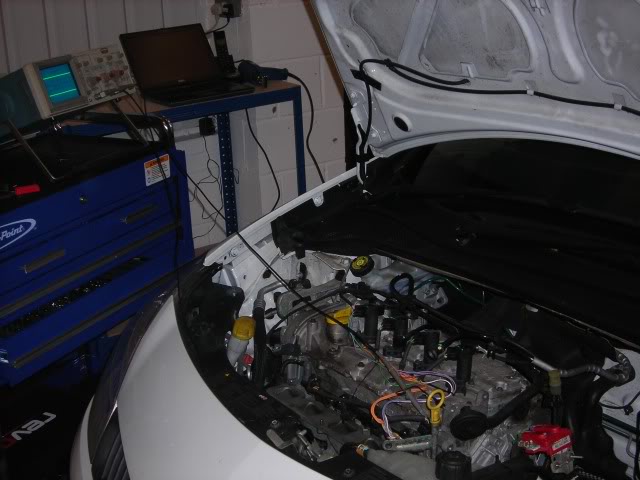

And a couple of the car connected to the osceloscope (sp) to check the crank signal



[kevo66]

Updates.....

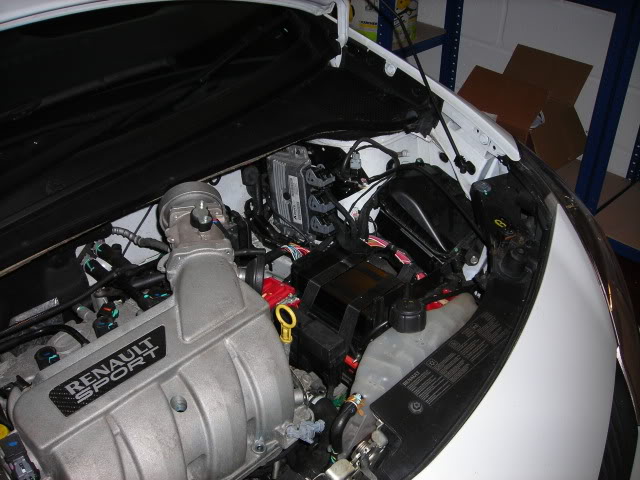

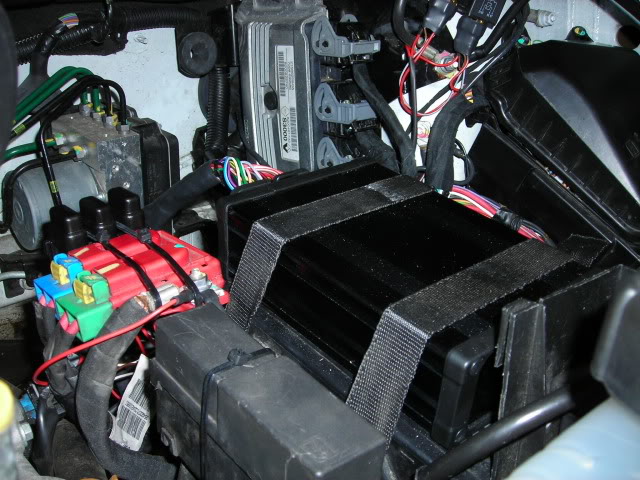

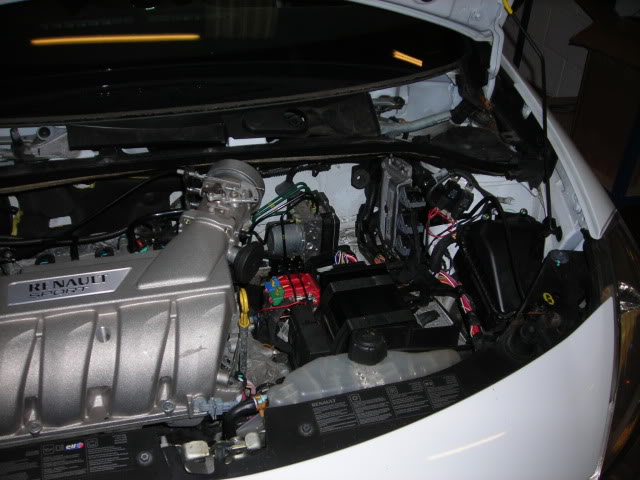

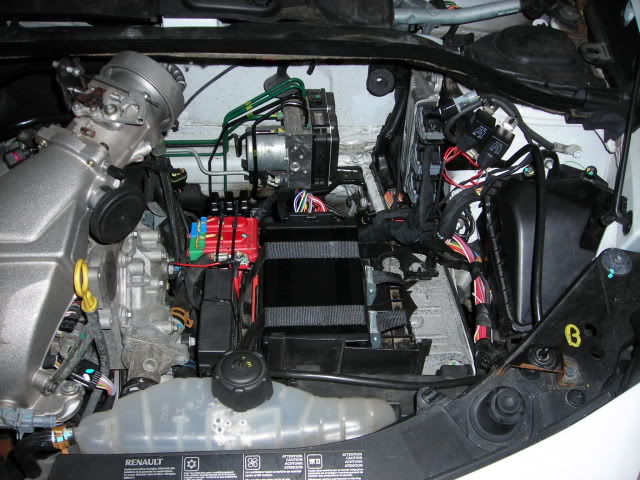

ECU in situ, looks proper OEM and neat, love it!!

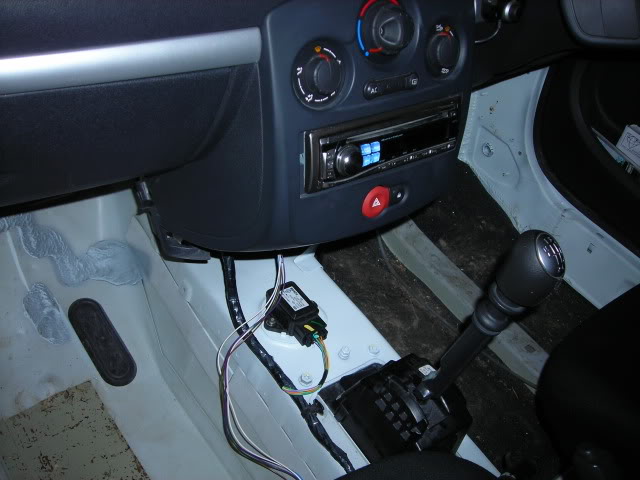

Comms loom through to the Passenger side for easy map changes, just needs a connector put on and mounting!!



[kevo66]

More pics!!!!

Outputs for any future mods, i.e shift lights etc....

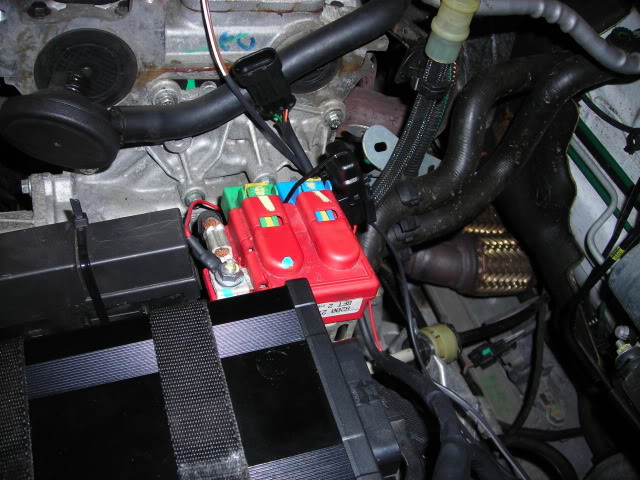

ECU power connected and ecu in place

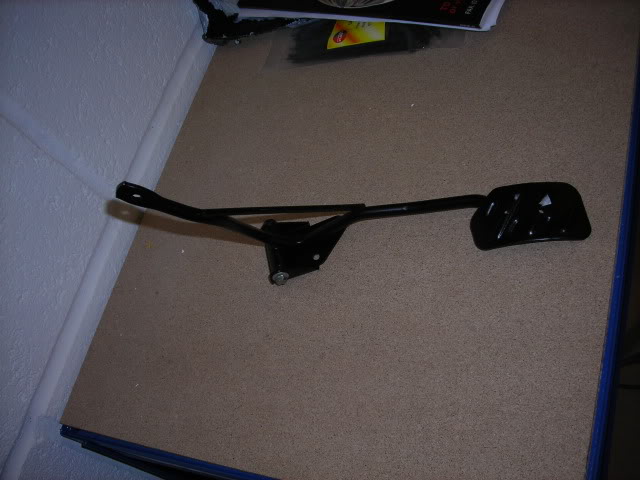

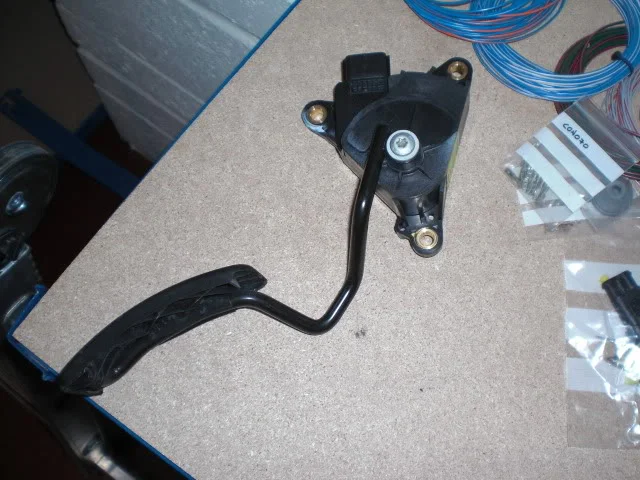

Cup racer cable throttle peddle

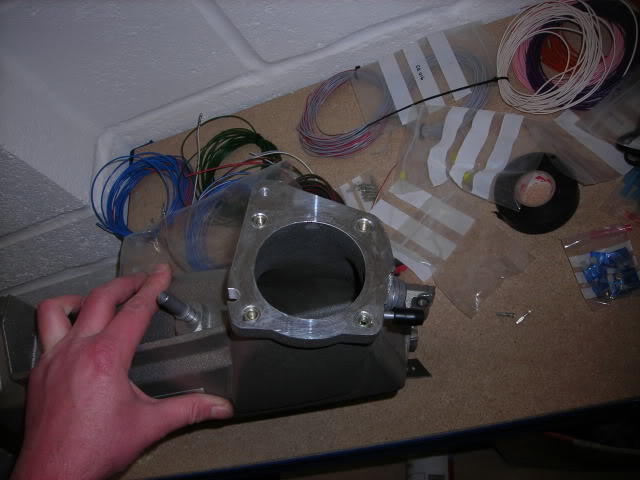

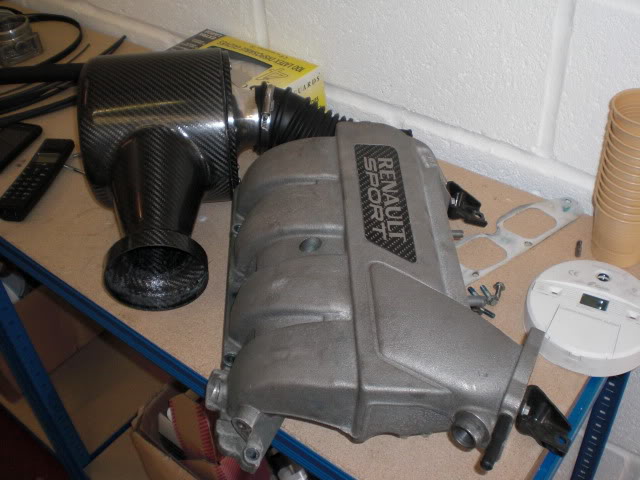

Inlet manifold from Oreca, direct fit to the new TB



[kevo66]

Hows that for a match between the enlarged TB, the massive trumpet and the enlarged inlet on the Oreca manifold?!!



[kevo66]

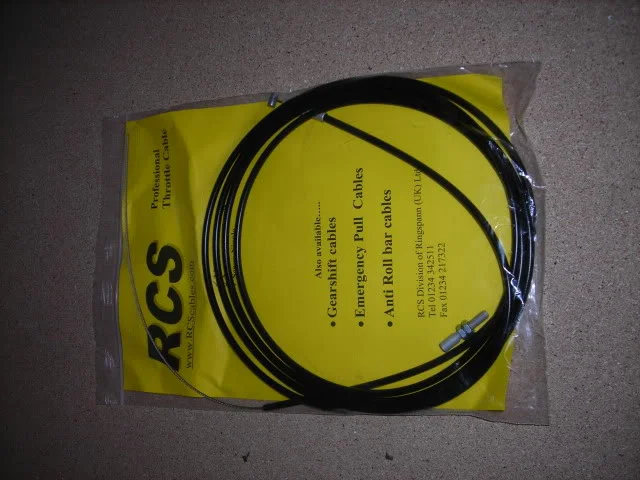

Throttle cable arrived and was fitted!

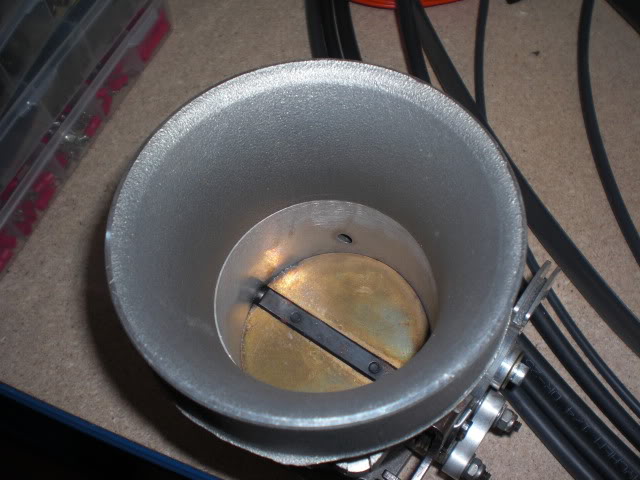

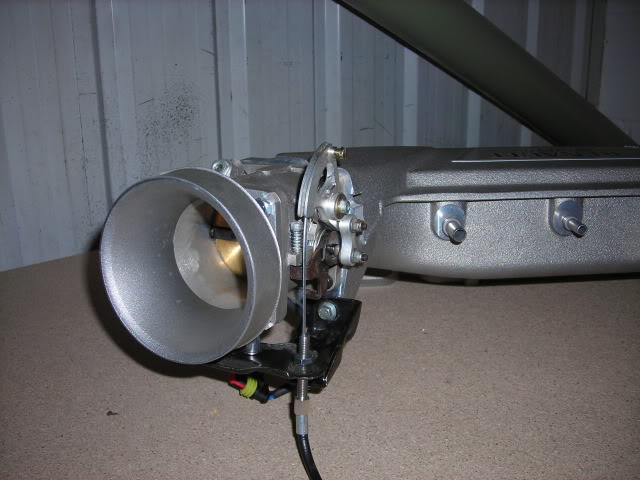

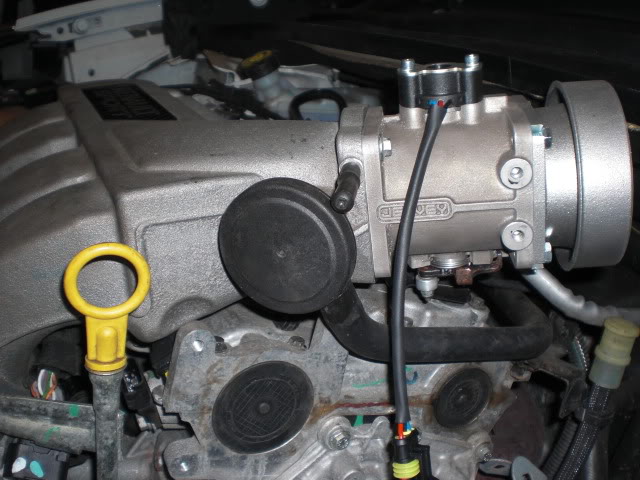

TB bolted together with trumpet and all other bits

Fitted to the Oreca manifold like a treat

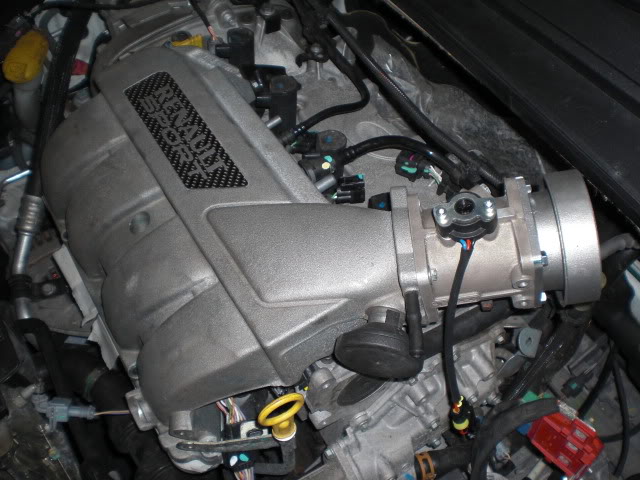

which in turn fitted to the car using the std mounts etc....

Once the pedal is sorted we should be able to fire her up!!!



[kevo66]

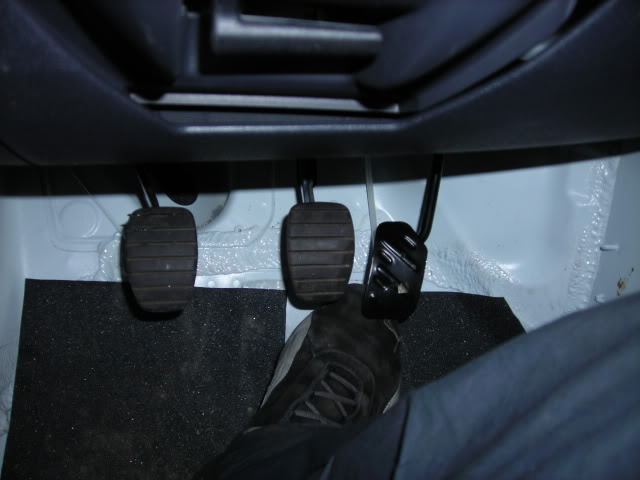

Pedals sorted and mounted, major ballache I hear!!
Need to decide what spacing I want though!!



[kevo66]

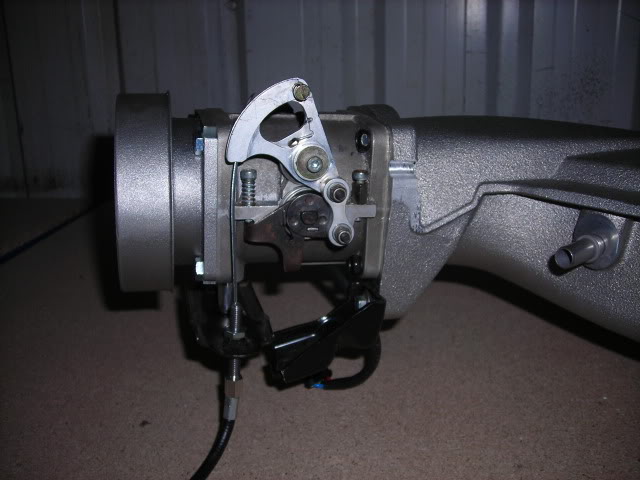

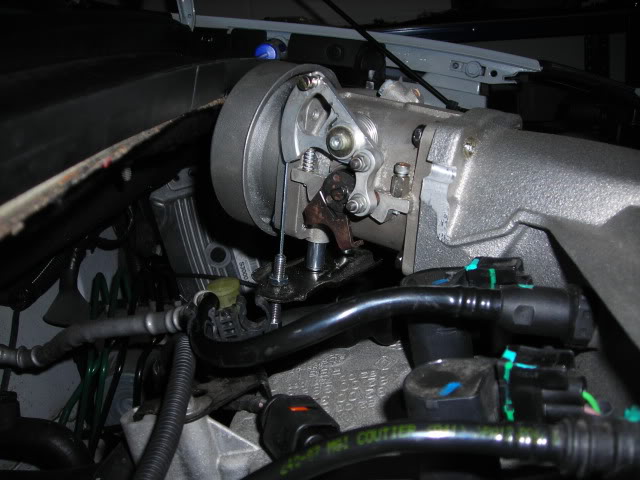

Cable atached to TB.. Yes its the opposite way, been run like that on the BPM Clio with no issues, we needed to mount it this way on mine too!

Water temp sender and T piece (top left) ready to go in!

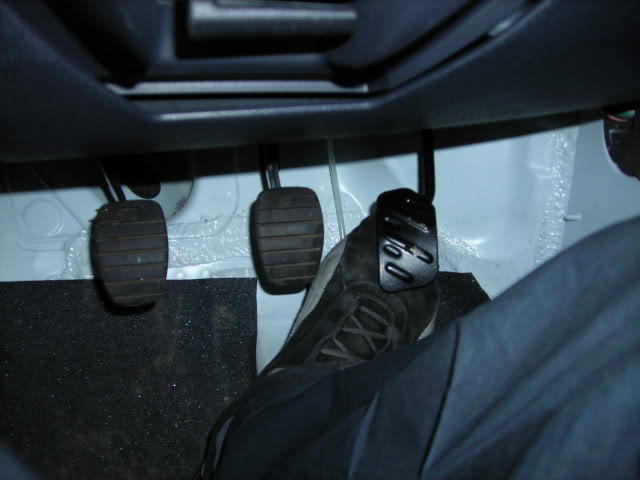

Final pedal position set

A bit of carbon for good measure!! This is the comms point for any mapping changes etc...

As you can see, the interior still needs work lol!!



[Jonny1*2]

Nice work Kev. I mean Matt . You keeping it an open tb?

All that weight reduction and you still have a stereo. And I thought you were hardcore.. get an Ipod :approve:



[kevo66]

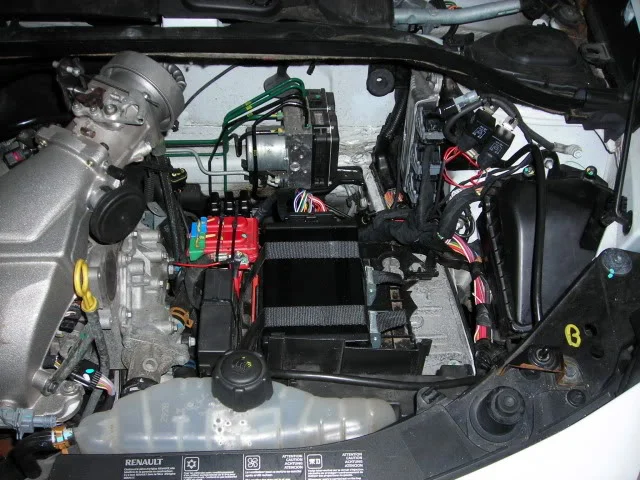

Final ECU and loom fitted

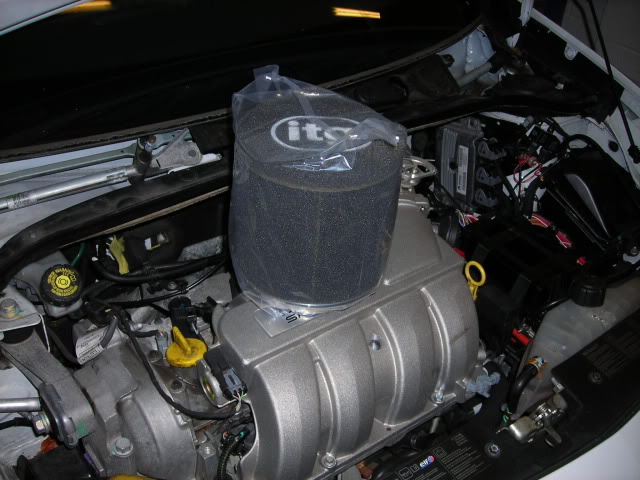

The new MAHOOSIVE filter.... just to give you some idea of the size!

and a cheeky wee vid showing how spot on the cold start is and a wee insight as to just how naughty the new TB set up sounds!!
http://www.youtube.com/watch?v=cpVwf8fzFt0



[kevo66]

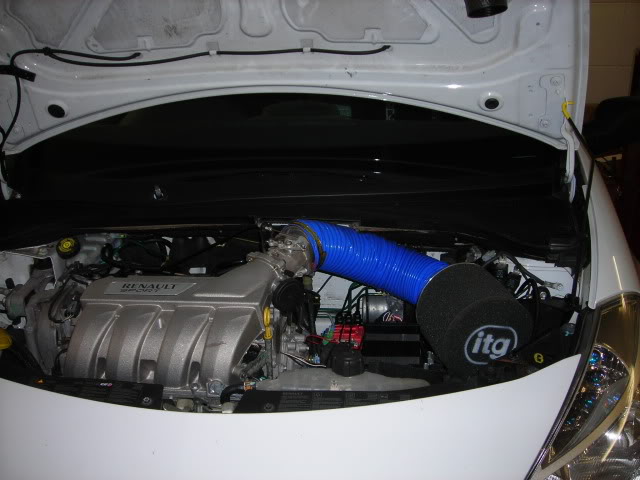

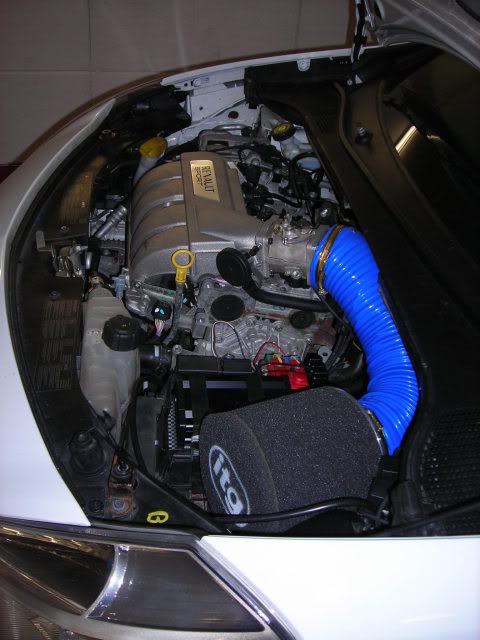

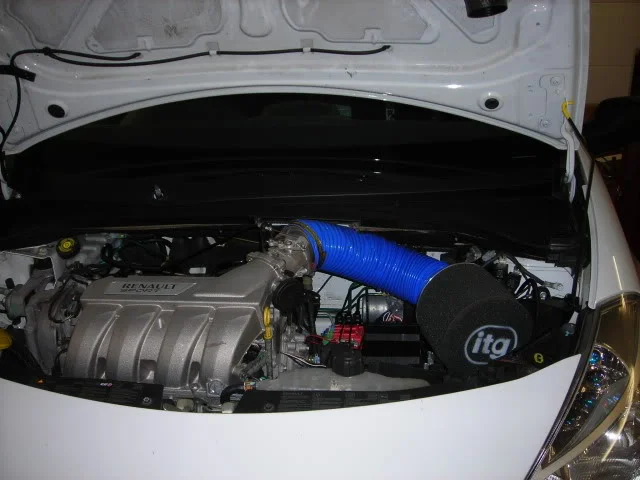

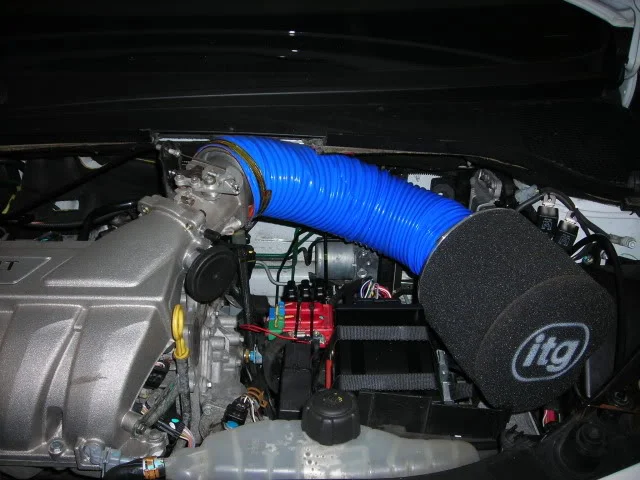

HUGE filter is hooked up and under the bonnet vent!! The silicone, although it looks crappy cos of the crinkles is proper stuff that doesnt loose its diameter when bent so we have a full 20mm diameter more air getting to the TB trumpet!!
Matt says that as the car was that poorly (running rich) that today now its running right its covering the dyno room in black crap!!

http://s122.photobucket.com/albums/o248/kevo66/?action=view&current=CIMG8937.flv

http://s122.photobucket.com/albums/o248/kevo66/?action=view&current=CIMG8932.flv

^^^Ignore the speedo vid, its more for sound! I ballsed it and got wheelspin and then hit the limiter in 3rd lol!



[kevo66]

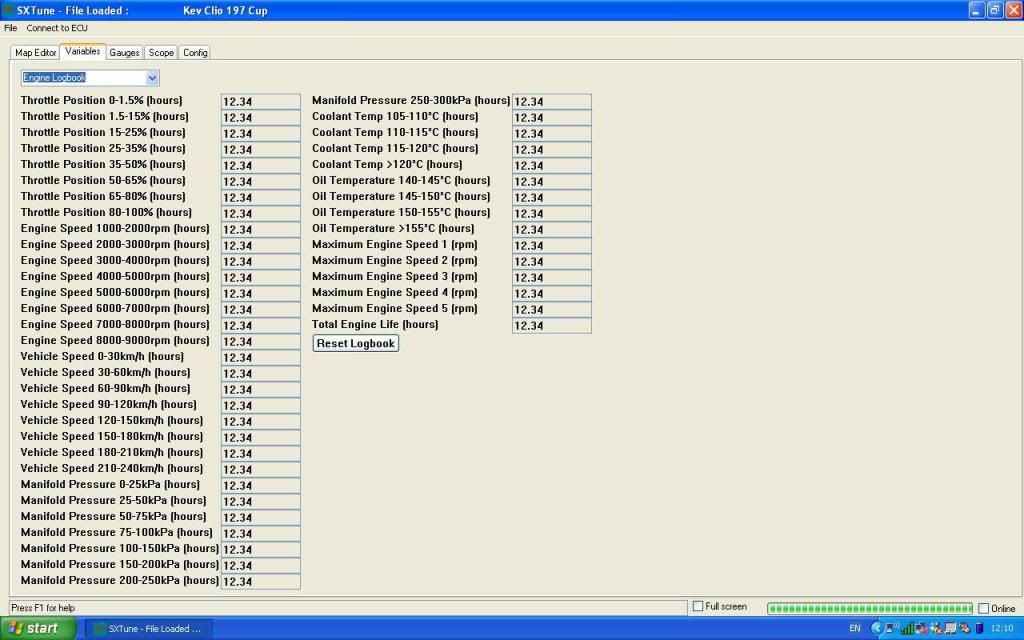

Matt has added a very detailed engine logbook function.
This is mega cool IMHO - basicaly an area of the flash is reserved for the data and it logs various parameters such as the top 5 peak RPM's, engine hours......

At a glance you can now see if the driver has over revd the engine, if the engine has had cooling issues, how long they've been at WOT for etc. etc. All of this data is also available on the CANBus so if you've got a Pi D2 dash or similar you can now use it to do a proper fuel count etc. for laps remaining.

Now at this point all should have been well and we should have been back in the 200s BUT....... we couldnt get it there (only 193BHP) so we investigated and found that the cam timing was WAY out, not sure how or why or when.... but the exhaust cam was about 4degrees out!

Aslo, the results of it running so rich became apparent, f**ked plugs too.... (it also ruined a cat)!! So it went to the Kevs at Birchdown to re-time.

Mapping finished today

202 and thats the lot I think!! Goes well now, its genuinely a very quick car, not just me looking at it through rose tinted specs, 3rd gear is immense!

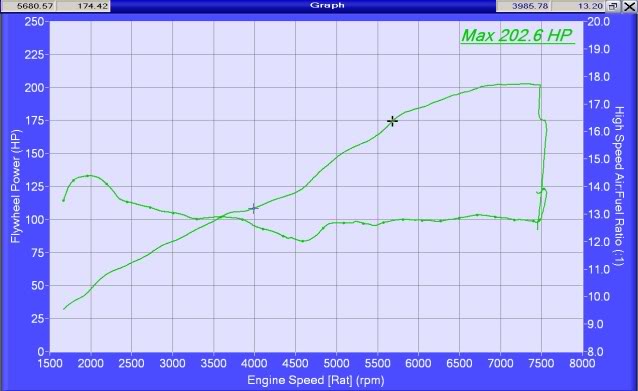

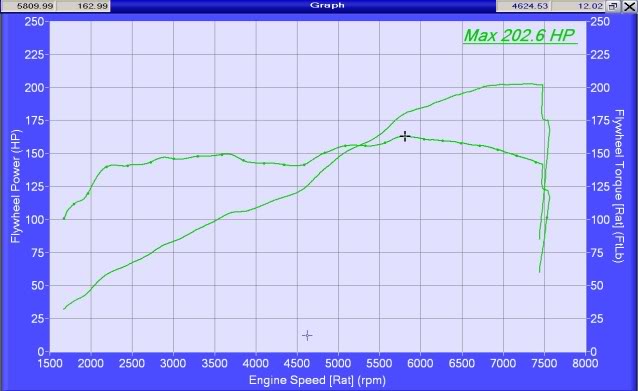

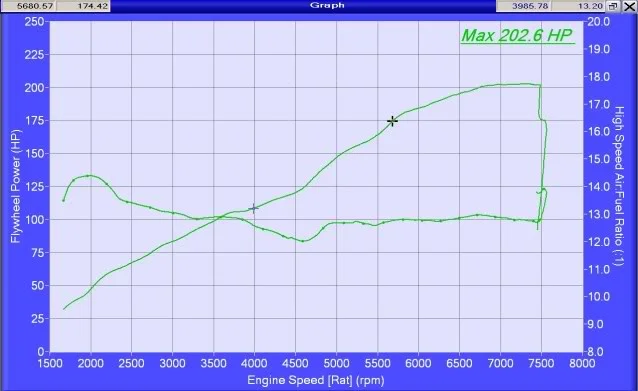

Graphs
Power and AFR

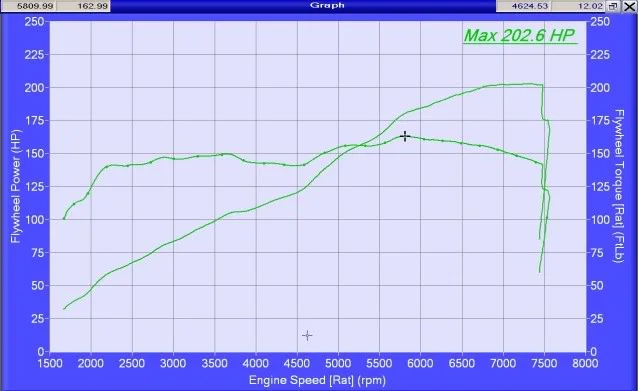

Power and tourque



[kevo66]

I cant qualify enough the point that this has been a MASSIVE ballache to do for MAtt and has required some epic epic skills.
