Hi,
I'm working on my ICE install at the moment and thought I'd share the wiring colours used in the front.

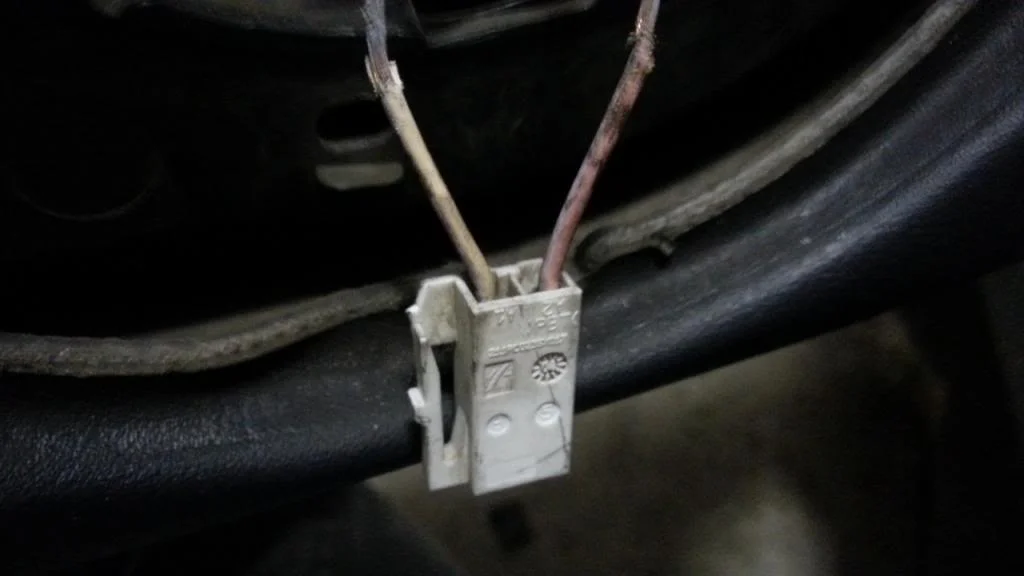

Front Left Door:
![Clio182-CabasseWiring-FrontLeftDoor_zpsa5b6caad.jpg Clio182-CabasseWiring-FrontLeftDoor_zpsa5b6caad.jpg](https://cliosport.net/attachments/clio182-cabassewiring-frontleftdoor_zpsa5b6caad-jpg.1023708/)

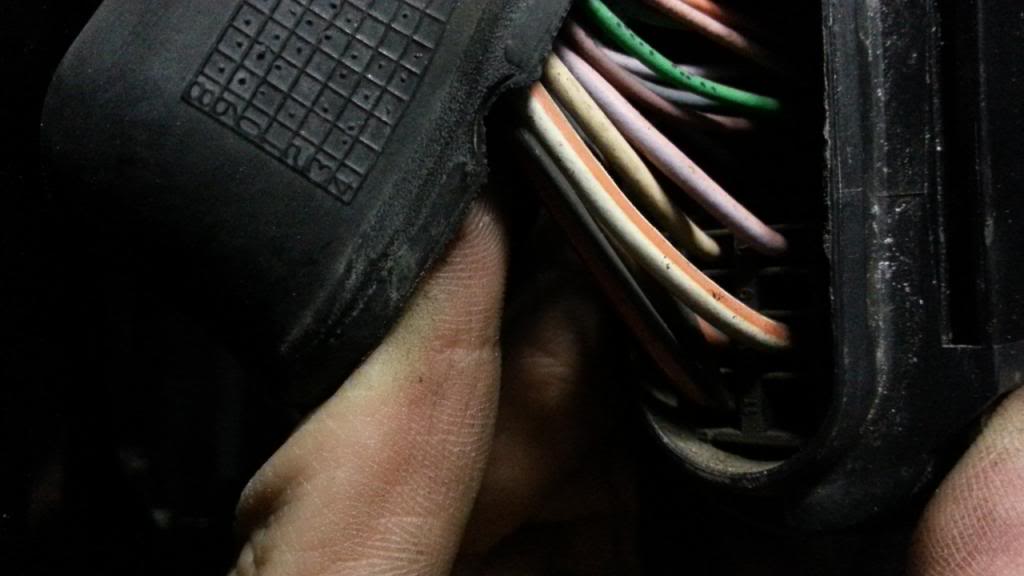

Front Left Door Connector:
![Clio182-CabasseWiring-FrontLeftDoorConnector_zpsc1b66093.jpg Clio182-CabasseWiring-FrontLeftDoorConnector_zpsc1b66093.jpg](https://cliosport.net/attachments/clio182-cabassewiring-frontleftdoorconnector_zpsc1b66093-jpg.1023709/)

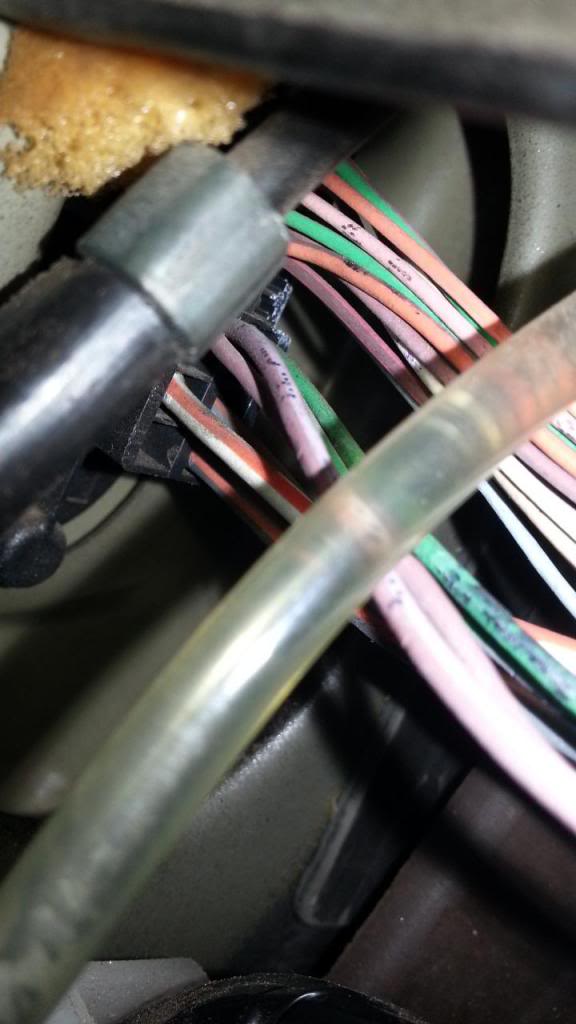

Front Left Inside Car:
![Clio182-CabasseWiring-FrontLeftInsideCar_zps13962c96.jpg Clio182-CabasseWiring-FrontLeftInsideCar_zps13962c96.jpg](https://cliosport.net/attachments/clio182-cabassewiring-frontleftinsidecar_zps13962c96-jpg.1023710/)

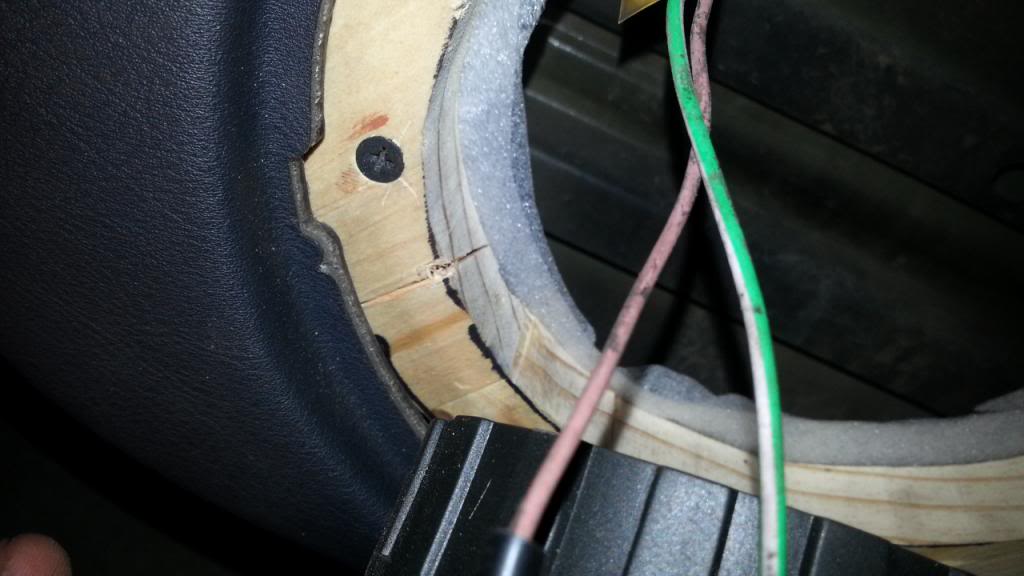

Front Right Door:
![Clio182-CabasseWiring-FrontRightDoor_zps4bf9fdcc.jpg Clio182-CabasseWiring-FrontRightDoor_zps4bf9fdcc.jpg](https://cliosport.net/attachments/clio182-cabassewiring-frontrightdoor_zps4bf9fdcc-jpg.1023711/)

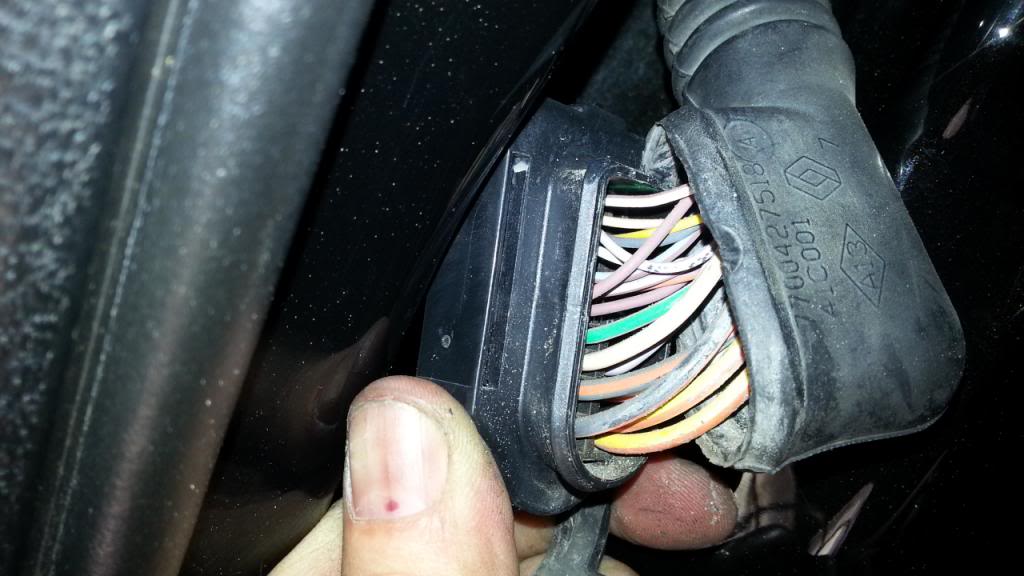

Front Right Door Connector:
![Clio182-CabasseWiring-FrontRightDoorConnector_zps36ab6492.jpg Clio182-CabasseWiring-FrontRightDoorConnector_zps36ab6492.jpg](https://cliosport.net/attachments/clio182-cabassewiring-frontrightdoorconnector_zps36ab6492-jpg.1023712/)

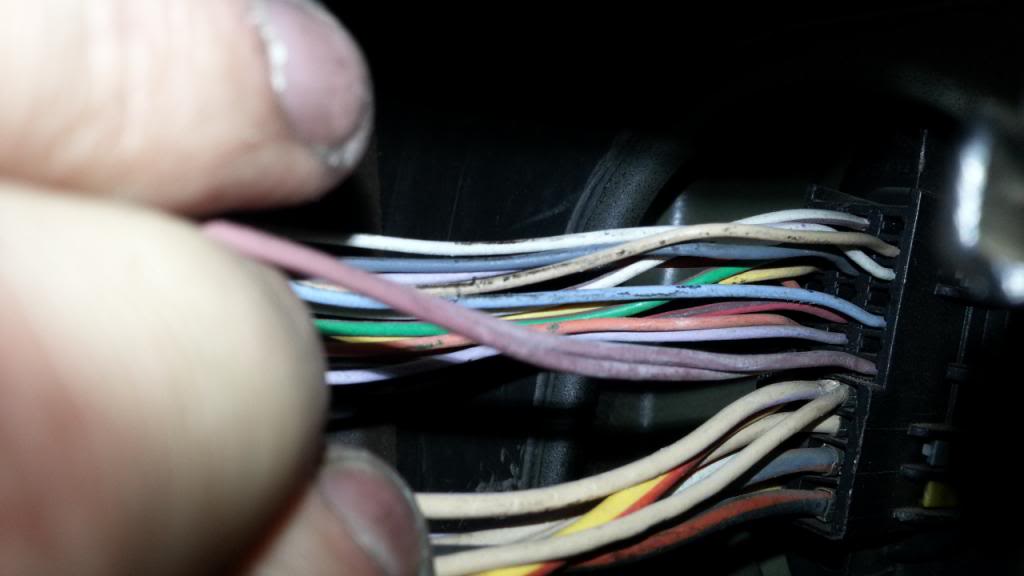

Front Right Inside Car:
Summary: (Used a Multimeter to test for polarity)
Front Left Door + Connector - Yellow/White wire as negative | Purple/Pink wire as positive
Front Left Inside Car - Twin Purple/white as positive | Twin green as negative
(one thick one thin in same socket, thin one to tweeter)
Front Right Door + Connector - Pink as positive | Green/White as negative
Front Right Inside Car - Twin Yellow/Purple as negative | Twin Purple/Pink as positive
(one thick one thin in same socket, thin one to tweeter)
Let me know if I made a mistake and I'll test and update my summary.
Regards,
Paul
